Pioneer X-HMD0

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-08-19

Manufacturer
Pioneer
Model / source grouping
X-HMD0
Device type
bookshelf
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer X-HMD0”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Pioneer X-HMD0


Name X-HMD0
Manufacturer Pioneer
Released 1998/10
Device type bookshelf
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio Not recorded
Dimensions 145 x 137 x 235 mm per cube
Weight 1.4Kg (MD unit)
ATRAC ver 4
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
Not recorded
-
Inputs RCA in
Outputs 3.5mm headphone, Speaker amplifier
Control Not recorded

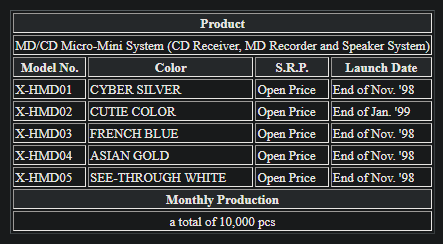

X-HMD01, X-HMD02, X-HMD03, X-HMD04, X-HMD05 are colour variants of the same design.

Features: Pioneer's "Happy Tune" MD ("HMD") System. CD/MD "Source-In-Play" (CD/MD software will be automatically playback when inserted), CD/FM/AM/AUX/MD Mix-Playback, 3-Mode Timer (wake-up/Record/Sleep), Synchro Recording, Variety of Editing Functions (move/erase/all erase/divide/combine), Track Title Input (Japanese Katakana figures/alphabets/numbers/symbols), 32 Step Programmed Playback, Random & Repeat Playback.

Specs: Energy saving power consumption of 3W at standby, Full Range 10cm Cone type speakers, Amplifier Max. Power Output: 5W + 5W, FM Tuner Frequency Response: 76.0MHz - 108.0MHz, Power Requirements: AC100V (50/60Hz), MD Recorder Frequency Response: 20Hz - 20KHz.

ATRAC: CXD2652AR
MD appears to go through the CXP84632-1 and CXA2523AR for AD/DA conversion
MD Device: KMS-260A
MD Mecha. KMK-260AAB
MD Mount: A-4917-020

Content adapted from: Pioneer Press Release Archived Pioneer press release (different) Minidisc.org Page

Manuals

Pioneer X-HMD01 Service Manual

Repair

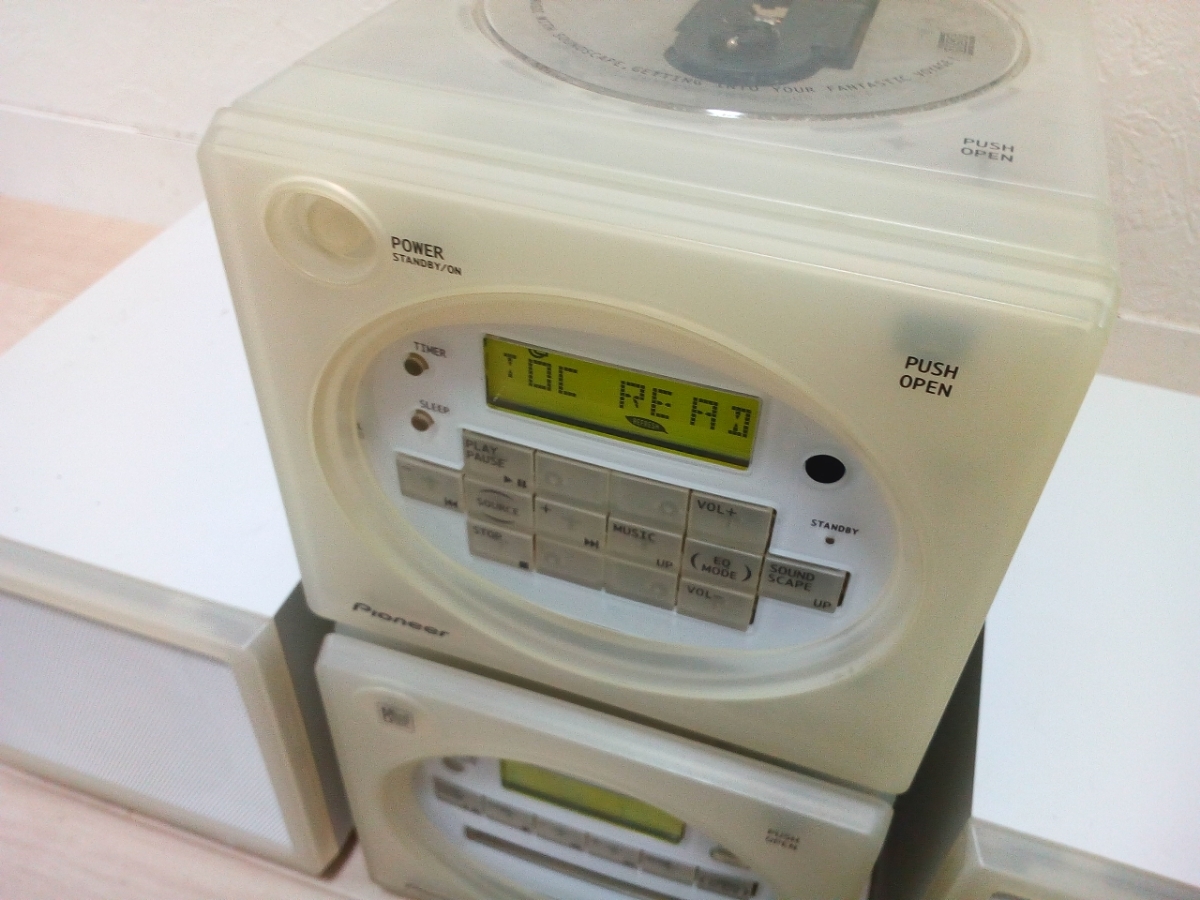

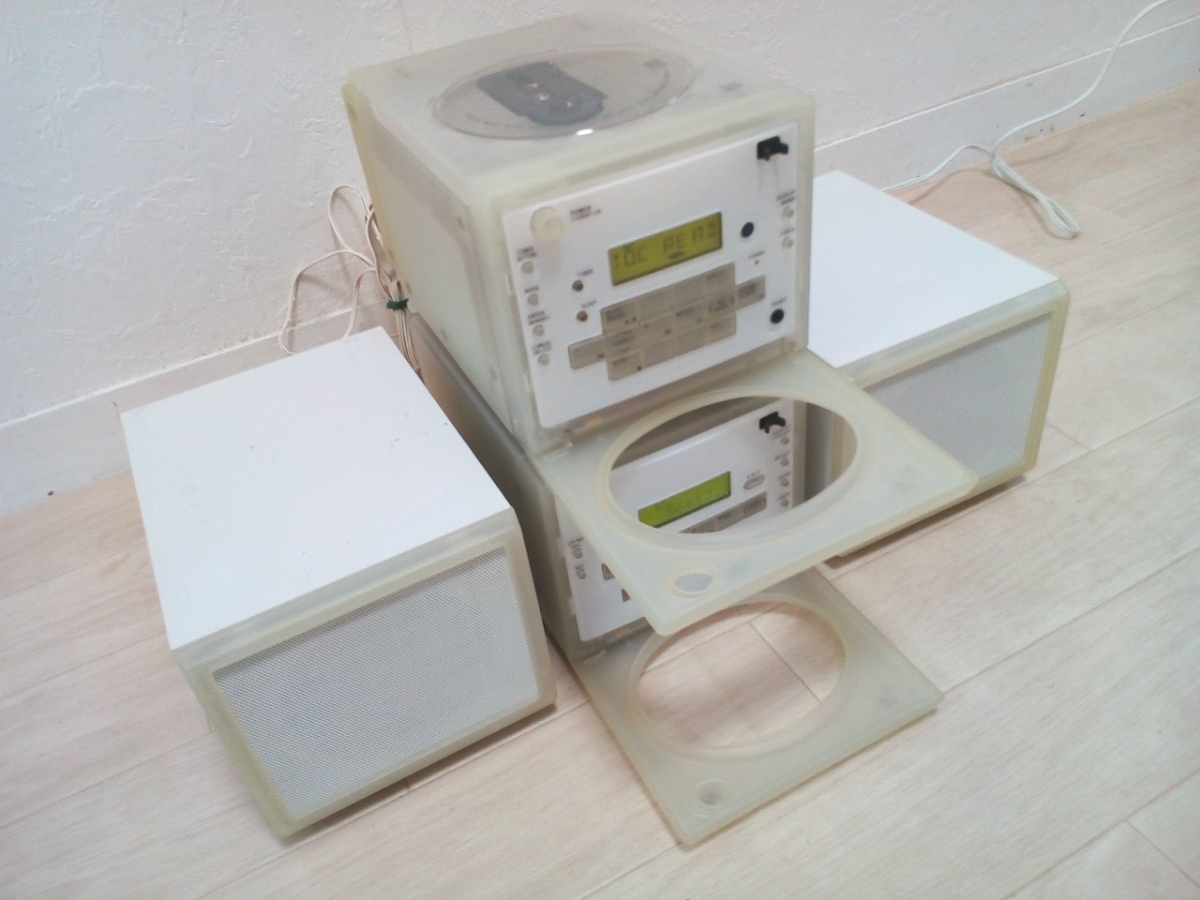

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Remote Page
Atrac IcCXD2650R / CXD2652/R/AR
ManualService manual
RegionJapan
