| Name | X-MDJ5 |
|---|---|
| Manufacturer | Pioneer |
| Released | 1996/09 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - world band |
| Dimensions | 260 x 310 x 371.5 mm |
| Weight | 11500 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥110 000 | |
| - | |

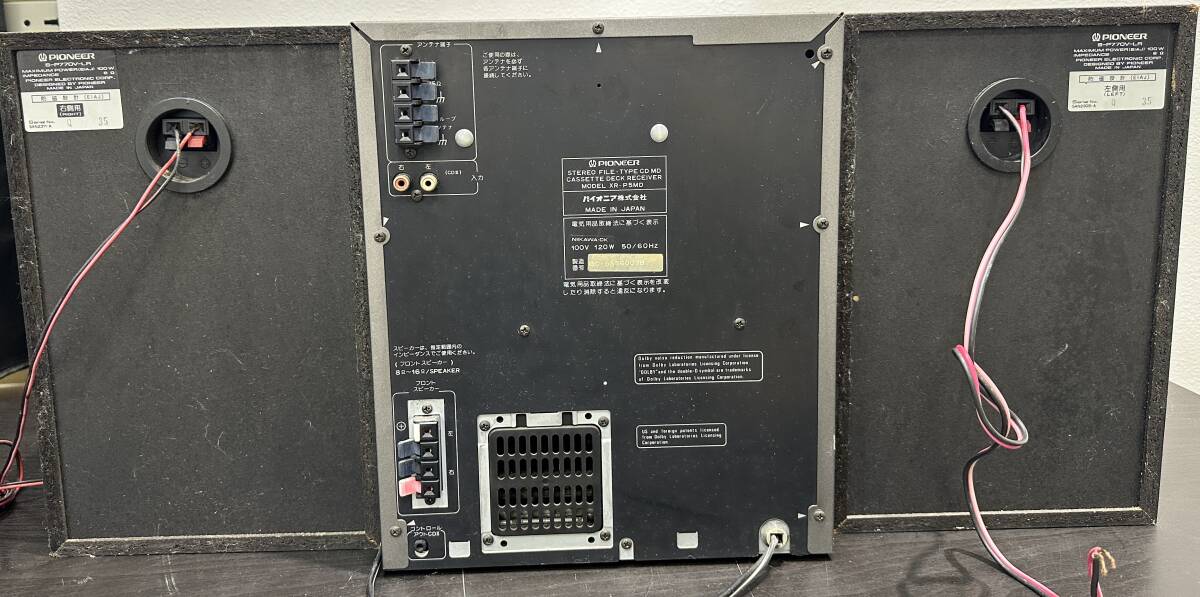

| Inputs | 3.5mm microphone, RCA in, CD, Radio recording, Tape deck |
| Outputs | RCA out, Tape deck |
| Control | Not recorded |

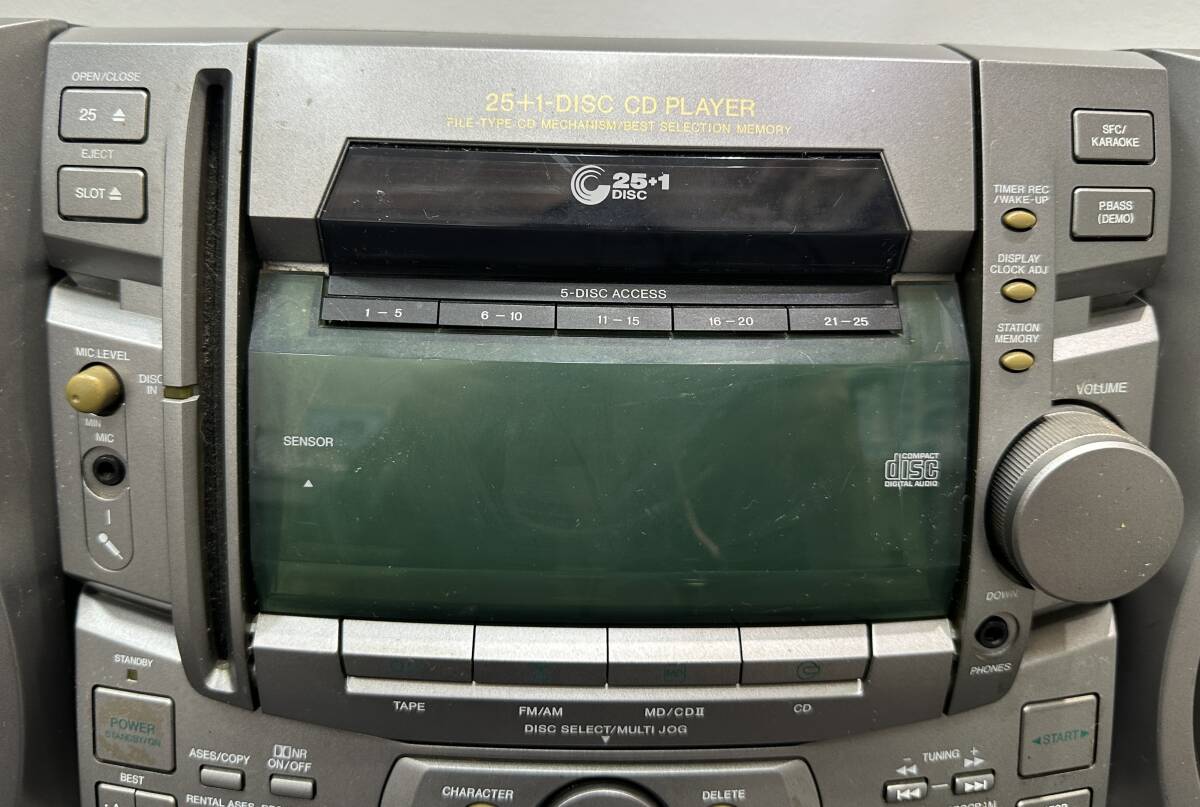

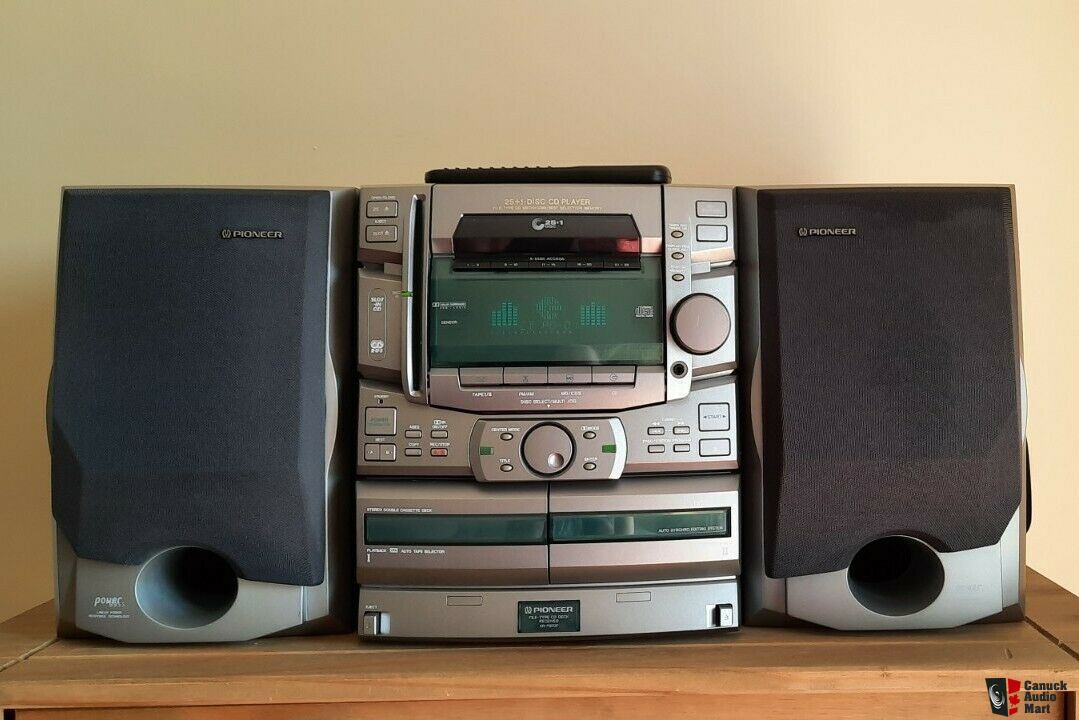

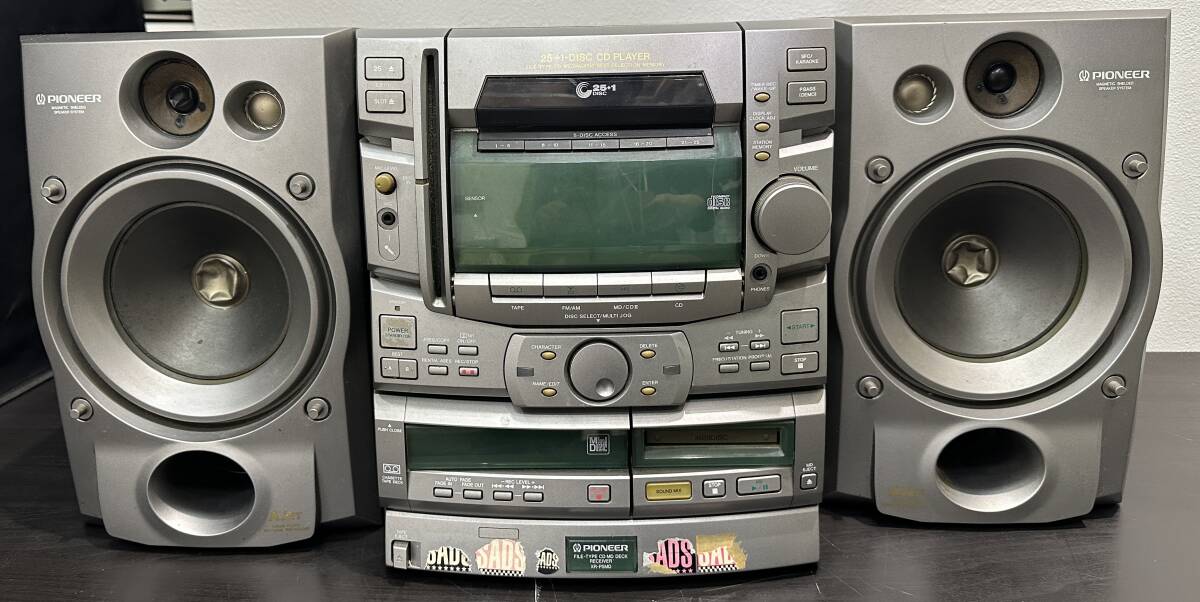

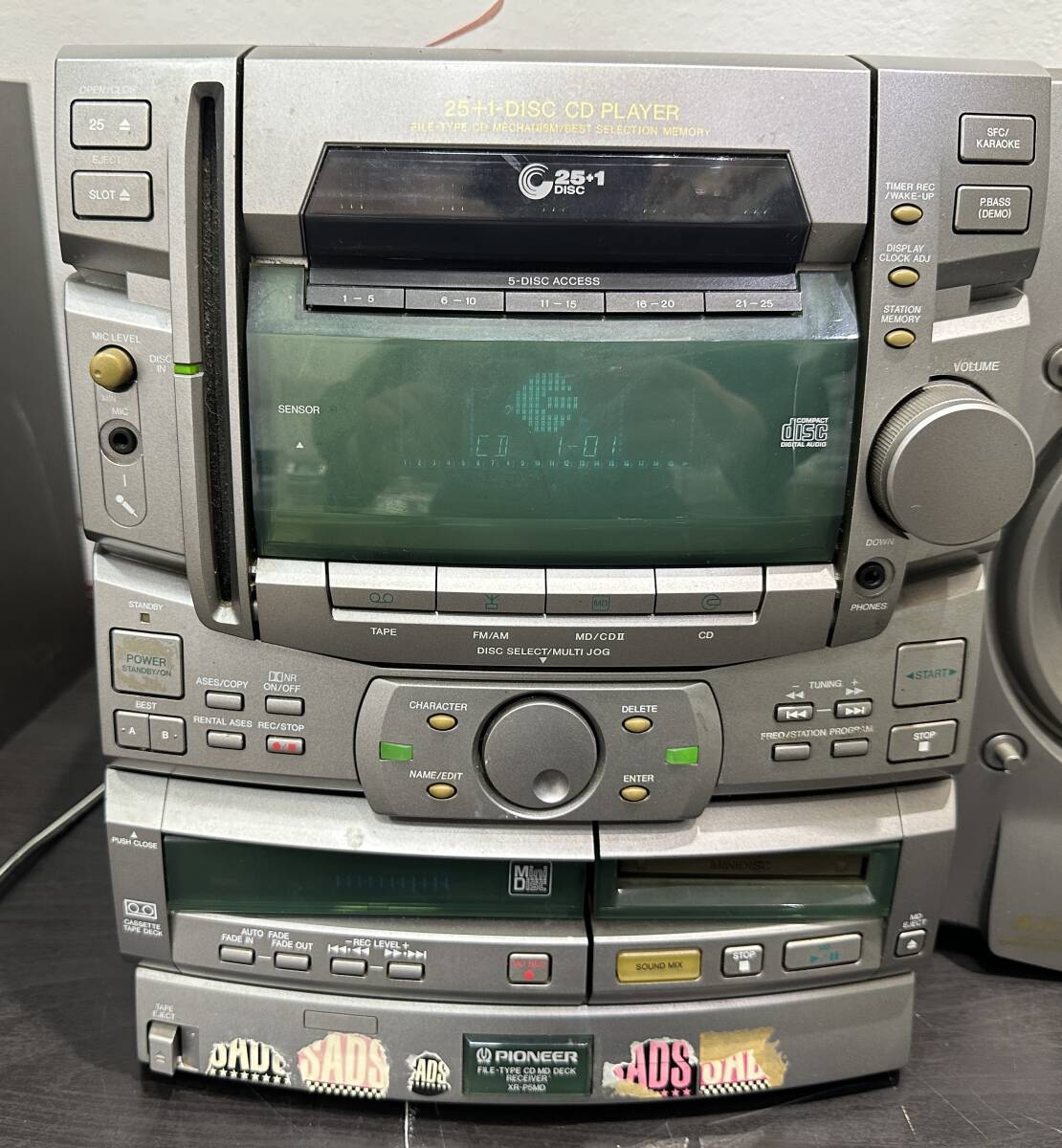

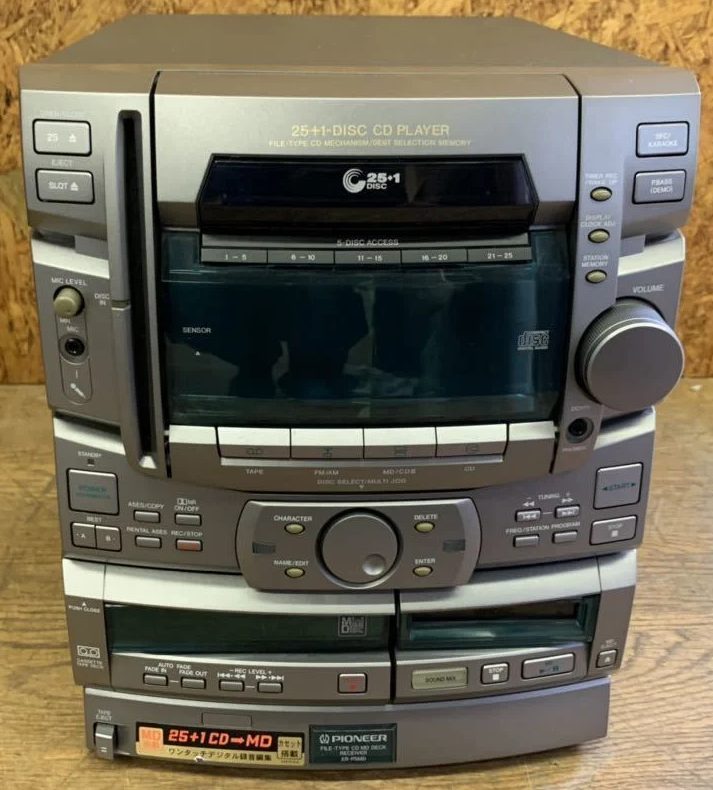

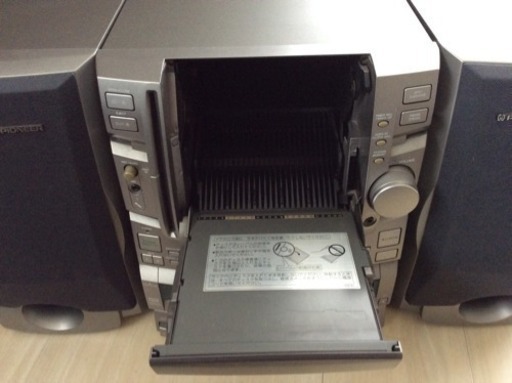

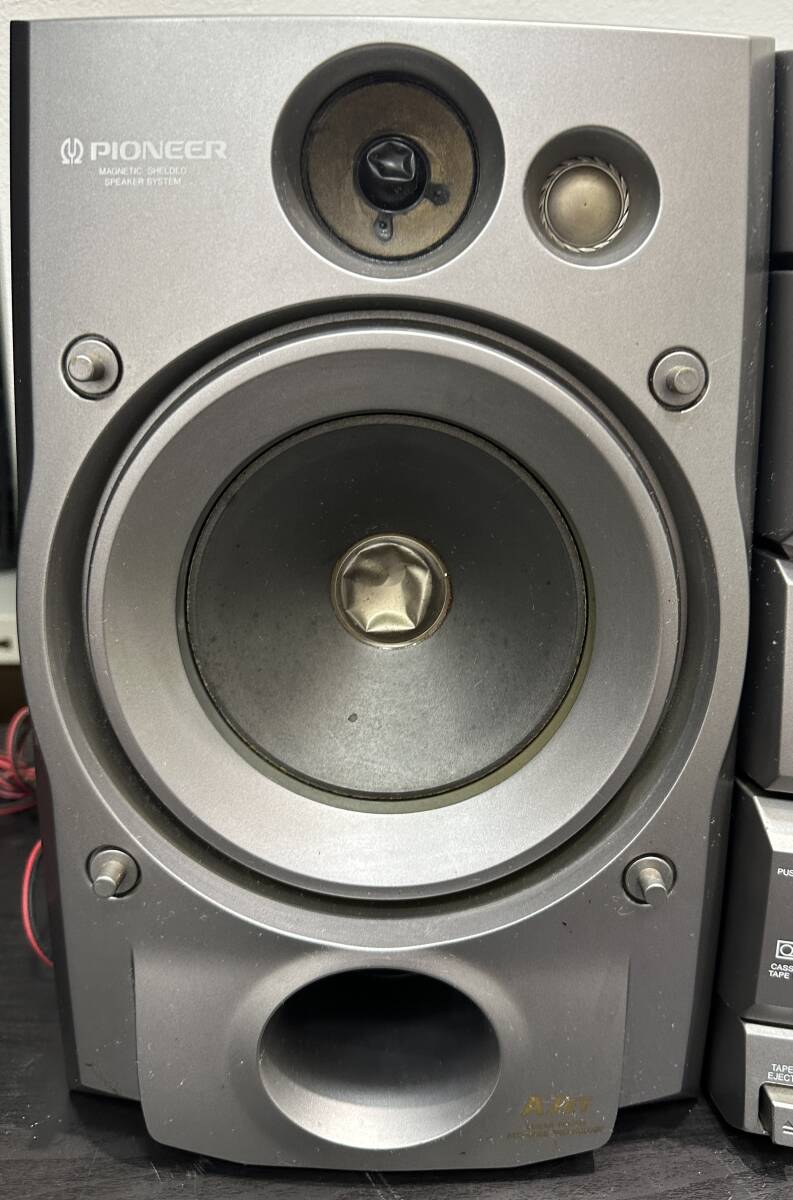

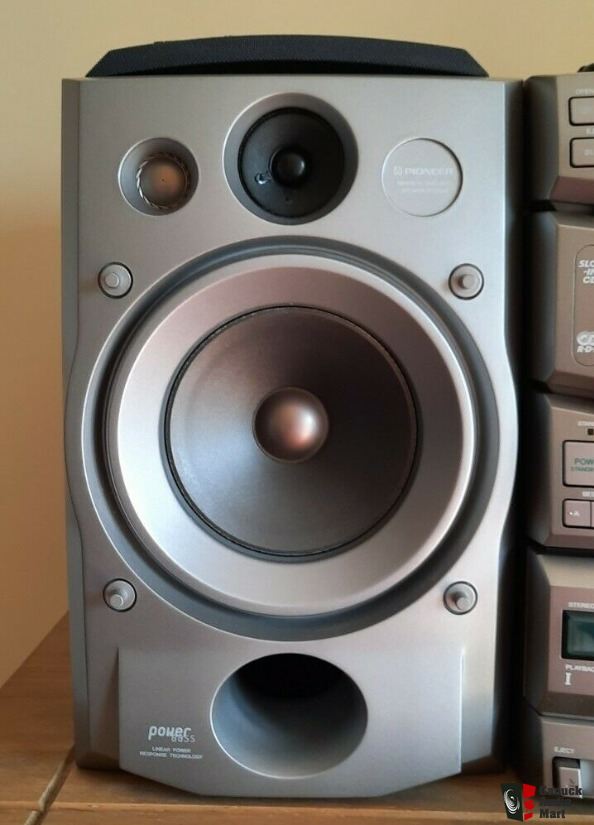

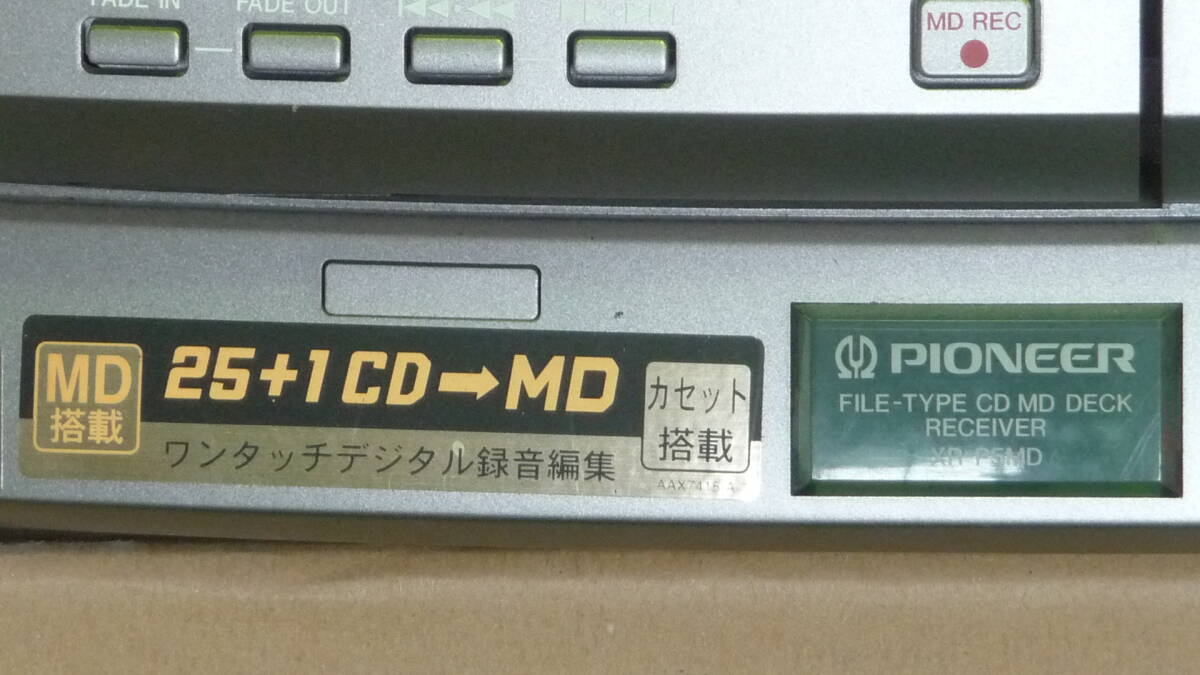

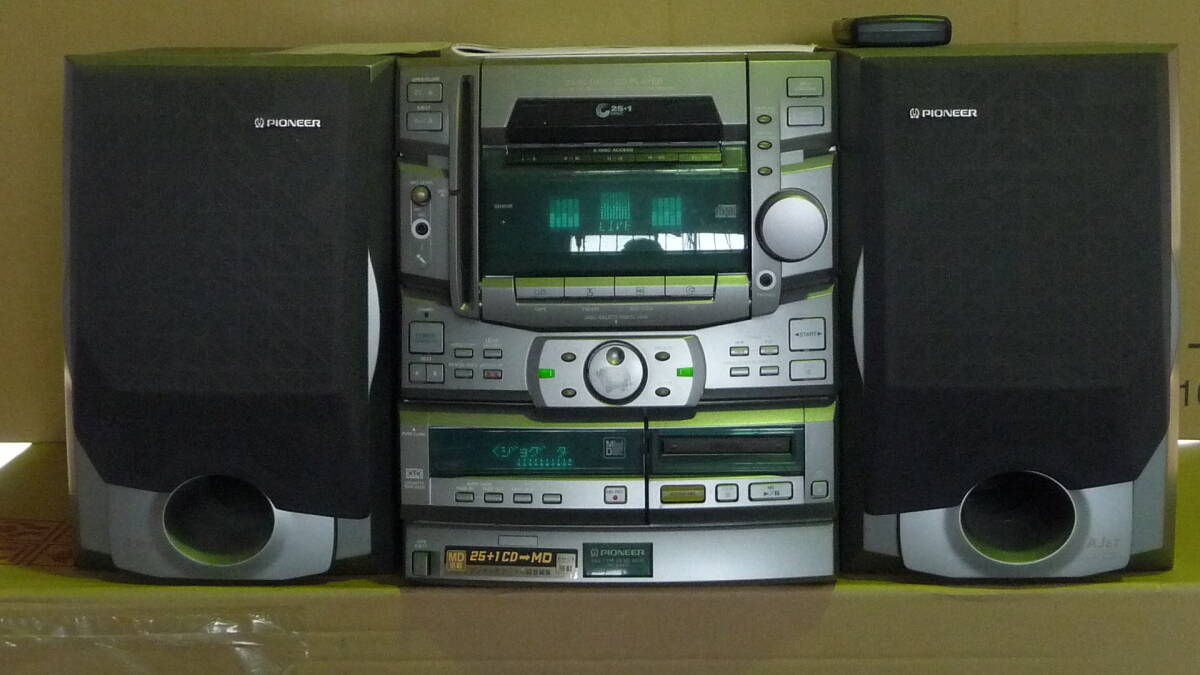

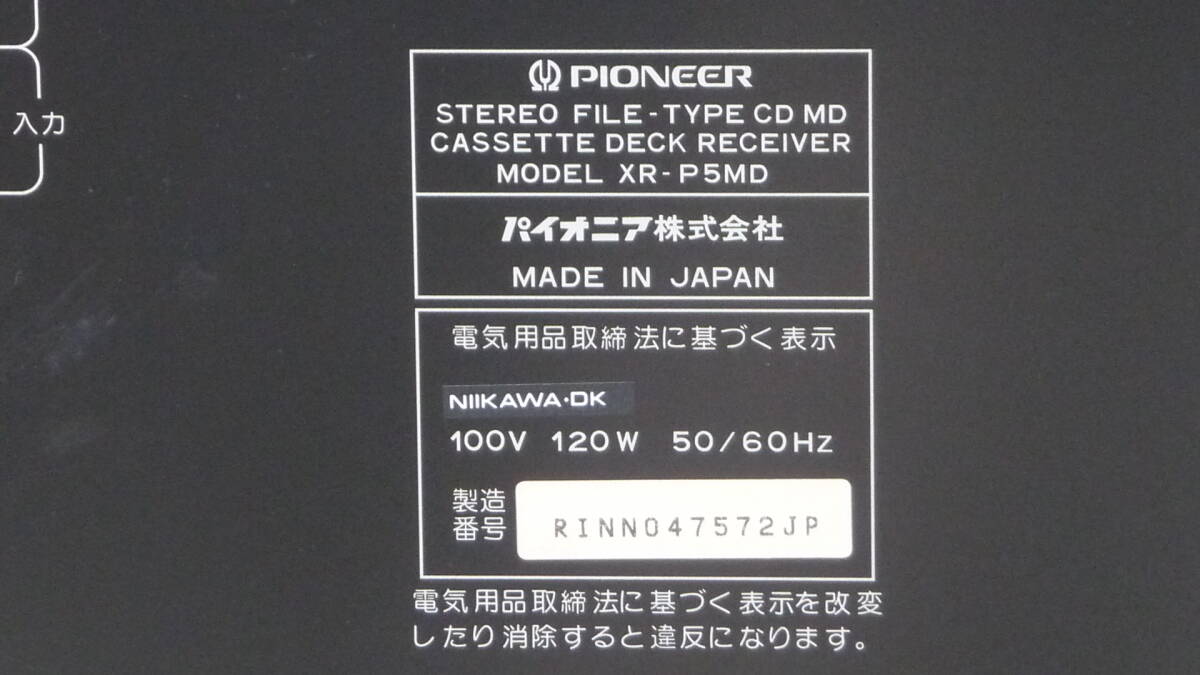

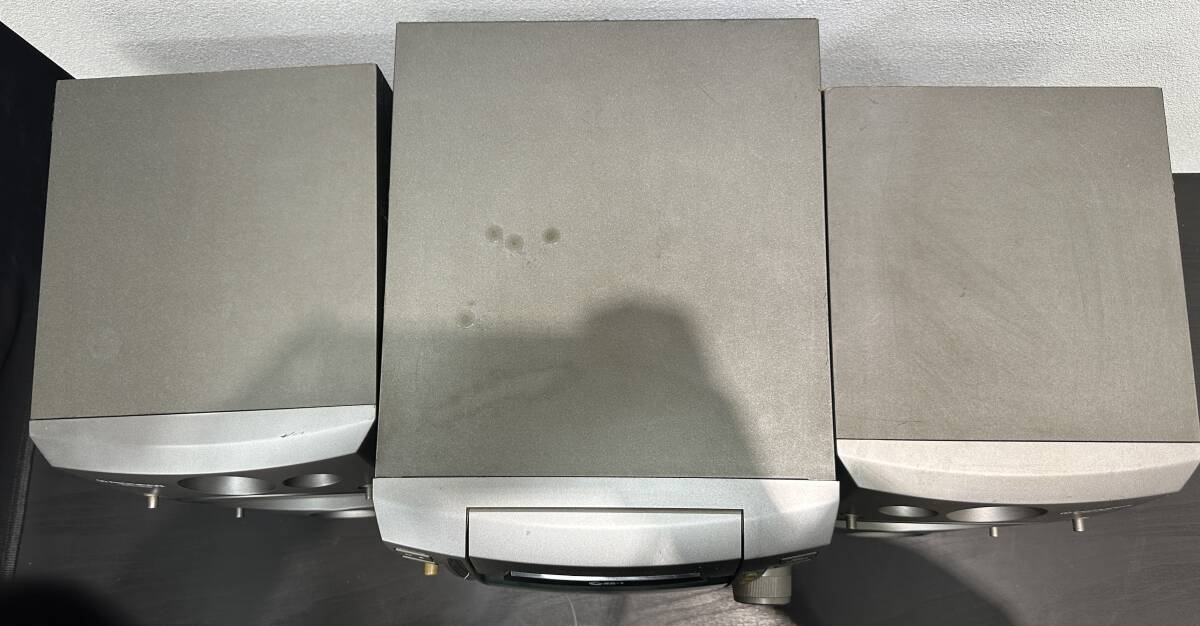

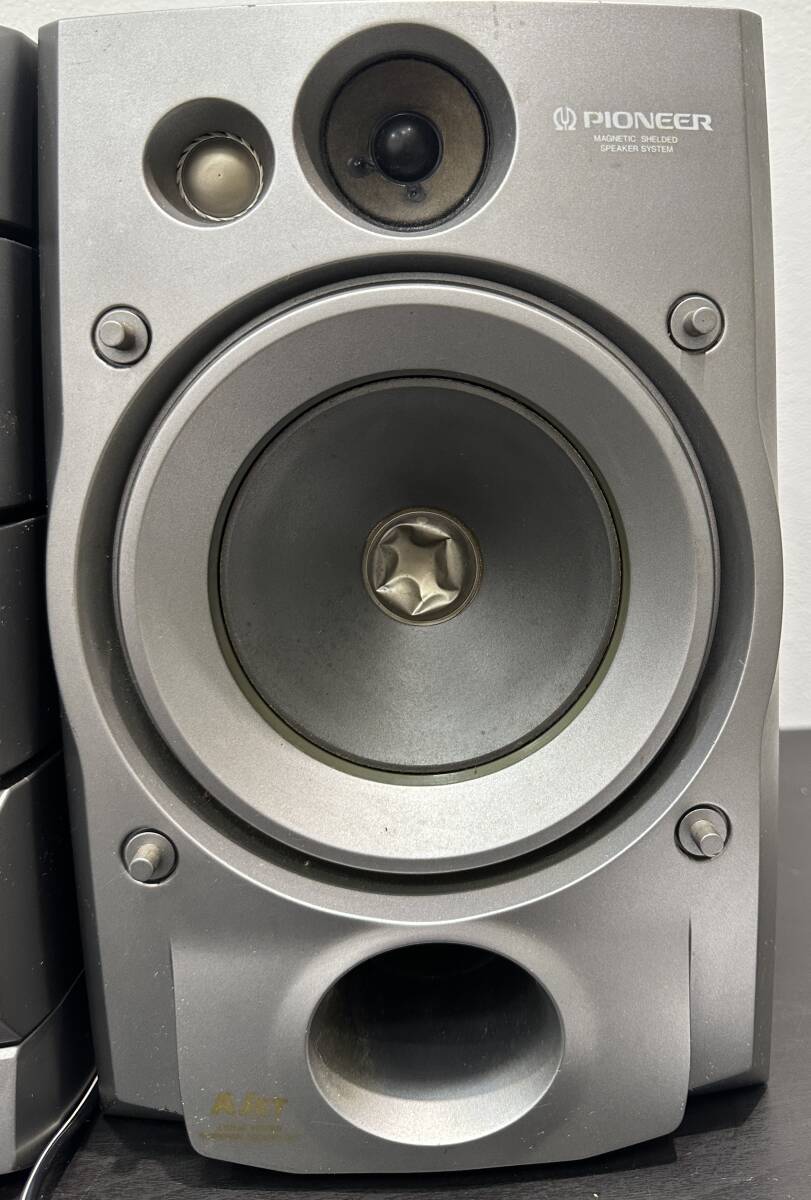

X-MDJ5 is the system name, XR-P5MD is on the main body, S-P770V-LR are the speakers. 25 CD changer with 1 separate slot for quick playback.
Has the ability to play CD and MD simultaneously. Press the remix button for 2 seconds or longer to scroll to "CD-MD SOUND MIX"
Auto BPM counter for CD or MD displays BPM for either source.

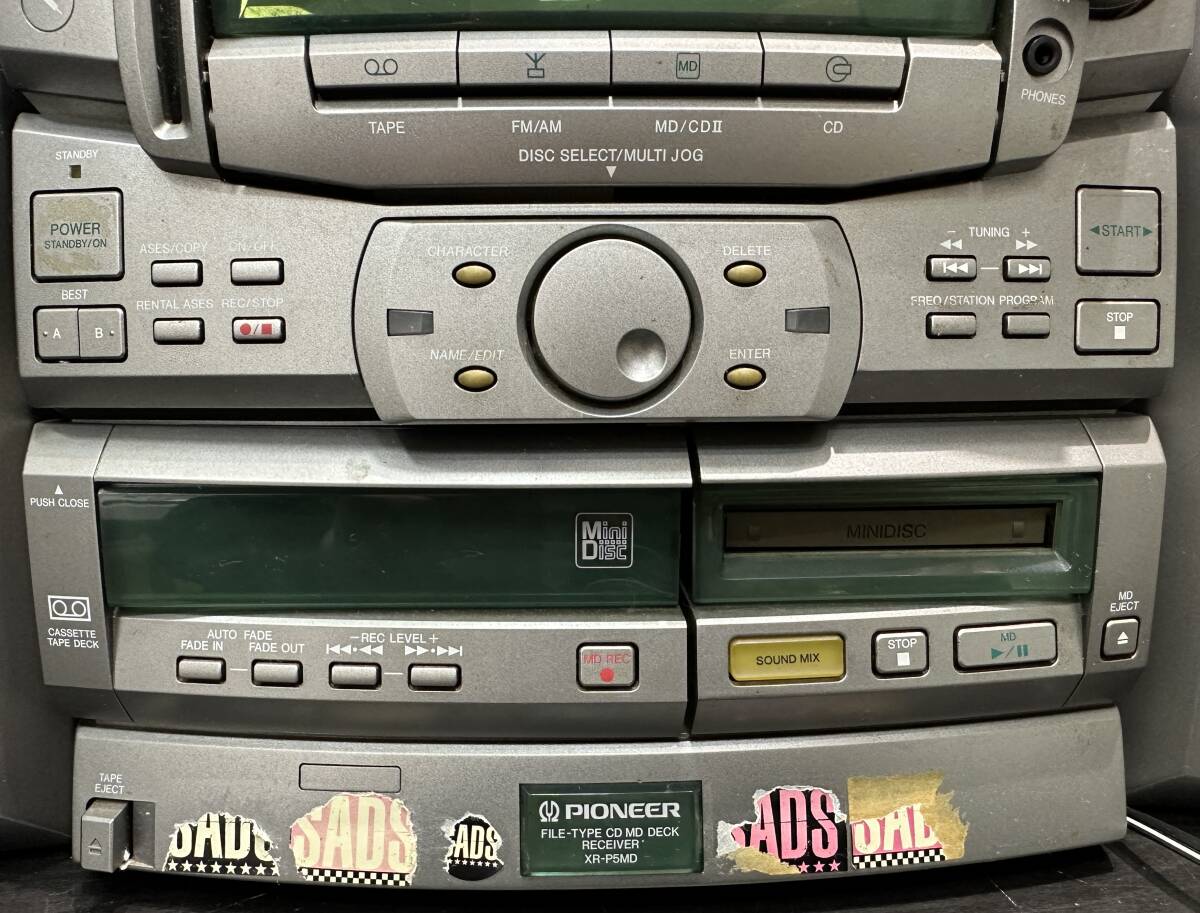

Cut-in recording function - You can create your own original non-stop MD by matching the tempos of the two songs and connecting the songs at any position.
Content adapted from: Pioneer Press Release Pioneer Press Release (MiniDisc Wiki mirror)

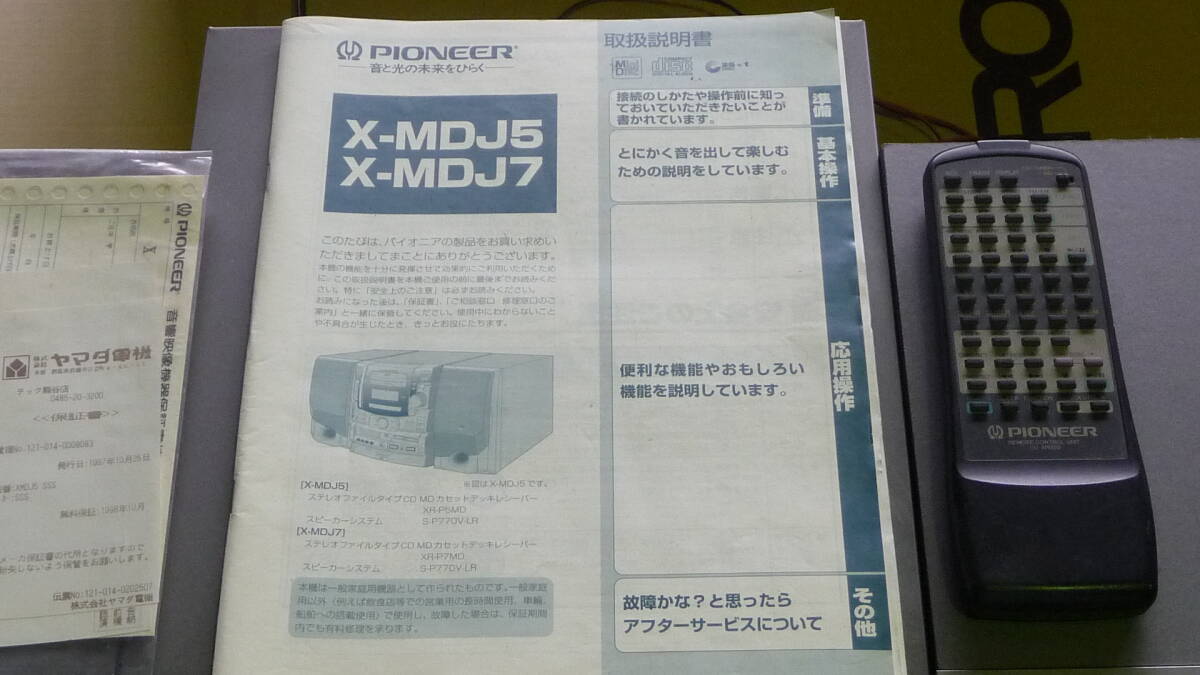

Manuals
