| Name | X-MDX717 |
|---|---|
| Manufacturer | Pioneer |
| Released | 2000/06 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 160mm (width) x 237mm (height) x 355mm (depth) |
| Weight | 6600 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥62 000 | |
| - | |
| Inputs | 3.5mm line in (analog-only), CD, Tape deck |
| Outputs | 3.5mm headphone |
| Control | Not recorded |

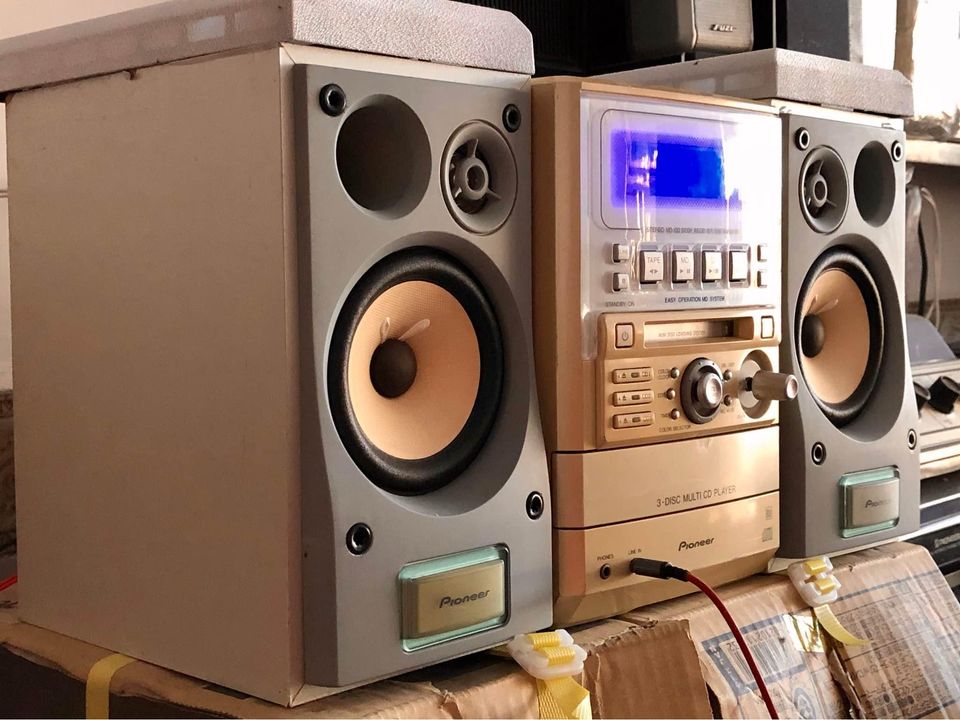

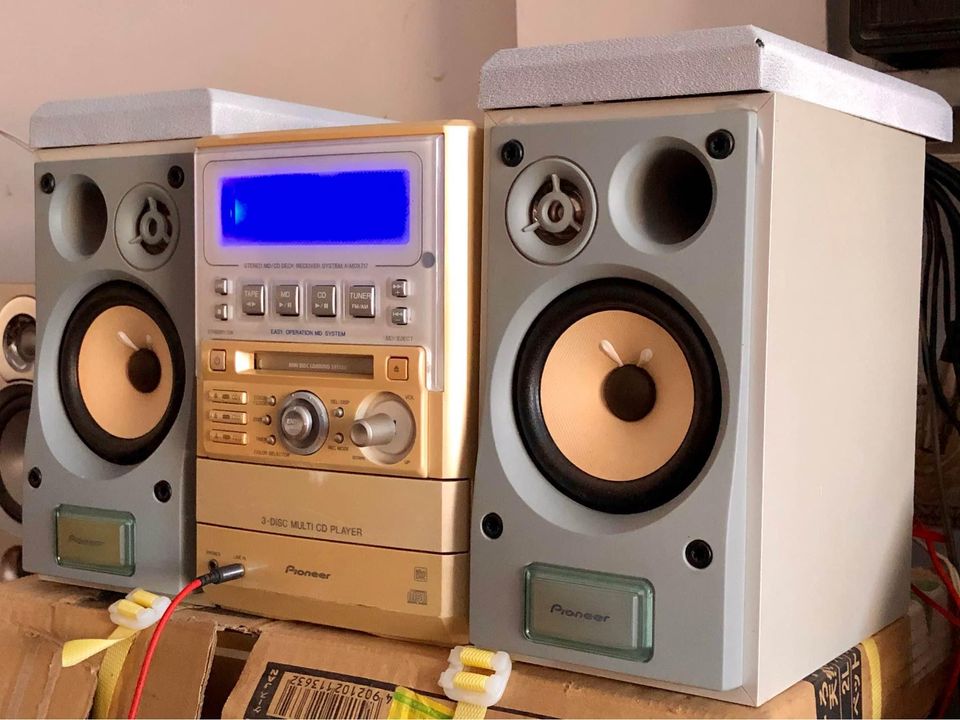

X-MDX717-S (Silver)
X-MDX717-M (Natural Wood)

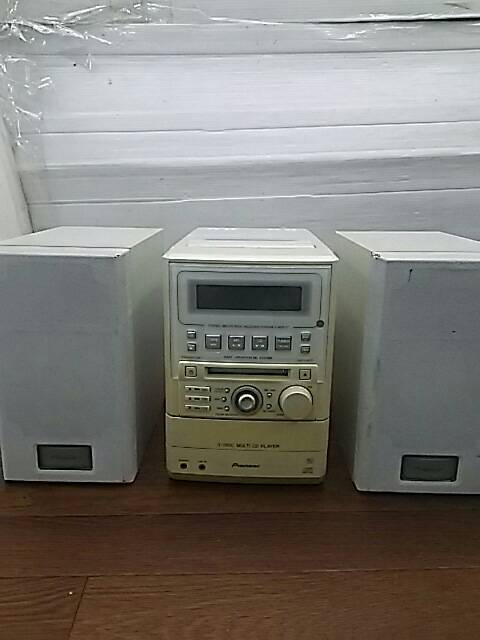

X-MDX717-W (Pearl White) - released in November 2000
- 15 patterns of beep and melody sounds that notify you when the power is turned on or the end of recording with sounds or melody.
- Enter jog that can easily operate character input to MD (remote control input is also possible) with one key

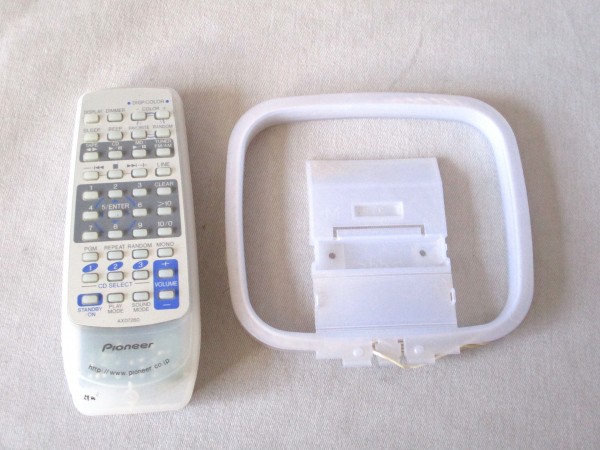

- Stand type skeleton remote control that matches the design
- 3 types of sound modes (Pop / Vocal / Live)
- Built-in 3 types of timers (Wake Up / Sleep / Rec)
- Equipped with an input terminal on the front panel, it can be easily connected to your portable MD.
Content adapted from: Pioneer Press Release Pioneer Press Release X-MDX717-W
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Scms | Yes |
|---|---|
| Web Md | No |
| Manual | User manual |
| Region | Japan |
