| Name | X-RS7 |
|---|---|
| Manufacturer | Pioneer |
| Released | 2000/06 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 210 x 168 x 384.5mm (main unit) |
| Weight | 5.5kg (main unit) |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥68 000 | |
| - | |

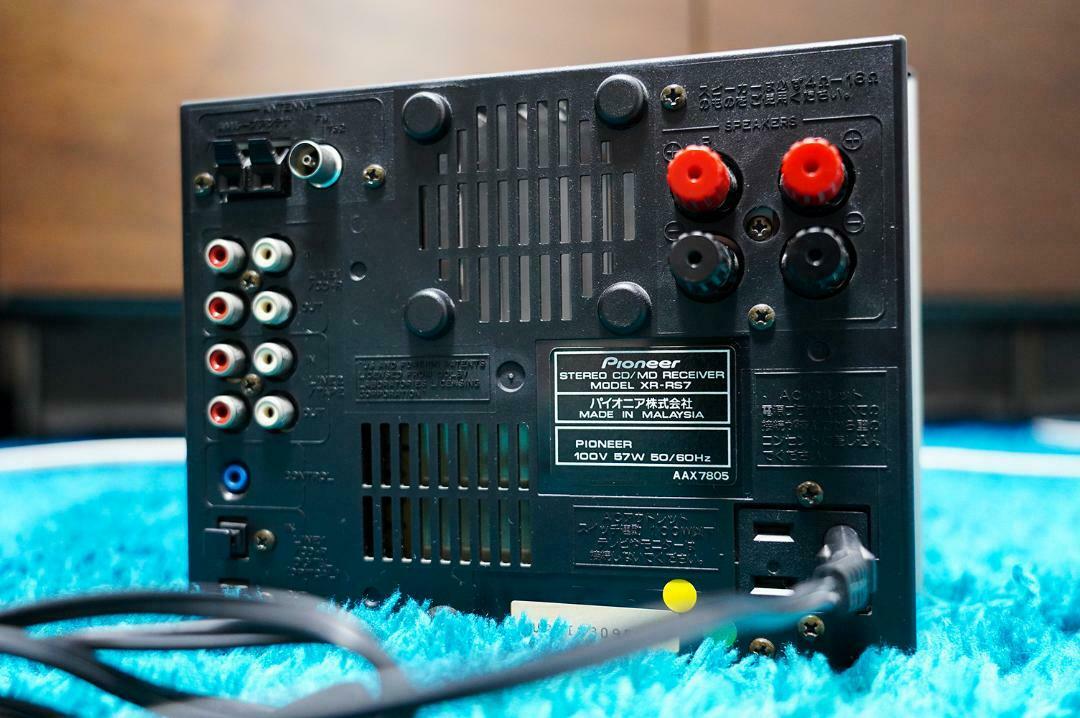

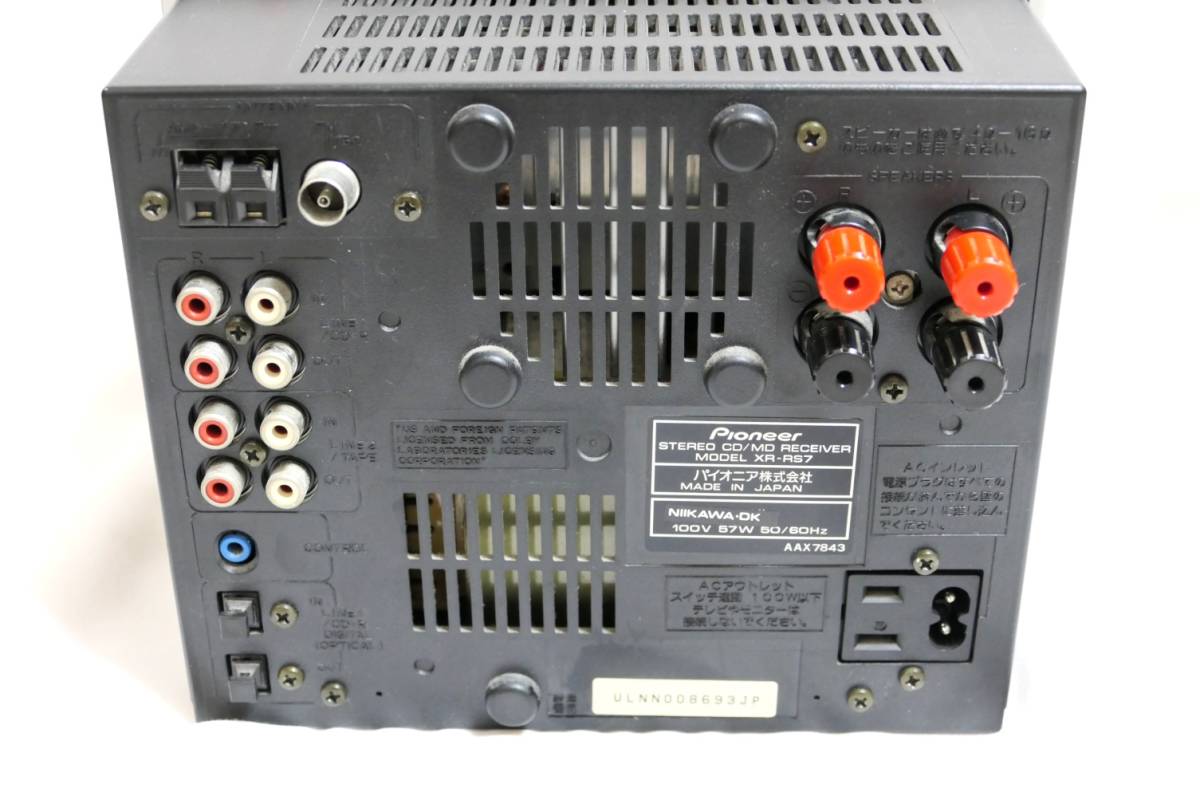

| Inputs | RCA in, Digital optical (TOSLINK), CD, Radio recording |
| Outputs | RCA out, Digital optical (TOSLINK), Speaker amplifier |
| Control | Not recorded |

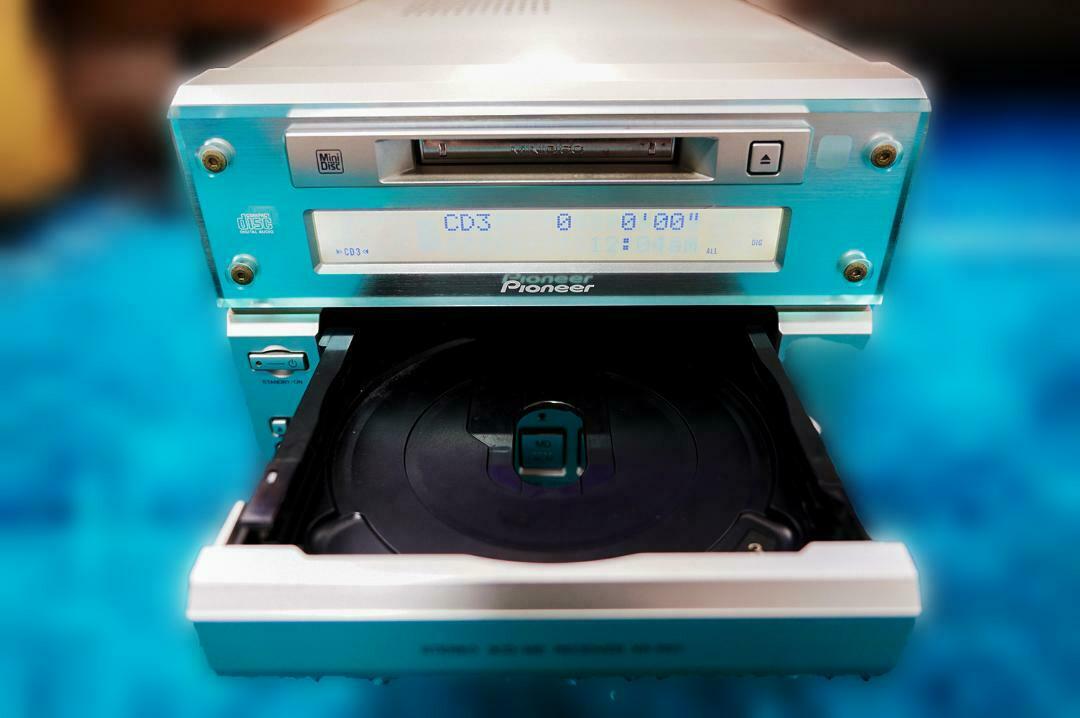

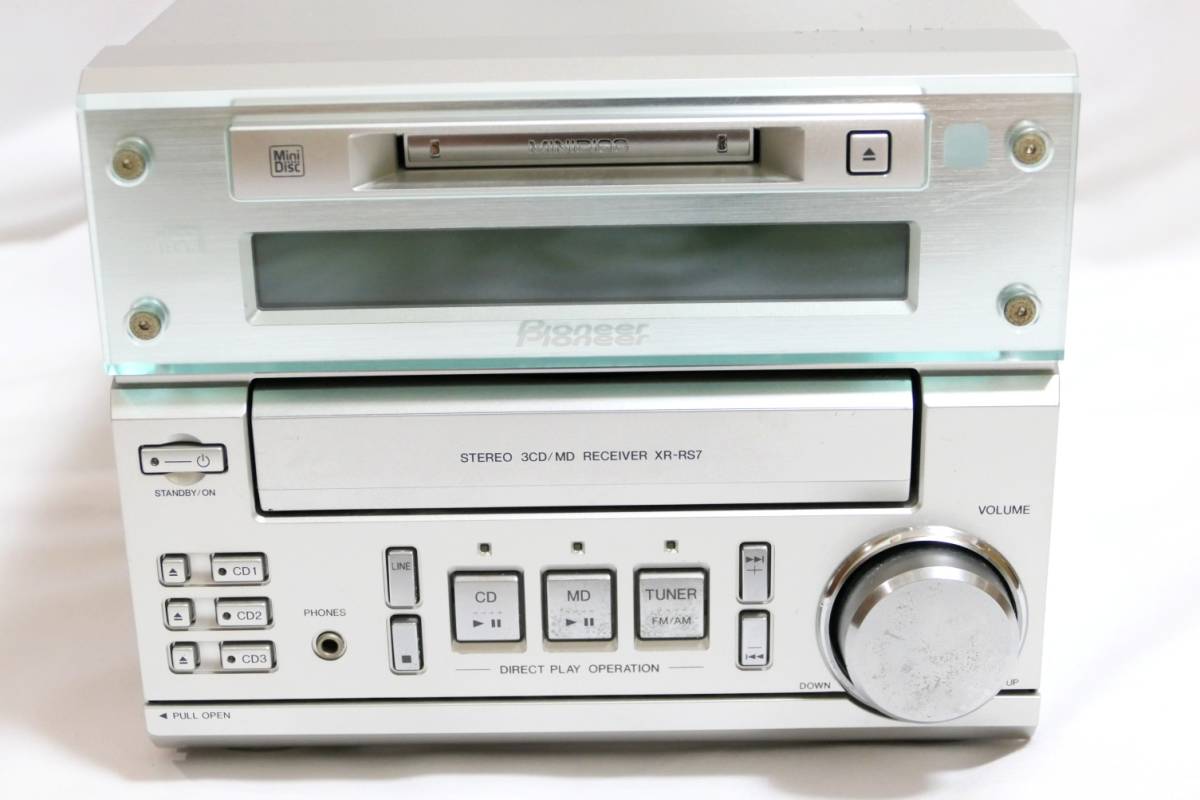

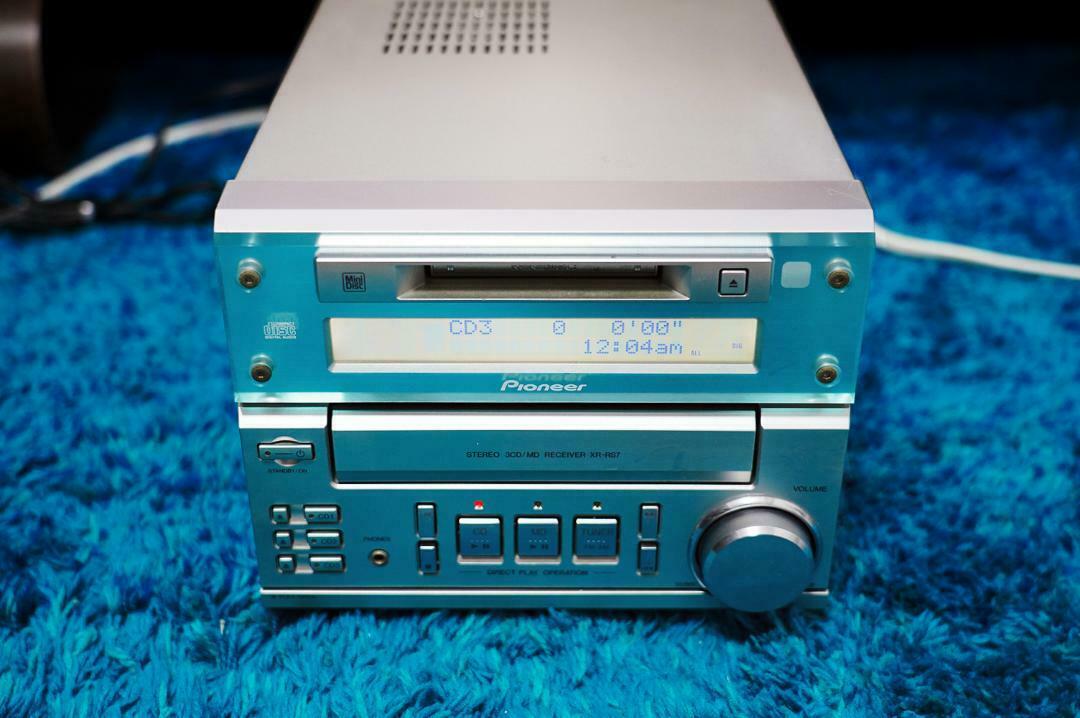

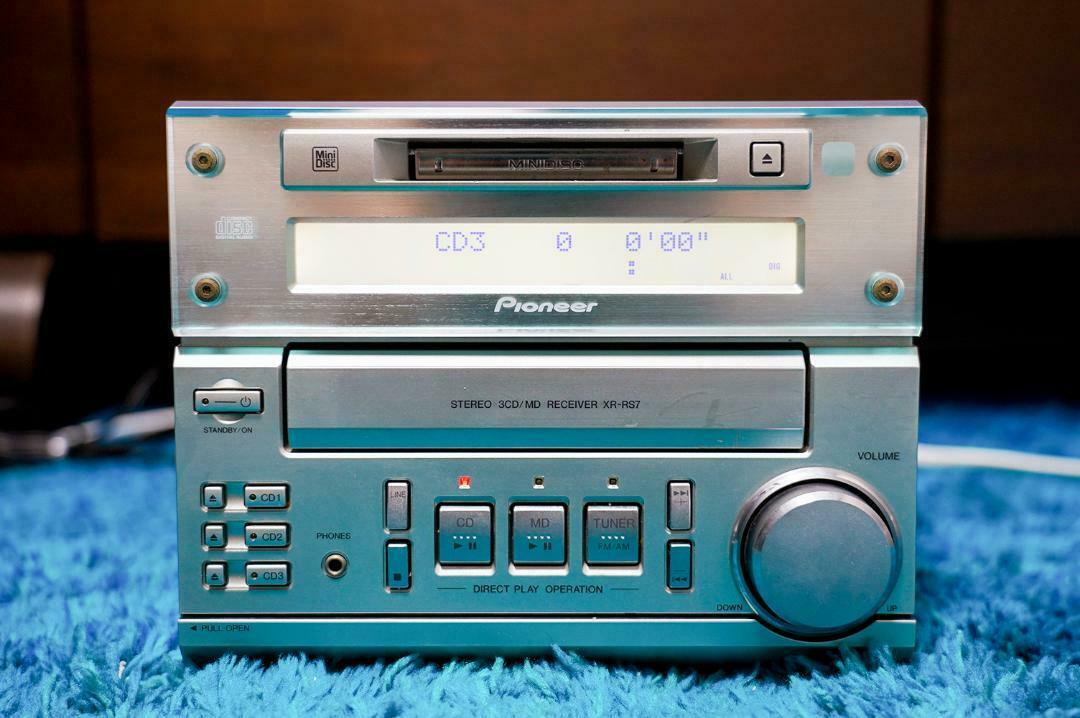

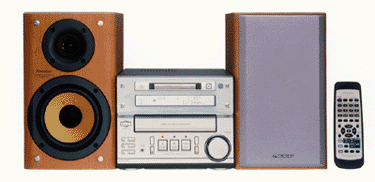

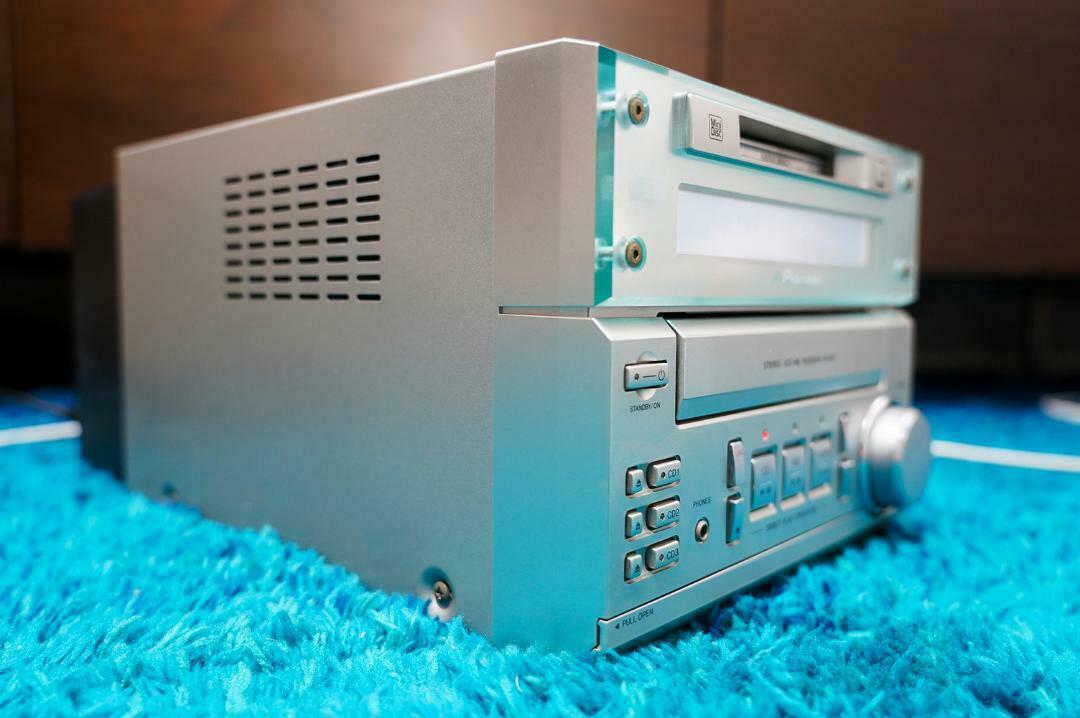

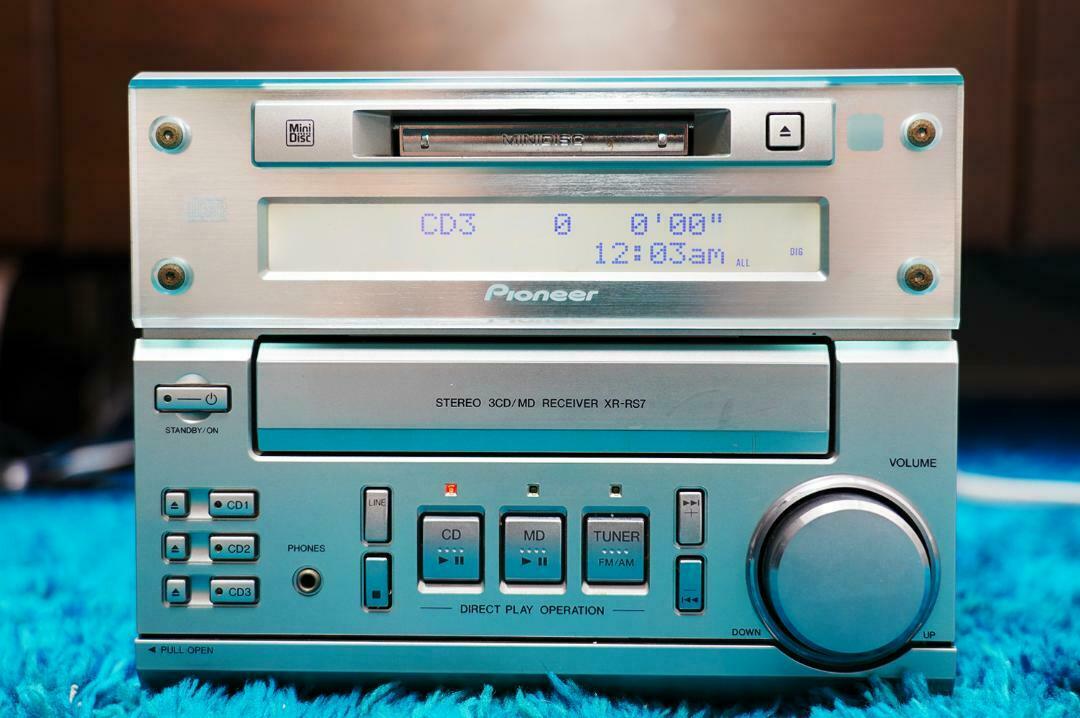

Pioneer X-RS7 is a 3 CD and 1 MD mini system equipped Pioneer's years pursuit for perfection of sound quality - "ARTIST" (Advanced Real Time Signal Tuning) for high quality recording and "FILL" to reconstruct sound. XR-RS7 is printed on the main body.
- Double speed recording
Equipped with a digital output terminal that supports connection such as CD-R Equipped with a digital input terminal that supports BS / CS digital broadcasting Equipped with a fine position that allows fine adjustment of the volume at low volume
Content adapted from: T-Station page (archived)
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Scms | Yes |
|---|---|
| Manual | |
| Region | Japan |
