Pioneer X-RS77

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-10-10

Manufacturer
Pioneer
Model / source grouping
X-RS77
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer X-RS77”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name X-RS77
Manufacturer Pioneer
Released 2001/05
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 210mm x 168mm x 389mm
Weight 5500
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-
Inputs RCA in, Digital optical (TOSLINK)
Outputs 3.5mm headphone, RCA out, Digital optical (TOSLINK)
Control Not recorded

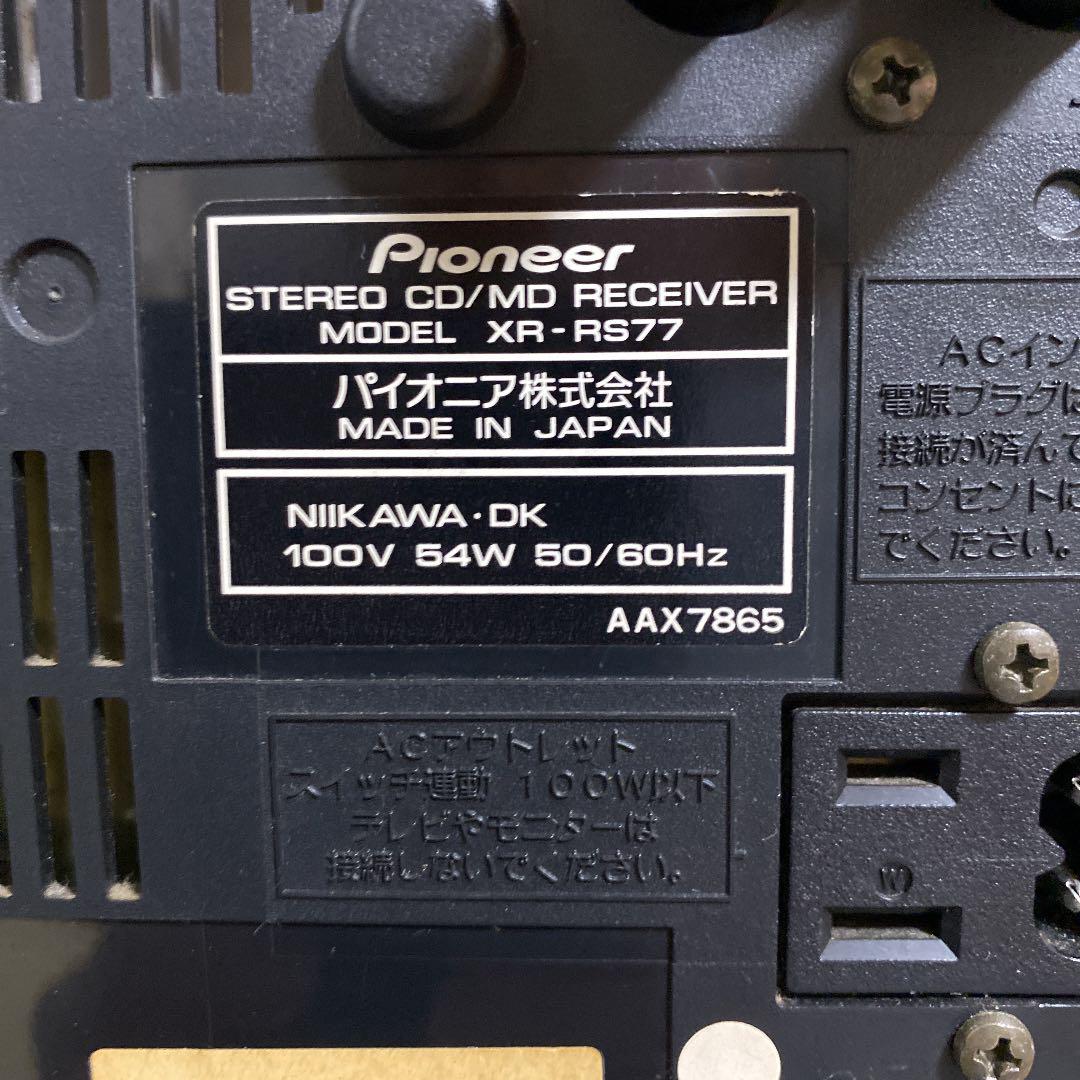

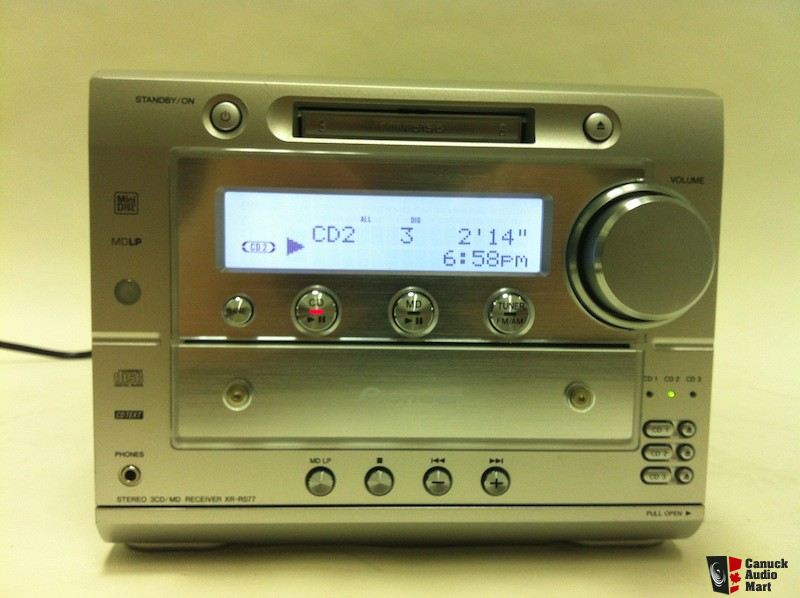

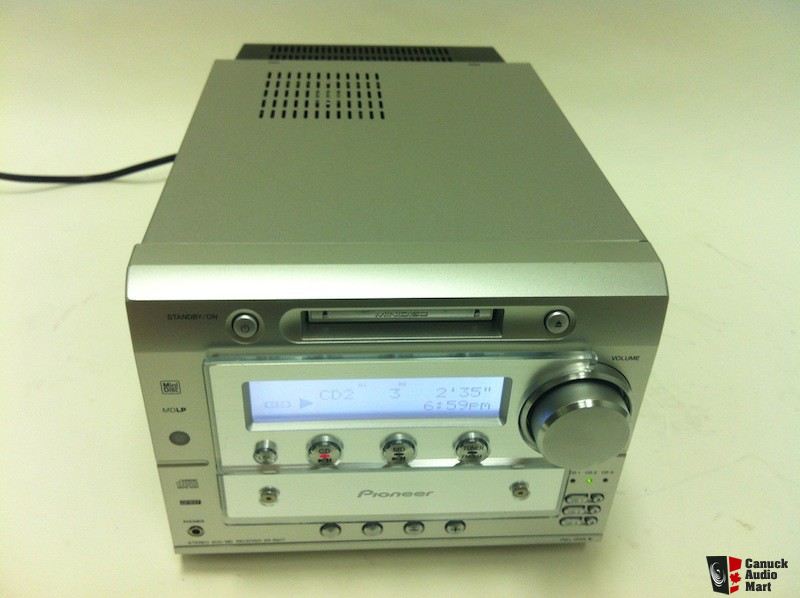

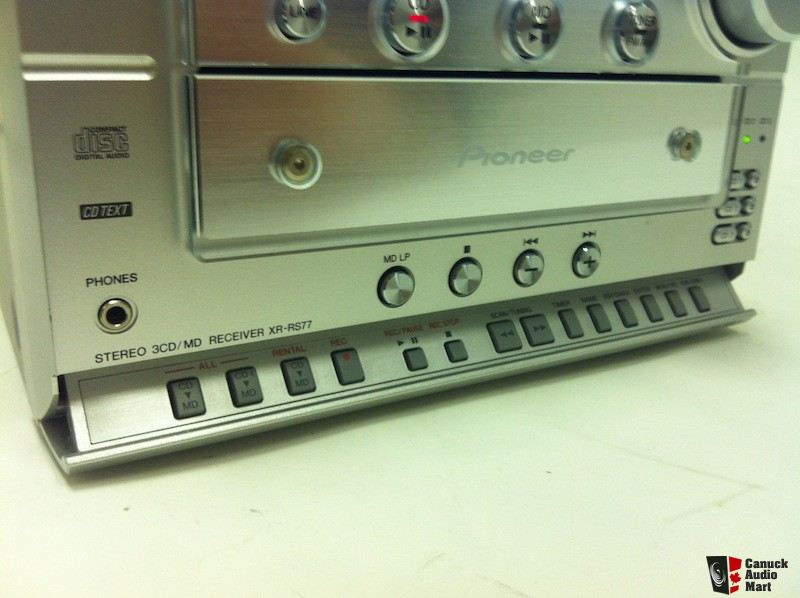

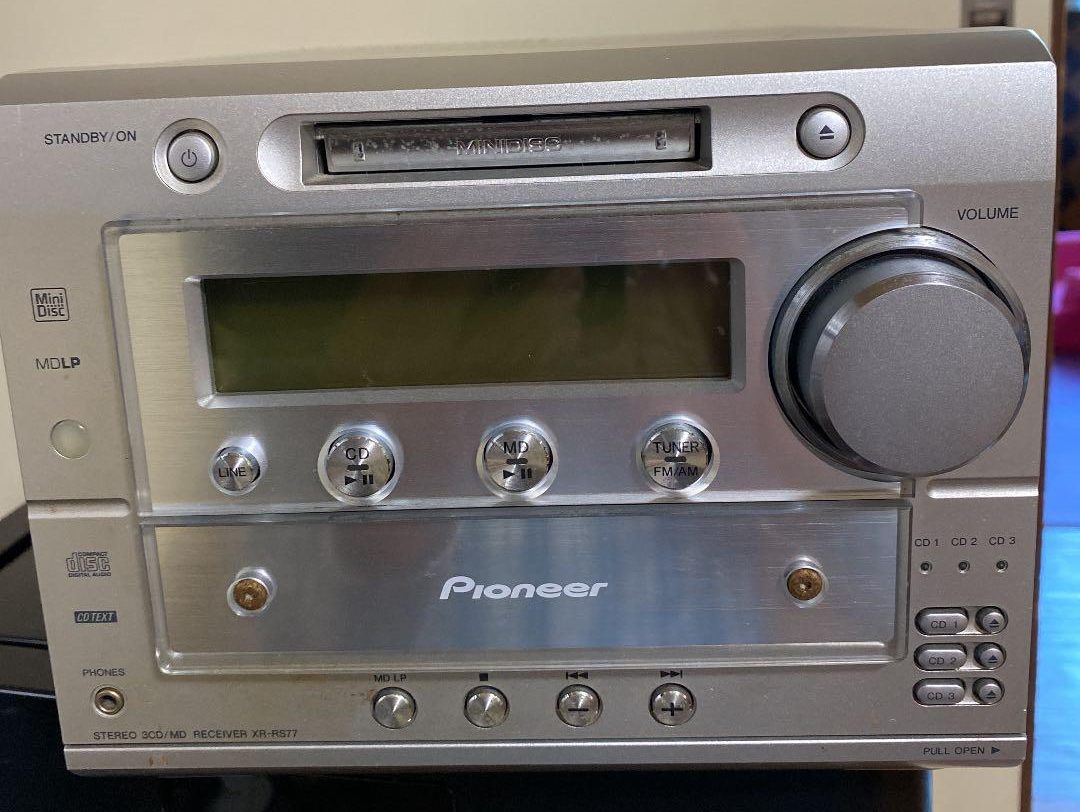

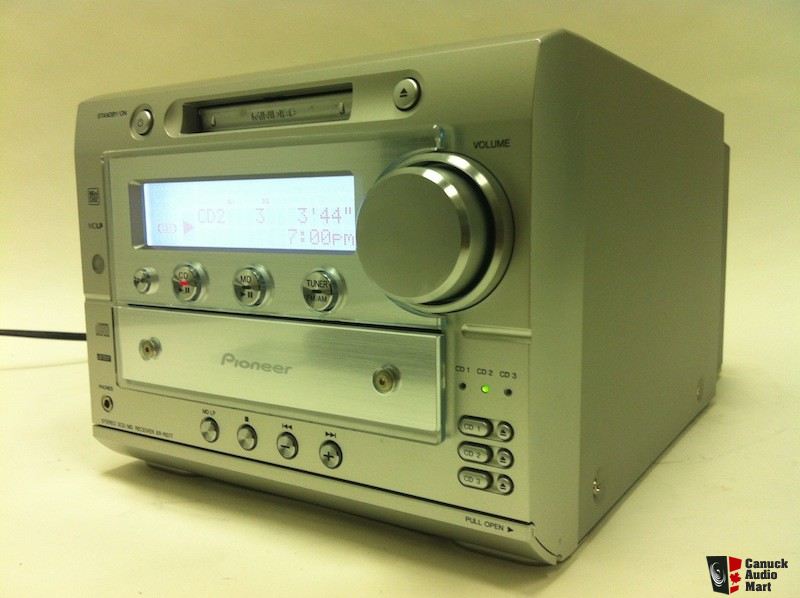

Pioneer X-RS77 - labeled XR-RS77 on the body

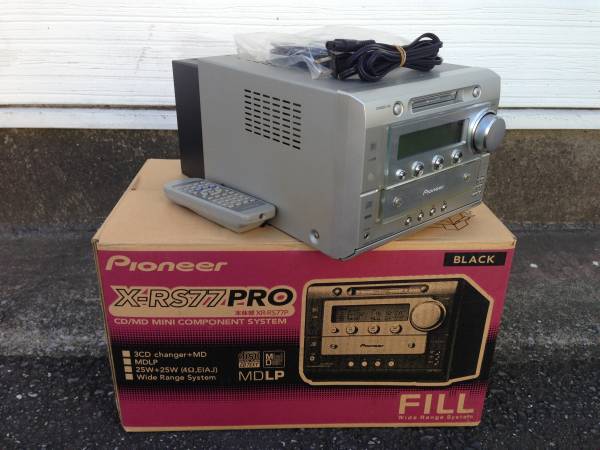

A separate X-RS77 PRO version (XR-RS77P) with higher quality "sound parts" was released a couple months later in June

  • Equipped with double speed recording function from CD to MD
  • Equipped with a digital output terminal that supports connection to CD-R, etc.
  • Equipped with a digital input terminal that supports BS / CS digital broadcasting
  • Equipped with a fine position function that allows fine adjustment of the volume at low volume
  • Cassette deck "T-RS7" (suggested retail price of 21,000 yen) that can be connected to the "X-RS77" and "X-RS77PRO" for synchronized recording. (June 2000)
  • Practical maximum output : 25W + 25W / 4Ω (JEITA)
  • power consumption : 57W
  • Standby power : 0.35W

Content adapted from: Pioneer Press Release av.watch Pioneer Manual page kakaku.com

Manuals

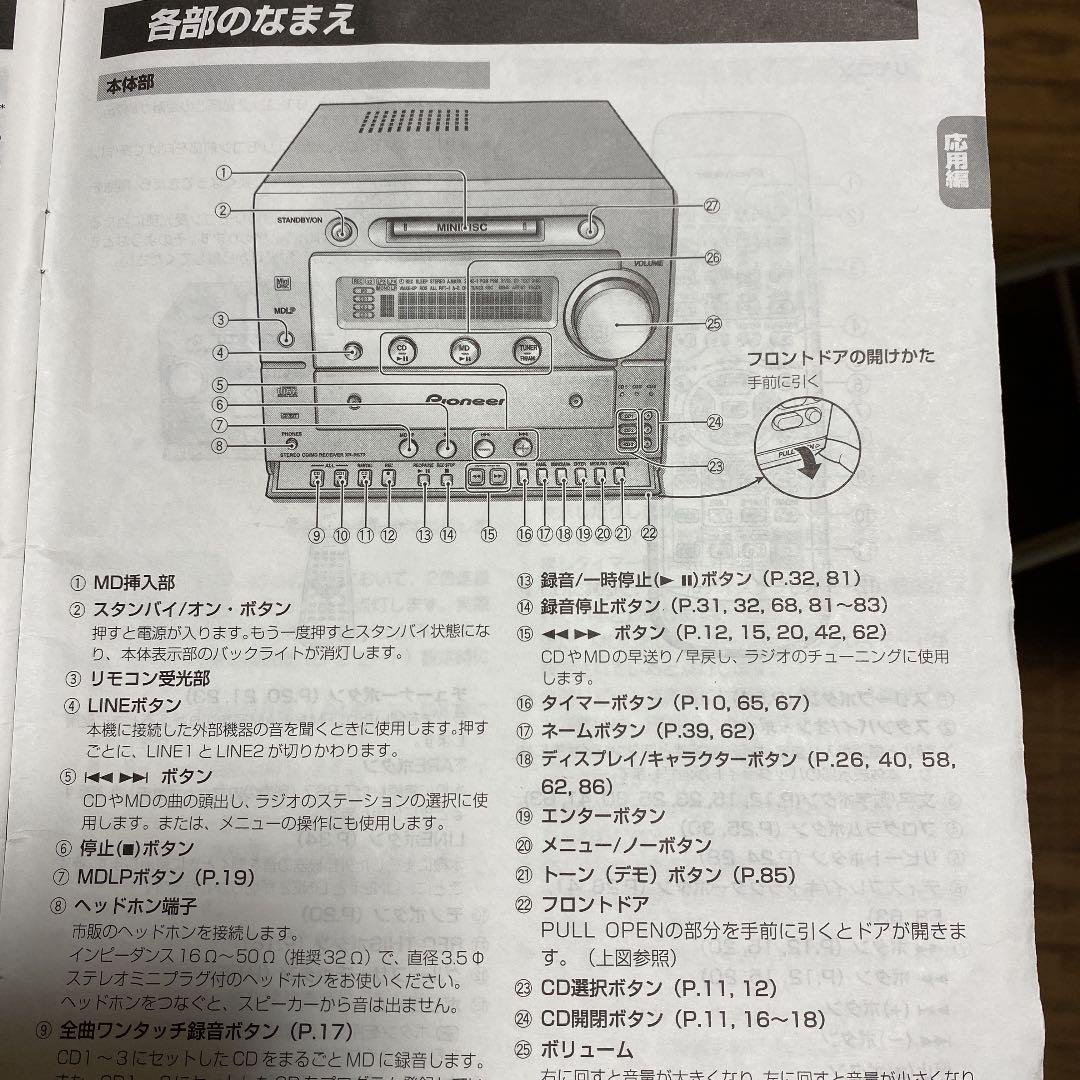

Pioneer X-RS77 Manual

Repair

Photos

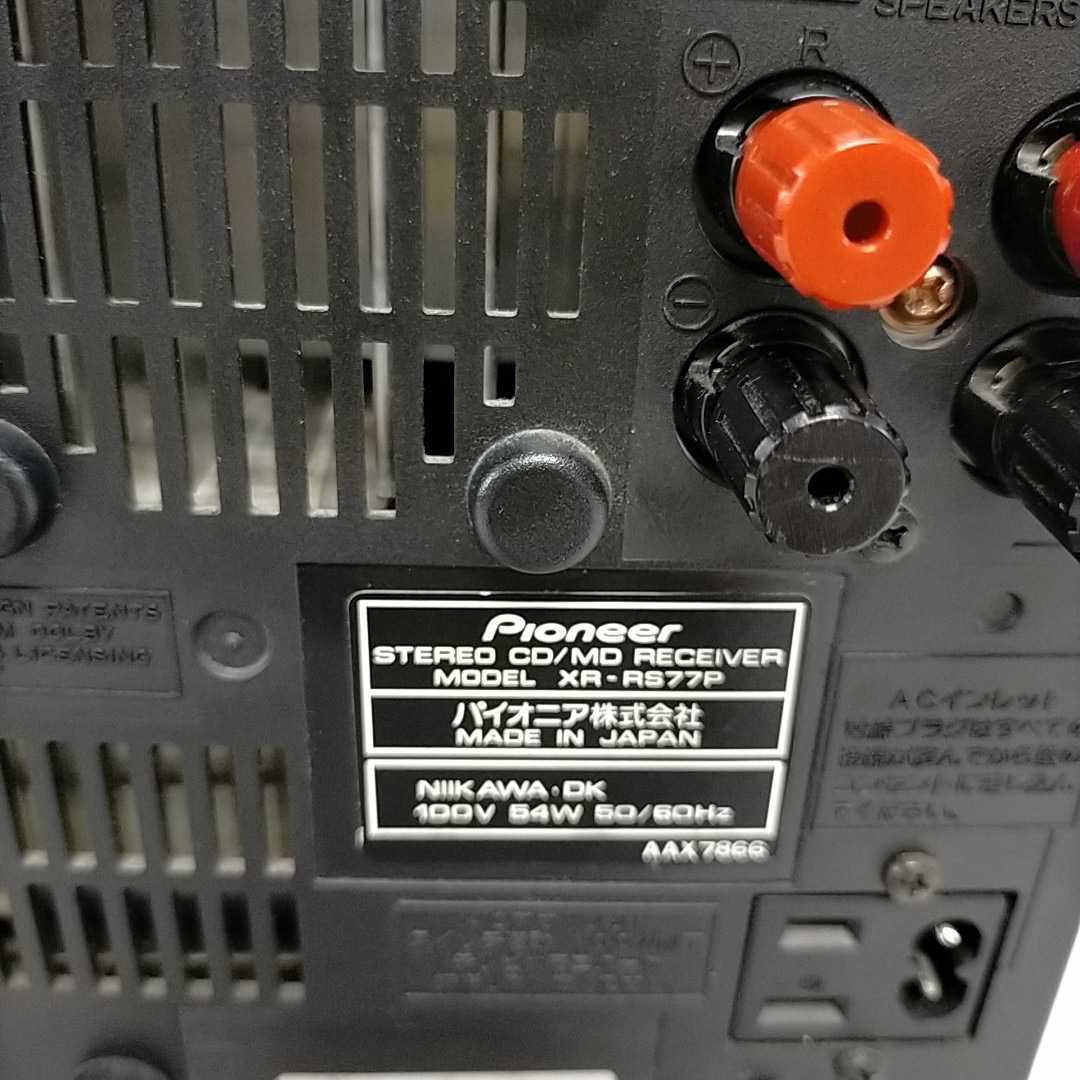

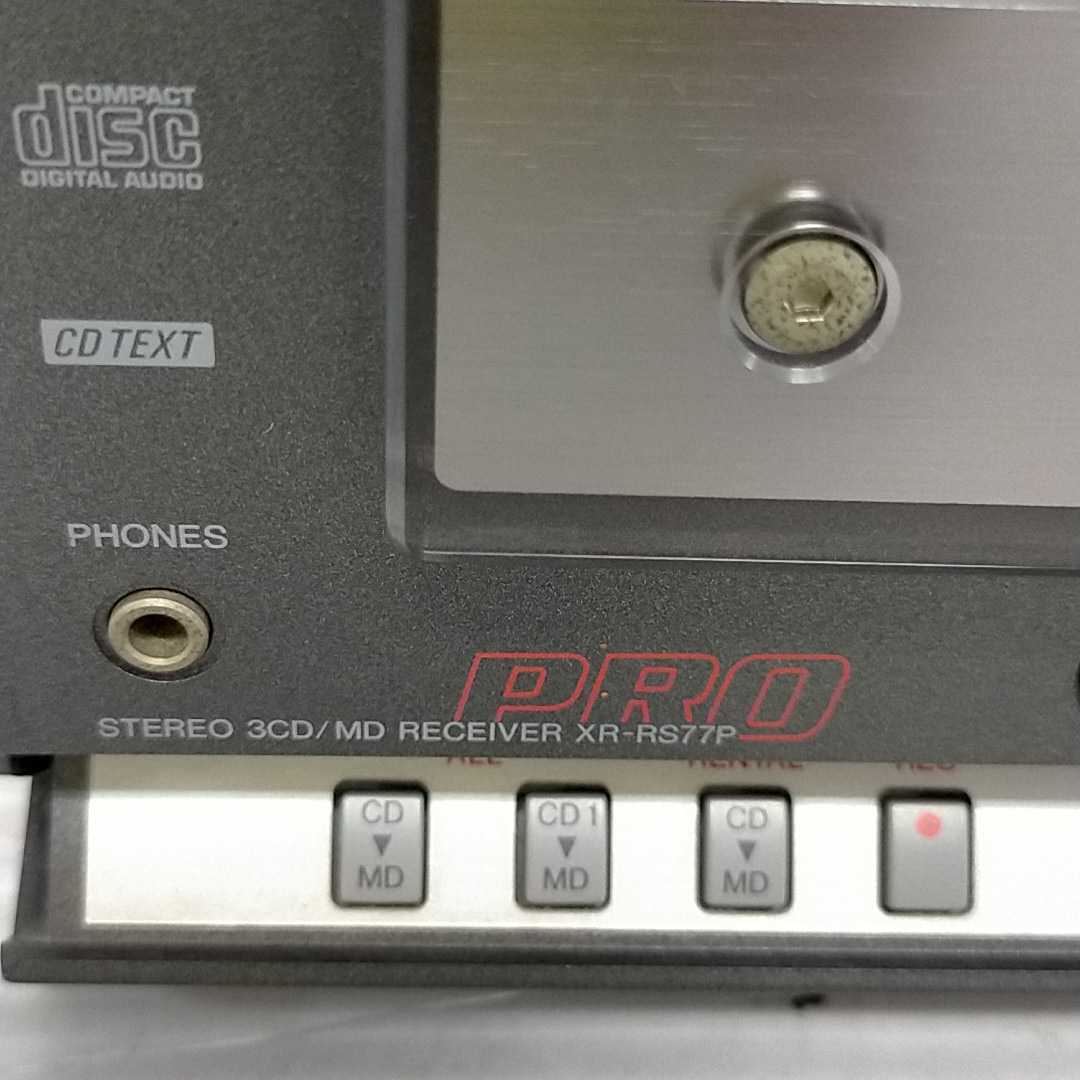

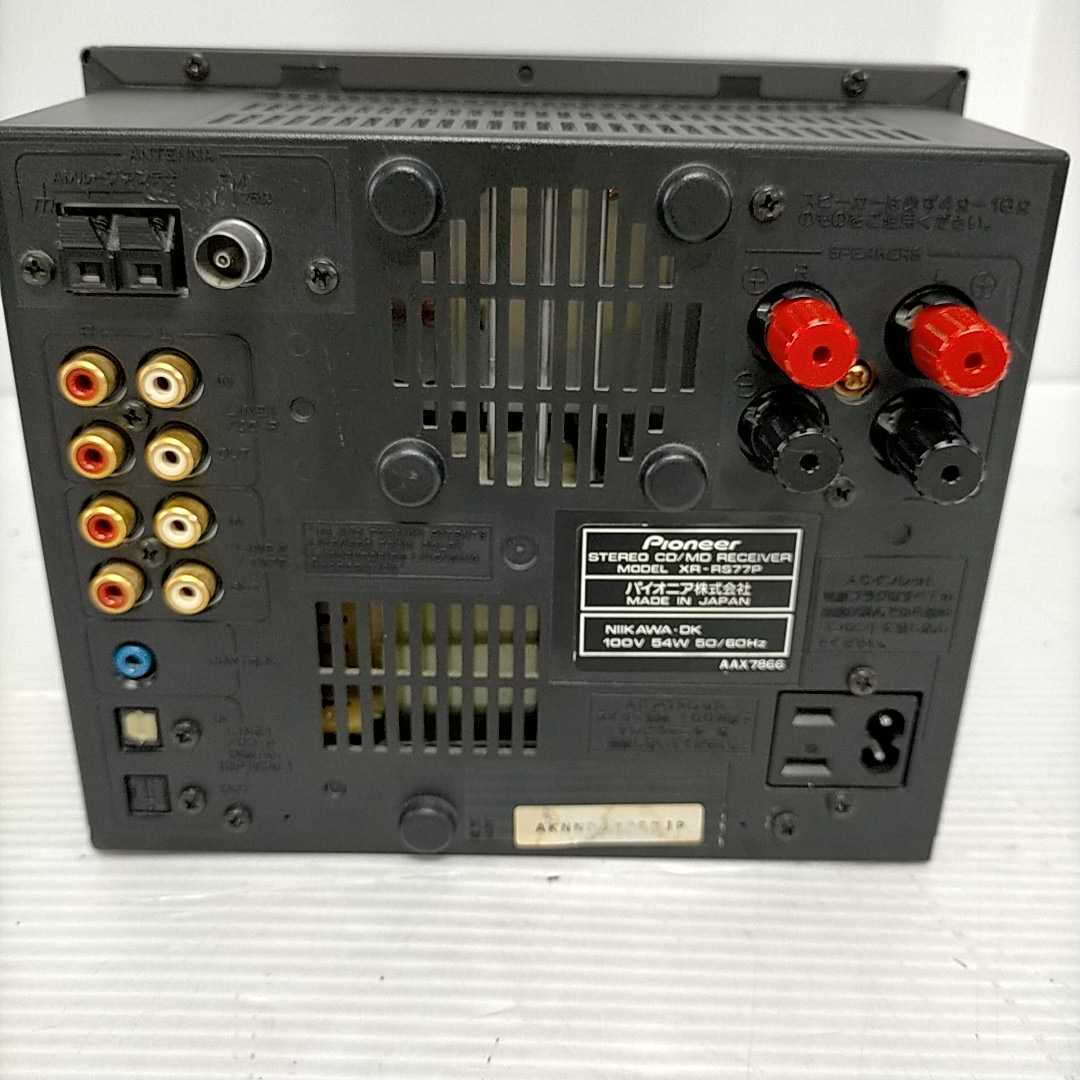

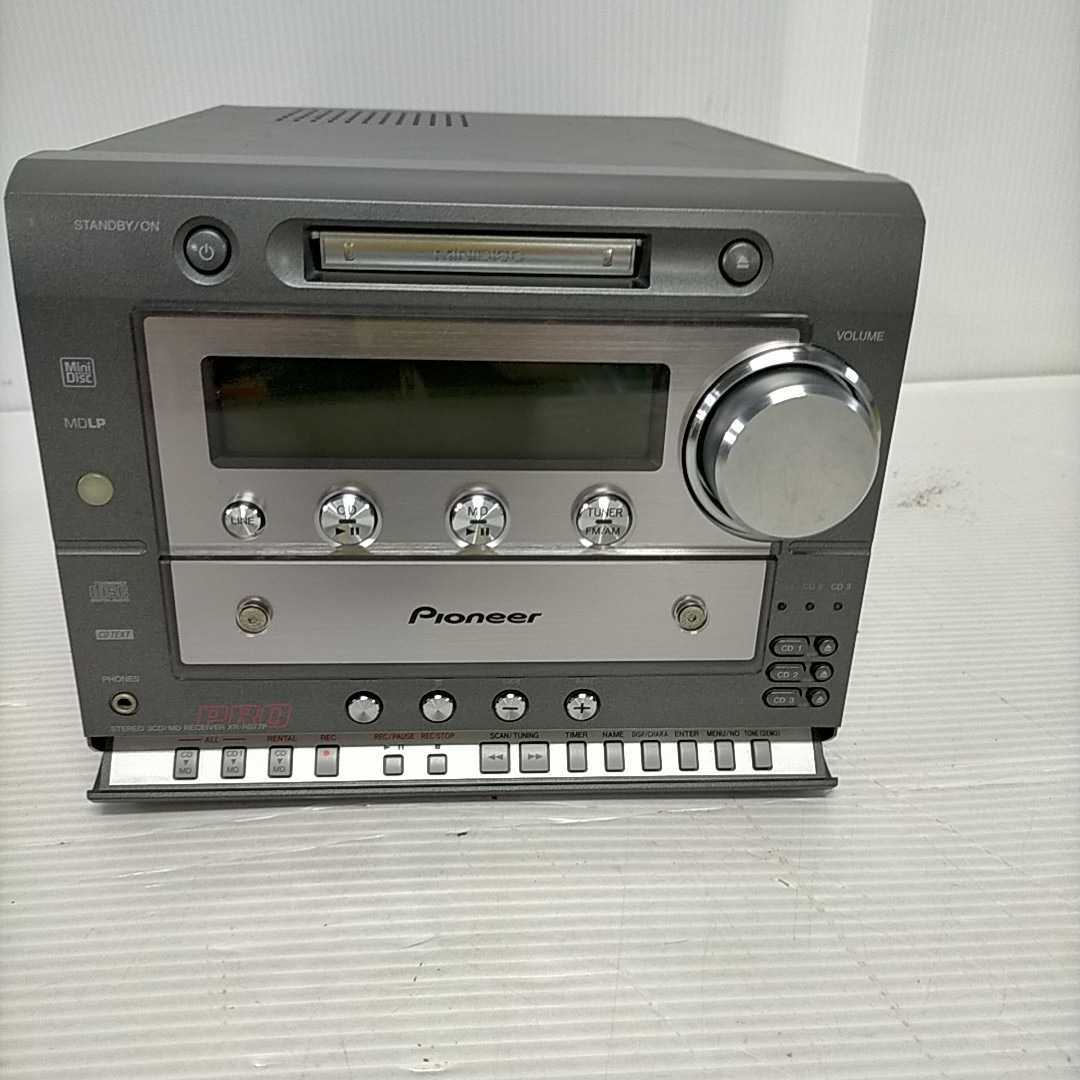

Pioneer XR-RS77P Pro:

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo
ManualUser manual
RegionJapan
