| Name | X-RS77PRO |
|---|---|
| Manufacturer | Pioneer |
| Released | 2001/06 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 210mm (W) x 168mm (H) x 384.5mm (D) |
| Weight | 5500 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |

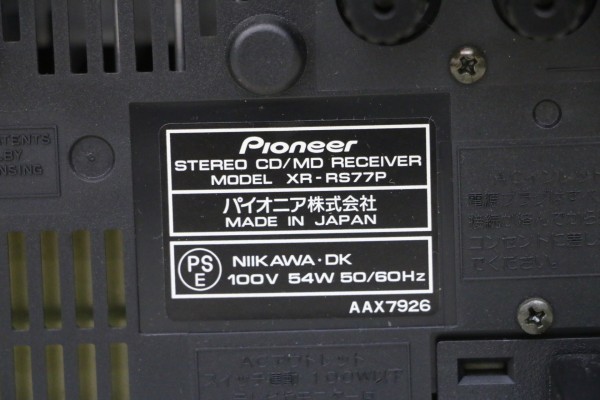

| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |

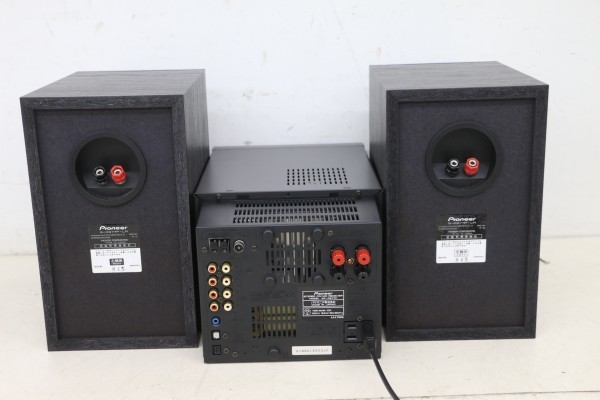

| Inputs | RCA in, Digital optical (TOSLINK), CD |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |

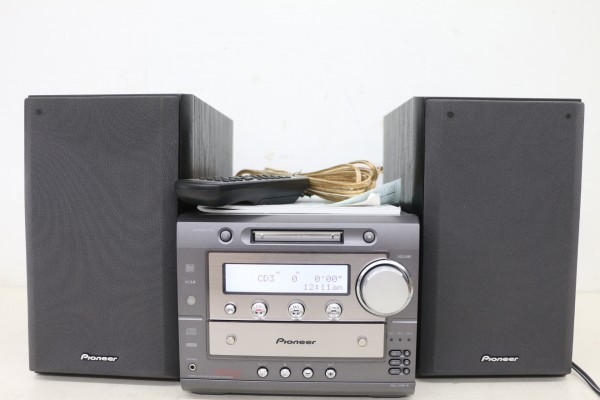

Pioneer X-RS77PRO
- Equipped with double speed recording function from CD to MD
- Equipped with a digital output terminal that supports connection to CD-R, etc.
- Equipped with a digital input terminal that supports BS / CS digital broadcasting
- Equipped with a fine position function that allows fine adjustment of the volume at low volume
- Cassette deck “T-RS7” (suggested retail price of 21,000 yen) that can be connected to the “X-RS77” and “X-RS77PRO” for synchronized recording. (June 2000)
- Practical maximum output : 25W + 25W / 4Ω (JEITA)
- power consumption : 57W
- Standby power : 0.35W
Content adapted from: Pioneer Press Release
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references

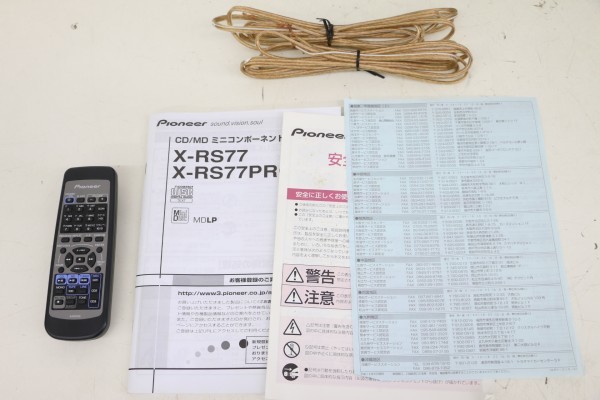

| Manual | User manual |
|---|---|
| Region | Japan |
