Pioneer X-SV505DV

Incomplete source record · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-02-26

Manufacturer
Pioneer
Model / source grouping
X-SV505DV
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer X-SV505DV”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name X-SV505DV
Manufacturer Pioneer
Released 2002/01
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 140 x 220 x 240
Weight 2300
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-
Inputs 3.5mm line in (analog-only), RCA in, CD
Outputs 3.5mm headphone, RCA out, Digital optical (TOSLINK)
Control Not recorded

Digital optical output will not output MD audio.

Content adapted from: @@Source title@@

Manuals

Pioneer X-SV505DV

Repair

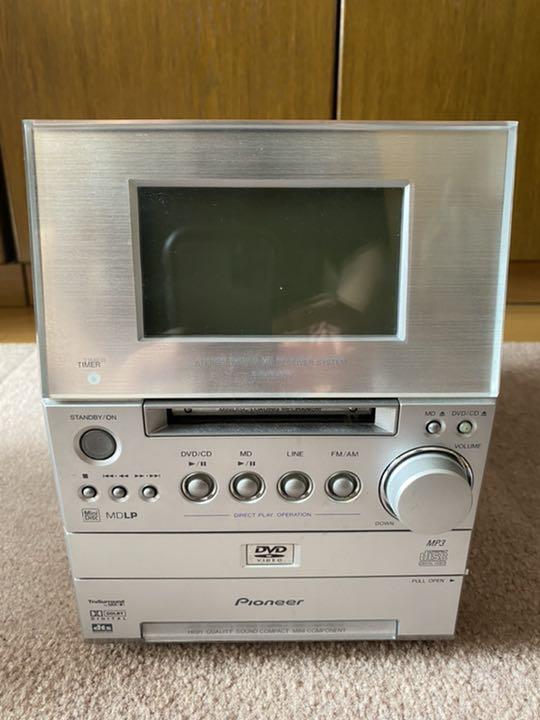

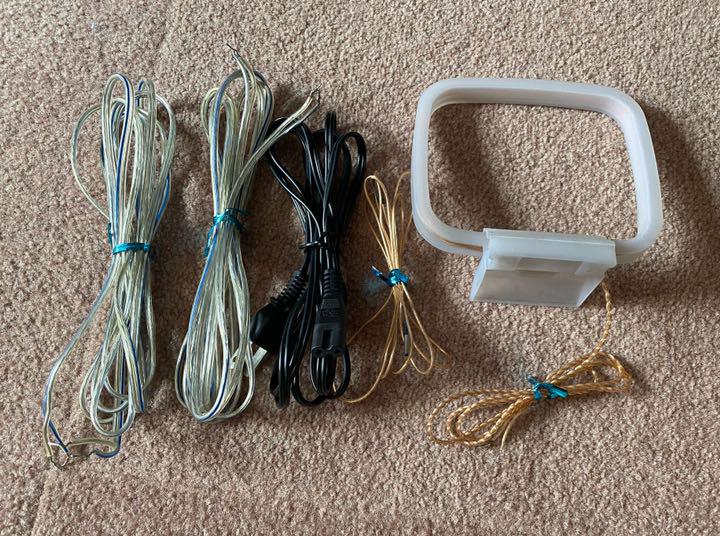

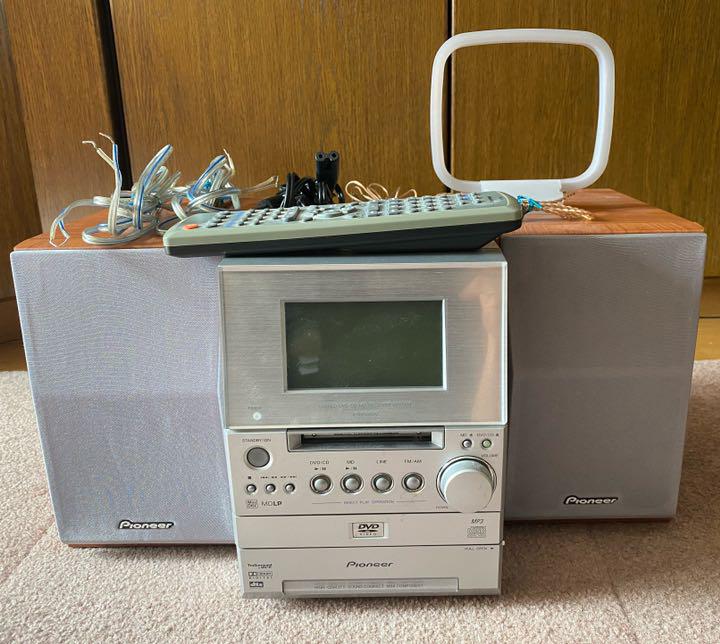

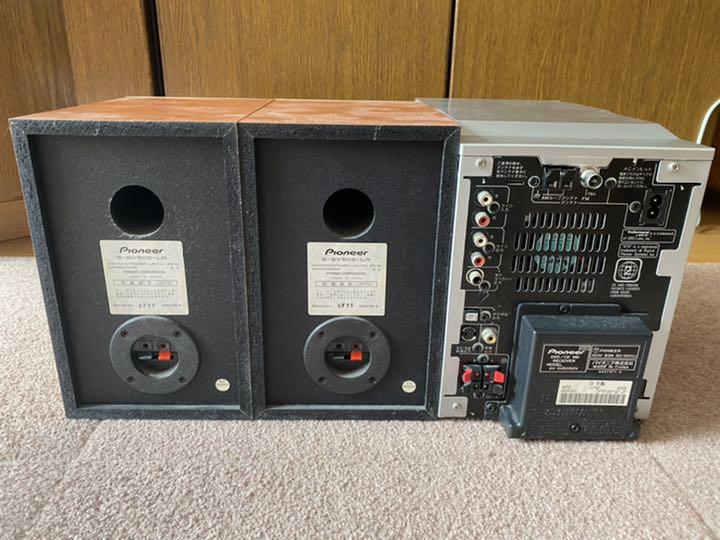

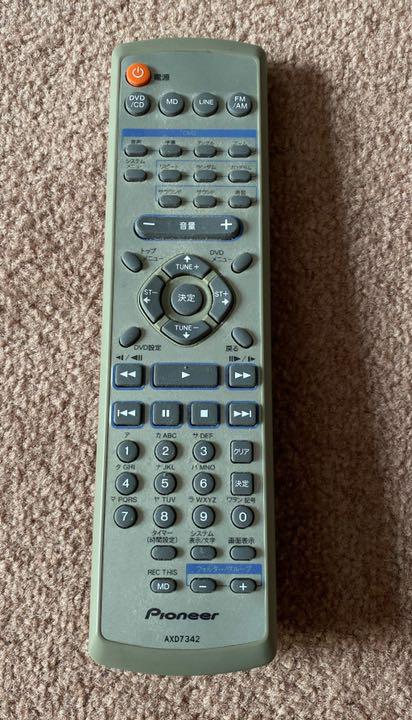

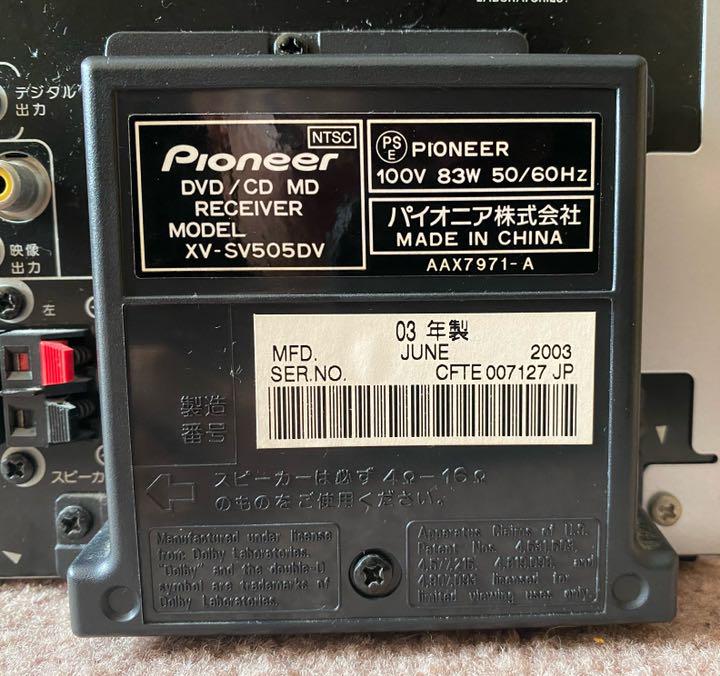

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ScmsYes
Web MdNo
ManualUser manual
RegionJapan
