| Name | X-SV5DV |
|---|---|
| Manufacturer | Pioneer |
| Released | 2002/08 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 162mm(W)×220mm(H)×339.5mm(D) |
| Weight | 6100 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥55 000 | |
| - | |
| Inputs | RCA in, CD |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |

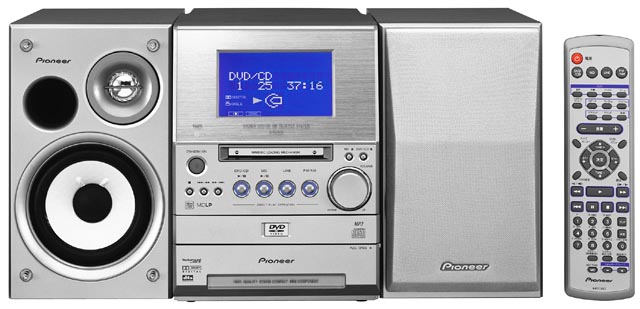

Pioneer X-SV5DV-S (silver) Pioneer X-SV5DV-K (black)
A lower model than the X-SV7DV it omits the MG Memory Stick slot from the SV7DV. Other specifications are almost the same, but the tweeter of the speaker part is different, and 7DV is called "high sound quality design". The X-SV5DV is 0.3kg lighter. The same remote is used for both.
Content adapted from: Pioneer Press Release AV Watch Pioneer Product Page Pioneer Product Page (MiniDisc Wiki mirror) End-of-sale price: ¥ 35,490
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
