| Name | XC-IS21MD |
|---|---|
| Manufacturer | Pioneer |
| Released | Not recorded |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Not recorded |
| NetMD | No |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | W 205 x H 300 x D237mm |
| Weight | 3100 |
| ATRAC ver | Sharp 5 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 230 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |

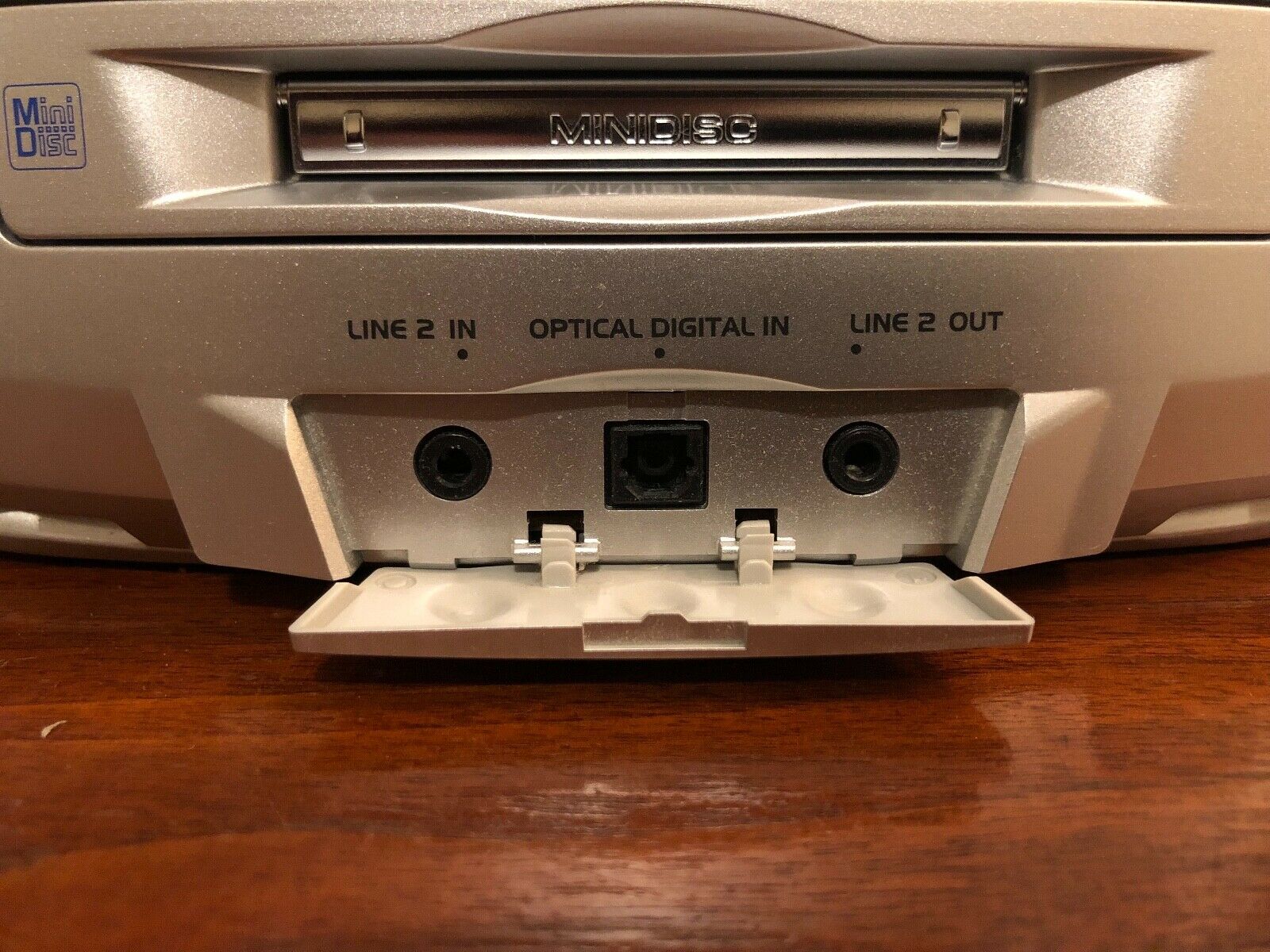

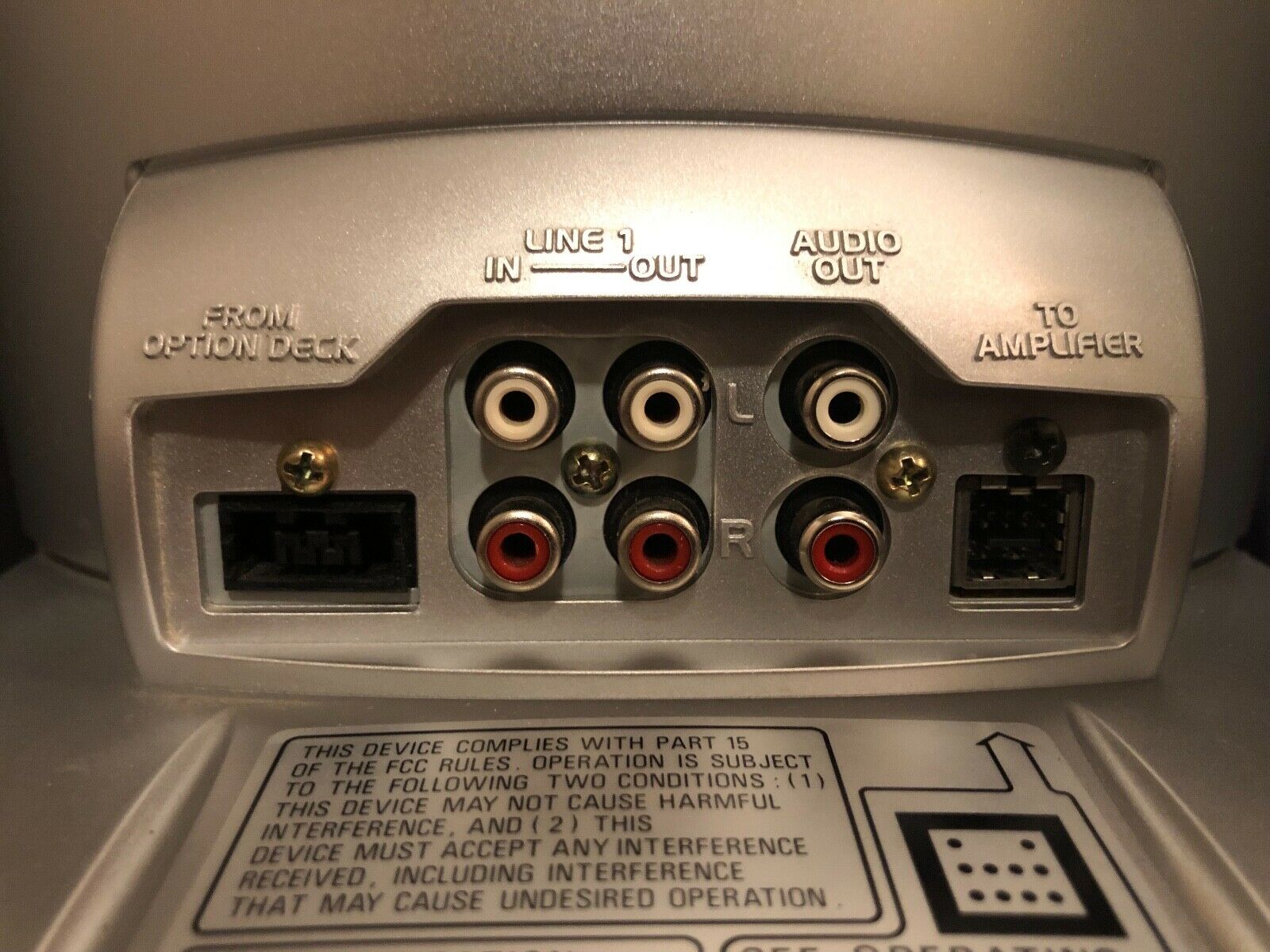

| Inputs | 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD, Radio recording, Tape deck |
| Outputs | 3.5mm line out (analog-only), RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |

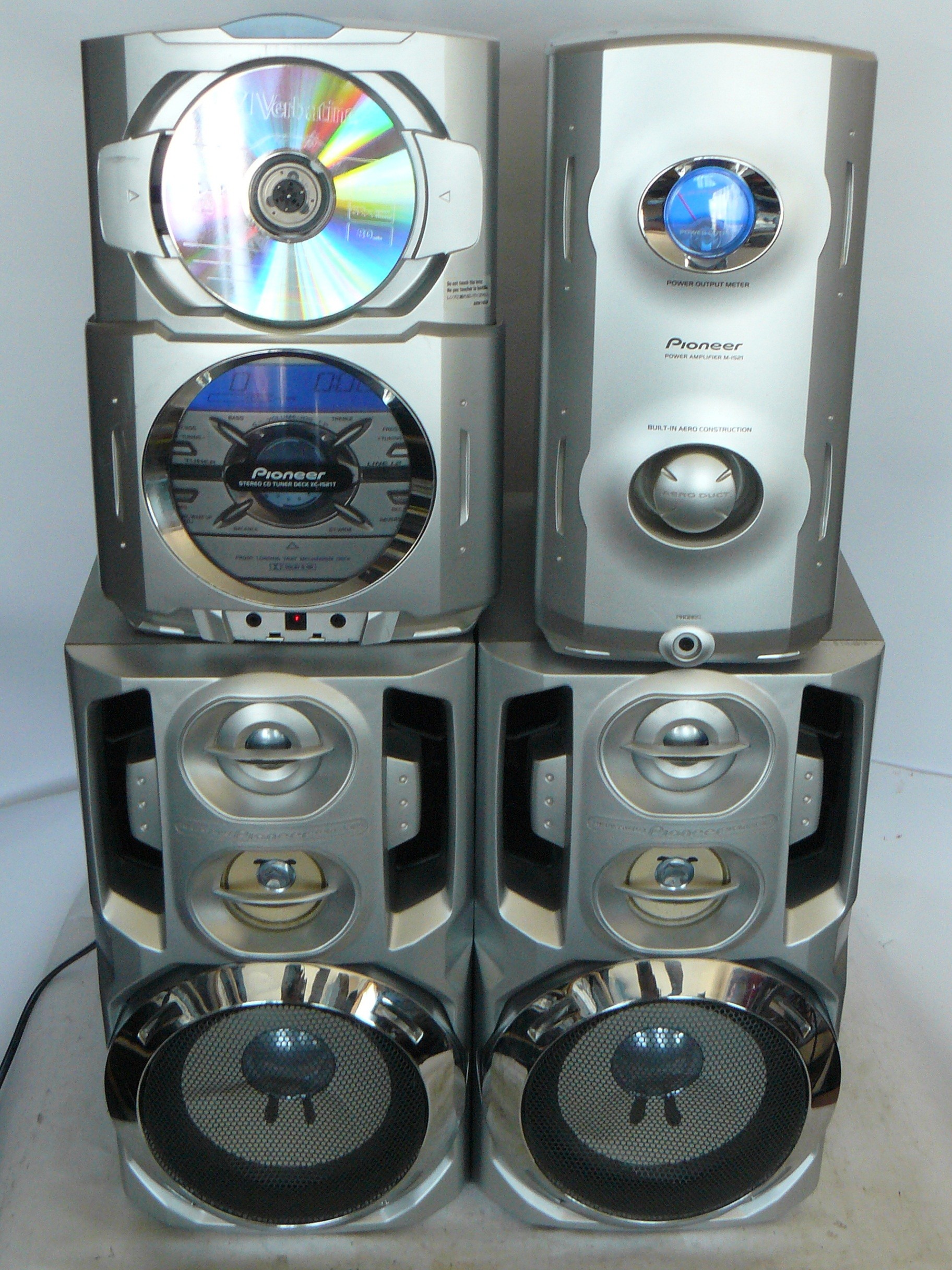

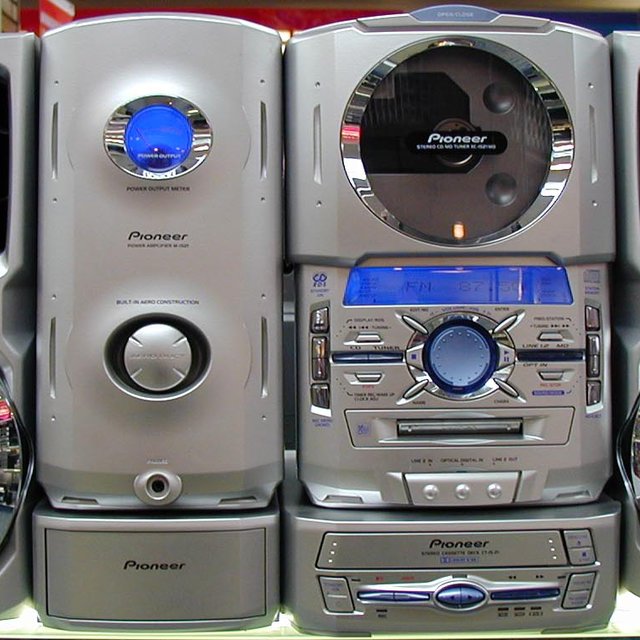

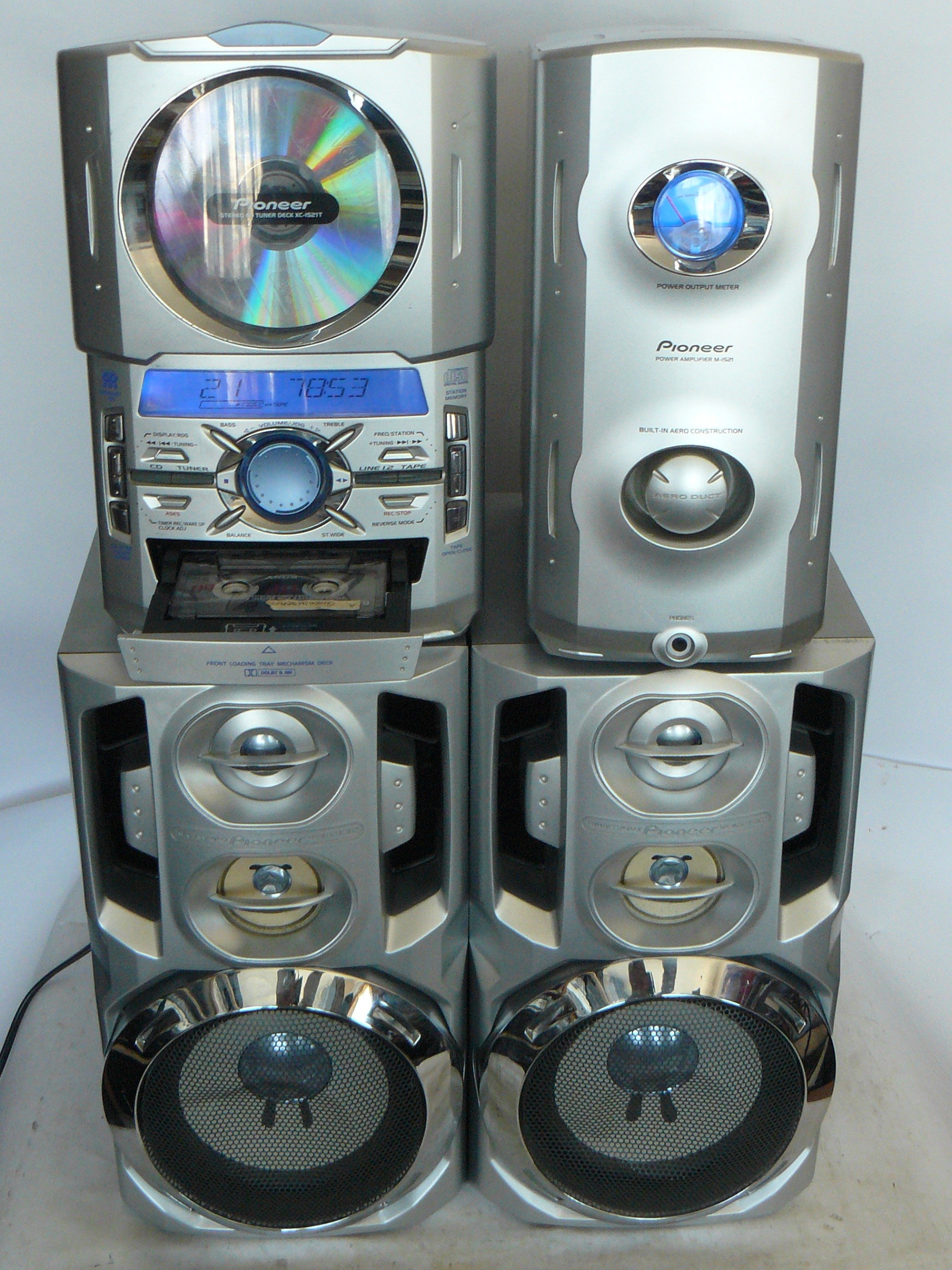

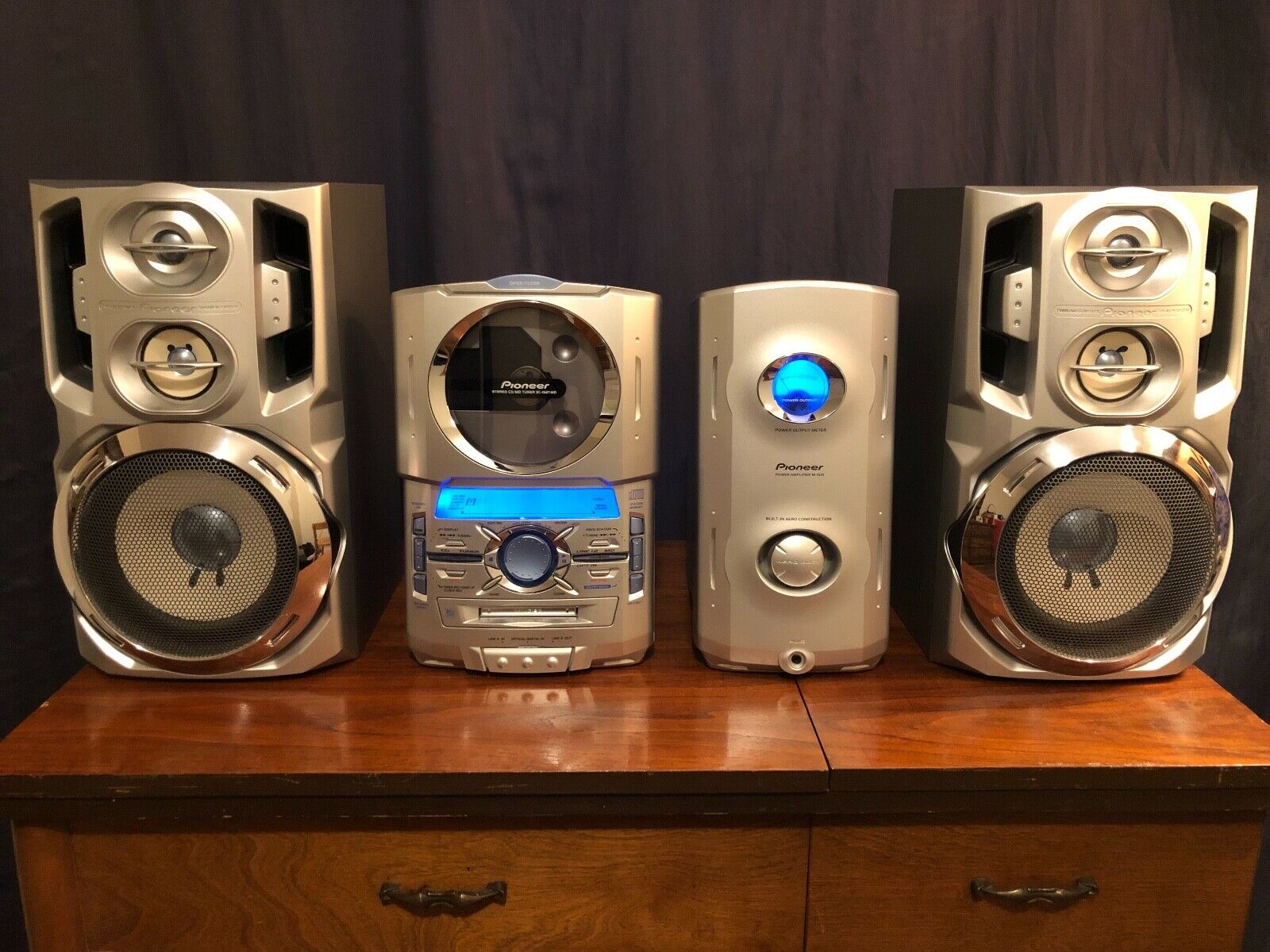

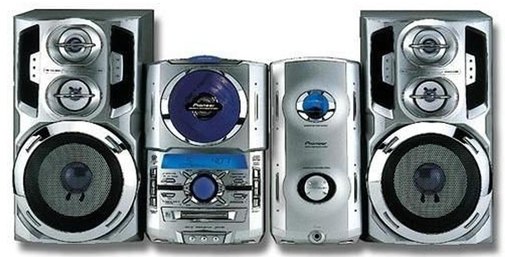

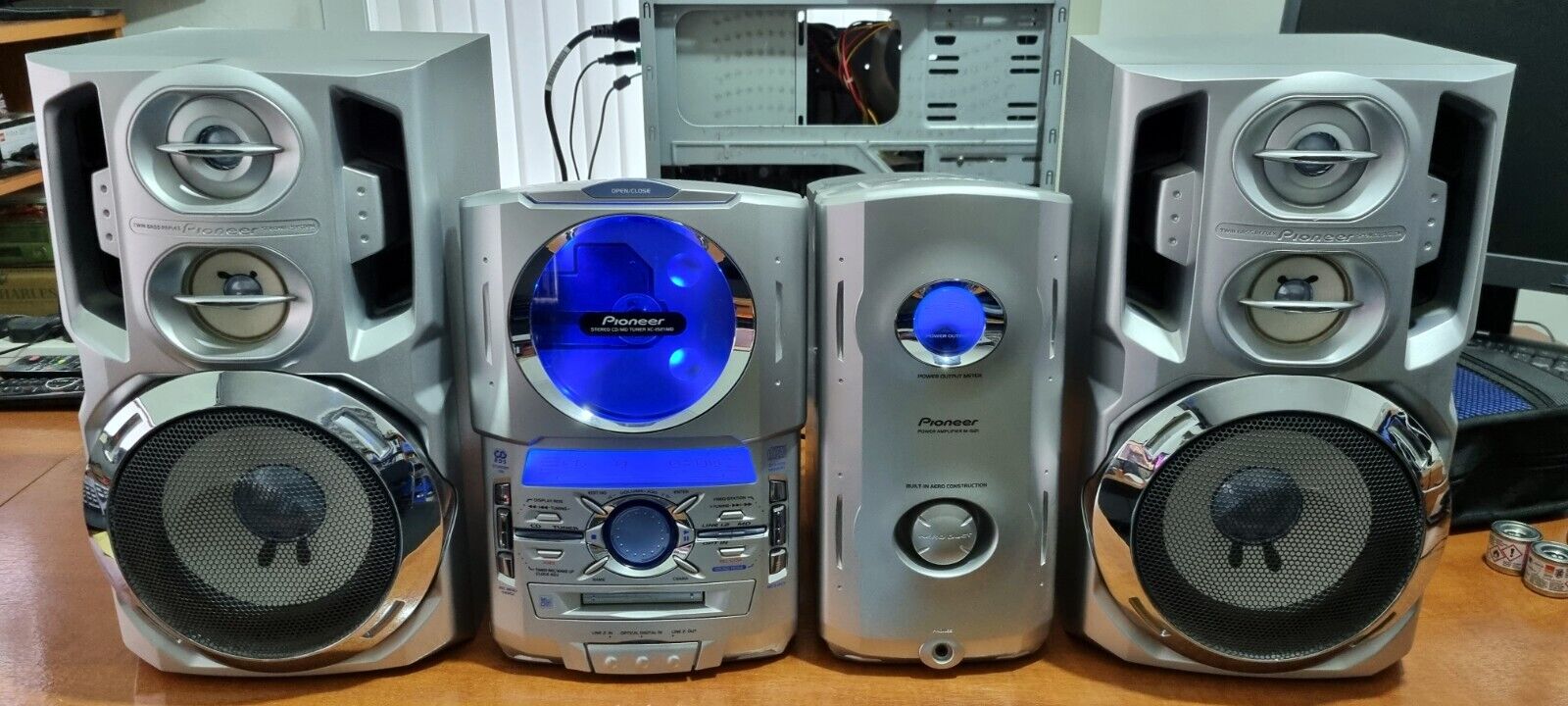

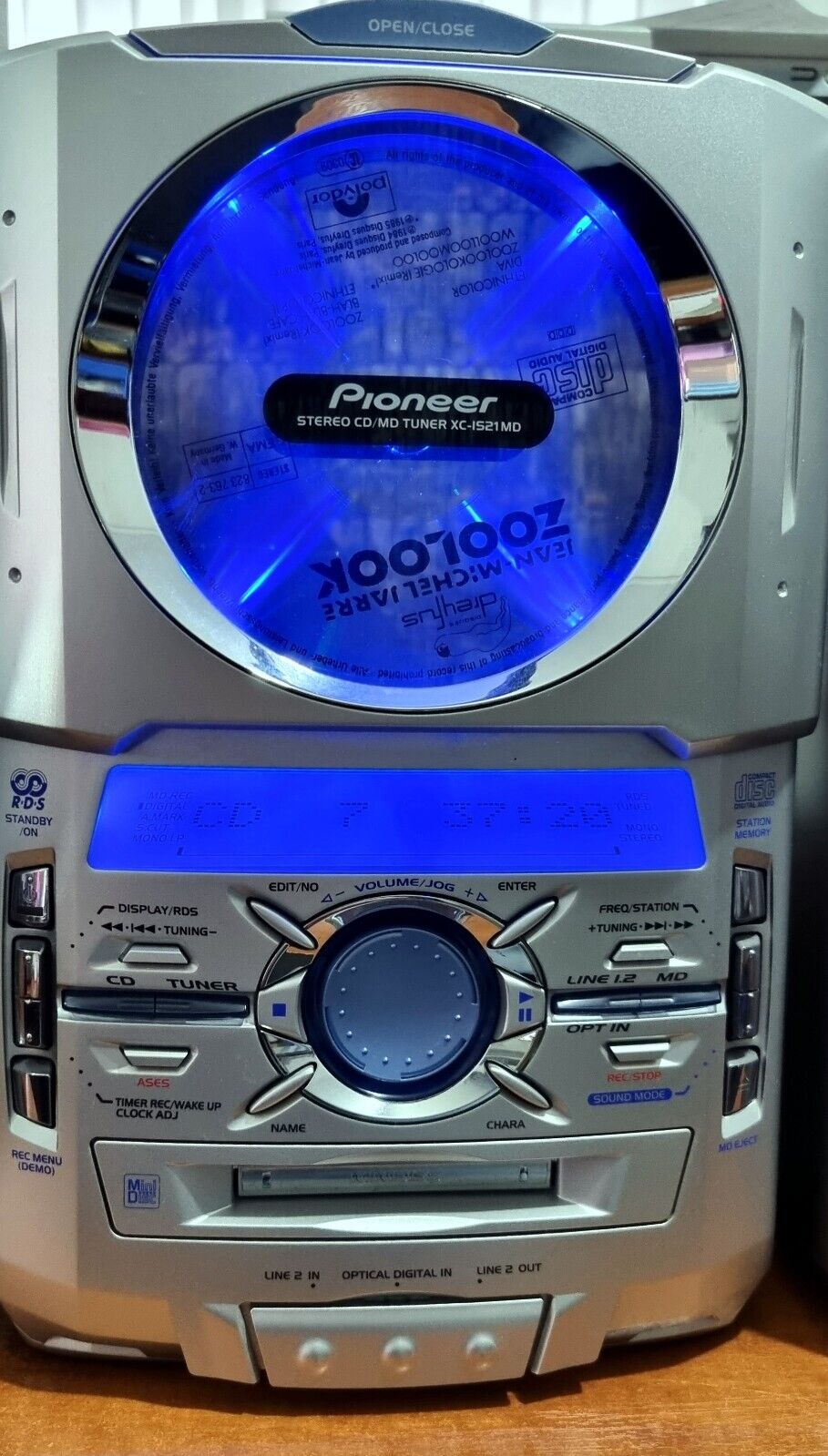

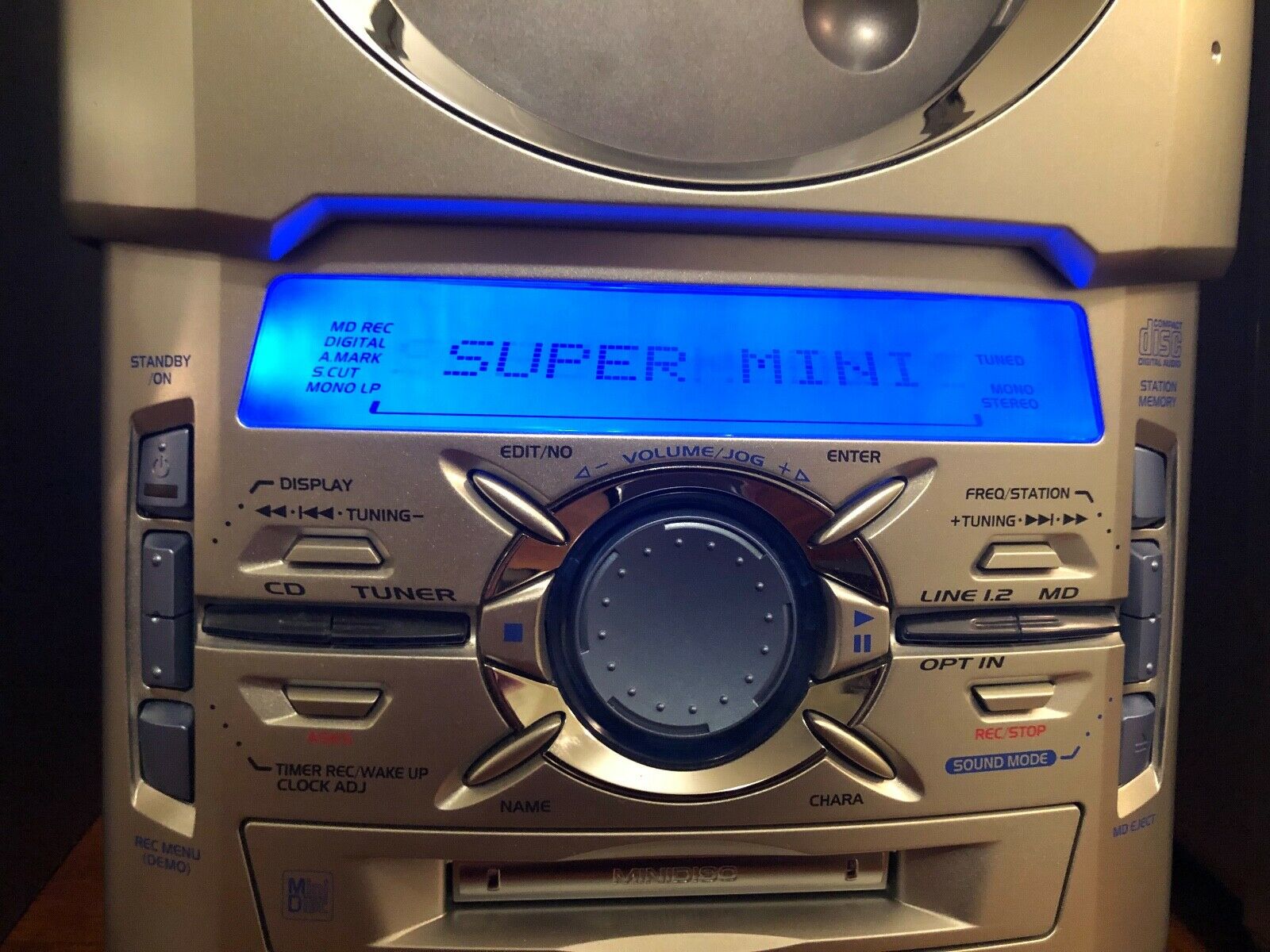

Pioneer XC-IS21MD. Seems to have been made for the UK/EU market.
FM: 87.5 - 108MHz
Equipped with 4M of DRAM. Chip#: M5M4V4400CTP-7
MD Overwrite Head: RPB1063
MD Pick-up: RWY1019
ATRAC IC: LR376487 - A Sharp chip
CD IC: CXD2587Q
Content adapted from: Manuals
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Remote Page | |
|---|---|
| Atrac Ic | lr376487 |
| Manual | User manual, Service manual |
| Region | Japan |
