Pioneer X-HA7DV

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-12-06

Manufacturer
Pioneer
Model / source grouping
X-HA7DV
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer X-HA7DV”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name X-HA7DV
Manufacturer Pioneer
Released 2005/06
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 170mm (W) x 252mm (H) x 321.4mm (D)
Weight 5700
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-
Inputs 3.5mm line in (analog-only), RCA in, CD
Outputs 3.5mm headphone, RCA out, Digital optical (TOSLINK)
Control USB Type-B

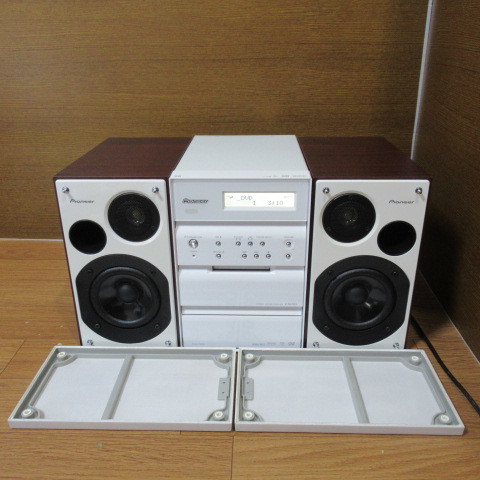

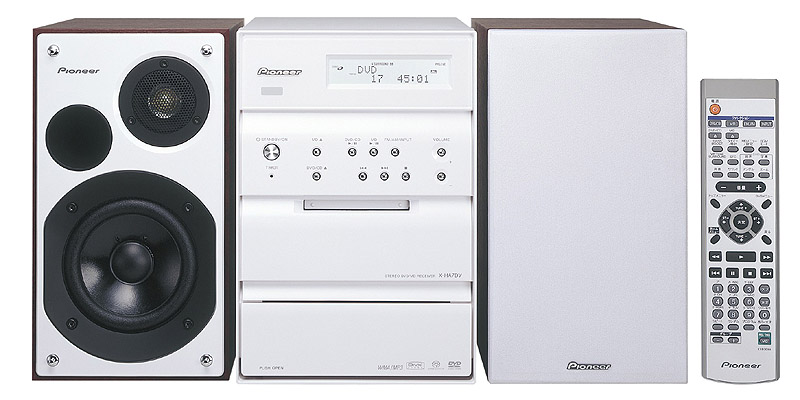

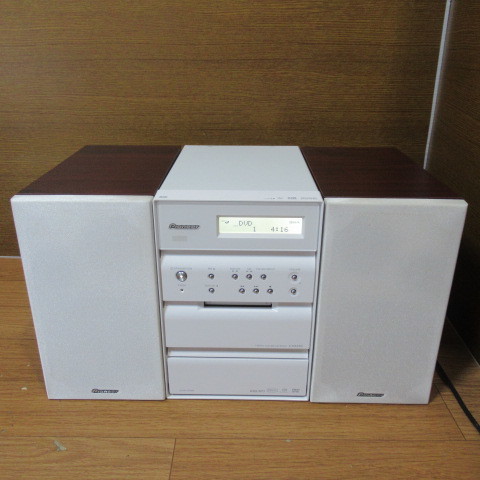

Pioneer X-HA7DV-W (white)

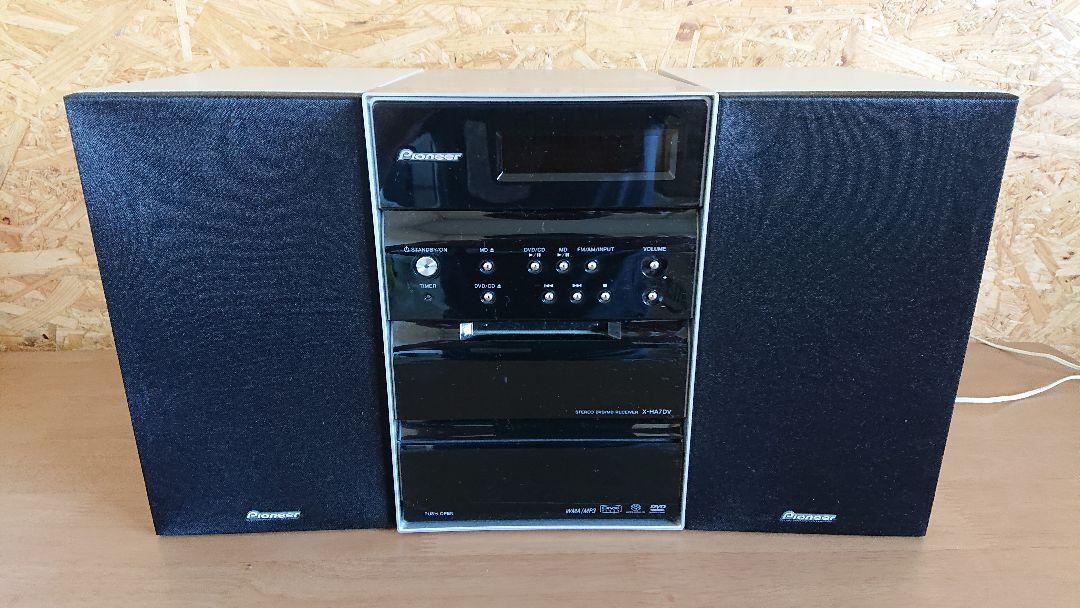

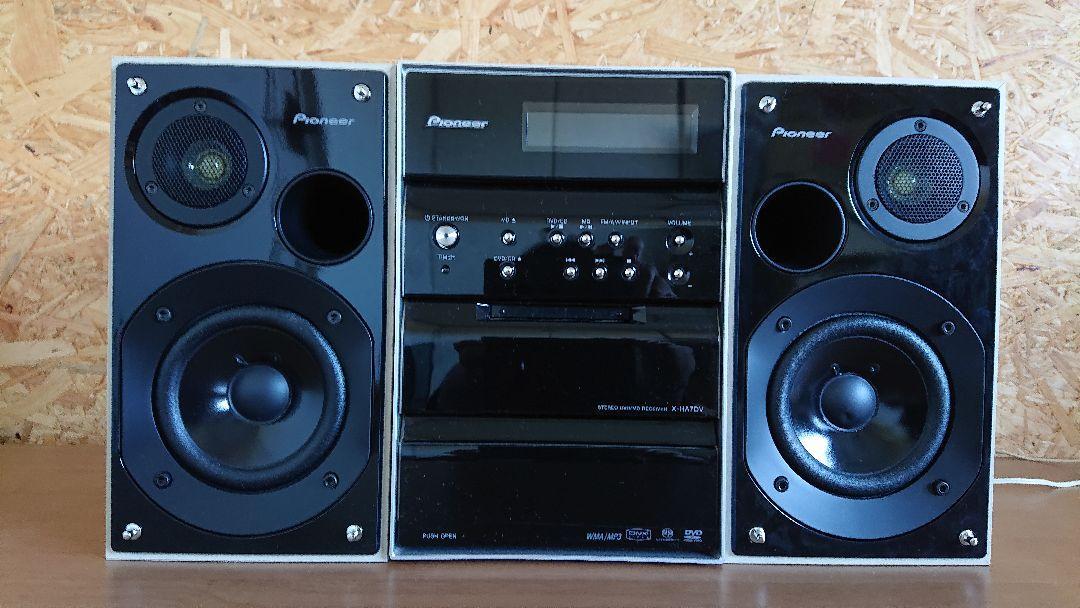

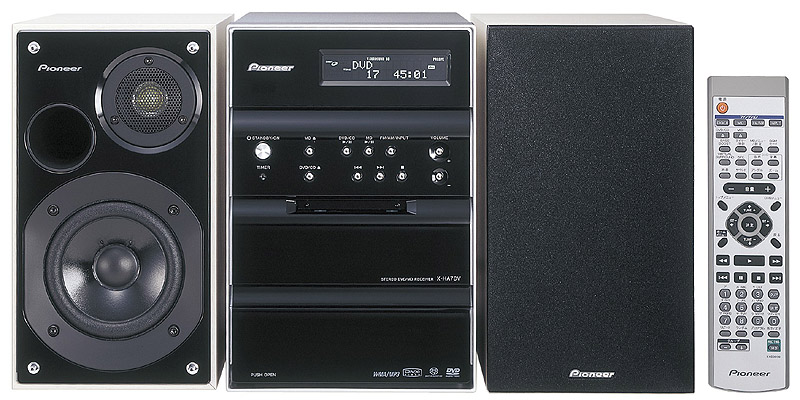

Pioneer X-HA7DV-K (black)

  • Double speed recording from CD to MD is possible easily with one touch.
  • Five sound modes (MOVIE / MUSIC / LIVE / HALL / DRAMA) that can be selected according to the content.
  • Equipped with "MDLP (LP2 / LP4) function". In addition, the "group function" allows you to quickly select a large number of songs.
  • Equipped with a "manner mode" that suppresses sudden sound effects and prevents sound leakage to the outside while maintaining the volume of dialogue and vocals.

Content adapted from: Pioneer Press Release 1 Pioneer Press Release 1 (MiniDisc Wiki mirror) Pioneer Press Release 2 av.watch phileweb.com

Manuals

Pioneer X-HA7DV Manual

Repair

kanau.html.xdomain.j

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ScmsYes
ExportNo
ManualUser manual
RegionJapan
