| Name | MJ-D5 |
|---|---|
| Manufacturer | Pioneer |
| Released | 1999/06 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 420x105x294mm |
| Weight | 3.5kg |
| ATRAC ver | Sharp 5 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥49 800 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK), Digital coaxial |
| Outputs | RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |
Supposed to be Japanese version of Pioneer MJ-D508 .
Features: Digital recording level adjustment.
Specs: Sampling rate: 44.1kHz or more, reproduction frequency characteristic: 8Hz-20kHz, reproduction Signal-Noise ratio: 100dB.
Content adapted from: Minidisc.org Page Pioneer manual page
Manuals
Repair

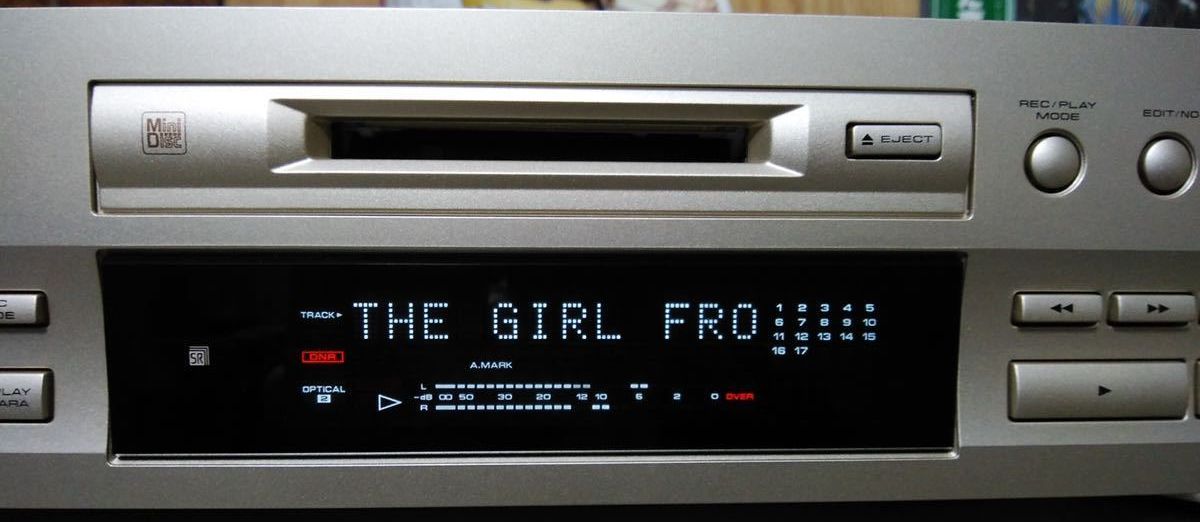

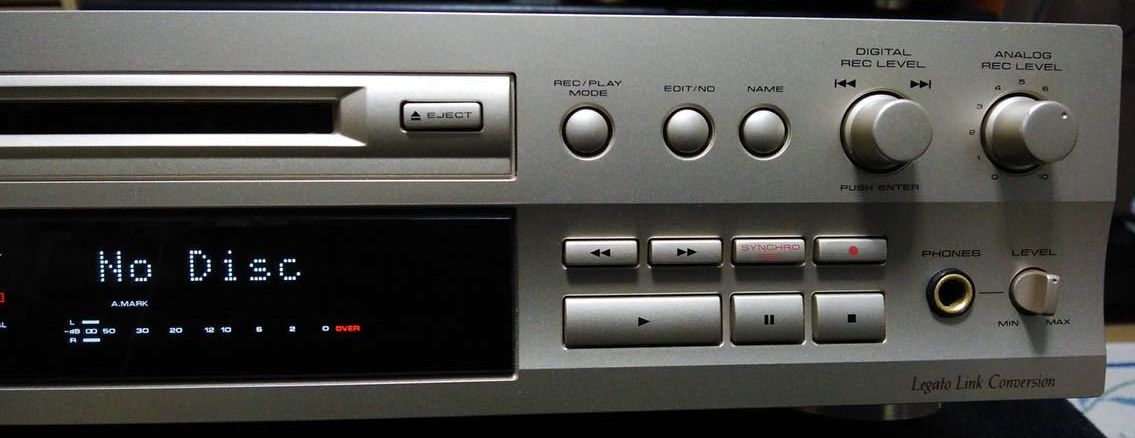

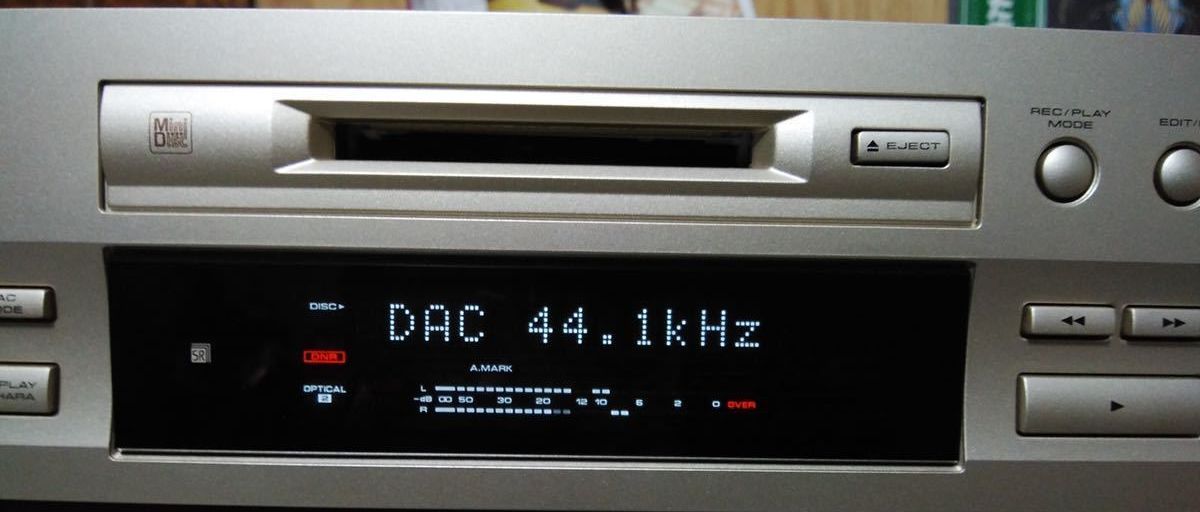

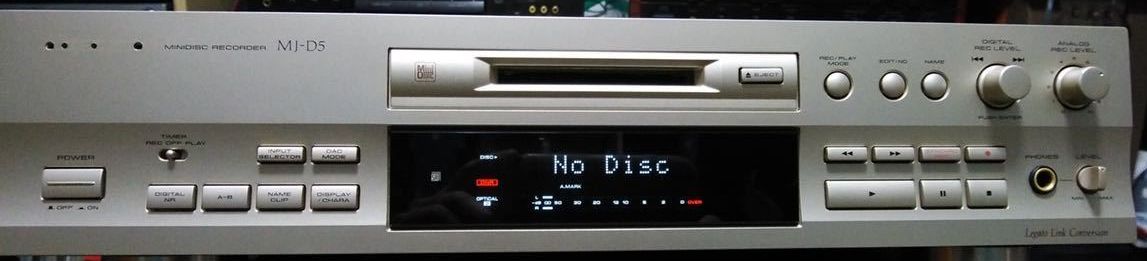

Photos

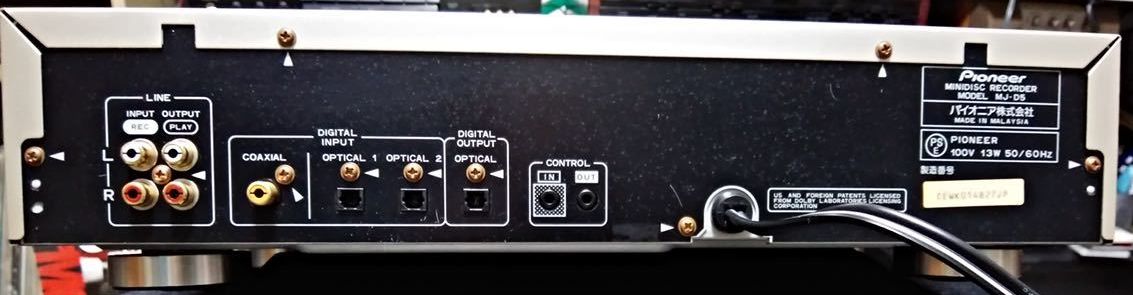

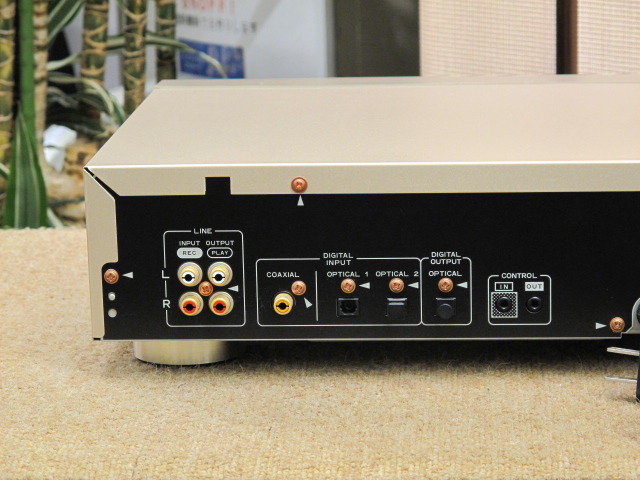

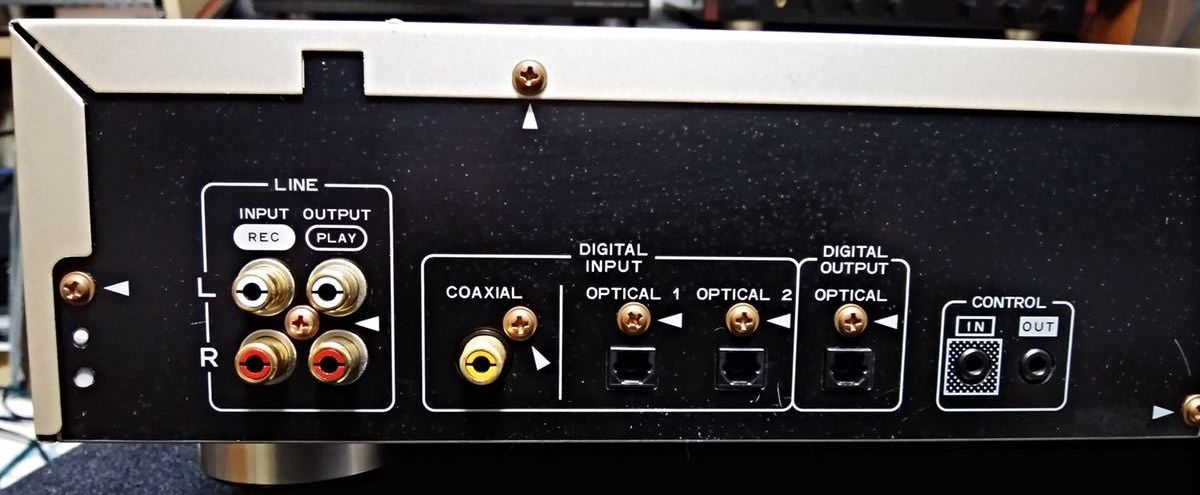

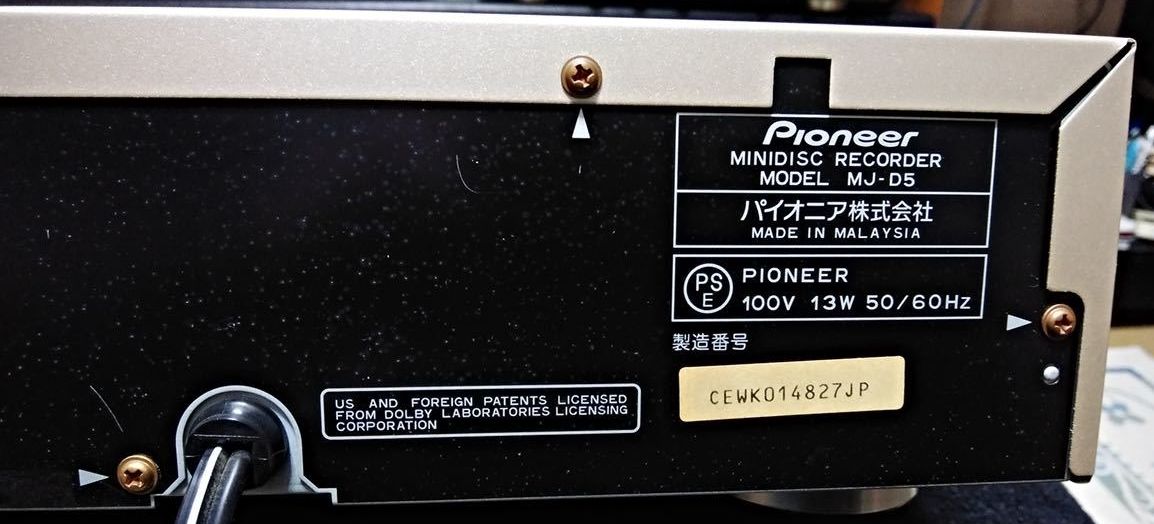

Unit rear
