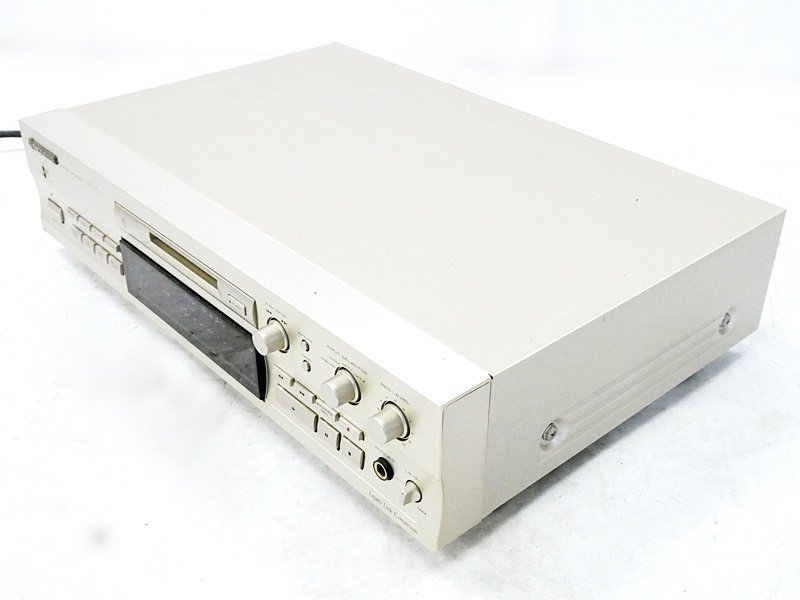

Pioneer MJ-D7 / MJ-D707

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer MJ-D7 / MJ-D707”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name	MJ-D7 / MJ-D707
Manufacturer	Pioneer
Released	1998/06
Device type	deck
Recorder	Recorder
MDLP	No
NetMD	No
Hi-MD	No
Radio	No
Dimensions	420 x 105 x 294mm
Weight	3.9kg
ATRAC ver	Sharp 5
Battery	Not recorded Not recorded
Battery notes	Not recorded
Sidecar (depr)	No

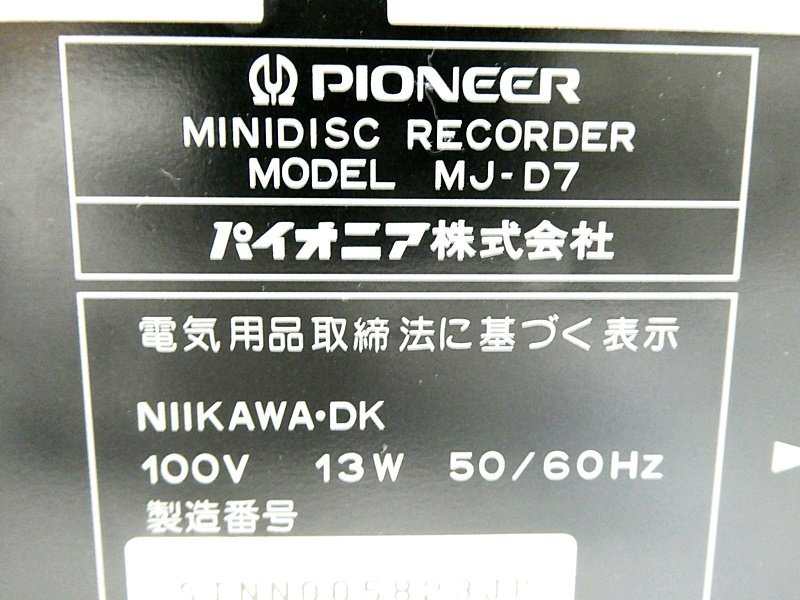

Voltage	100
Power cable	AC
Price (launch)	Not recorded
Price (launch)	¥65 000
-

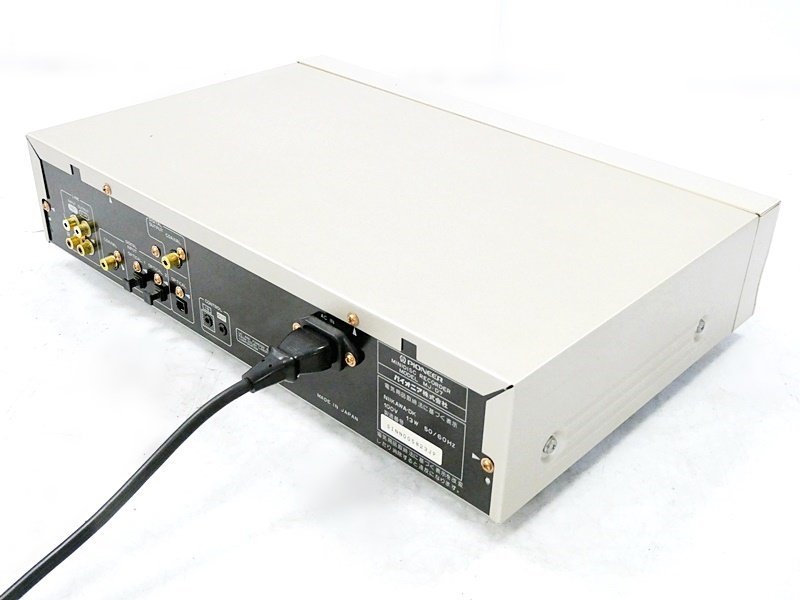

Inputs	RCA in, Digital optical (TOSLINK), Digital coaxial
Outputs	1/4 inch headphone, RCA out, Digital optical (TOSLINK)
Control	Not recorded

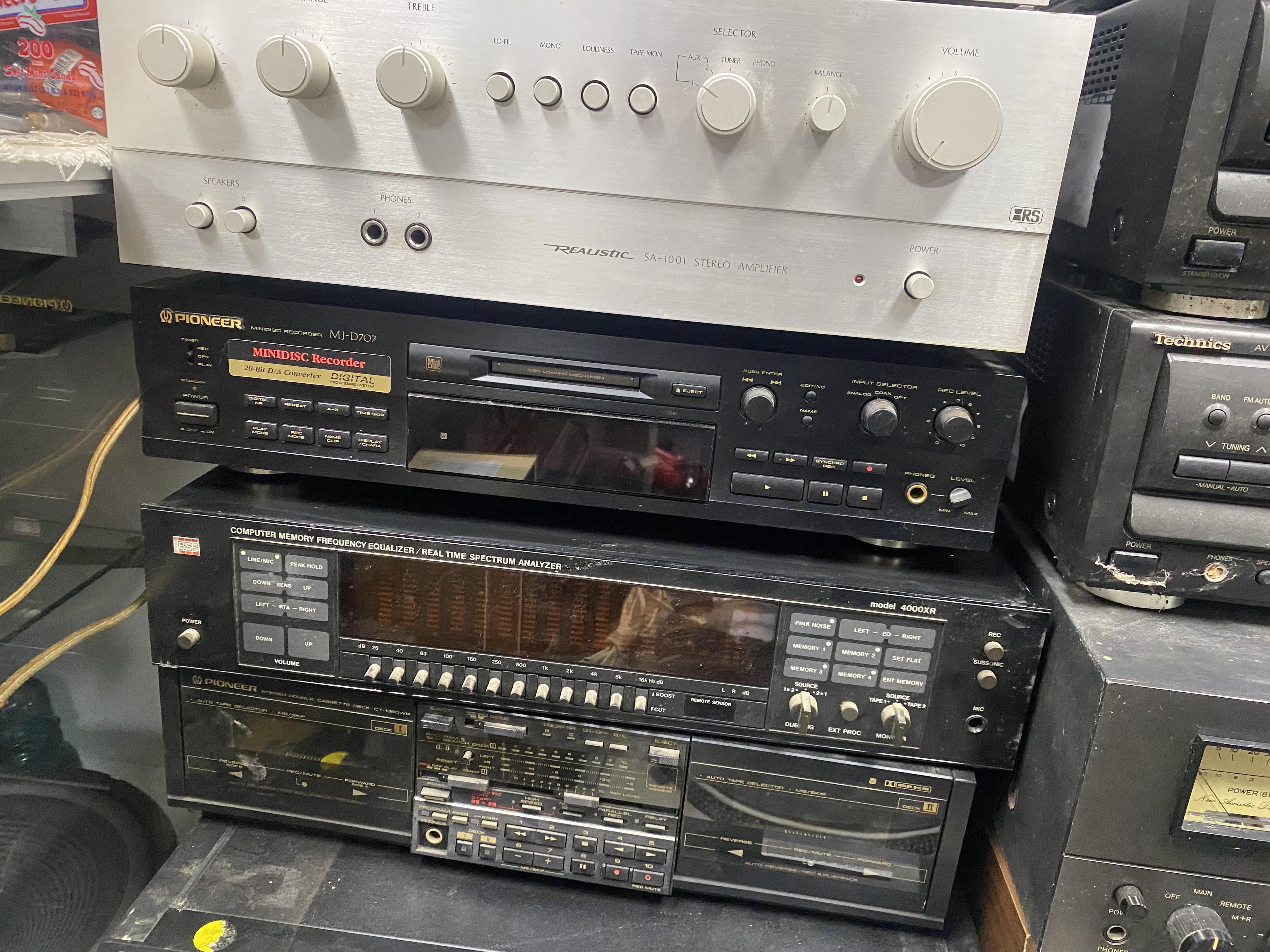

MJ-D707 appears to be an export version, while MJ-D7 is the domestic version.

Uses a Pioneer developed ATRAC, which they call "ASRAC".

Pioneer ASRAC is in use only for analog signal record, it's an analog processed pre-equuilizing correction before passing the audio signal to standard Sharp 5 Atrac encoder. Digital recording uses pure standard Sharp 5 Atrac

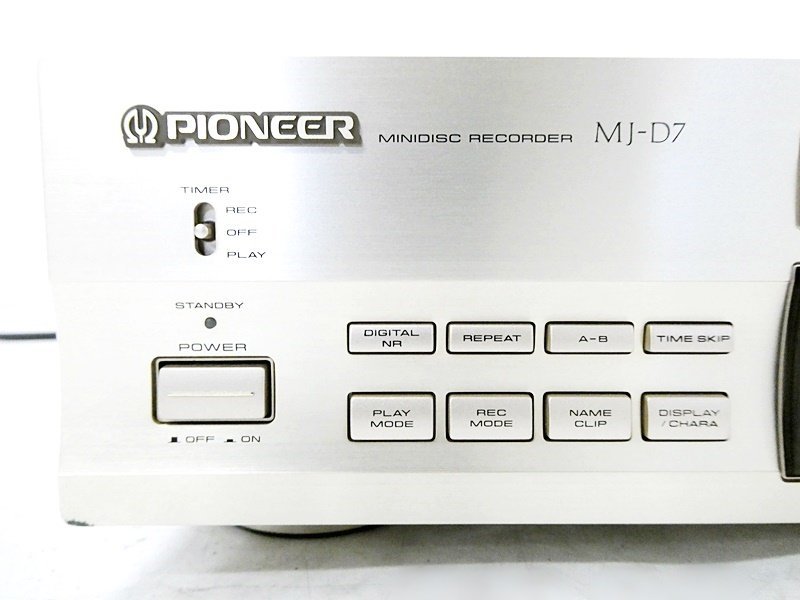

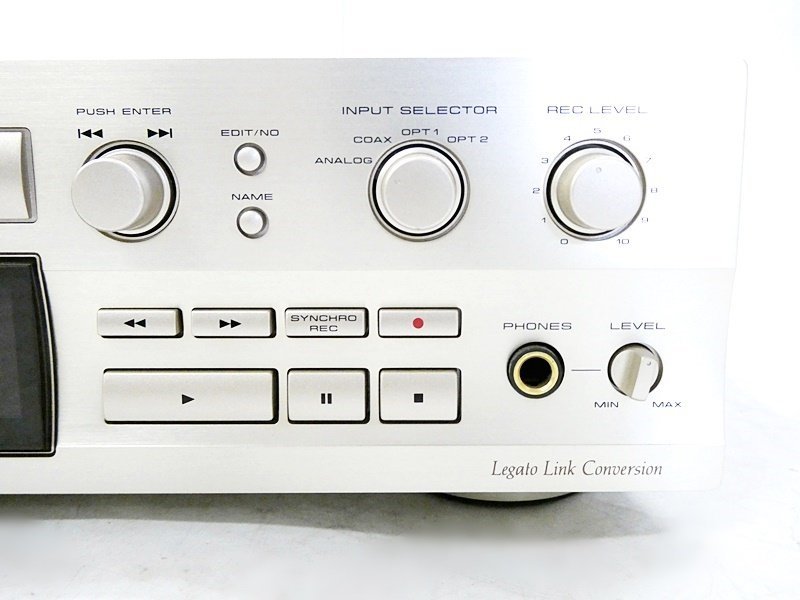

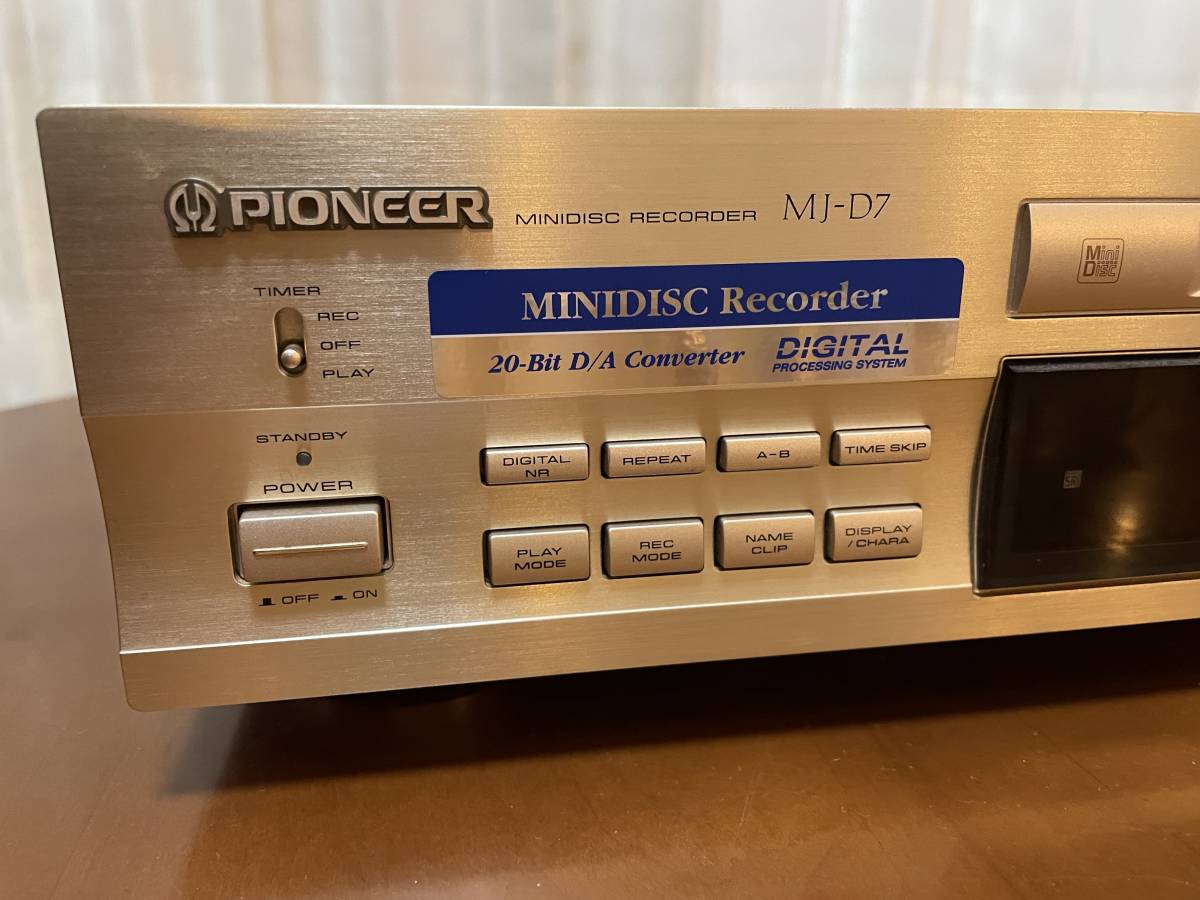

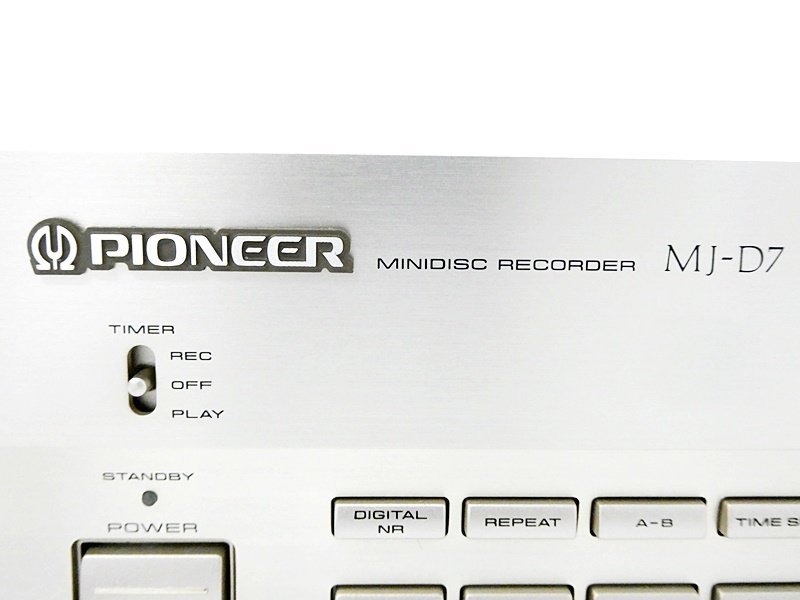

Incorporates Pioneer's "Digital Noise Reduction" (already available on some Pioneer cassette decks) and "Legato Link Conversion" (which synthetically produces frequencies up to 40kHz). Digital recording level control (-48dB to +12dB). Time skip function allows quick movement through audio material at 30s or 60s per click. Medley playback function fades across track changes. Name clip function allows track titles to be duplicated and edited. Synchro start recording. Name clip (copy and paste?) function.

Specs:
