Sanyo CDF-MC2

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-07-06

Manufacturer
Sanyo
Model / source grouping
CDF-MC2
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sanyo CDF-MC2”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name CDF-MC2
Manufacturer Sanyo
Released 2003/01
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 2-DIN 178 (W) x 100 (H) x 160 (D) mm (excluding protrusions)
Weight 2200
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No

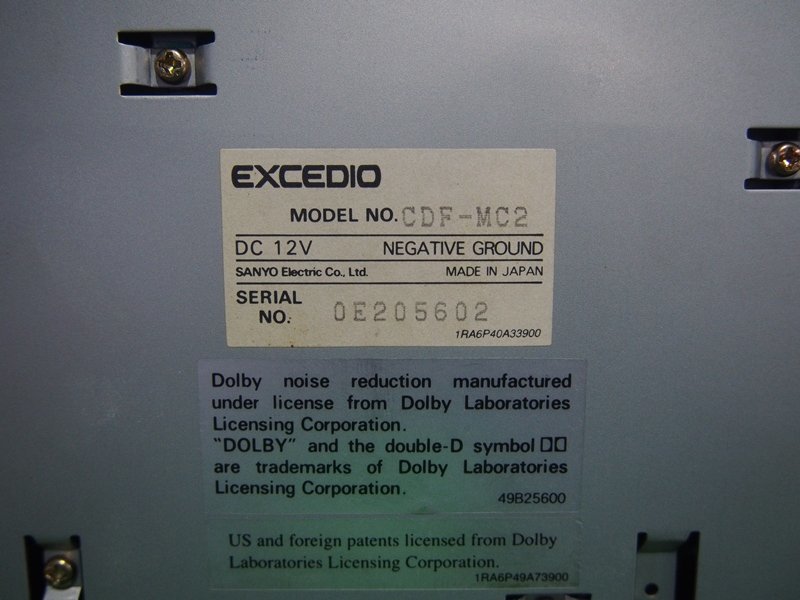

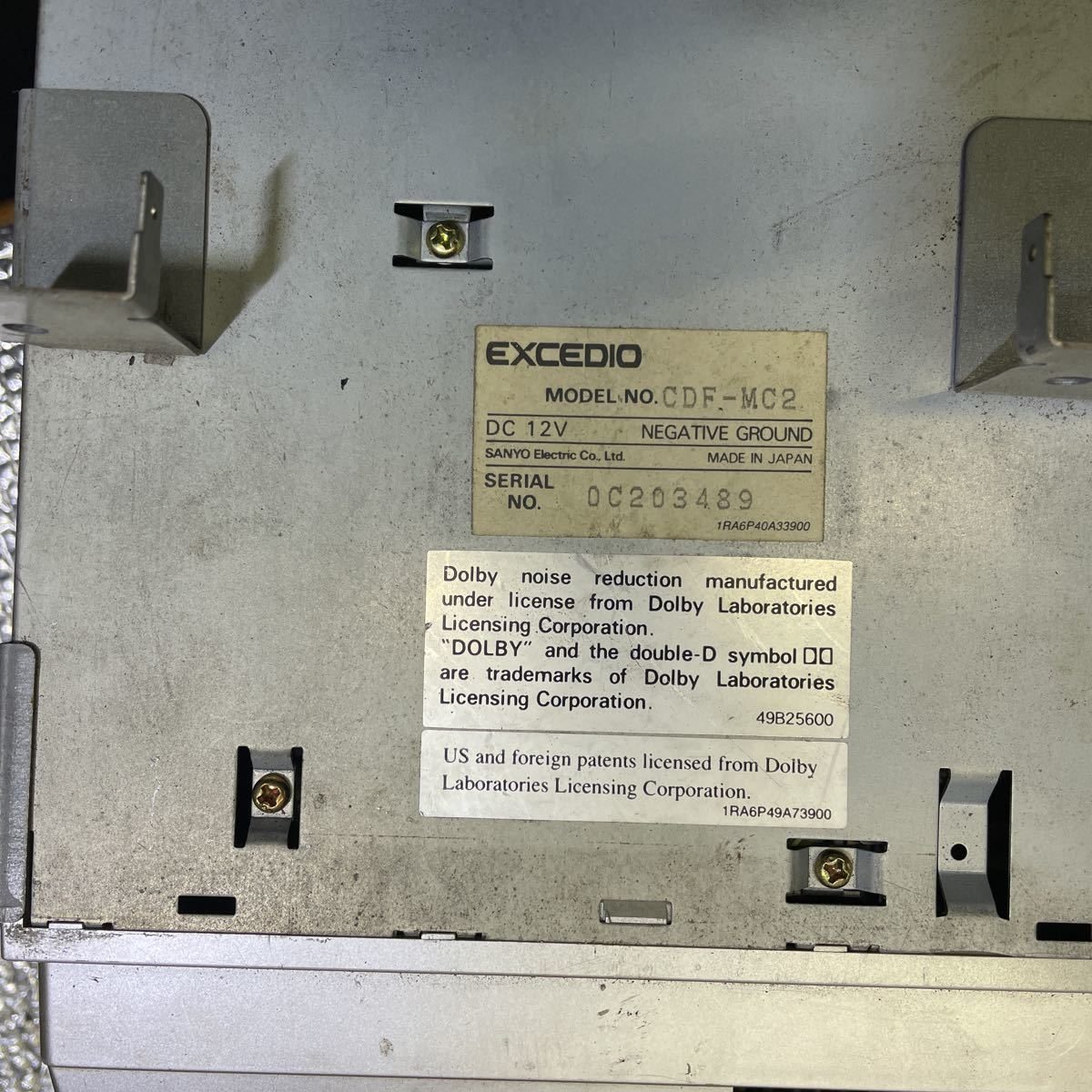

Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥60 000
-
Inputs N/A

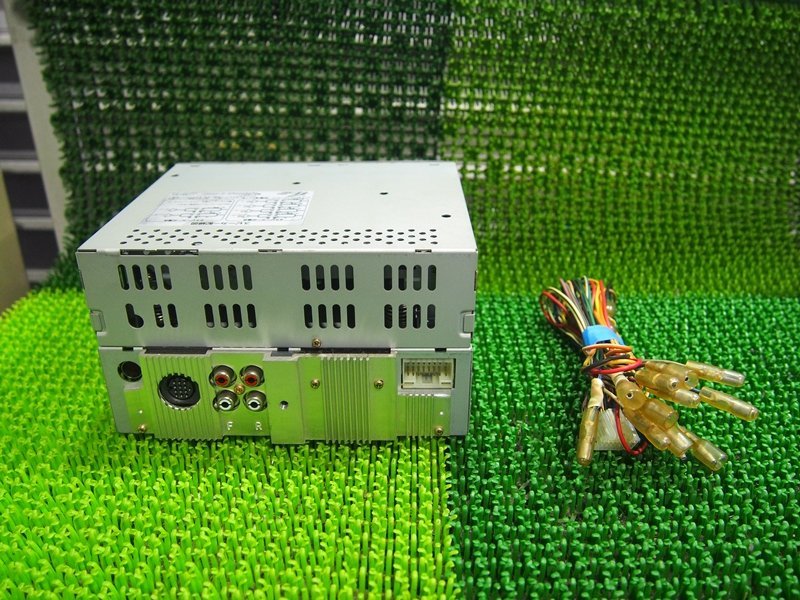

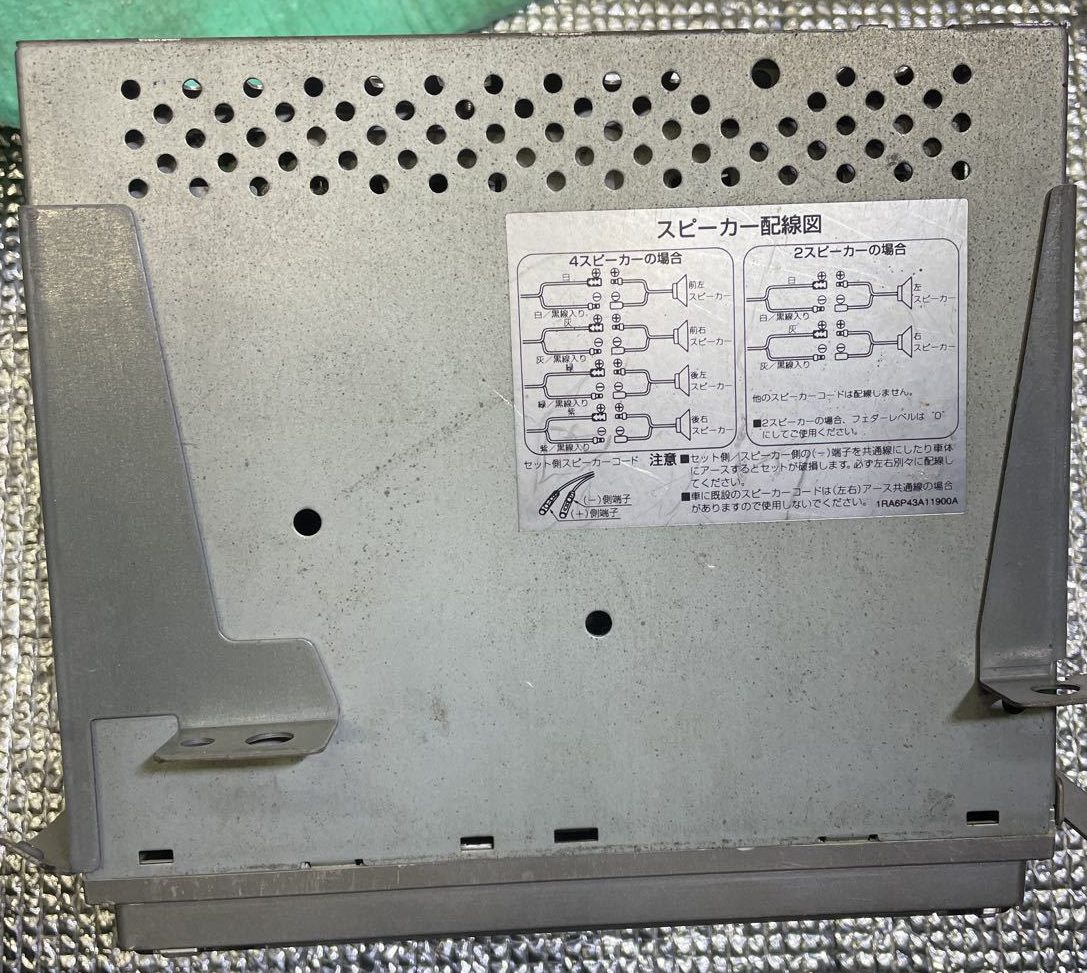

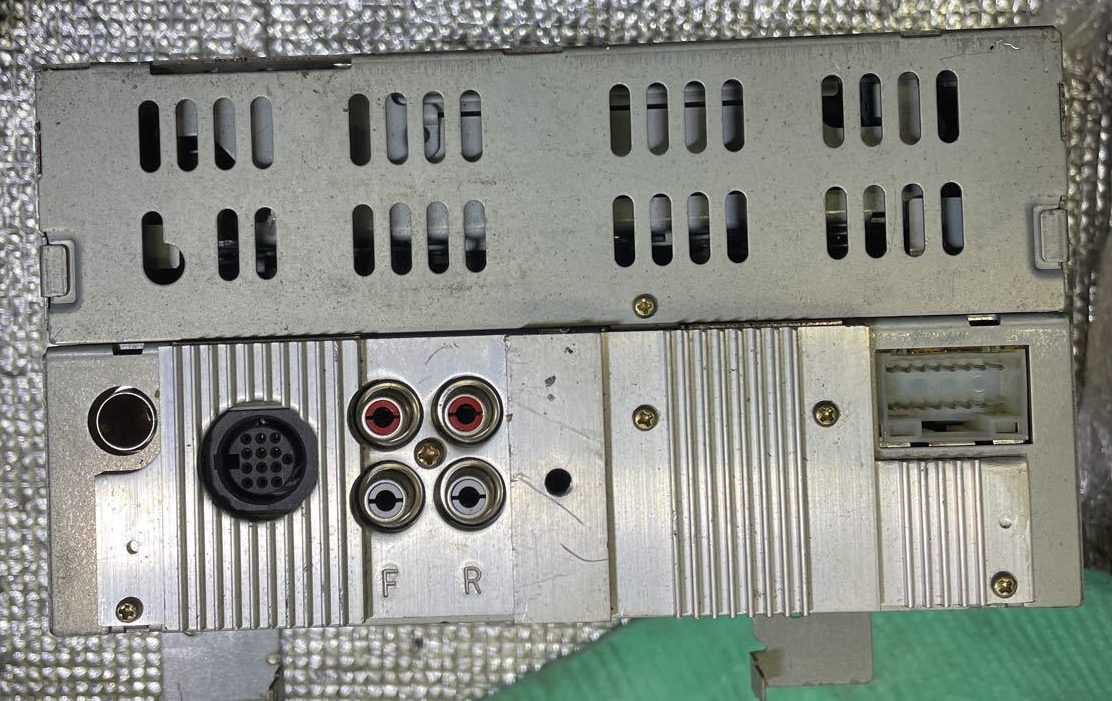

Outputs RCA out, Speaker amplifier
Control Not recorded

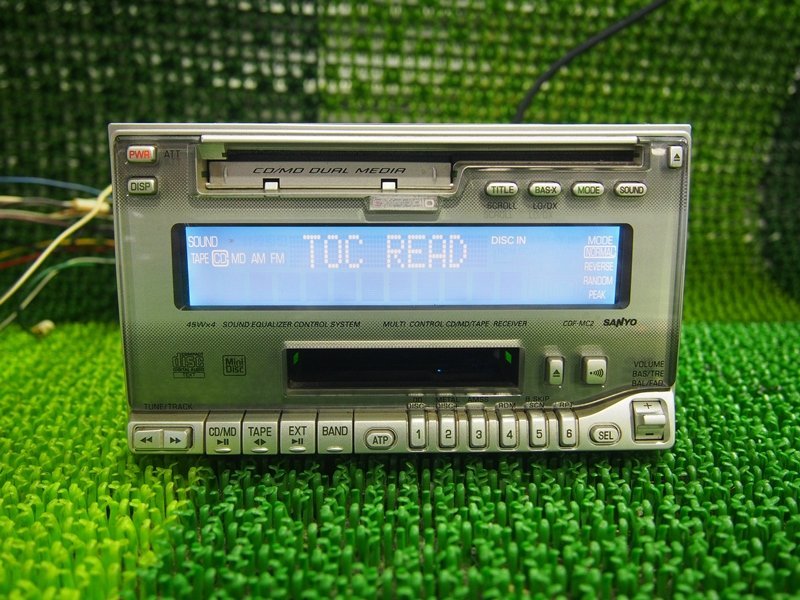

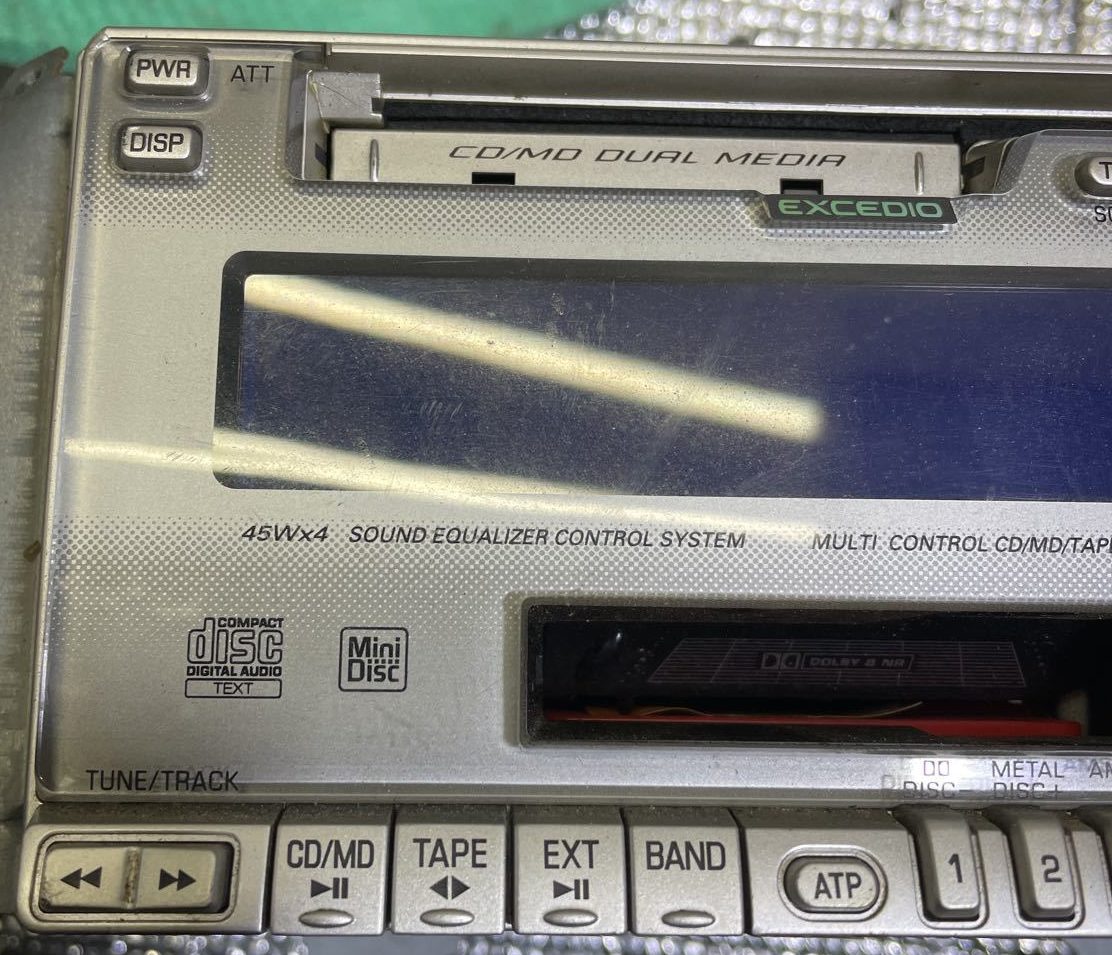

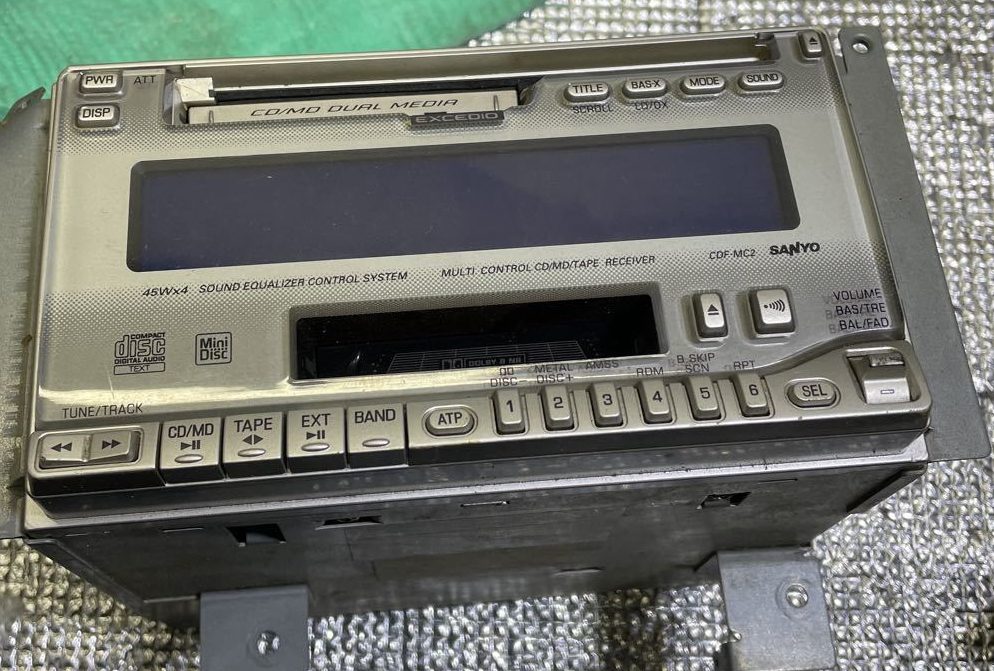

in-dash CD/MD/Cassette receiver

  • Accepts CDs and MDs in a single slot, cassettes in a second slot.
  • MDLP support, with group mode function.
  • CD-R and 80mm (mini-)CD capable.
  • CD/MD scrolling title display.
  • Shuffle/scan/repeat play modes.
  • Japanese FM band (76-90Mhz).
  • 4-mode spectrum analyzer.
  • 6-mode preset equalizer.
  • CD changer control.
  • Amp: 45W x 4, SNR: MD: 90dB, CD: 85dB, Cassette: 50dB (60dB w/Dolby)

MD / CD player part

  • Frequency characteristics… 20 ～ 20,000Hz
  • SN ratio… CD: 85dB, MD: 90dB

Cassette deck part

  • Frequency characteristics… 30 ～ 16,000Hz
  • SN ratio… 60 / 50dB (Dolby ON / OFF)
  • Harmonic distortion rate… 0.13% (1kHz)

Tuner section

  • Reception frequency… FM: 76 ～ 90MHz, AM: 522 ～ 1629kHz
  • Practical sensitivity… FM: 12dBf, AM: 28dB
  • SN ratio… FM: 60dB, AM: 50dB

Amplifier part

  • Maximum output… 45W × 4 (14.4V, 4Ω)
  • Sound quality adjustment… BASS: ± 10dB (100Hz), TREBLE: ± 10dB (10kHz)

common part

  • Power supply voltage… DC14.4V (11 to 16V)
  • External dimensions: 178 (W) x 100 (H) x 160 (D) mm (excluding protrusions)
  • Weight: 2.2 kg

Content adapted from: Minidisc.org page Sanyo Product Page Sanyo Product Page (MiniDisc Wiki mirror)

Manuals

Video

Basic demo Watch the referenced video on YouTube

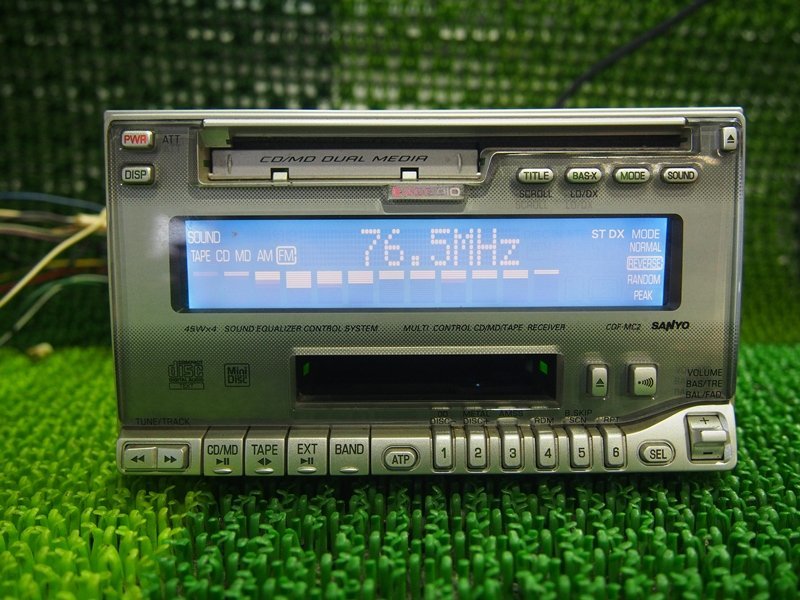

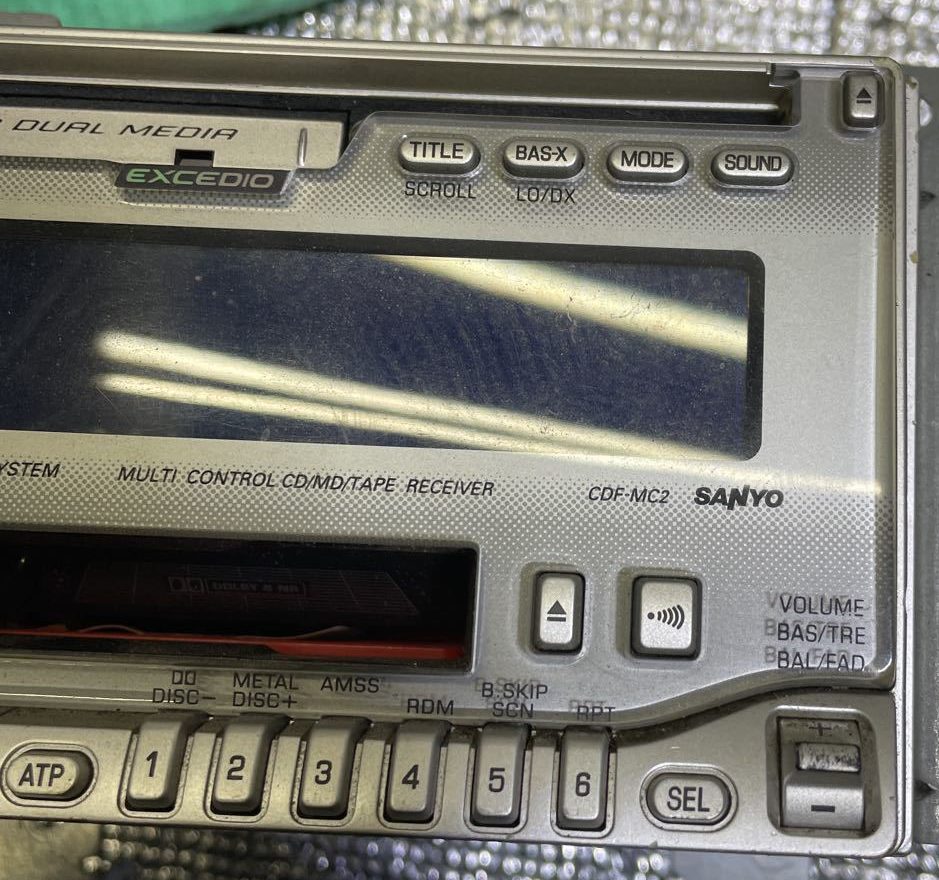

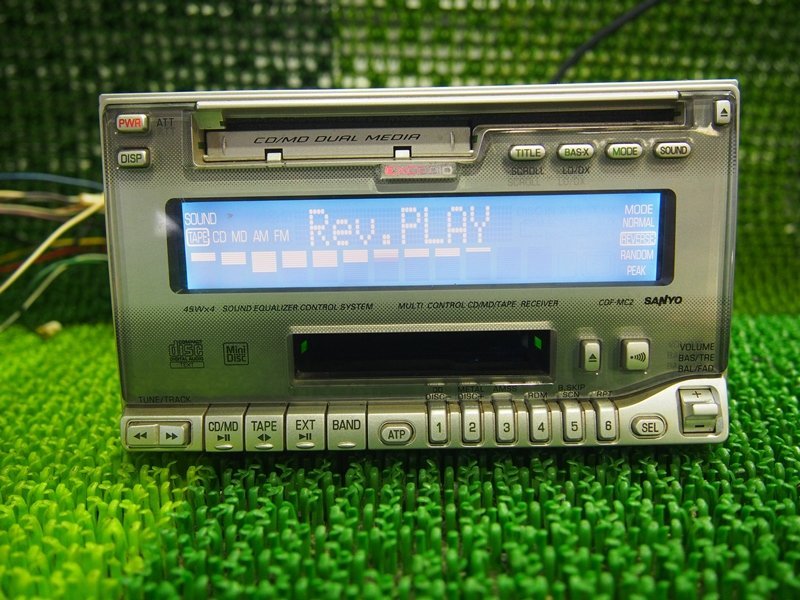

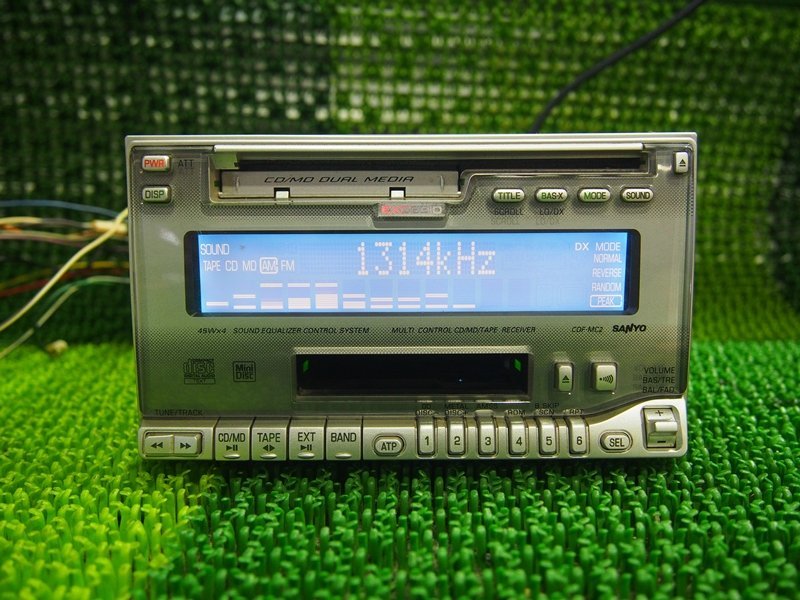

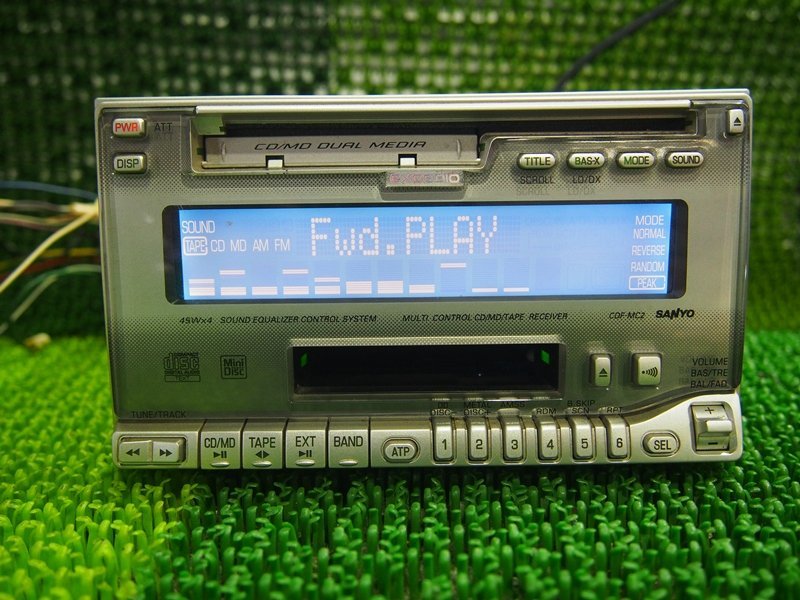

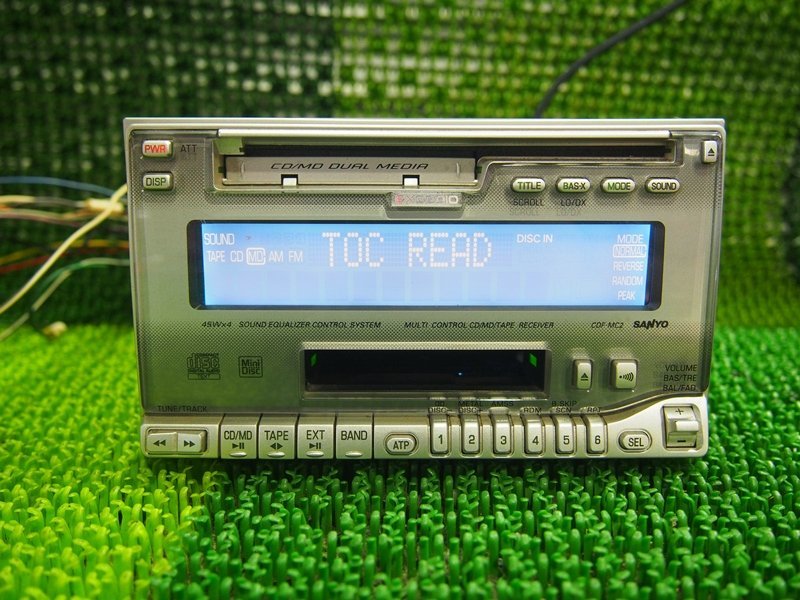

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Manual
RegionJapan
