| Name | CDF-MD1 |
|---|---|
| Manufacturer | Sanyo |
| Released | 1998/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 2-Din 178(W) × 100(H) × 158(D)mm |
| Weight | 2500 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥75 000 | |
| - | |
| Inputs | CD |
| Outputs | Not recorded |
| Control | Not recorded |

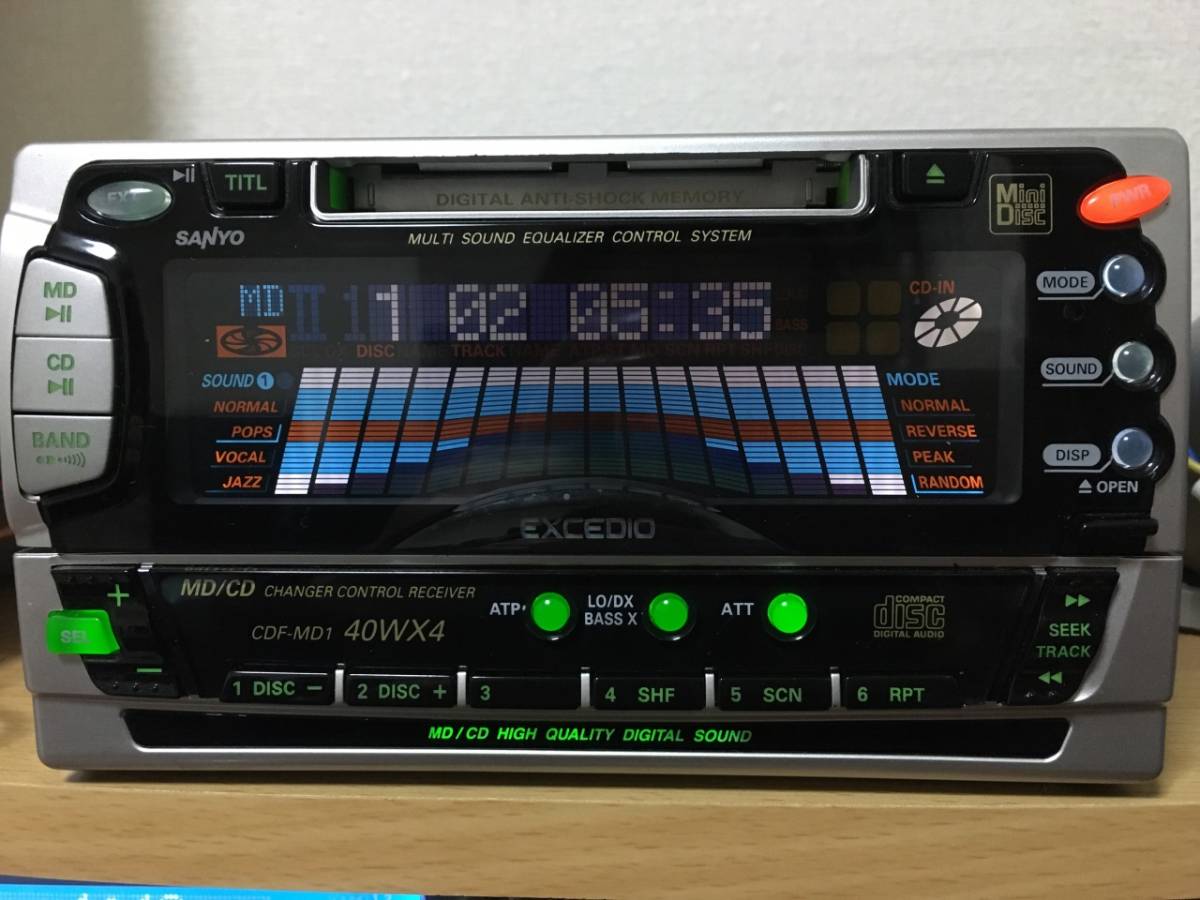

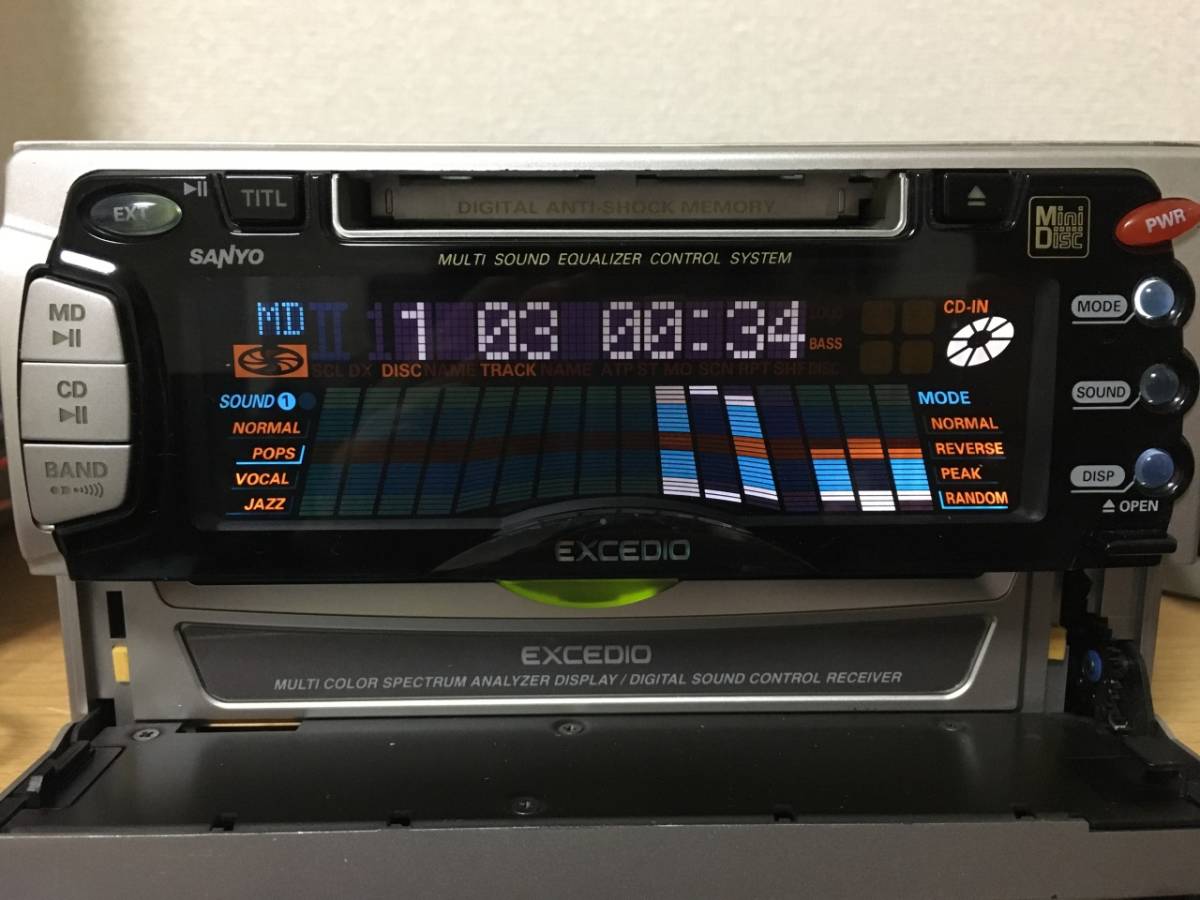

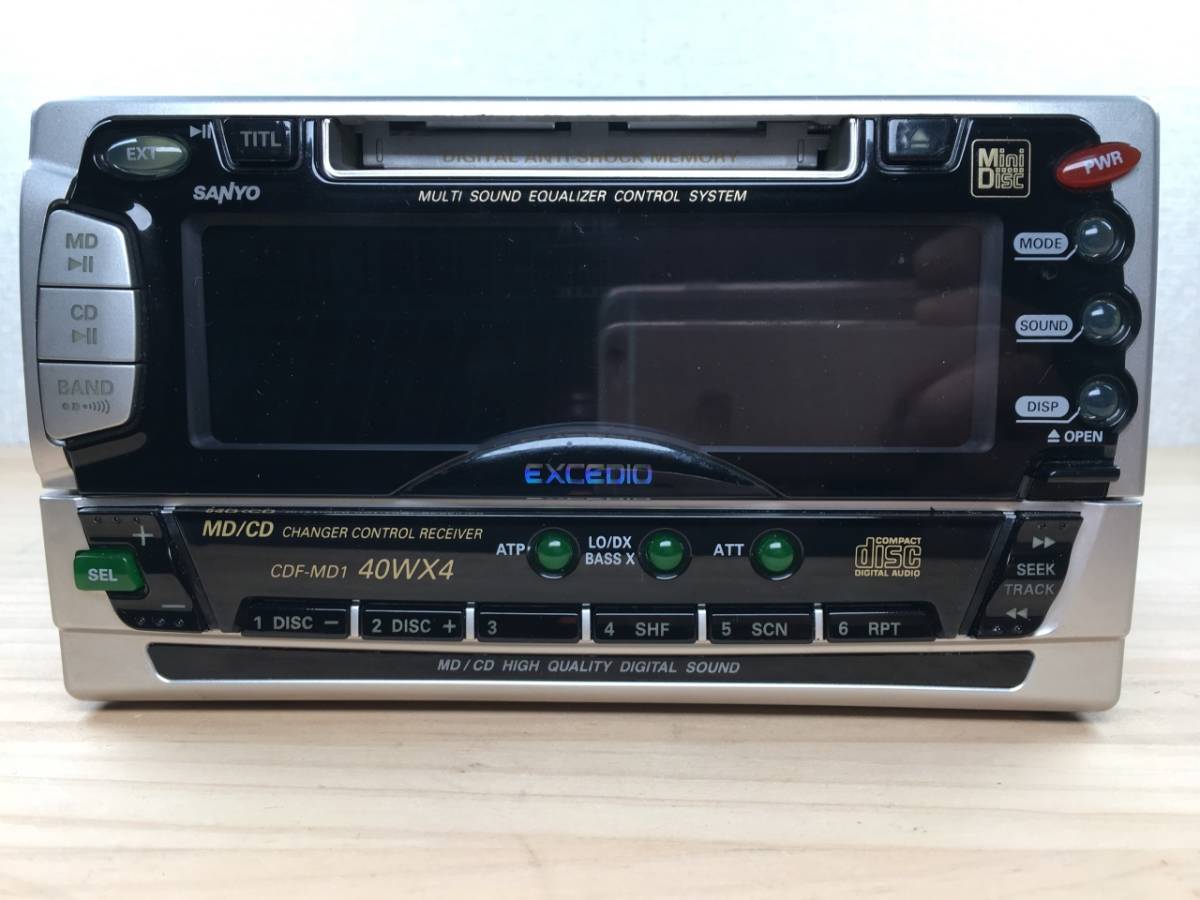

Sanyo CDF-MD1. Not to be confused with CDF-MC1 which has a dual CD/MD drive.
The disc title, artist name, and song title of the MD are displayed in alpha/numeric/kana characters on the display
10 second anti shock

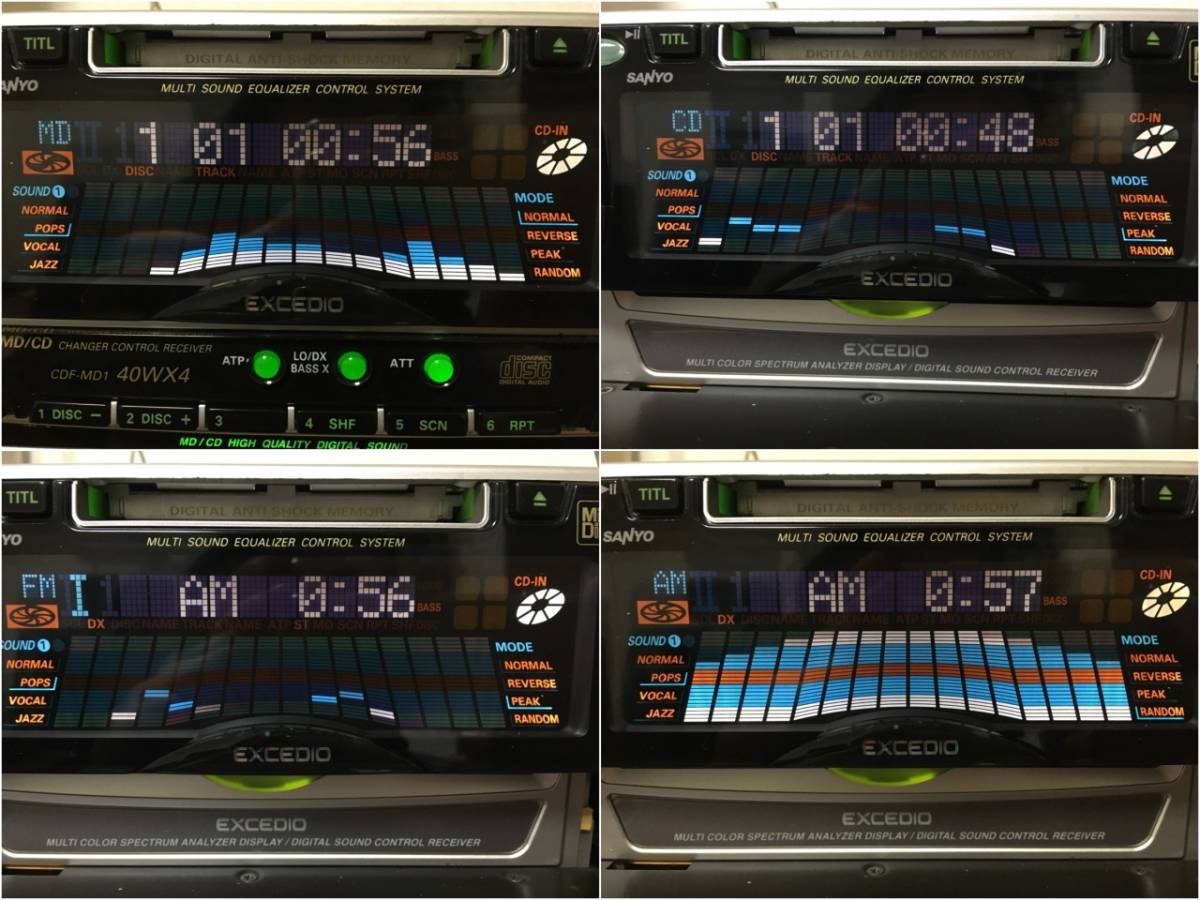

16 band spectrum analyzer
- 4 modes: normal/reverse/peak/random
Supports 12cm / 8cm CD
FM 12 stations / AM 6 stations preset
BASS expander, Expands the low range of the playback source.

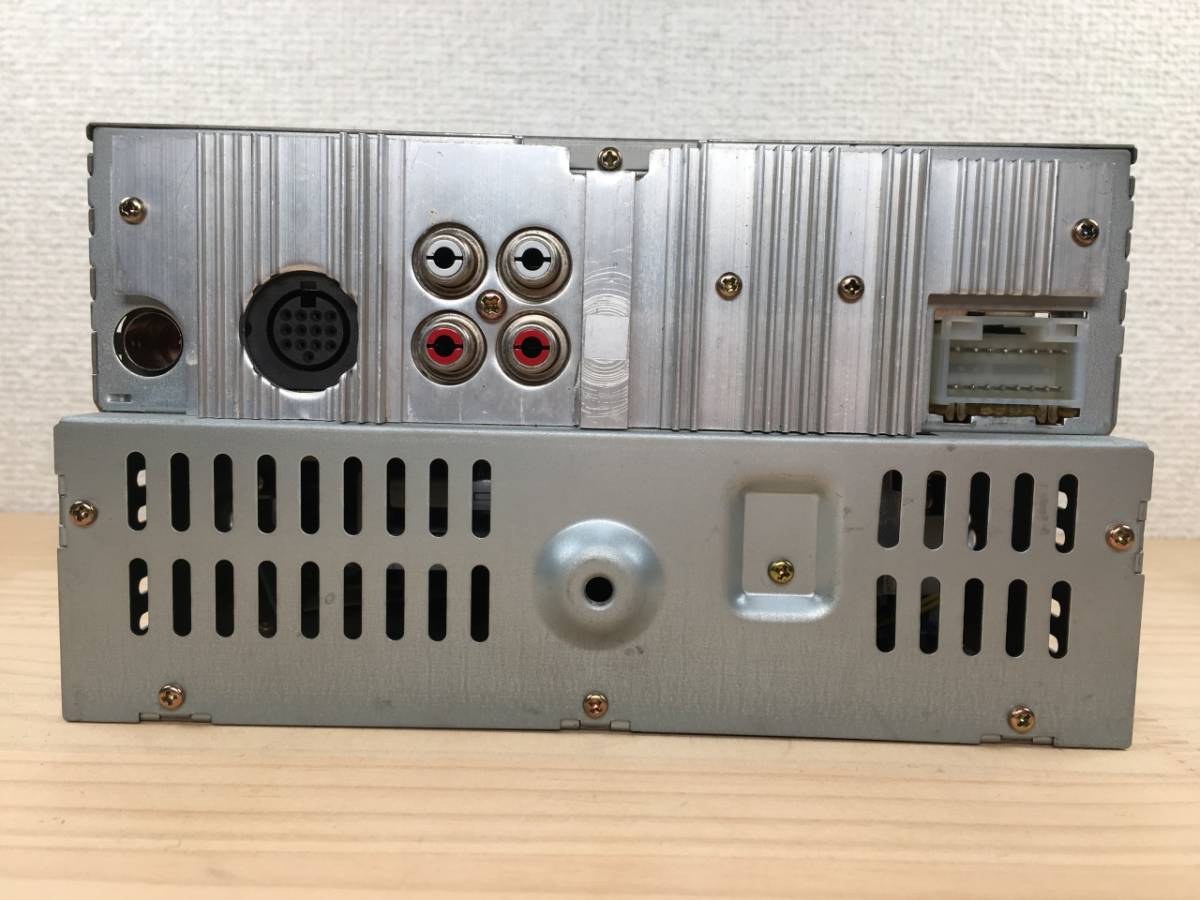

line out output
ToC data reading speed of MD has been improved to approximately double that of previous products (MDR-1)
CD changer control function by connecting the [6 CD changer CDF-C61J] exclusively for this machine released at the same time.
- Maximum output 40W x 4 (14.4V, 4Ω)
- Rated output 5W×4 (14.4V, 4Ω, 5% distortion)
- Sound quality adjustment BASS: ±10dB (100Hz)/TREBLE: ±10dB (10kHz)
Content adapted from: Sanyo Press Release Sanyo Press Release (MiniDisc Wiki mirror)
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Manual | |
| Region | Japan |
