| Name | CDF-MD6 |
|---|---|
| Manufacturer | Sanyo |
| Released | 2002/10 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 2-Din 178 (W) x 100 (H) x 160 (D) mm (excluding protrusions) |
| Weight | 1900 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥51 000 | |
| - | |
| Inputs | CD |
| Outputs | Not recorded |
| Control | Not recorded |

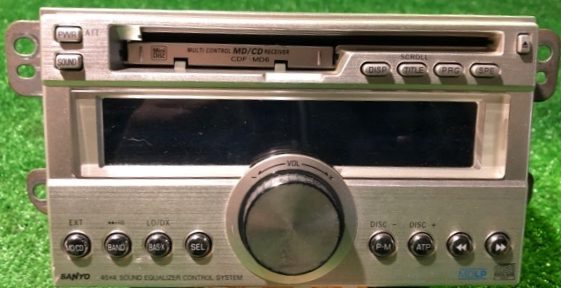

SANYO CDF-MD6.
Supports 8cm CD's.
MD / CD player part
- Frequency characteristics… 20 ～ 20,000Hz
- SN ratio… 80dB
Tuner part
- Reception frequency… FM: 76 ～ 90MHz, AM: 522 ～ 1629kHz
- Practical sensitivity… FM: 12dBf, AM: 28dB
- SN ratio… FM: 60dB, AM: 50dB
Amplifier section
- Maximum output… 45W × 4 (14.4V, 4Ω)
- Sound quality adjustment… BASS: ± 10dB (100Hz), TREBLE: ± 10dB (10kHz)
Common part
- Power supply voltage: DC14.4V (11 to 16V)
—- Content adapted from: Sanyo Product Page Sanyo Product Page (MiniDisc Wiki mirror) Sanyo News Page Sanyo News Page (MiniDisc Wiki mirror) Was part of the Sanyo lineup until late Dec 2004 Was part of the Sanyo lineup until late Dec 2004 (MiniDisc Wiki mirror)
Manuals
Repair

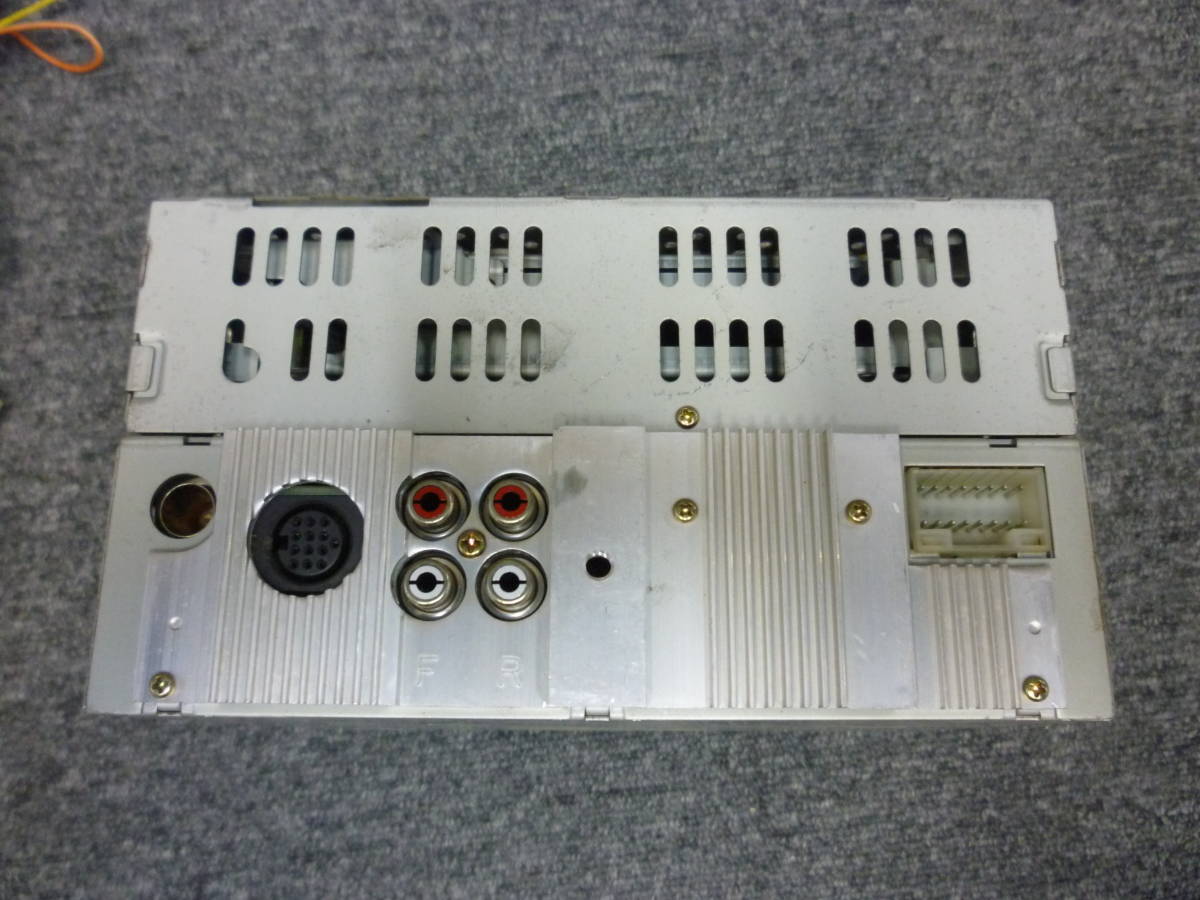

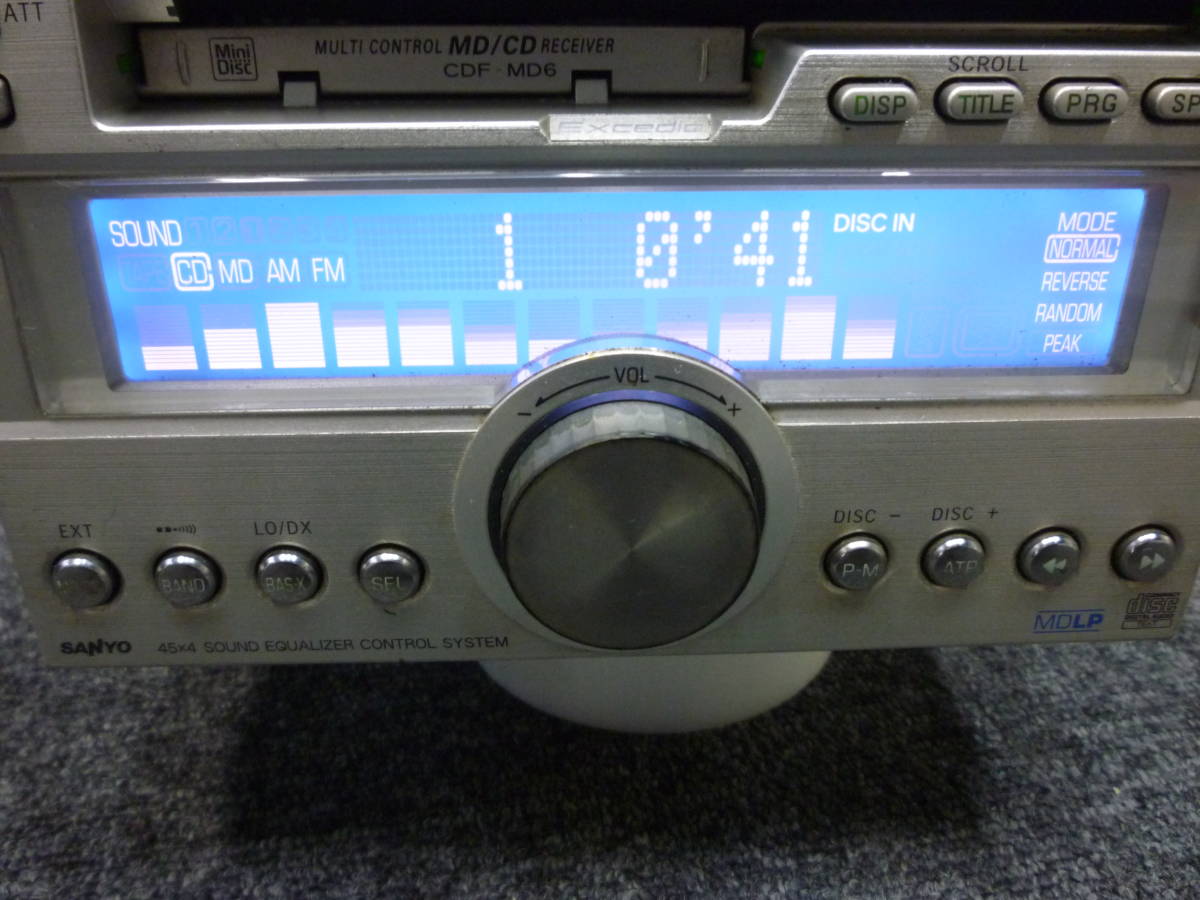

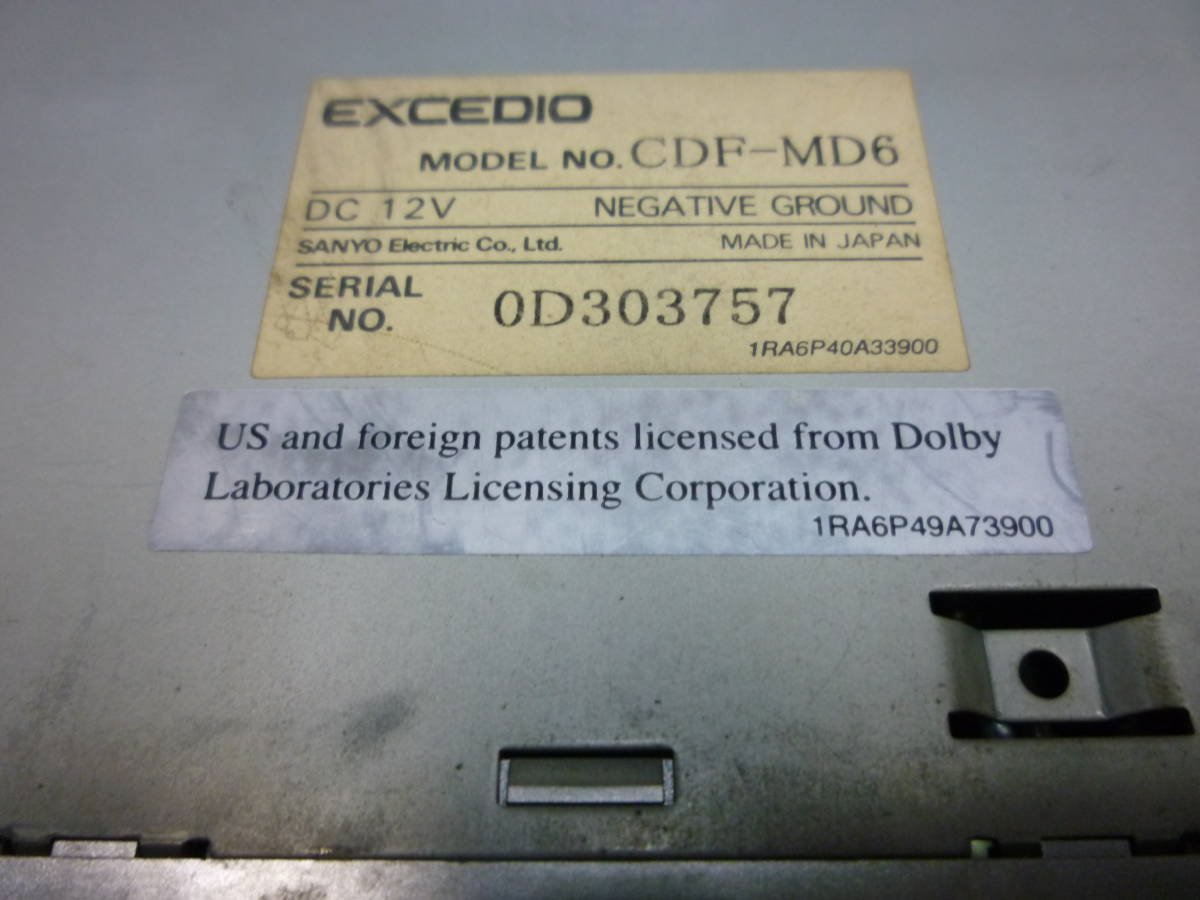

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No |
|---|---|
| Manual | |
| Region | Japan |
