Sanyo CDF-MD7

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-12-13

Manufacturer
Sanyo
Model / source grouping
CDF-MD7
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sanyo CDF-MD7”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name CDF-MD7
Manufacturer Sanyo
Released 2003/11
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 2-Din 178 (W) × 100 ( H) x 152 (D) mm (excluding protrusions)
Weight 2000
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥50 000
-
Inputs CD
Outputs Not recorded
Control Not recorded

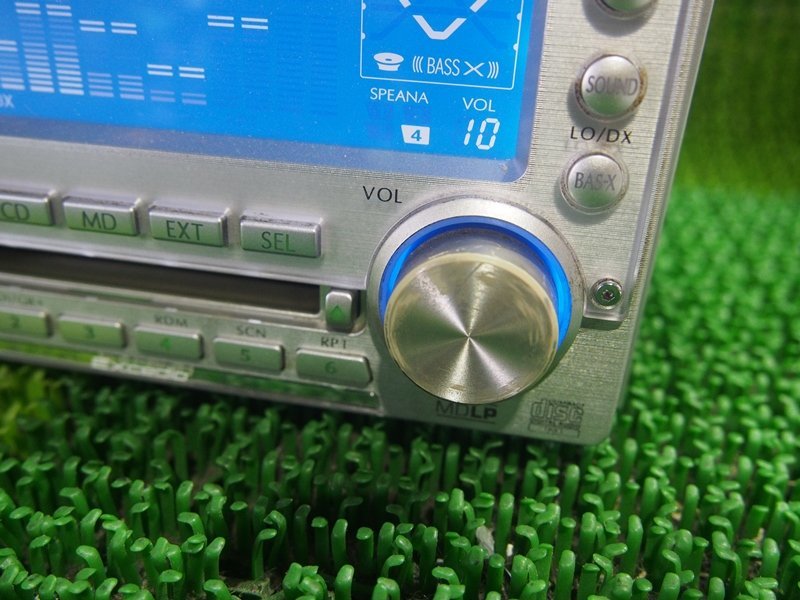

Rotary volume and jog dial. 45Wx4.

Supports 8cm CD.

CD player part

  • Frequency characteristics… 20-20,000Hz
  • SN ratio… 85dB
  • Harmonic distortion rate… 0.05% (1KHz)

MD player part

  • Frequency characteristics… 20-20,000Hz
  • SN ratio… 90dB
  • Wow flutter… Measurement limit

Tuner section below the value

  • Reception frequency… FM: 76 ～ 90MHz, AM: 522 ～ 1629kHz
  • Practical sensitivity… FM: 12dBf, AM: 28dB
  • SN ratio… FM: 60dB, AM: 50dB

Amplifier section

  • Maximum output… 45W × 4 (15.0V, 4Ω)
  • Sound quality adjustment… BASS: ± 10dB (100Hz), TREBLE: ± 10dB (10kHz)

Common part

  • Power supply voltage… DC14.4V (11-16V)

—- Content adapted from: Sanyo product page Sanyo product page (MiniDisc Wiki mirror)
