Sanyo CDF-MS10

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-08-18

Manufacturer
Sanyo
Model / source grouping
CDF-MS10
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sanyo CDF-MS10”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name CDF-MS10
Manufacturer Sanyo
Released 2000/06
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Not recorded
Dimensions 1-Din 178x50x165.5 mm
Weight 1800
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥51 000
-
Inputs 3.5mm line in (analog-only), CD
Outputs Not recorded
Control Not recorded

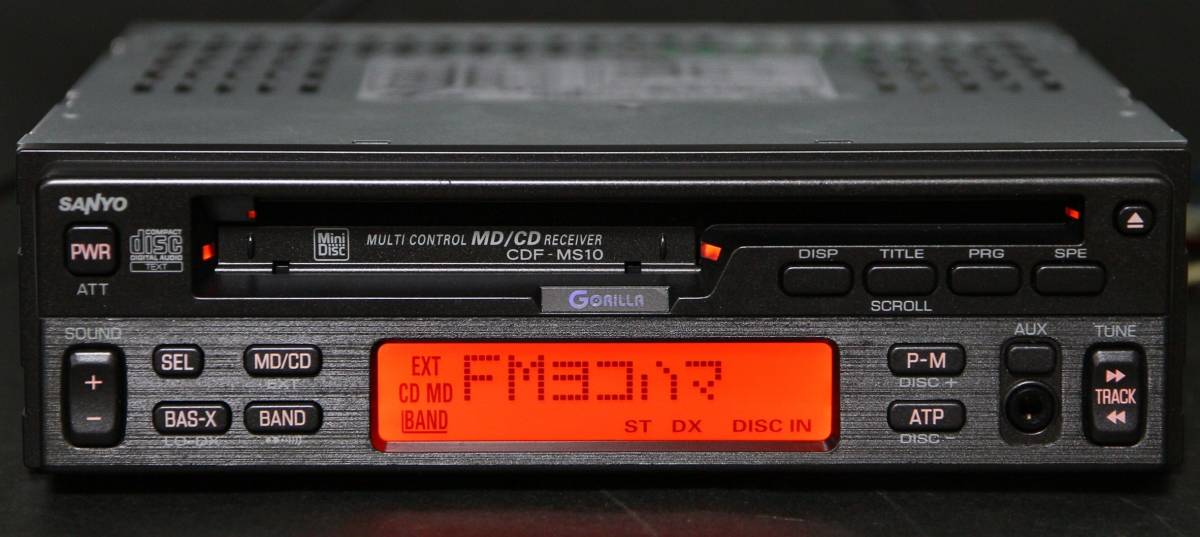

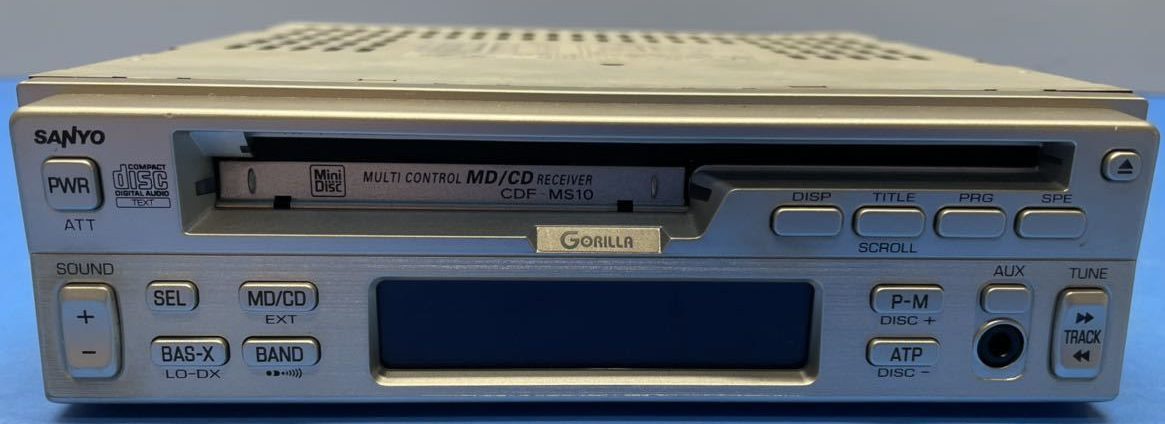

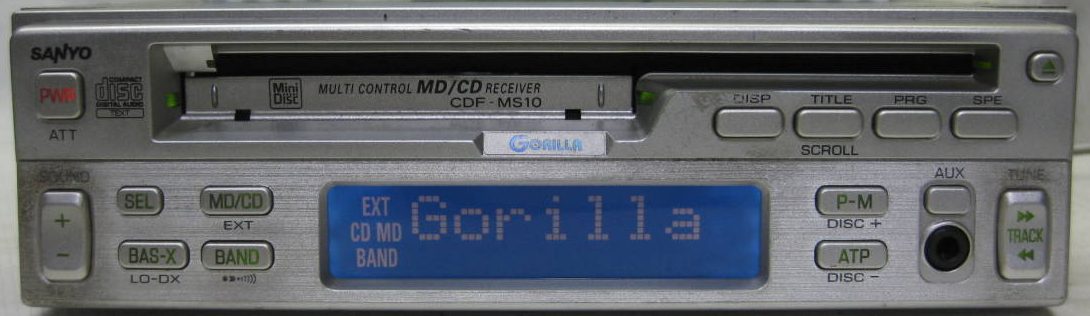

Sanyo CDF-MS10 (silver) 2000/12/29 2000/12/29 (MiniDisc Wiki mirror) Initial production run sold out.

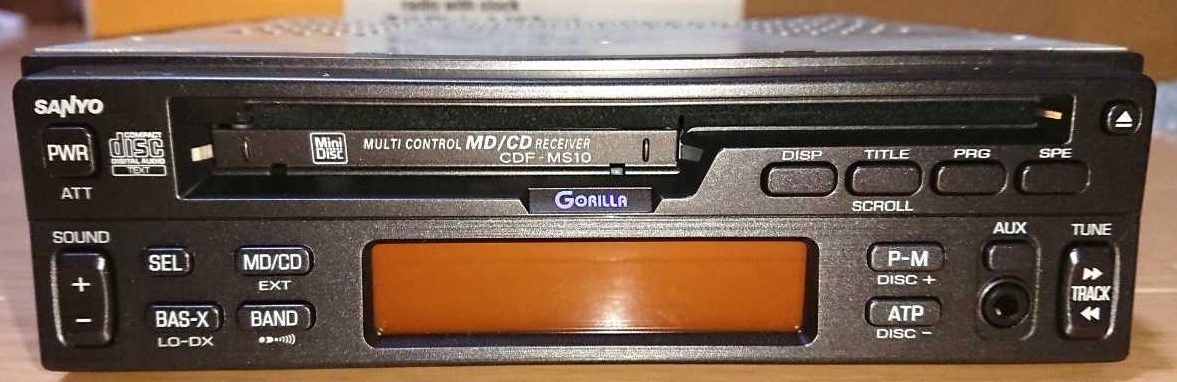

Sanyo CDF-MS10K (black) Released 2001/6/11 - Amber LCD

Full specifications

  • 45W x 4 power output
  • Equipped with front AUX terminal
  • CD changer control
  • 8-band spectrum analyzer
  • CD-R / CD text support

[Other functions]:

  • CD section: Title / song title display / title scroll / shock proof (MD: 10 seconds, CD: 2.4 seconds) / Shuffle / Scan / Skip / Repeat
  • CD changer section: Select / Shuffle / Skip / Scan / Repeat
  • tuner section: Area channel selection / FM12 station / AM6 song preset / Auto travel preset
  • amplifier Part: BASS Expander 2 Mode / Line Out: Rear 1

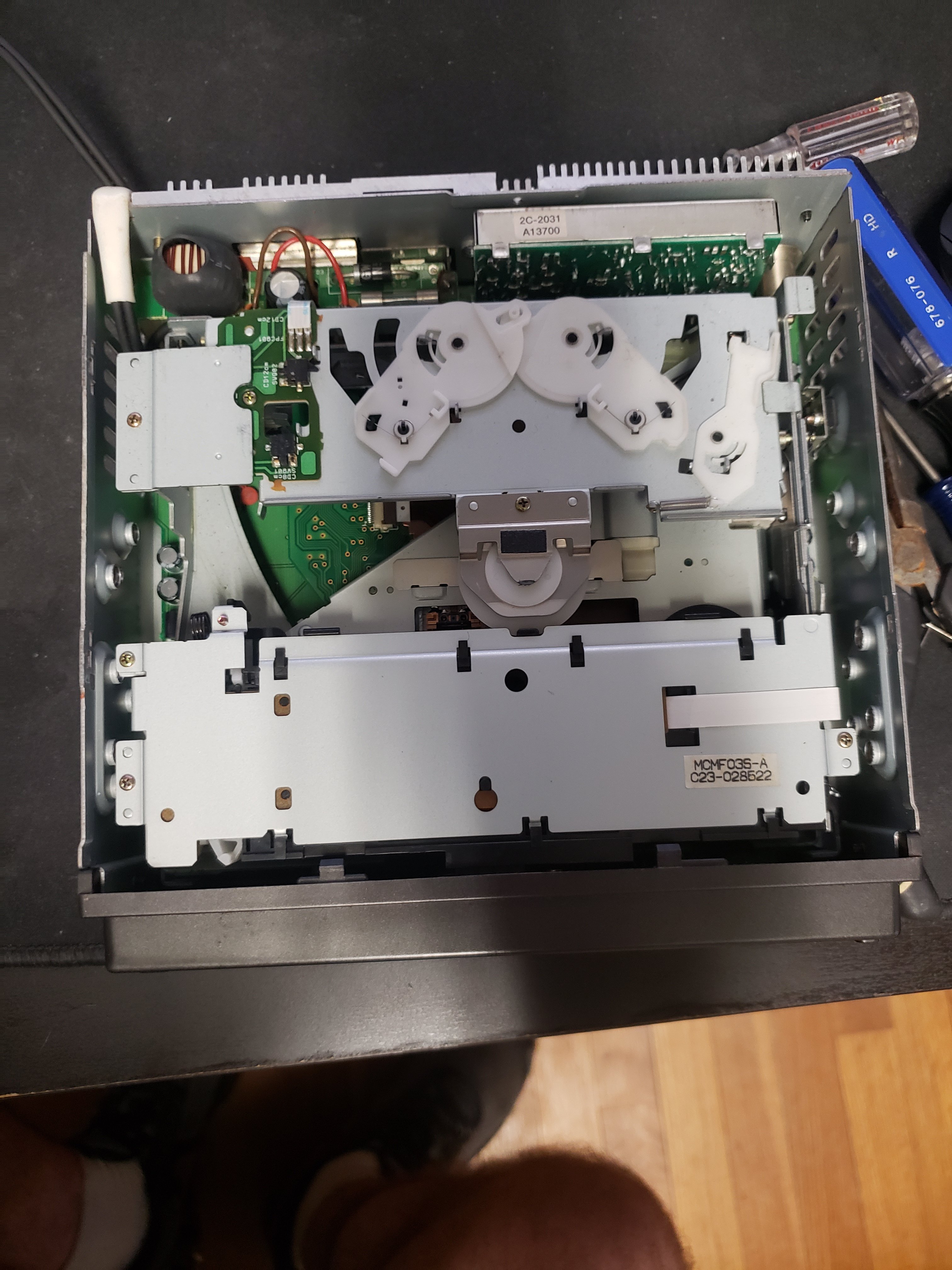

Optical block: KMS-242

Has a Sony CXD2657R chip in it, as well as a Sanyo CXP740096 -134Q.

Sanyo CDF-MS10 Product Page #1 Sanyo CDF-MS10 Product Page #1 (MiniDisc Wiki mirror) Sanyo CDF-MS10 Product Page #2 Sanyo CDF-MS10 Product Page #2 (MiniDisc Wiki mirror)

Sanyo news/press release for CDF-MS10K Sanyo news/press release for CDF-MS10K (MiniDisc Wiki mirror)Sanyo CDF-MS10K Product Page Sanyo CDF-MS10K Product Page (MiniDisc Wiki mirror)

Added to Kakaku.com on Oct 5 2001. User Comments near the end say the CDF-MS10K was selling for 29,800 yen on May-05-2003 via mail order auction. Sanyo 1-Din lineup Sanyo 1-Din lineup (MiniDisc Wiki mirror)

Manuals

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Remote Page
Atrac IcCXD2657R
Manual
RegionJapan
