Sanyo CDF-MS11

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-04-08

Manufacturer
Sanyo
Model / source grouping
CDF-MS11
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sanyo CDF-MS11”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name CDF-MS11
Manufacturer Sanyo
Released 2002/10
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 1-DIN (178 x 100 x 165.5)
Weight 1.4kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No

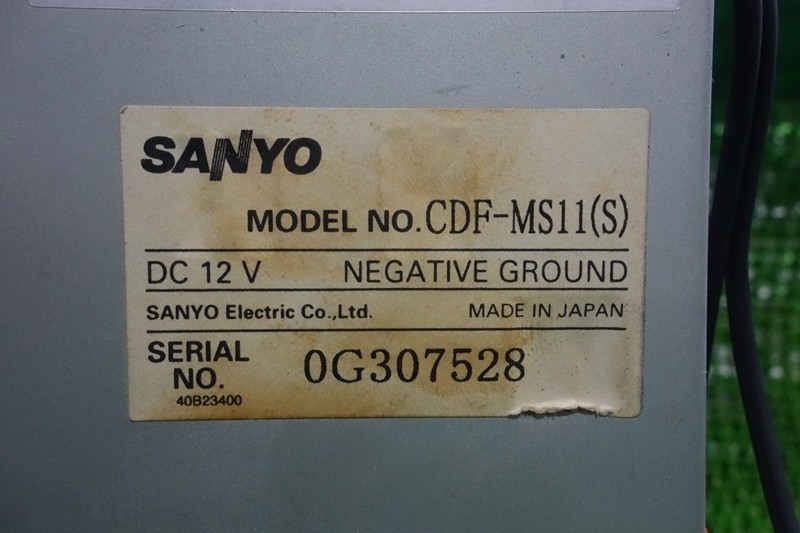

Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥50 000
-
Inputs CD

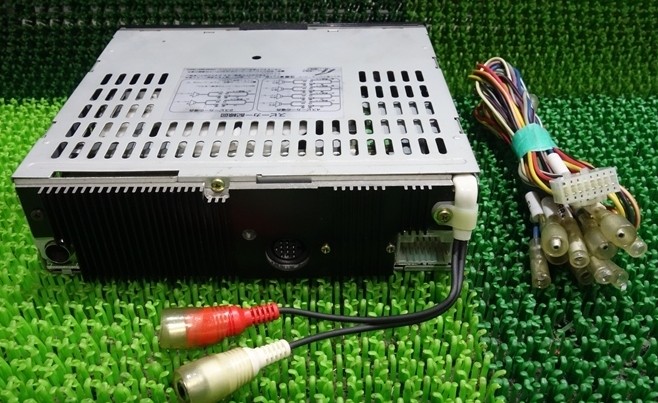

Outputs RCA out, Speaker amplifier
Control Not recorded

Sanyo CDF-MS11J

  • Amp: 45W x 4 Maximum output (14.4V, 4Ω)
  • SNR: MD: 90dB, CD: 85dB
  • Accepts CDs and MDs in the same slot.
  • MDLP support, with group mode function.
  • CD-R/RW capable.
  • CD/MD scrolling title display.
  • Bass and treble controls (+/-10dB).
  • Shuffle/scan/repeat play modes.

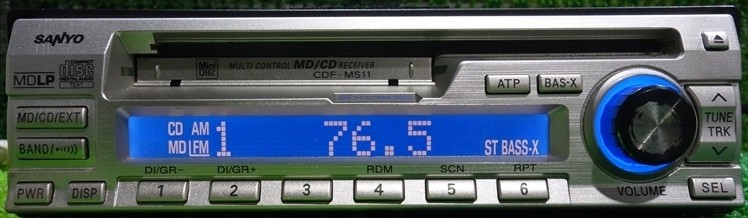

  • Japanese FM band (76-90Mhz) AM band 522 ～ 1629kHz Practical sensitivity… FM: 12dBf, AM: 28dB

The button with the radio waves on it just sets the radio to the traffic info channel.

Sanyo seems to have made an identical looking unit for Suzuki as the CDF-MS320

Content adapted from: Sanyo's news page Sanyo's news page (MiniDisc Wiki mirror) Sanyo Product Page Sanyo Product Page (MiniDisc Wiki mirror) Minidisc.org page kakaku.com comments say that in 03/04-2003 the cdf-ms11 was selling for between (Viva Home Ageo store Saitama prefecture ¥32,800) (Akihabara store ¥34,800) With ¥38,800 being more or less the non sale street price.

Manuals

Sanyo CDF-MS11 User Manual JP

Sanyo CDF-MS11 User Manual Eng (machine translation)

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
ManualUser manual
RegionJapan
