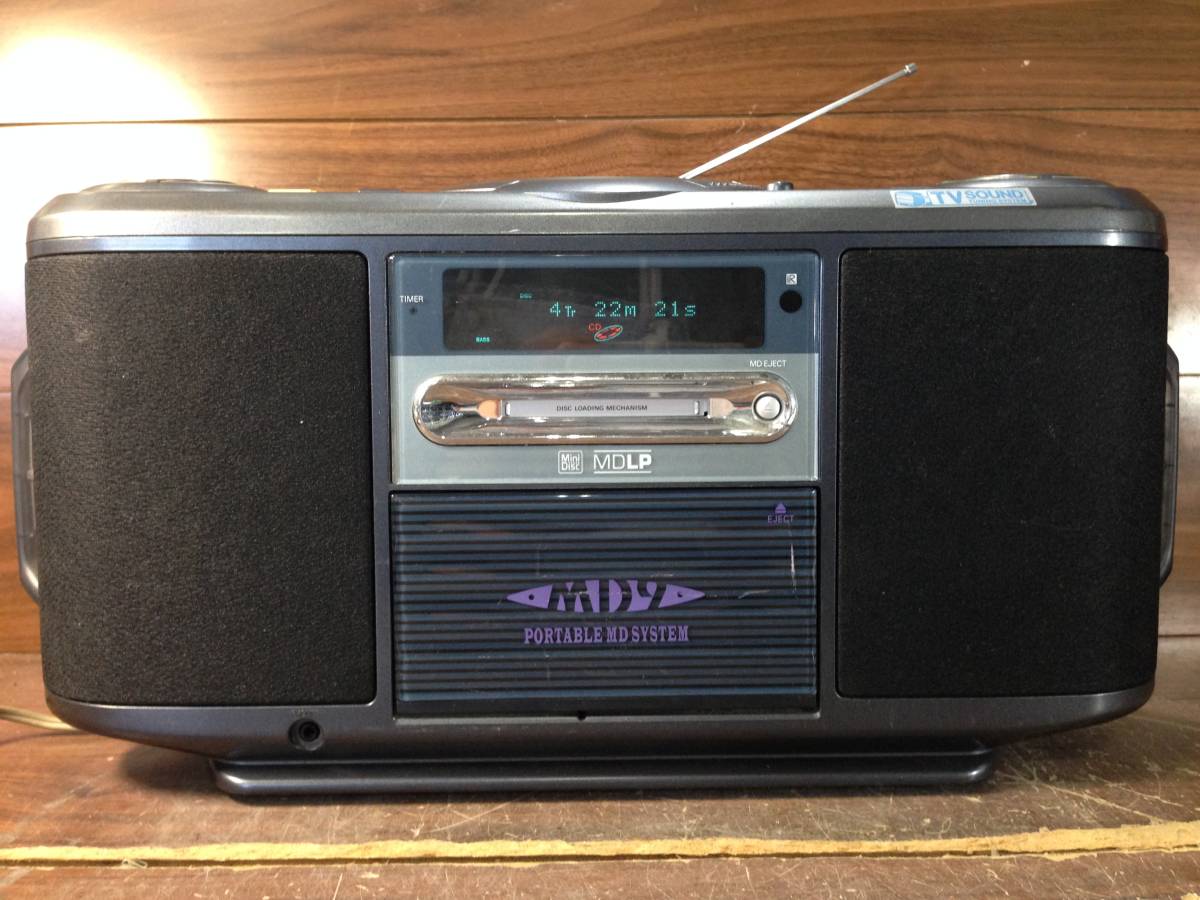

Sanyo PH-MD9

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-09-20

Manufacturer
Sanyo
Model / source grouping
PH-MD9
Device type
boombox
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sanyo PH-MD9”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name PH-MD9
Manufacturer Sanyo
Released 2000/11
Device type boombox
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions (W) 491 x (H) 237 x (D) 177
Weight 5200
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded

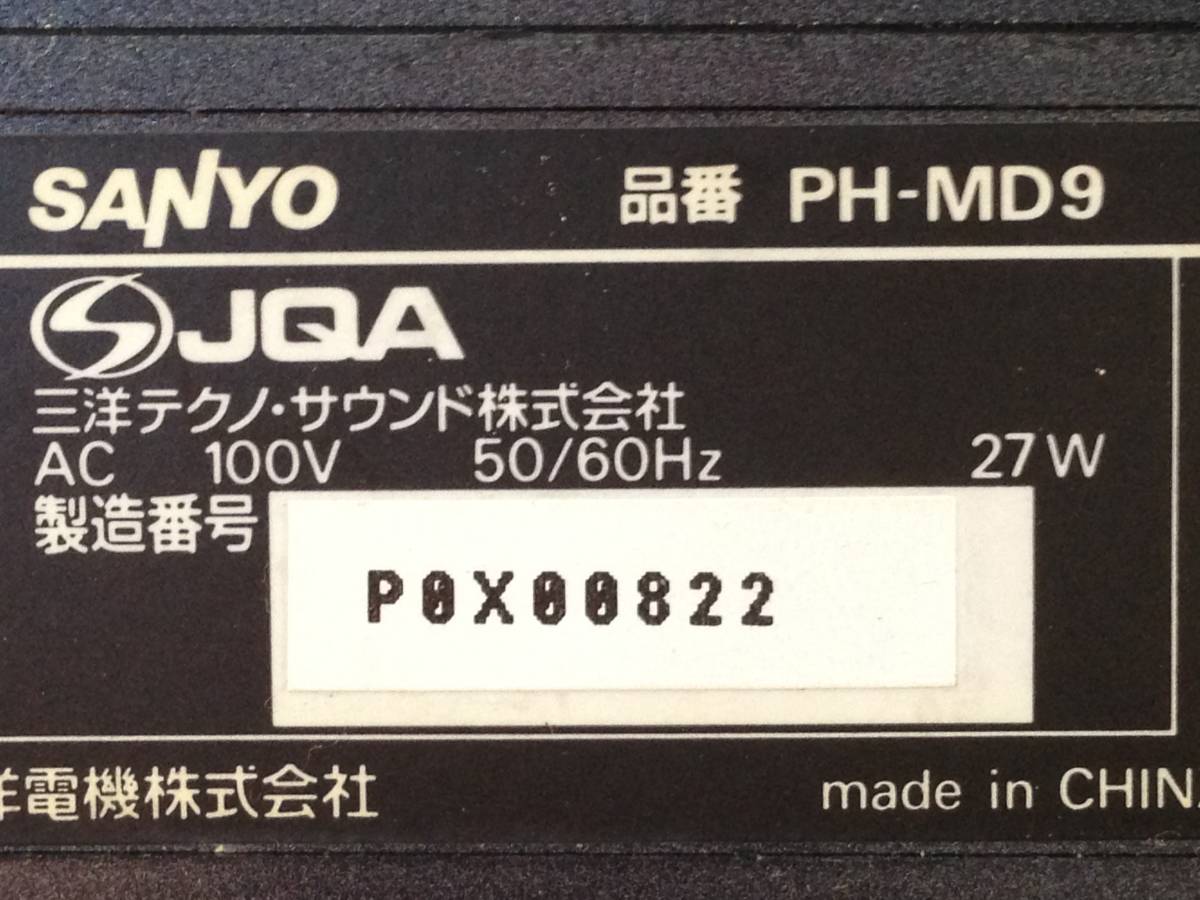

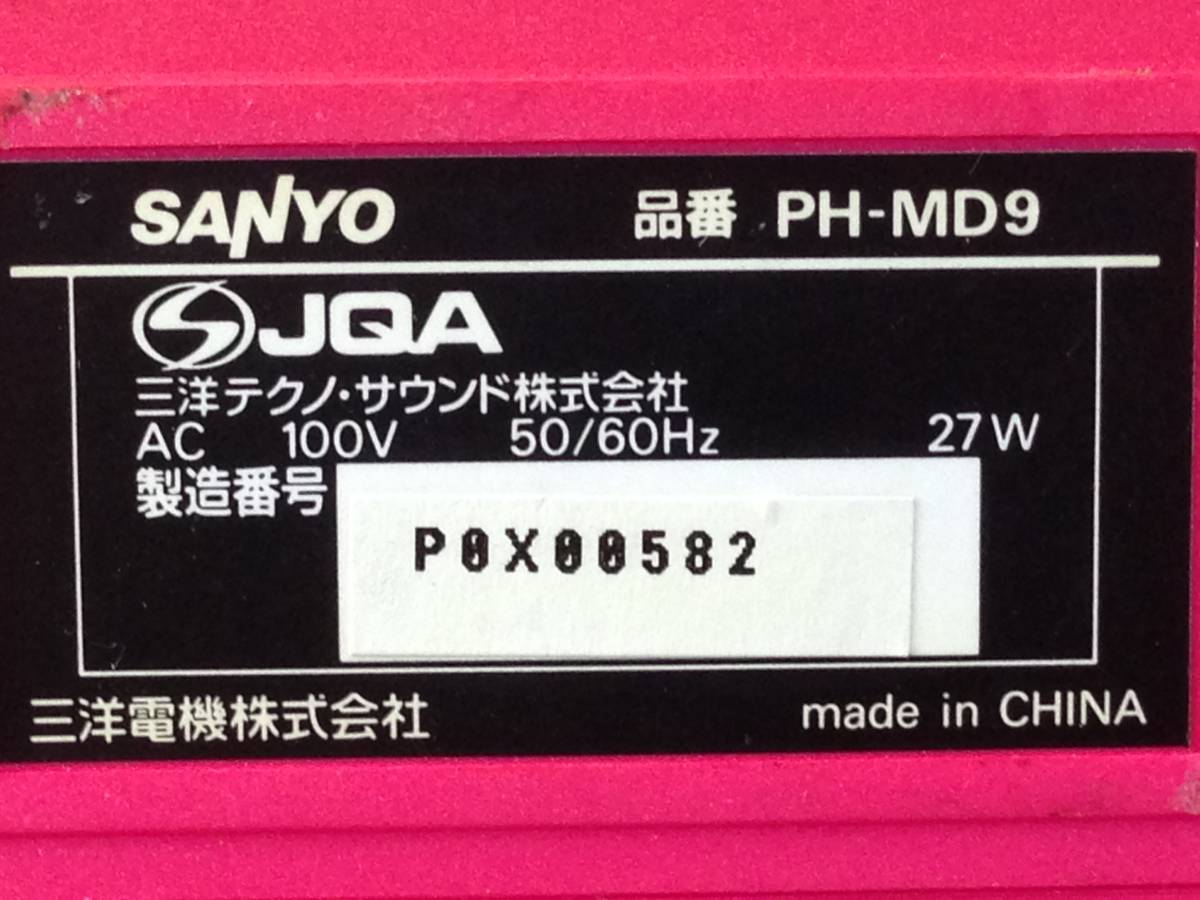

Voltage 100
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-
Inputs 3.5mm line in (analog-only), CD, Tape deck, Built-in mic
Outputs 3.5mm headphone
Control Not recorded

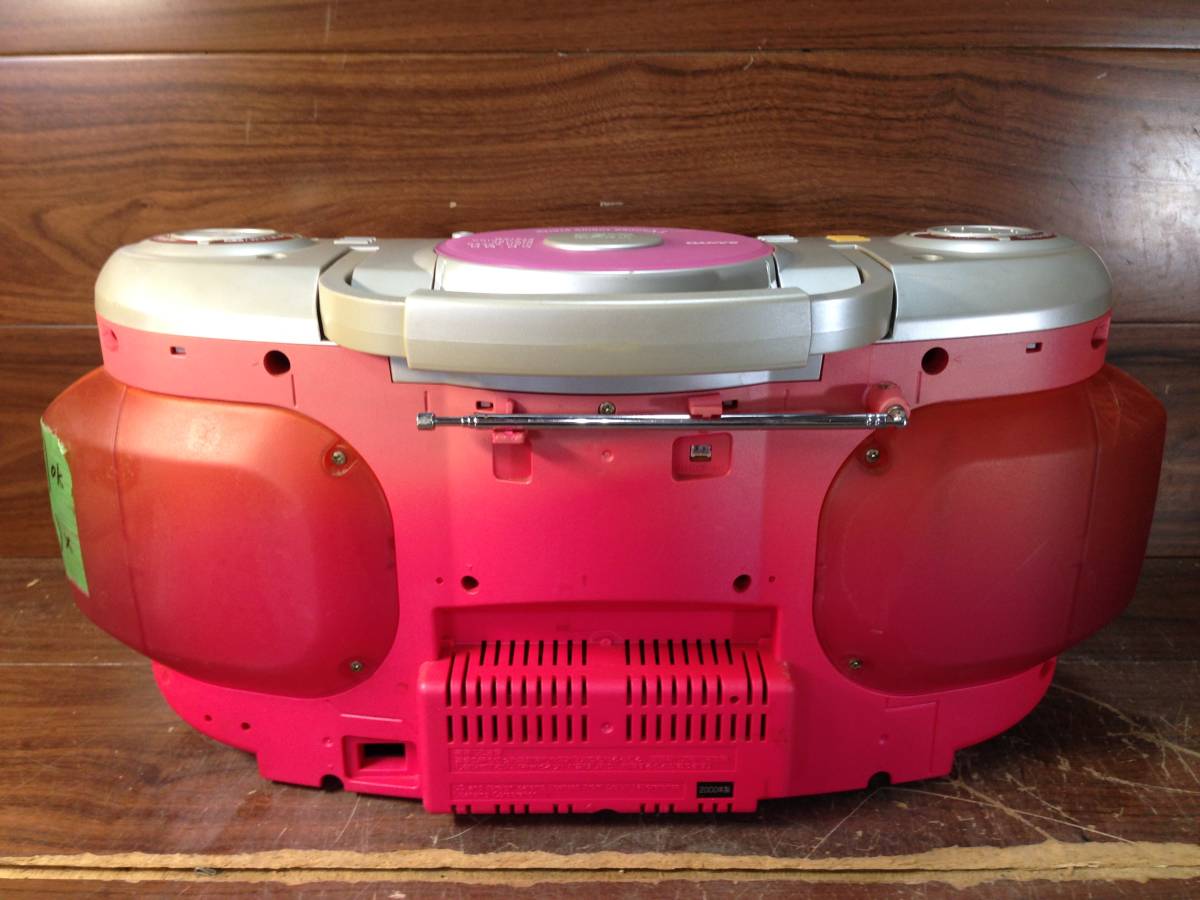

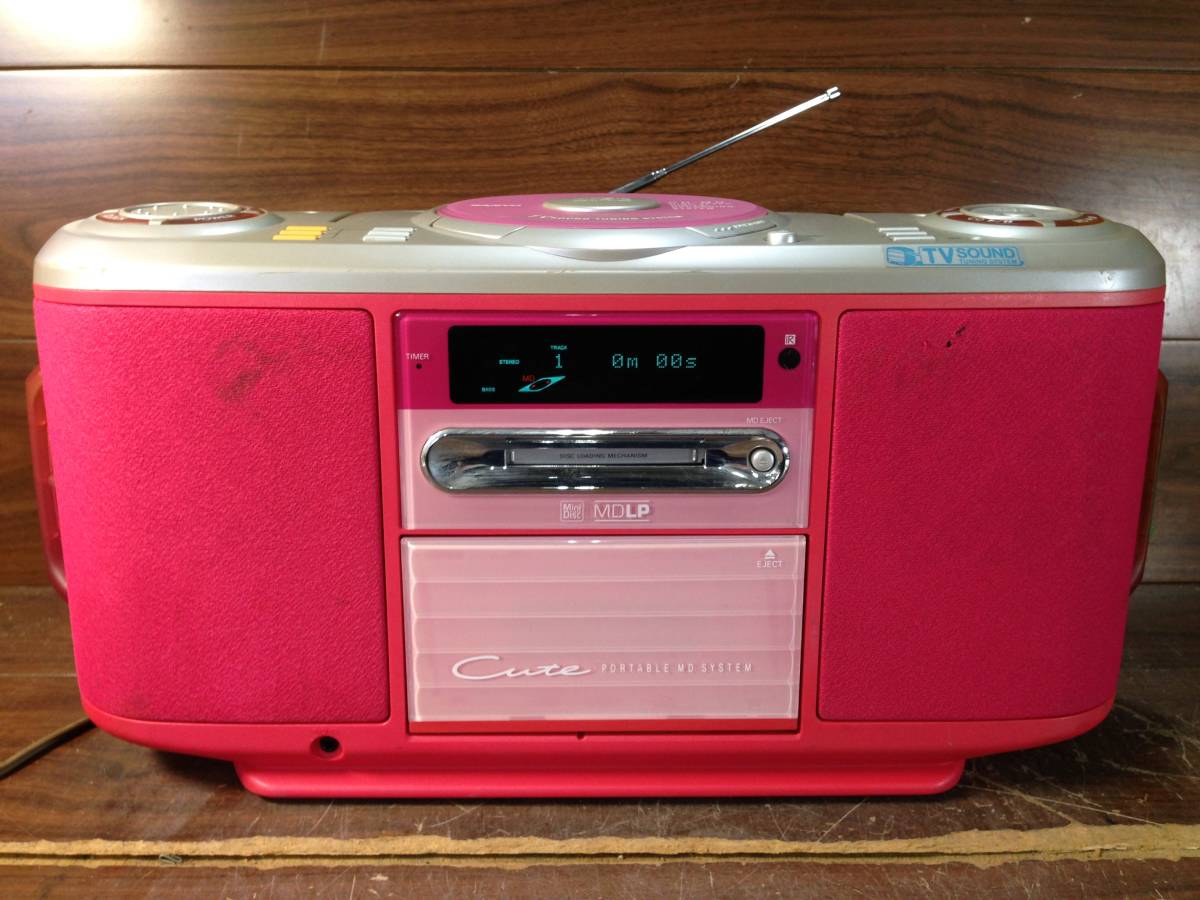

Offered in (W) Millennium White, (K) Night Black, (P) Passion Pink

Can connect to a PC using the PCK-MDG200 kit and MD DISC MASTER software for track naming, cut and join operations.

2x CD → MD

  • Practical maximum output: 4.0W+4.0W (EIAJ/AC)
  • LINE IN terminal (stereo minijack x) 1 - Input impedance 47kΩ Input 700mV
  • PHONES jack (stereo minijack) x 1 Impedance 32Ω

Content adapted from: Sanyo Press Release Sanyo Press Release (MiniDisc Wiki mirror) Sanyo Product Features Page Sanyo Product Features Page (MiniDisc Wiki mirror) minidisc.org

Manuals

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo
Manual
RegionJapan
