Sharp SD-CX2

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-01-03

Manufacturer
Sharp
Model / source grouping
SD-CX2
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sharp SD-CX2”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SD-CX2
Manufacturer Sharp
Released 2001/09
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 330 (width) x 208 (height) x 187 (depth) mm
Weight 5100
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded

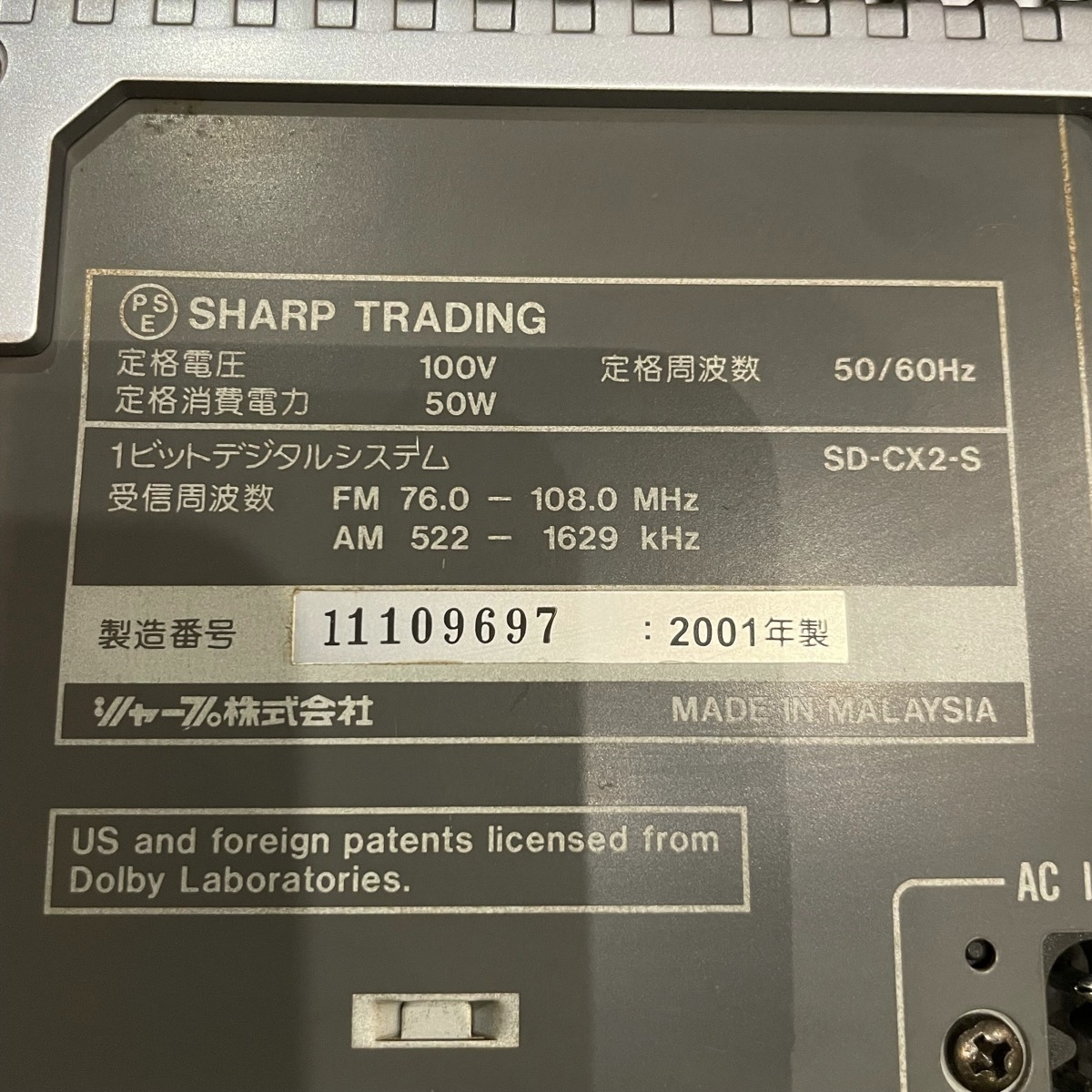

Voltage 100
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-

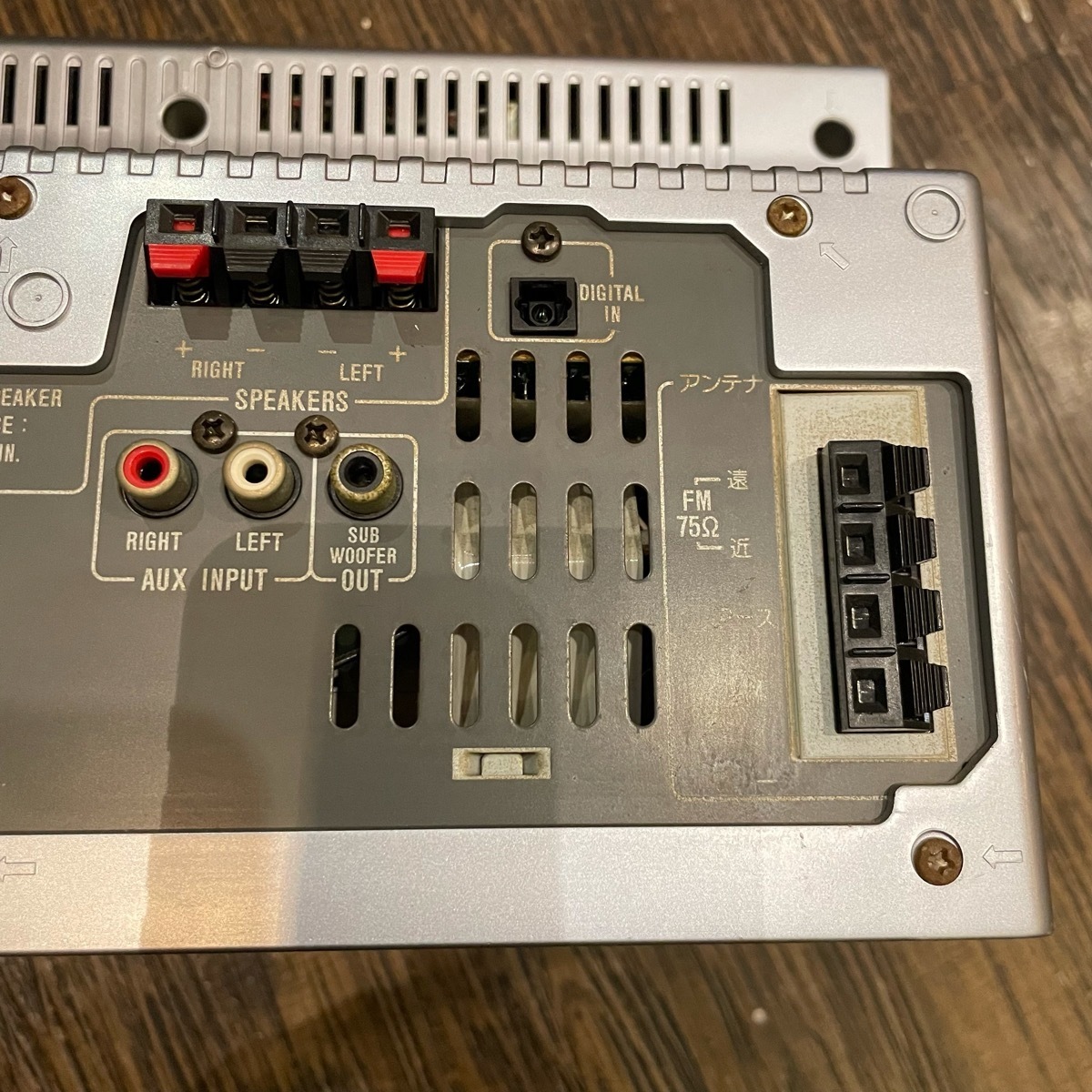

Inputs 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD, Radio recording
Outputs 3.5mm headphone
Control Not recorded

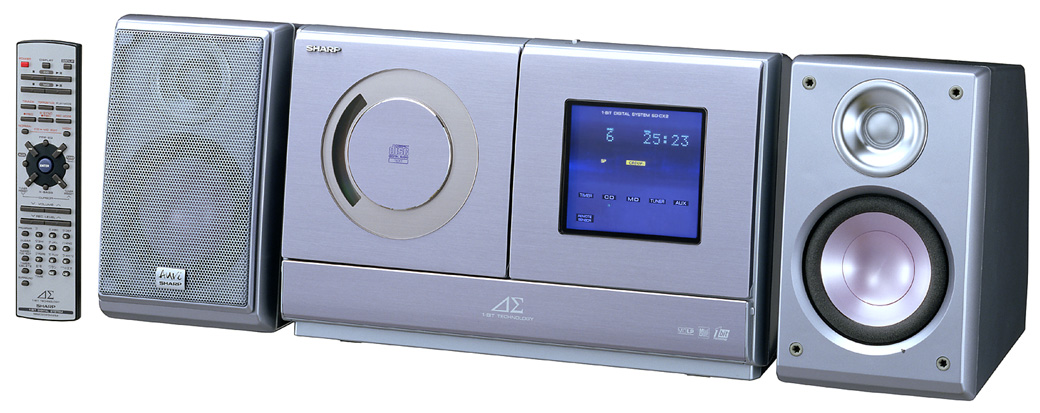

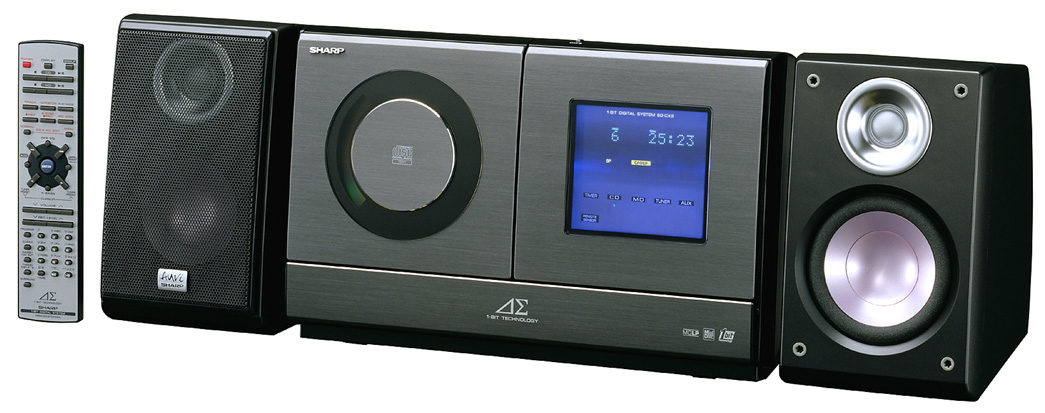

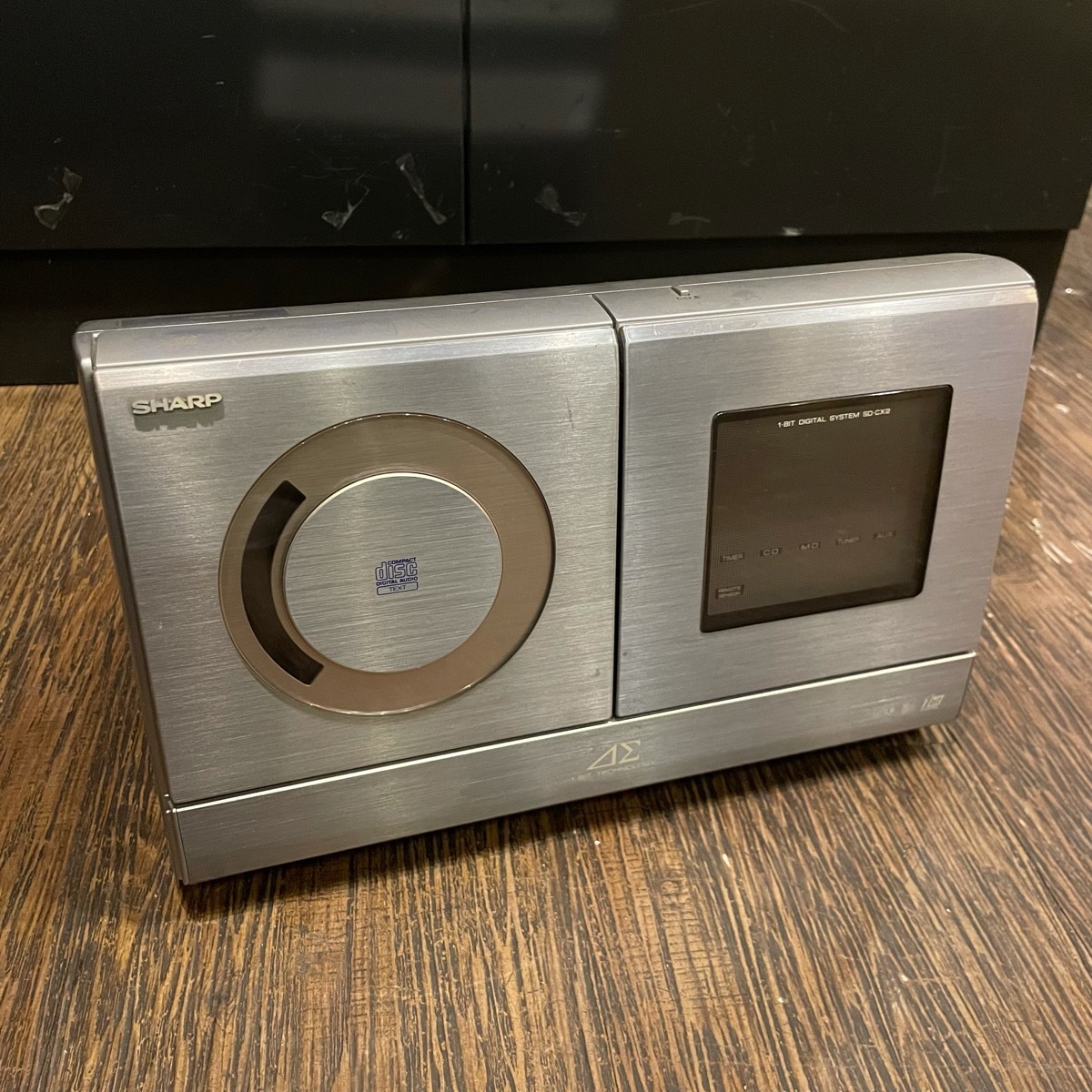

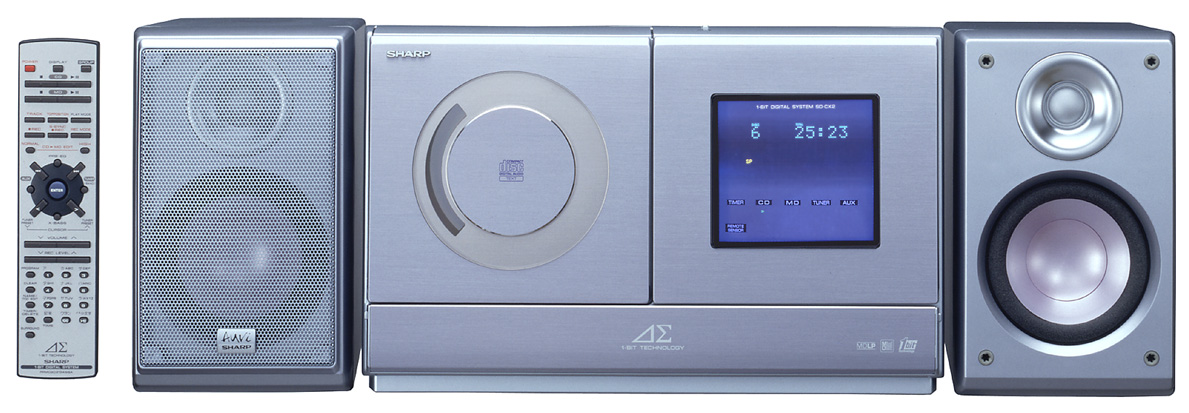

Sharp SD-CX2. Released alongside the SD-CX3. The difference between the two seems to be the included speaker package.

  • Audio system “Auvi” equipped with original “1 bit digital amplifier”
  • “1 bit digital amplifier” that amplifies 1 bit signal by ultra high speed sampling of 2.8MHz and obtains resolution equivalent to 64 times that of CD powered by.
  • The A / D converter is equipped with a “high-precision 1-chip delta-sigma modulation LSI”. The deterioration of sound quality is prevented by converting an analog signal into a 1-bit signal and performing digital transmission / amplification processing.
  • In addition to being able to record at double speed from a CD to an MD, it is also equipped with a "top position recording function" that allows you to additionally record the first song of the MD with a single touch, and a "hypertrack edit function" that allows you to specify while listening to the song to be edited. * Equipped with "X-BASS circuit" that reproduces deep bass and 4-mode preset sound function of FLAT / HEAVY / POPS / SOFT.

Supports CD Text and Katakana characters for MD

FM: 76.0-108.0MHz

Content adapted from: Sharp Press Release Sharp Press Release (MiniDisc Wiki mirror) Sharp News Page press images

Manuals

Sharp SD-CX2 Japanese Manual

Repair

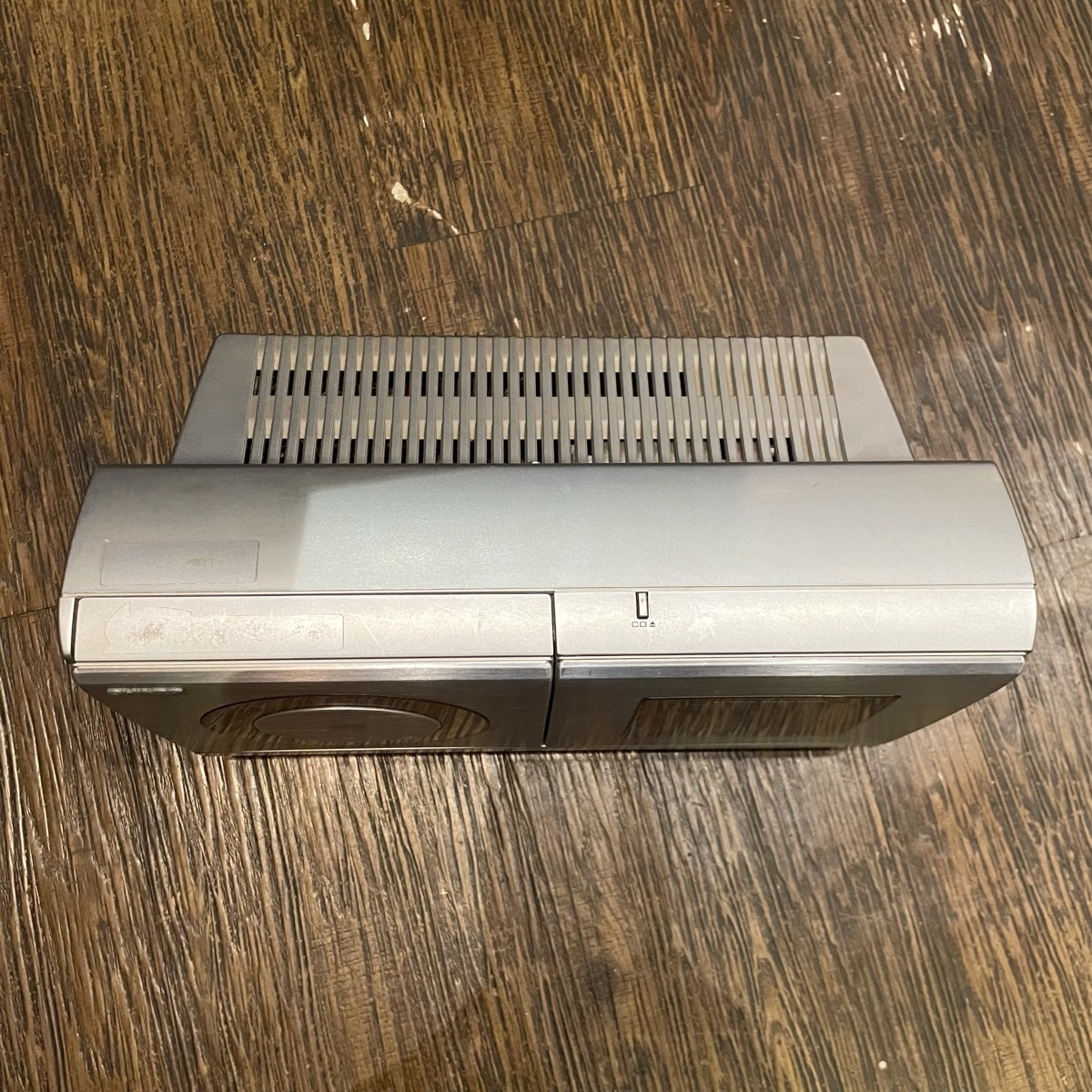

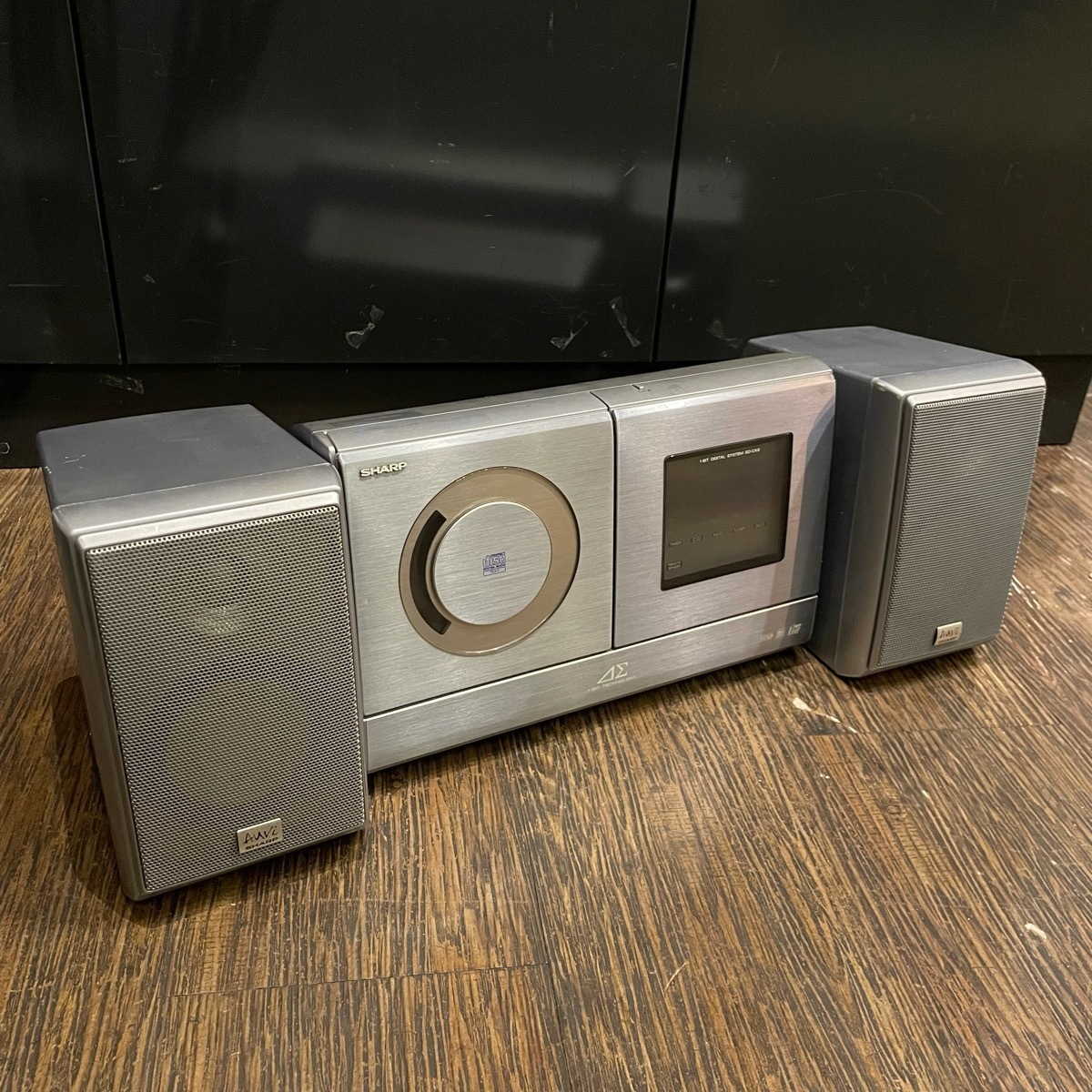

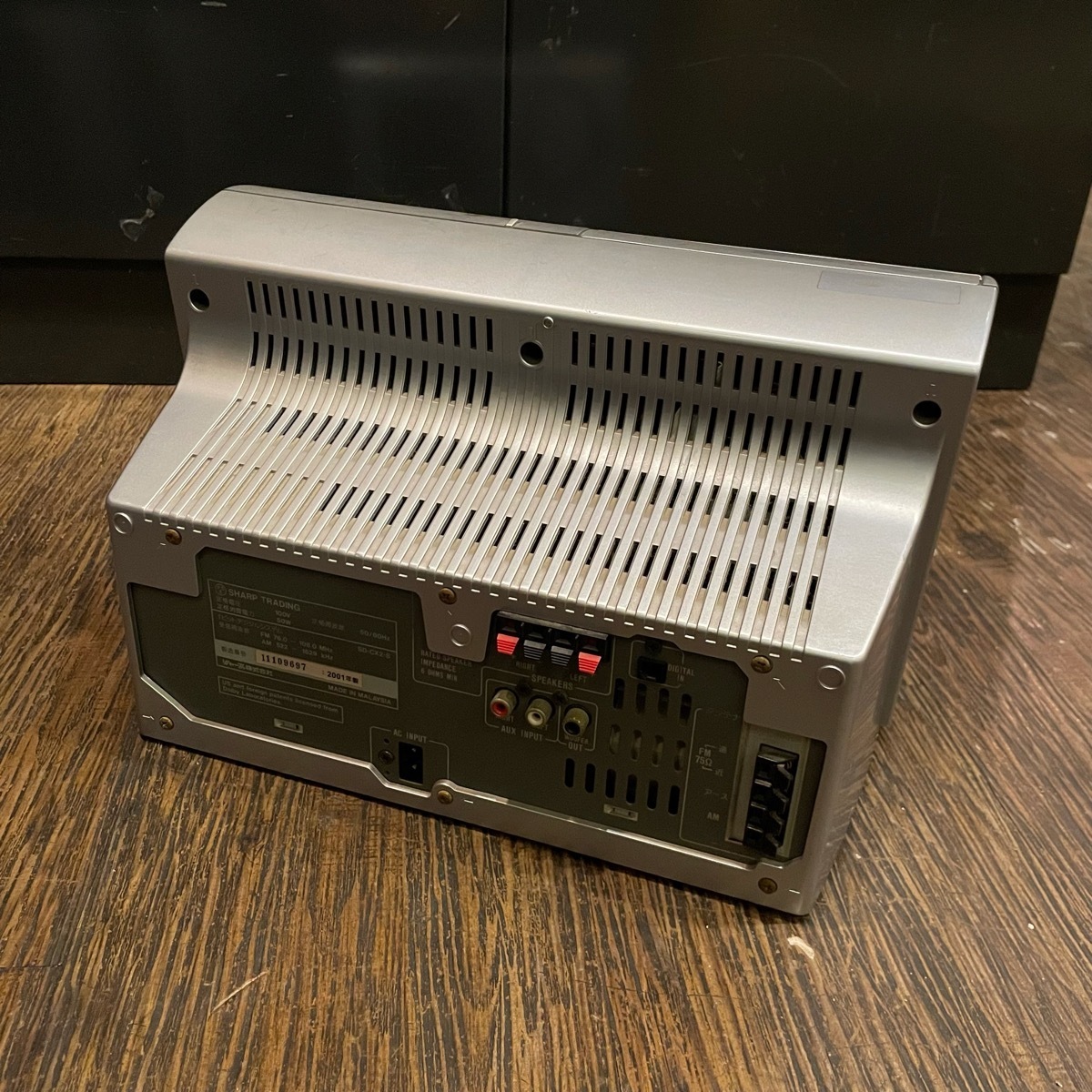

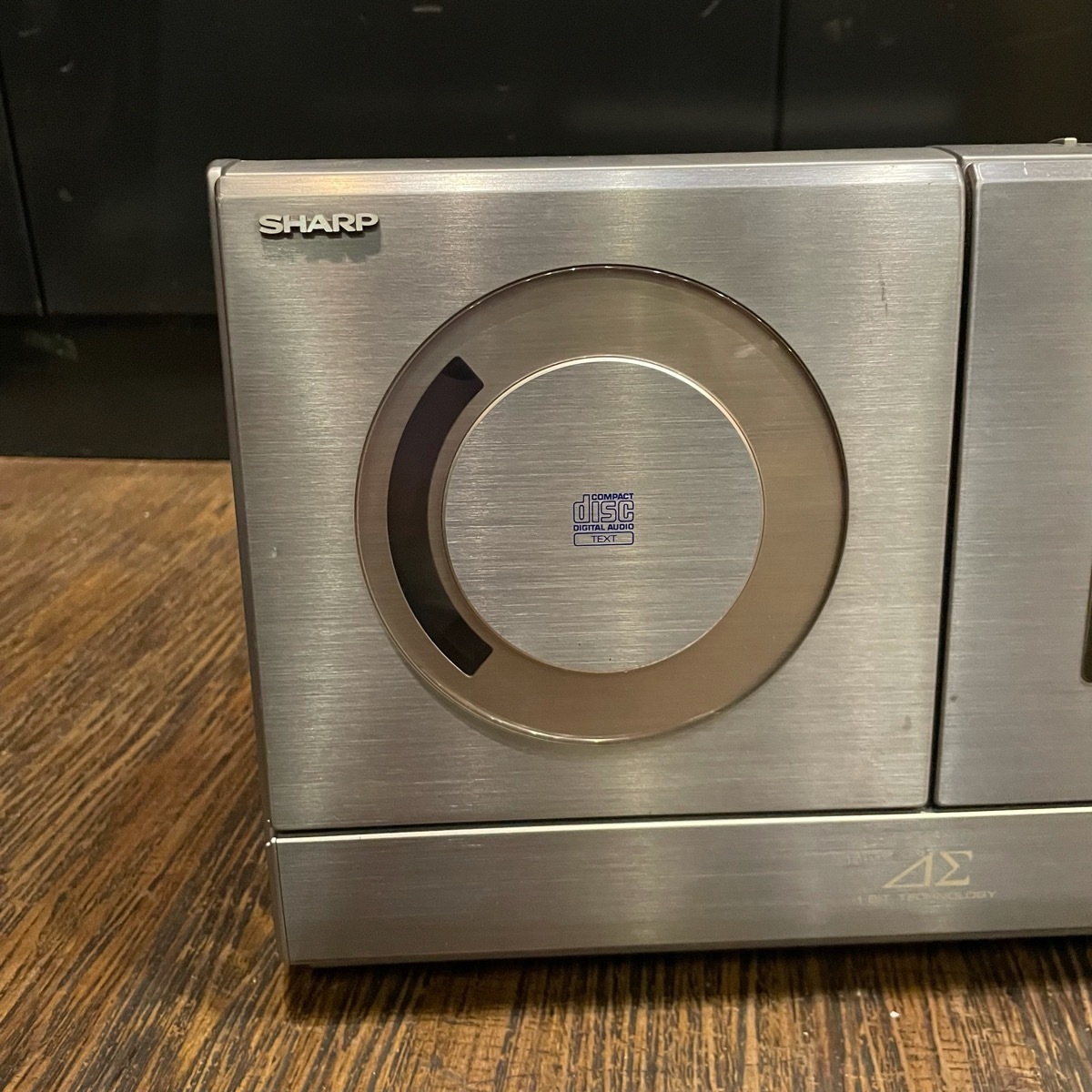

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
