| Name | SD-CX9 |
|---|---|
| Manufacturer | Sharp |
| Released | 2003/08 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 110 x 272 x 262mm |
| Weight | 4.5kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥45 000 | |
| - | |
| Inputs | CD, Radio recording |
| Outputs | 3.5mm headphone, Speaker amplifier |
| Control | Not recorded |

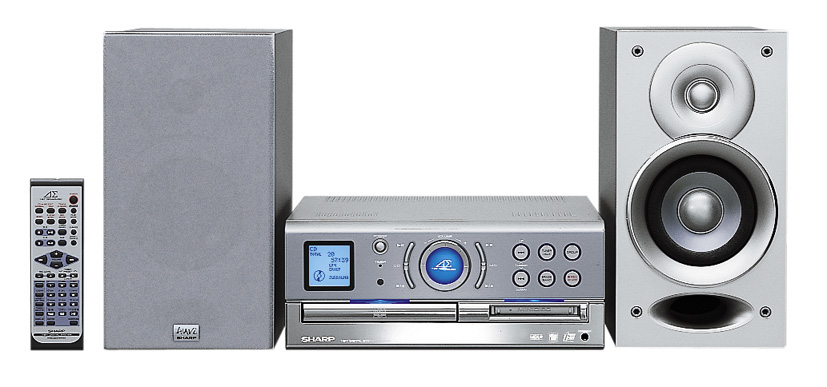

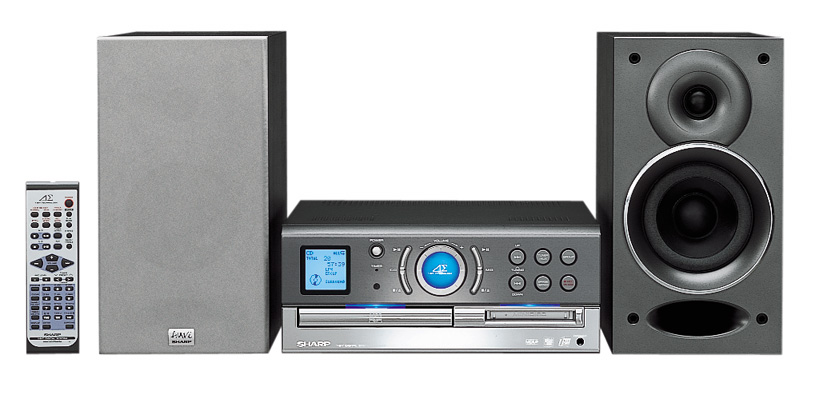

Available in SD-CX9-S (silver), SD-CX9-A (Blue), and SD-CX9-H (grey)
Features:
- One bit digital amp (5.6MHz sampling, double Sharp's previous machine's rate).
- 4X CD→MD dubbing.
- 10 key cell-phone like title entry.
- Unit may be operated horizontally or vertically.
- Digital recording level control (-4dB~+8dB in 2dB steps).
- World band FM tuing.
- Timer functions: daily-timer, once-timer, sleep-timer.
- Amp: 20W+20W, Delta-sigma ADC
Content adapted from: Minidisc.org page, Aiwa press release (Japanese, Archived) Aiwa press release (Japanese, Archived) (MiniDisc Wiki mirror) Details Page Details Page (MiniDisc Wiki mirror) Press Images
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
