Device

Sharp SD-NX20

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-01-03

Manufacturer
Sharp
Model / source grouping
SD-NX20
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sharp SD-NX20”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SD-NX20
Manufacturer Sharp
Released 2002/06
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 318 x 210 x 93mm (main unit), 160 x 210 x 136mm (amp)
Weight 3.7kg (main unit), 3.5kg (amp)
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
¥110 000
-
Inputs CD
Outputs Speaker amplifier
Control Not recorded

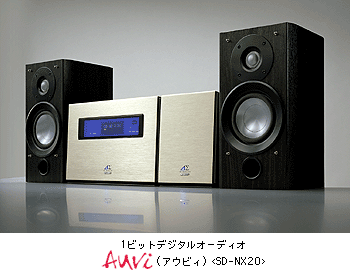

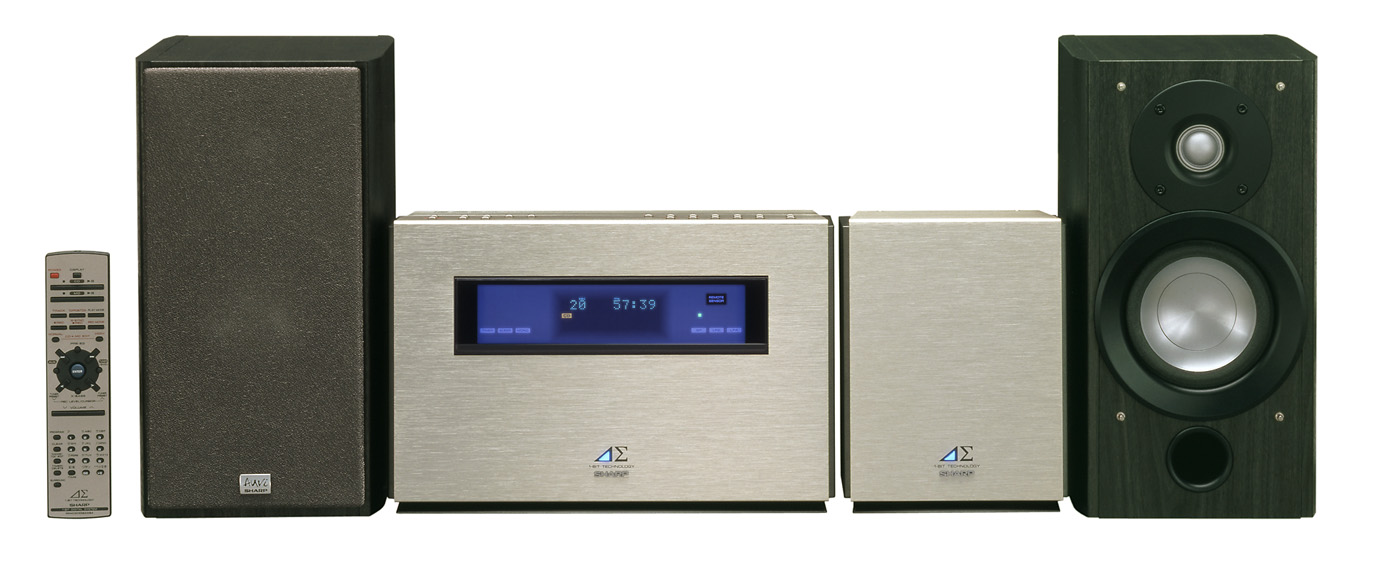

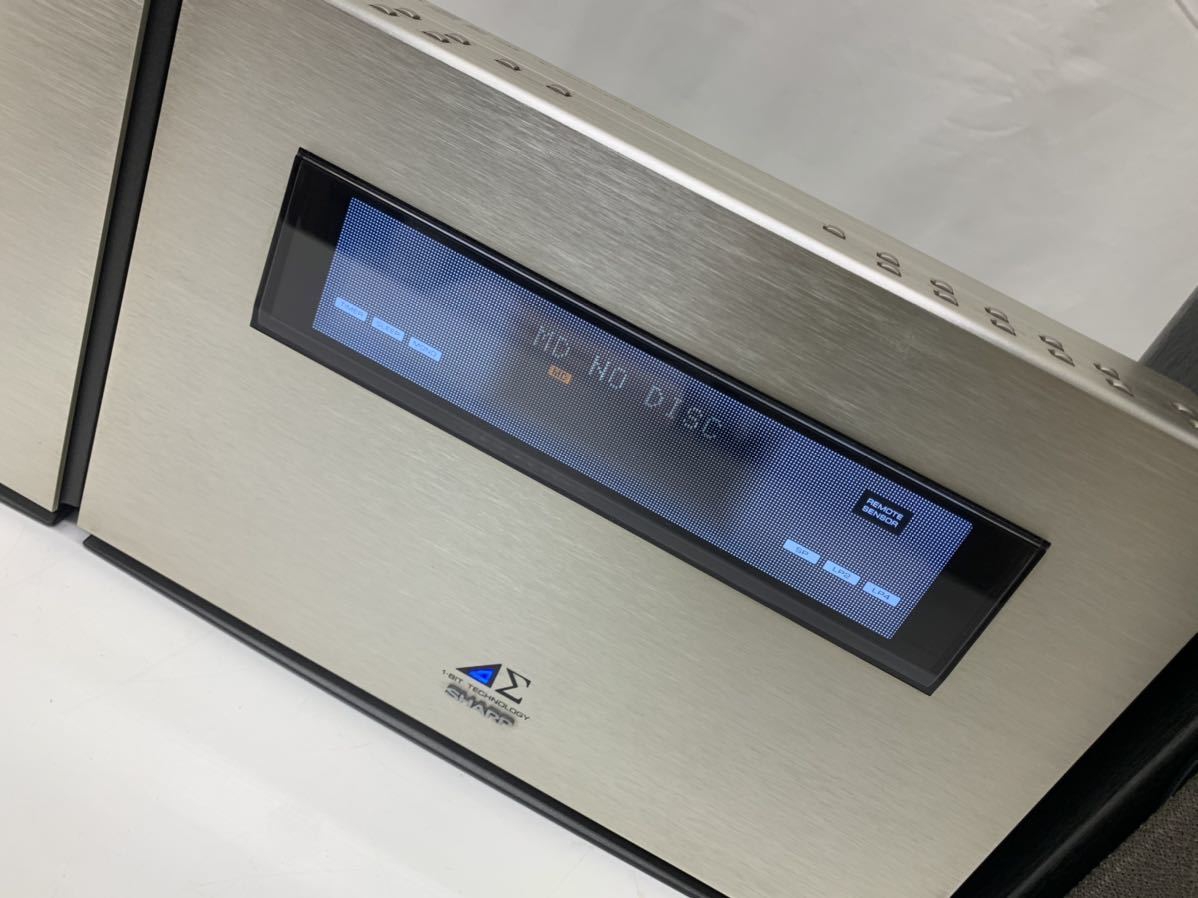

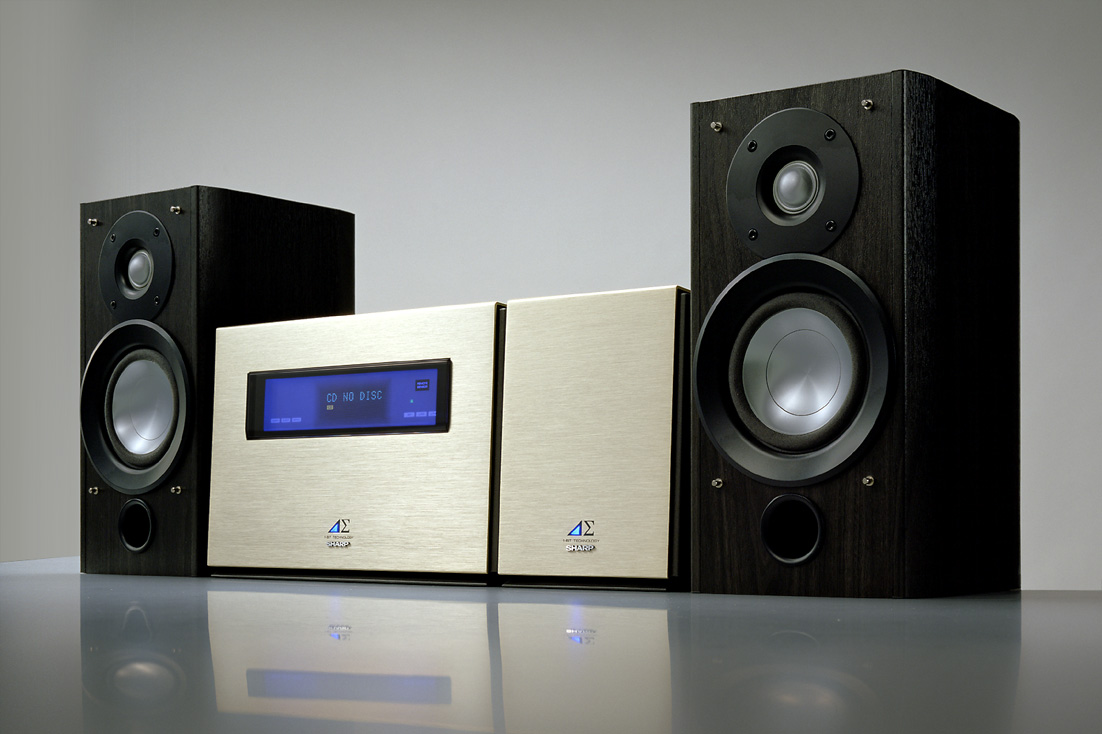

Sharp's high end slimline home audio systems. Units based on Sharp's high-end SM series' "1 bit Super Digital Amp" (next generation sampling rate 5.6 million in 1 second reading, equivalent to 128X normal CD reading, and 2X previous 2.8 MHz SD-NX10). Thin crystal LCD panel with 7 different LCD background lights. 4 different customizable modes: Mode 1 - For playback / record initialization / Mode 2 - User preferred background color / Mode 3 - Daily changing color (7 colors for 7 days) / Mode 4 - Random color. MDLP ready. 2X CD to MD dubbing.

* Sharp's "1 Bit Super Digital Amp" * Super fast sampling rate of 5.6 MHz * MDLP and 2X CD-MD dubbing * 7 different LCD background lights with 4 customizable modes * Redesign high quality wooden 2-Way speakers * X-Bass boost (Flat/Heavy/Pops/Soft) * "10 Key" cellphone equivalent titling * CD Text * Optic and AUX input

Content adapted from: Sharp Press Release Sharp Press Release (MiniDisc Wiki mirror) Details Page Details Page (MiniDisc Wiki mirror) av.watch press images

Manuals

Sharp SD-NX20 Manual (jap)

Repair

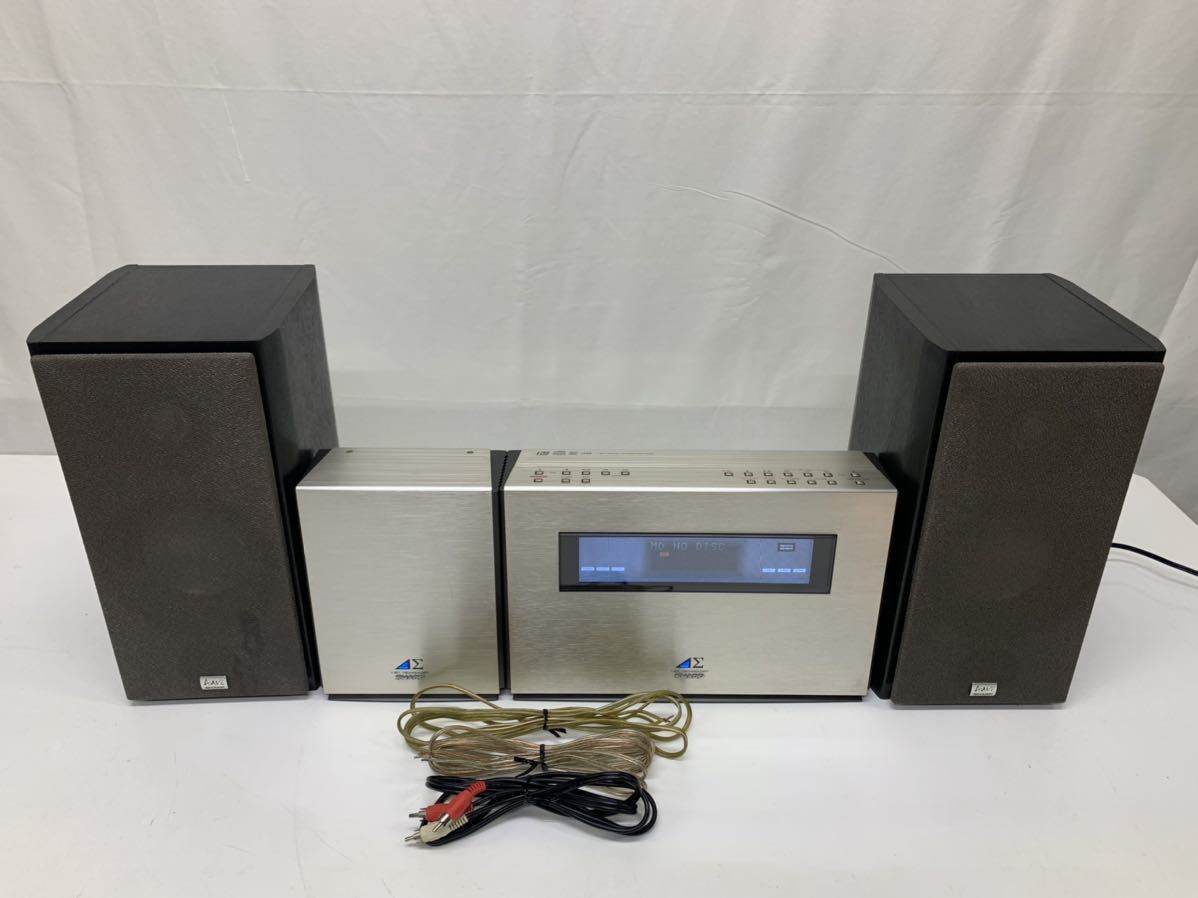

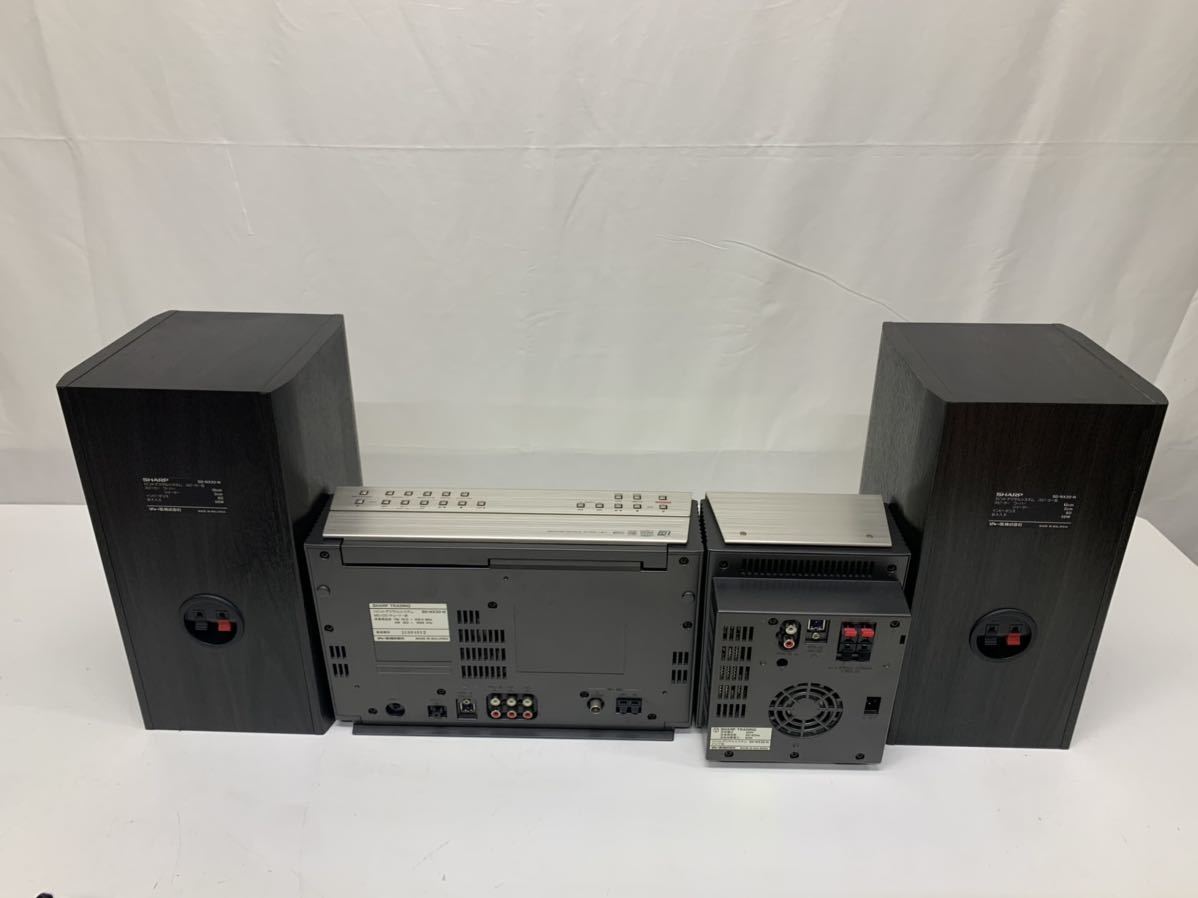

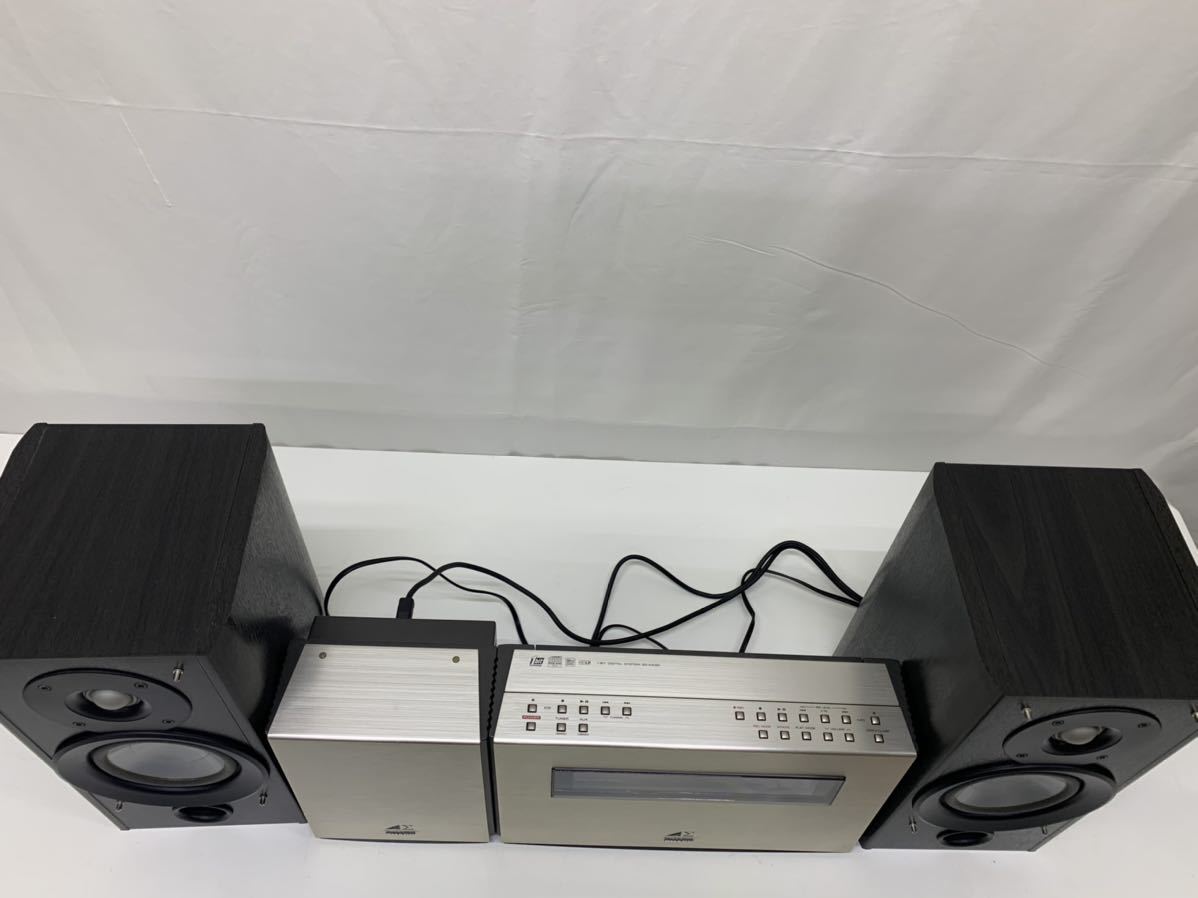

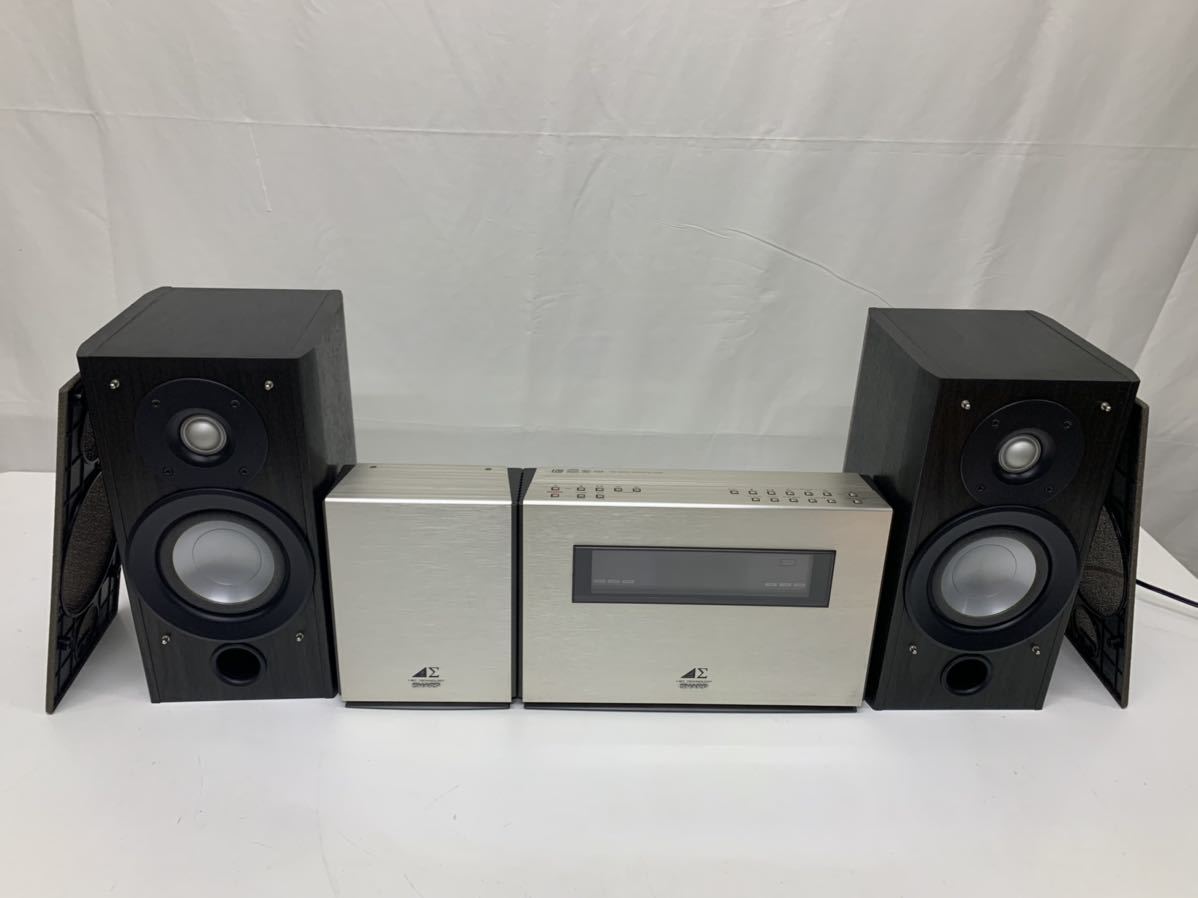

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualUser manual
RegionJapan
