Sharp SD-VH9

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-01-05

Manufacturer
Sharp
Model / source grouping
SD-VH9
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sharp SD-VH9”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SD-VH9
Manufacturer Sharp
Released 2003/10
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 262 (depth)110 (width)×272 (height)× mm
Weight About 5.0kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable AC
Price (launch) Not recorded
Not recorded
-

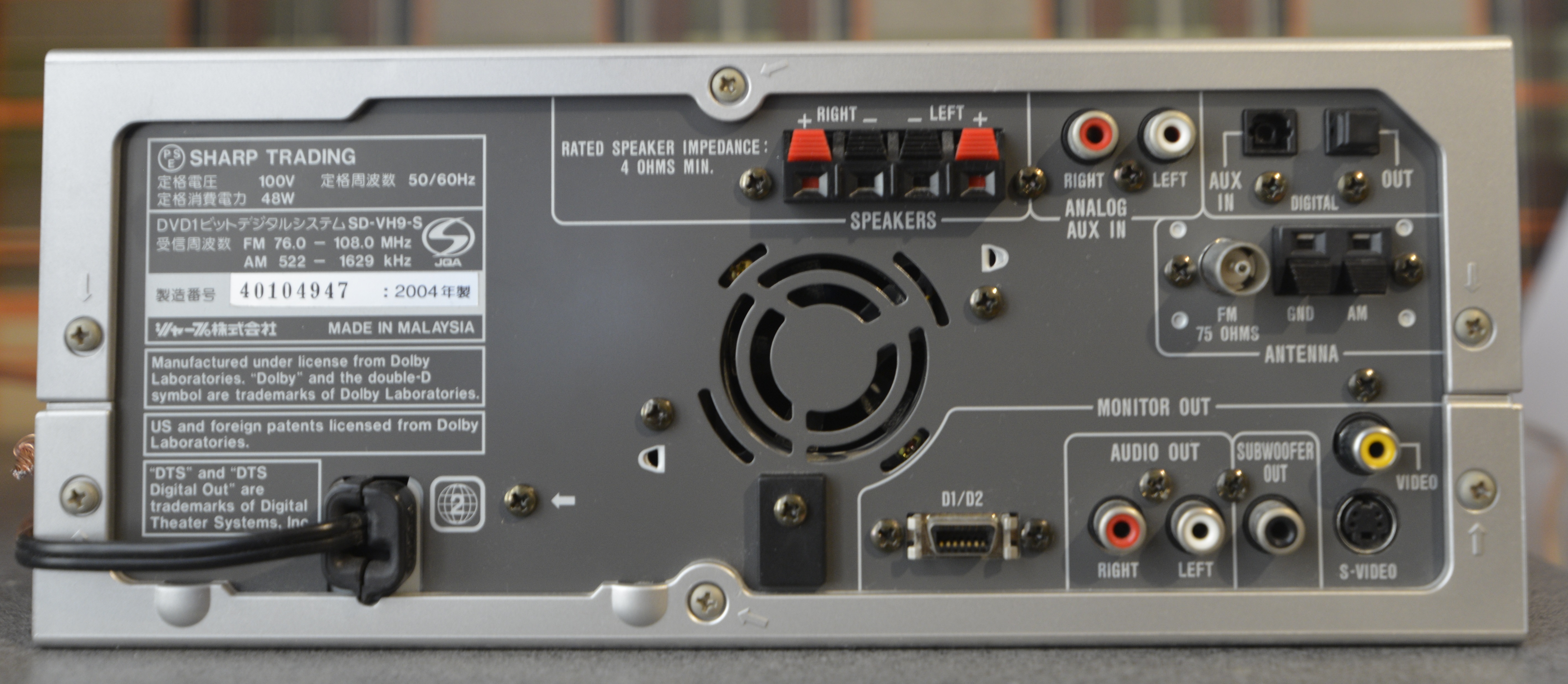

Inputs RCA in, Digital optical (TOSLINK), CD
Outputs 3.5mm headphone, RCA out, Digital optical (TOSLINK), other
Control Not recorded

Available in SD-VH9-S (silver)

Features:

  • One bit digital amp (5.6MHz sampling, double Sharp's previous machine's rate).
  • 4X CD→MD dubbing.
  • 10 key cell-phone like title entry.
  • Unit may be operated horizontally or vertically.
  • Digital recording level control (-4dB~+8dB in 2dB steps).
  • DVD Drive : CD-R/CD-RW recorded by DVD video DVD-R/DVD-RW (video mode/VR mode)/music CD/CD-R/CD-RW/MP3 format
  • FM:76.0-108.0MHz (TV voice 1-3CH)
  • AM:522～1,629kHz
  • Timer functions: daily-timer, once-timer, sleep-timer.
  • Amp: 20W+20W, Delta-sigma ADC - minimum 4Ω
  • Headphone output : 16-50Ω

Video output with Terminal-D (D2) or S-video or Video out (single Yellow RCA)

Content adapted from: Minidisc.org page, Sharp press release (Japanese, Archived) Sharp press release (Japanese, Archived) (MiniDisc Wiki mirror) Details Page Details Page (MiniDisc Wiki mirror) press images av.watch

Manuals

Sharp SD-VH9 User Manual JP

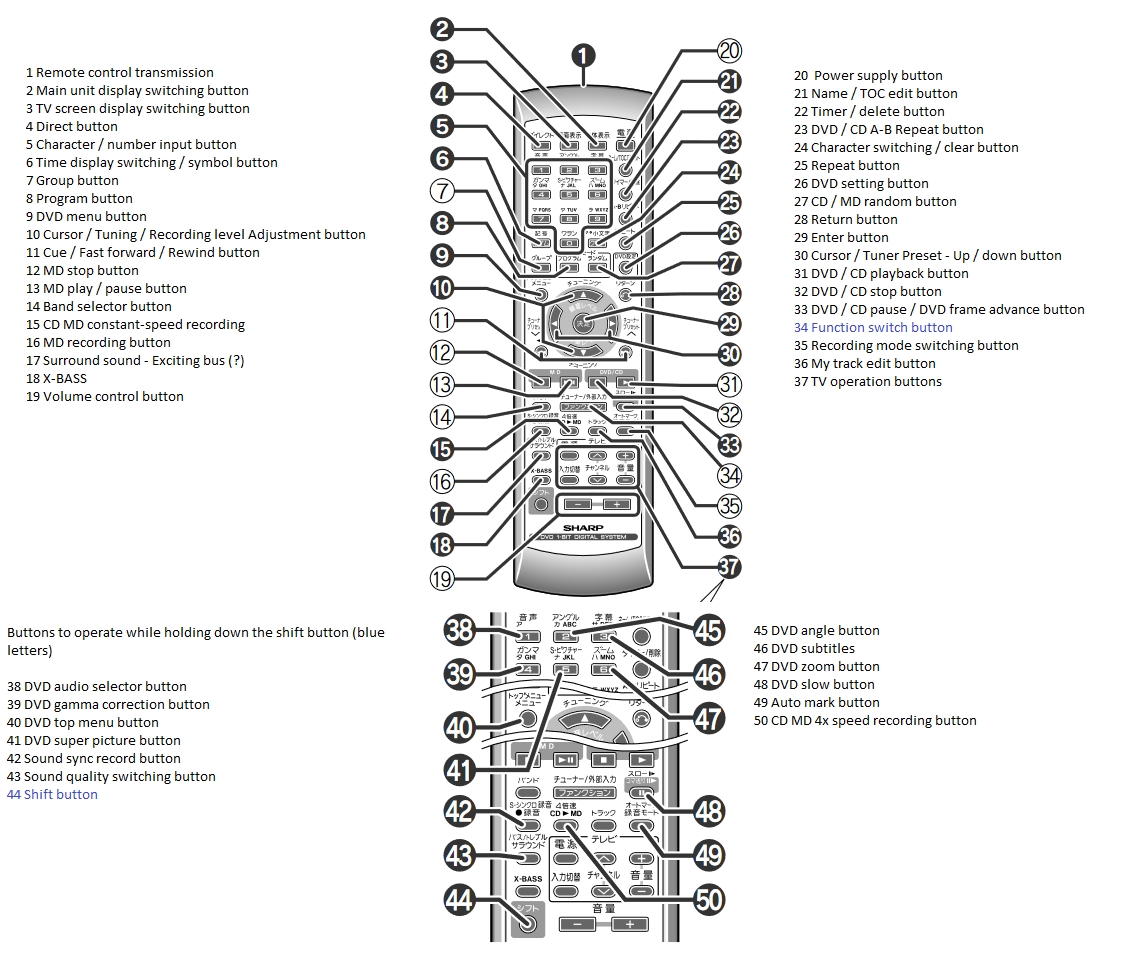

Remote Layout

Repair

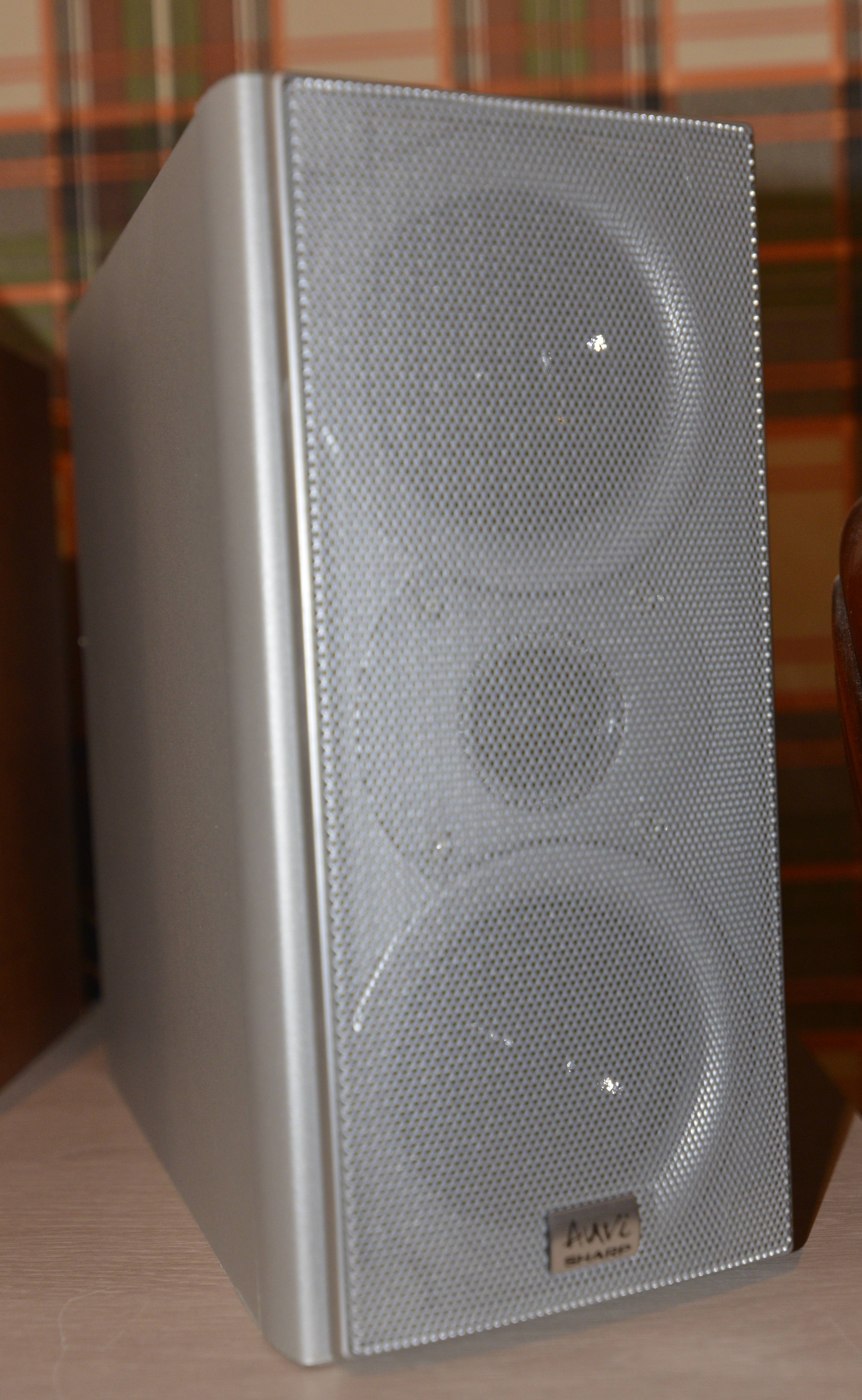

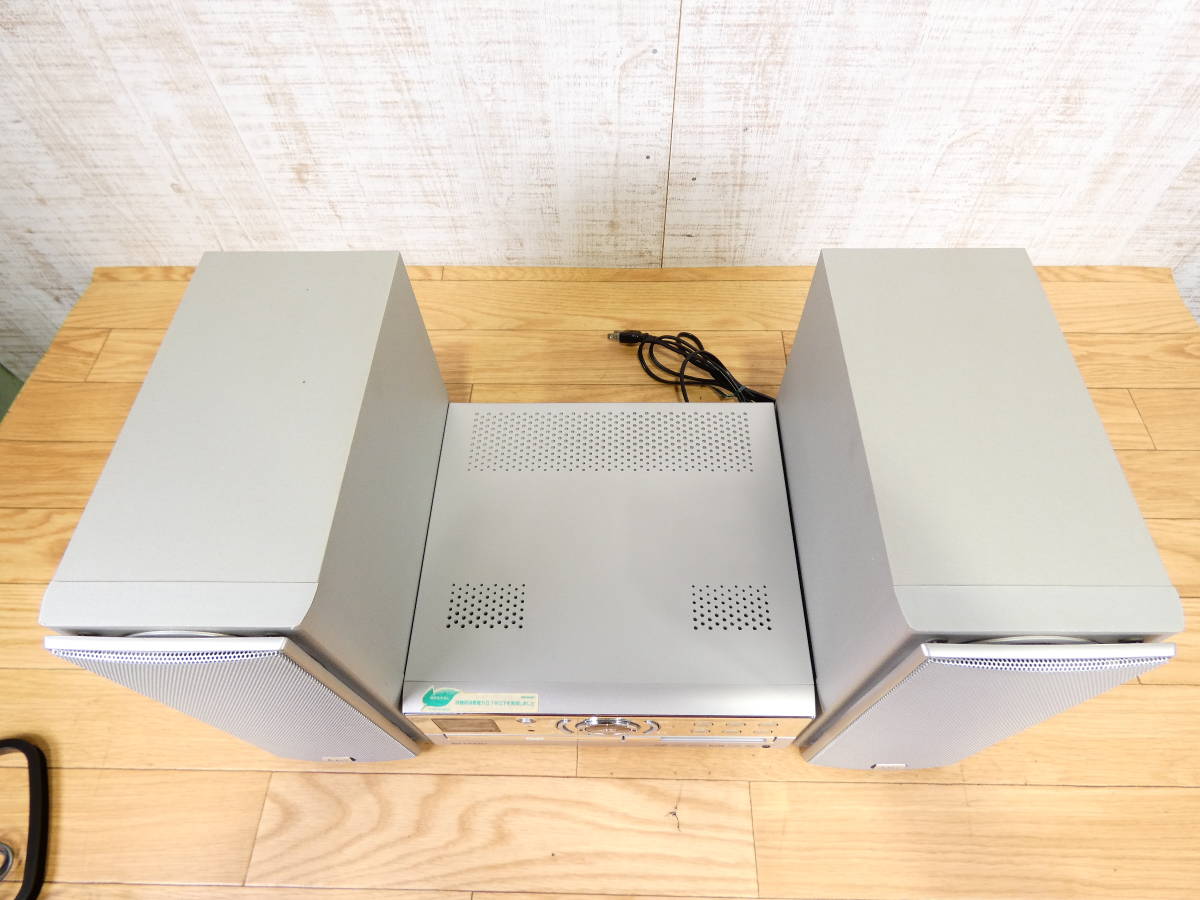

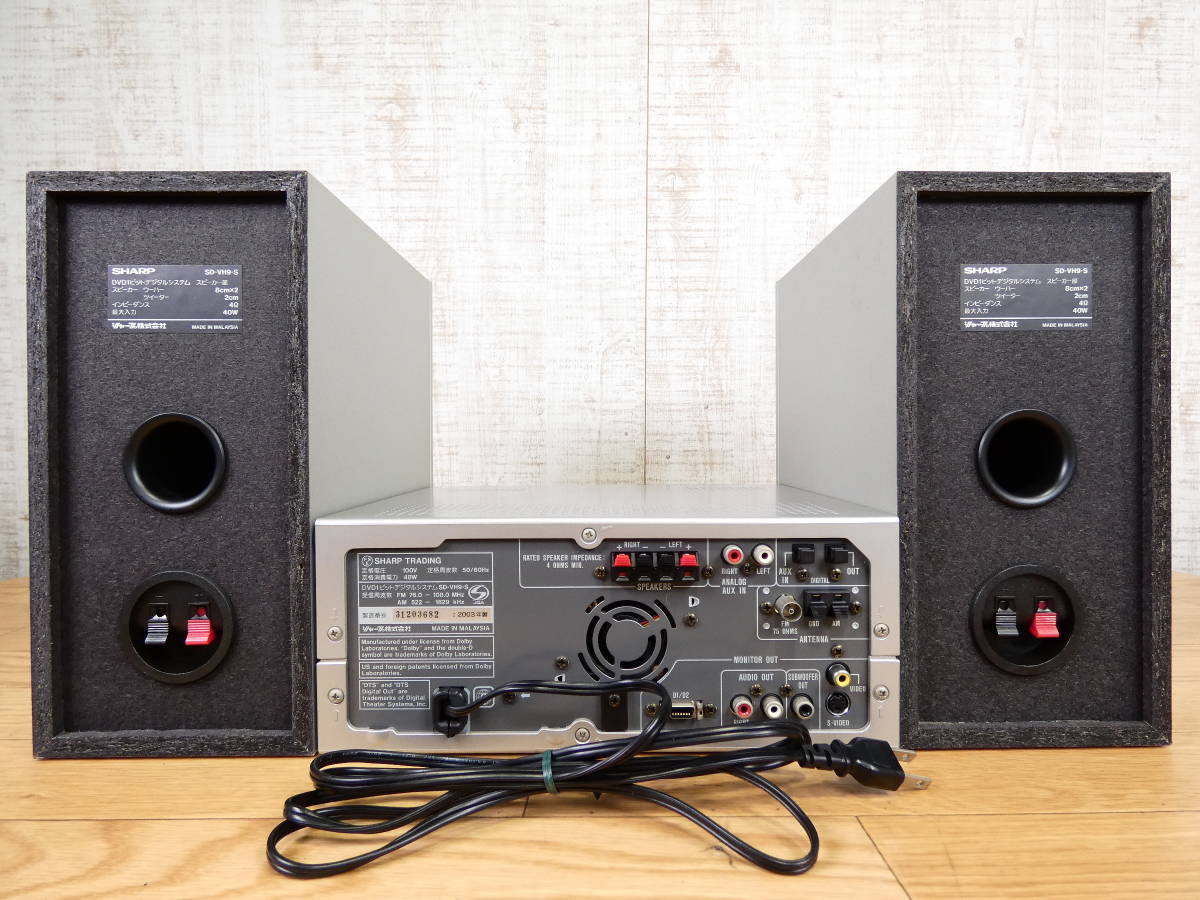

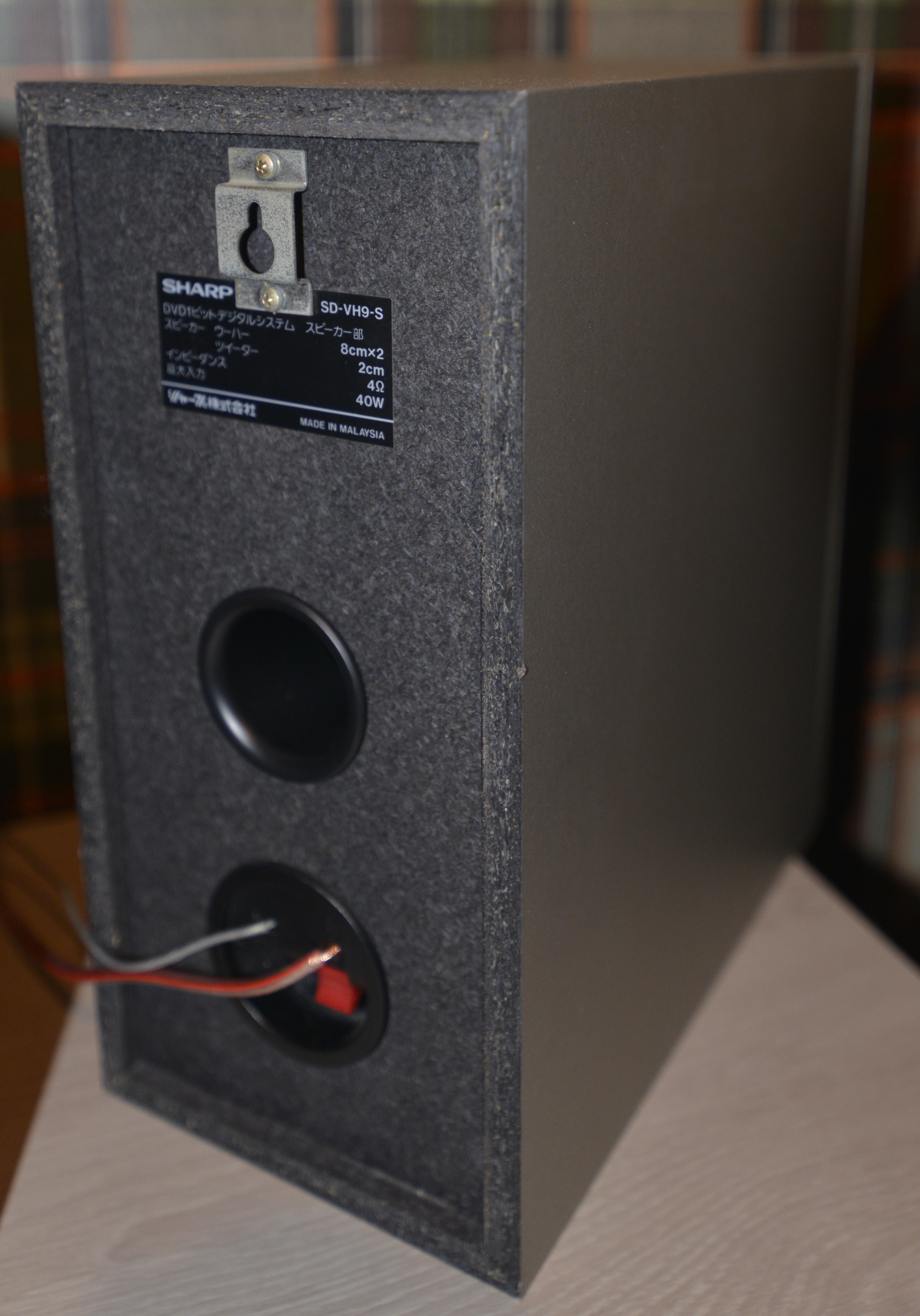

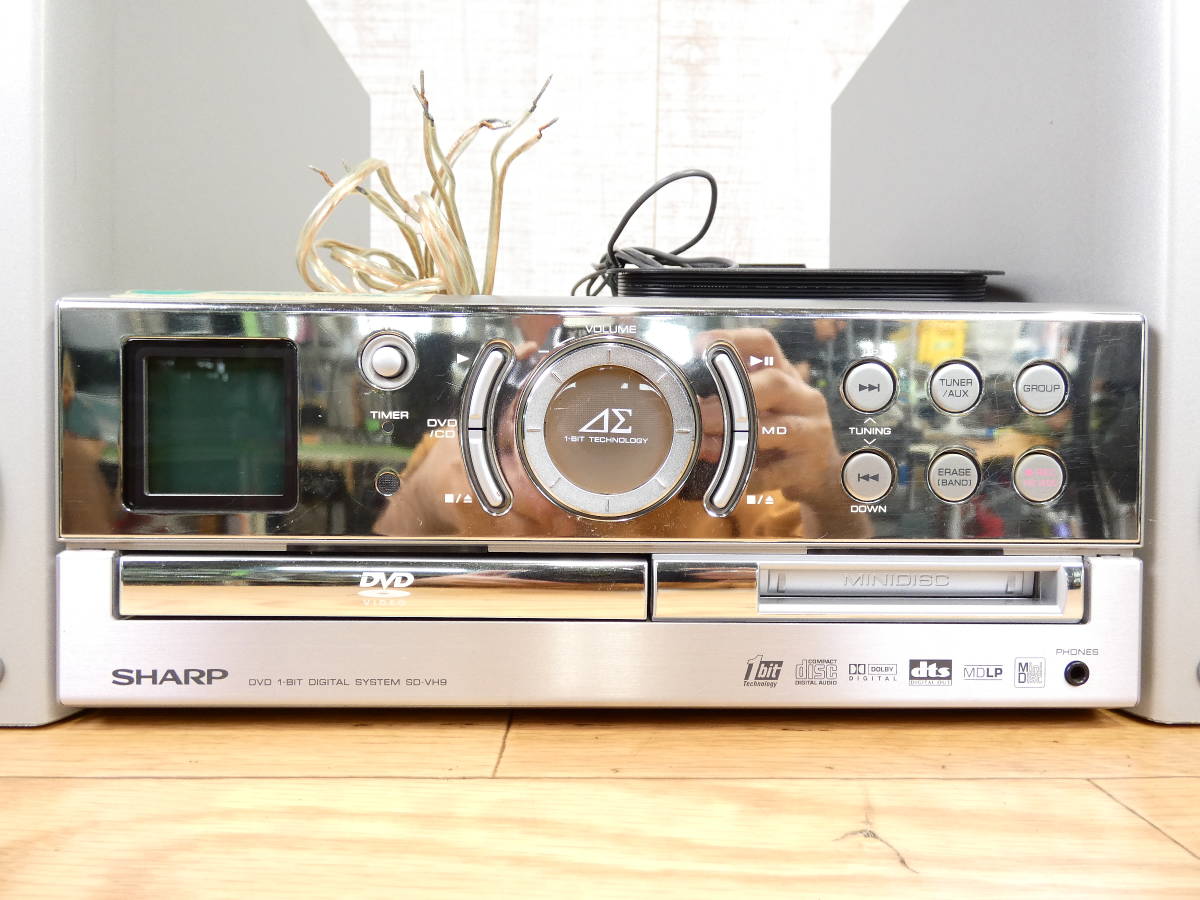

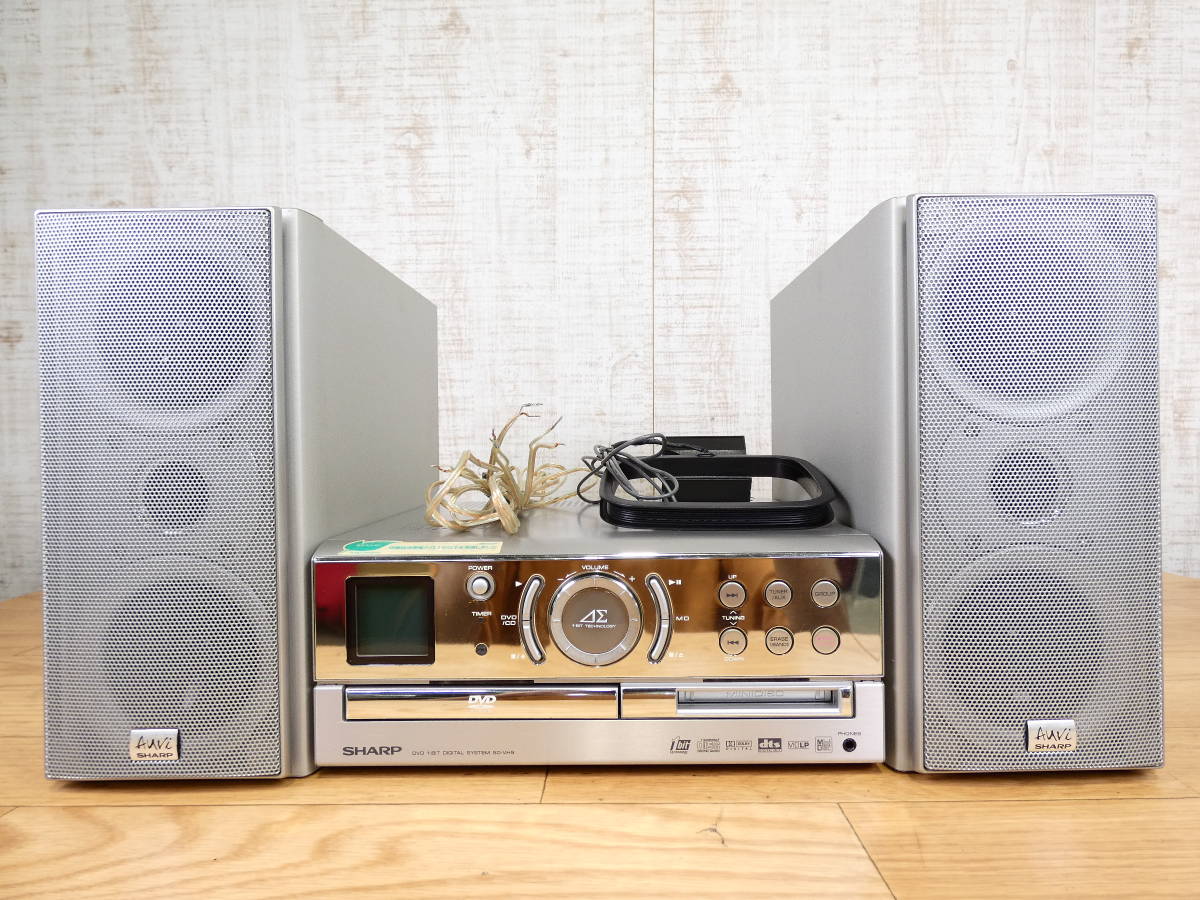

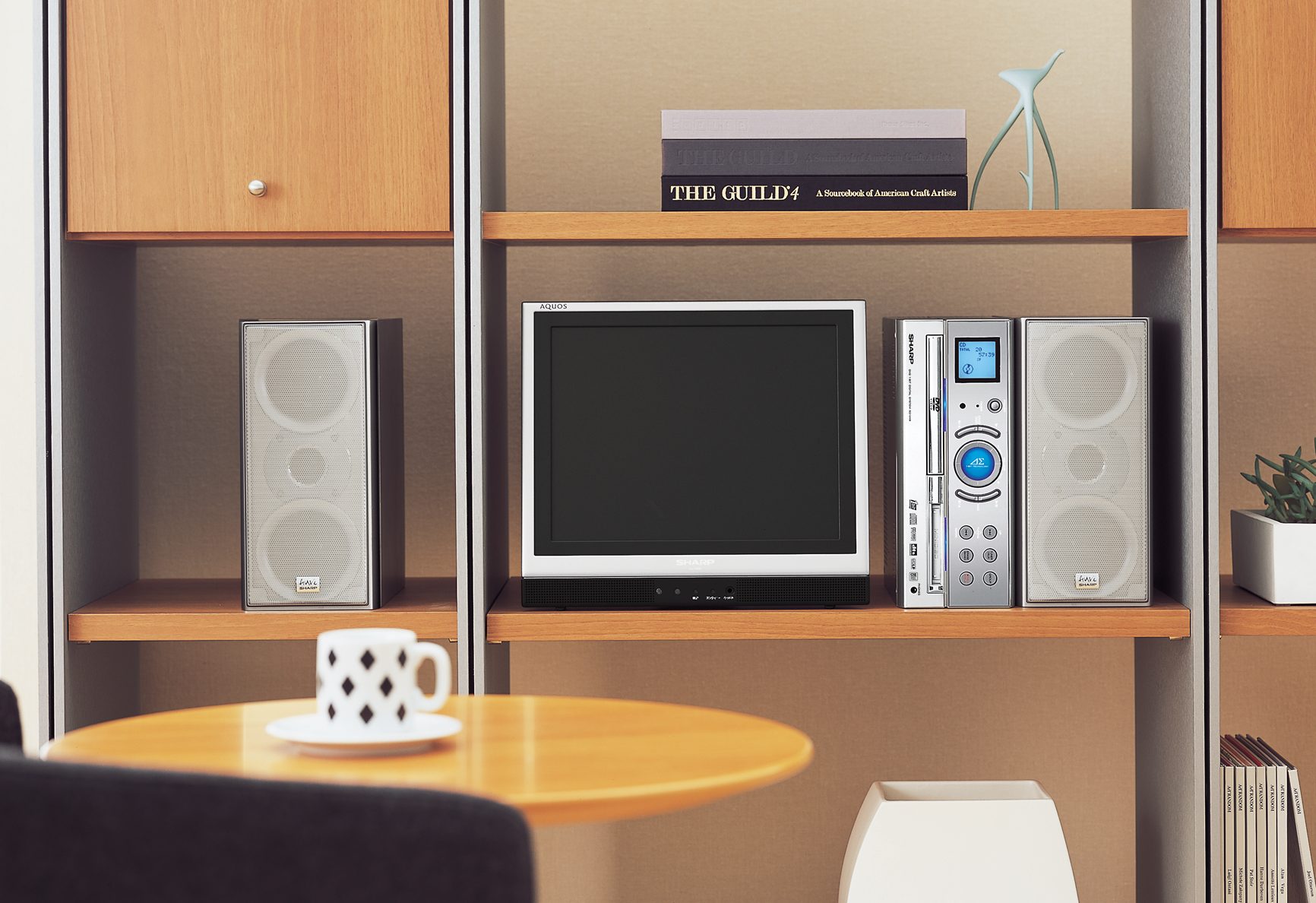

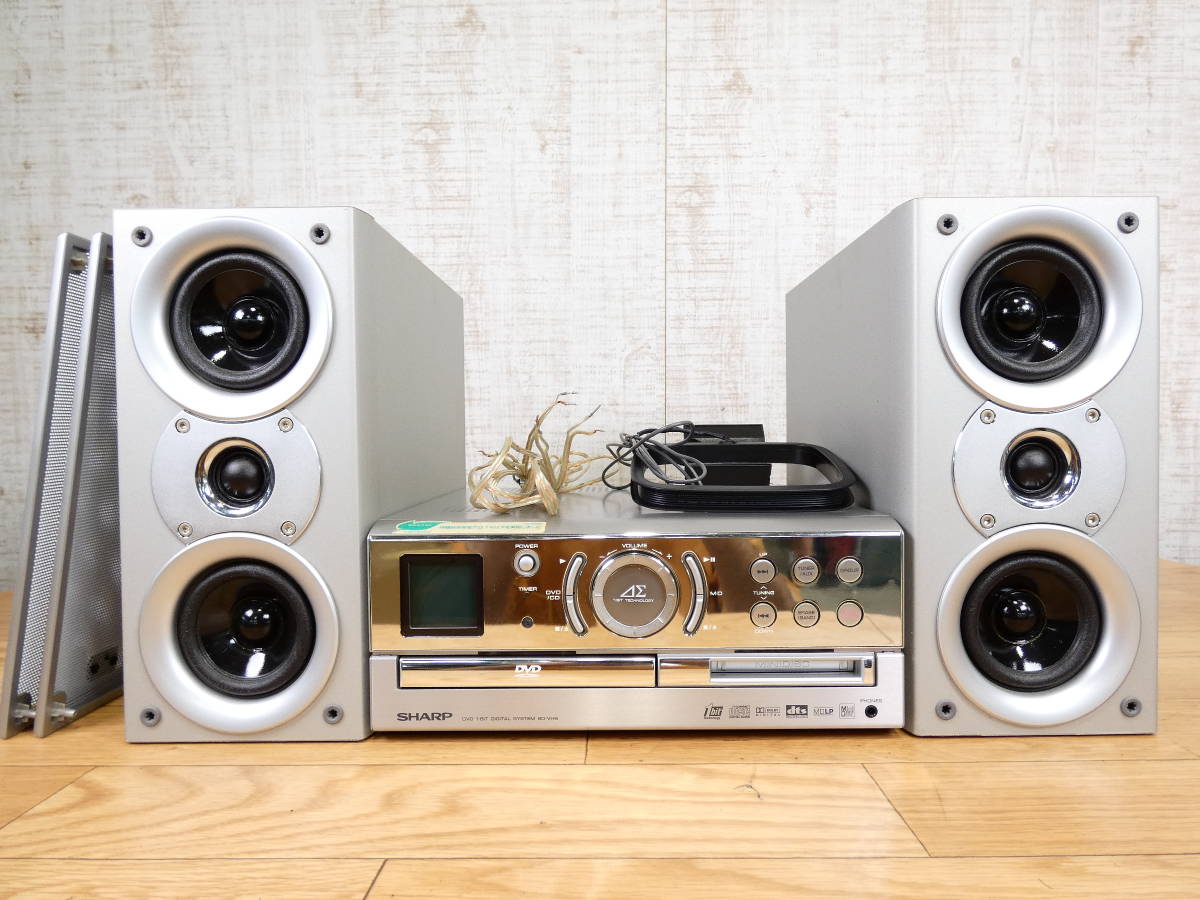

Photos

    Previous Next

    Have photos or data to add? Edit the page! We do not accept contributions via email..

    Additional specifications and references
    ManualUser manual
    RegionJapan
