| Name | MD-F1 |
|---|---|
| Manufacturer | Sharp |
| Released | 1997/11 |
| Device type | boombox |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - world band |
| Dimensions | 434 x 264 (345 w/shield up) x 274mm |
| Weight | 6.2kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥58 000 | |
| - | |
| Inputs | 3.5mm line in (analog-only), Digital optical (TOSLINK), CD |
| Outputs | 3.5mm line out (optical multi), 3.5mm headphone, Digital optical (TOSLINK), Built-in speaker |
| Control | Not recorded |

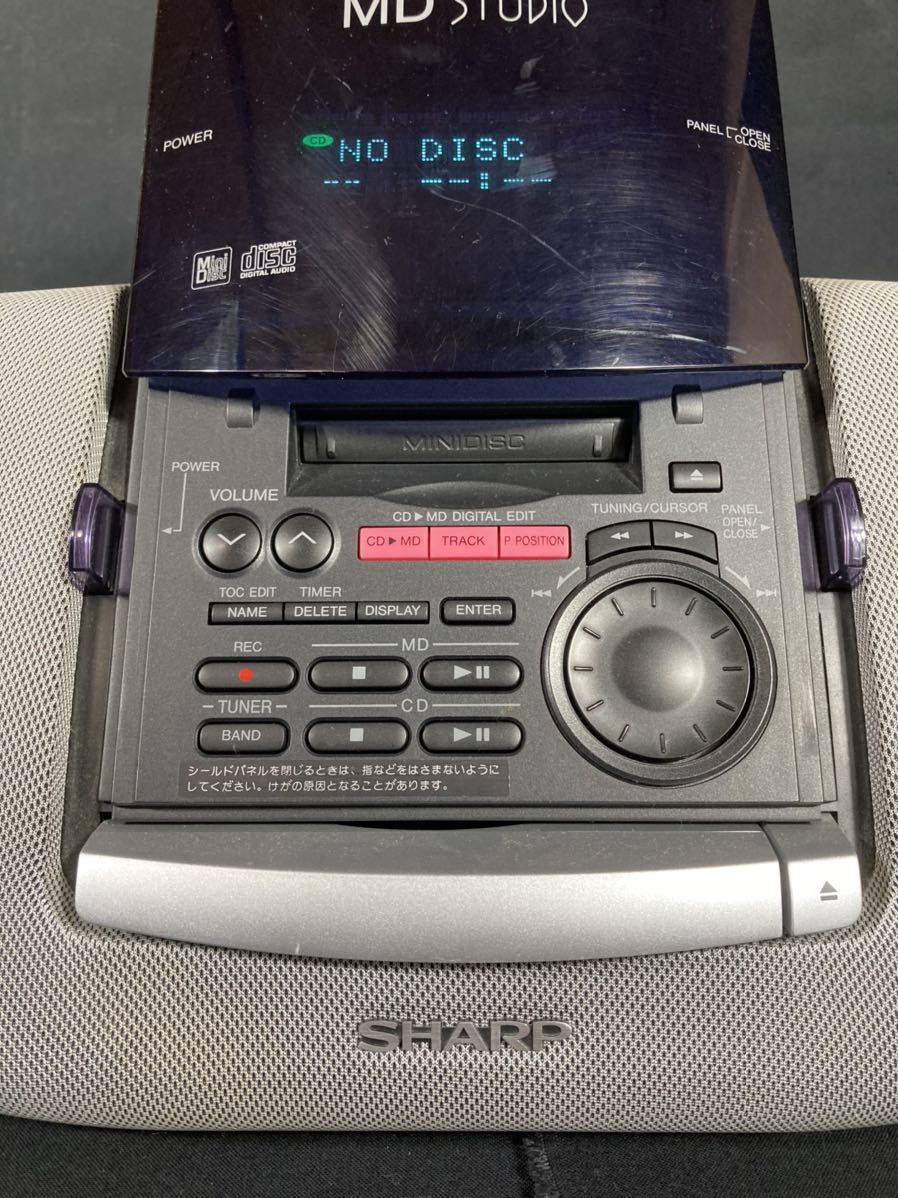

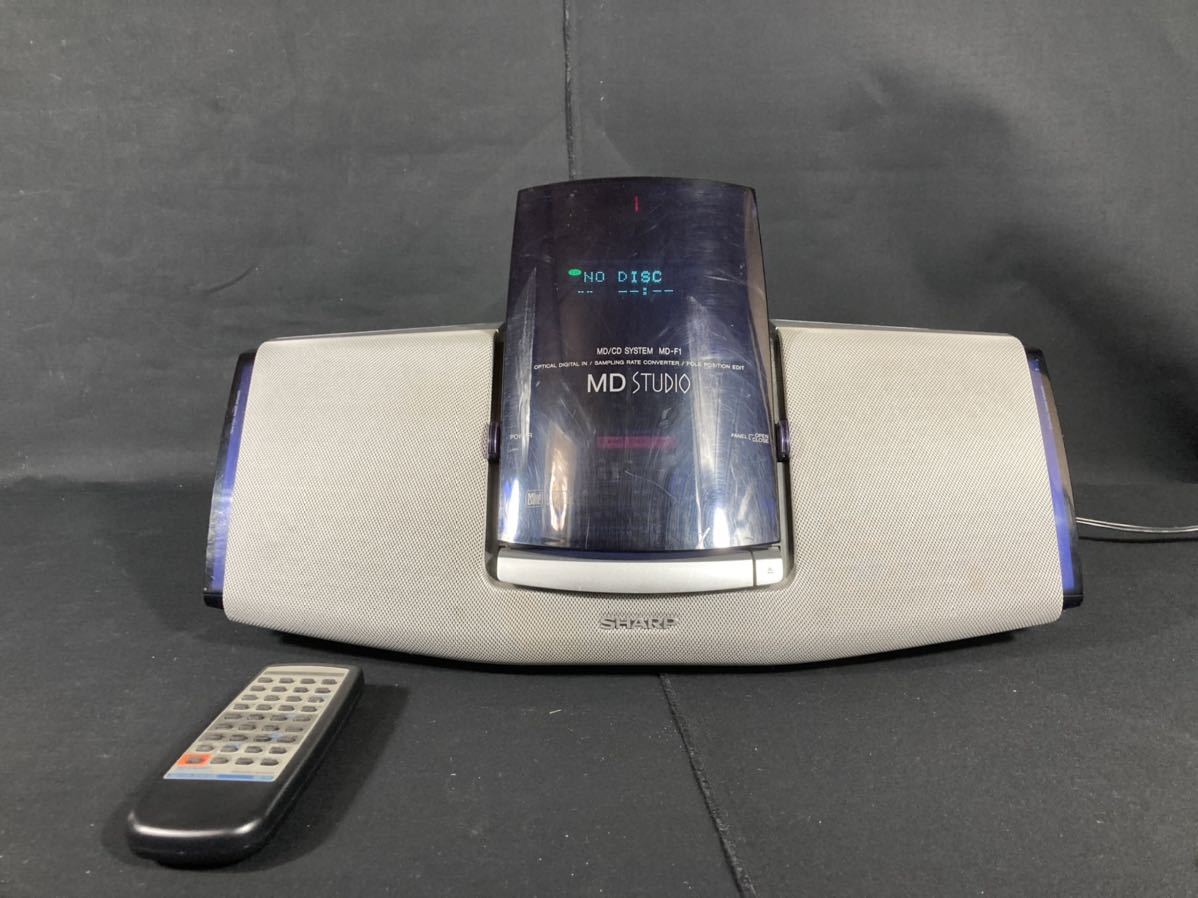

Features: MD/CD boombox. Fancy 'Electromotive Sealing Panel' moves to reveal operating controls underneath. One touch CD to MD copying. Easy editing with 'Hyper Track Edit' function, allows selection of CD tracks to record while listening to them. 'Pole position' function moves track to desired location after recording(?). ATRAC compression and expansion done with high accuracy 24 bit calculations. Sampling rate converter. Timer recording and wakeup functions (1 operation/day). I/R remote control.
Specs: MD: 20-20kHz (+1/-3dB), FM: 76.0 - 108.0 (world tuner), AM: 522-1629, Speaker: 10cm full range X 2. Amp: 7.5 + 7.5W.
Content adapted from: Minidisc.org page Sharp Press Release Sharp Press Release (MiniDisc Wiki mirror)
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Manual | |
|---|---|
| Region | Japan |
