| Name | MD-Z10 |
|---|---|
| Manufacturer | Sharp |
| Released | 1996/10 |
| Device type | boombox |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 550x219x309 mm |
| Weight | 6.9kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥65 000 | |
| - | |
| Inputs | CD, Radio recording |
| Outputs | 3.5mm headphone, Built-in speaker |
| Control | Not recorded |
Features: Radio/MD/CD boombox. Direct CD→MD digital dubbing/editing. Normal MD track editing plus "program move", which would appear to allow you to set the track order of up to 20 tracks in one fell swoop. Jog shuttle dial for entering text and editing. Auto-mark function. Stereo/Mono-recording. Titling: 40 character input per song, katakana input. Date and time stamp recording. Program play (up to 20 tracks), random play, all song repeat. 10 AM/FM presets. Record/playback timer, sleep timer. 10cm full range speaker. Remote control included.
Specs: Tuner: AM band: 522-1629KHz, FM band: 76.0-108MHz (world tuner). Amp: 7.5w+7.5w. Power: 36 watts, 100VAC.
Content adapted from: Minidisc.org Page Sharp Press Release Sharp Press Release (MiniDisc Wiki mirror)
Manuals
Repair

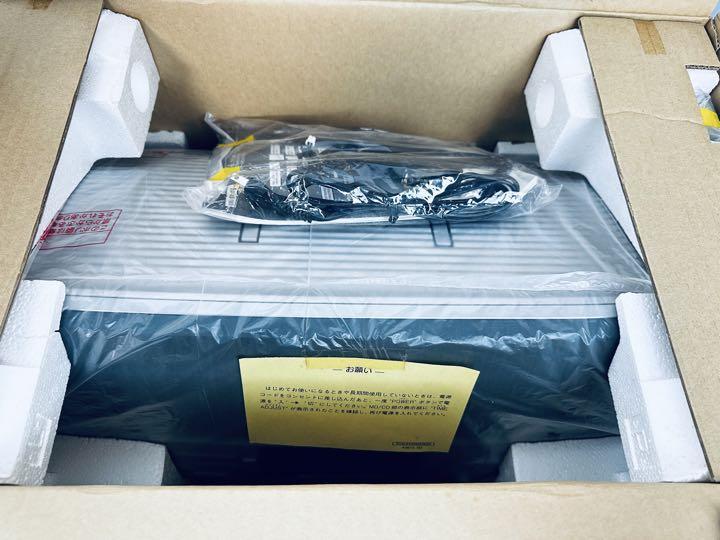

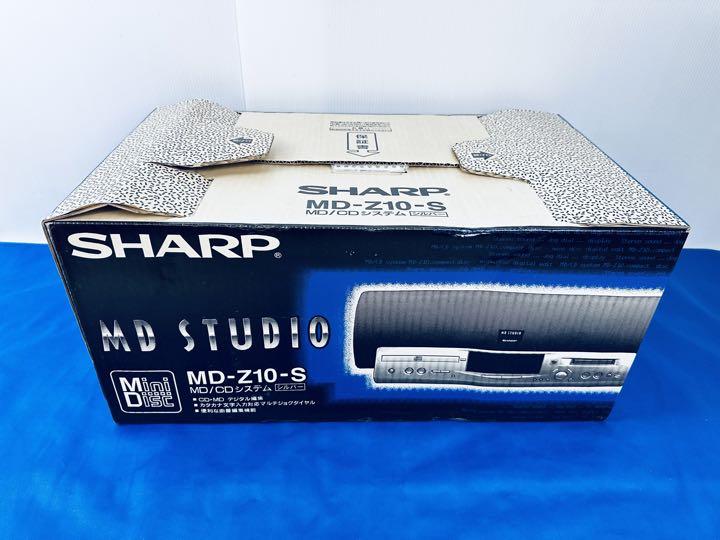

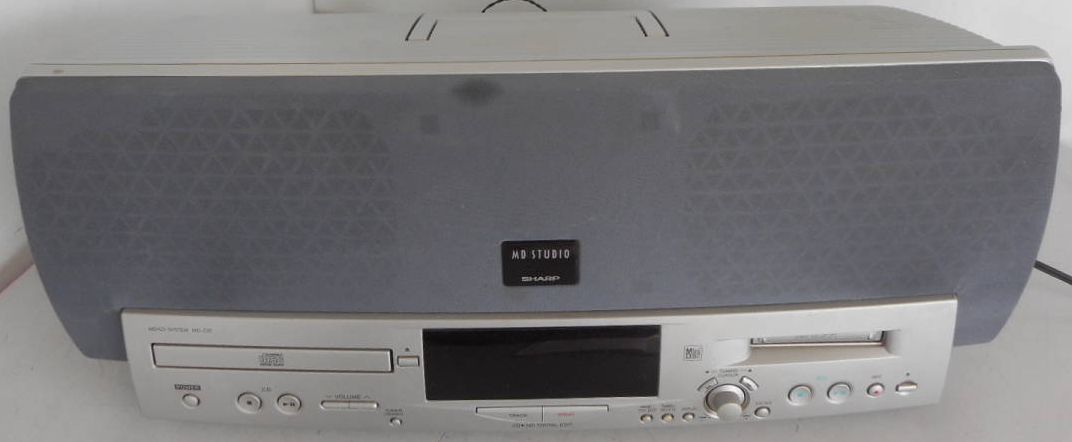

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Manual | |
|---|---|
| Region | Japan |
