| Name | SD-FV10 |
|---|---|
| Manufacturer | Sharp |
| Released | 2003/10 |
| Device type | boombox |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 420 x 150 x 275.8mm |
| Weight | 5.7kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥45 000 | |
| - | |
| Inputs | CD |
| Outputs | 3.5mm headphone, Built-in speaker |
| Control | Not recorded |

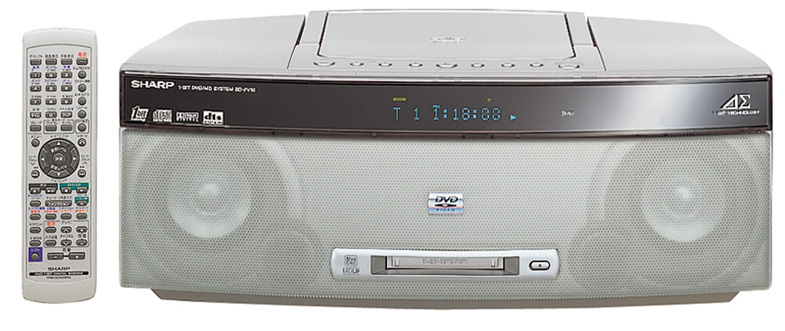

Sharp SD-FV10 is Sharp's 2003 DVD/MD/Tuner boombox from the Auvi line with DVD-R/RW, CD-R/RW & MP3 support.

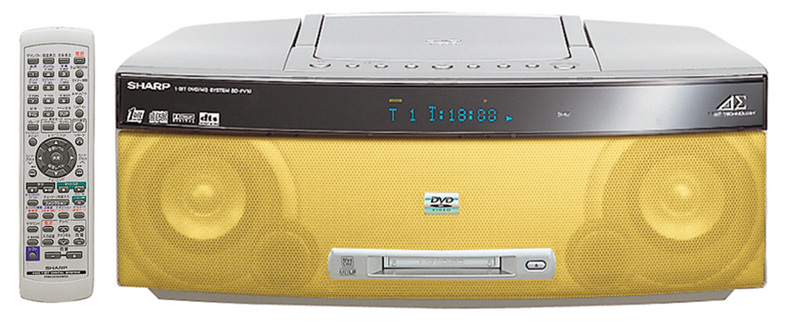

Available in SD-FV10-S (silver), SD-FV10-G (green) and SD-FV10-Y (yellow).
Other features of the unit include:
- 2.8MHz digital amplifier
- DTS support
- One-touch 4x CD–>MD dubbing
- MDLP
- Group function
- Katakana support
- Sleep timer
- 40 tuner presets
- World band AM/FM tuner
- X-BASS boost
- 4 equalizer presets
- Outputs: Optical digital, Line, Headphone
- Inputs: Line
- Video Outputs: Composite, S-Video
- Line input: 500mV [47K Ohms]
- Line output: 500mV [10K Ohms]
Content adapted from: Sharp Press Release Sharp Press Release (MiniDisc Wiki mirror) Details Page Details Page (MiniDisc Wiki mirror) av.watch MinidiscT Press images
Manuals
Repair
Photos
Sharp SD-FV10 high rez tiff — unavailable in this snapshot
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
