Device

Sharp SD-FX100

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-01-05

Manufacturer
Sharp
Model / source grouping
SD-FX100
Device type
boombox
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sharp SD-FX100”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SD-FX100
Manufacturer Sharp
Released 2004/05
Device type boombox
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 435 (width) x 172 (height) x 268 (depth) mm
Weight 5700
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-
Inputs 3.5mm line in (analog-only), 3.5mm microphone, CD, Tape deck
Outputs 3.5mm headphone, Built-in speaker
Control Not recorded

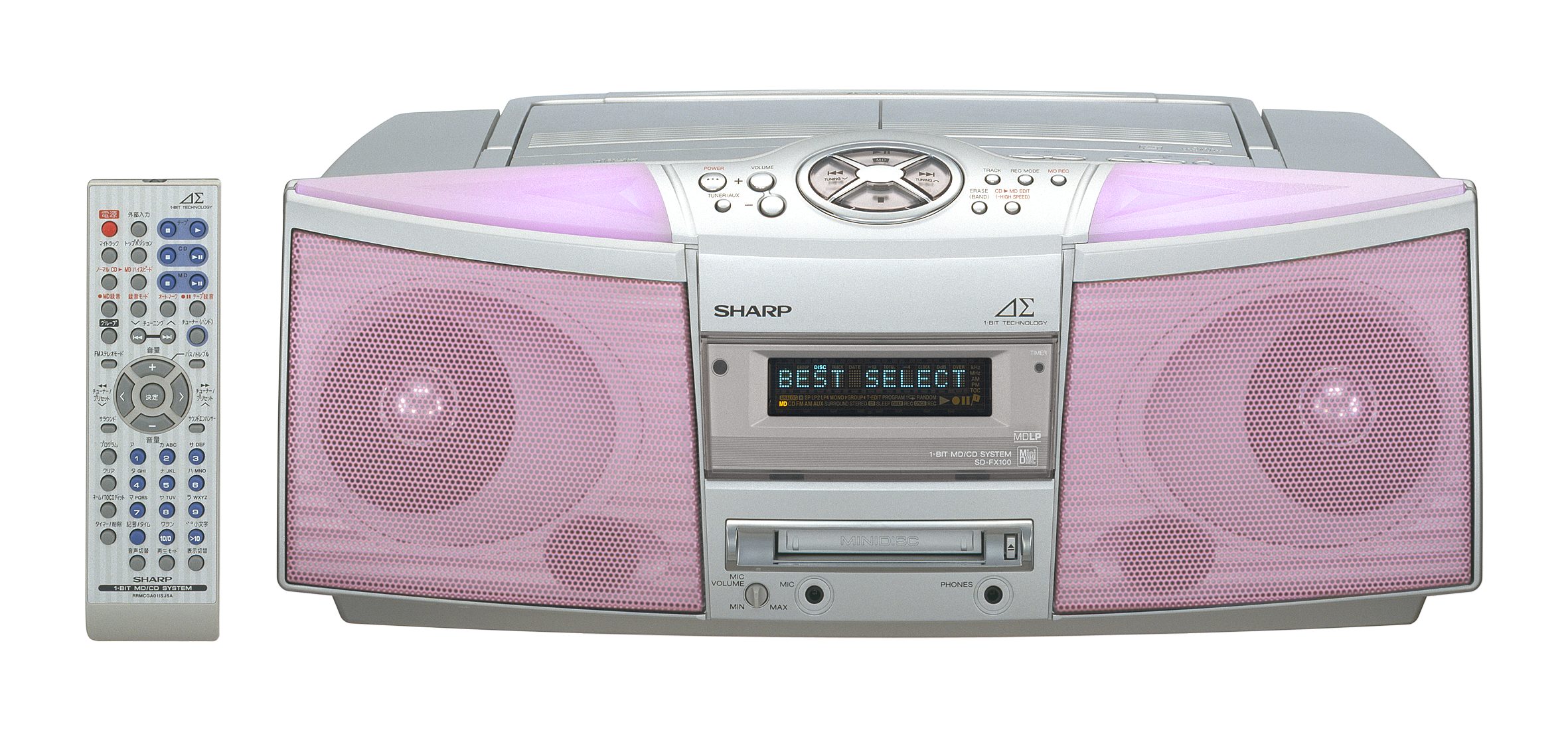

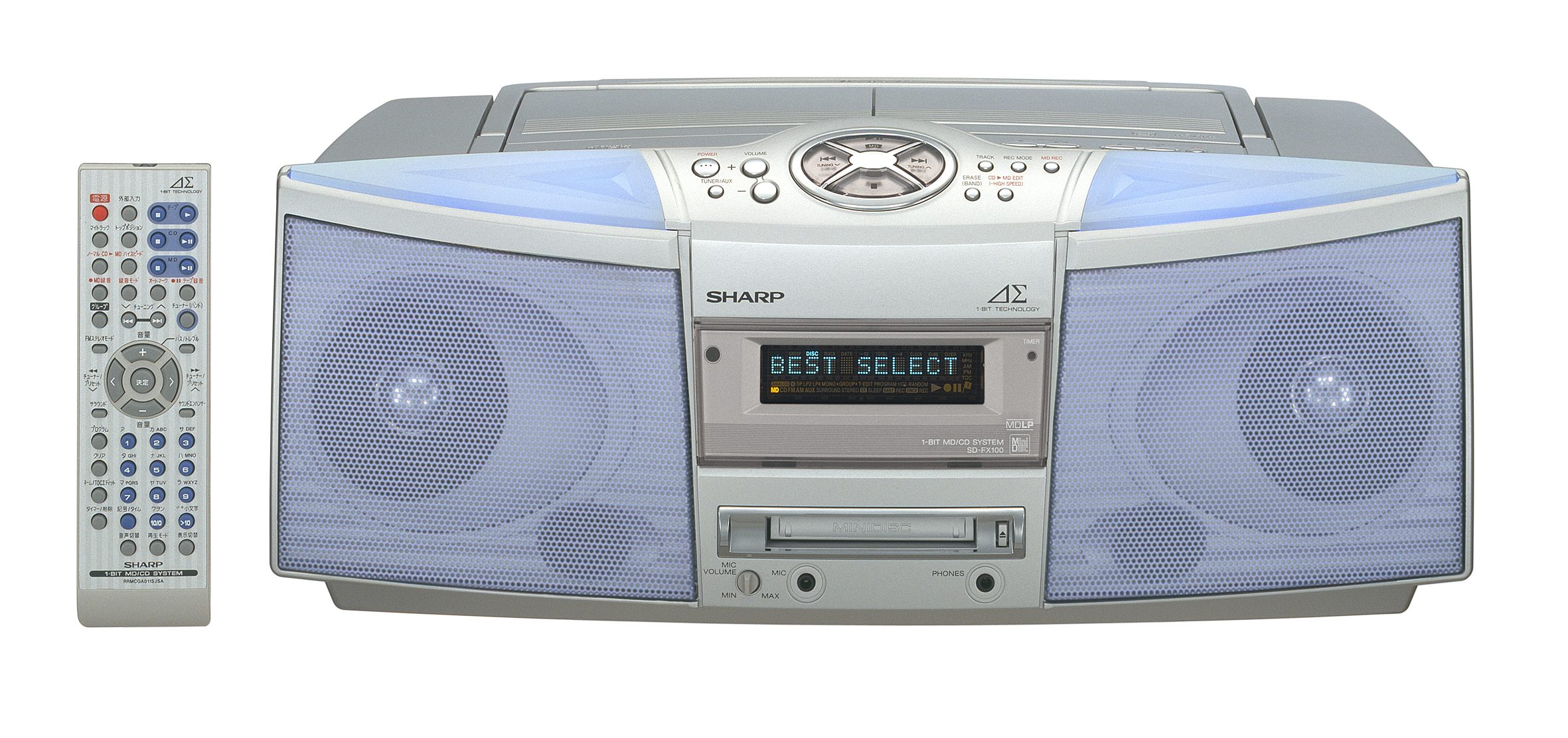

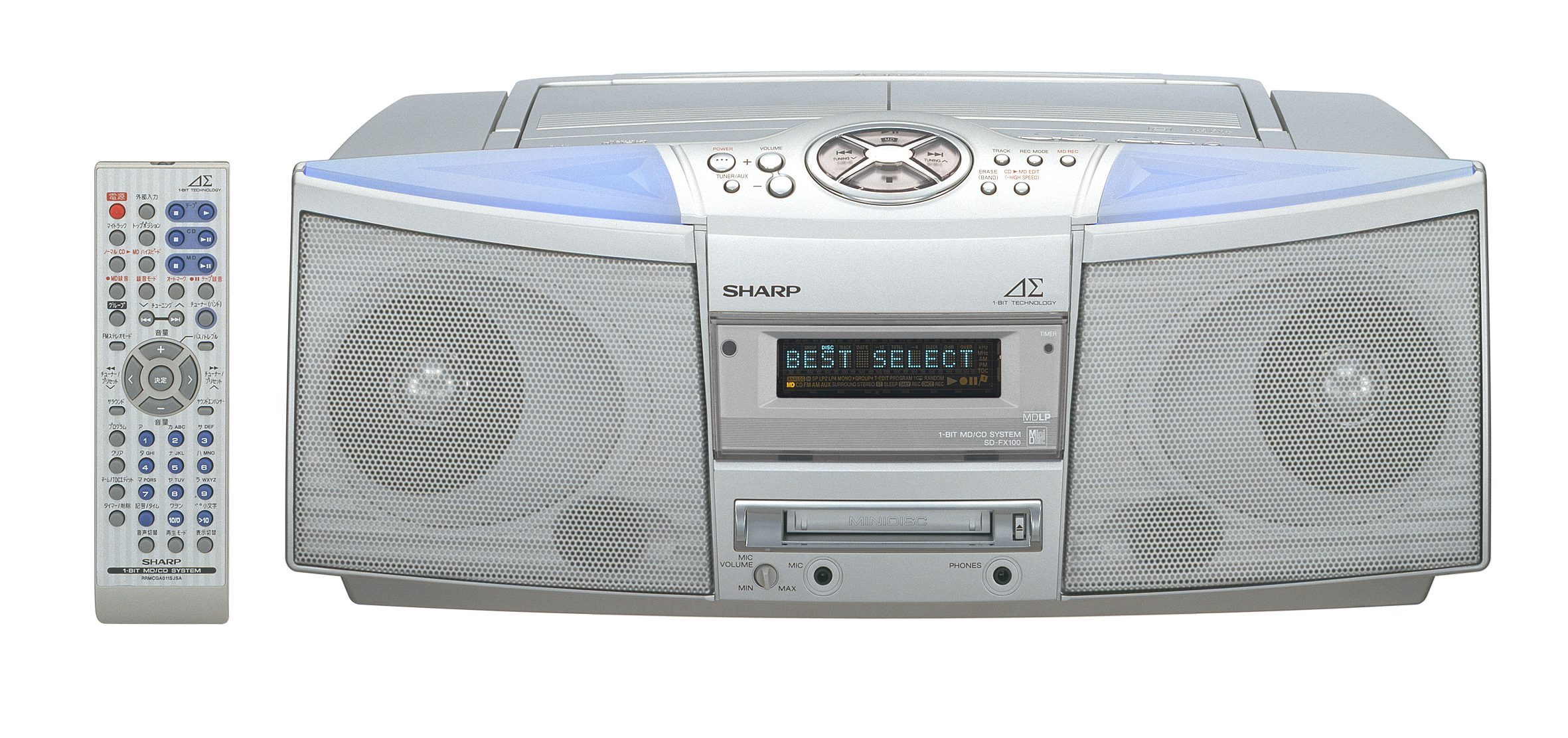

Offered in SD-FX100-S (silver), SD-FX100-A (blue), SD-FX100-P (pink)

4x CD → MD

FM: 76.0-108.0MHz

Content adapted from: Sharp Press Release Sharp Press Release (MiniDisc Wiki mirror) Details Page Details Page (MiniDisc Wiki mirror) Press Images av.watch

Manuals

Sharp SD-FX100 User Manual JP

Repair

Photos

high-res:

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
