Device

Sharp SD-FX200

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2025-04-09

Manufacturer
Sharp
Model / source grouping
SD-FX200
Device type
boombox
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sharp SD-FX200”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SD-FX200
Manufacturer Sharp
Released 2005/03
Device type boombox
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Not recorded
Dimensions 430x171x274mm
Weight 5.6kg Approx. 6.3 kg (including batteries)
ATRAC ver Sharp 8
Battery Not recorded AA
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
¥34 000
-
Inputs 3.5mm line in (analog-only), 3.5mm microphone, CD, Radio recording, Tape deck
Outputs 3.5mm headphone
Control Not recorded

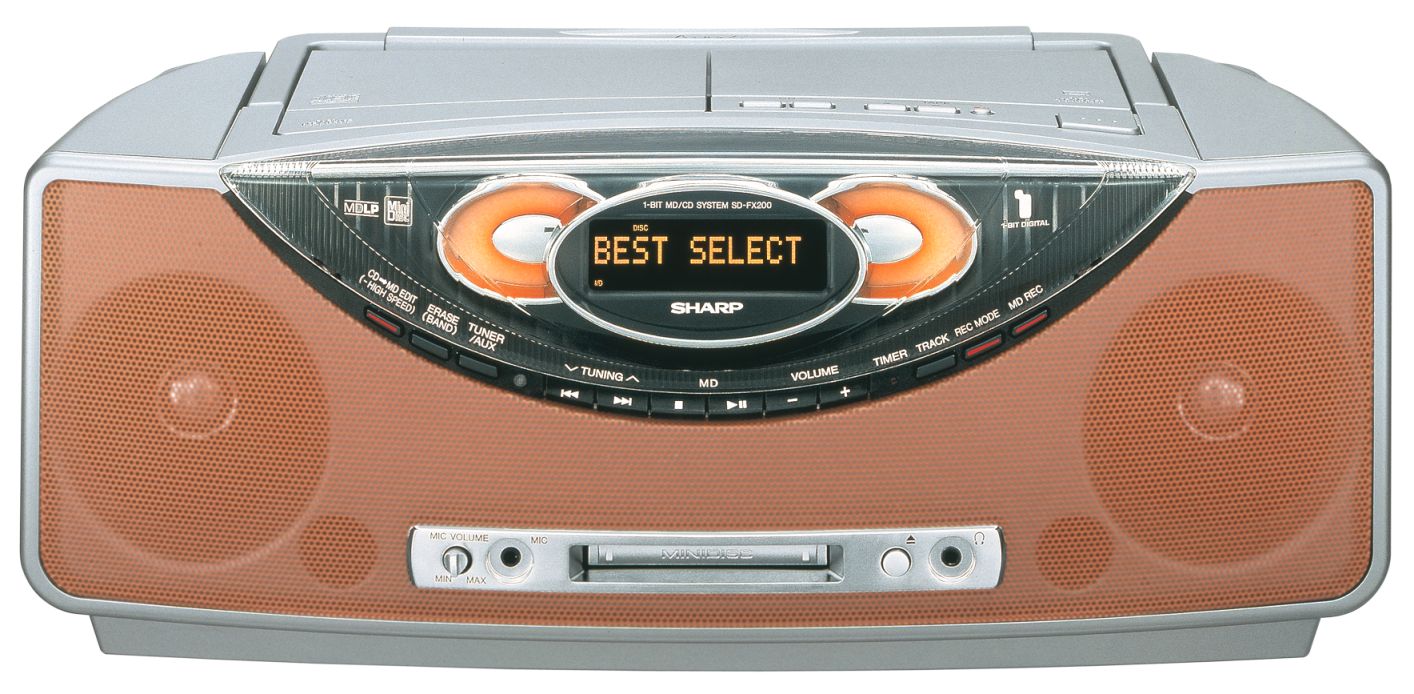

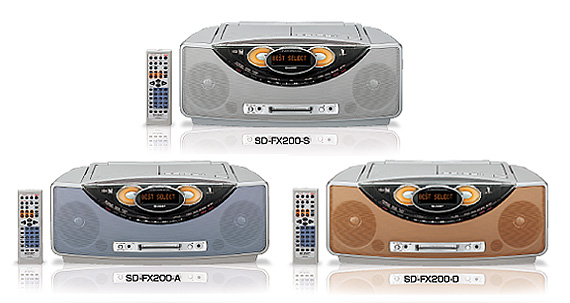

Comes in three colors: SD-FX200-S (silver), SD-FX200-A (blue), SD-FX200-D (orange)

Featured on Techmoan's video MD systems from Japan : The good, the bad and the ugly?

Various editing functions such as "CD⇒MD 4x speed one-shot editing" that allows you to easily create original MDs. Since 4x speed recording, it's possible to record from CD to MD with one touch, you can easily create an original MD.

Equipped with a "microphone mixing function" that allows you to enjoy karaoke along with the performance of cassette tapes, CDs, and MDs. Also equipped with a "voice canceller function" that allows you to enjoy karaoke with your music software.

Equipped with "Top Position Recording" that allows you to additionally record the song you want to listen to as the first song on the MD with a single touch, and "My Track Edit" that allows you to specify the song you want to edit while listening to it.

Supports CD-R / CD-RW playback * 2 and CD text In addition to general CDs, you can also listen to songs recorded on music CD-R / CD-RW. It also supports CD text display.

Practical maximum output: 5W+5W (JEITA)

Content adapted from: Sharp Corporate News Release Sharp Corporate News Release (MiniDisc Wiki mirror) Details Page Details Page (MiniDisc Wiki mirror) Press Images av.watch - "open price" but street price ~34,000yen

Manuals

SD-FX200 User Manual

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Atrac IcLR378161 (Sharp)
ManualUser manual
RegionJapan
