| Name | SD-FX33 |
|---|---|
| Manufacturer | Sharp |
| Released | 2006/06 |
| Device type | boombox |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 431 x 151 x 231 |
| Weight | 4500 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | 3.5mm line in (analog-only), CD |
| Outputs | 3.5mm headphone |
| Control | Not recorded |
Input terminal
- Mobile (analog) external input: normal 500mV /
- high 100mV, diameter 3.5mm stereo mini jack x 1
Output terminal
- Headphone output: 16 to 50Ω (recommended 32Ω) /
- 3.5mm diameter stereo mini jack x 1
1-bit sampling frequency: 2.8MHz
Power consumption (standby): 26W (0.12W)
Practical maximum output (JEITA): 5W x 2 (10W)
accessories: Remote control x 1, AA batteries x 2, power cord approx. 1.5 m x 1, AM loop antenna x 1, instruction manual (with warranty) x 1
Content adapted from: Sharp product page Manual Page Manual Page (MiniDisc Wiki mirror)
Manuals
Repair

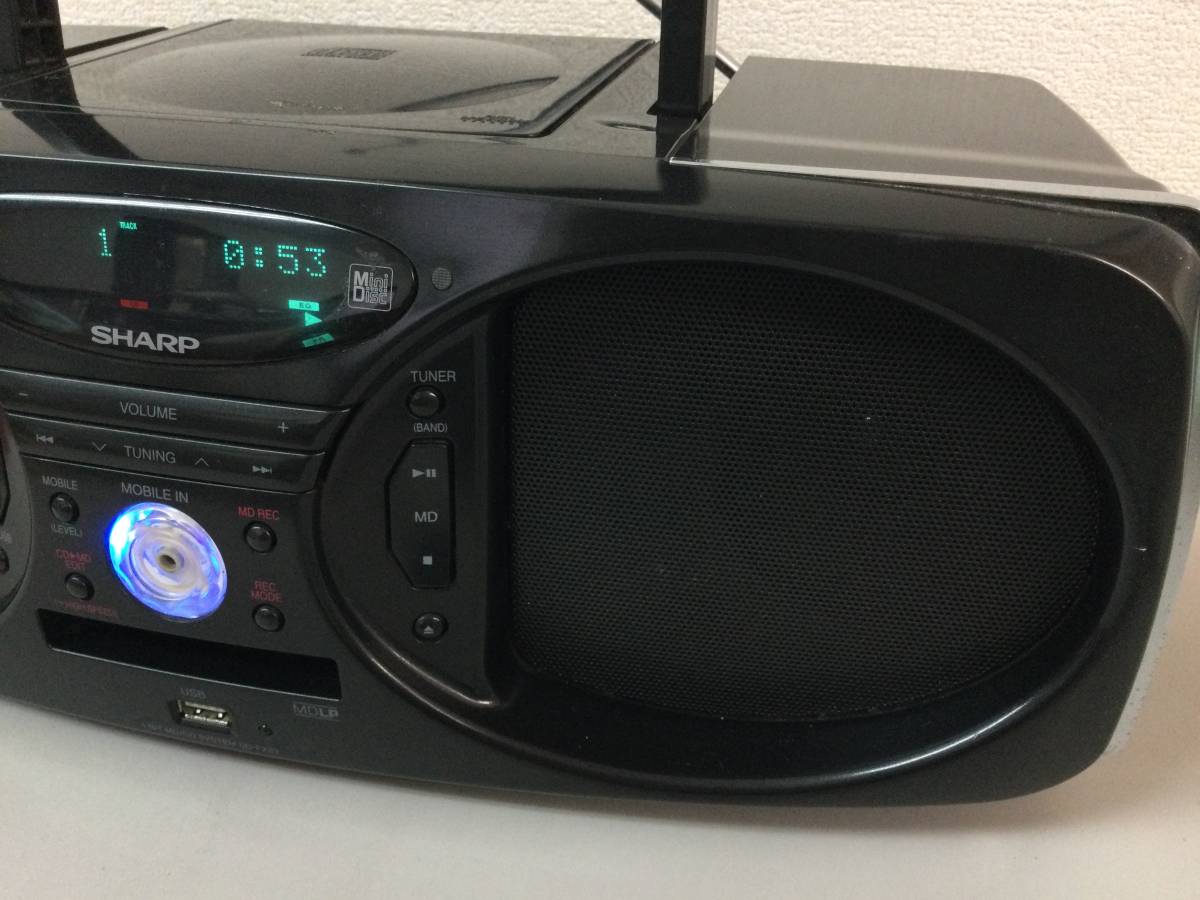

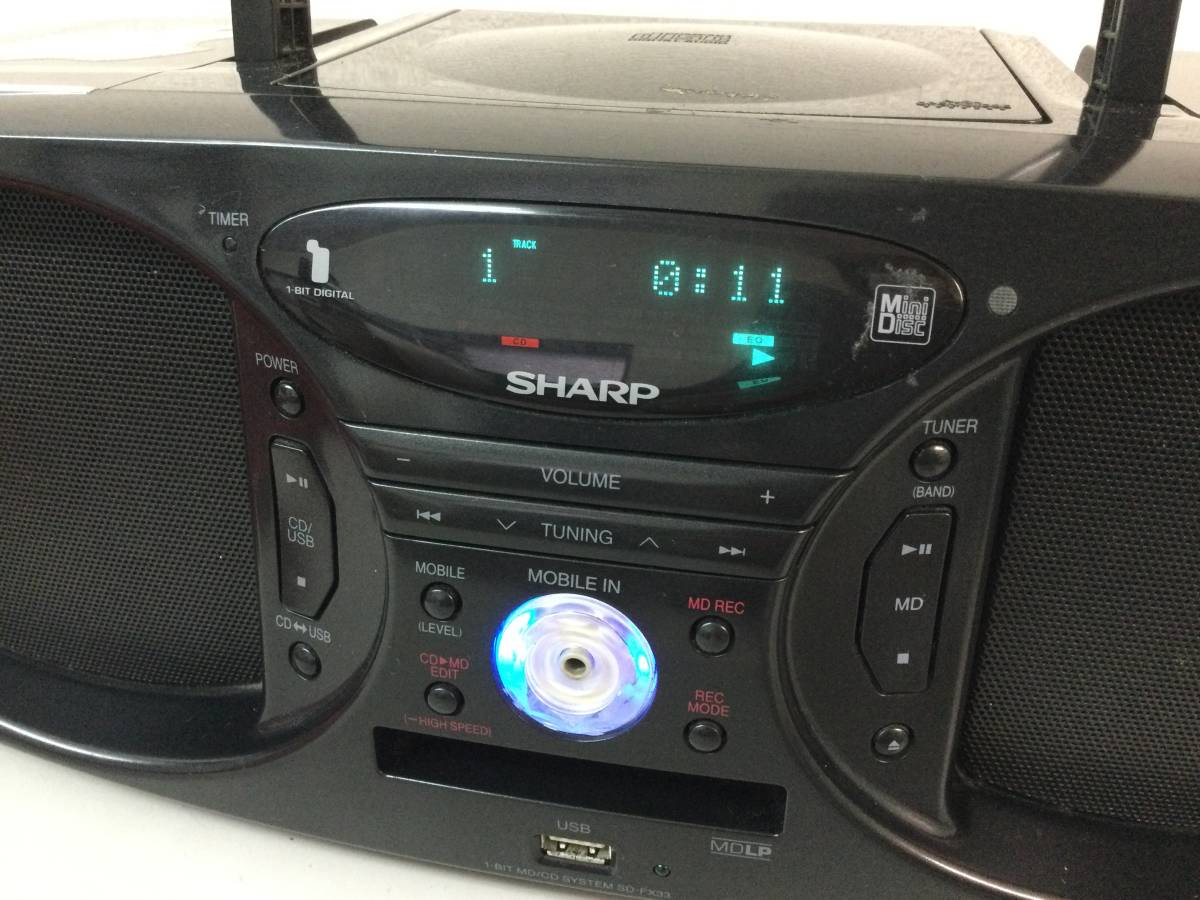

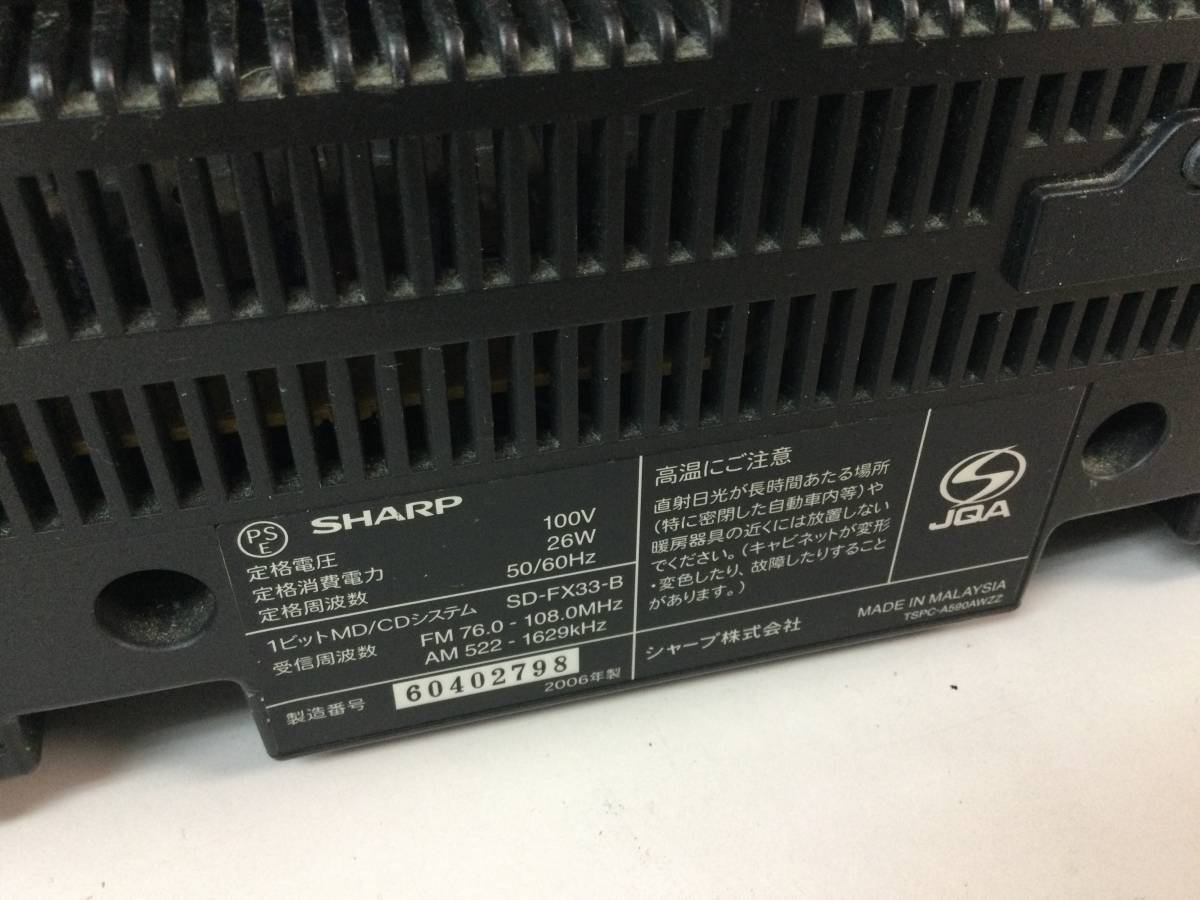

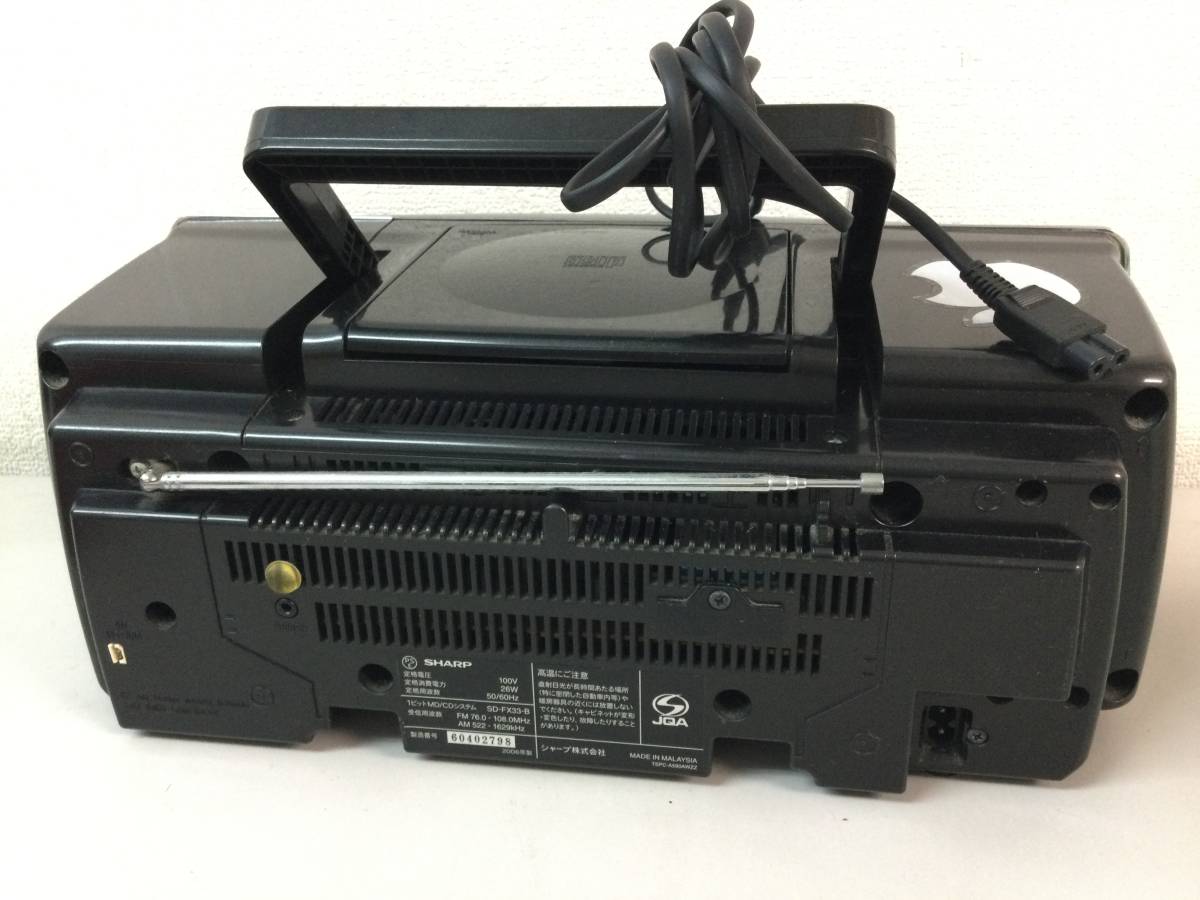

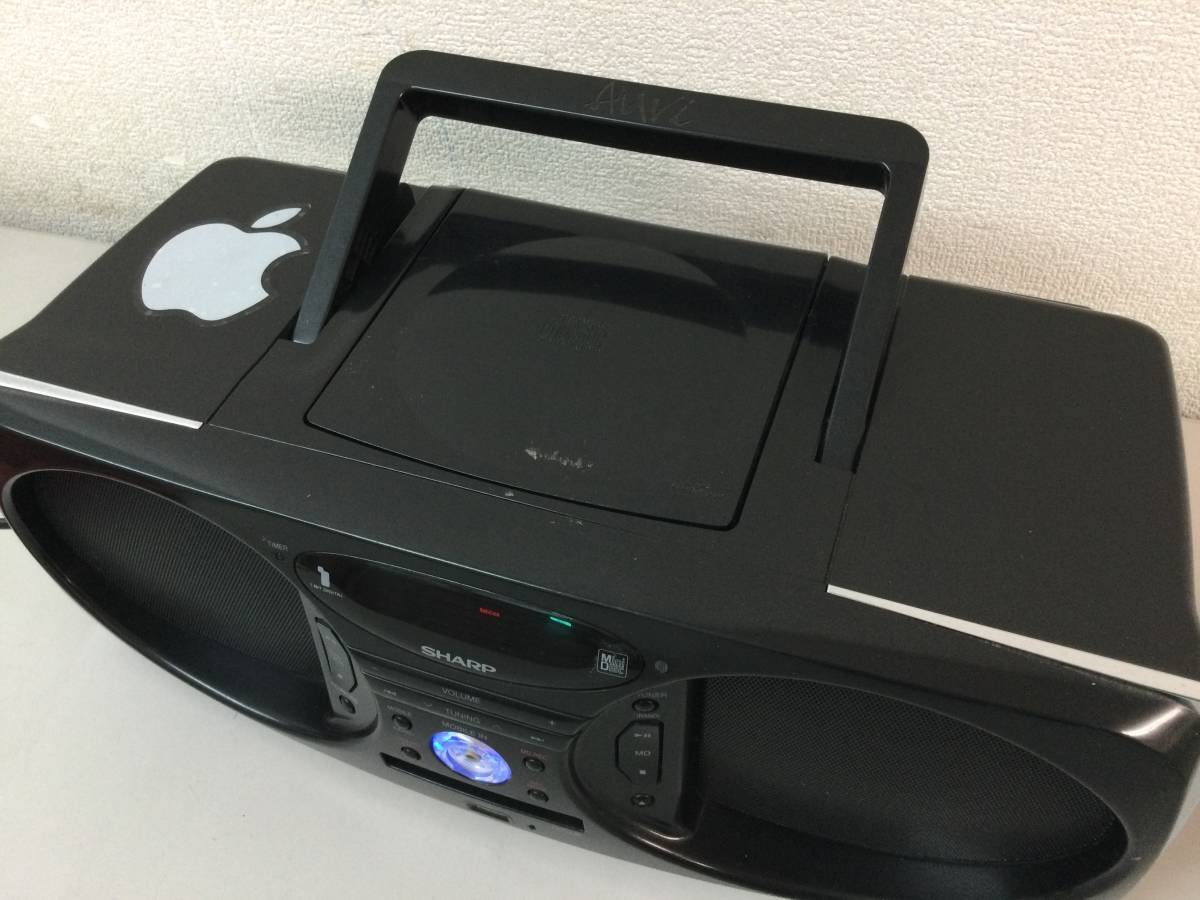

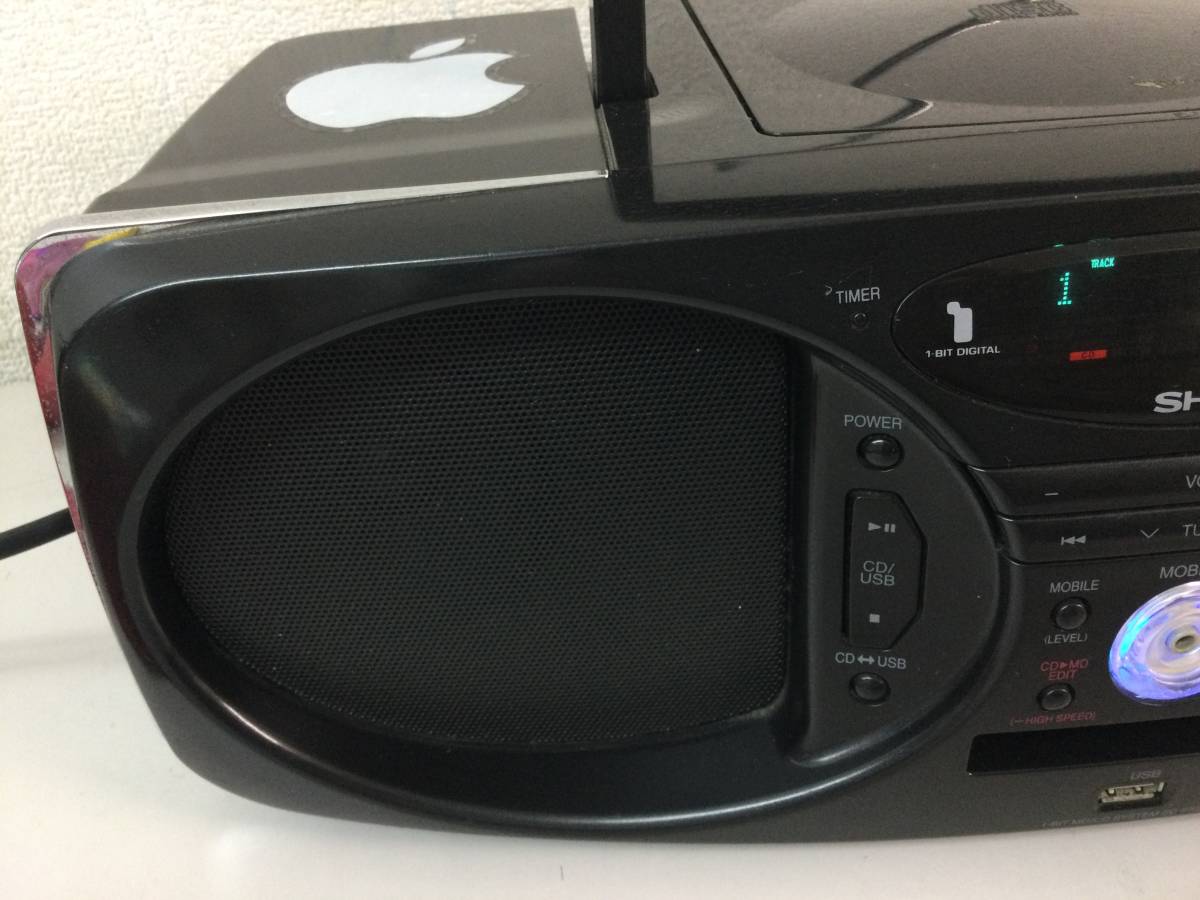

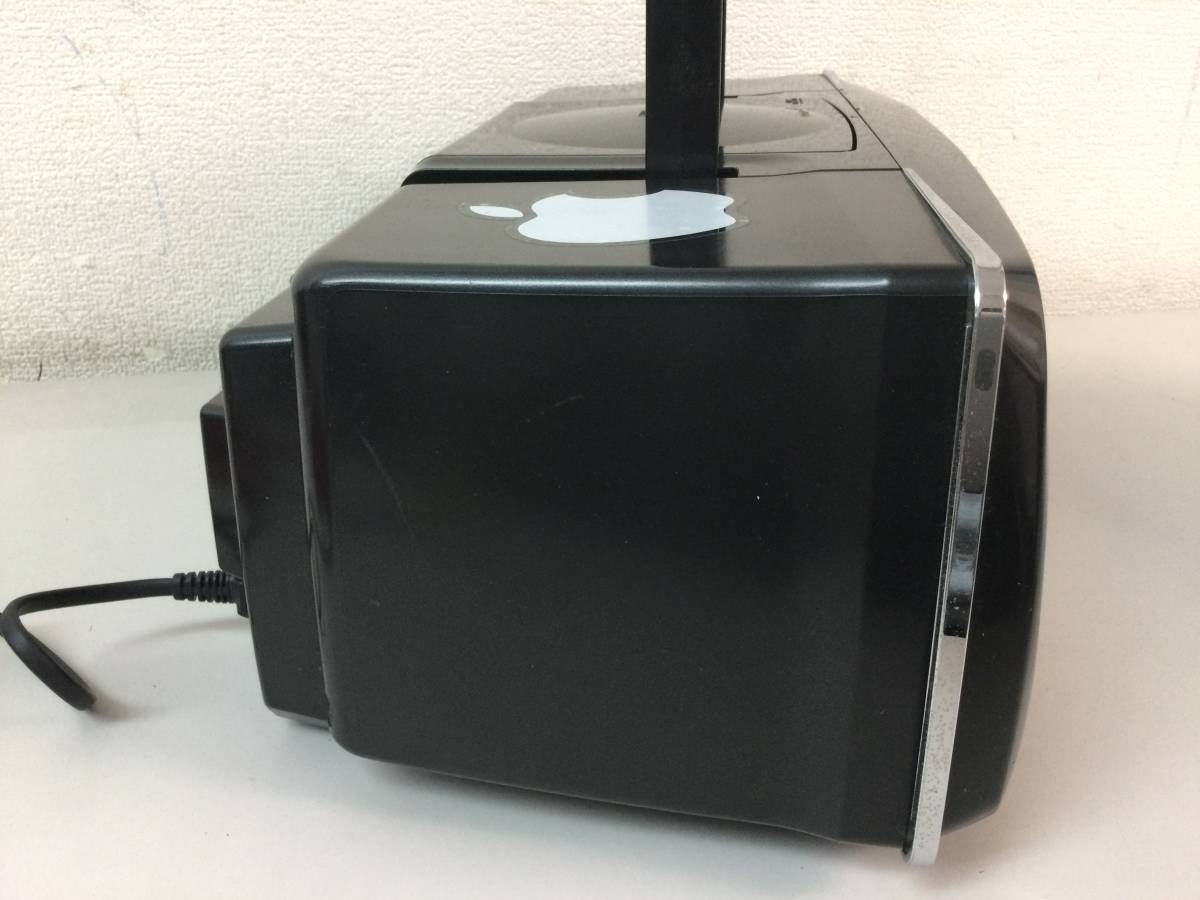

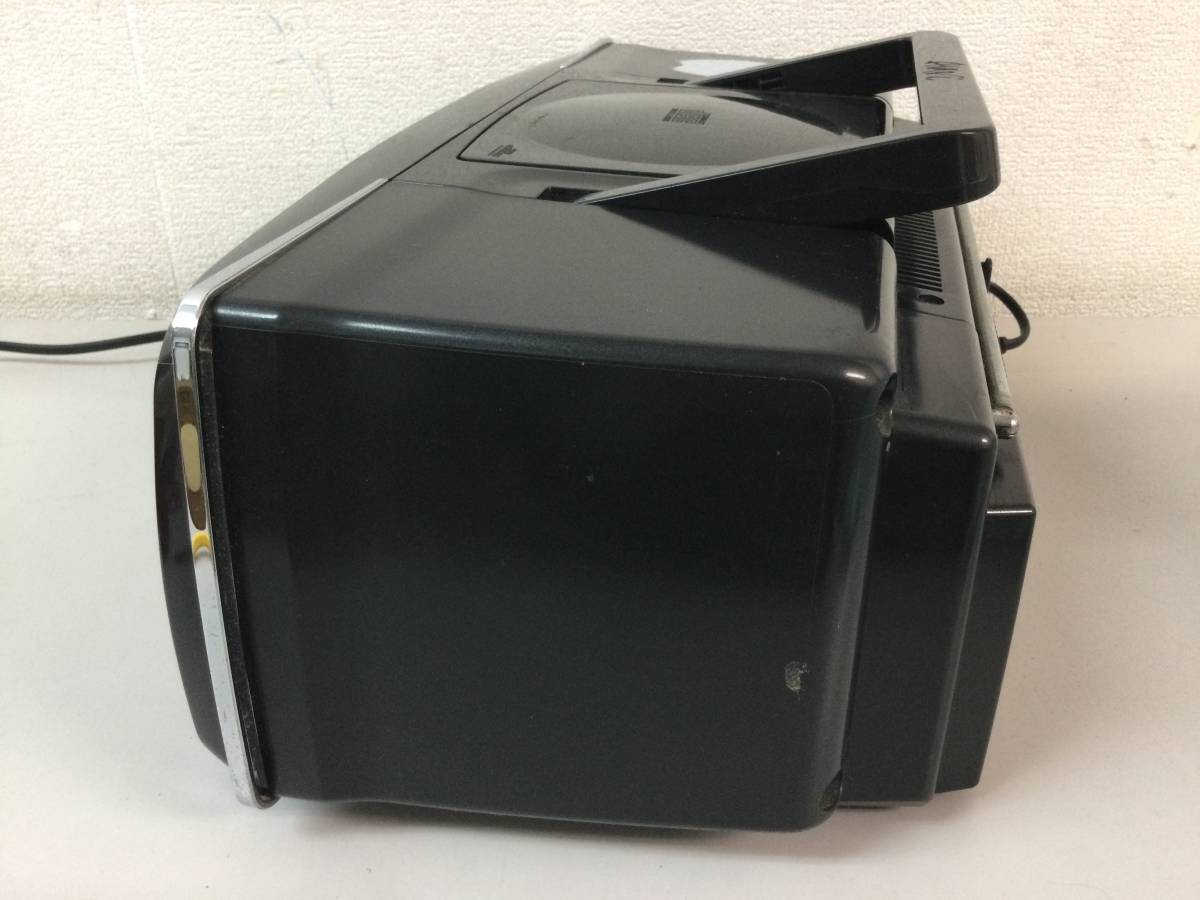

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Scms | Yes |
|---|---|
| Export | No |
| Manual | User manual |
| Region | Japan |
