Sharp IM-DR420H

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2025-04-09

Manufacturer
Sharp
Model / source grouping
IM-DR420H
Device type
portable
MDLP modes
Yes
NetMD interface
Yes
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sharp IM-DR420H”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name IM-DR420H
Manufacturer Sharp
Released 2003/06
Device type portable
Recorder Recorder
MDLP Yes
NetMD Yes
Hi-MD No
Radio No
Dimensions 83 x 28 x 76mm
Weight 143g w/ battery
ATRAC ver Sharp 8
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 1.5, 3
Power cable Center positive
Price (launch) Not recorded
Not recorded
-

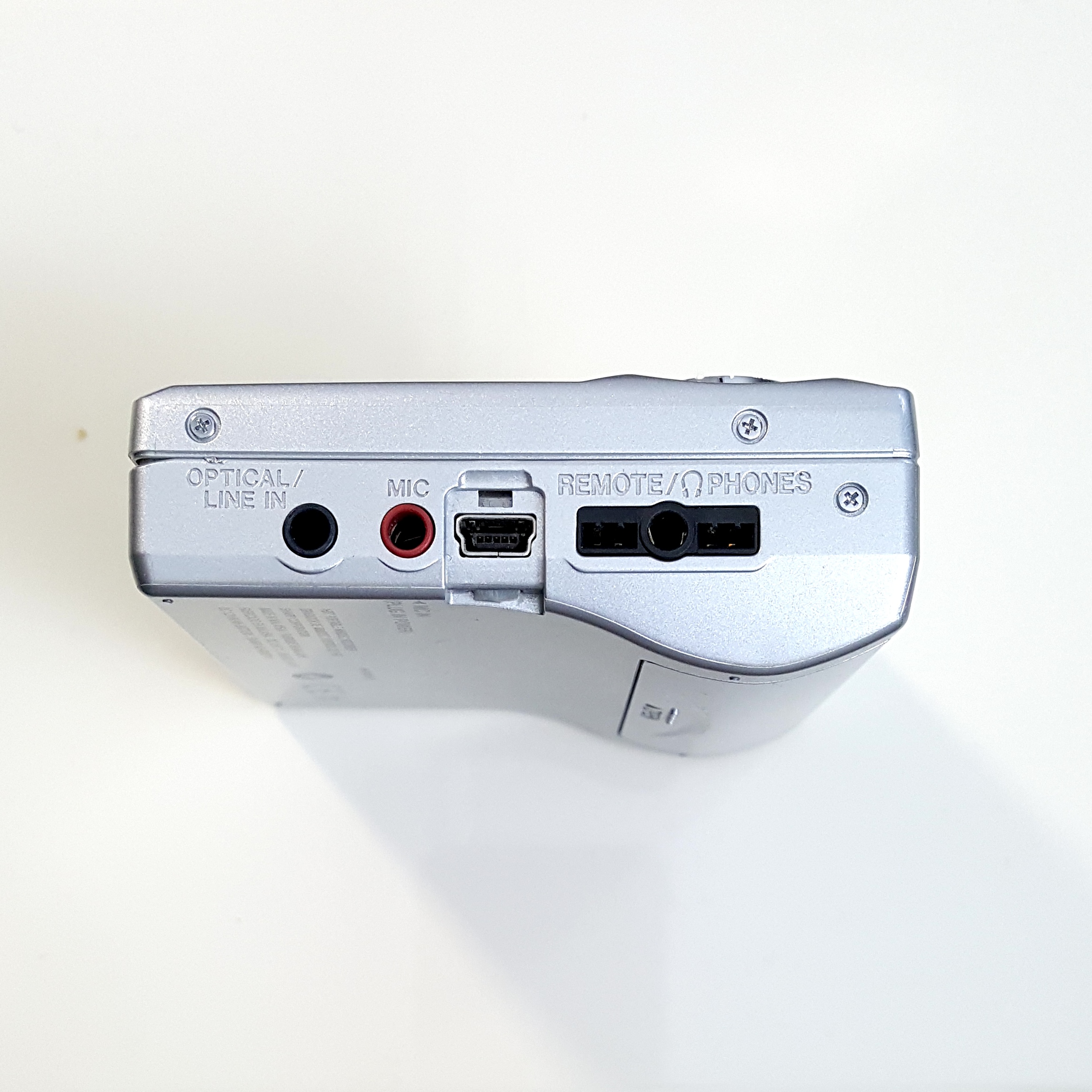

Inputs 3.5mm line in (analog-only), 3.5mm line in (optical multi), 3.5mm microphone
Outputs 3.5mm headphone
Control Remote (Sharp), USB Mini-B

Sharp IM-DR420H

Content adapted from: Sharp Product Page Sharp Product Page (MiniDisc Wiki mirror)

Manuals

Sharp IM-DR420 Operation Manual ENG

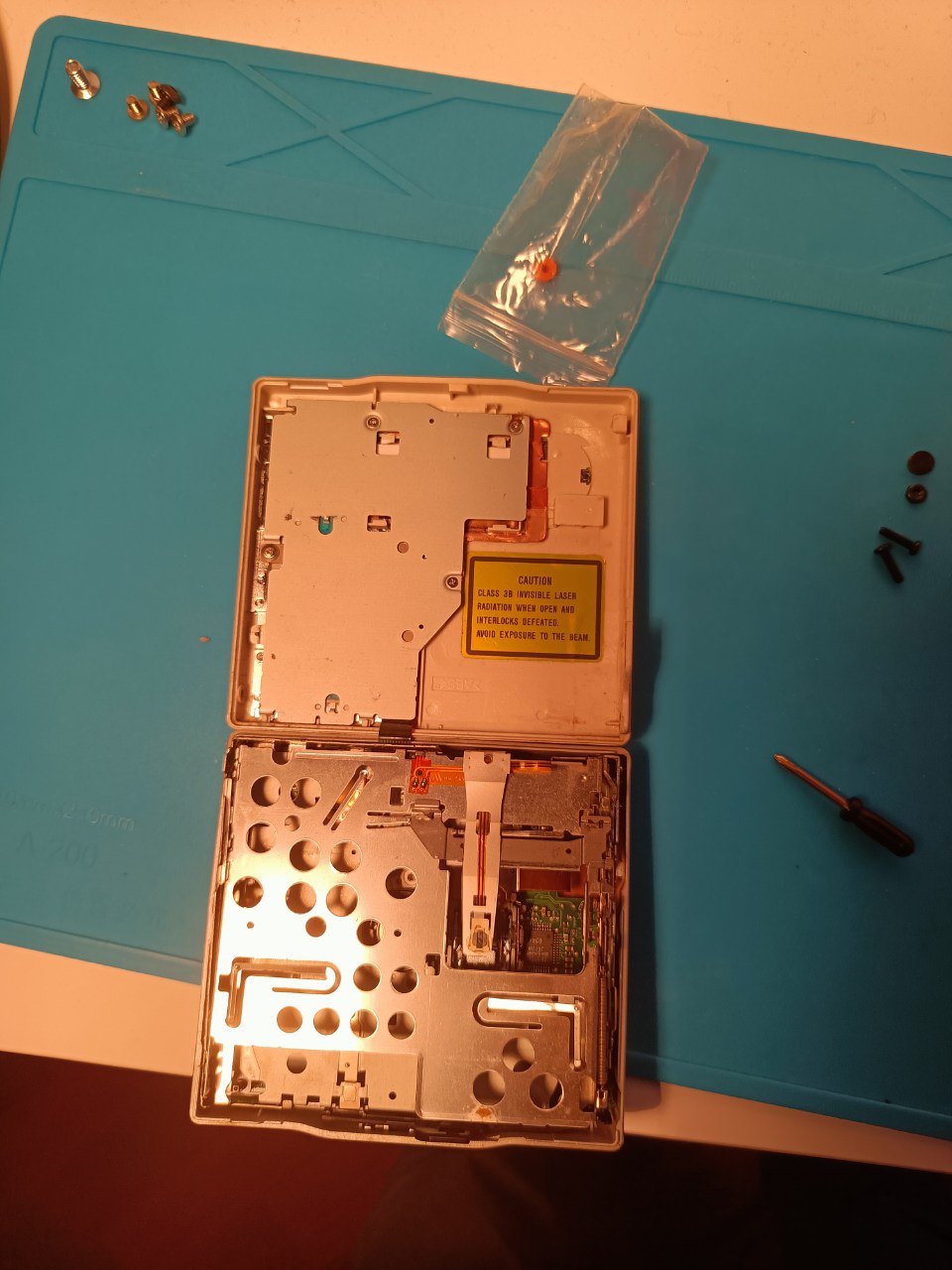

Repair

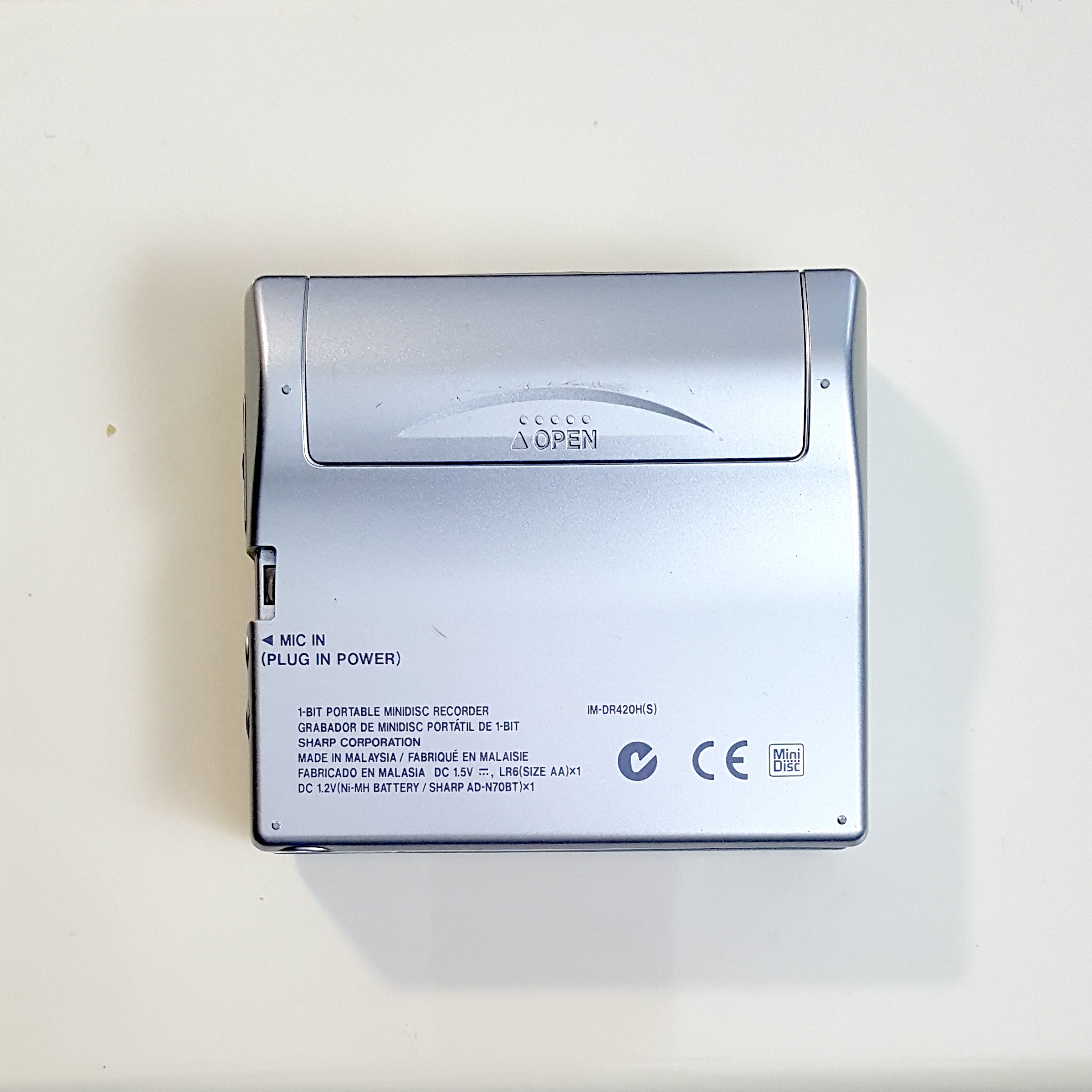

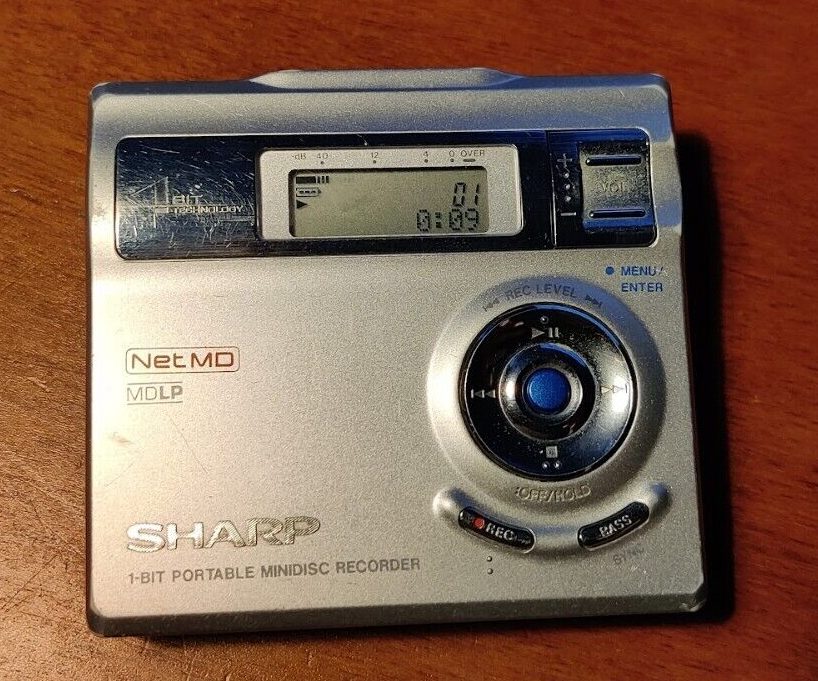

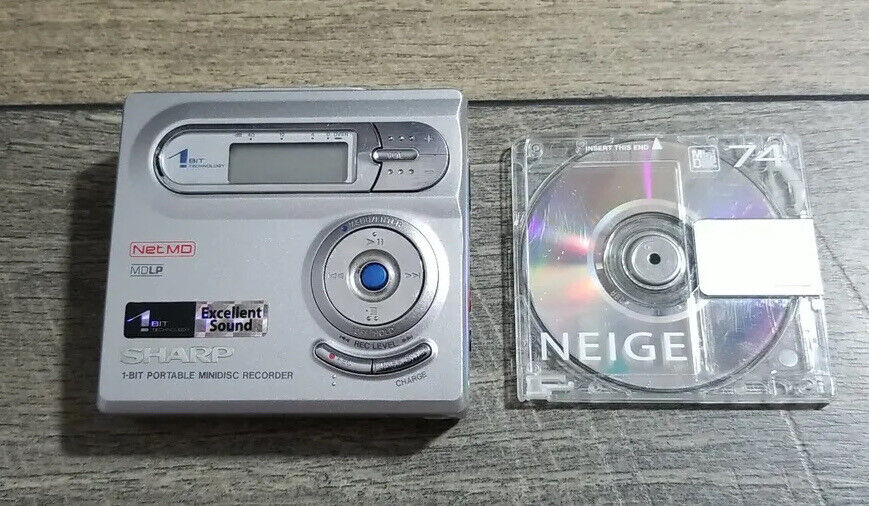

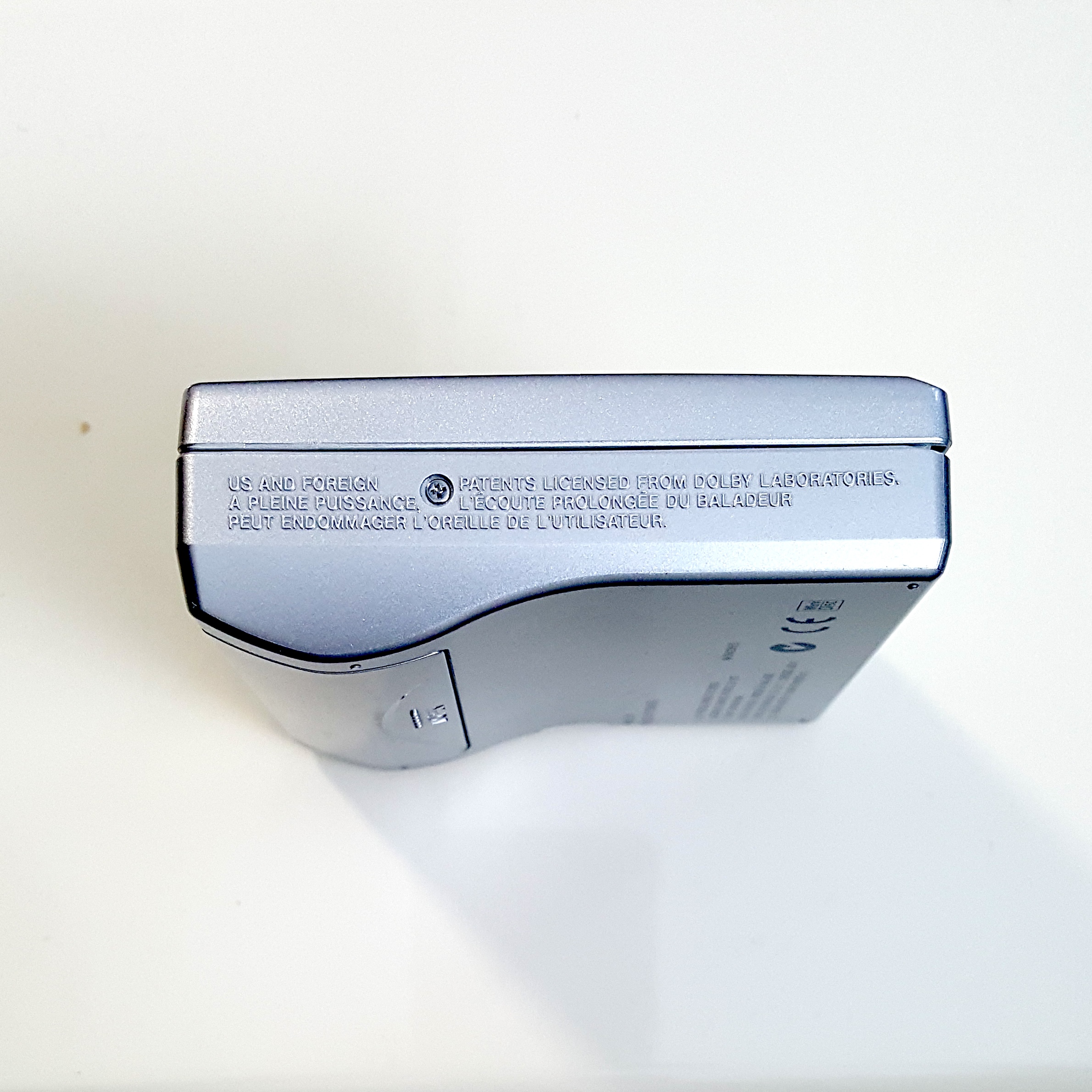

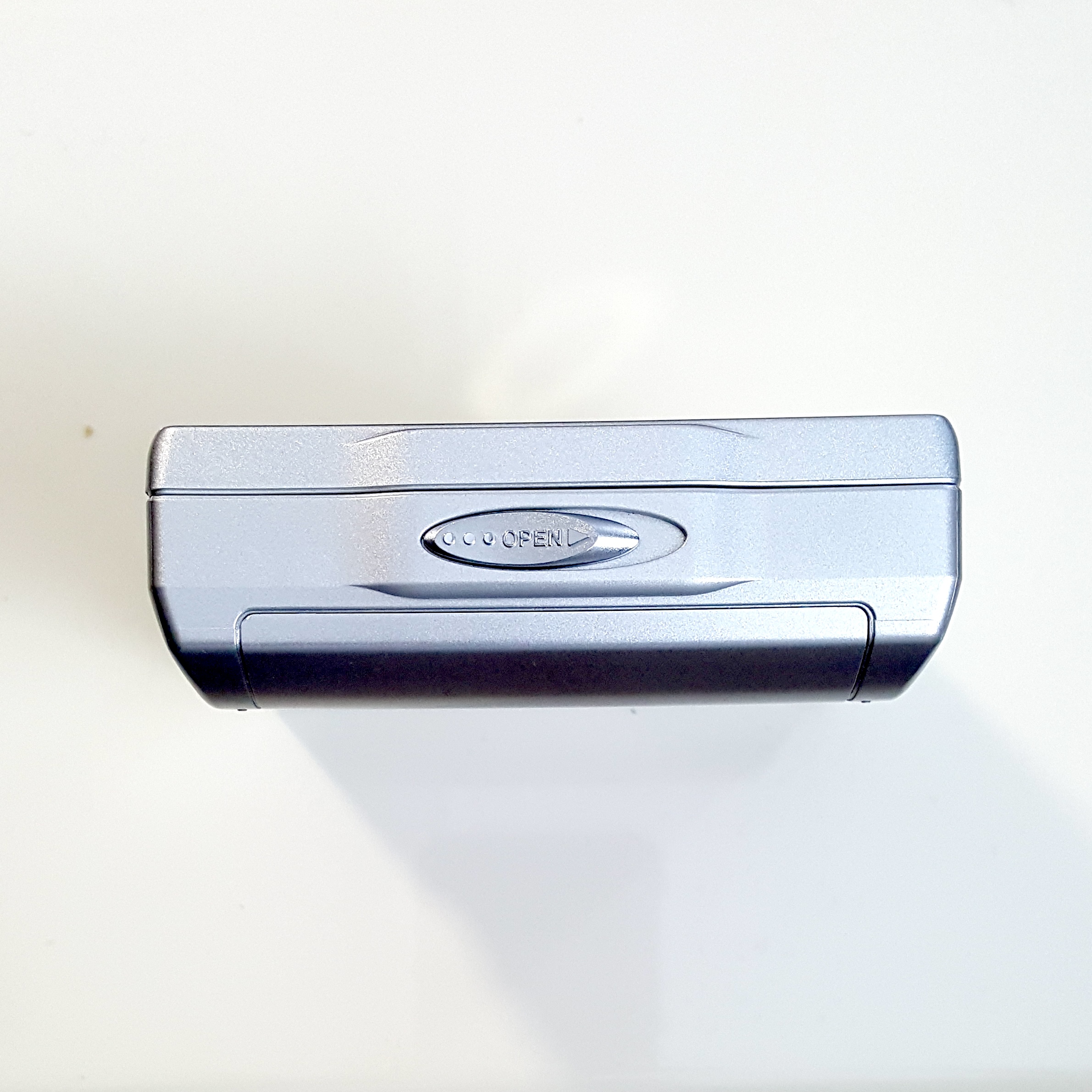

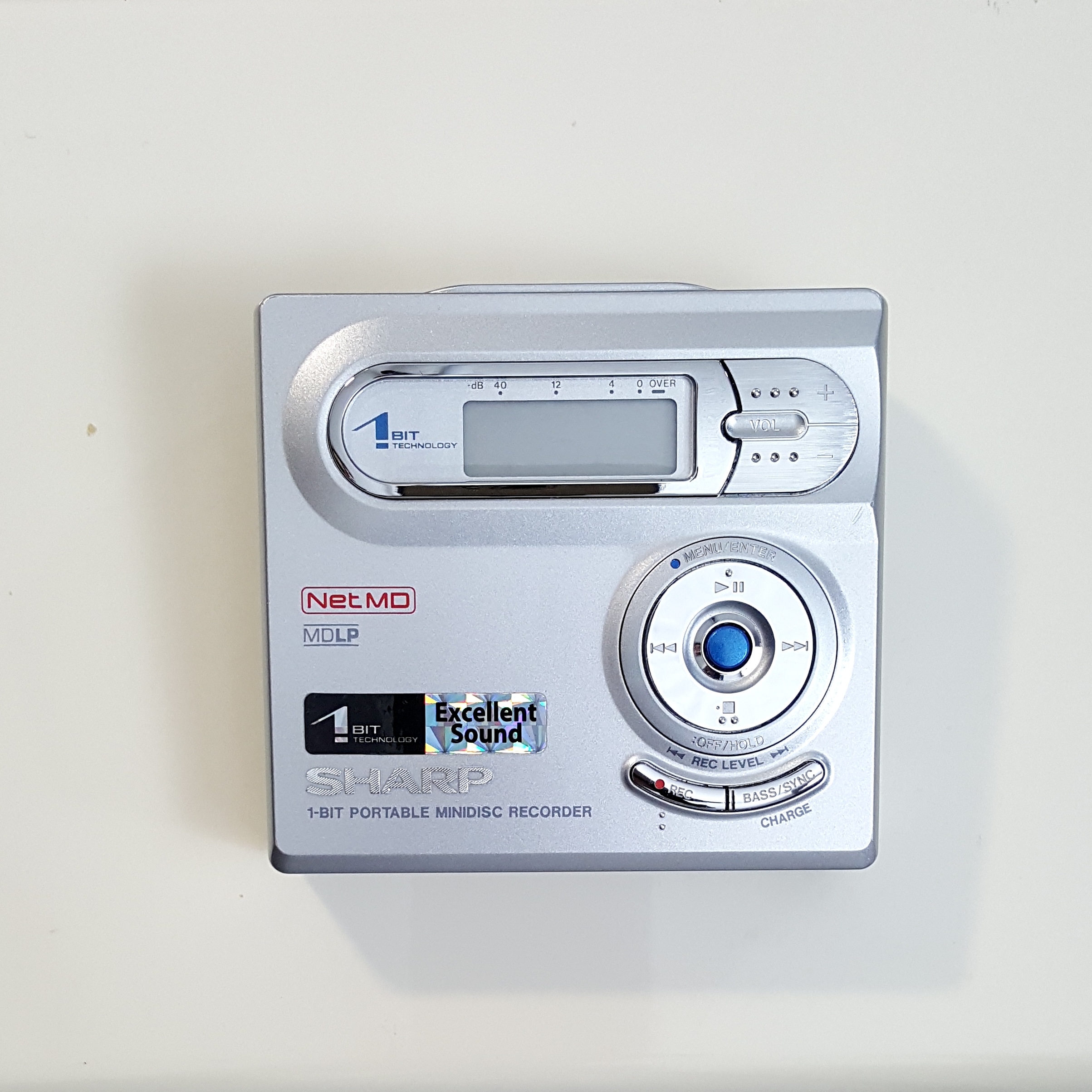

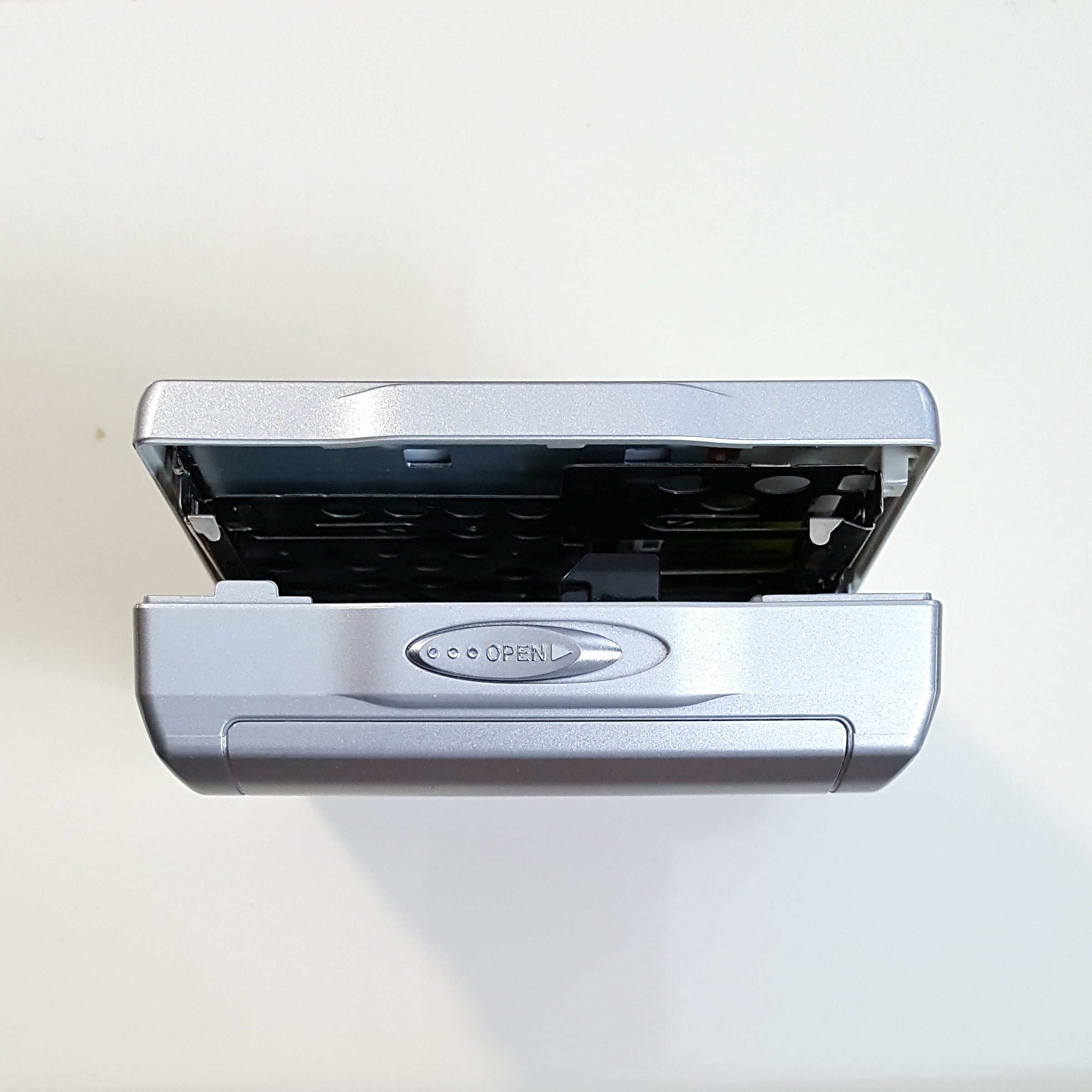

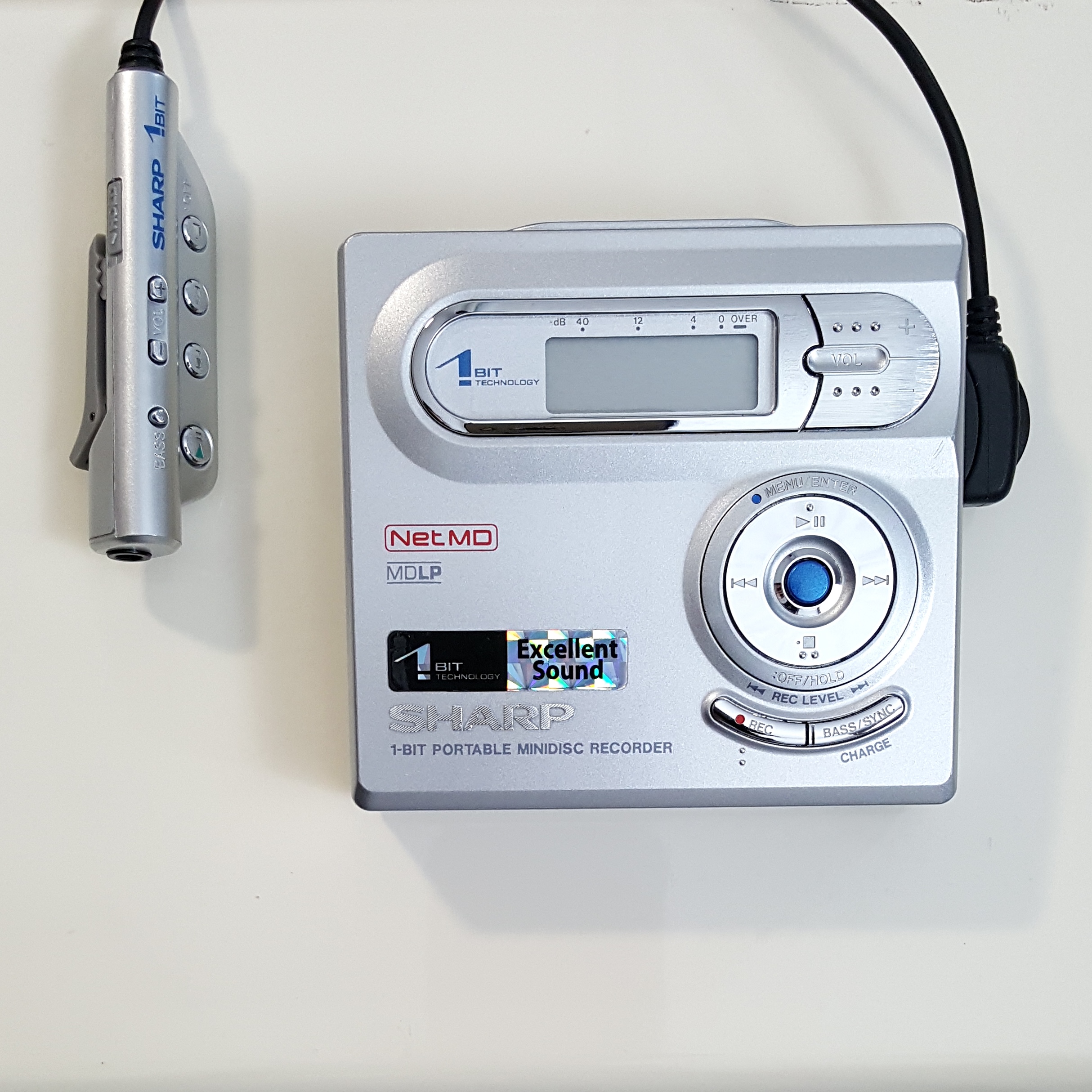

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdSuspected supported
Atrac Iclr37820
ManualUser manual
