Sharp MD-DR77

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-08-29

Manufacturer
Sharp
Model / source grouping
MD-DR77
Device type
portable
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sharp MD-DR77”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MD-DR77
Manufacturer Sharp
Released 2004/04
Device type portable
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Not recorded
Dimensions 78.9w x 18.0h x 71.9d mm
Weight 101g (131g w/batt)
ATRAC ver Sharp 8
Battery Not recorded "Gumstick"
Battery notes Not recorded
Sidecar (depr) 1xAA
Voltage 5
Power cable Center positive
Price (launch) Not recorded
¥30 000
-
Inputs 3.5mm line in (optical multi), 3.5mm microphone
Outputs 3.5mm line out (analog-only), 3.5mm headphone
Control Not recorded

Features:

  • One-bit digital amp w/4-pole headphone plug.
  • Backlit-LCD remote.
  • Recording-start button on remote (!)
  • Recording level control can be set automatically (for analog sources) or manually (for analog and digital sources).
  • Syncro-start recording from analog and digital sources.
  • Playback speed control.
  • "Favorite-track playback" remembers up to 10 favorite tracks on up to 9 disks.
  • Group mode support.
  • High/Low microphone input sensitivity selector.
  • Charge-stand.
  • Character-stamp
  • Timer alarm (avoid missing your train stop).
  • Available in silver, blue and black.

Included Accessories: LCD remote, Headphones, NiMH cell (with case), AC adapter, external AA case, charging stand, carrying pouch

Specs: Headphone amp: 8mW+8mW (@32k ohm), Line: 125mV (@10k ohm, -12dB), Freq resp. 20-20kHz +/- 3dB

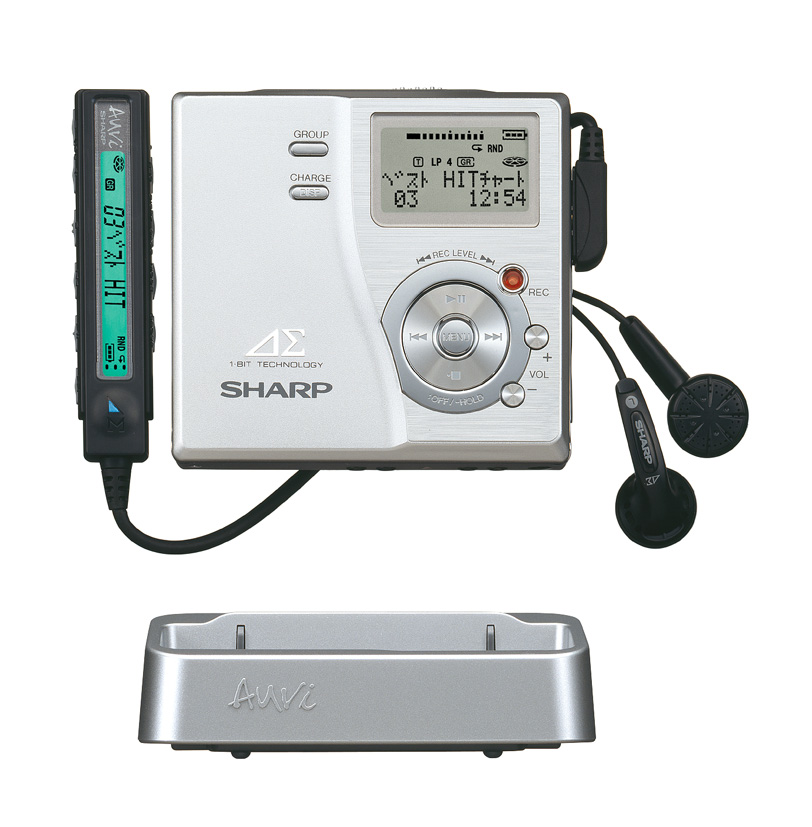

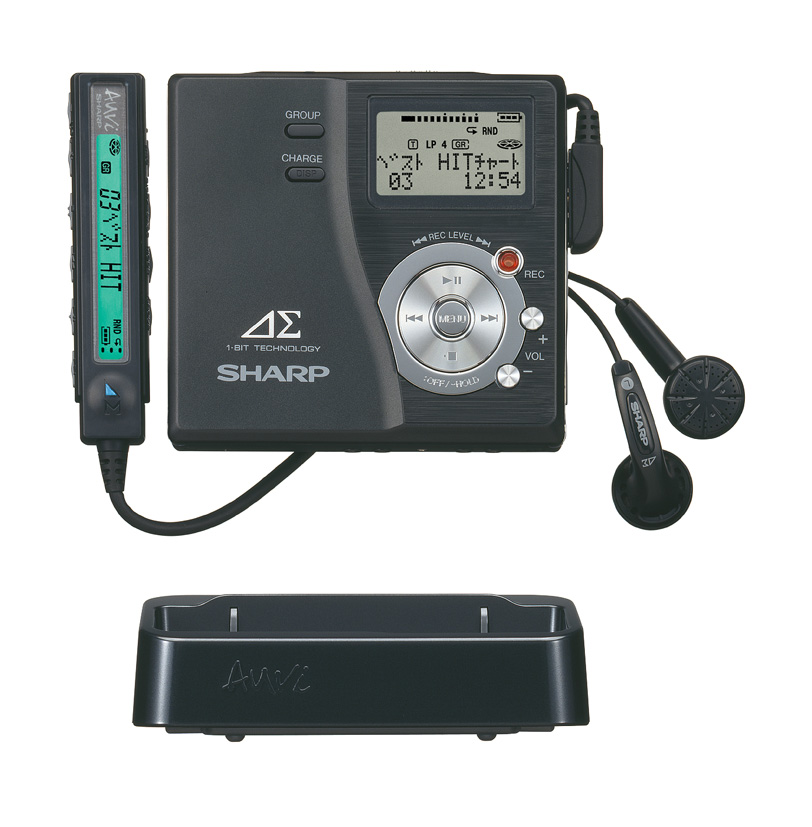

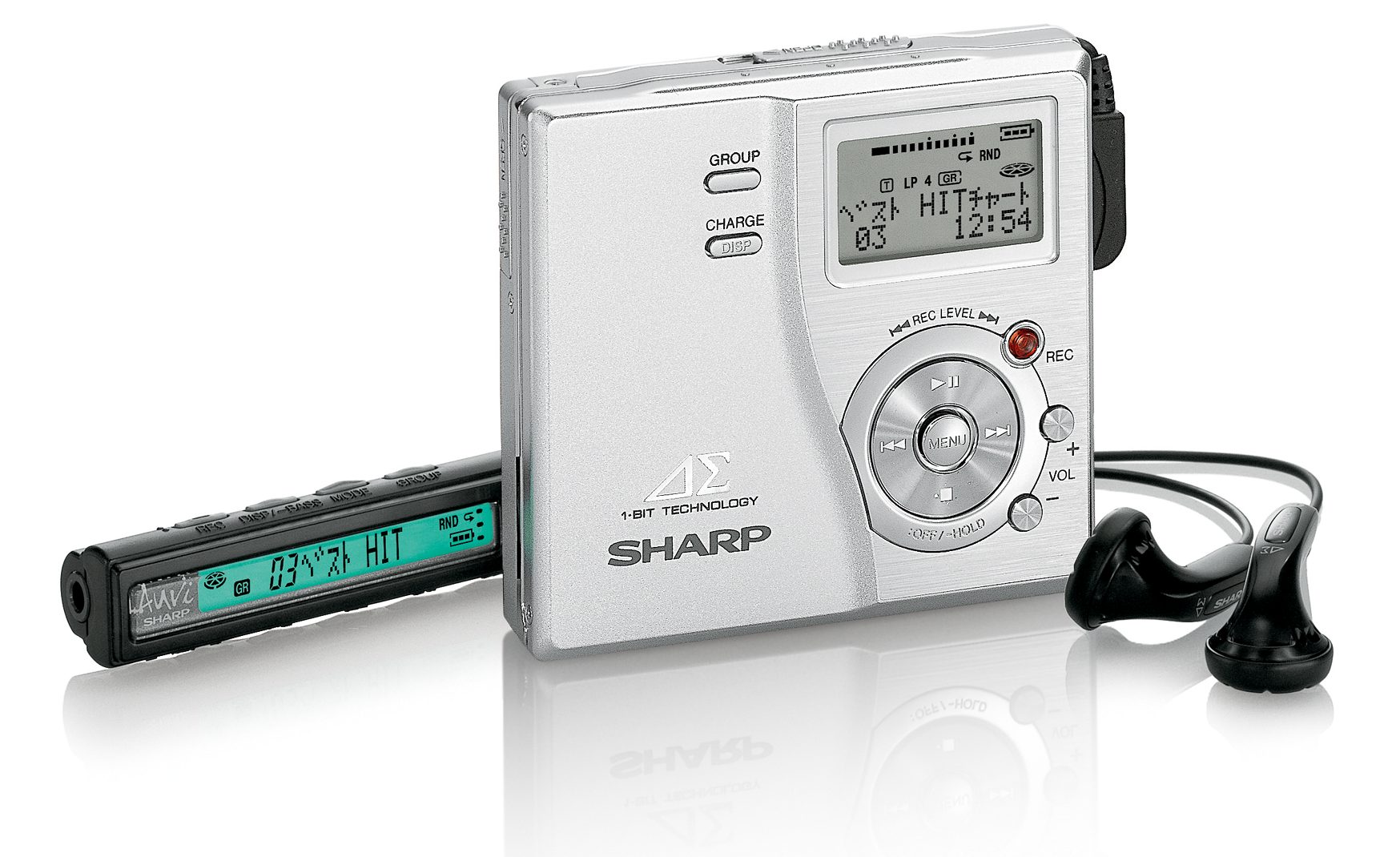

Content adapted from: Minidisc.org Page Press Images

Manuals

Sharp MD-DR77 User Manual JP

Repair

(repair links go here)

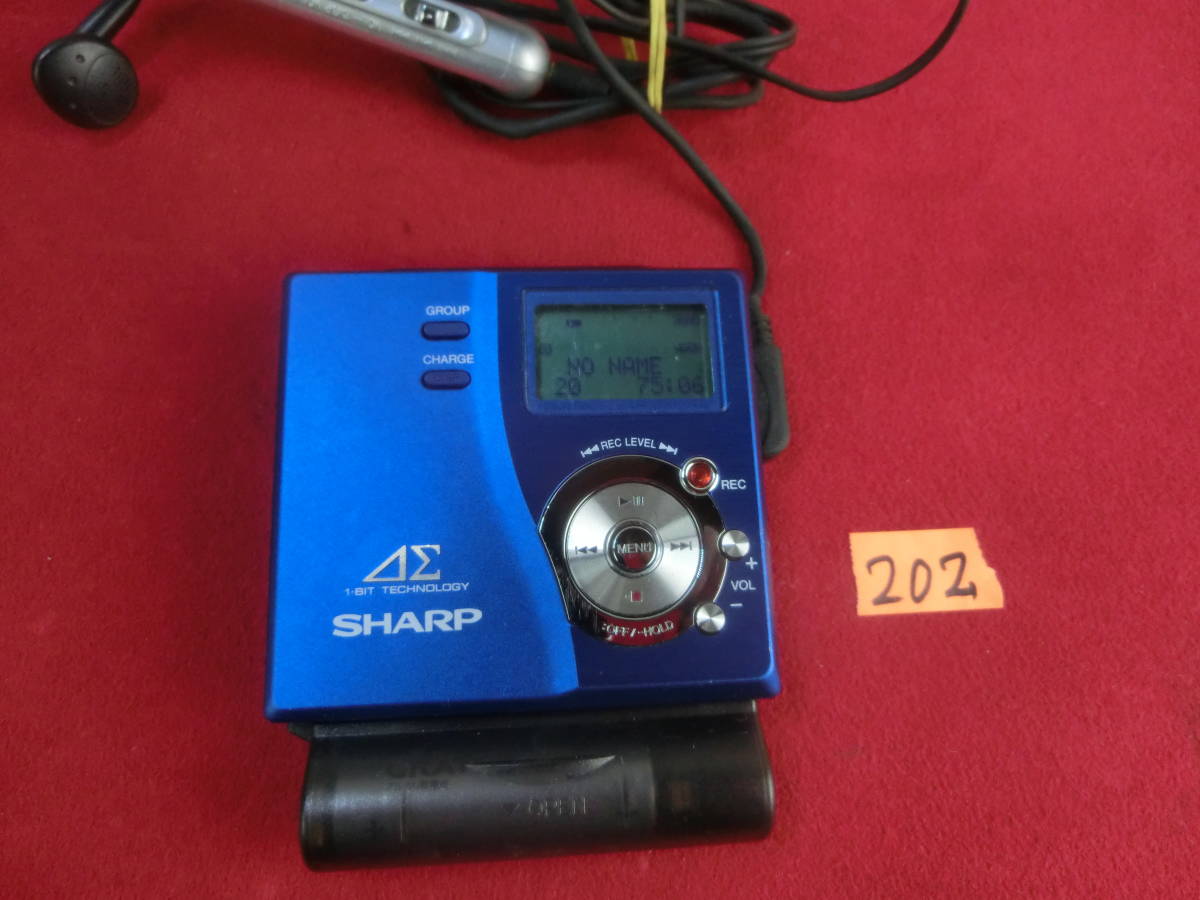

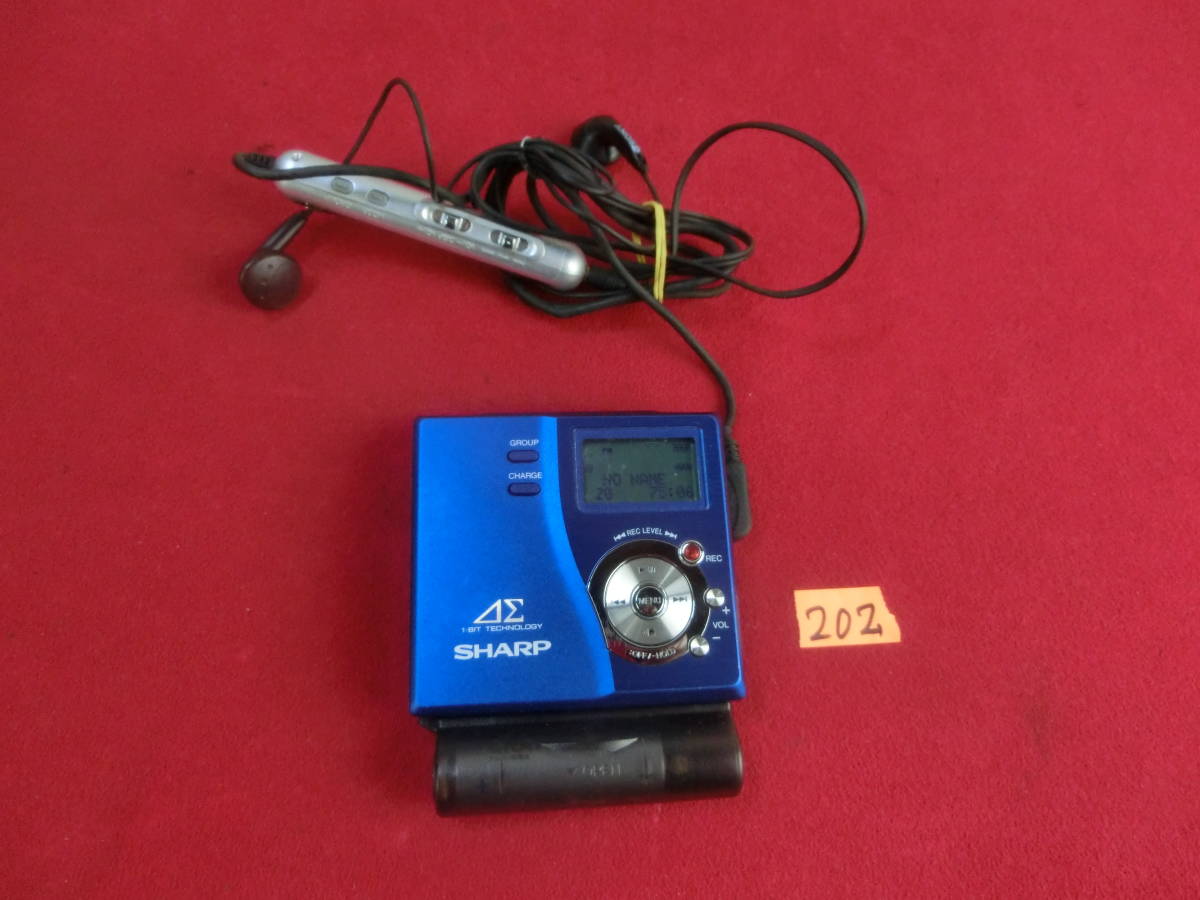

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Remote Page
Atrac Iclr37820
ManualUser manual
RegionJapan
