| Name | MD-MT66 / MD-MT866 |
|---|---|
| Manufacturer | Sharp |
| Released | 2000/09 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 78.9 x 72.0 x 19.5mm |
| Weight | 137g (w/ batt) |
| ATRAC ver | Not recorded |
| Battery | Not recorded AD-N55BT |
| Battery notes | Not recorded |

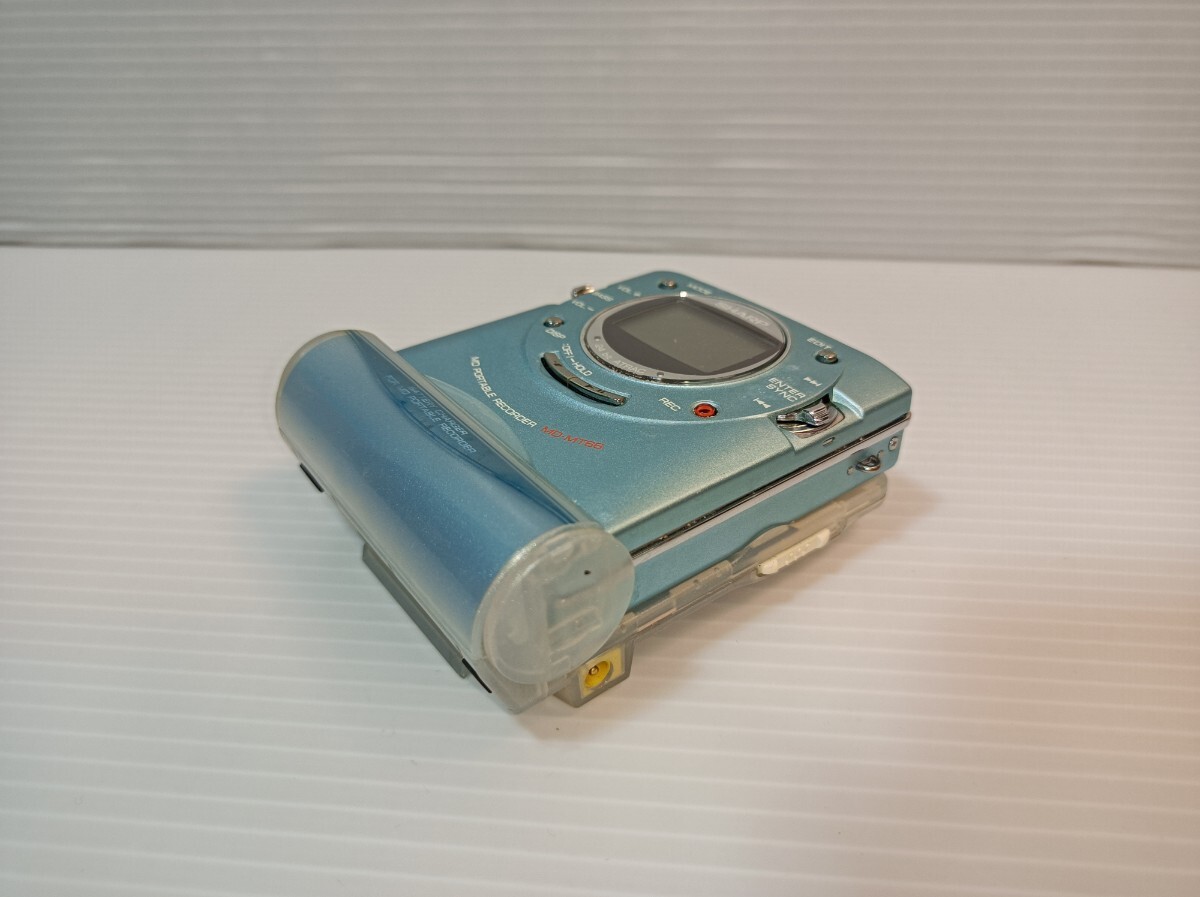

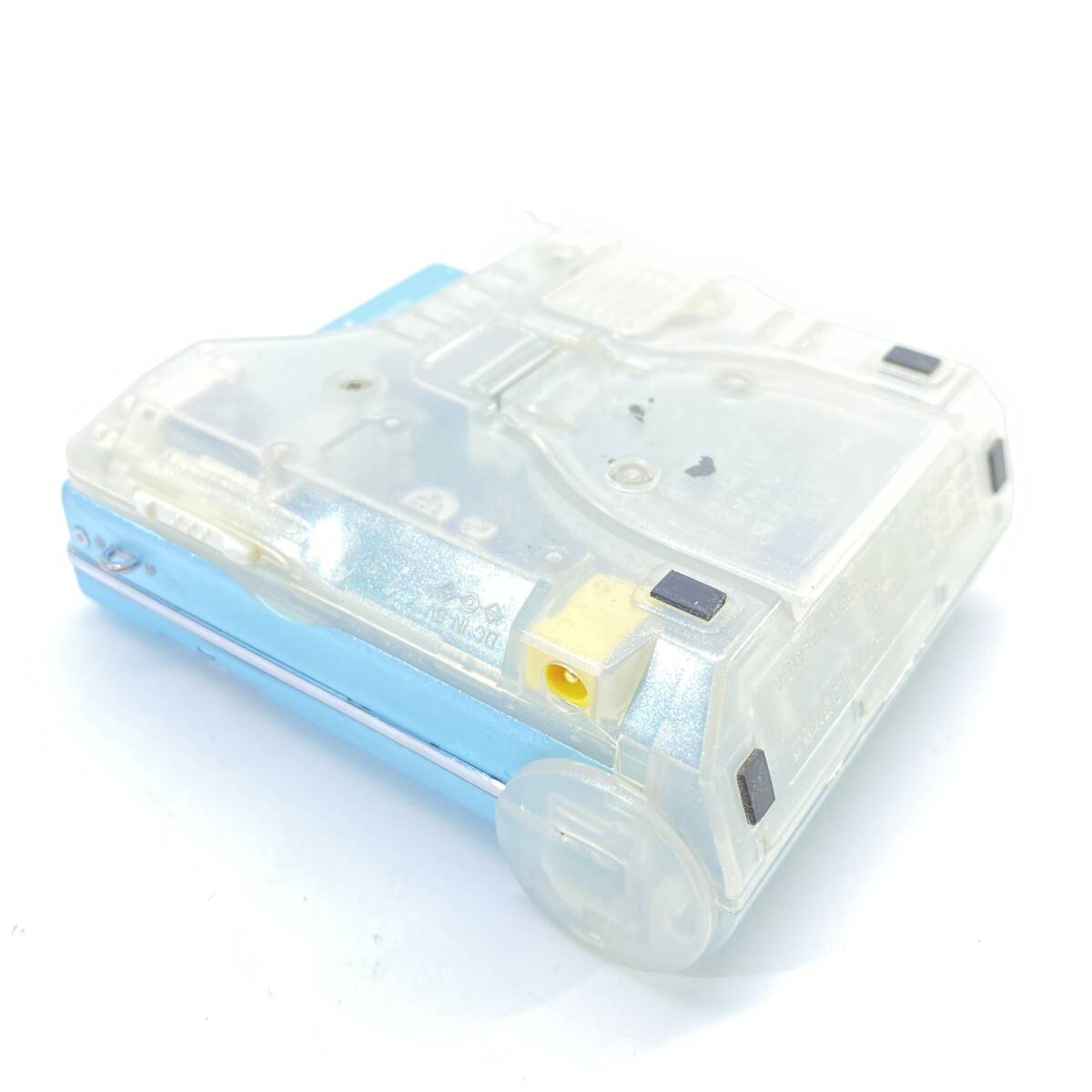

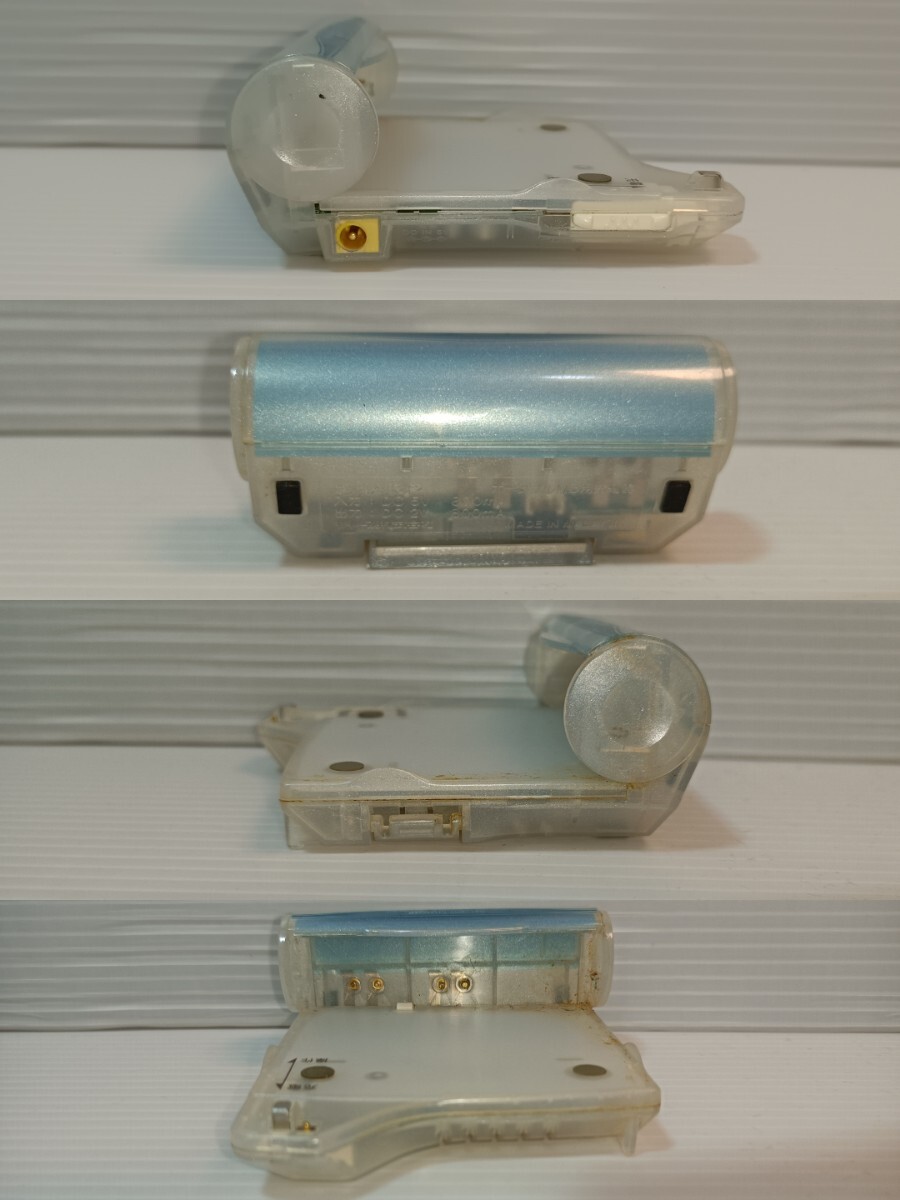

| Sidecar (depr) | 1xAA |
| Voltage | 1.2, 1.5, 5 |
| Power cable | Not recorded |
| Price (launch) | $338 |
| ¥41 000 | |
| - | |

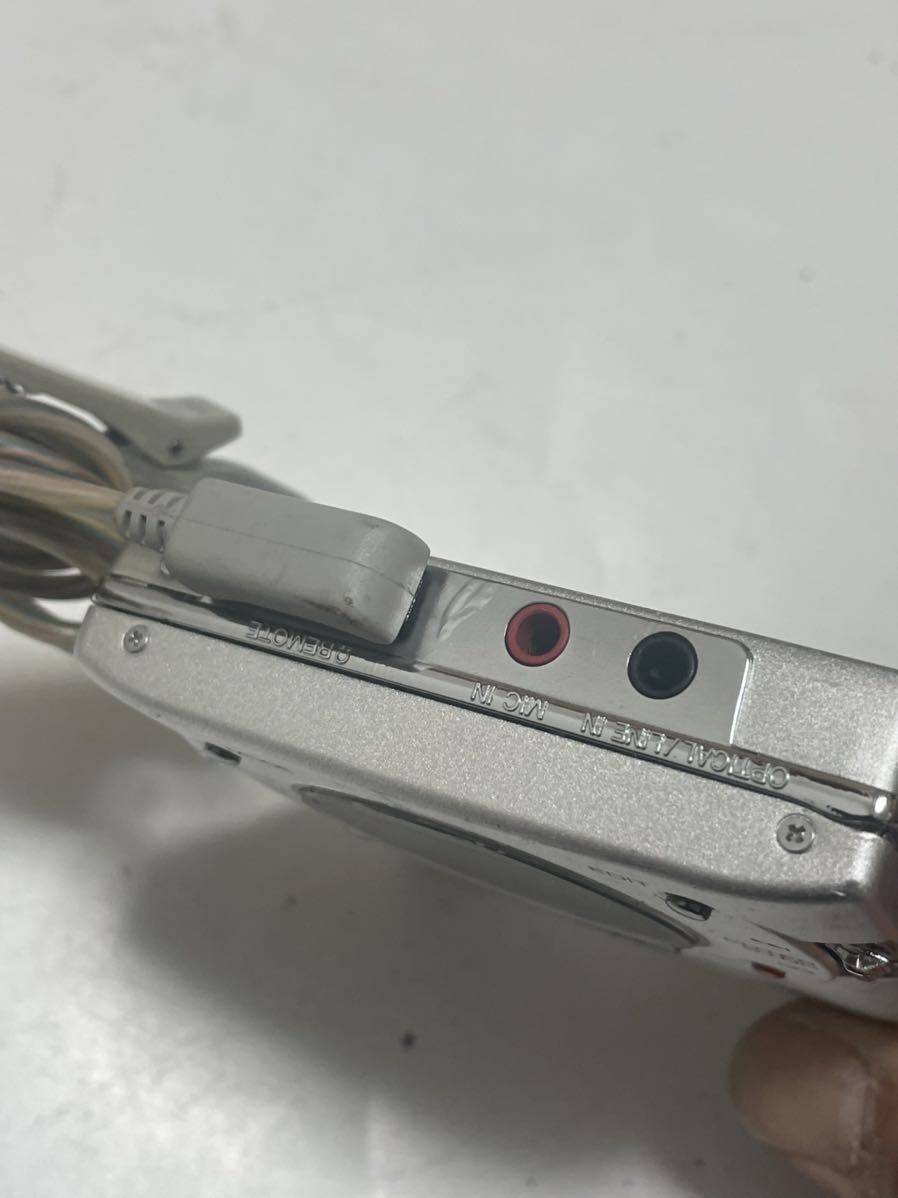

| Inputs | 3.5mm line in (optical multi), 3.5mm microphone |
| Outputs | 3.5mm headphone |
| Control | Not recorded |
Variants: MD-MT866 appears to be a Korean variant, with support for Korean characters.

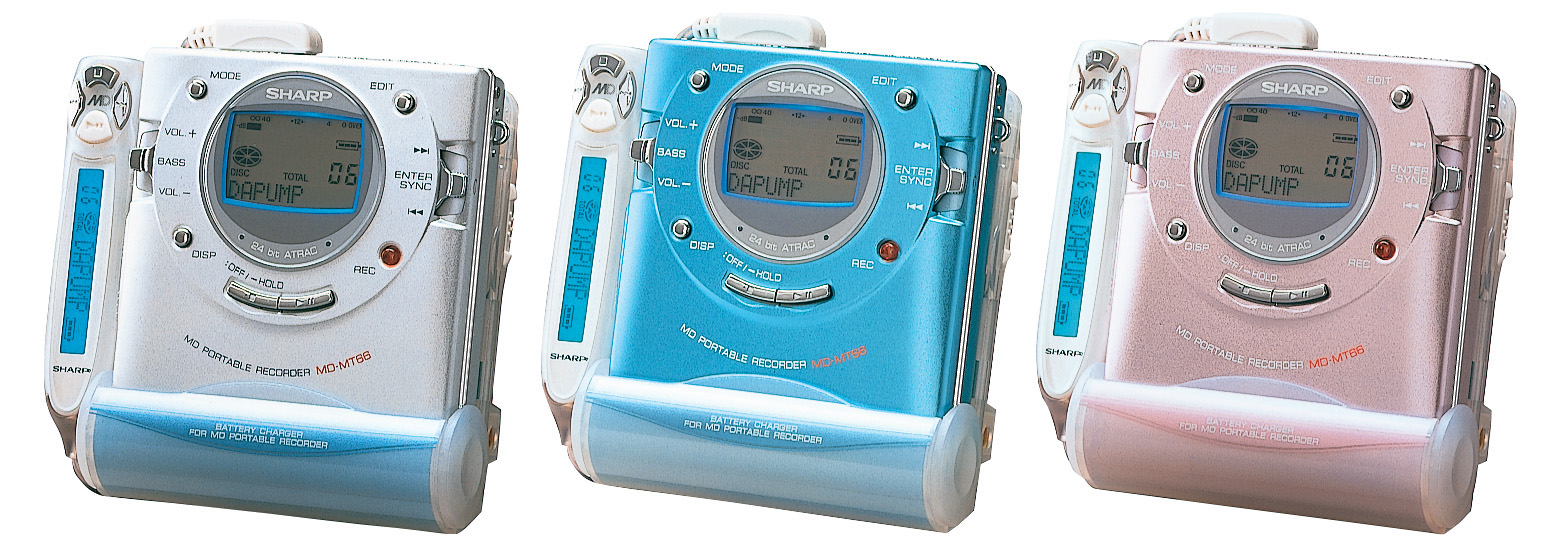

MD-MT66-S (Silver), MD-MT66-A (Blue), MD-MT66-P (Pink)
"LCD edge light" "light sign" function that illuminates high-brightness LED when charging or operating

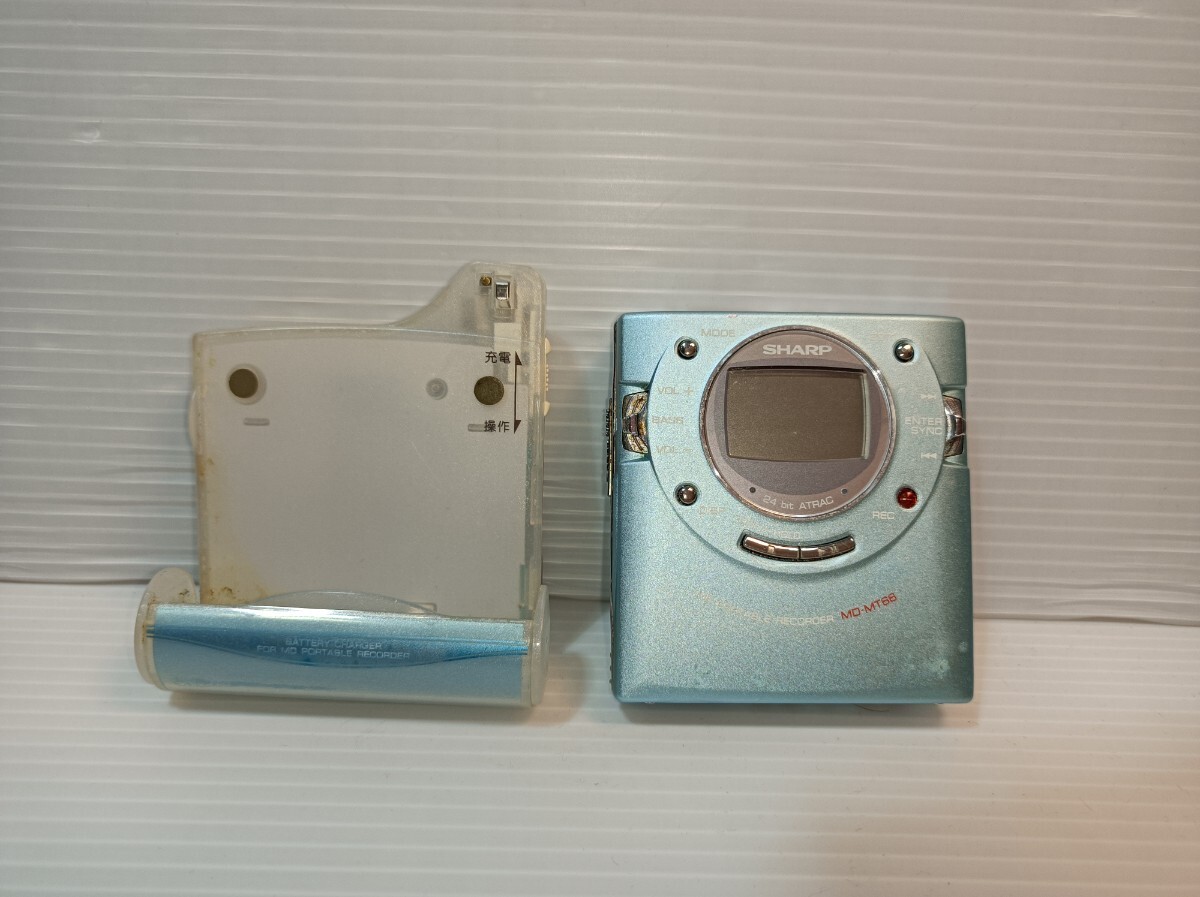

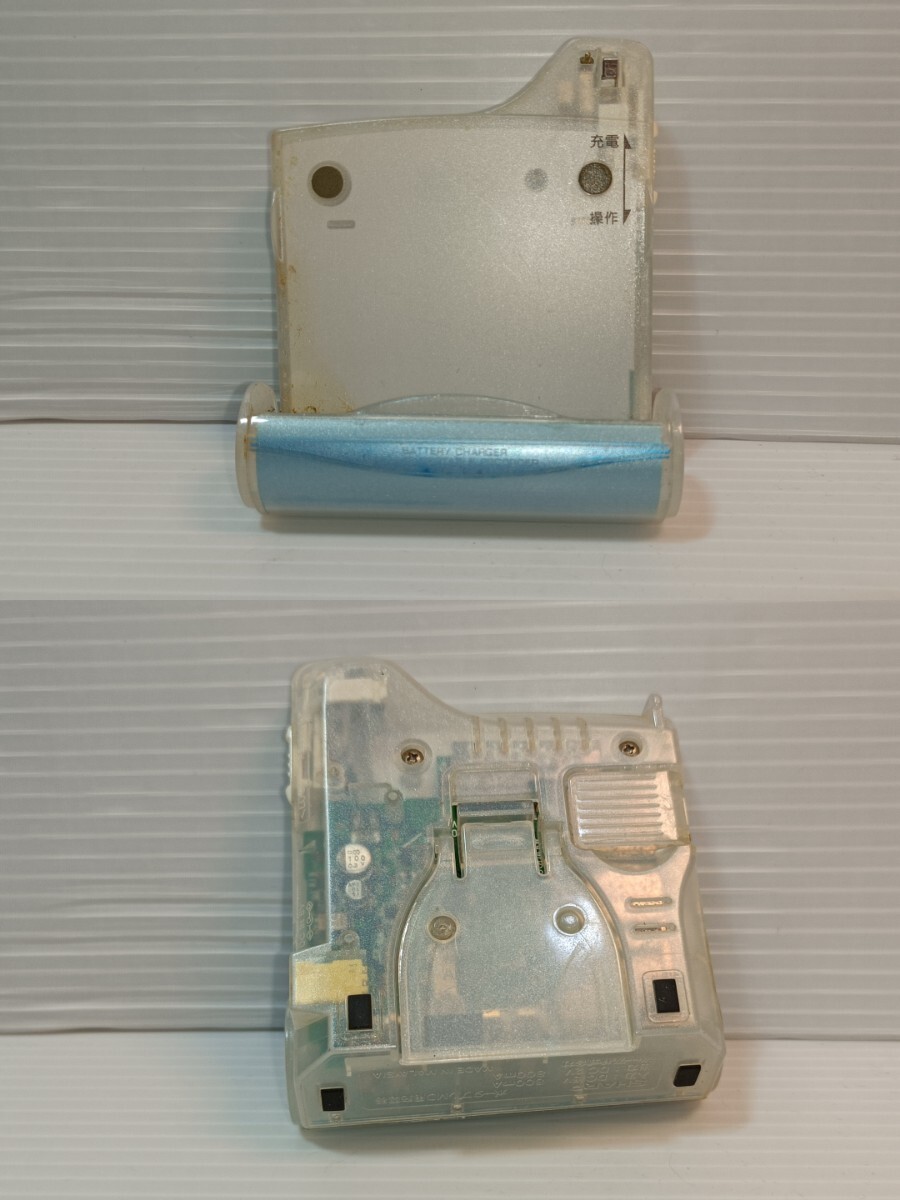

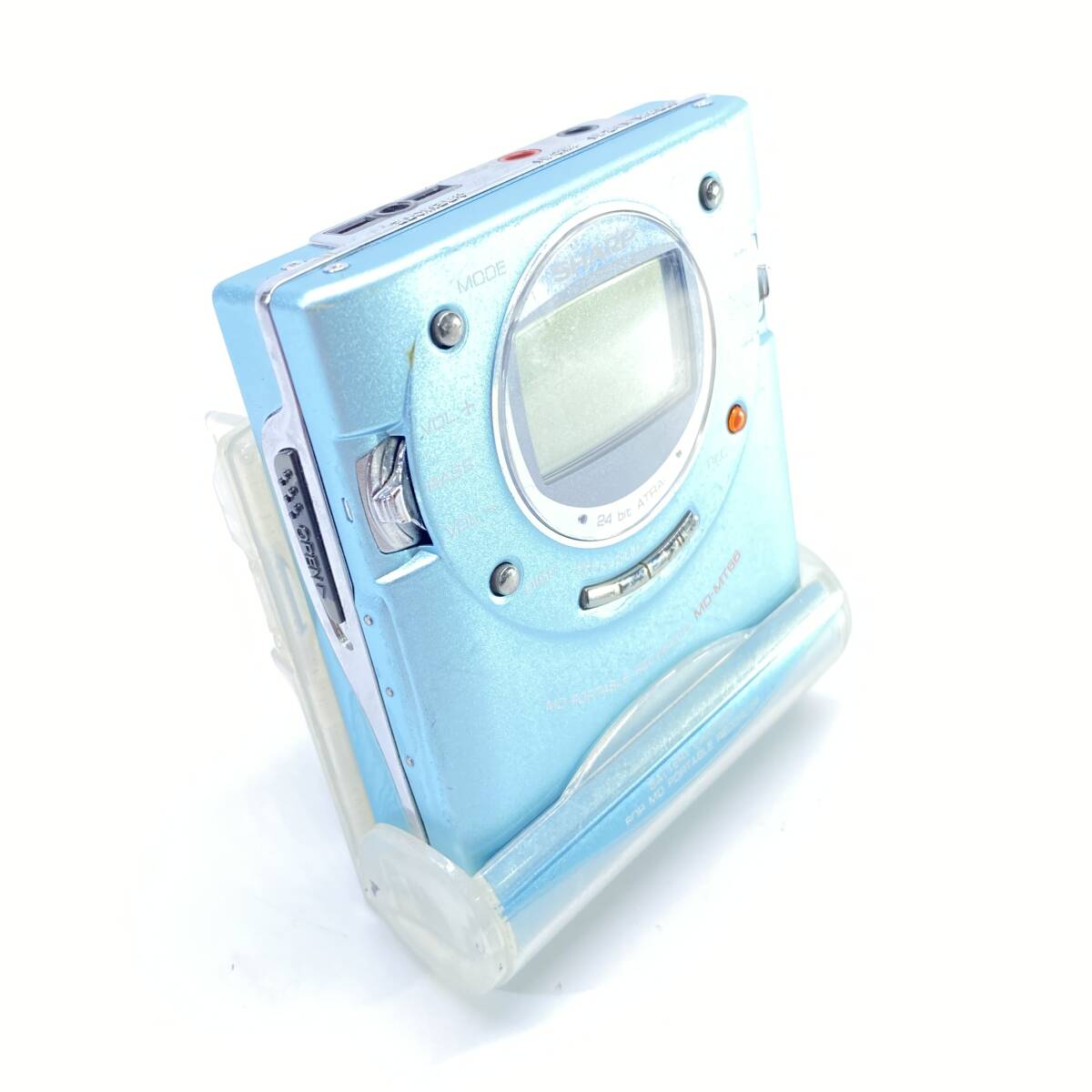

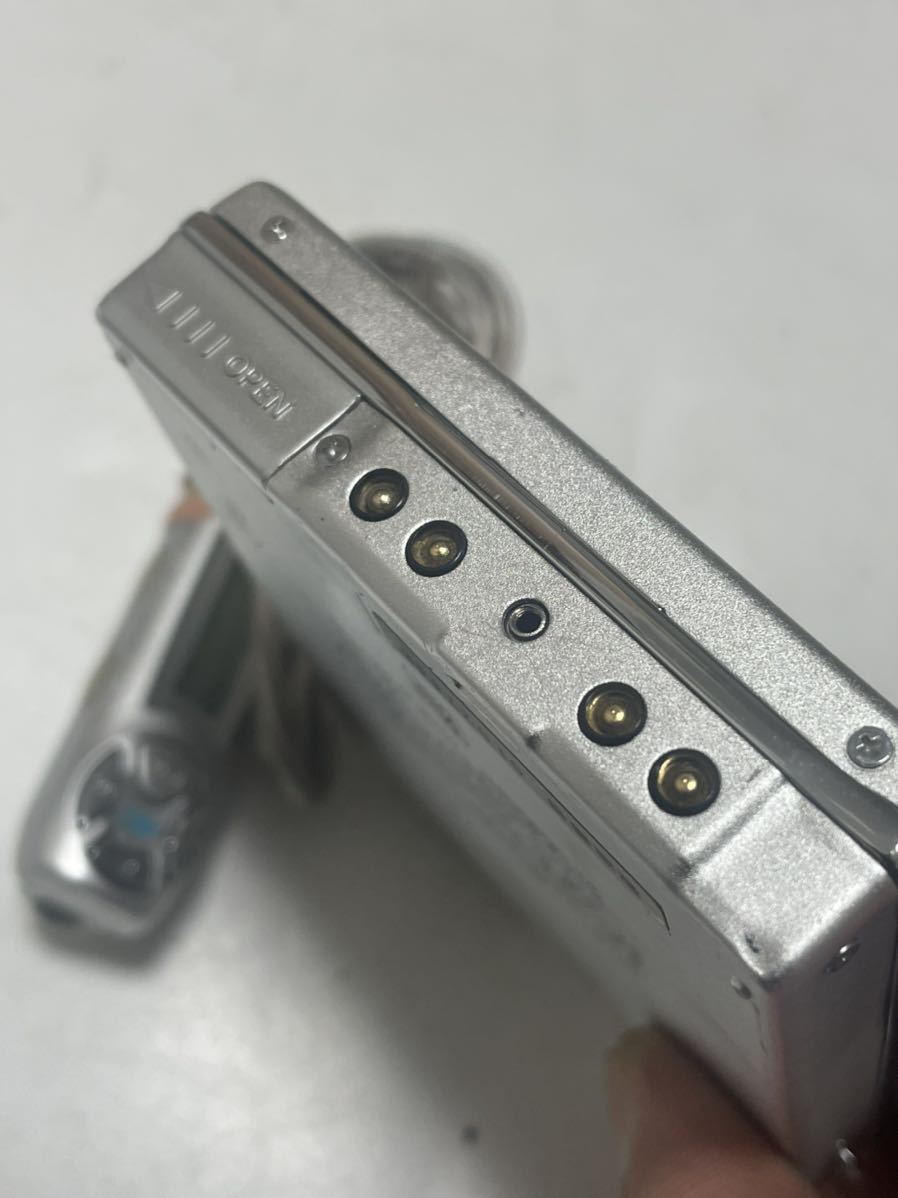

Comes with a charging stand that can be easily charged just by placing the main unit, just like a mobile phone. The refresh (discharge) circuit built into the main unit and charging stand detects the accumulation of the "memory effect" generated by the nickel-metal hydride rechargeable battery and automatically refreshes (discharges). You can recharge with confidence while the battery capacity remains.

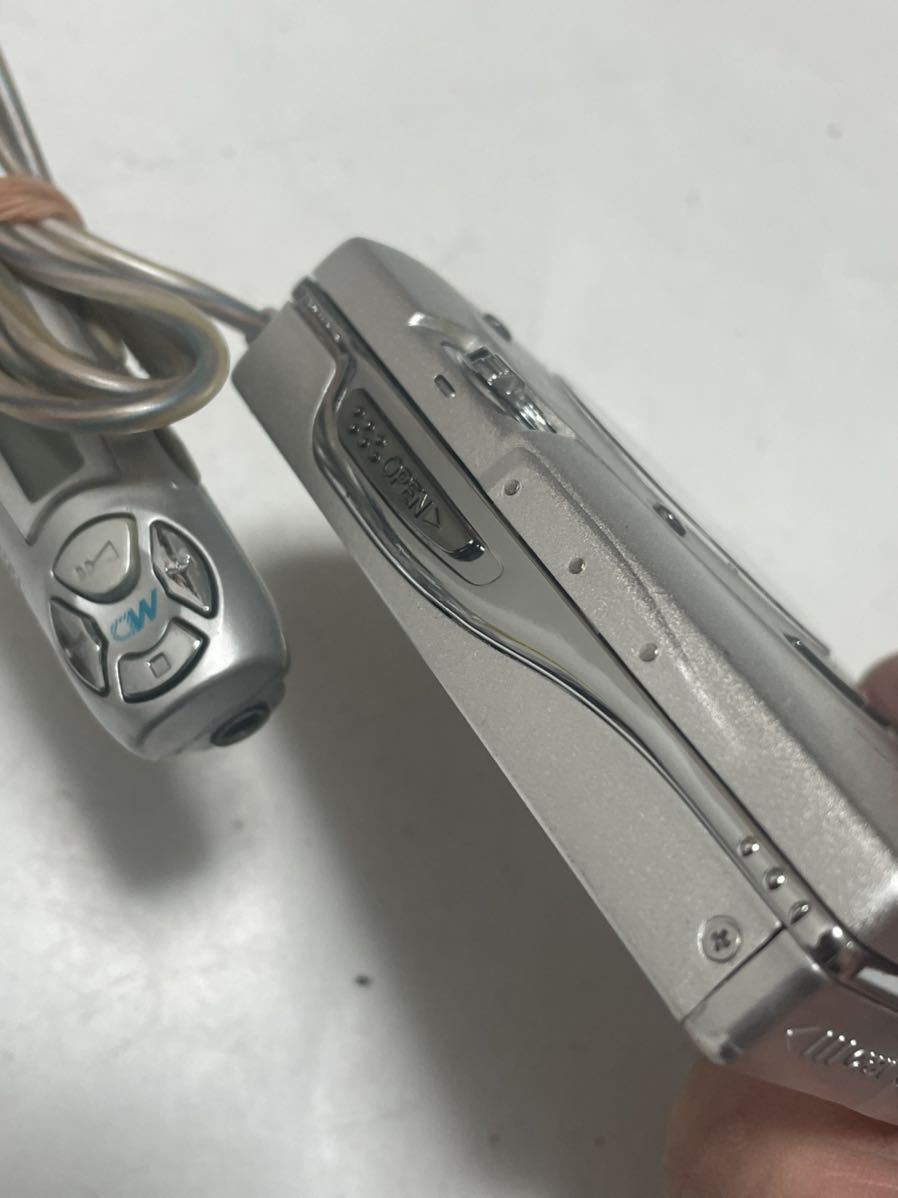

"W Shuttle Key" for easy editing
Uses a new ultra-thin and high-performance pickup equipped with a new hologram laser. ATRAC's LSI, which can be said to be the heart of MD, adopts a newly developed 7th generation LSI of low power consumption type with a 0.25 μm process product using the latest technology. In addition to reducing system power consumption by rotating the disc at high speed, the pickup and mechanical power saving design have been achieved to achieve long-time recording and long-time playback. ・ By using a nickel-metal hydride rechargeable battery and one AA battery together, long-term continuous recording of about 15.5 hours / long-term continuous playback of about 30 hours is possible. In addition, even with a single rechargeable battery, recording for about 6.5 hours / playback for about 12 hours has been achieved. ・ Due to the low voltage design, it can be driven by a single high-capacity alkaline AA battery (1.5V), and can record for about 6 hours and play for about 18 hours.

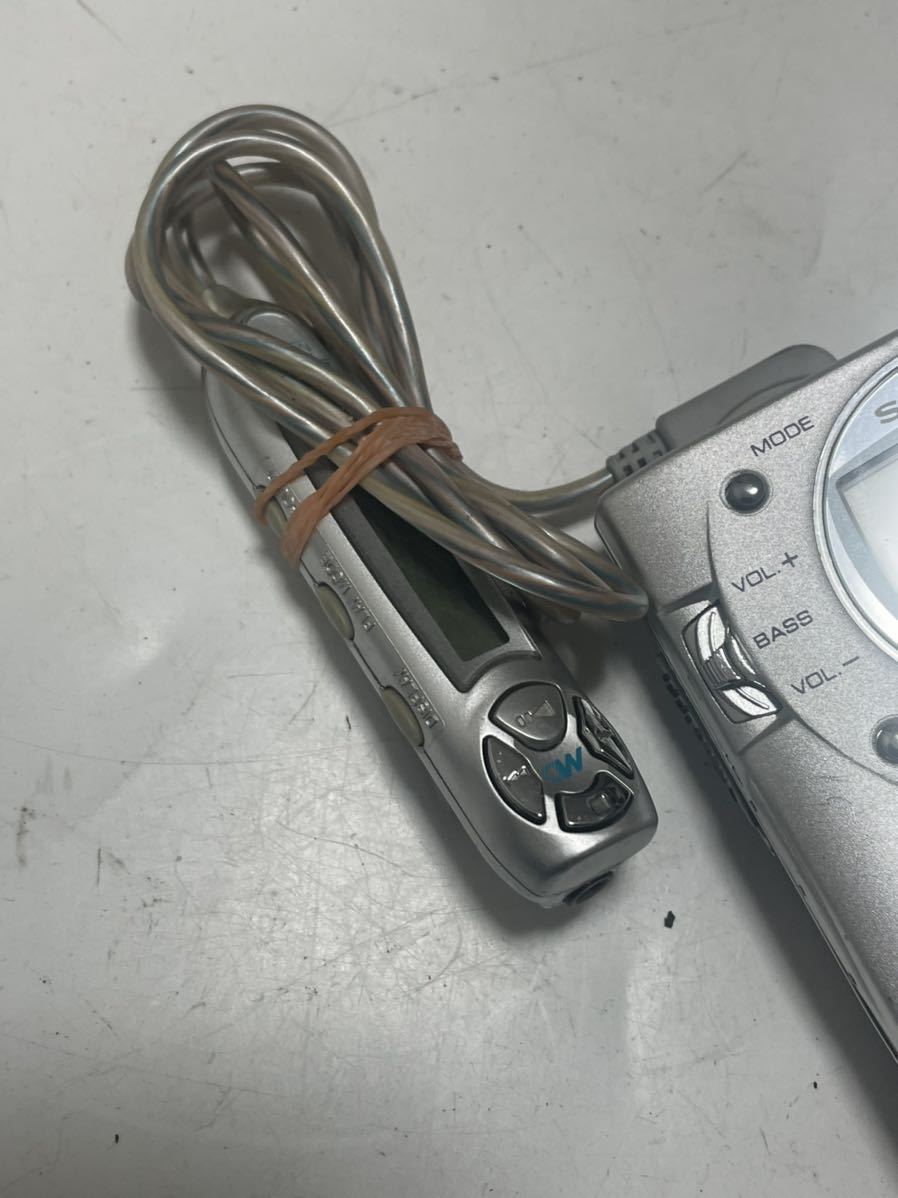

Supports Kanji display remote control (Kanji display remote control sold separately) ・ If you connect the separately sold remote controller for displaying Chinese characters (AD-S53RM), you can display the character information of the disc in which Chinese characters and hiragana are input.
Digital / analog compatible CD sound synchronized recording
Convenient playback functions such as random playback, random repeat playback, and all songs / one song repeat
Content adapted from: Sharp Press Release Sharp Press Release (MiniDisc Wiki mirror) additional info additional info (MiniDisc Wiki mirror) MiniDisc.org page Personalhifiblof Review Good design award winner
Manuals
Repair
Photos

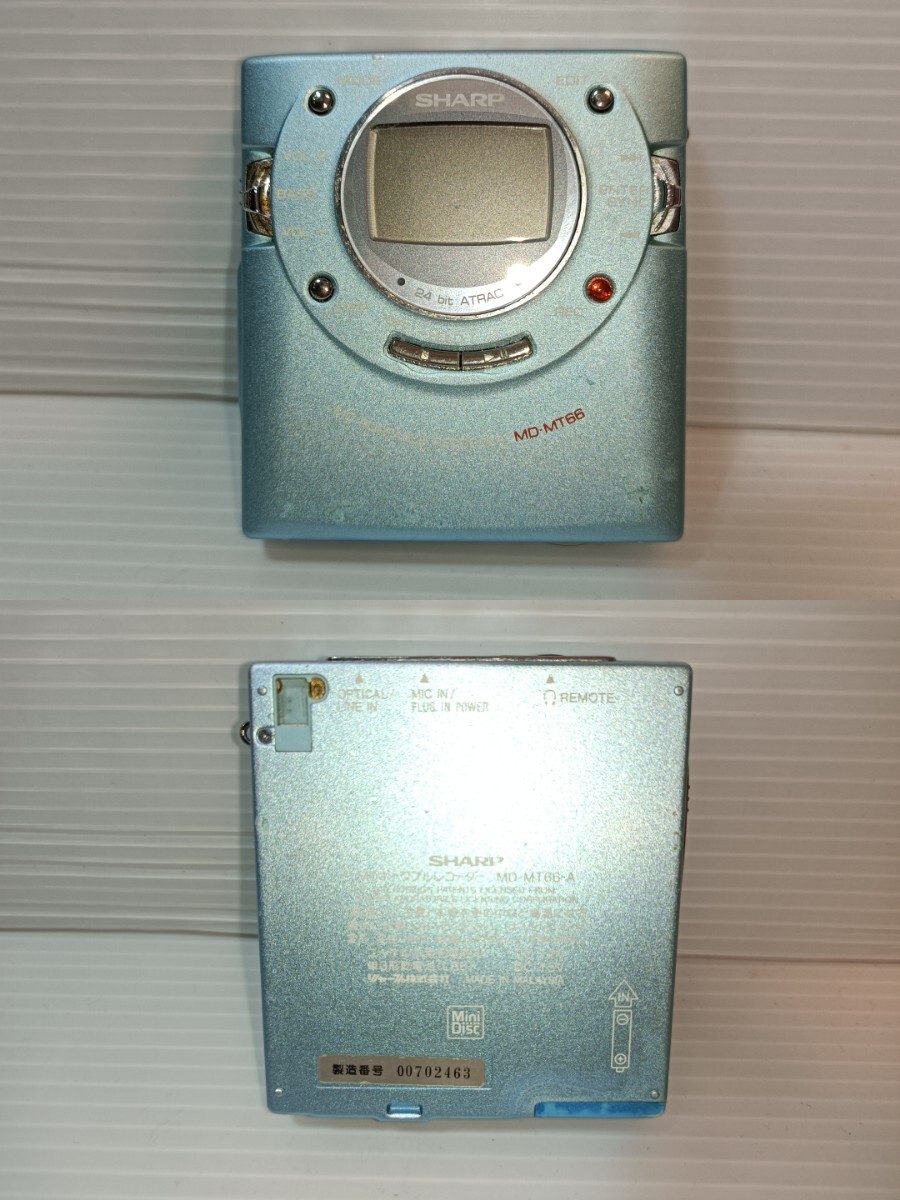

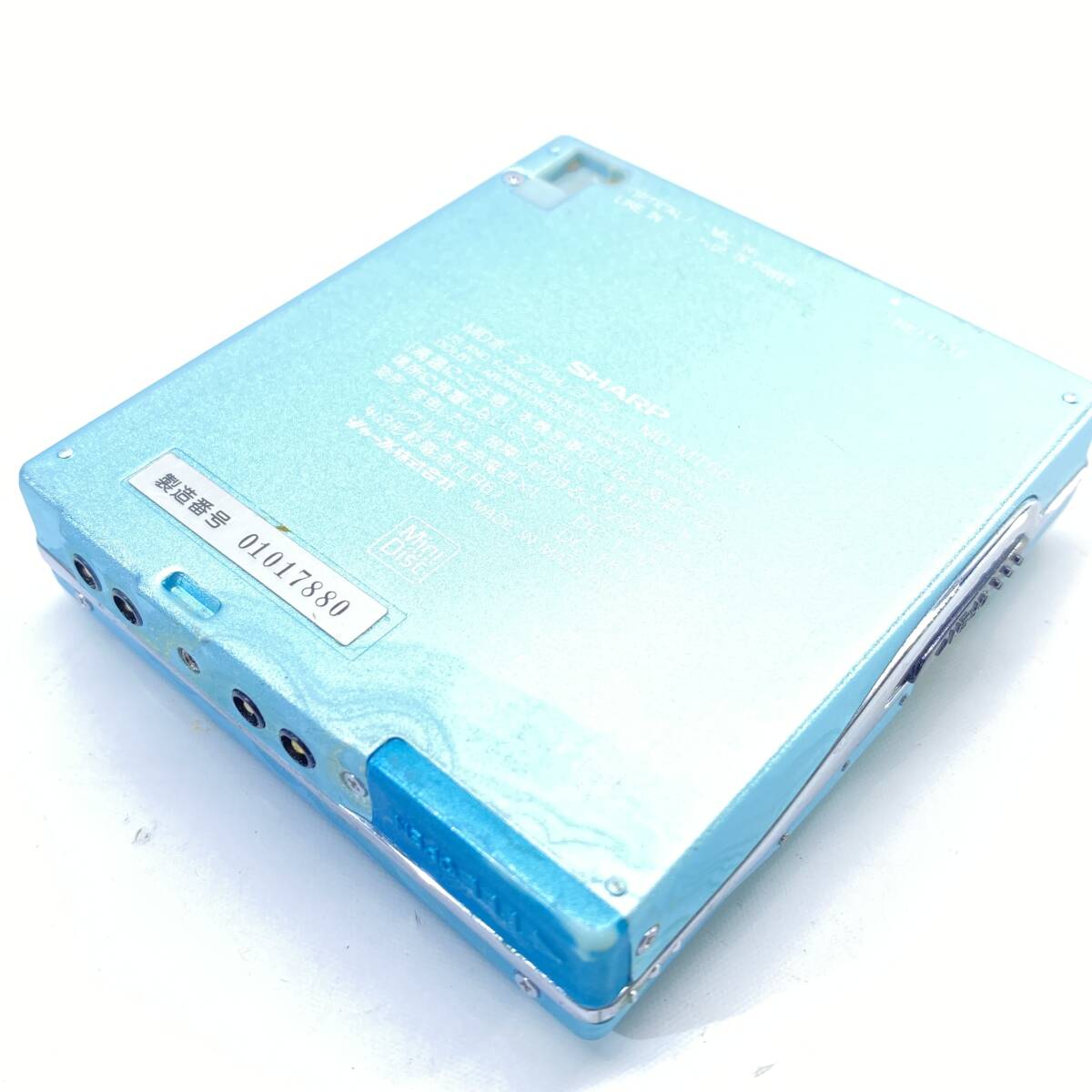

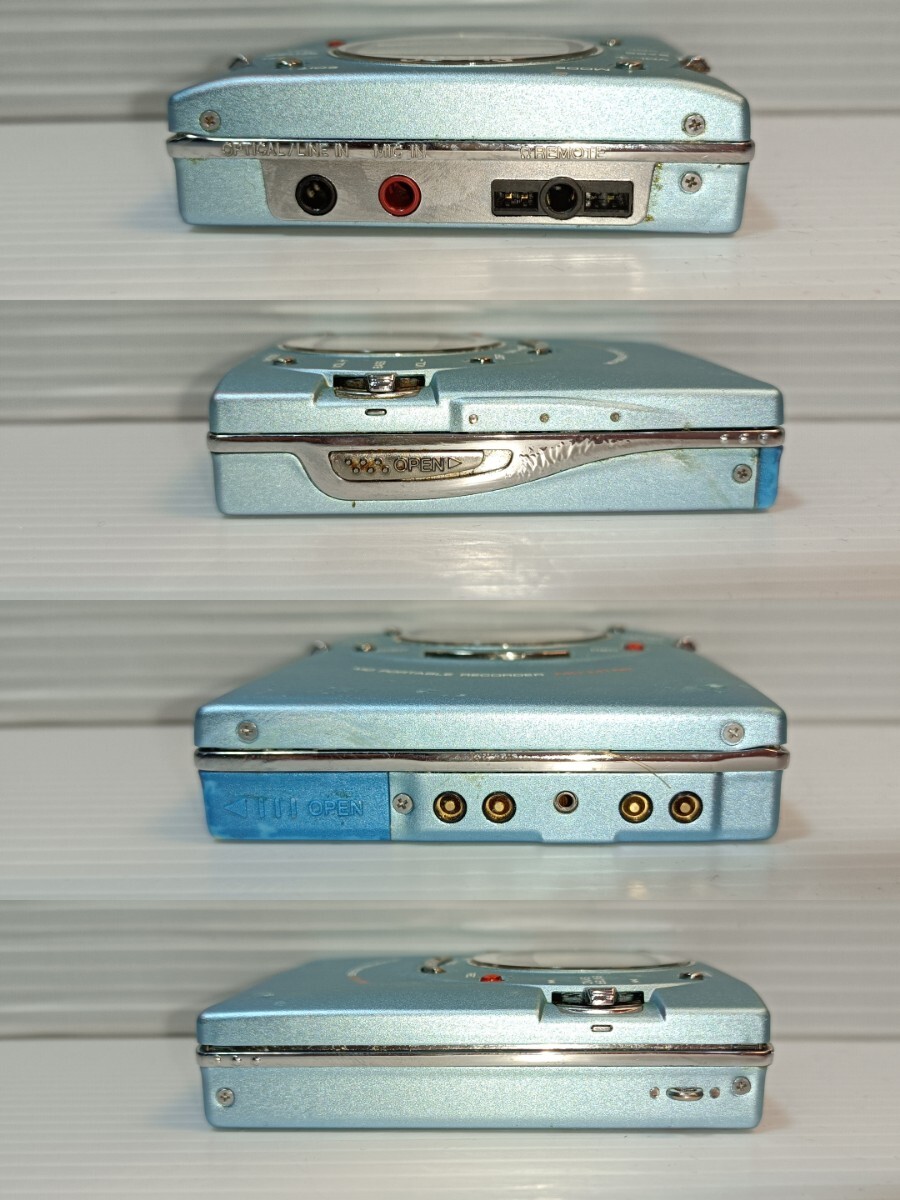

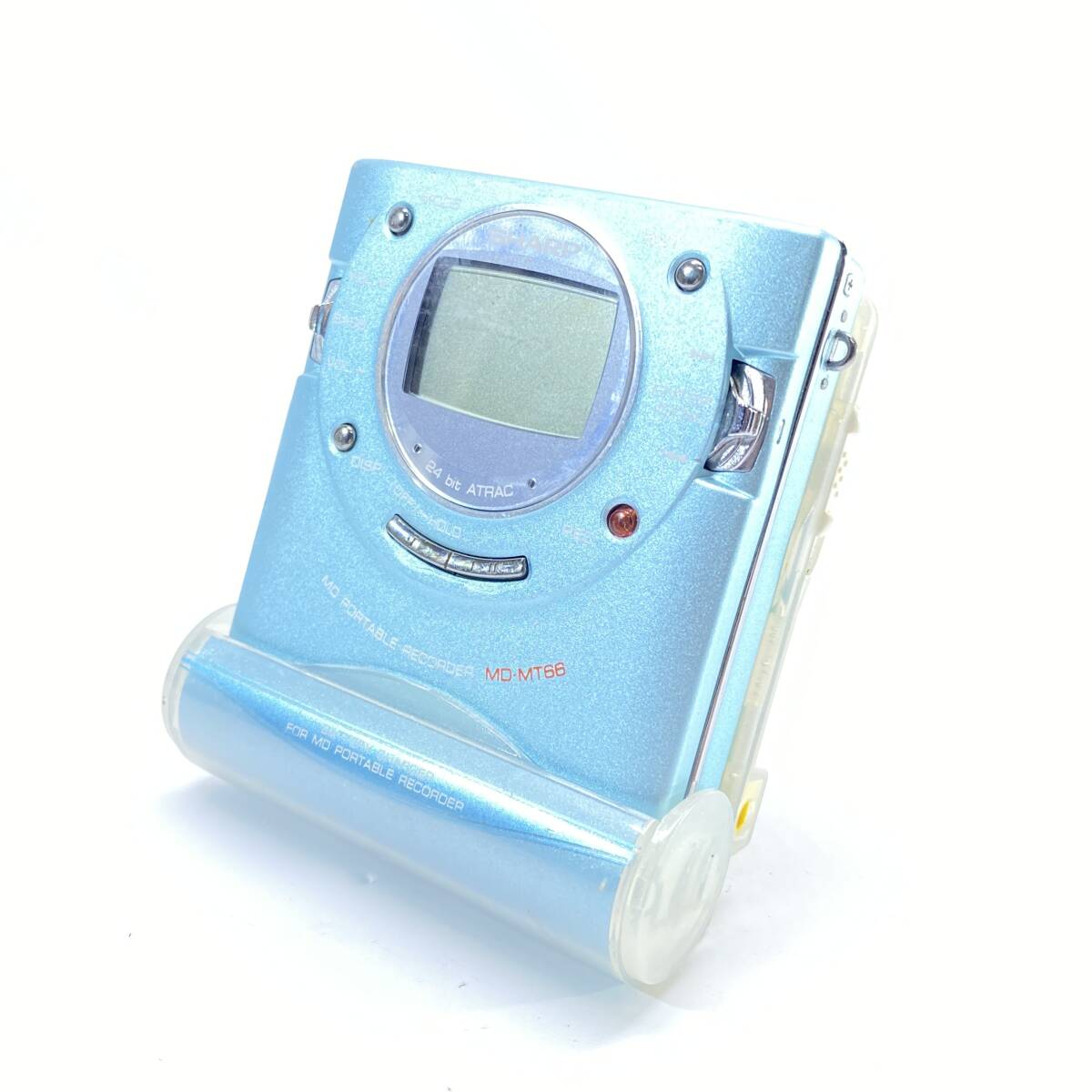

Sharp MD-MT66-A:
2.4mb Sharp Press image (TIFF) — unavailable in this snapshot
Have photos or data to add? Edit the page! We do not accept contributions via email.
