Device

Sharp MD-MT50/MD-SR50/MD-SR60/MD-SR70/MD-SR75

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Sharp
Model / source grouping
MD-MT50 / MD-SR50 / MD-SR60 / MD-SR70 / MD-SR75
Device type
portable
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sharp MD-MT50/MD-SR50/MD-SR60/MD-SR70/MD-SR75”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MD-MT50/MD-SR50/MD-SR60/MD-SR70/MD-SR75
Manufacturer Sharp
Released 2000/03
Device type portable
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 99.9 x 22.9 x 77.9 mm
Weight 191g
ATRAC ver Sharp 6
Battery Not recorded AA, "Gumstick"
Battery notes Not recorded
Sidecar (depr) No
Voltage 1.2, 1.5, 4.5, 5
Power cable Center positive
Price (launch) Not recorded
¥35 000
-

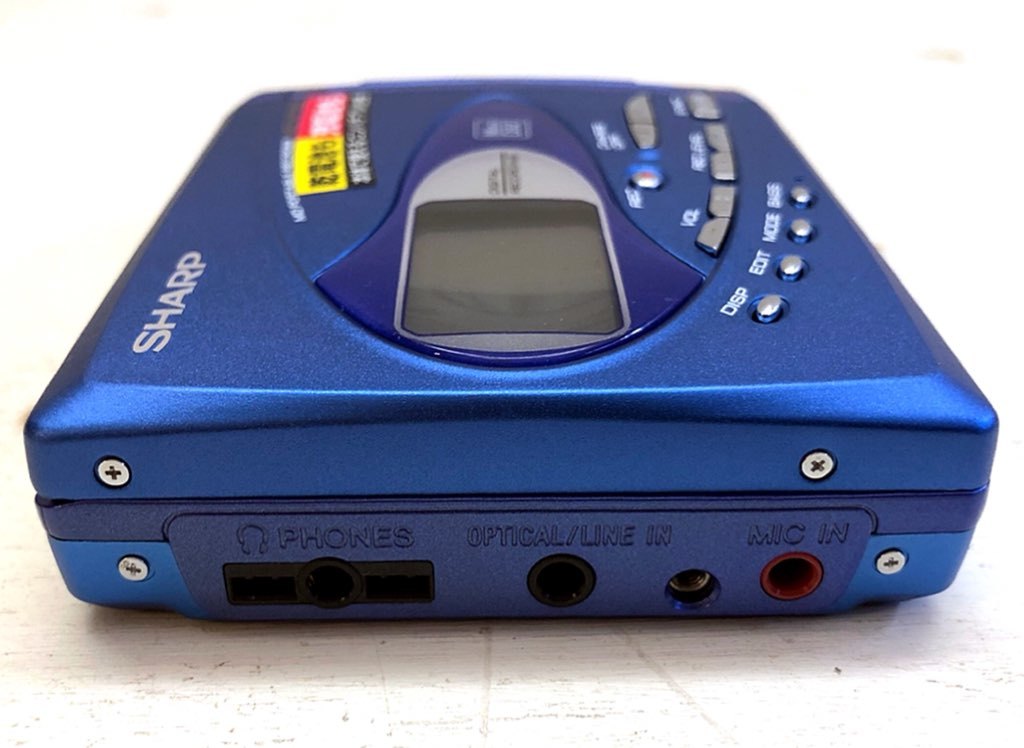

Inputs 3.5mm line in (analog-only), 3.5mm line in (optical multi), 3.5mm microphone
Outputs 3.5mm headphone
Control Not recorded

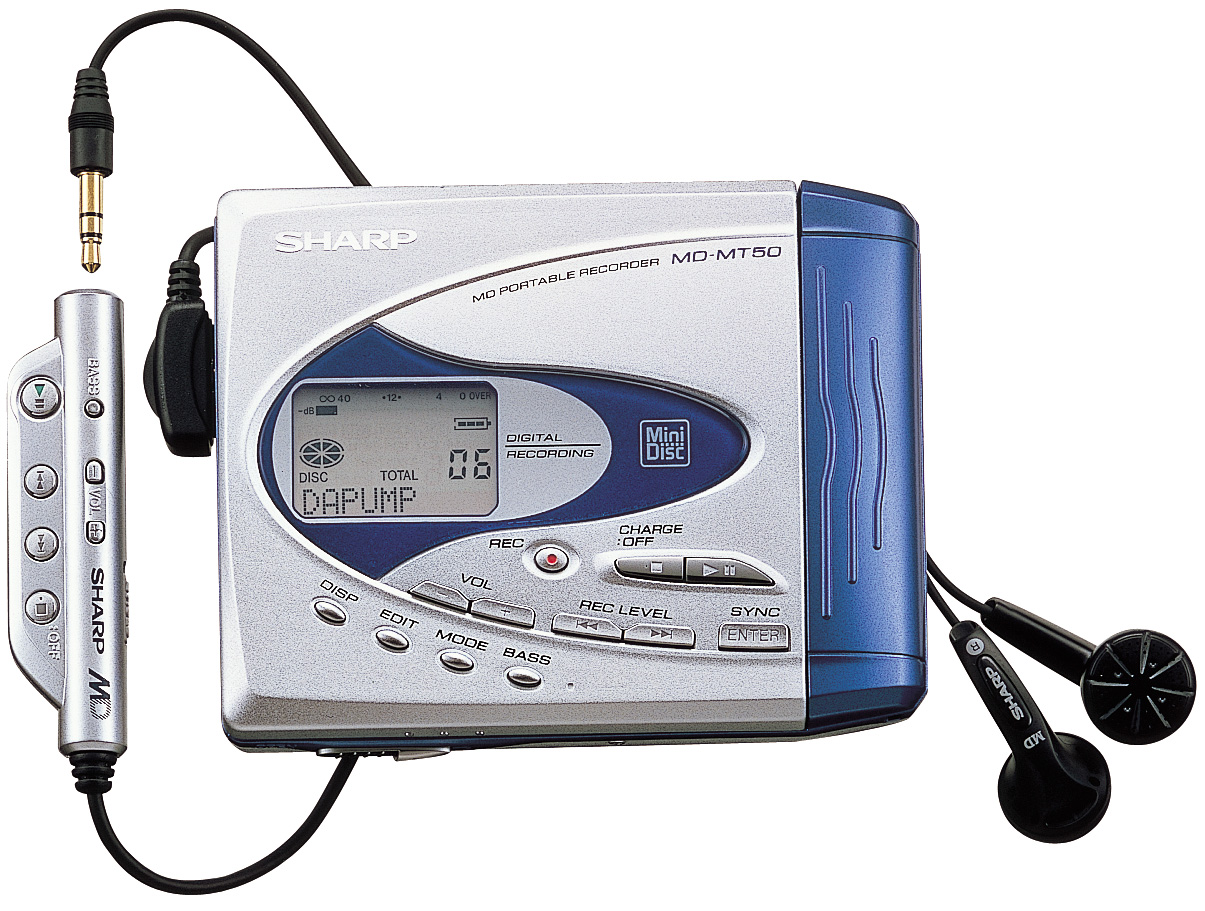

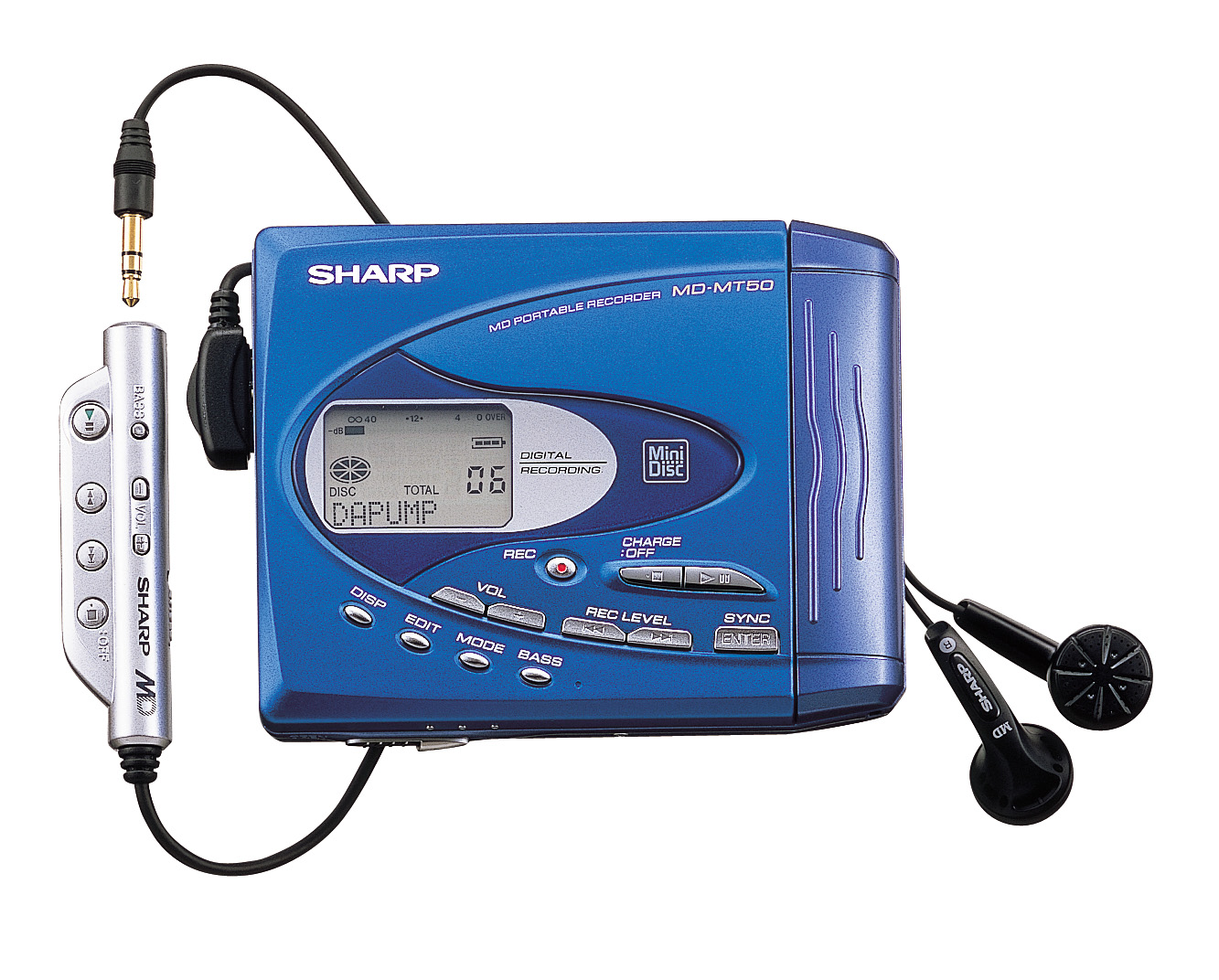

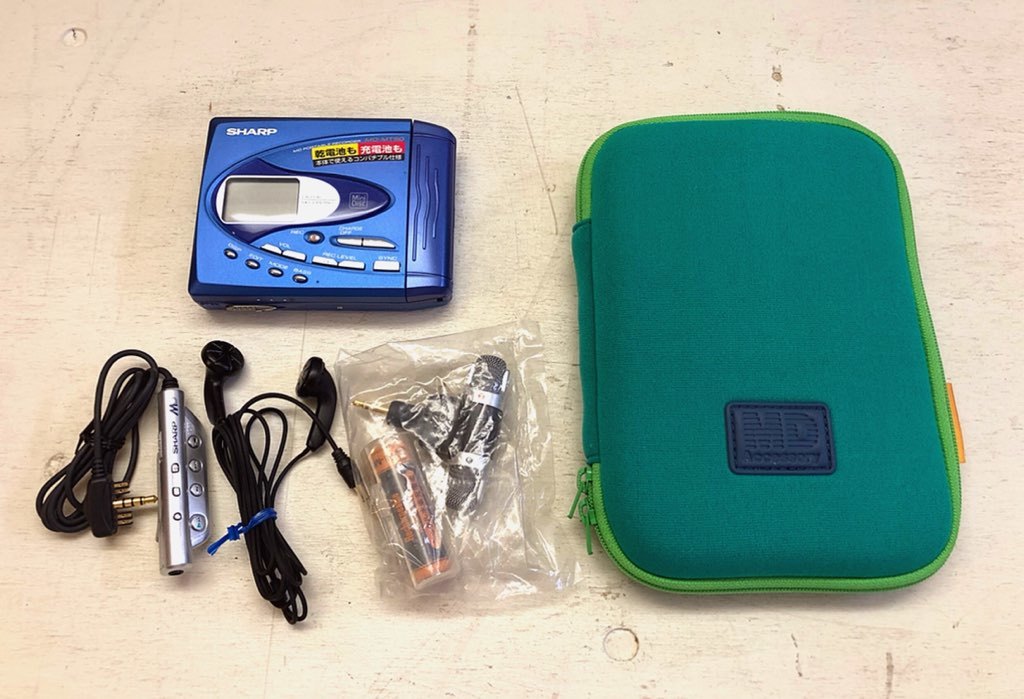

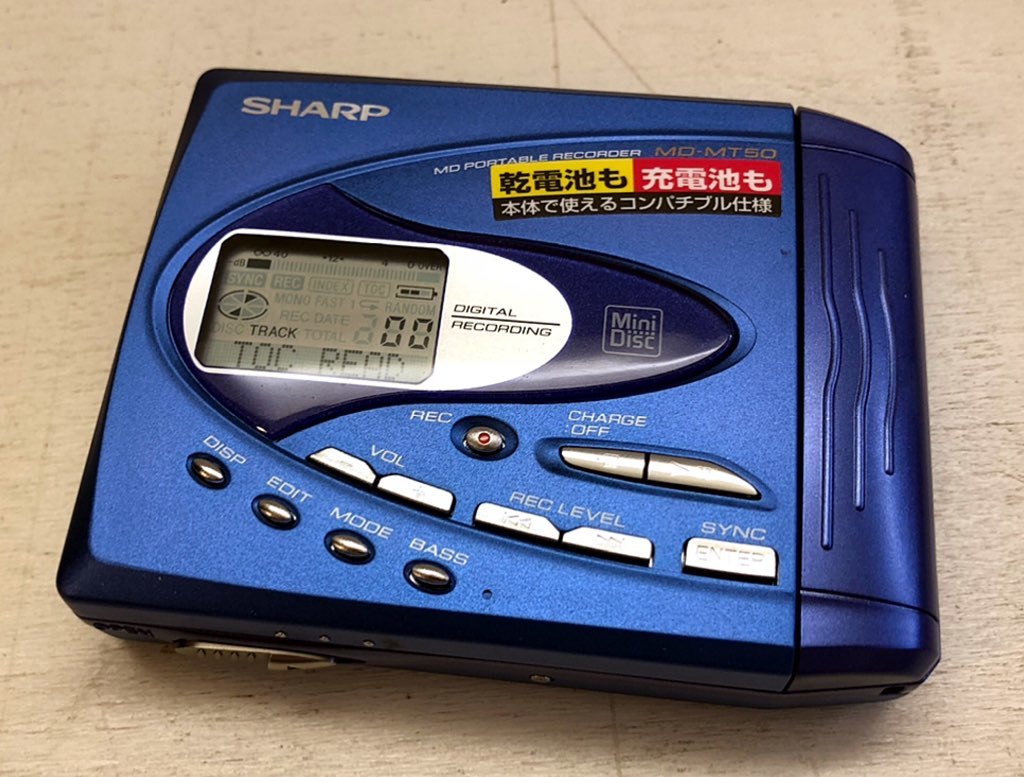

Released in 2000, the Sharp MD-MT60, MD-SR50, MD-SR60, MD-SR70 and MD-SR75 are the same unit with slight color variations and were supplied with slightly different accessories depending on the model number.

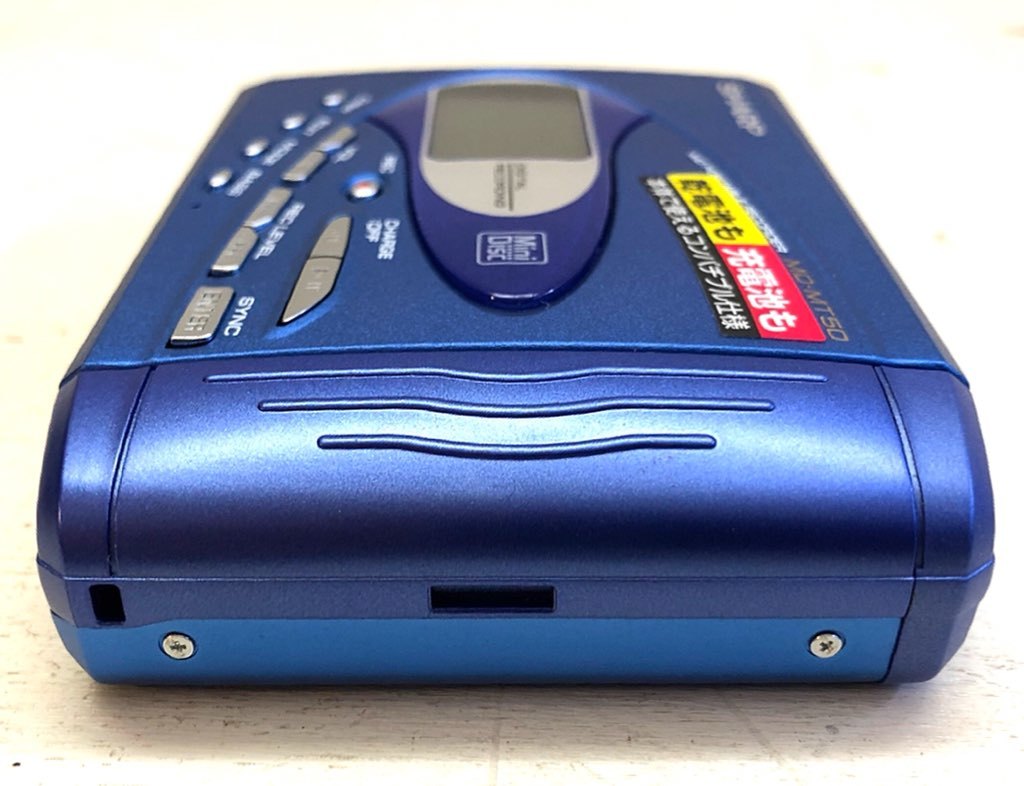

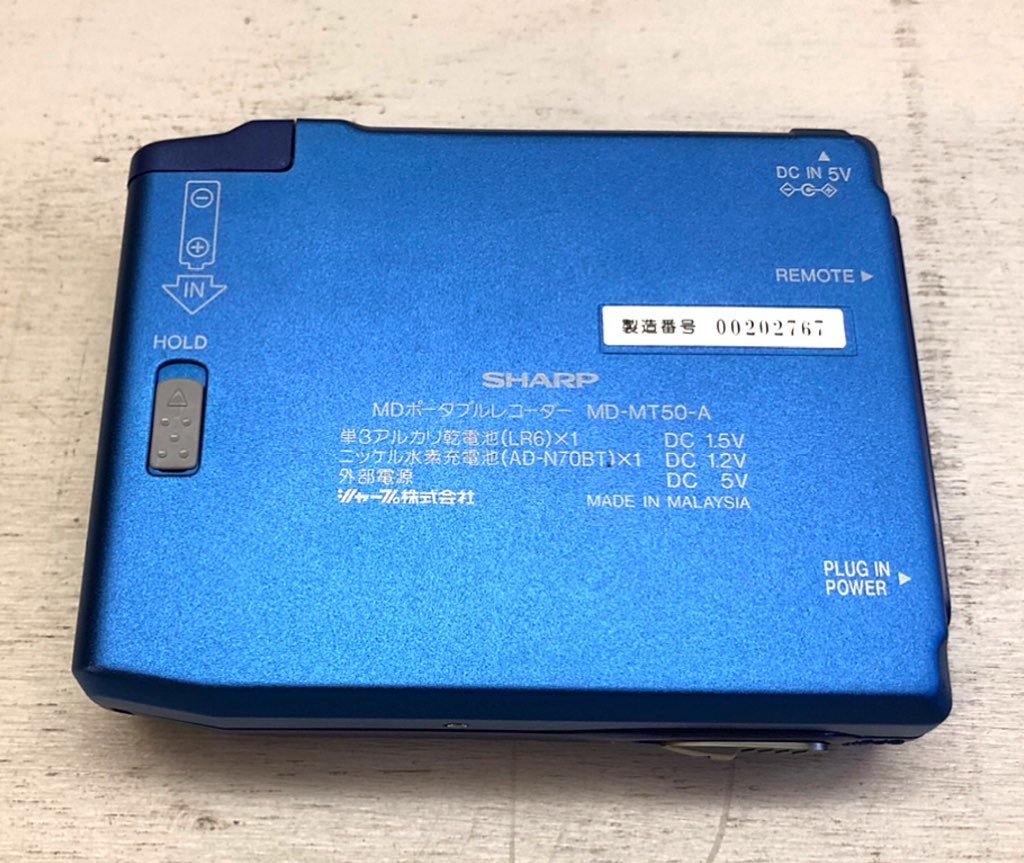

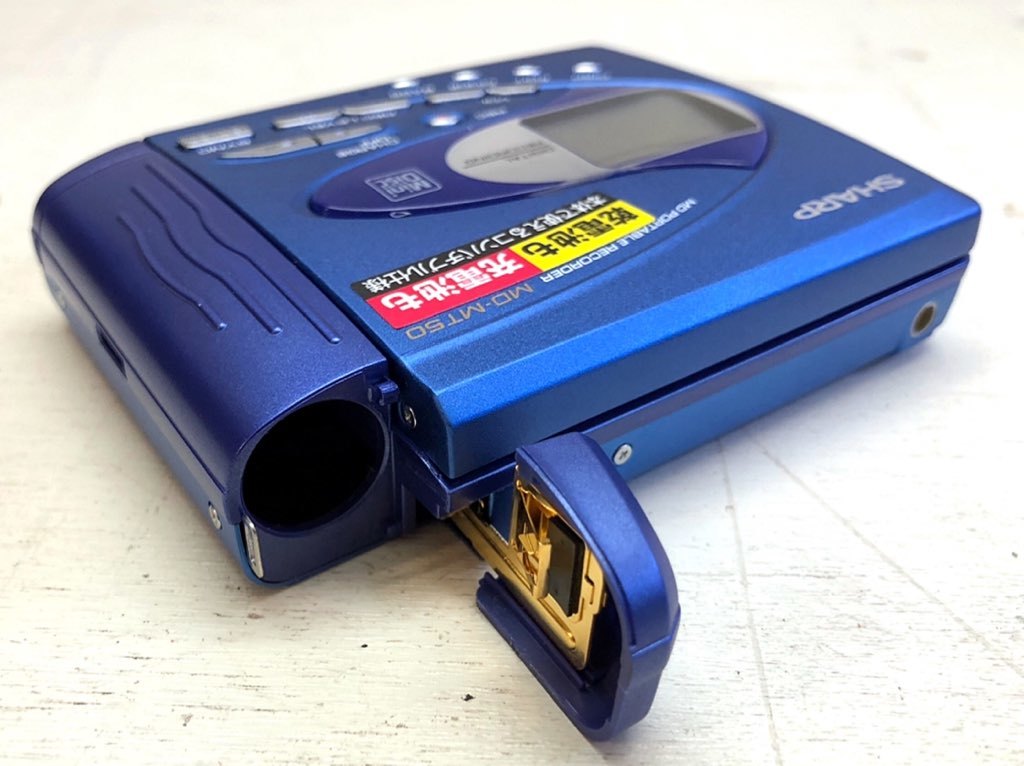

Unlike most portables, the battery is inserted on the right hand side of the player making it one of the few AA battery powered units to have a flat back.

Variant Differences:

  • MD-SR50: no remote
  • MD-SR60: non-LCD remote (same unit as SR70?)
  • MD-SR70: non-LCD remote

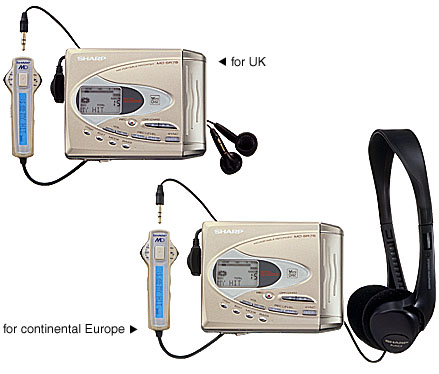

  • MD-SR75: backlit LCD remote, UK unit came with in ear headphones while the Eu model had over-ear.

Content adapted from: Sharp Press Release Sharp Press Release (MiniDisc Wiki mirror) Details Page Details Page (MiniDisc Wiki mirror) Sharp MD-SR75 Page Sharp MD-SR75 Page (MiniDisc Wiki mirror) Mt/SR Minidisc.org Page

Manuals

Photos

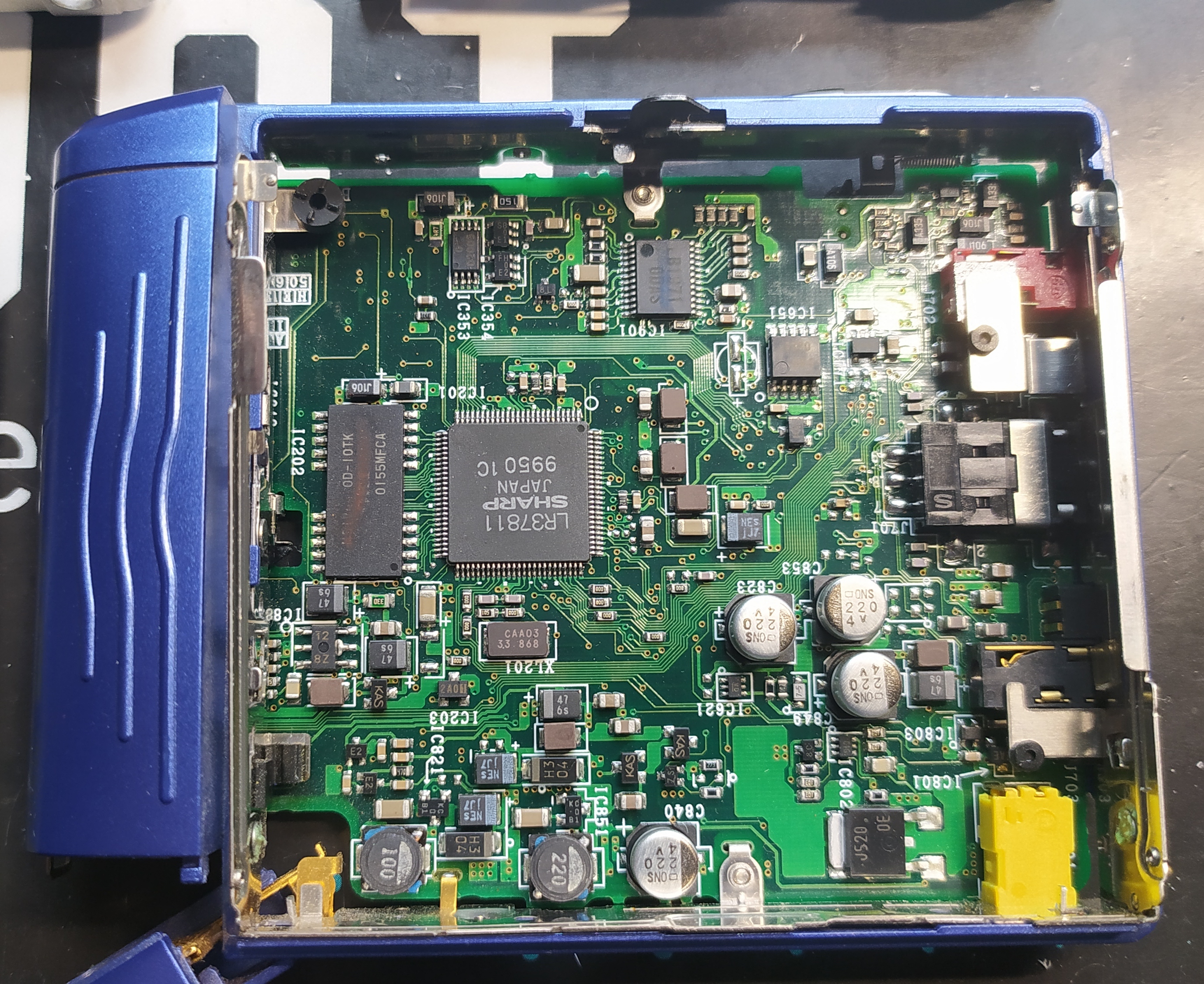

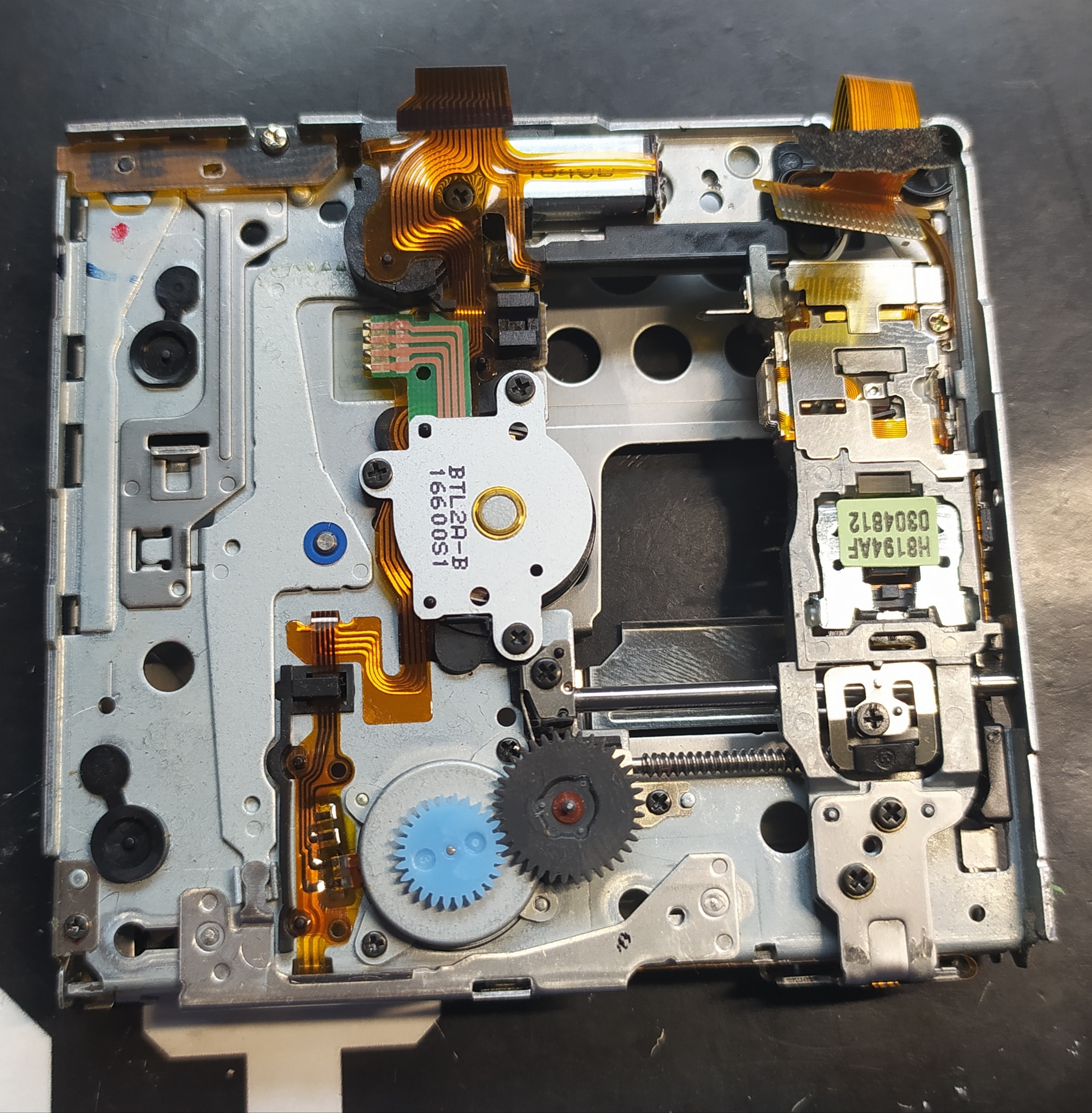

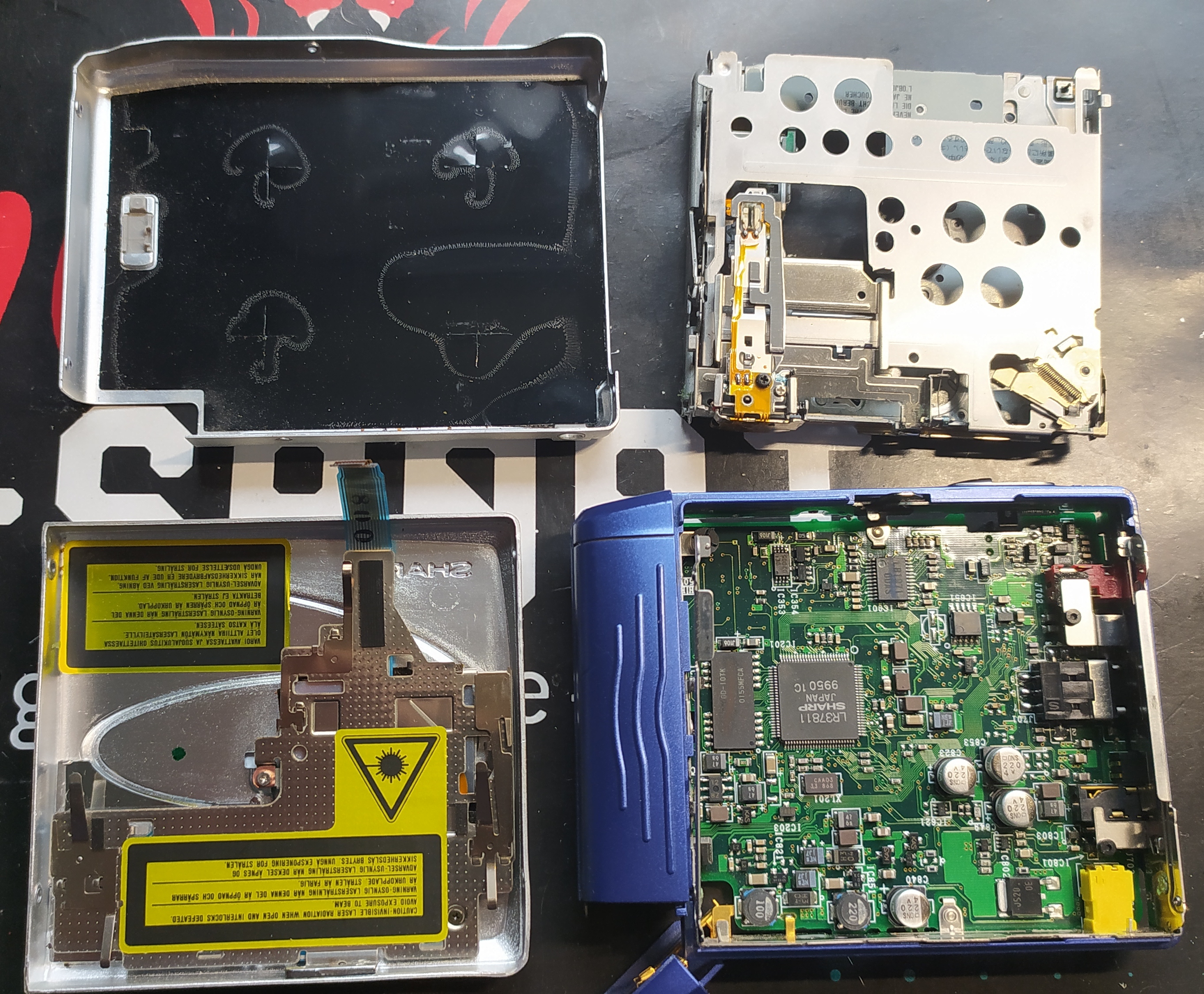

Internal

Source

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
ManualUser manual, Service manual, other
RegionJapan
