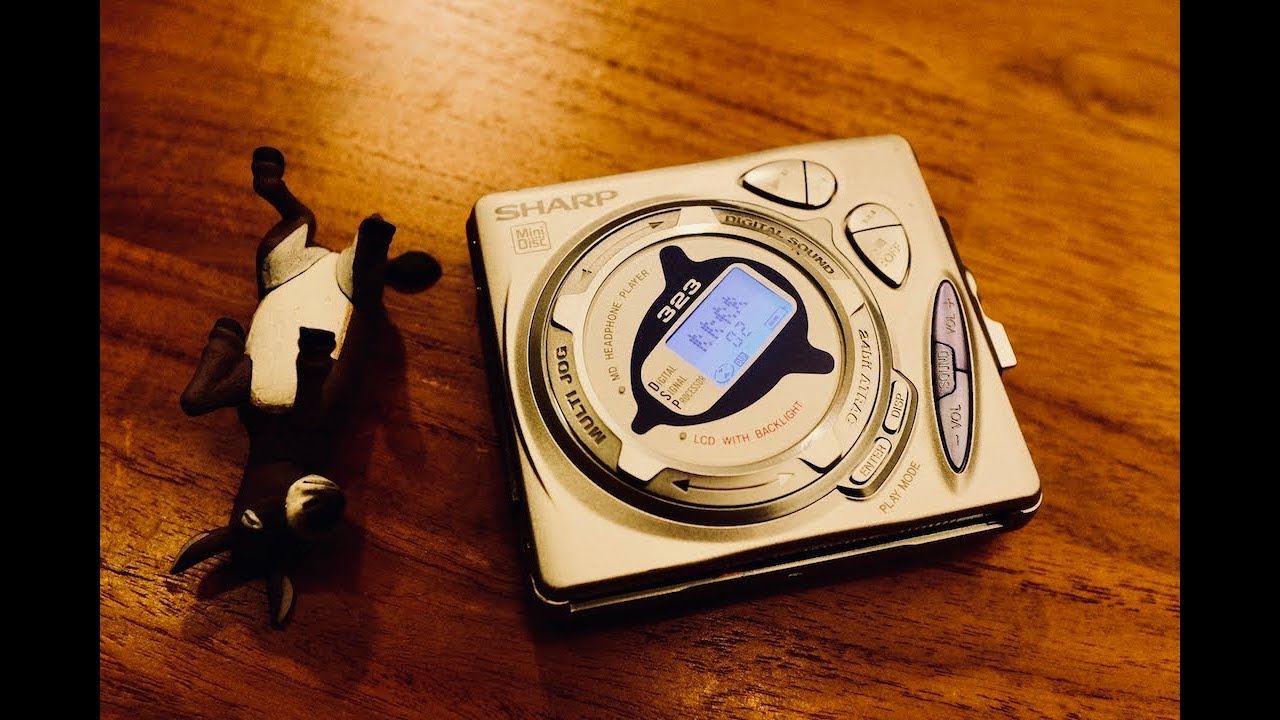

Sharp MD-SS323

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sharp MD-SS323”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name	MD-SS323
Manufacturer	Sharp
Released	1999/04
Device type	portable
Recorder	Player
MDLP	No
NetMD	No
Hi-MD	No
Radio	No
Dimensions	85.5 x 21.3 x 76.2mm
Weight	182g (w/batt)
ATRAC ver	Sharp 6
Battery	Not recorded Not recorded
Battery notes	Not recorded
Sidecar (depr)	Not recorded
Voltage	3.5, 3.6, 4.5, 5
Power cable	Not recorded
Price (launch)	Not recorded
Price (launch)	¥40 000
-
Inputs	N/A
Outputs	3.5mm headphone
Control	Not recorded

Features: Newly developed thin style slot-in loading mechanism. Die-cast body provides strength against compressive loads. Backlit LCD panel on remote and main body. 16Mbit DRAM for 40 second shock memory. Features 13 different equalization curves (POPS, CLUB, JAZZ, HEAVY, ROCK, DANCE, DOME, SYMPHO, VOCAL, SOFT, USER1, USER2, FLAT), 2 of which allow user setting of bass and treble adjustment in 7 steps each, plus 3 delay (surround/reverb?) settings. Large jog dial on body for for mode, tone, and track selection (DSP mode can also be selected from remote). Handstrap. Disc insertion slot cover flap shows "DISC IS INSIDE" if disc is already present, or "MINIDISC" otherwise. Two auto-start modes: 1) Start play upon disc insertion, 2) Restart play from head of current track when power applied (useful for in-car use). MD→MD edit function (copies audio [analog] and title information) when coupled to Sharp bookshelf systems with separately available AD-M5AC cable.

Headphone amp: 5mW+5mW

Content adapted from: Sharp Press Release Sharp Press Release (MiniDisc Wiki mirror) Minidisc.org page
