Sharp MD-ST500

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-06-14

Manufacturer
Sharp
Model / source grouping
MD-ST500
Device type
portable
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sharp MD-ST500”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MD-ST500
Manufacturer Sharp
Released 2004/03
Device type portable
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio No
Dimensions 75.2 (width) x 14.6 (height) x 80.0 (depth) mm
Weight 77g (body only) 102g (including rechargeable battery)
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 1.2, 1.5, 5
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-
Inputs Not recorded
Outputs 3.5mm headphone
Control Not recorded

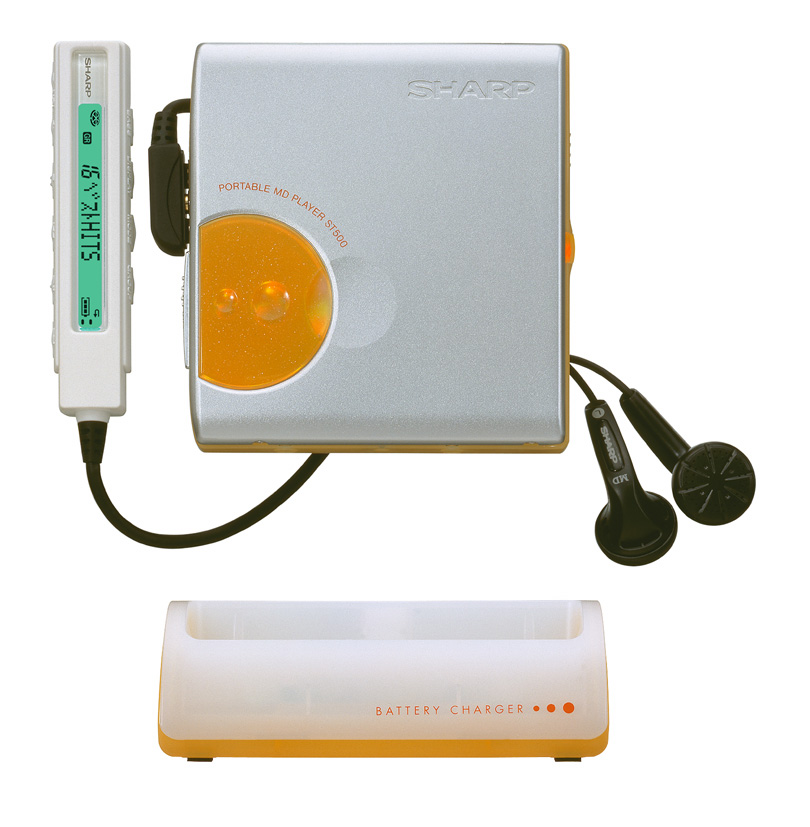

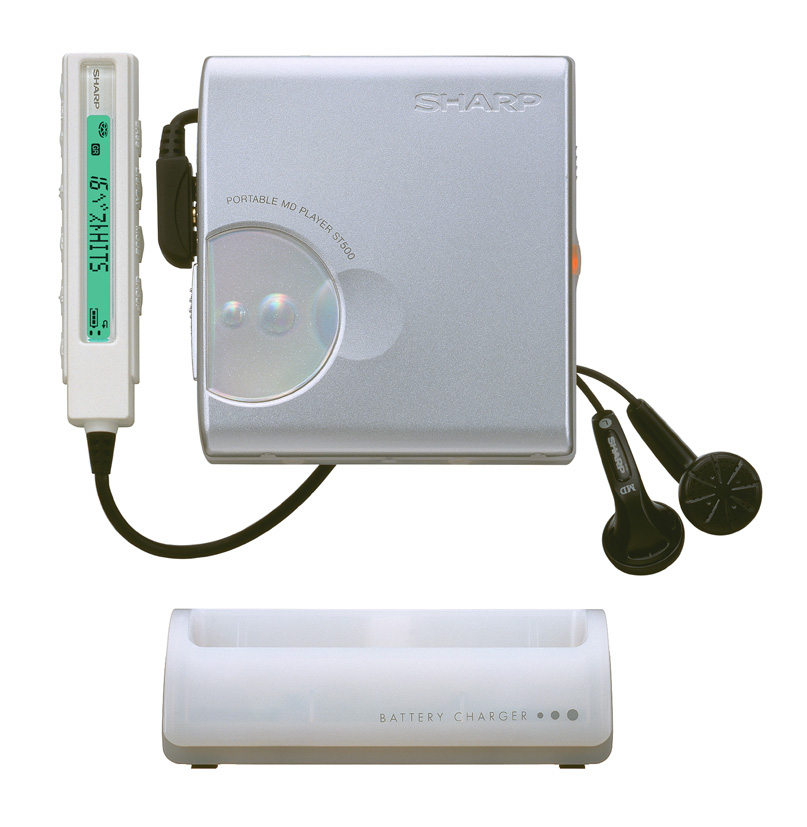

Available in MD-ST500-A (blue), MD-ST500-P (pink), MD-ST500-D (orange), MD-ST500-W (white)

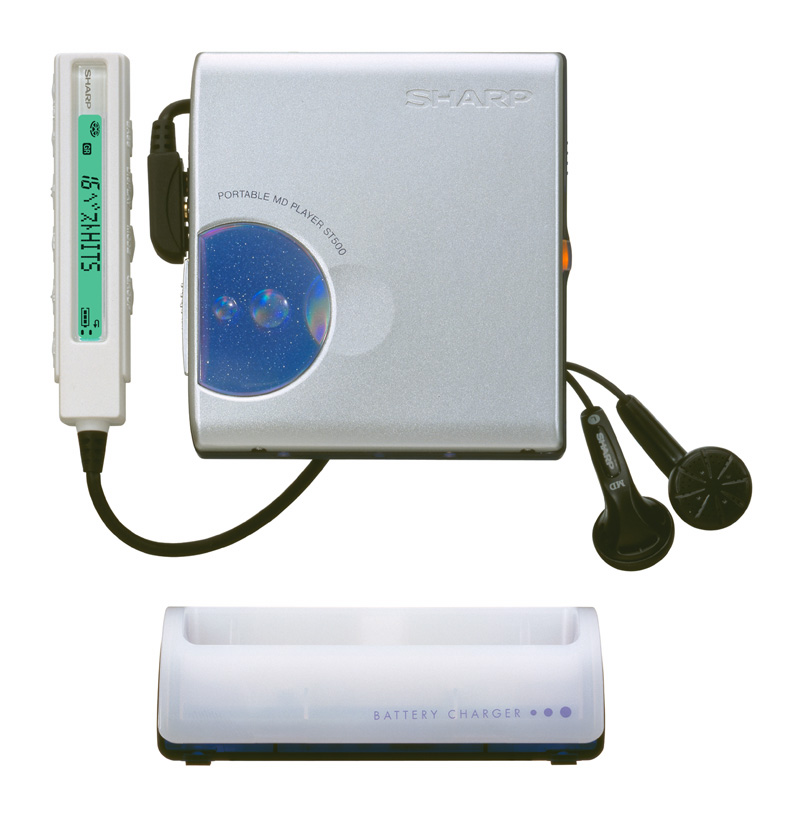

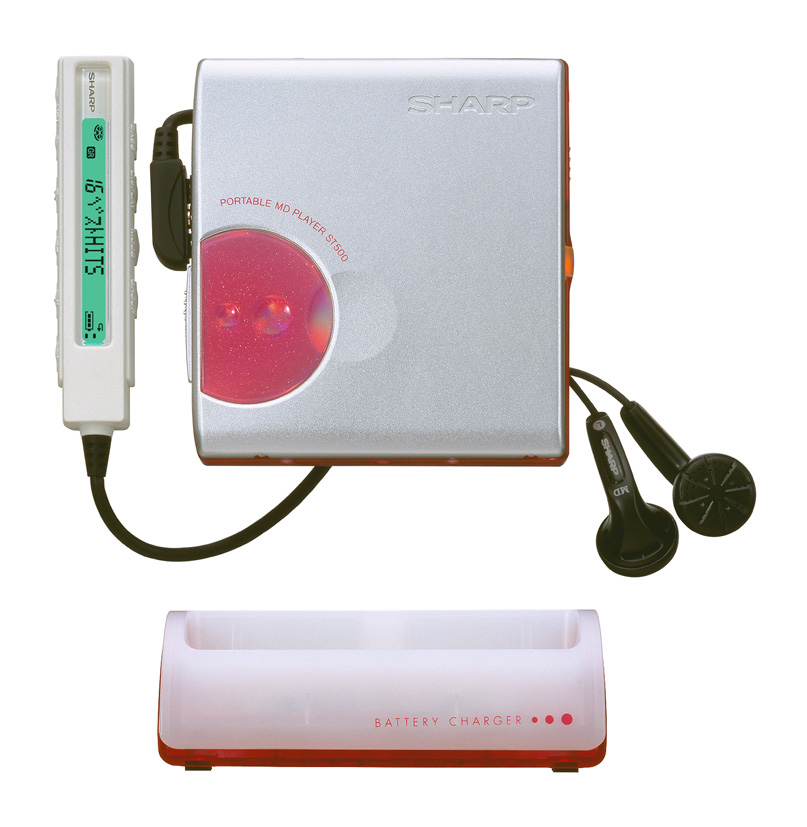

Content adapted from: Sharp Press Release Sharp Press Release (MiniDisc Wiki mirror) Details Page Details Page (MiniDisc Wiki mirror) Press Images Minidisc.org

Manuals

Sharp MD-ST500 User Manual JP/EN

Repair

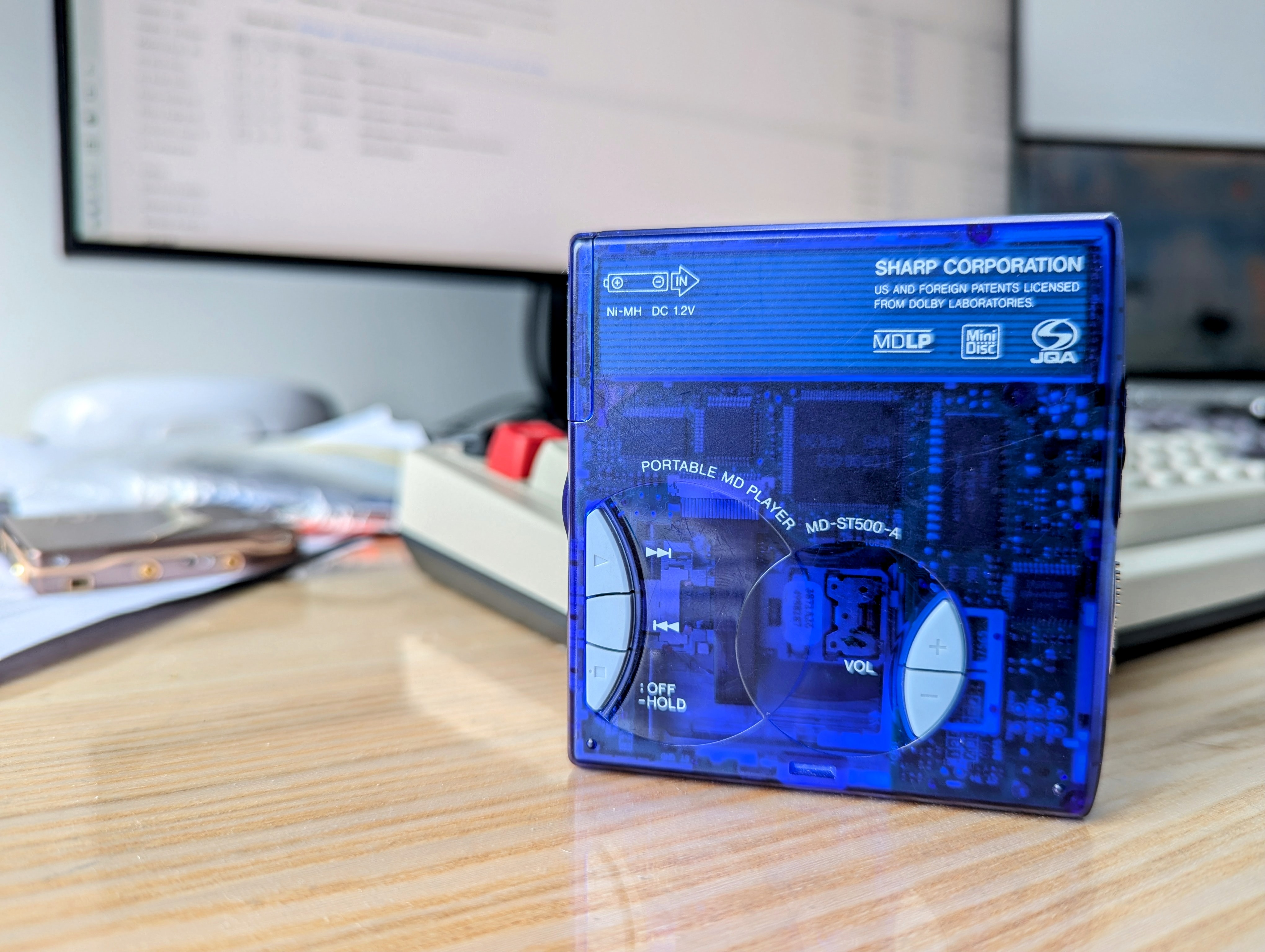

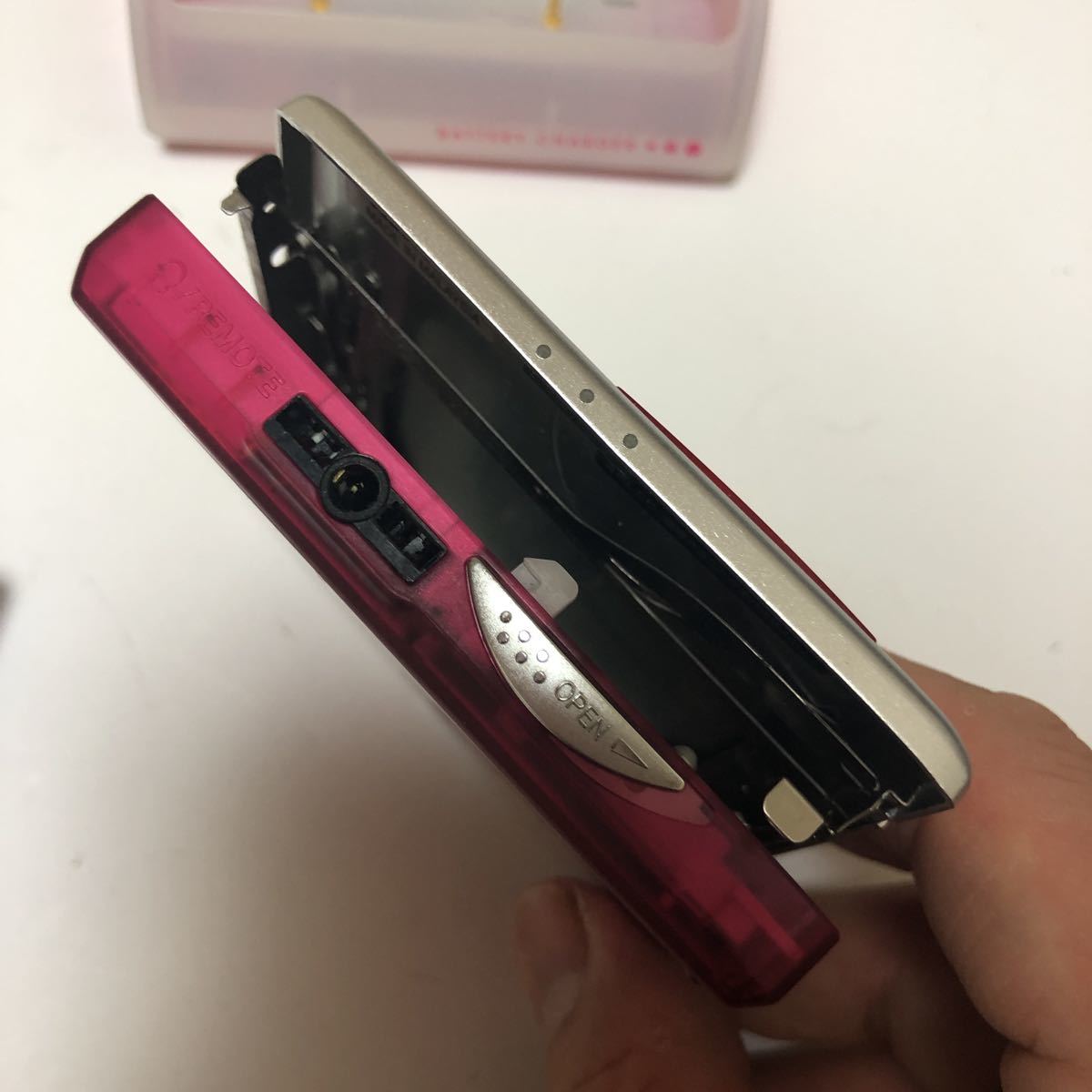

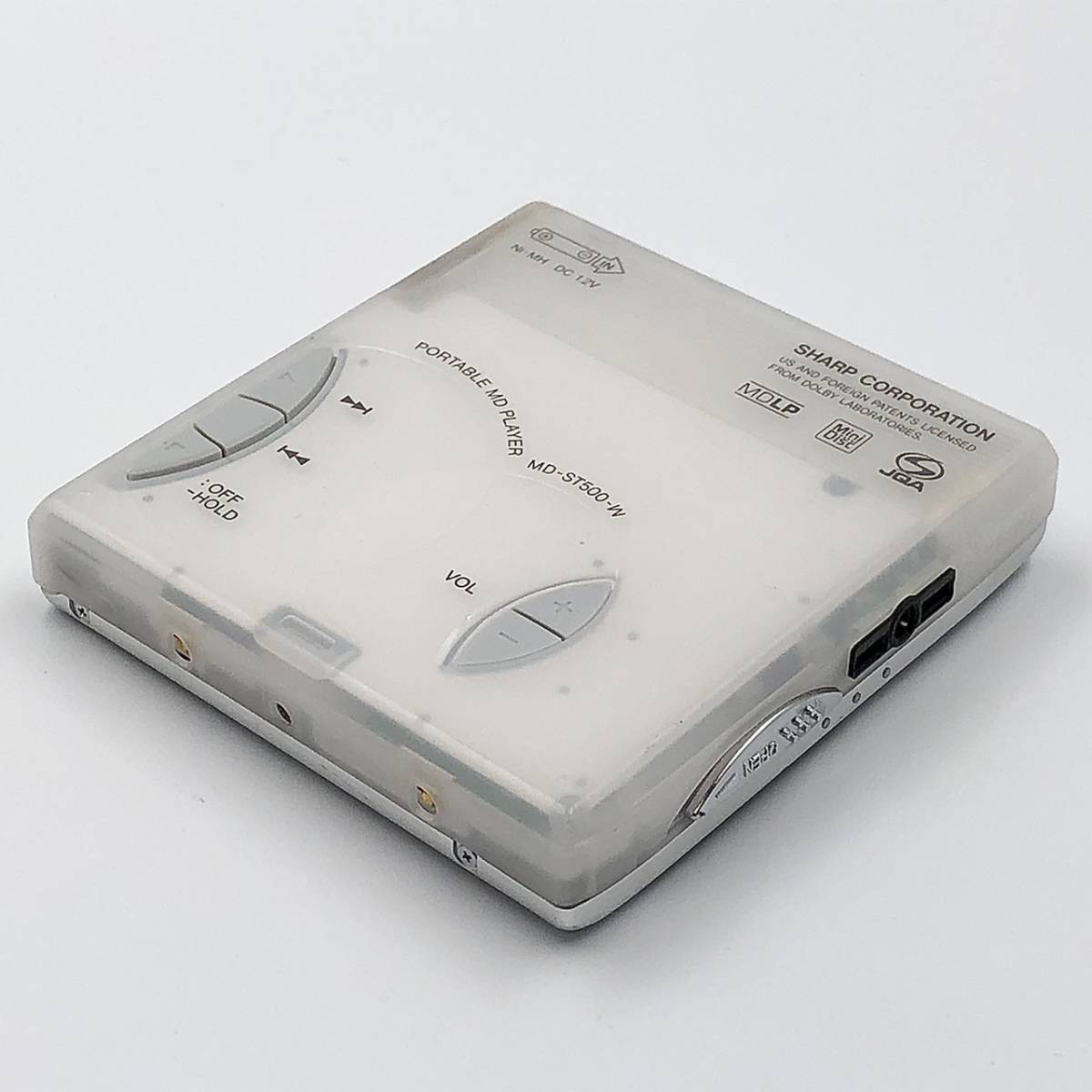

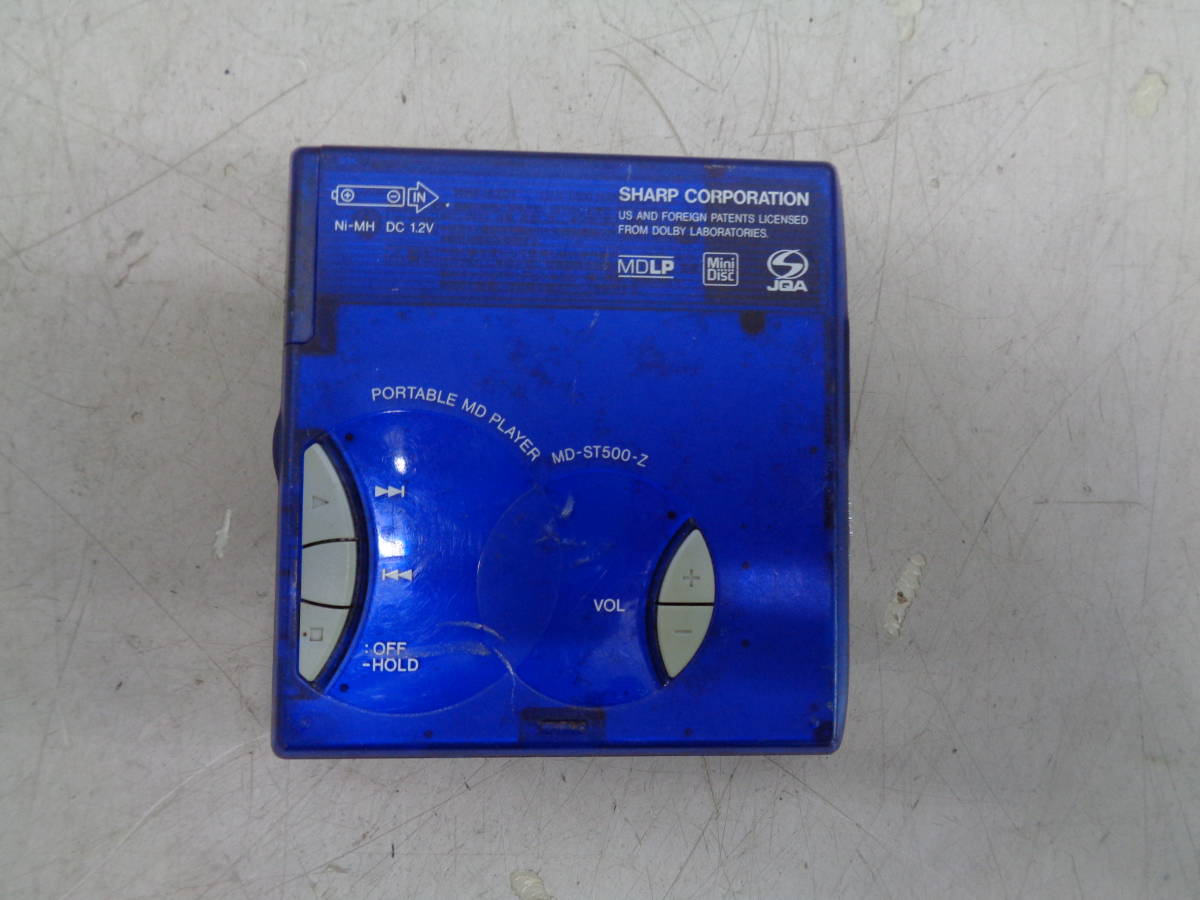

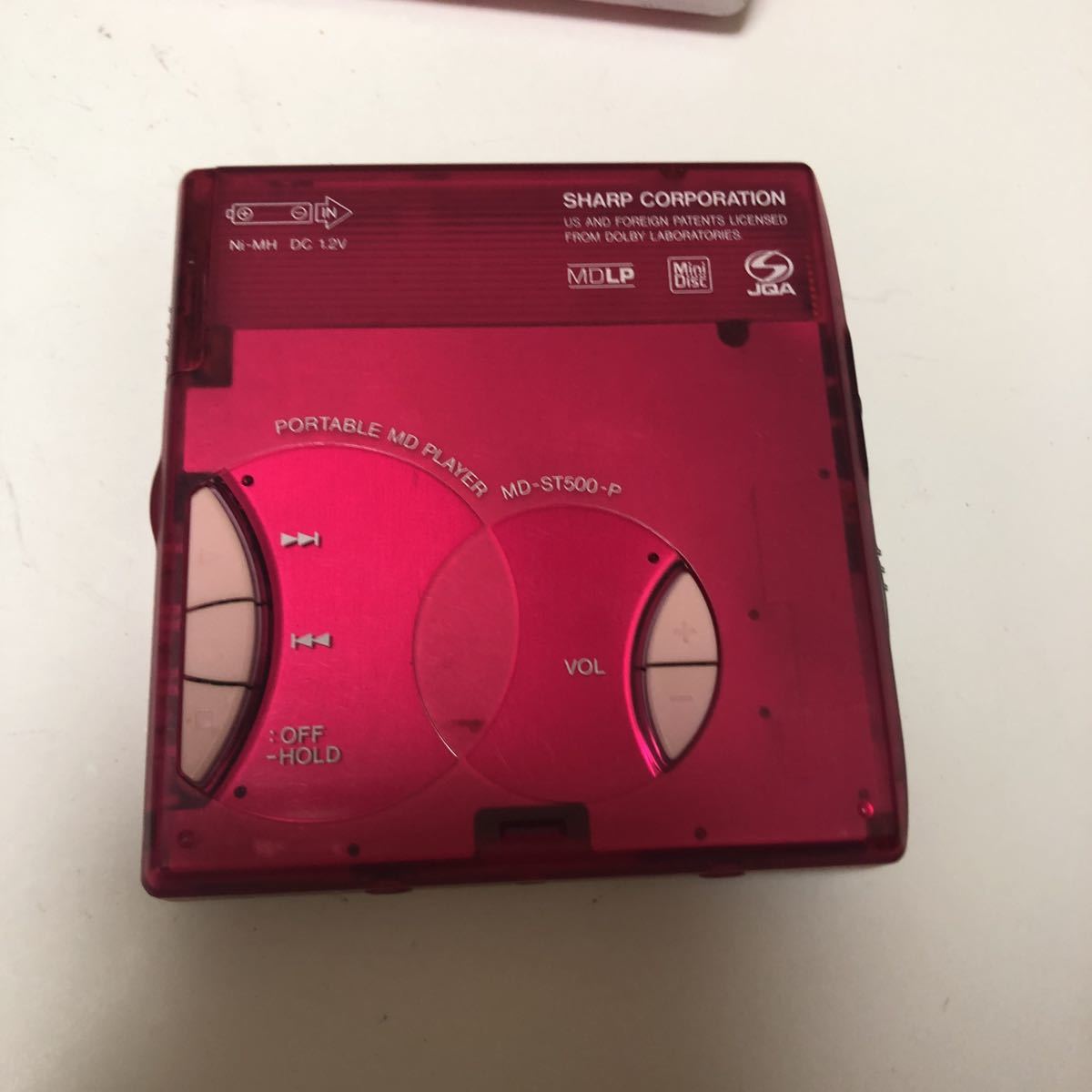

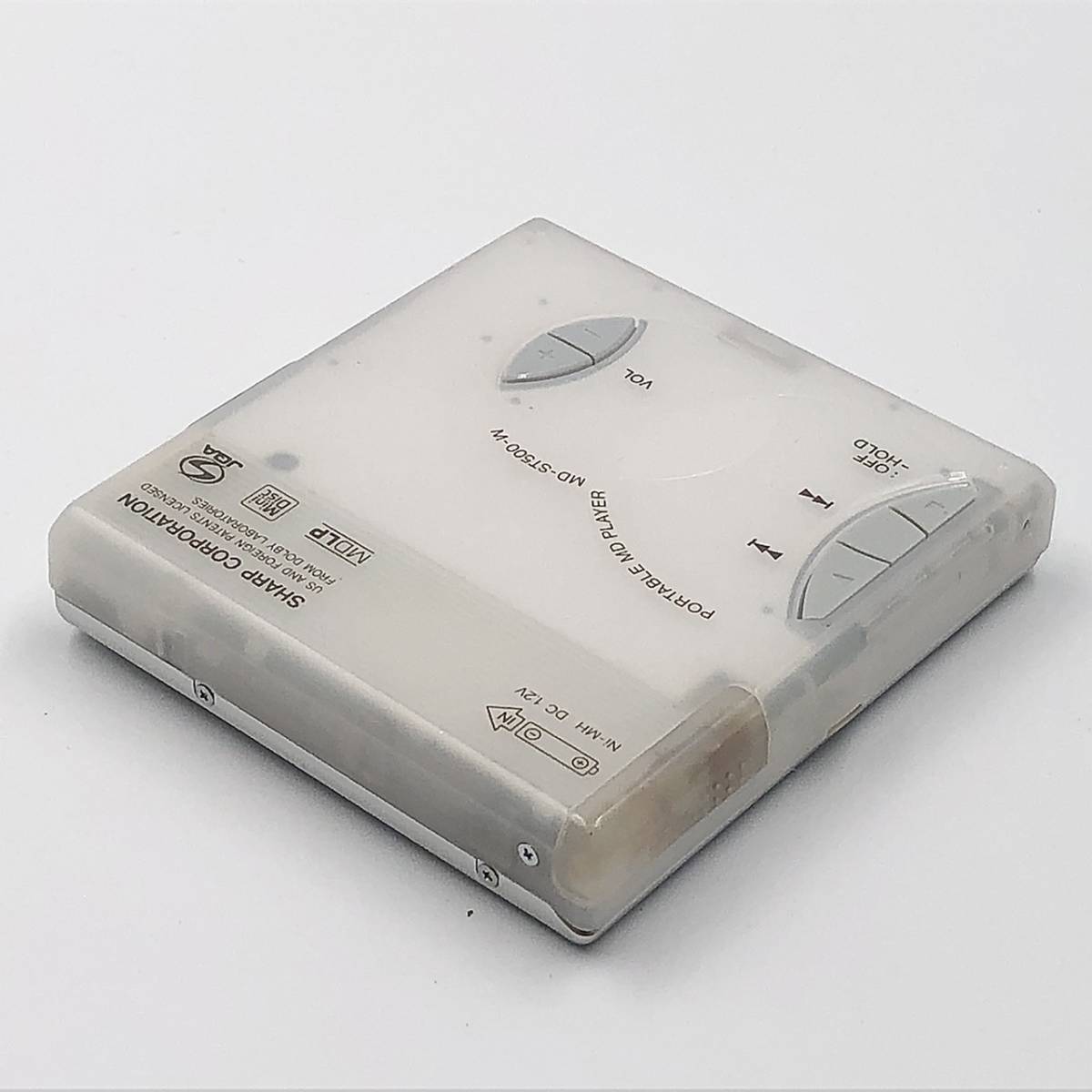

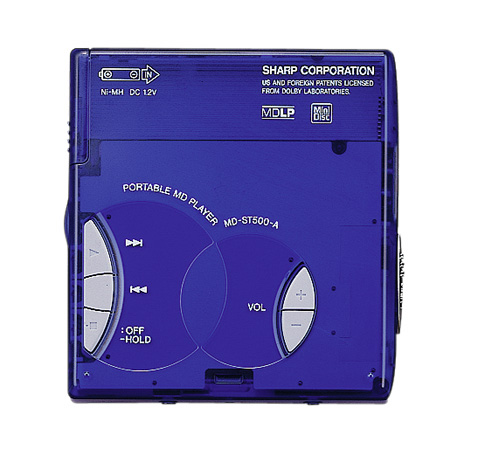

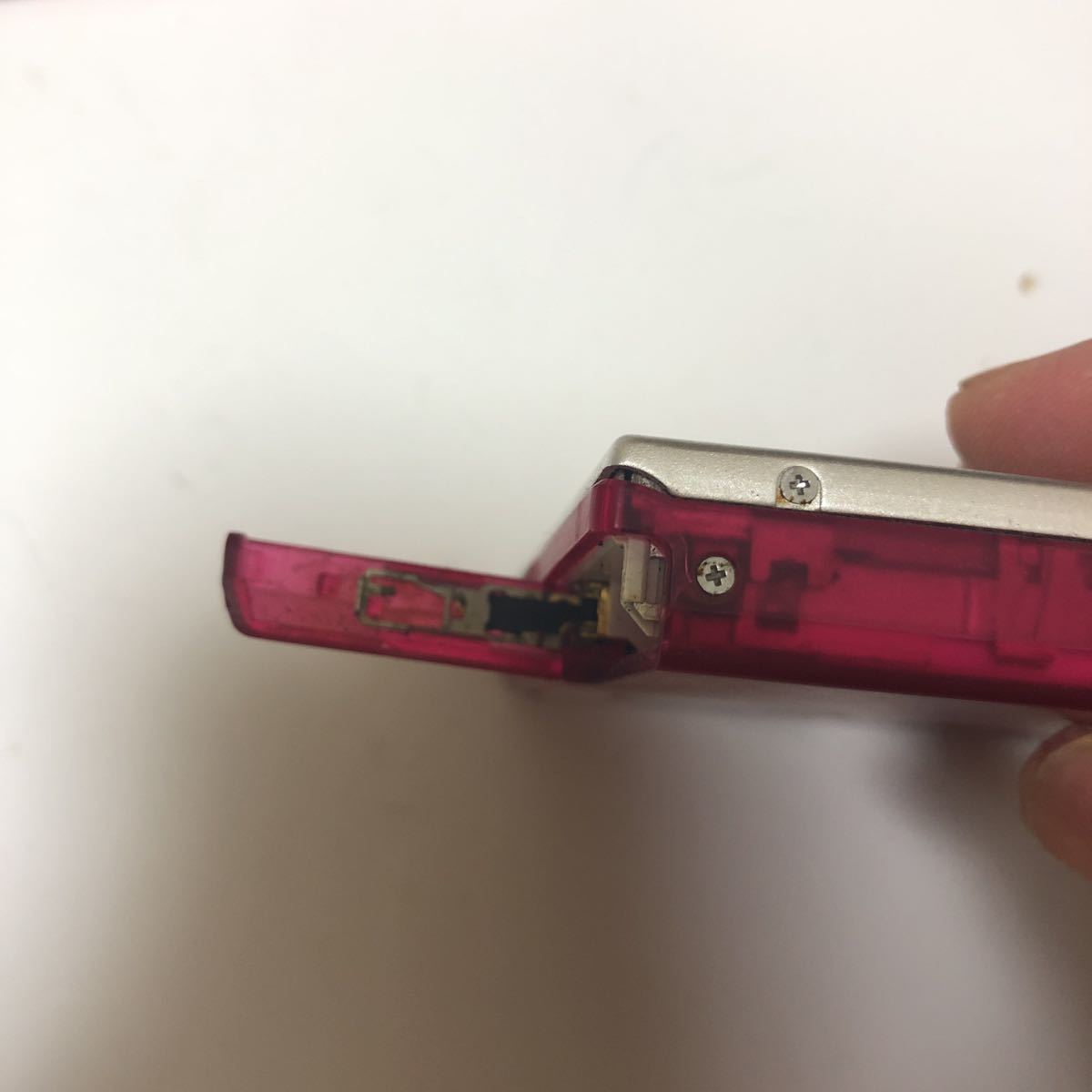

The exterior is all plastic. The bottom plate is translucent, which makes the player look like iMac G3. However, despite the translucent back, the internals (circuit board and optical pickup) are hidden behind reflective film placed between the back plate and the circuit board. That reflective film can be removed without affecting the functionality of the device. This changes the aesthetics of the player quite a bit as you can see electronics and moving parts inside the player as it plays disks :-P — image unavailable in this snapshot

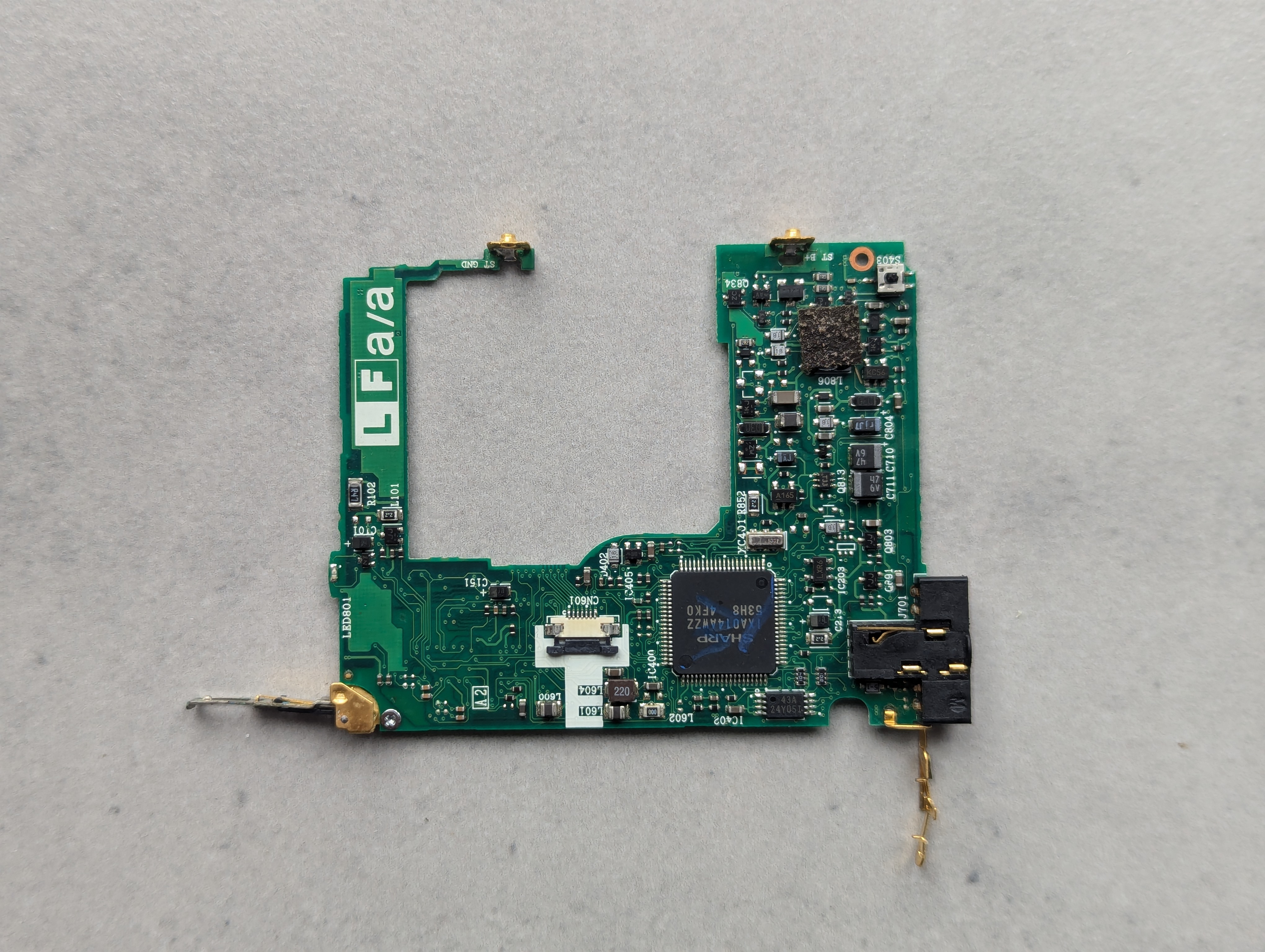

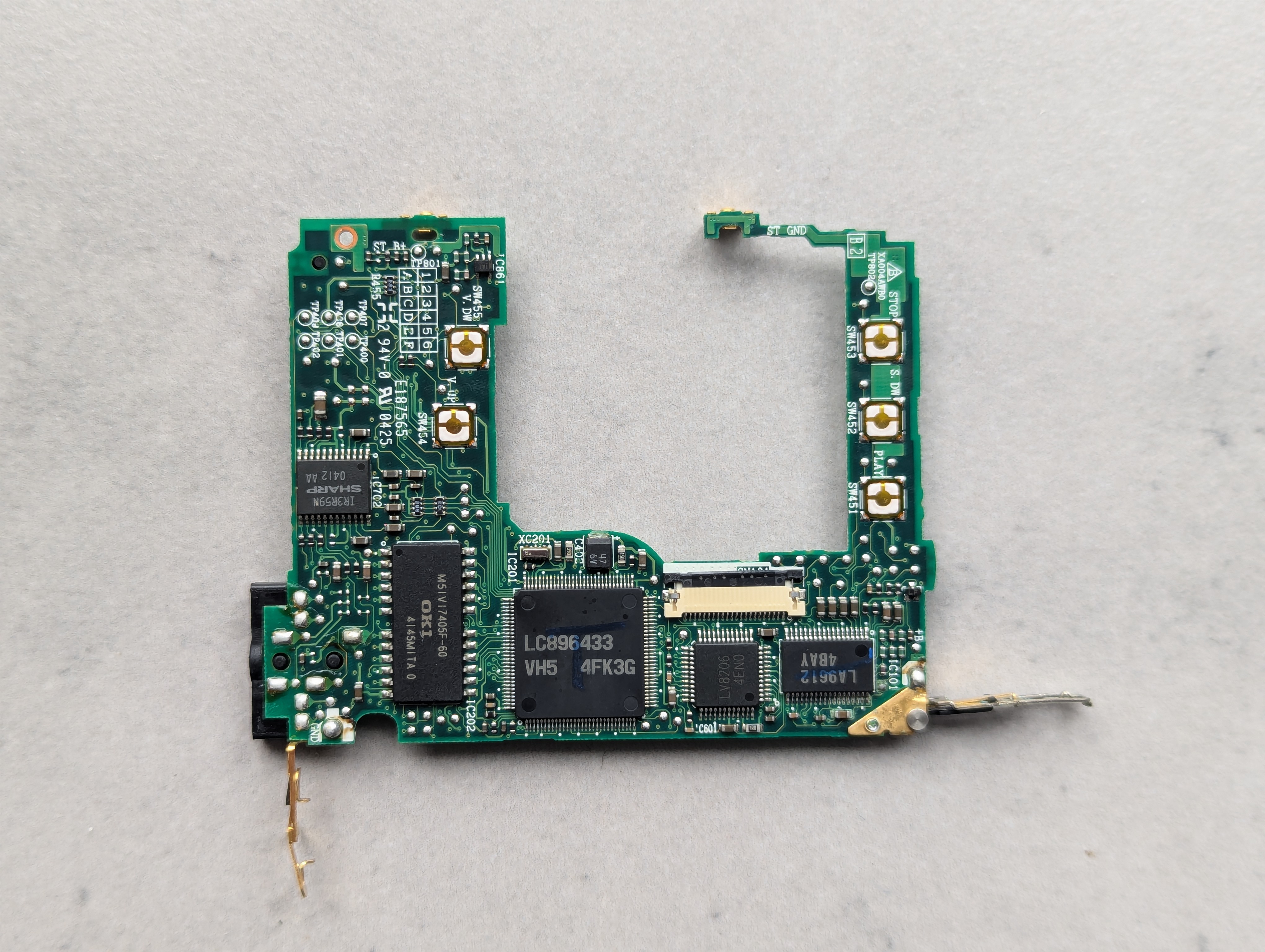

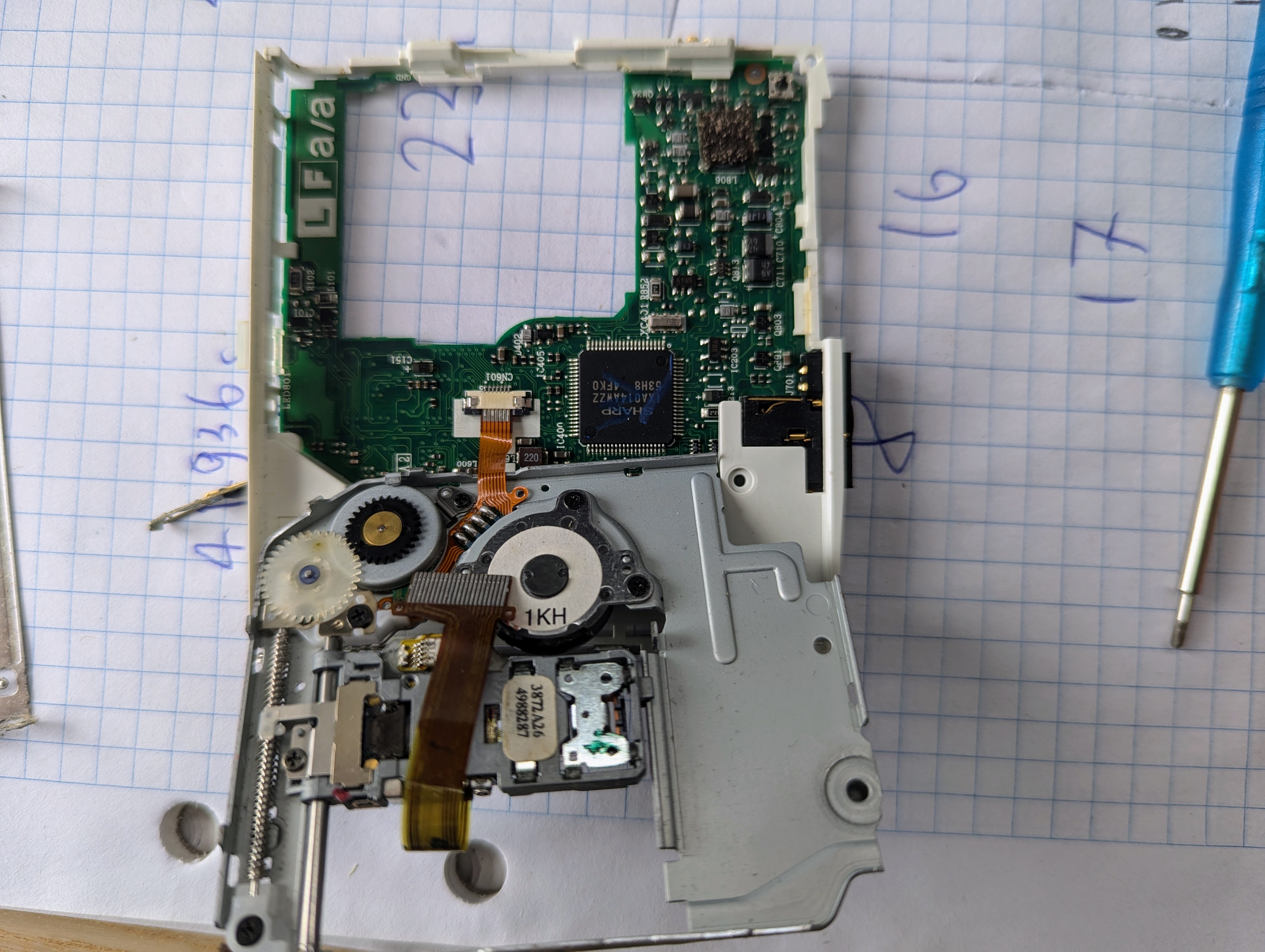

Photos of the circuit board:

Despite all plastic exterior, the optical pickup mechanism is solidly built on a metal plate. And it is very quiet too! There are two flex cables that connect the pickup mechanism with the circuit board.

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualUser manual
RegionJapan
