| Name | MD-ST77 |
|---|---|
| Manufacturer | Sharp |
| Released | 2000/12 |
| Device type | portable |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 78 x 71 x 12.7mm |
| Weight | 93g |
| ATRAC ver | Sharp 4 |
| Battery | Not recorded AD-N55BT |
| Battery notes | Not recorded |
| Sidecar (depr) | 1xAA |
| Voltage | 1.2, 1.5, 5 |
| Power cable | Center positive |
| Price (launch) | Not recorded |
| ¥35 000 | |
| - | |
| Inputs | N/A |
| Outputs | 3.5mm headphone |
| Control | Not recorded |

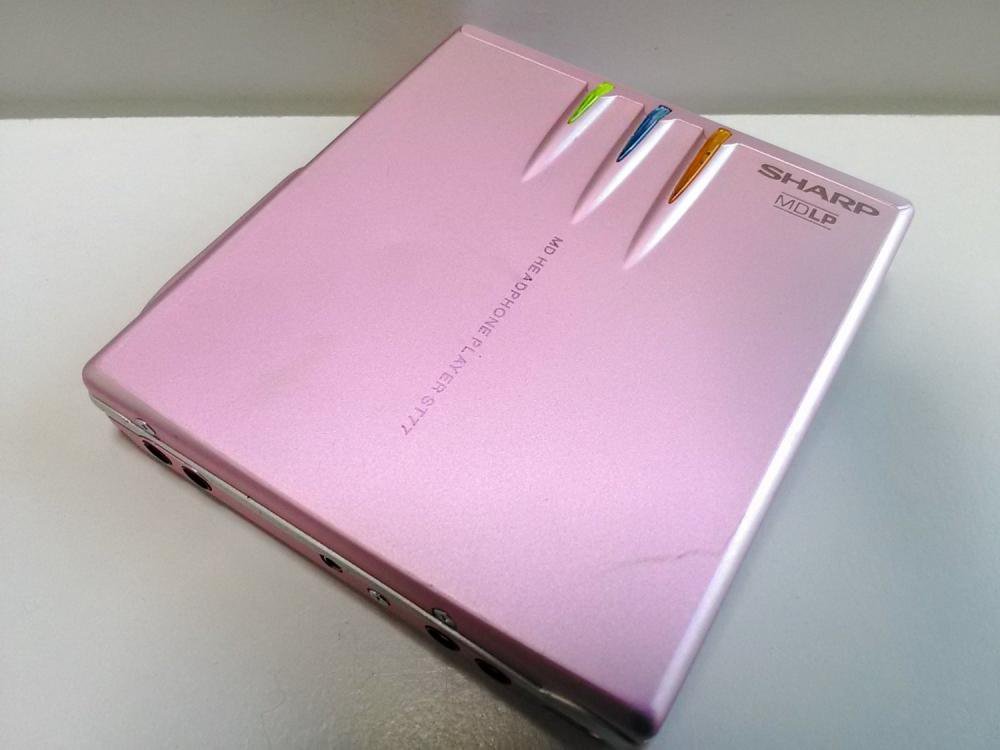

Available in sharp and shiny "silver", and pastel colors "blue" and "pink".

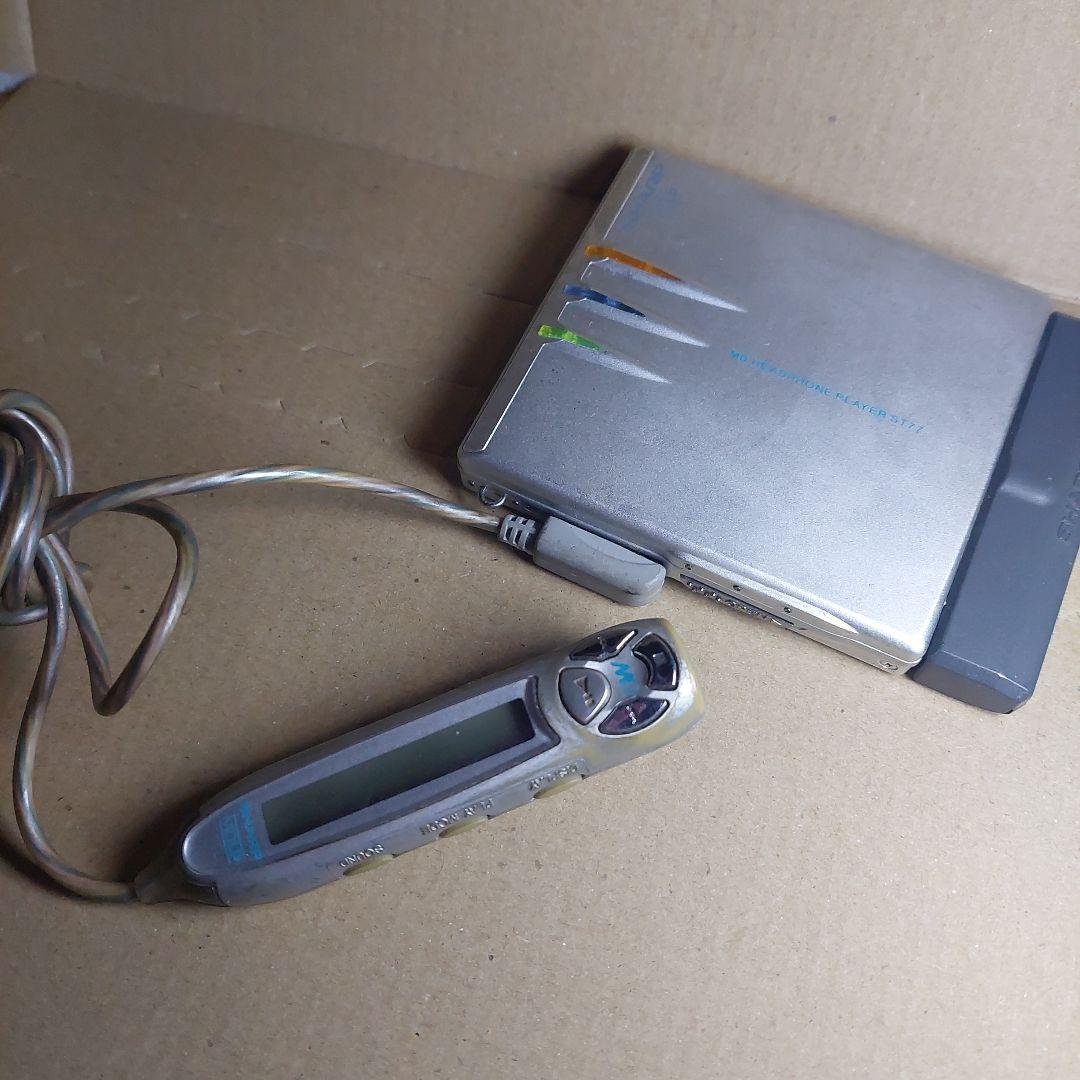

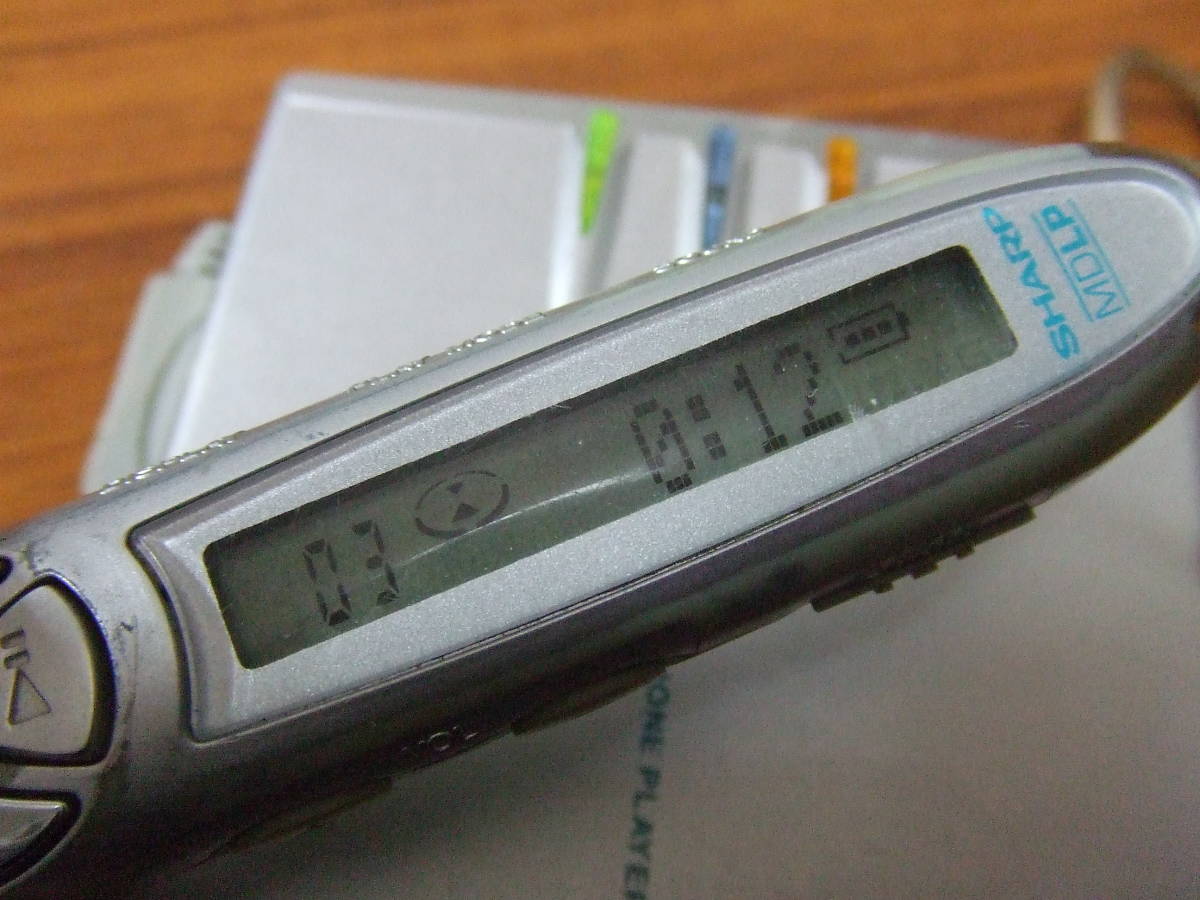

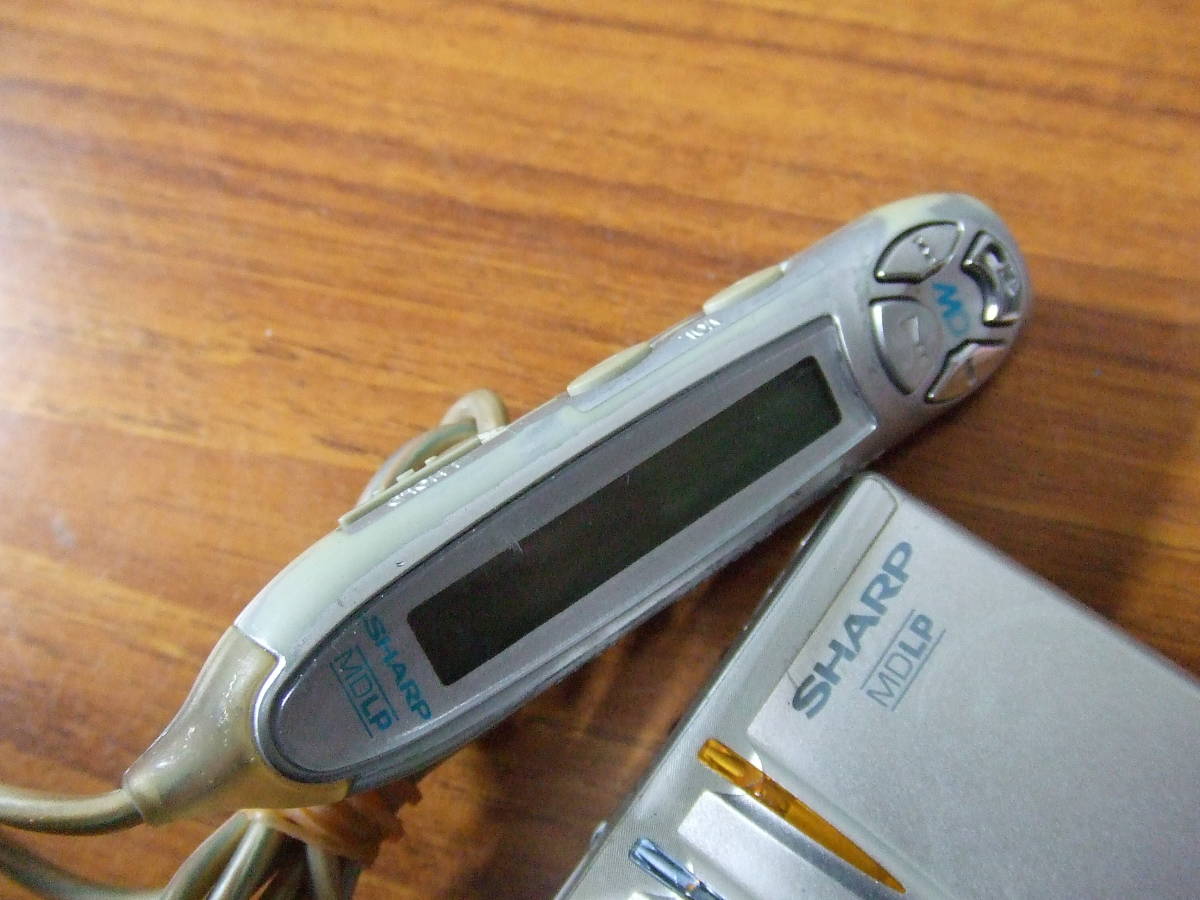

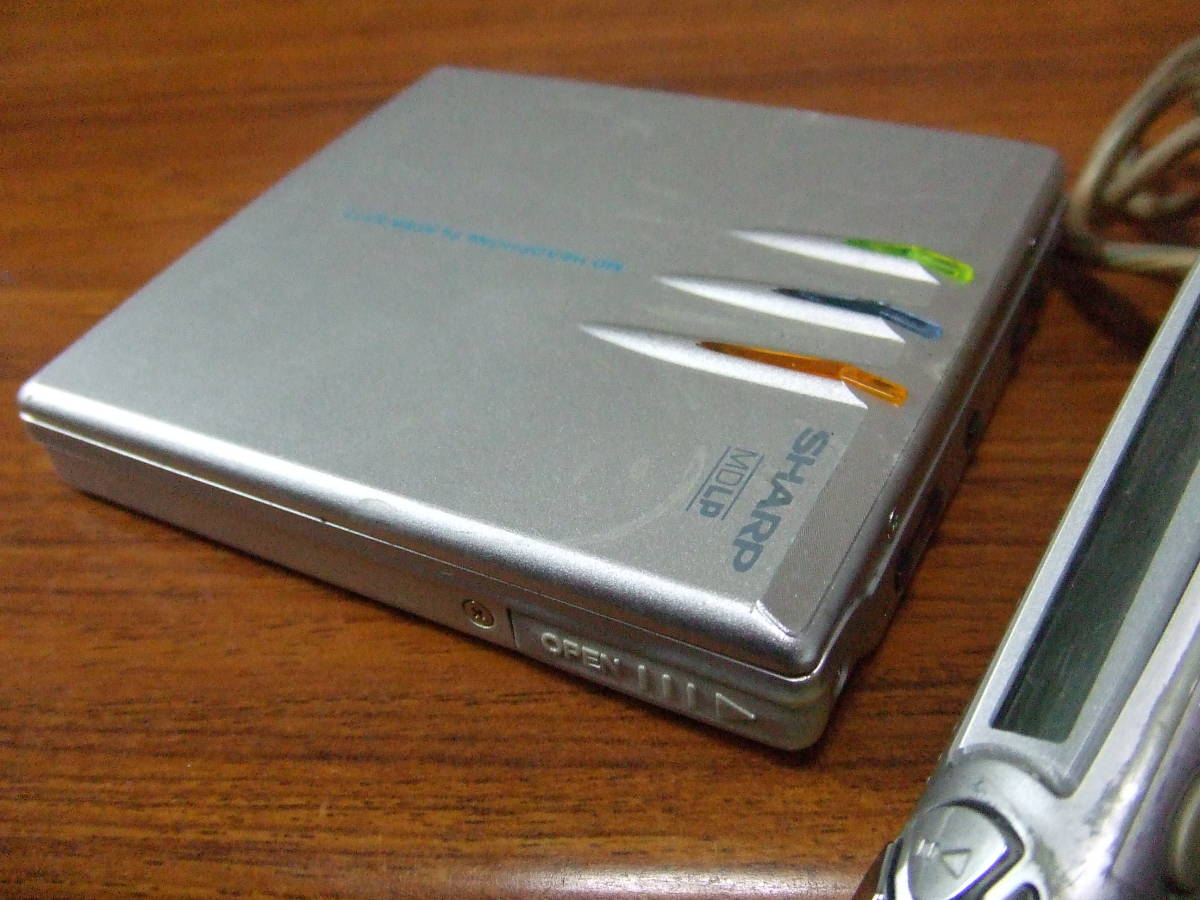

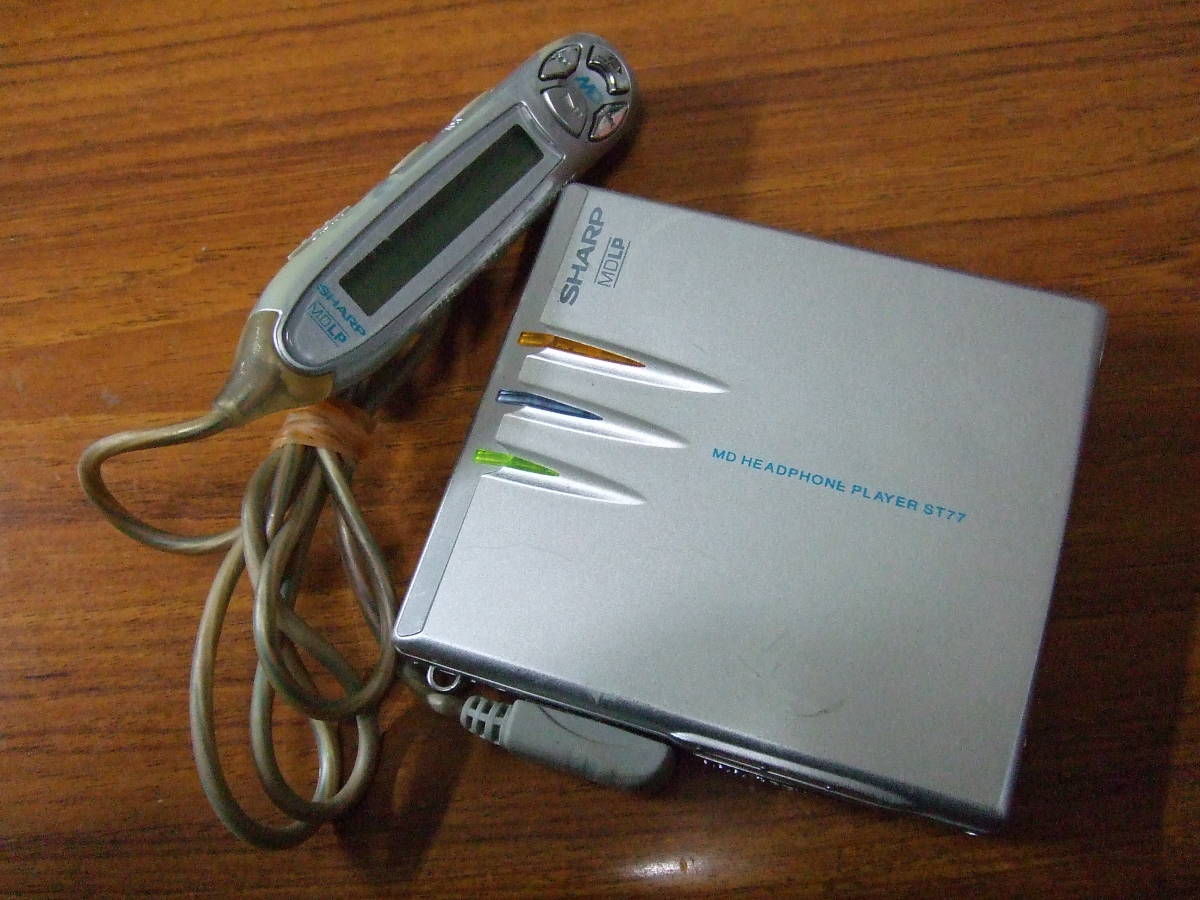

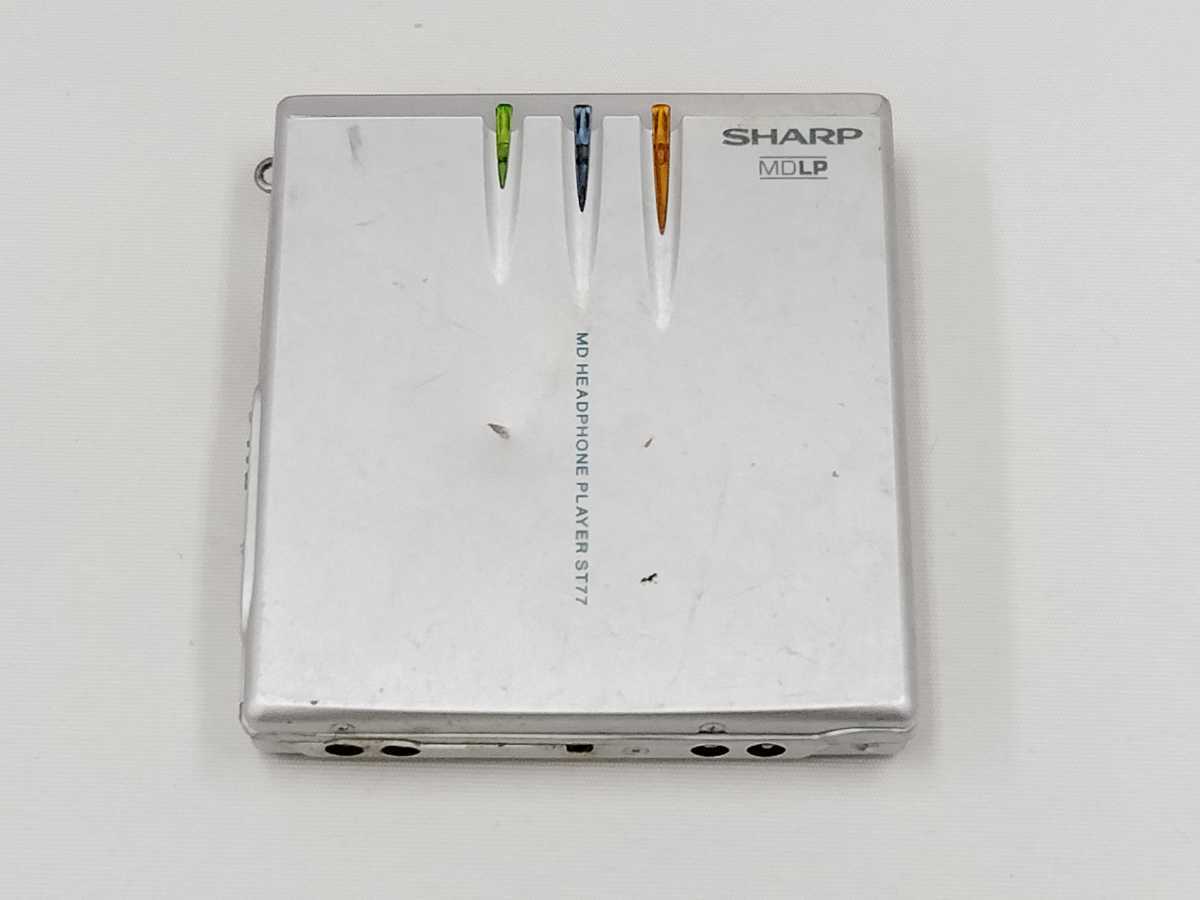

Features: Three different-colored LEDs indicate the current play mode the MD is in (SP, LP2, LP4). Battery recharges in charge stand, backlit LCD remote (4 pin connector on either side of 3.5mm jack, keyed to fit one way,) 40-second anti-shock protection (provides 160-second protection in LP4 mode).

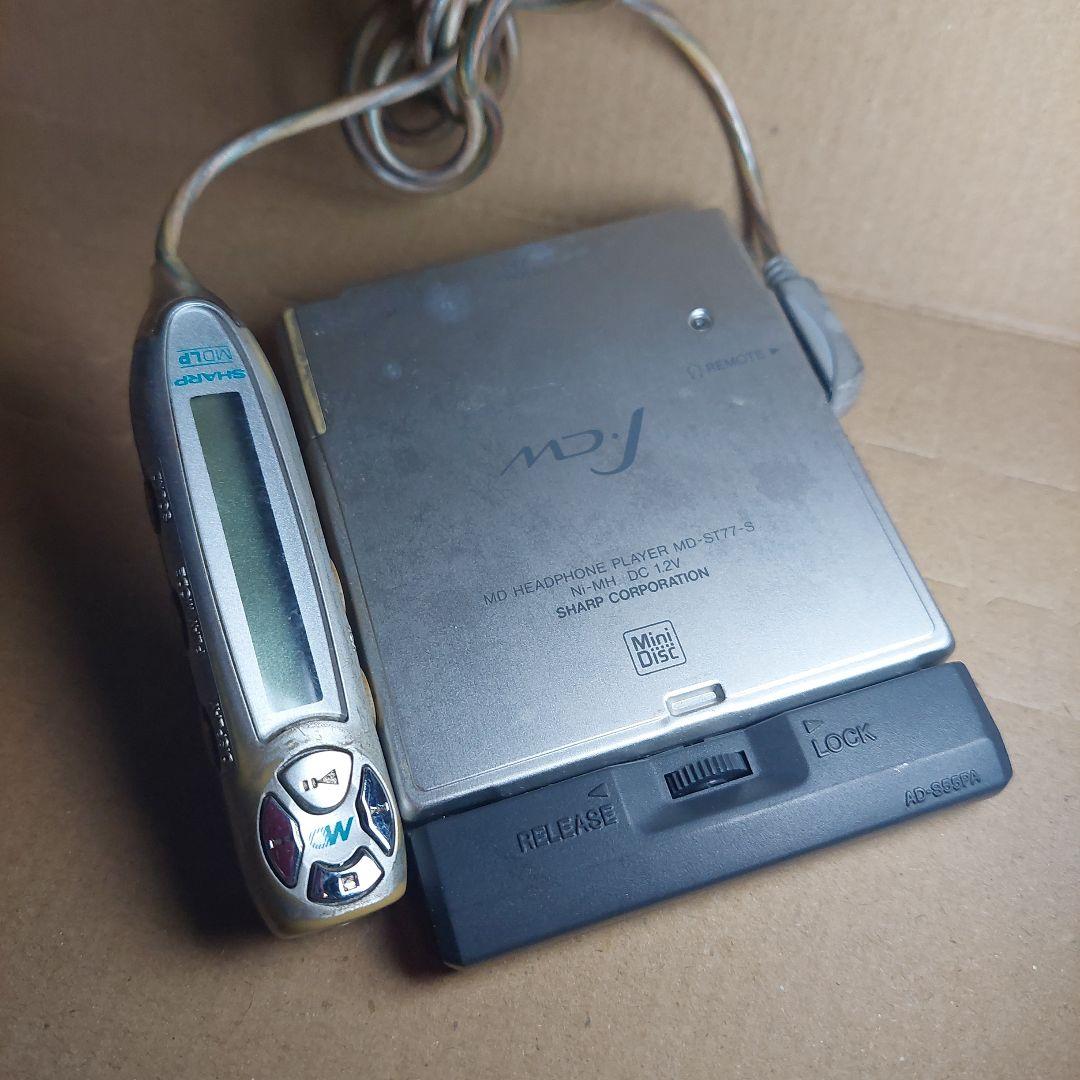

Charging dock exists, accepts standard 5V center-positive DC. Control buttons on player: volume +/-, hold/power, track skip/reverse.
Content adapted from: Sharp product page (Japanese, Archived) Details Page Details Page (MiniDisc Wiki mirror) Minidisc.org page image source
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
