Sharp MD-ST880

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Sharp
Model / source grouping
MD-ST880
Device type
portable
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sharp MD-ST880”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

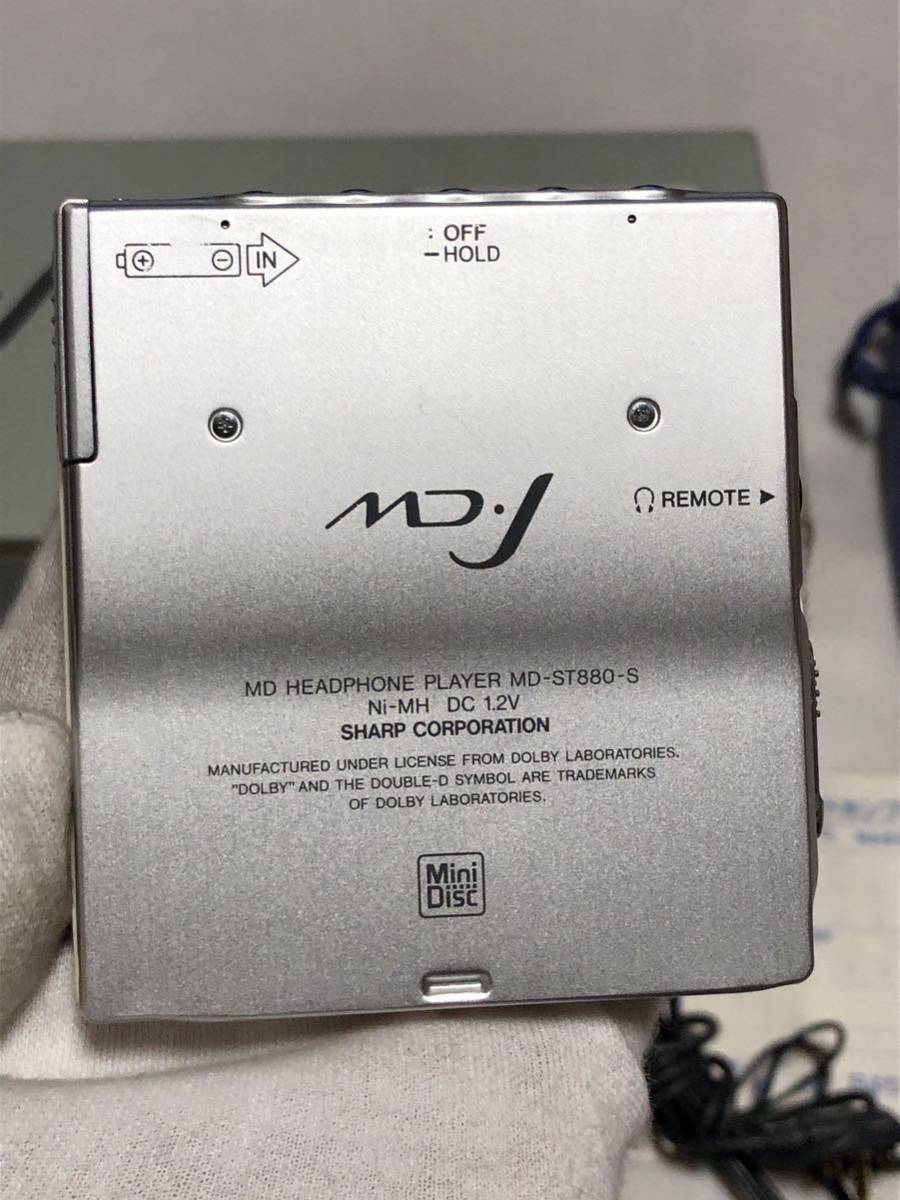

Name MD-ST880
Manufacturer Sharp
Released 2001/08
Device type portable
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio No
Dimensions 71.0 x 12.9 x 77.7mm
Weight 71g (96g w/battery)
ATRAC ver Not recorded
Battery Not recorded "Gumstick"
Battery notes Not recorded

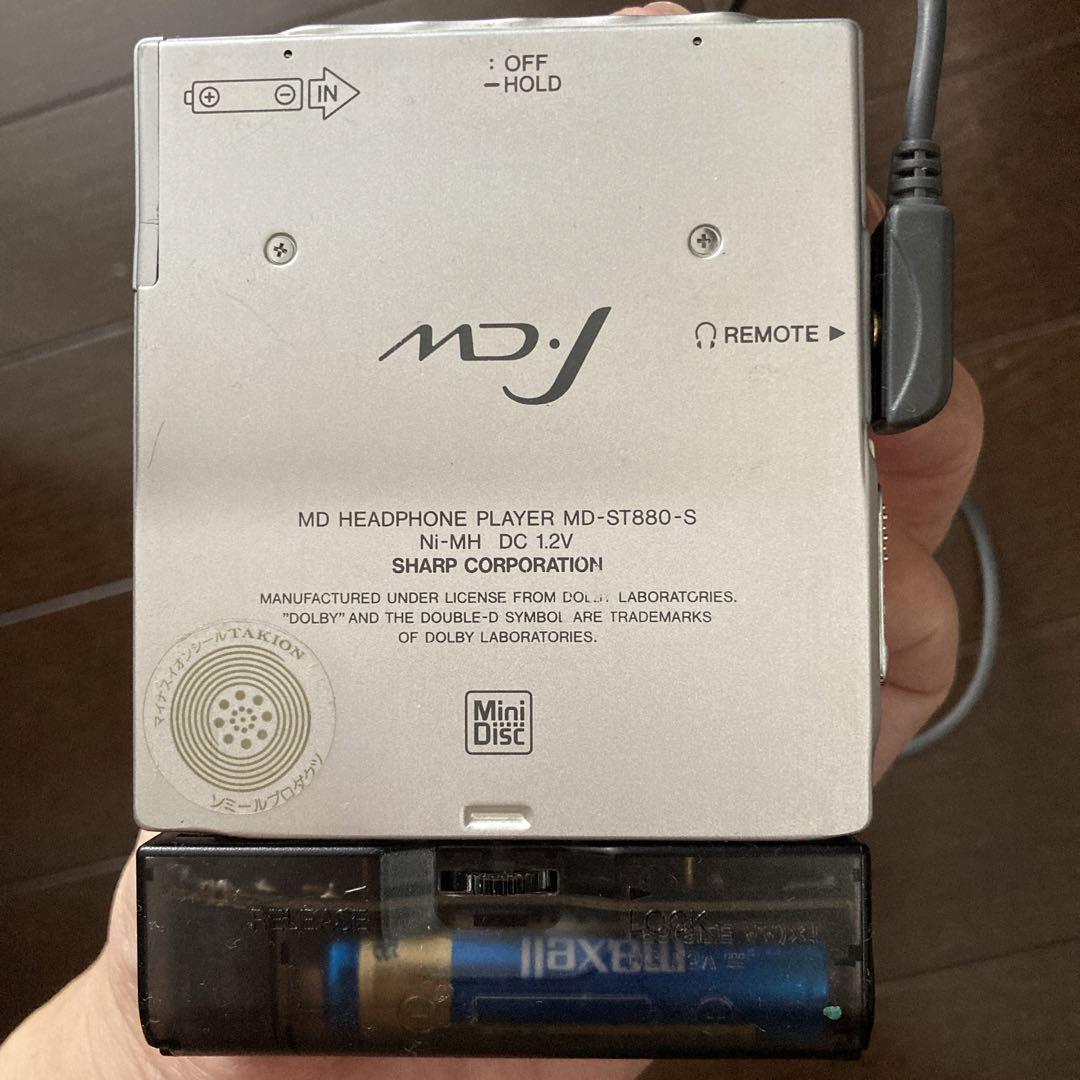

Sidecar (depr) 1xAA
Voltage 1.2, 1.5, 5
Power cable Not recorded
Price (launch) Not recorded
¥28 000
-
Inputs N/A
Outputs 3.5mm headphone
Control Not recorded

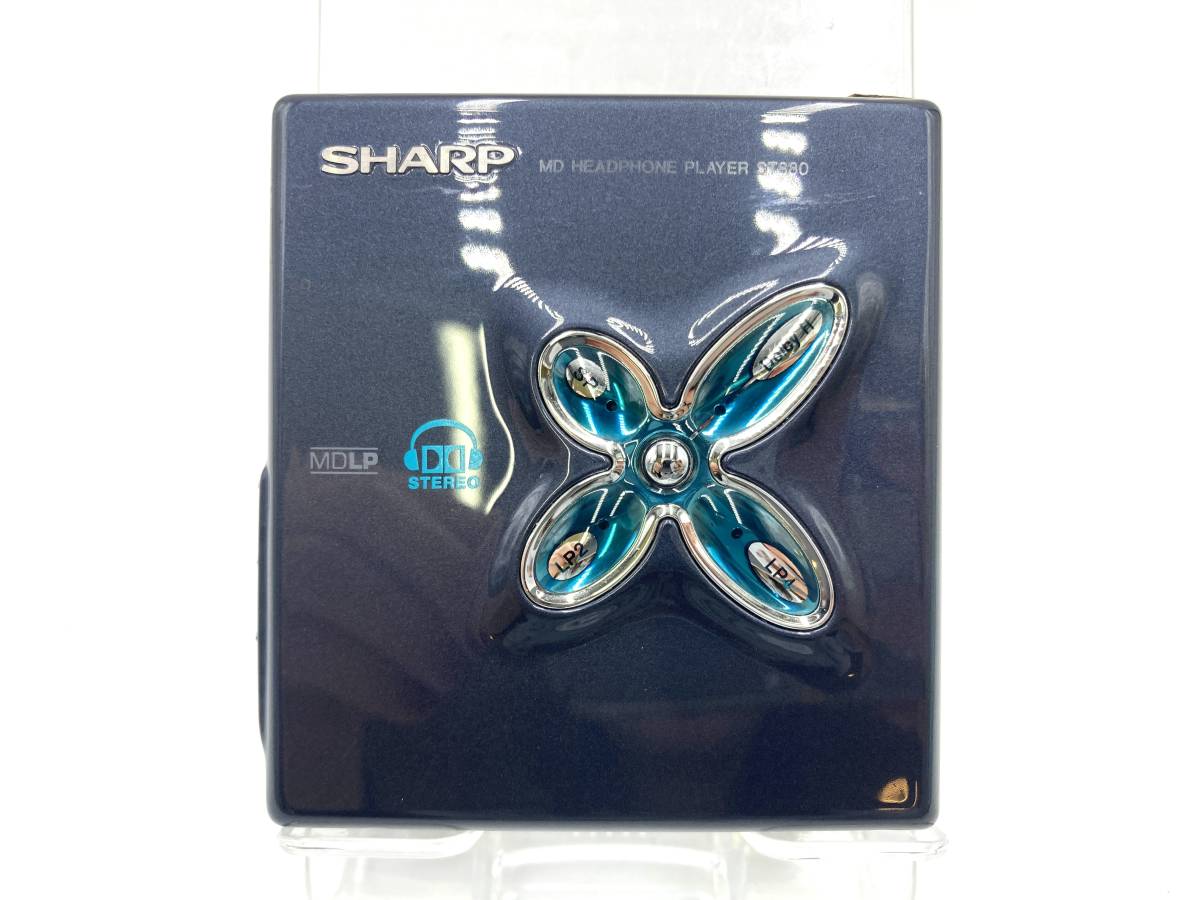

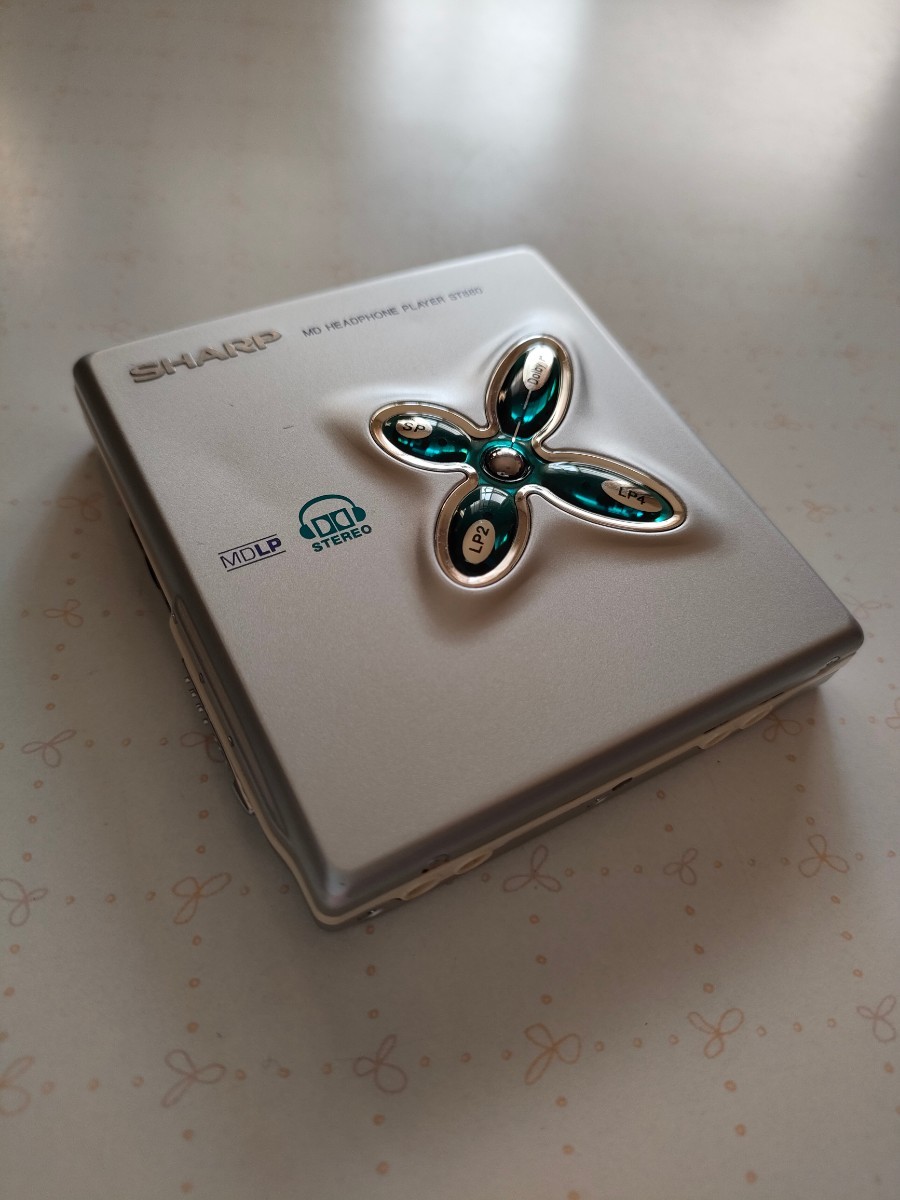

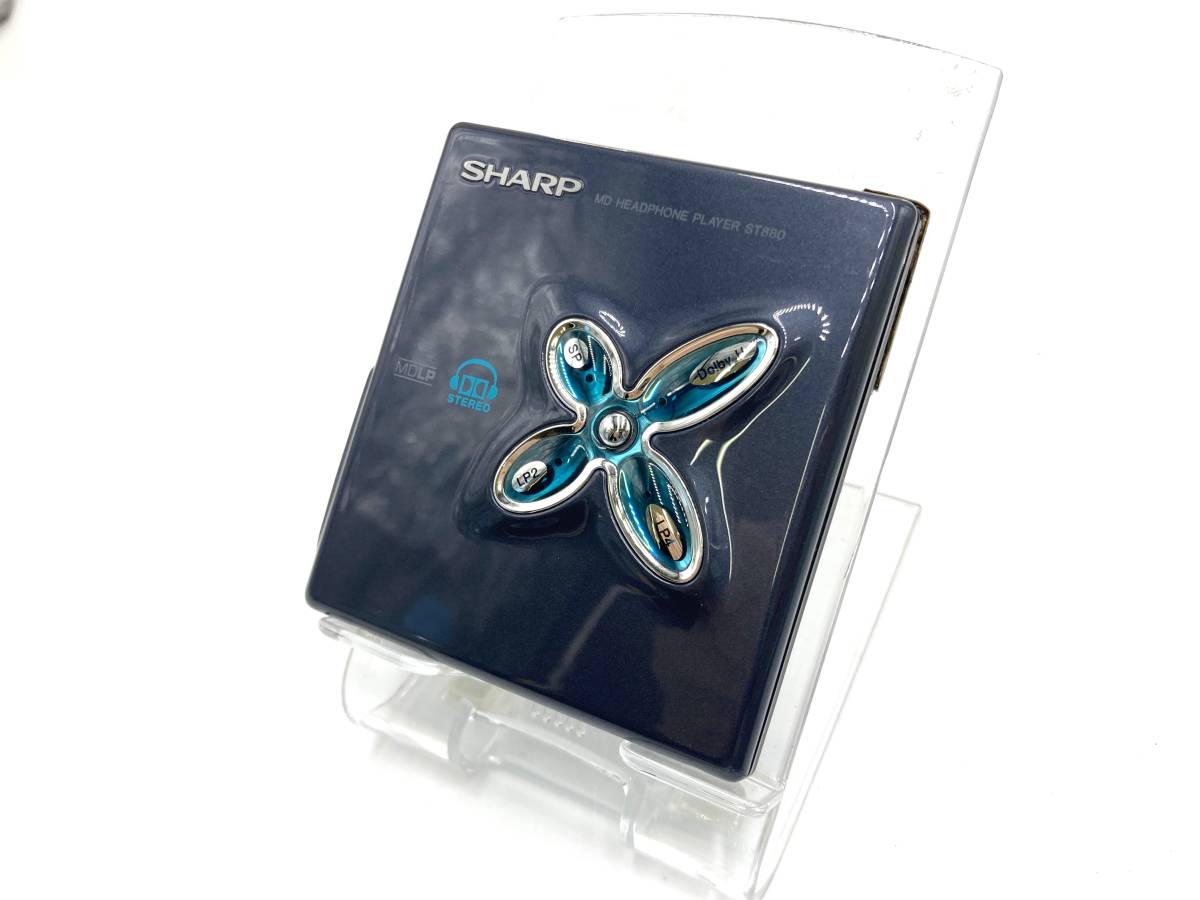

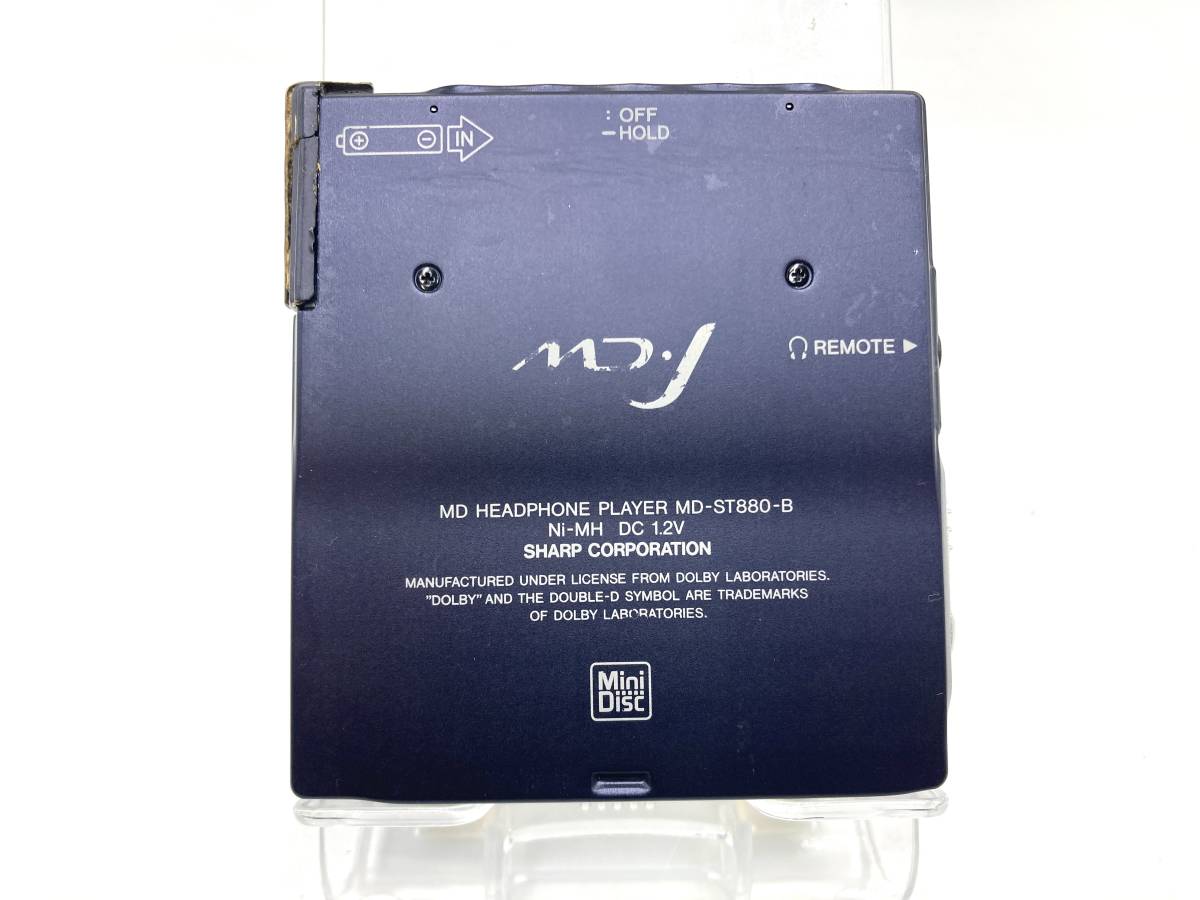

Available in MD-ST880-S Silver and MD-ST880-B Black.

Features:

  • MDLP with Group mode support.
  • First to include Dolby Headphones Dolby Headphones (MiniDisc Wiki mirror) sound field processing system with 3 settings: "Studio" (small room), "Live" (studio size room with additional echo) and "Dome" (large hall). Headphone part# HP-MD70

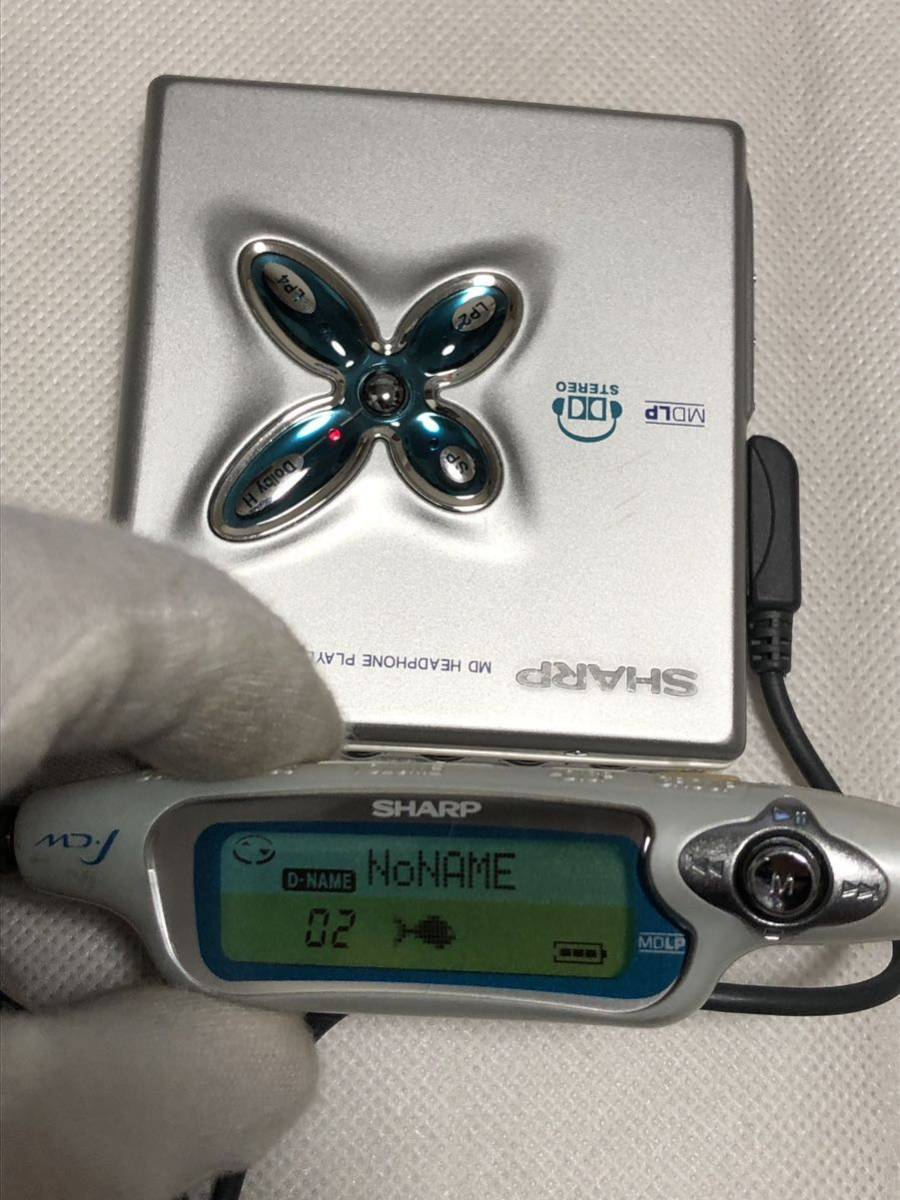

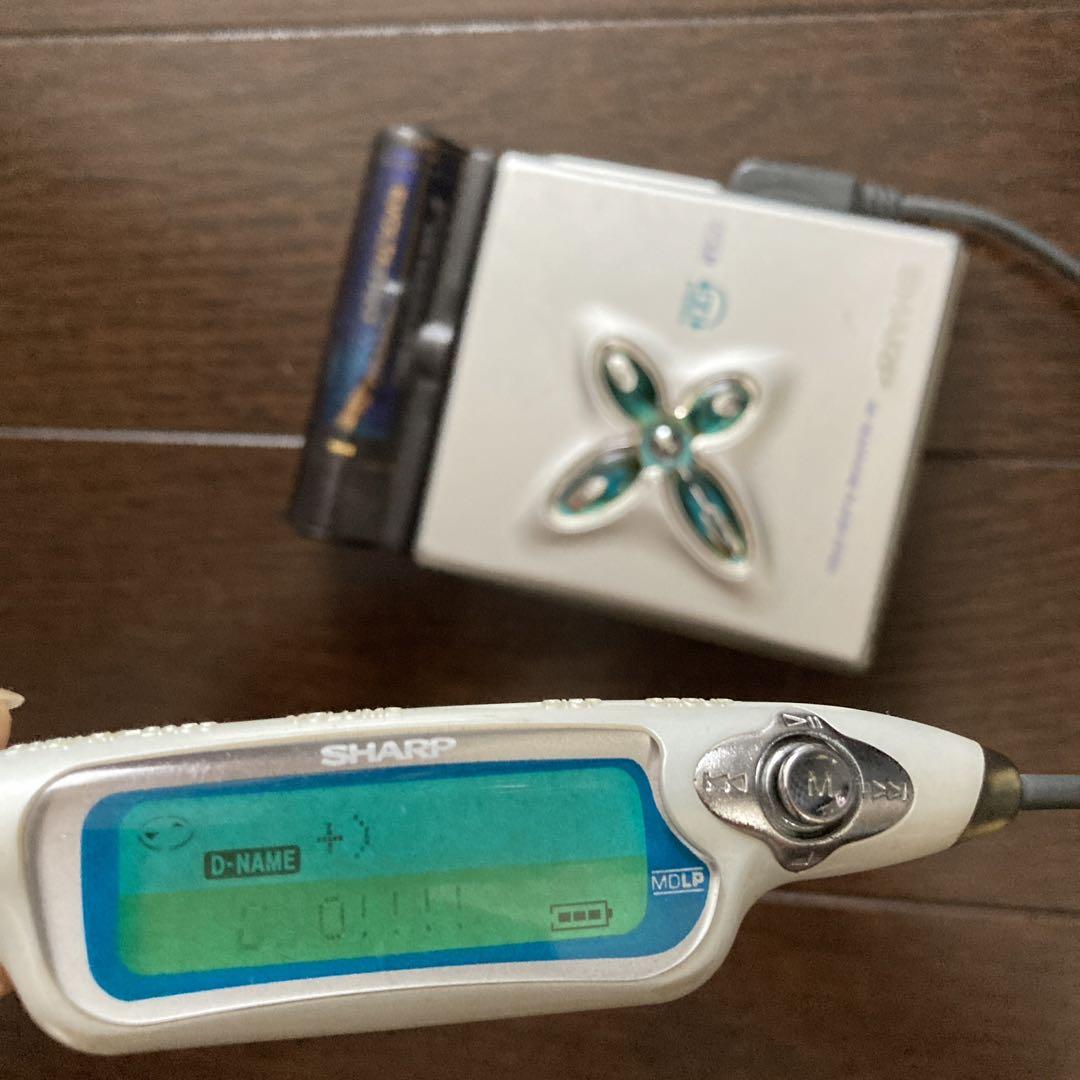

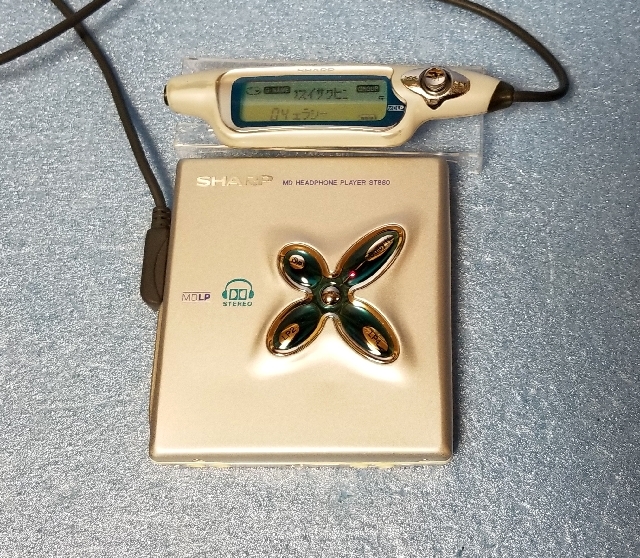

  • 2 line LCD on remote. "LED Navigation" system uses various colors and blink codes to represent SP, LP2, LP4, and mono playback modes.

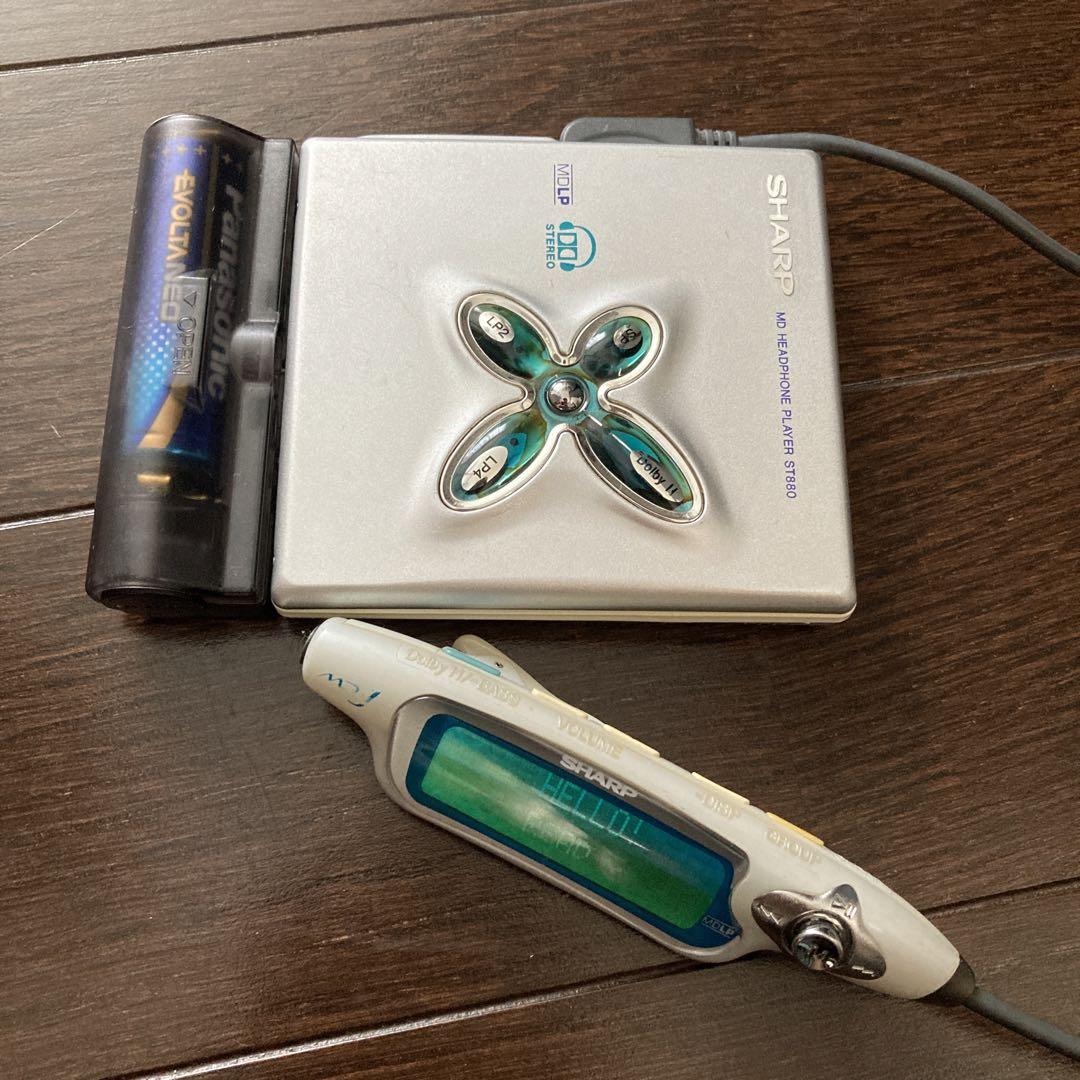

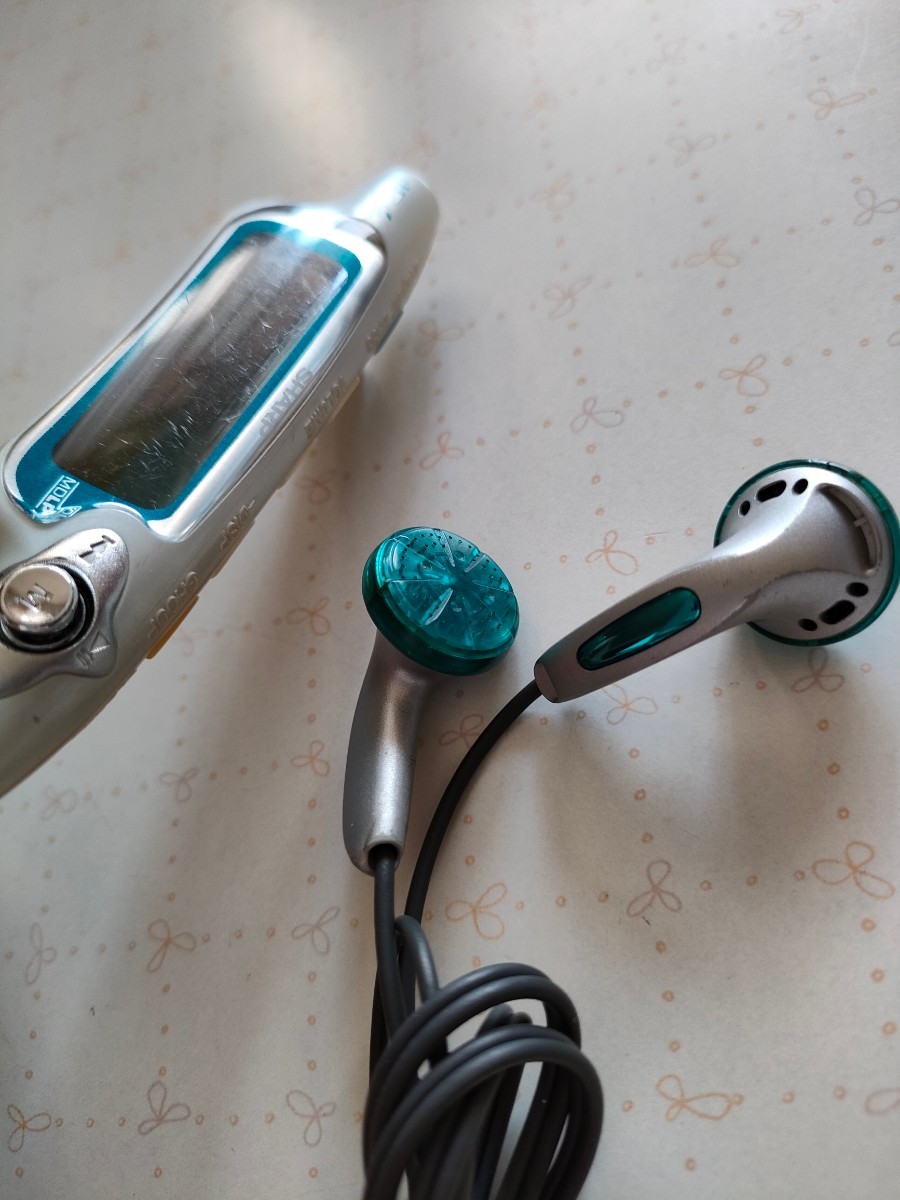

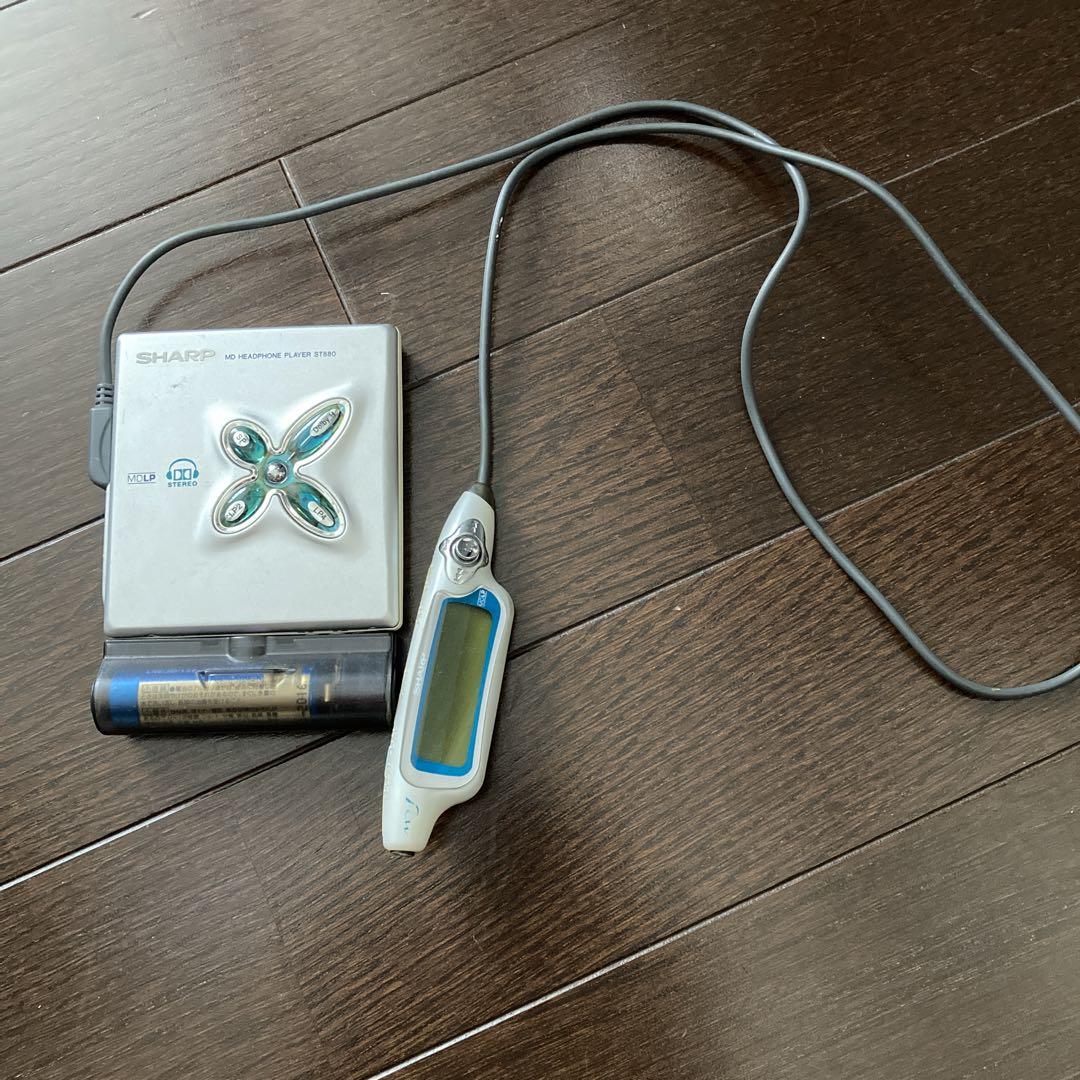

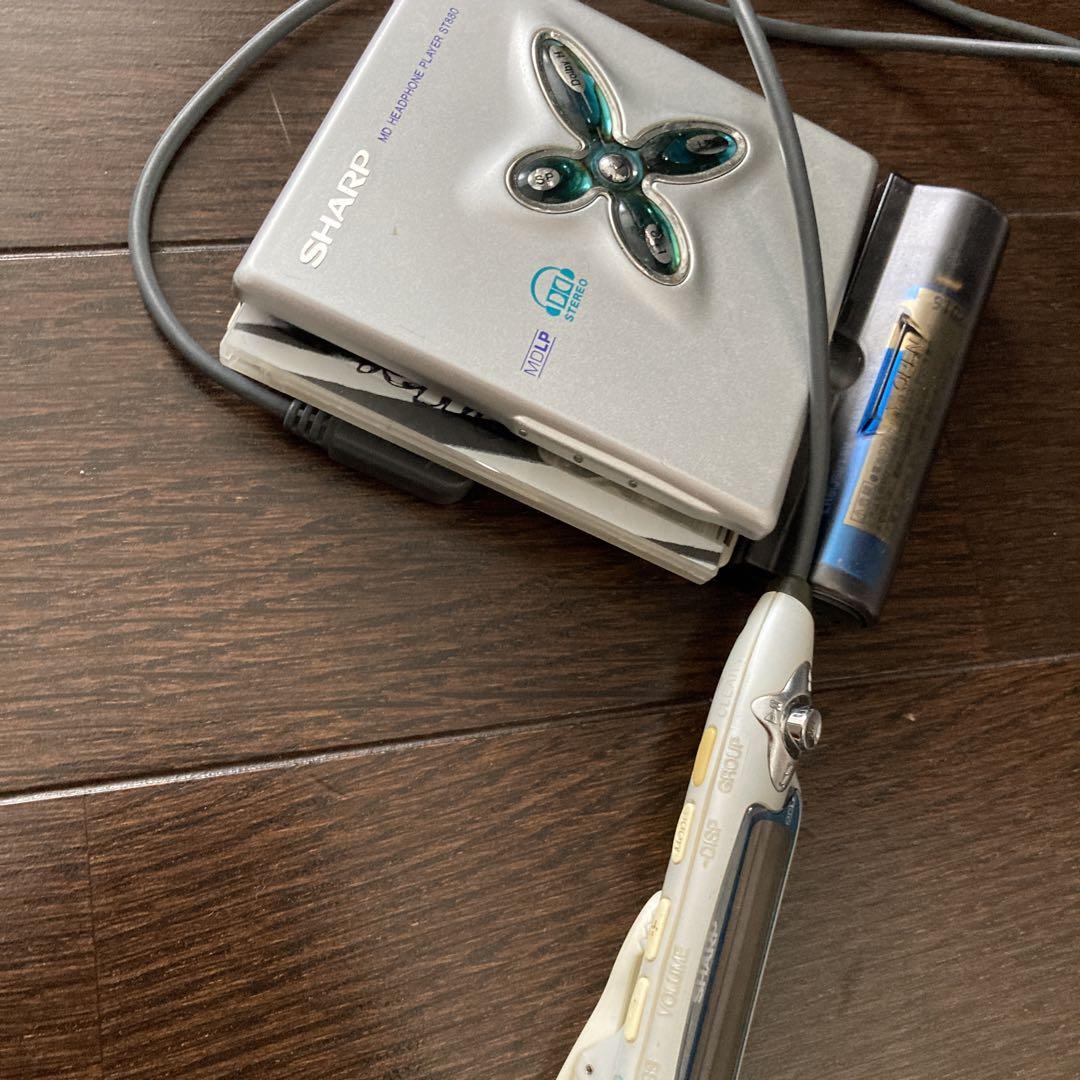

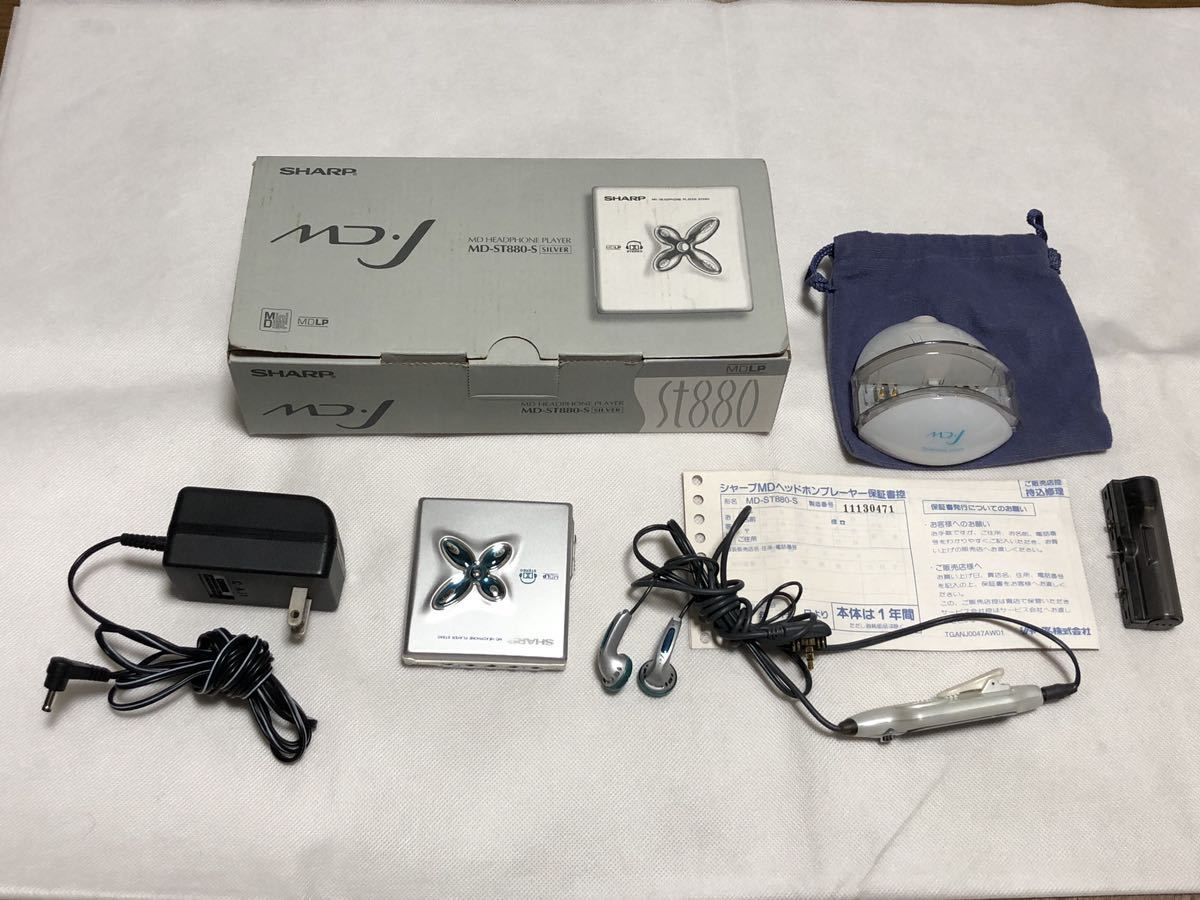

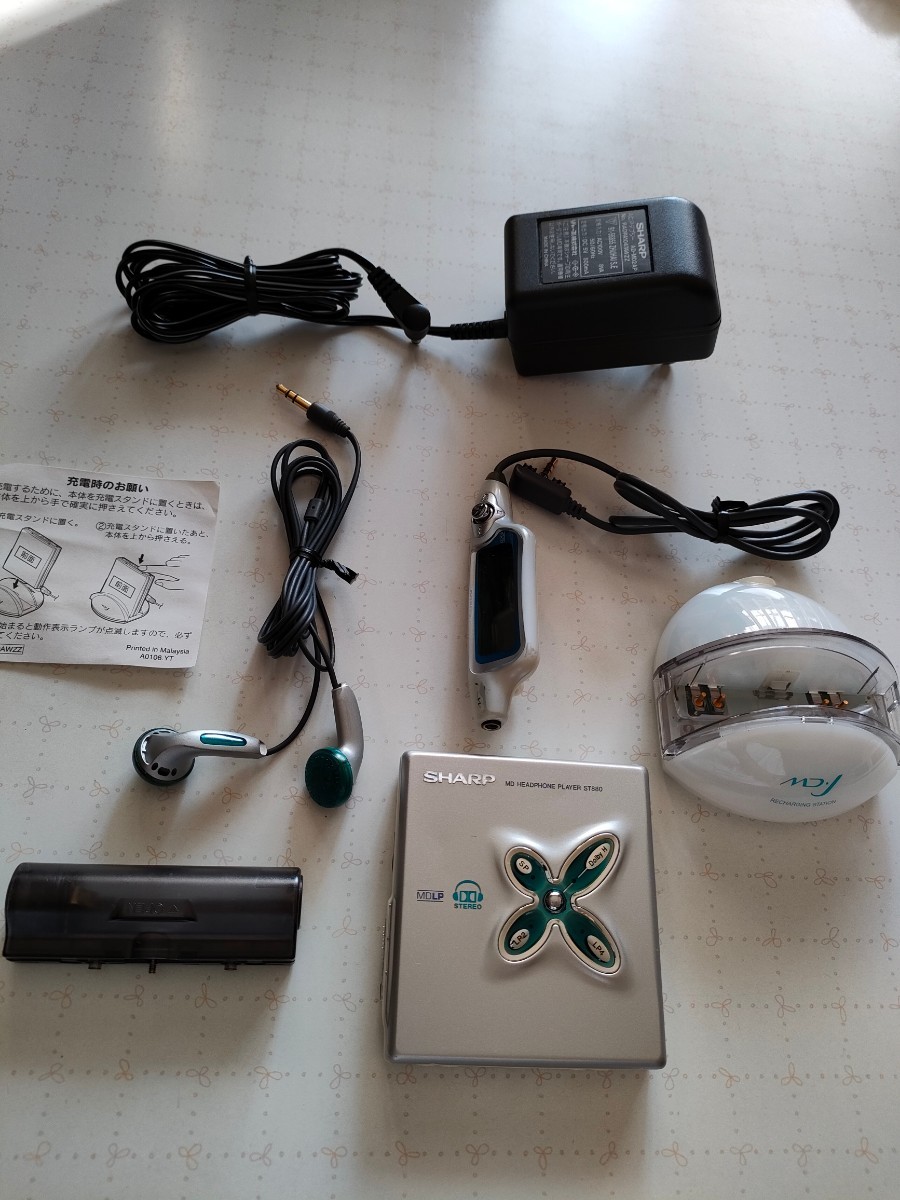

Included Accessories: LCD remote, AA battery case, headphone, recharging stand, NiMH rechargeable cell, rechargeable cell carrying case, AC adapter, carrying case, warranty card, instruction manual

Specs: Headphone amp: 5mW + 5mW, Dynamic Range: 20-20kHz +/-3dB

Atrac LSI has a 0.18μm process, uses a 22-bit arithmetic method and has 16M bit (4MB) memory. Sharp refers to it as it's "5th generation LSI" but sharp's 5th gen ATRAC encoder was released in 1997.

Content adapted from: Sharp Press Release Sharp Press Release (MiniDisc Wiki mirror) Minidisc.org page Sharp Product Page Sharp Product Page (MiniDisc Wiki mirror) image source av.watch av.watch review

Manuals

MD-ST880 User Manual JP

Repair

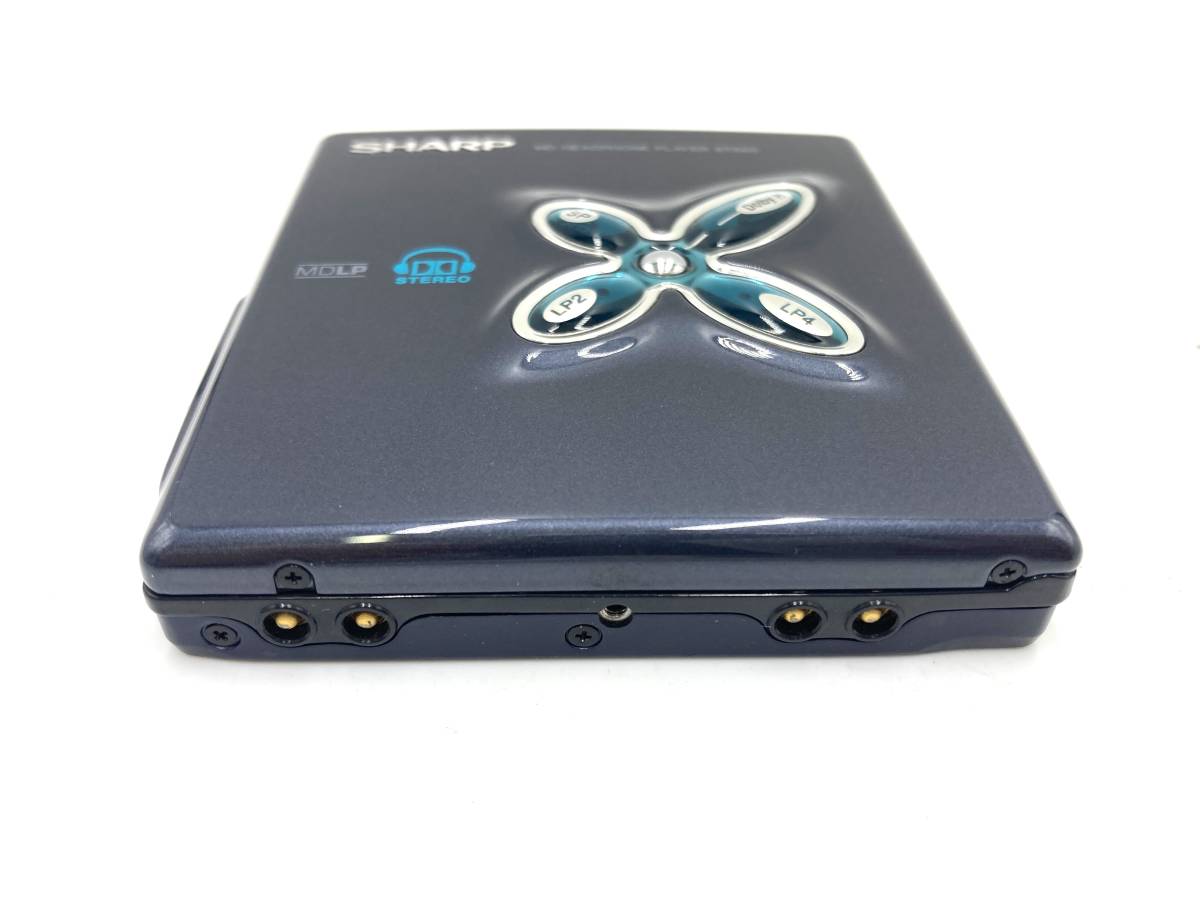

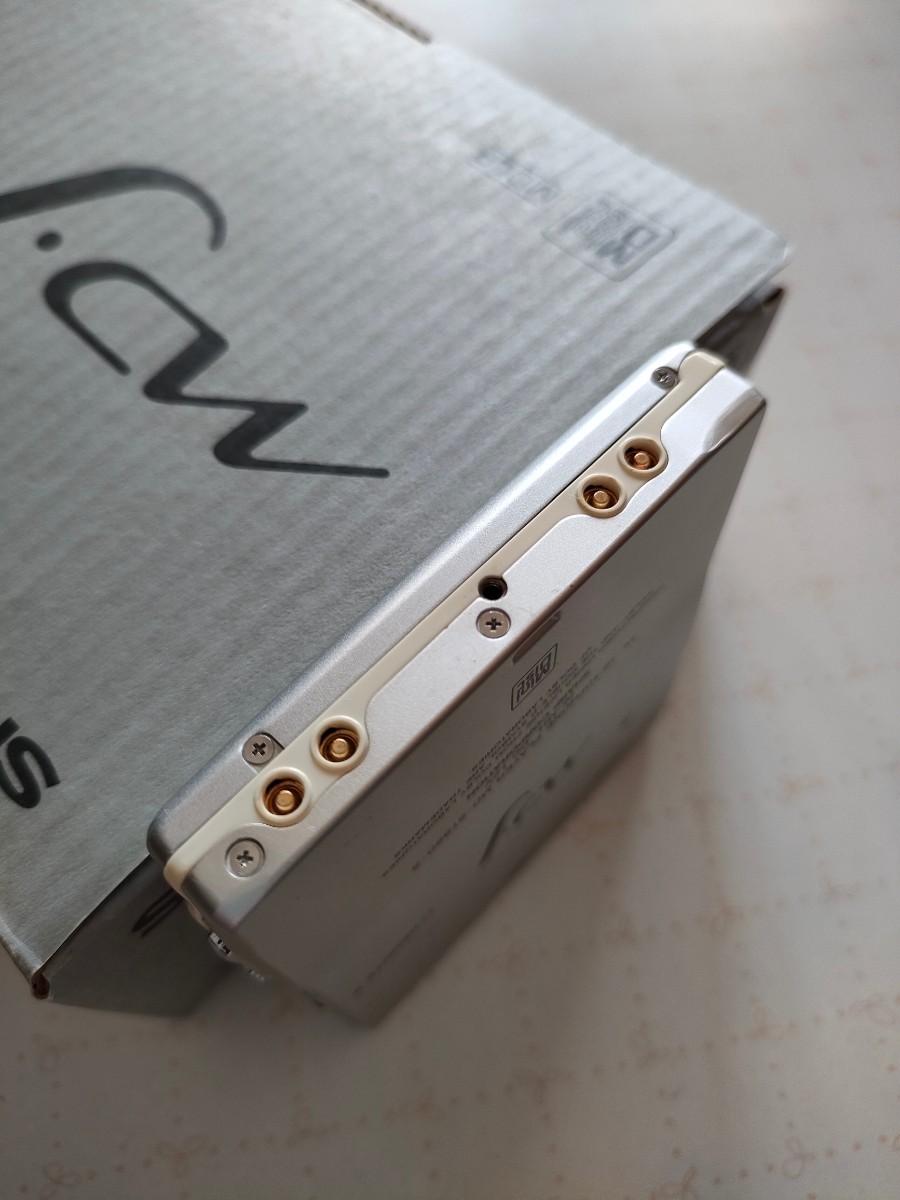

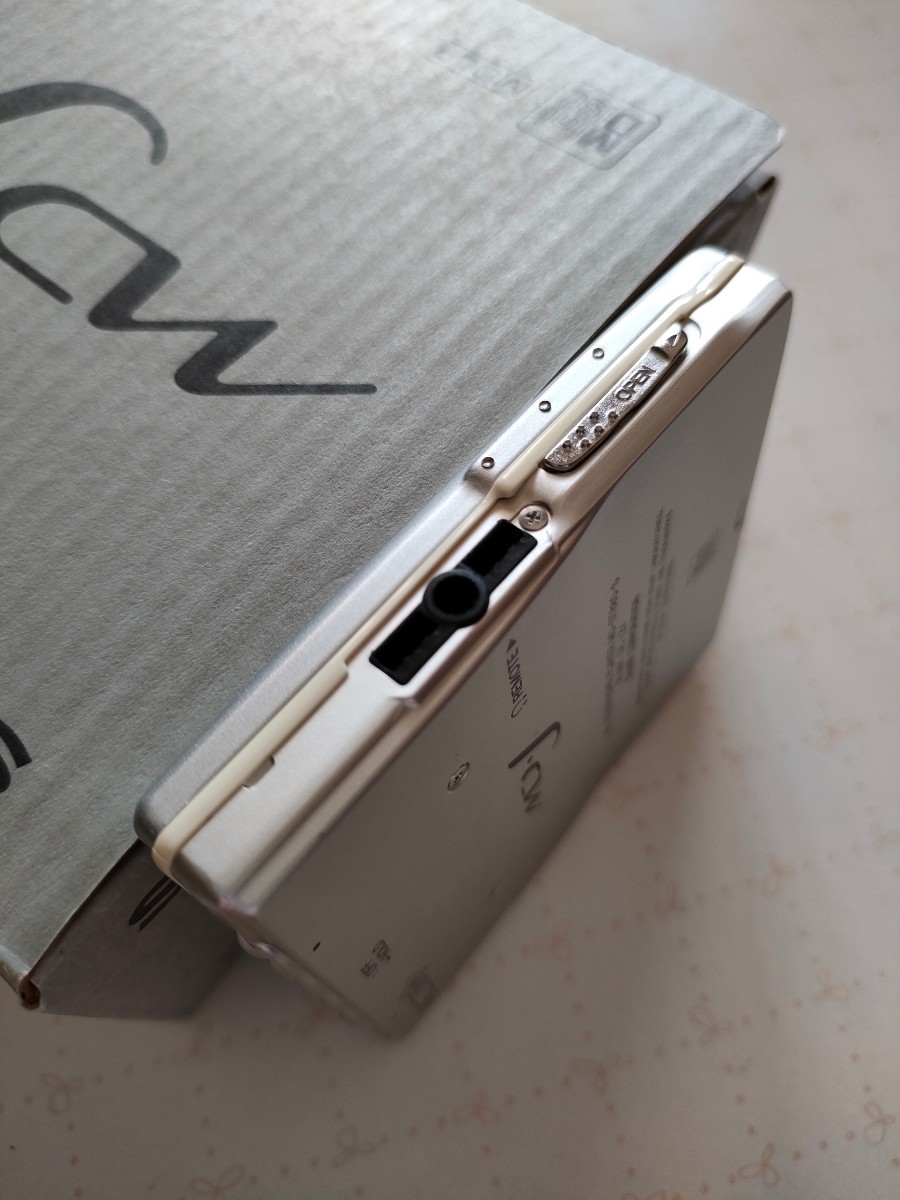

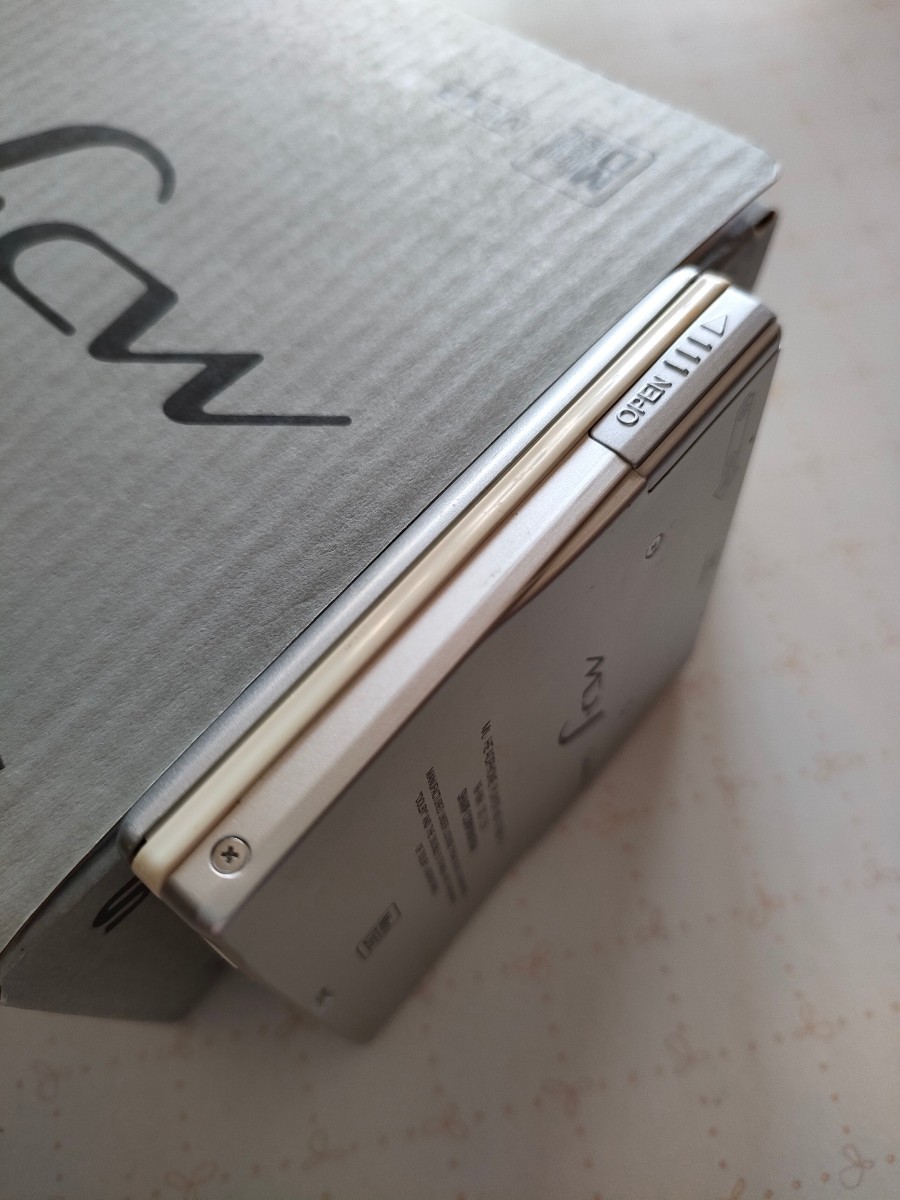

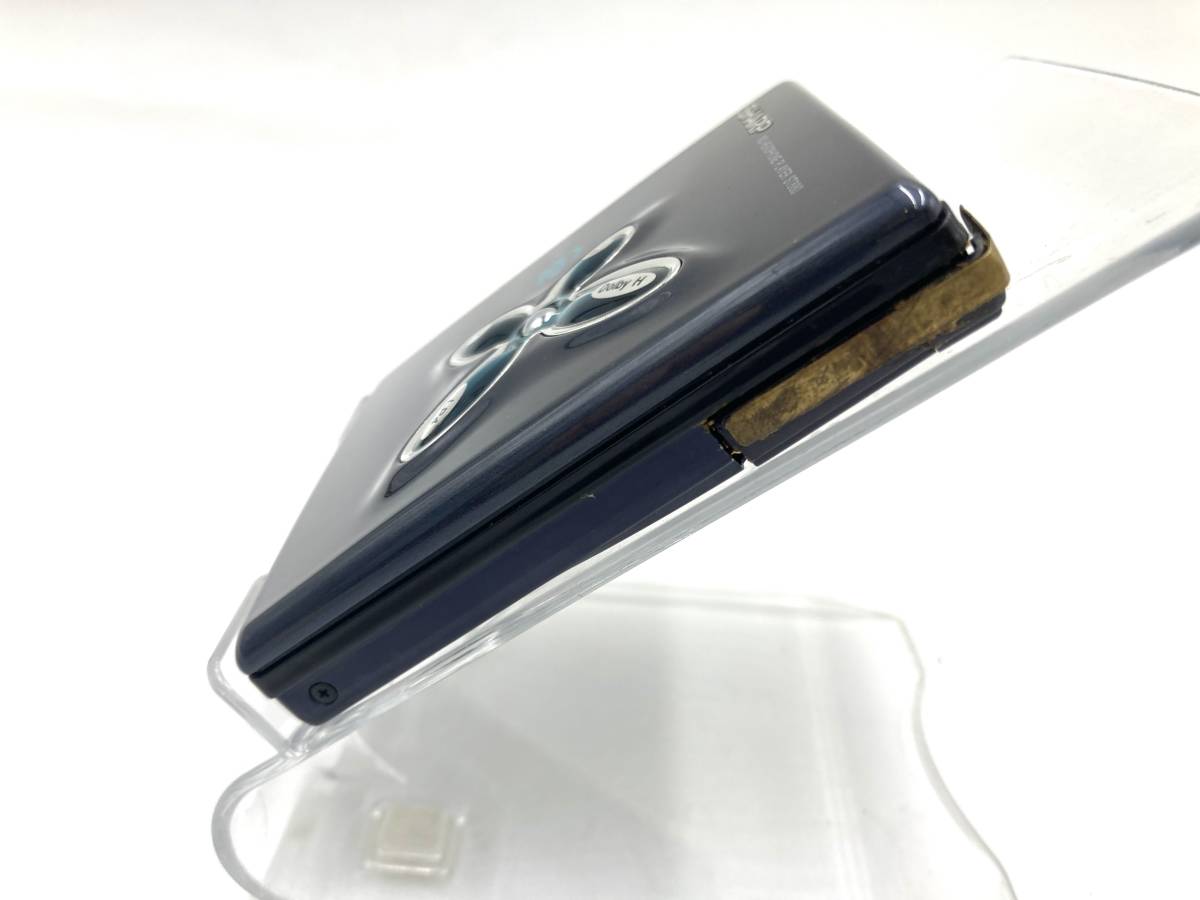

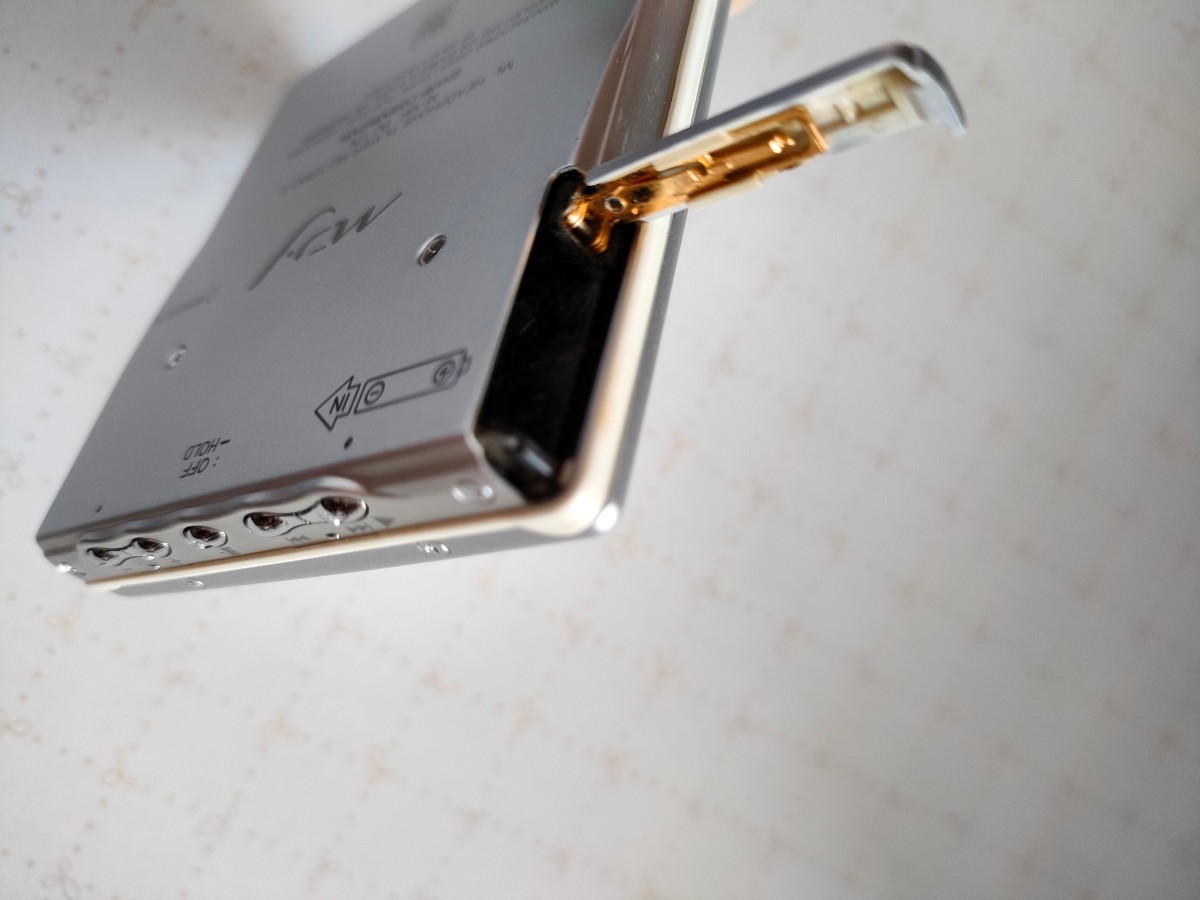

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
