| Name | MDX-C5200 |
|---|---|
| Manufacturer | Sony |
| Released | 1998/04 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |

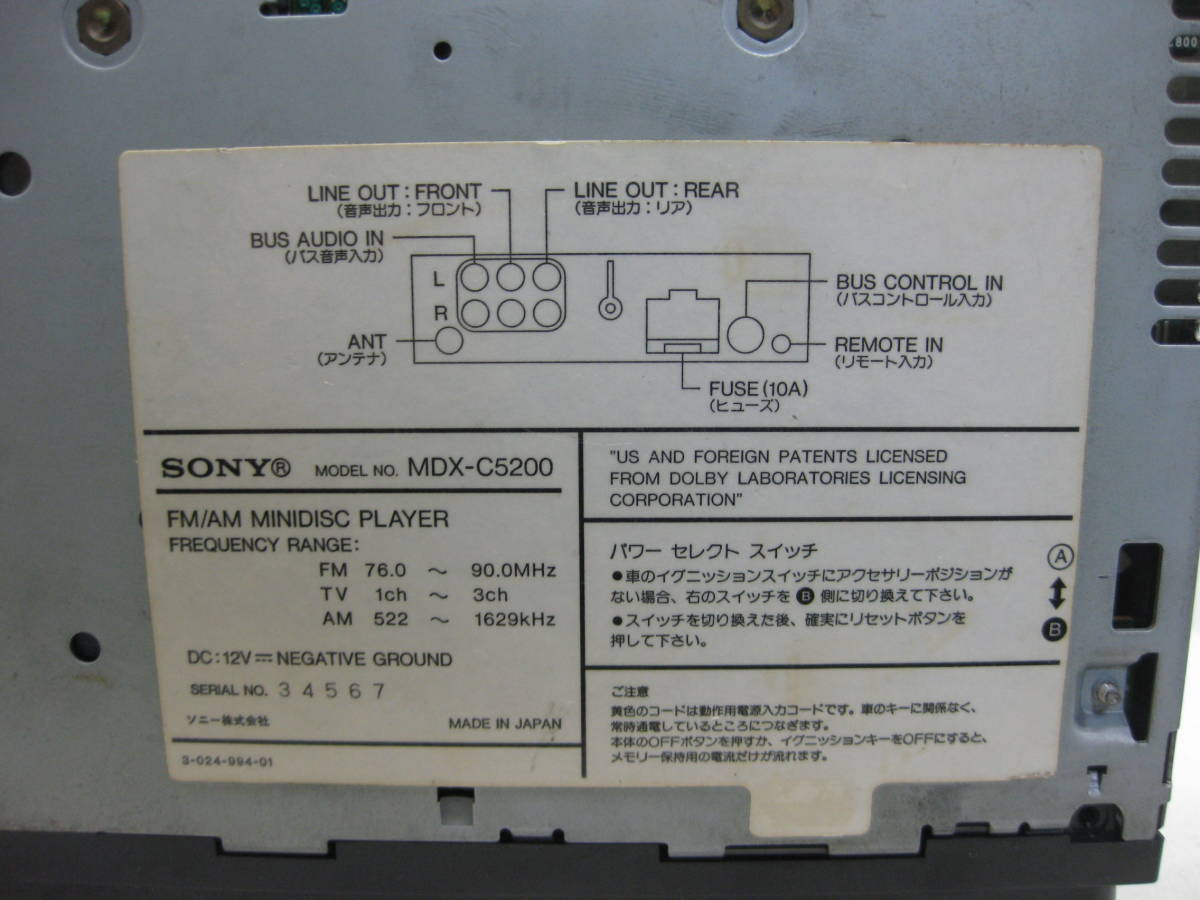

| Radio | Yes - 76-90Mhz |
| Dimensions | 178×50×181mm |
| Weight | 1100 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥45 000 | |
| - | |

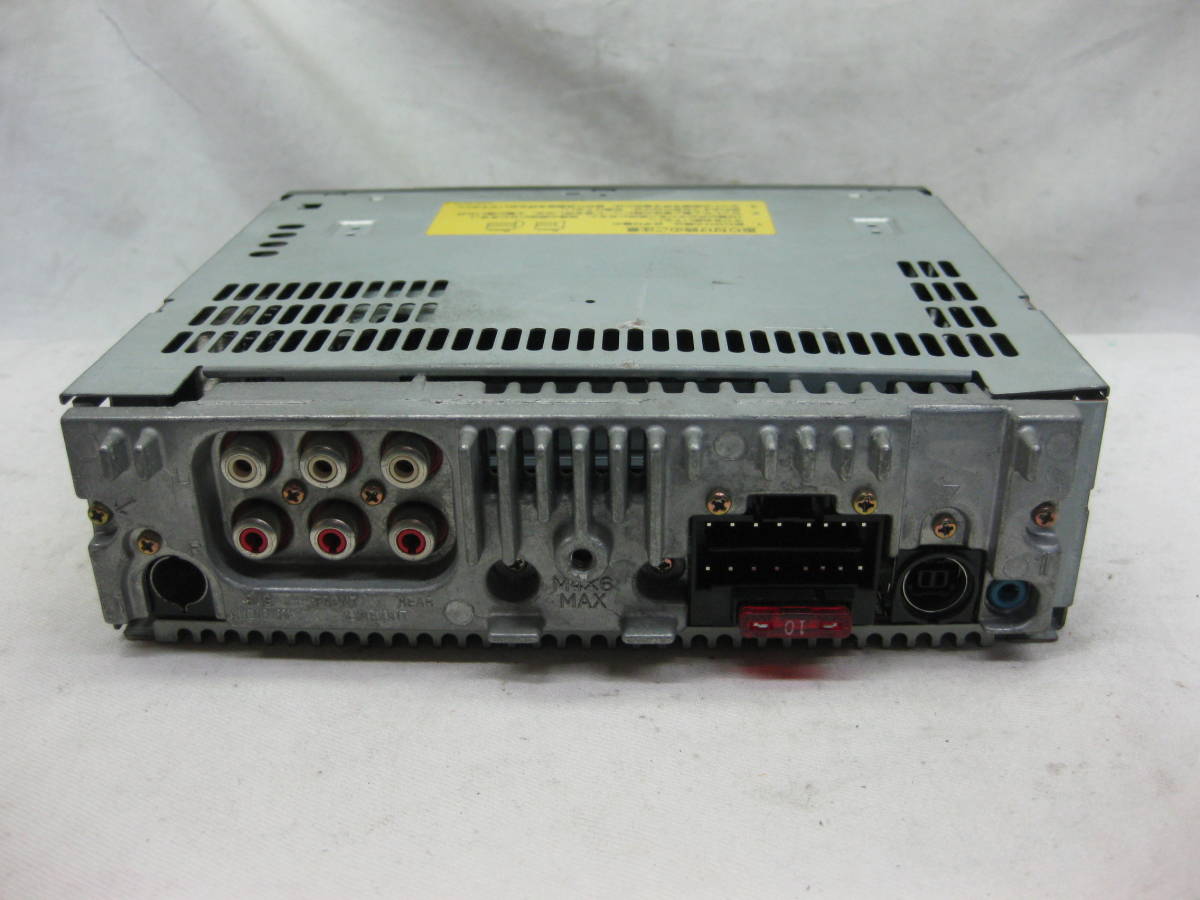

| Inputs | RCA in |
| Outputs | Speaker amplifier |
| Control | Remote (Sony) |

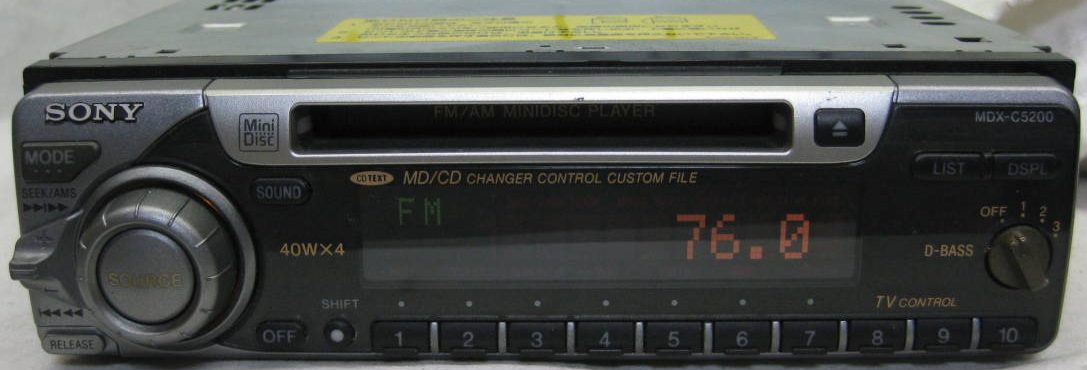

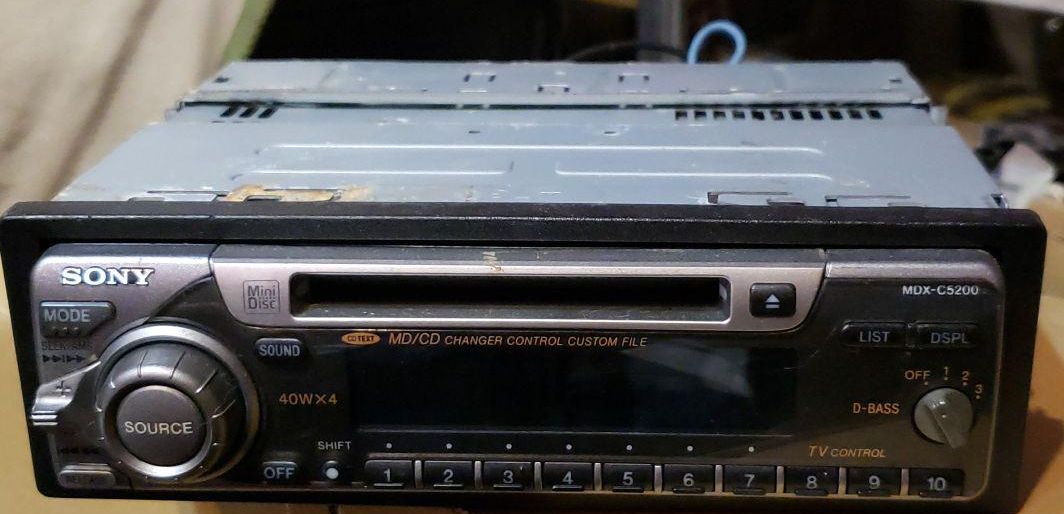

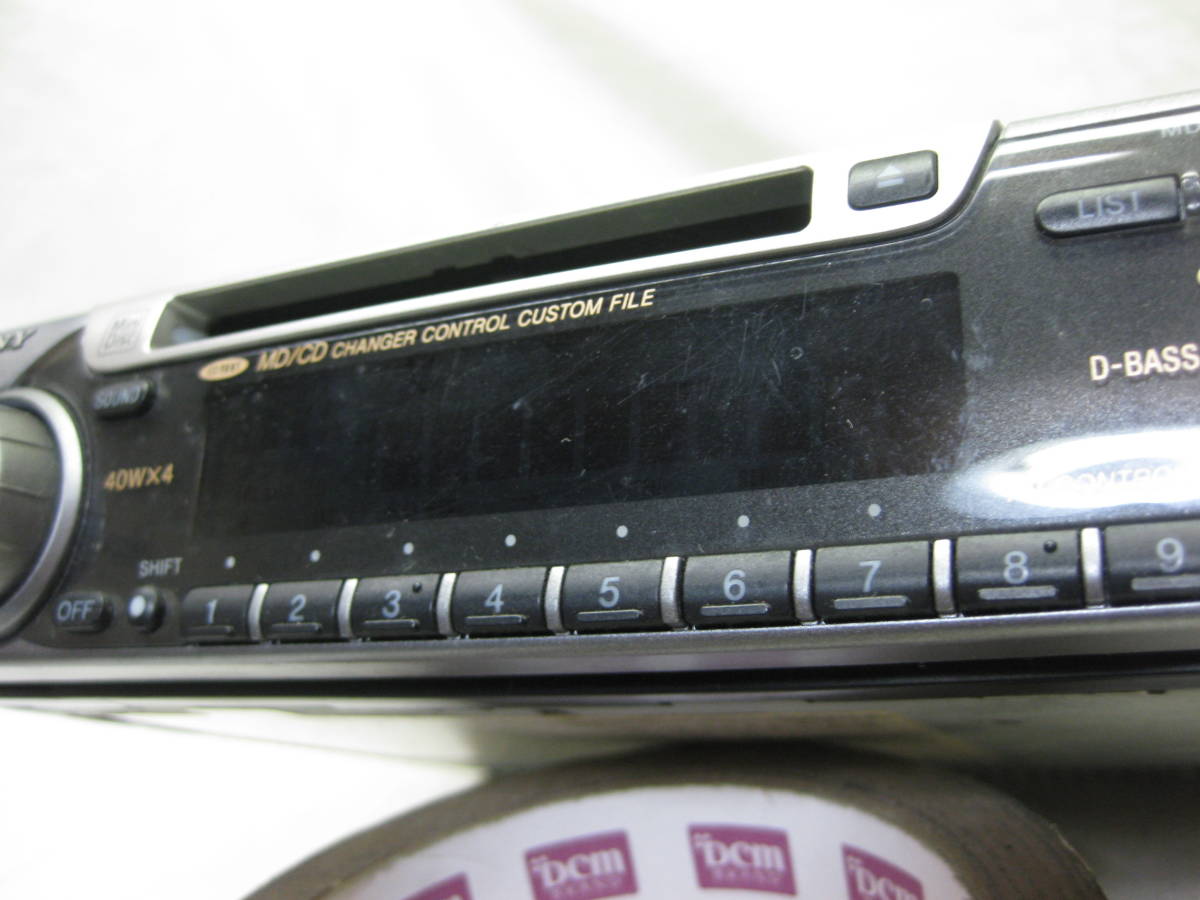

Sony MDX-C5200
- Equipped with TV control function in addition to MD / CD changer control function Main operation of 7-inch wide TV "XTL-770W" is possible.
- D-BASS (Dynamic Bass) function equipped. You can easily increase the bass that tends to be lacking in the passenger compartment with the touch of a button.
- MD Katakana title display
- 4Mbit (about 10 seconds) skip guard memory
- Easy-to-use rotary encoder that is convenient for volume / sound quality adjustment
- "Sequence menu" that allows you to switch / adjust various performance modes and initial settings while looking at the display.
- Built-in 40W x 4 high power amplifier
Manuals
Repair

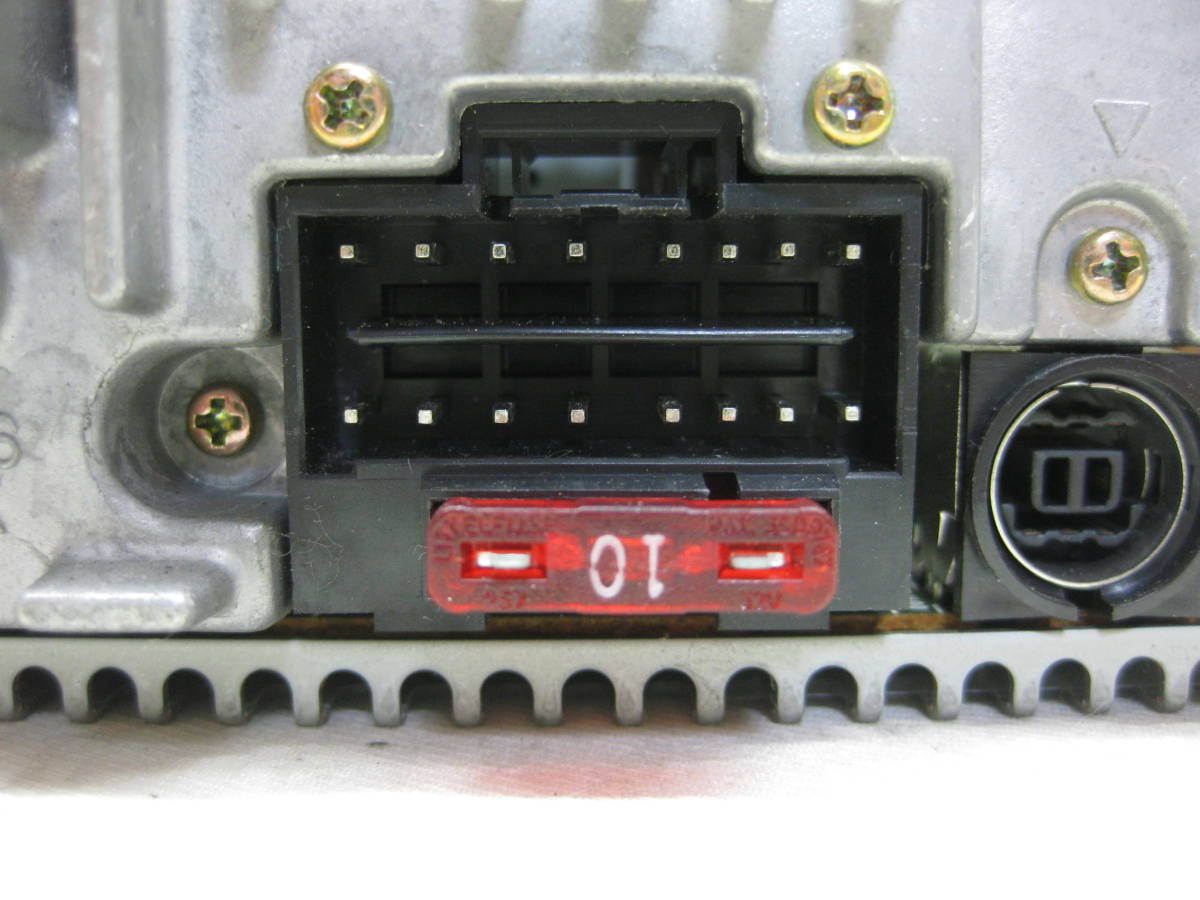

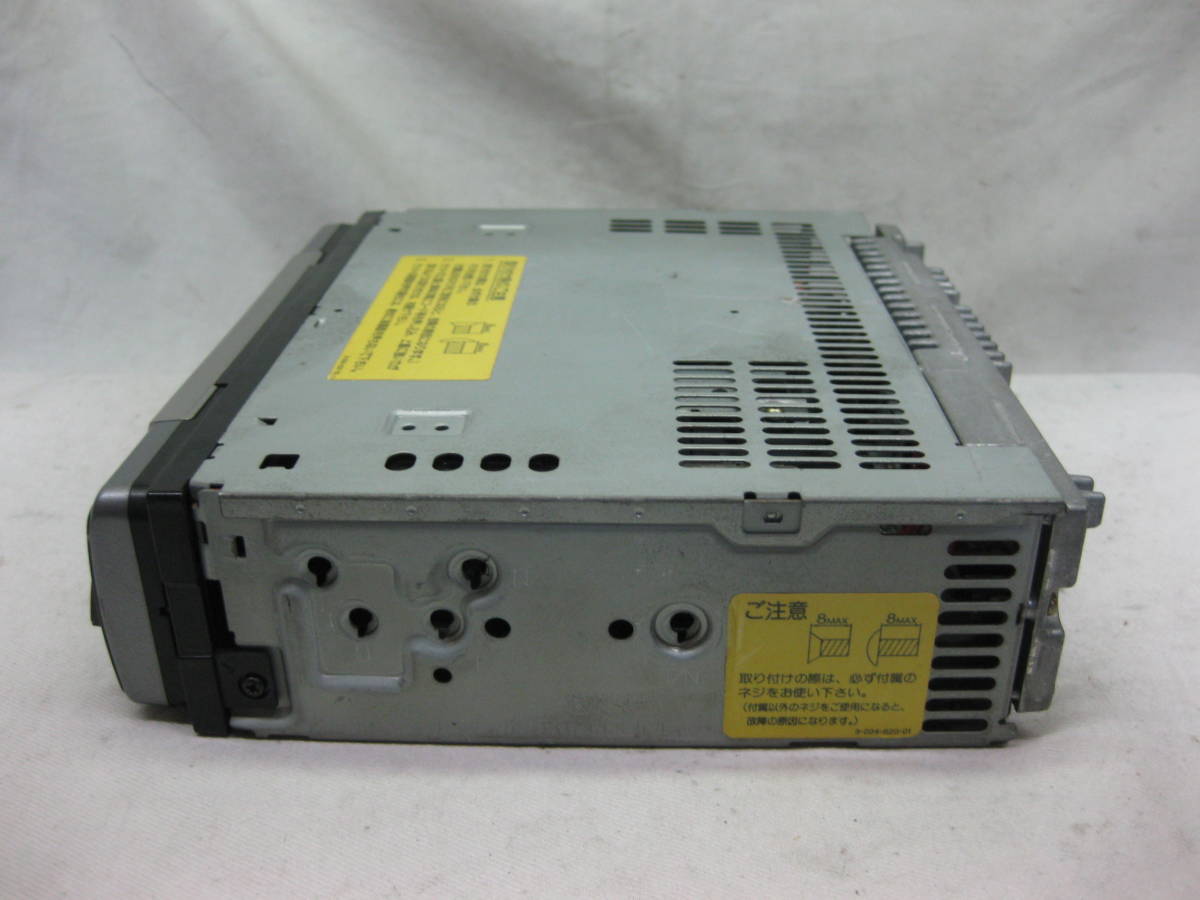

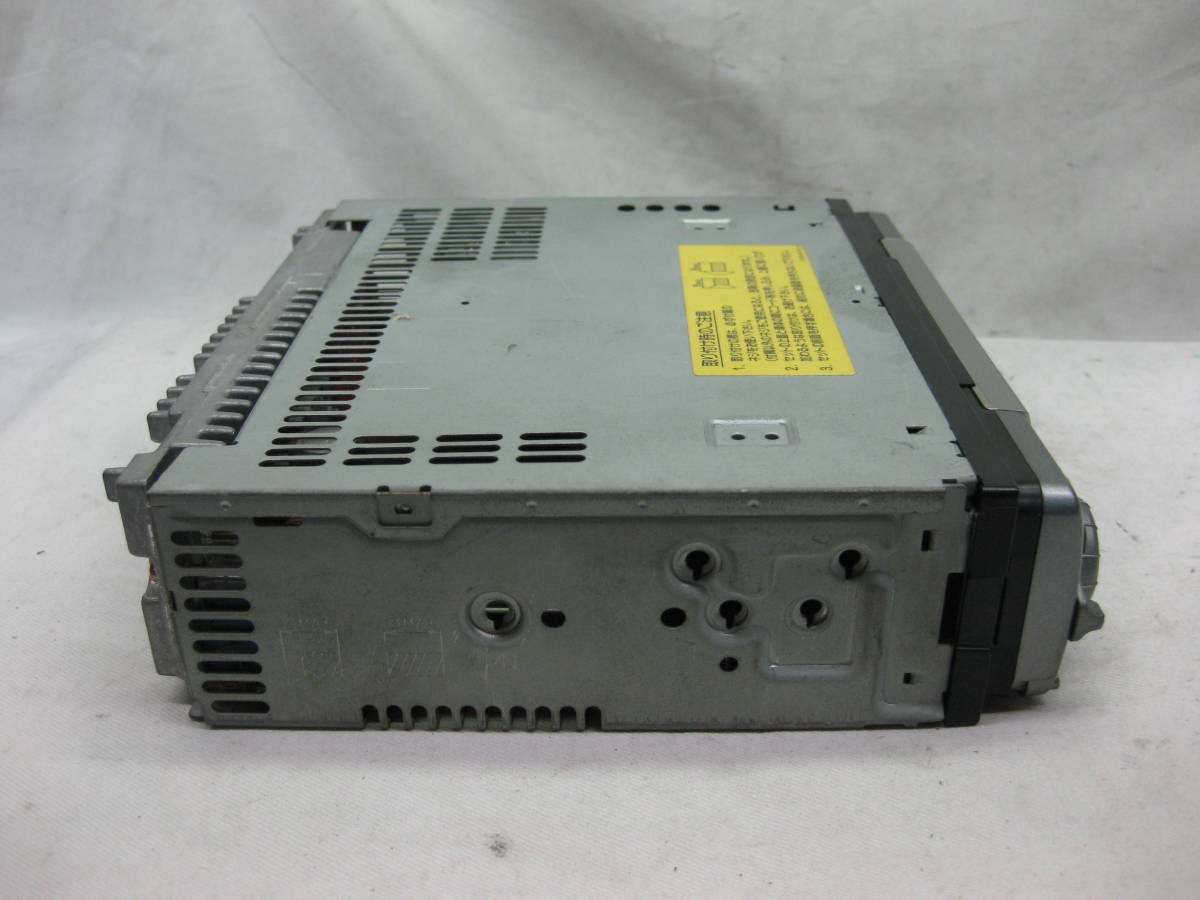

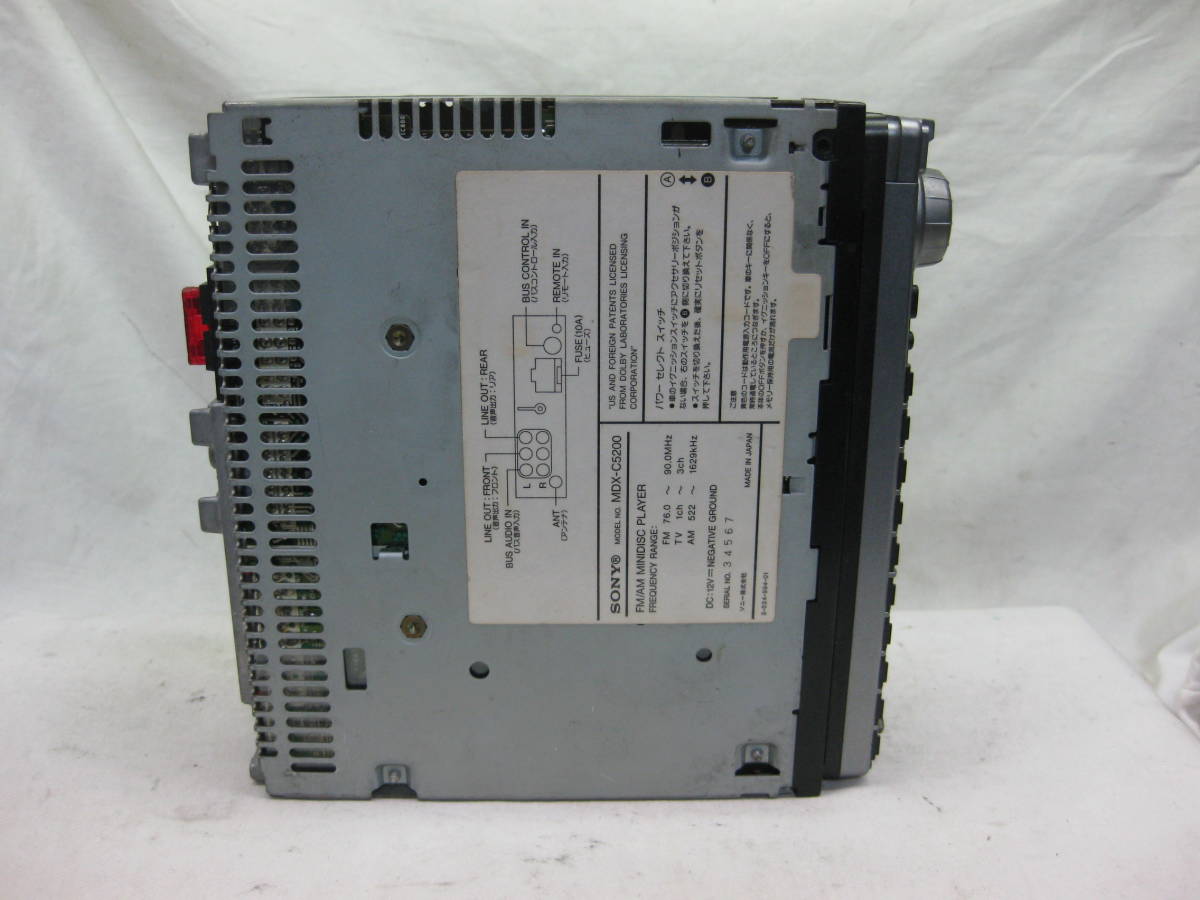

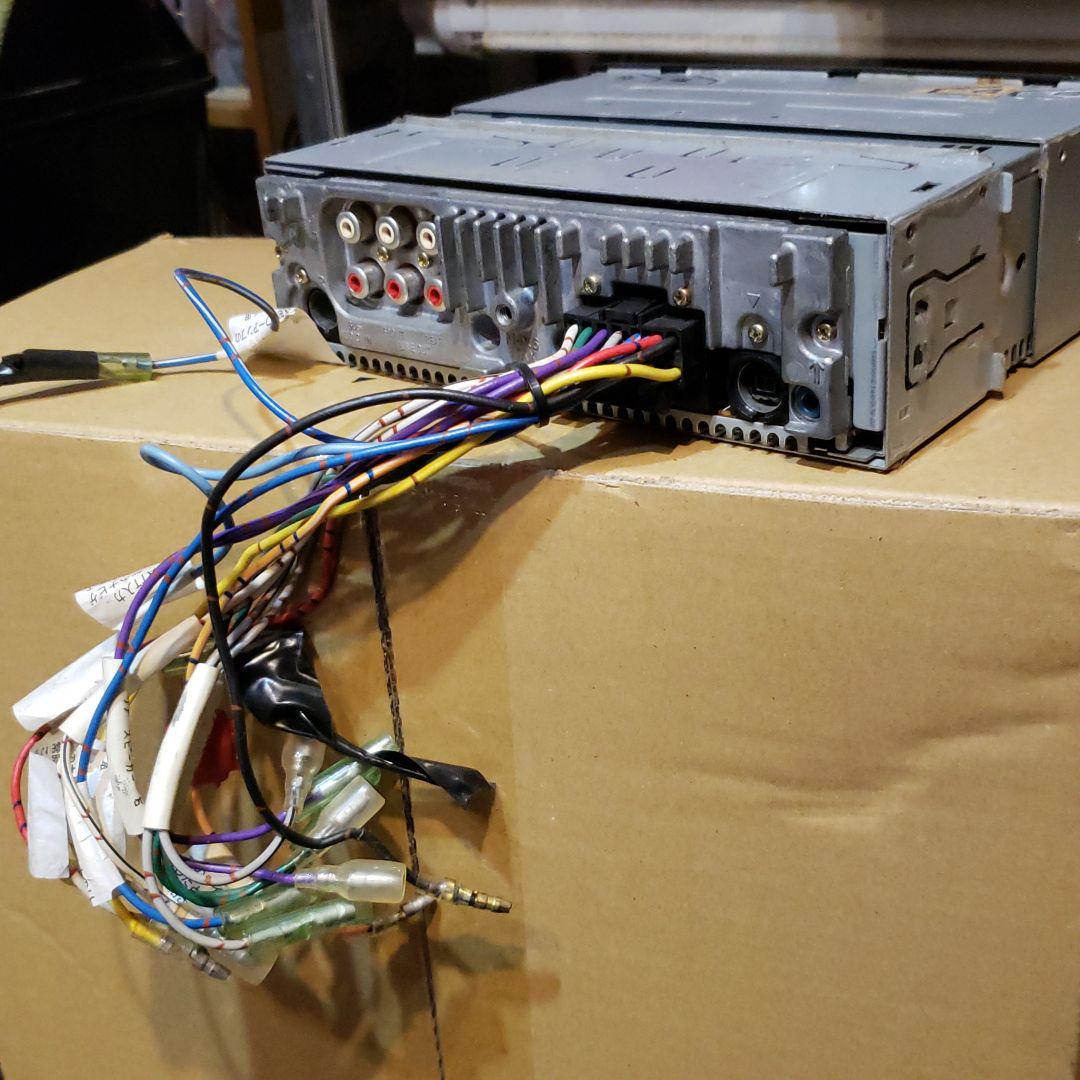

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | other |
|---|---|
| Region | Japan, US/Canada |
