Sony MDX-100

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-08-18

Manufacturer
Sony
Model / source grouping
MDX-100
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony MDX-100”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MDX-100
Manufacturer Sony
Released 1993/12
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Not recorded
Dimensions 1-DIN
Weight Not recorded
ATRAC ver 2
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 12
Power cable Not recorded
Price (launch) $1 000
¥79 800
-

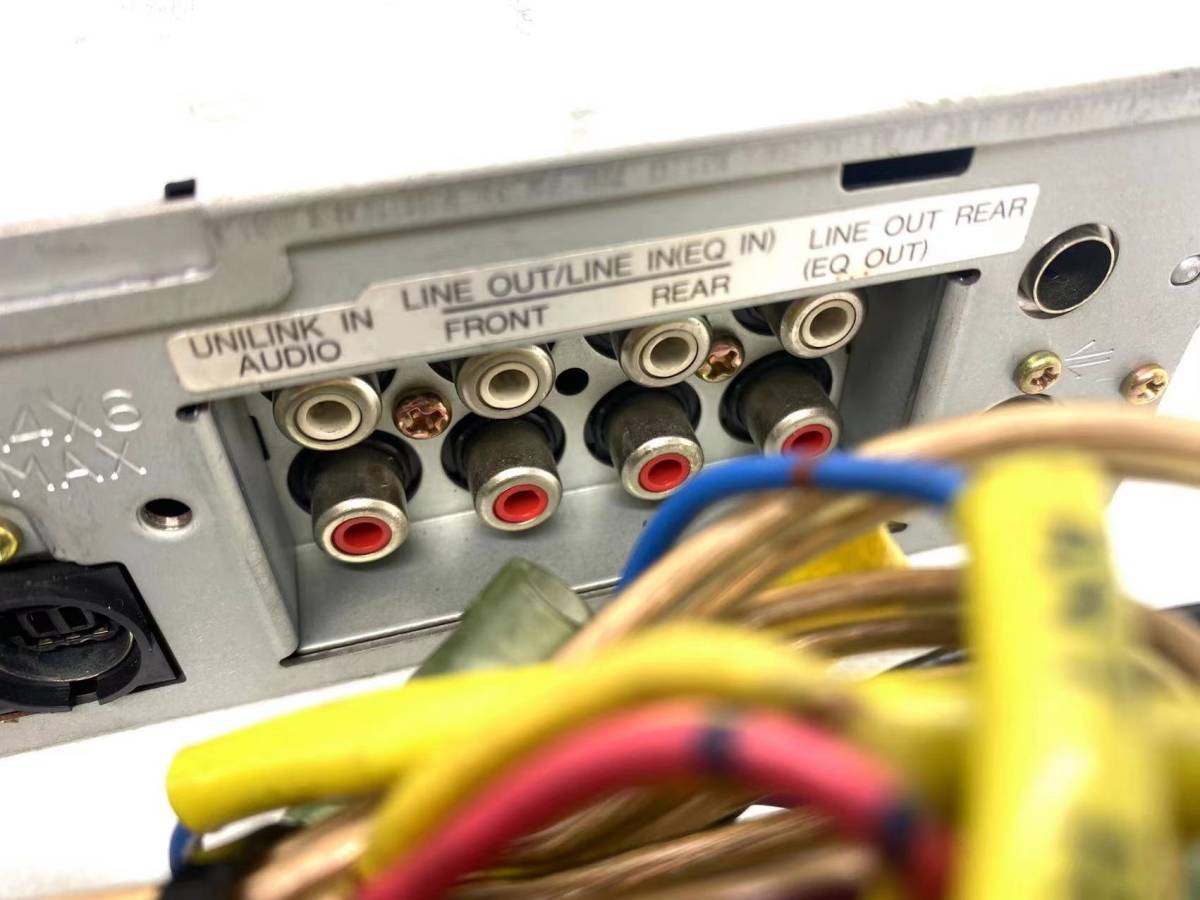

Inputs RCA in
Outputs RCA out, Speaker amplifier
Control Not recorded

There is an RDS variant for Europe/US markets: The MDX-100RDS

Features:

  • ATRAC 2.
  • AM/FM tuner.
  • 10-second shock resistant memory.
  • Staggered 1 bit pulse D/A converters.
  • 12 character display for MD disc/track titles.
  • X-tal lock tuner with SSIR EX front end.
  • 20 Fm + 10 AM presets, best tuning memory.
  • UniLink CD/MD/DSP/TV control with custom file memory.
  • Station memo tuning stores 8 character station names.
  • Disc memo function and program bank control. Loudness button, mute button, intro/repeat/shuffle play modes.
  • 2 preamp outputs with preamp fader.
  • 20 watts x 4 high power internal amplifier. 4 channel amplifier input for processor.
  • 2 color selectable illumination, quartz clock.

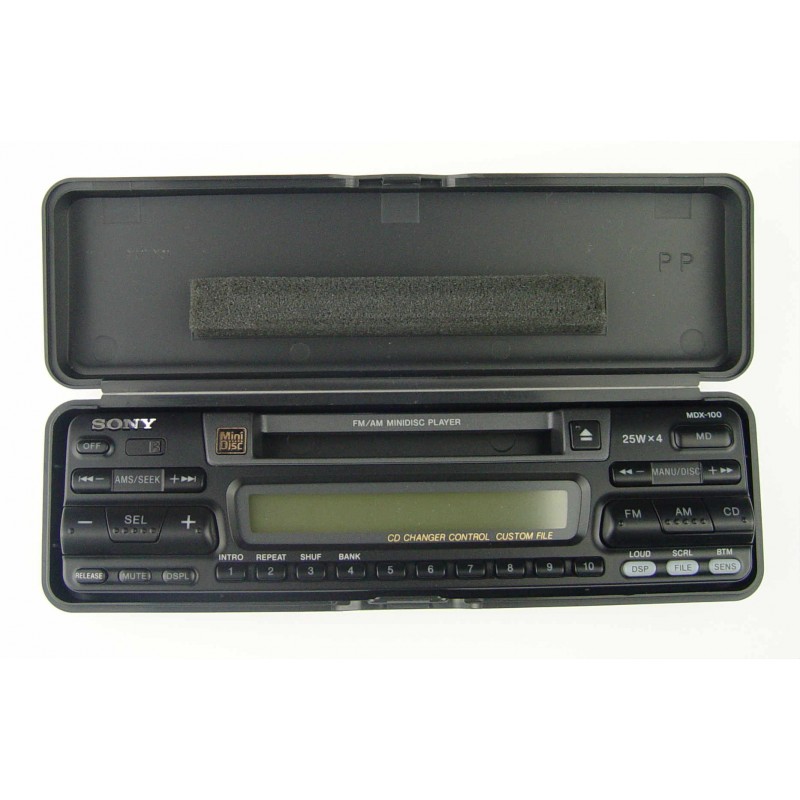

  • Full face detachable security with carrying case.
  • Frequency response 20Hz - 20KHz.

Model Using Similar Mechanism: MDX-U1
Optical Pickup: KMS-150A
ATRAC IC: CXD2531R

Release date is estimated based on the 93 catalog. It was likely sometime earlier.

Content adapted from: Minidisc.org page Antique-autoradio-madness.org Sony Catalog 93.12

Manuals

MDX-100 User manual

Sony MDX-100 Service Manual (scan)

Sony MDX-100RDS Service Manual (scan)

Sony MDX-100 Service Manual Supplement 2 (10 pages)

Sony MDX-100 Service Manual Supplement 3

Repair

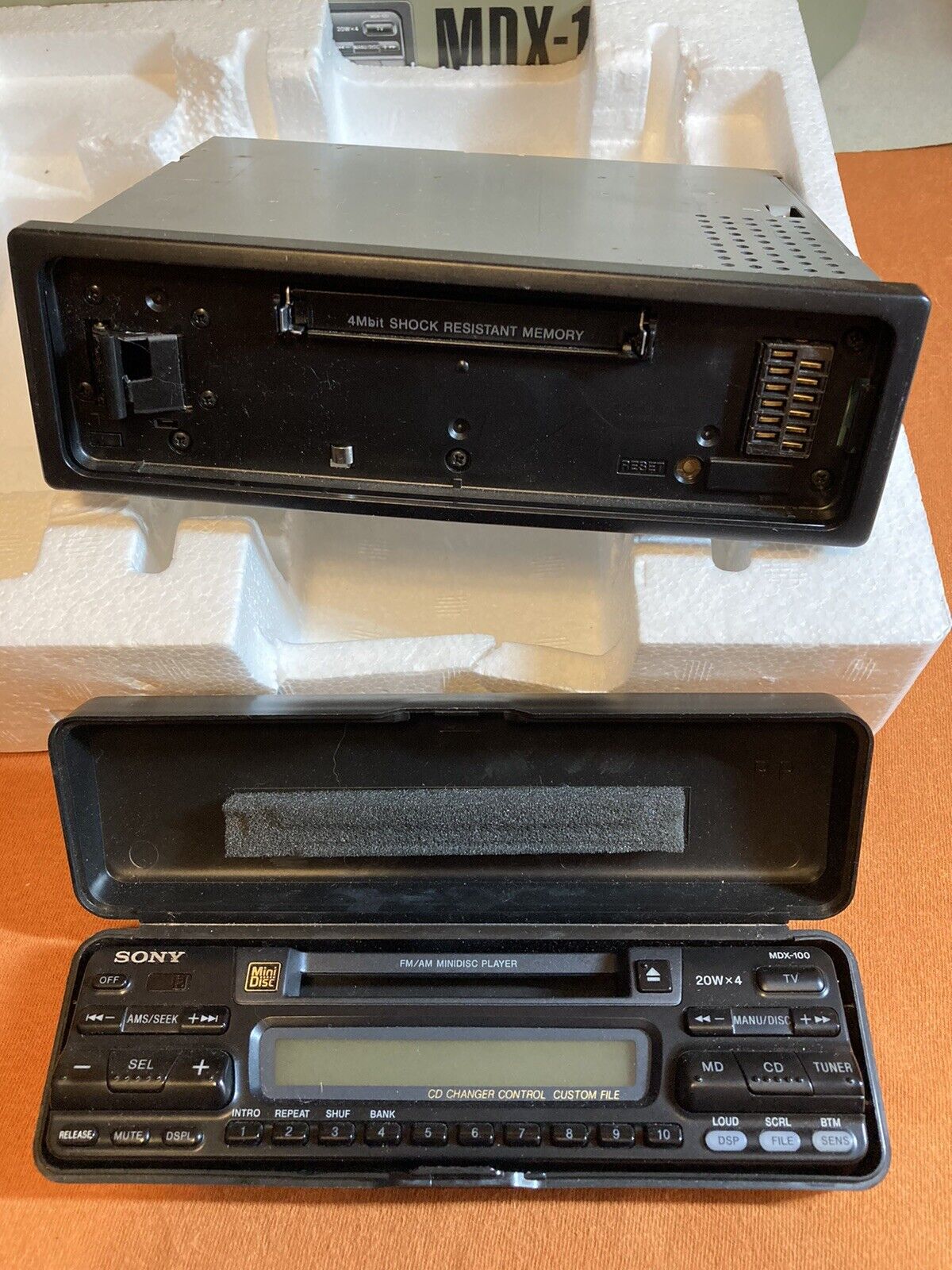

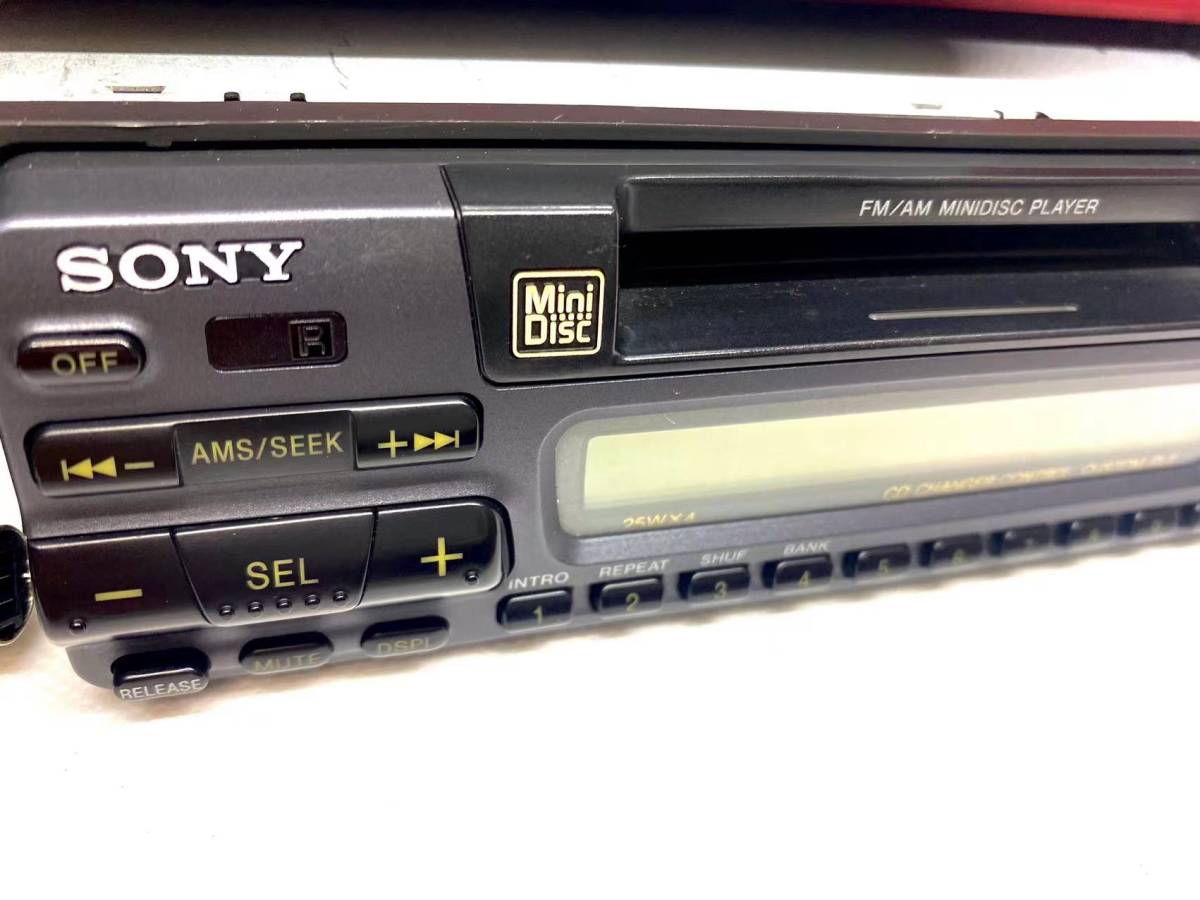

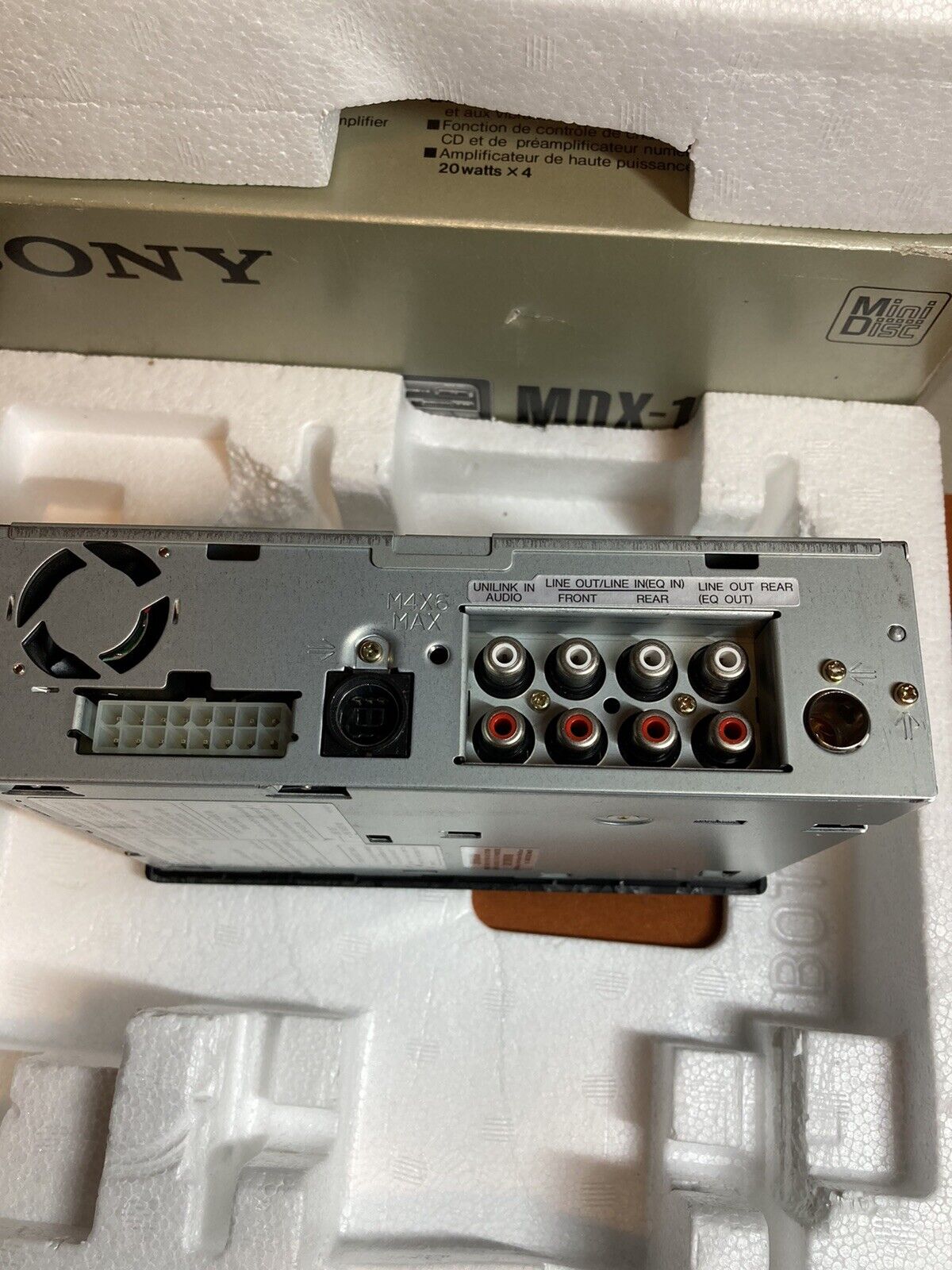

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Remote Page
Atrac IcCXD2531R
ManualUser manual, Service manual
RegionJapan
