| Name | MDX-62 / MDX-62RF |
|---|---|
| Manufacturer | Sony |
| Released | 1998/04 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 176 x 84 x 130mm |
| Weight | 1100 |
| ATRAC ver | 4 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | $550 |
| ¥59 000 | |
| - | |
| Inputs | Not recorded |
| Outputs | RCA out |
| Control | Remote (Sony) |
Functions:

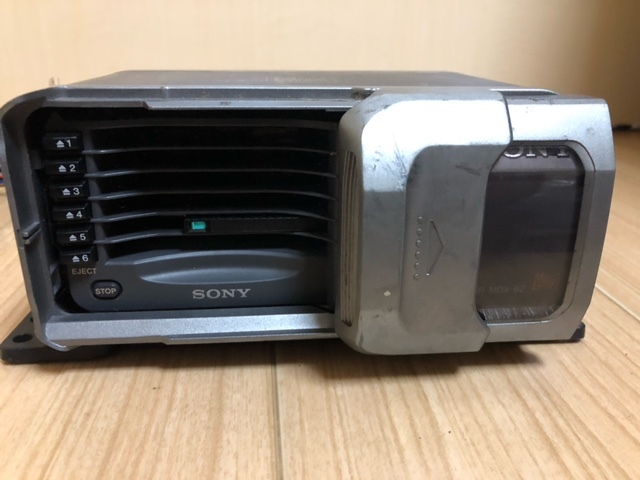

- 6 MD Direct-in system
- EX-Change function (Swapping disc A while disc B is playing)
- Fast Changing (Continuous play)
- 8fs Digital Oversampling
- 1-Bit D/A converter
- 10 second shock resistant memory
- Program Play function
- D-D-Bass function (Digital D-Bass)
- Clear door with lighting (Track titles can be seen in the dark)

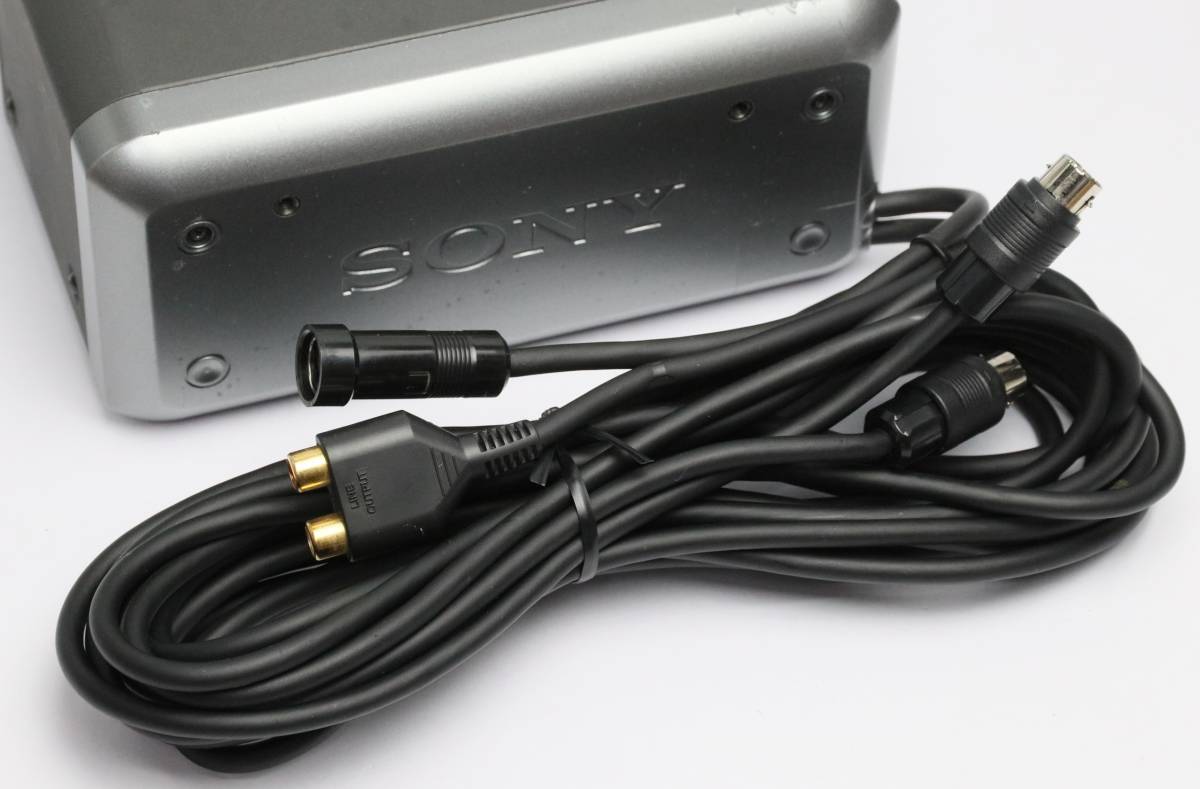

- Bus control output (8 Pin)
- Analog audio output (RCA)
Other info:
- Base Mechanism Type: MG-798K-133
- Optical Pickup: KMS-241A/J2N
- ATRAC Chipset: CXD2652AR
Notes:

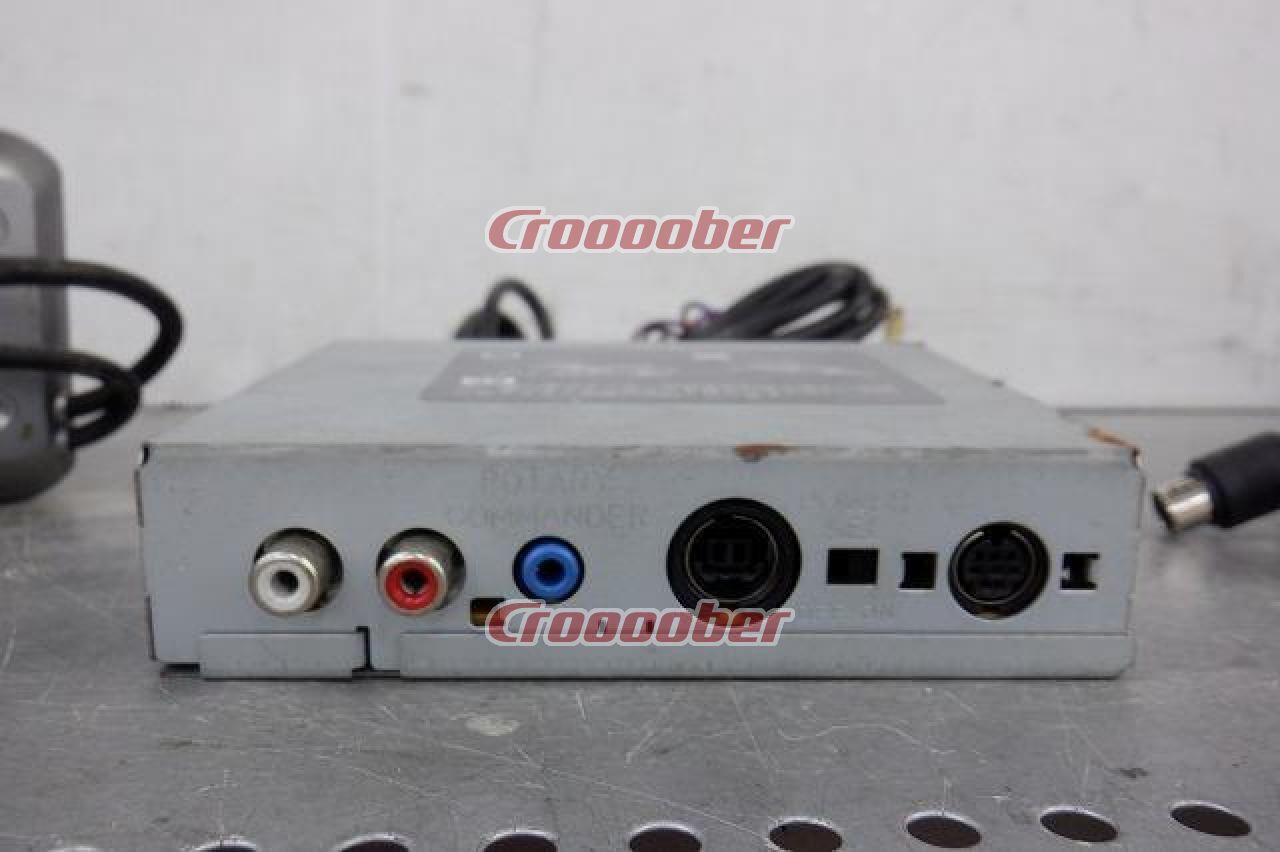

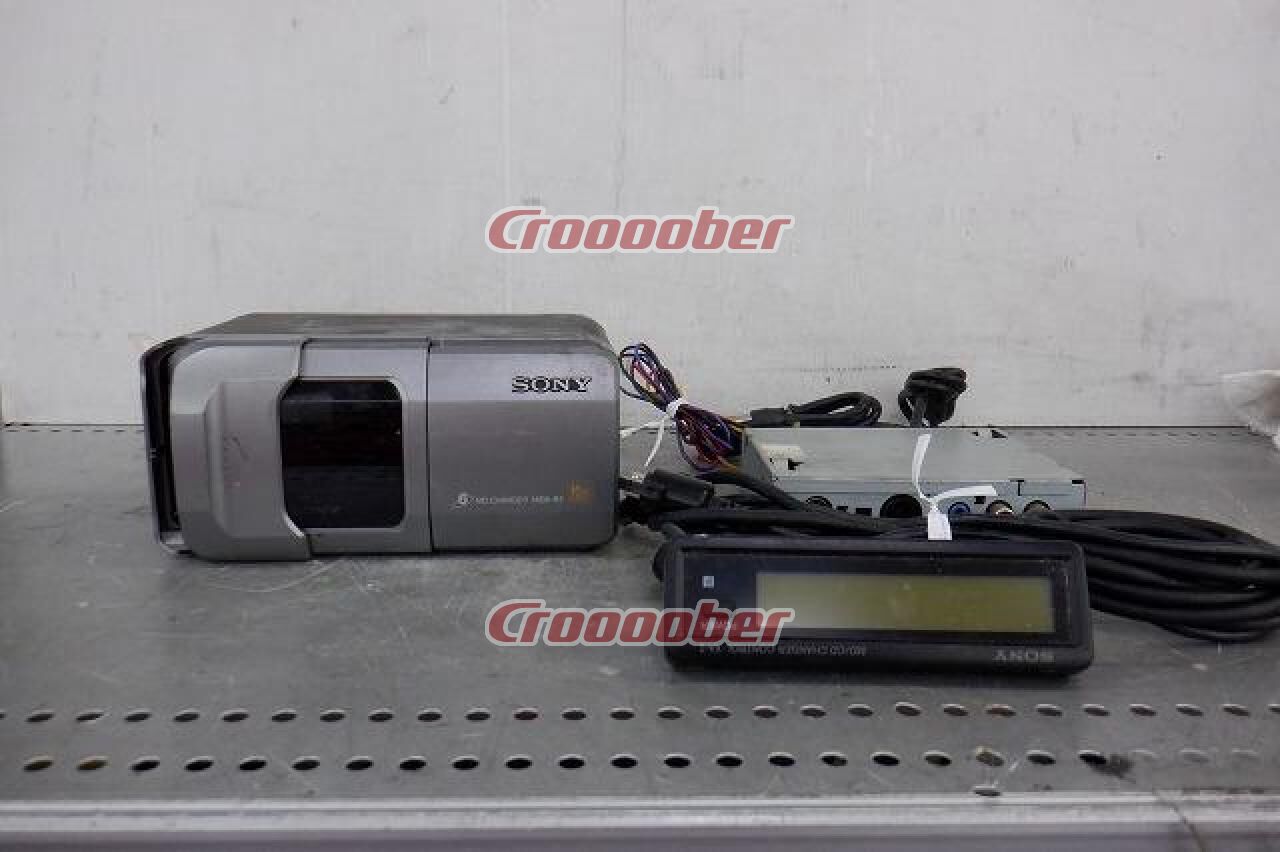

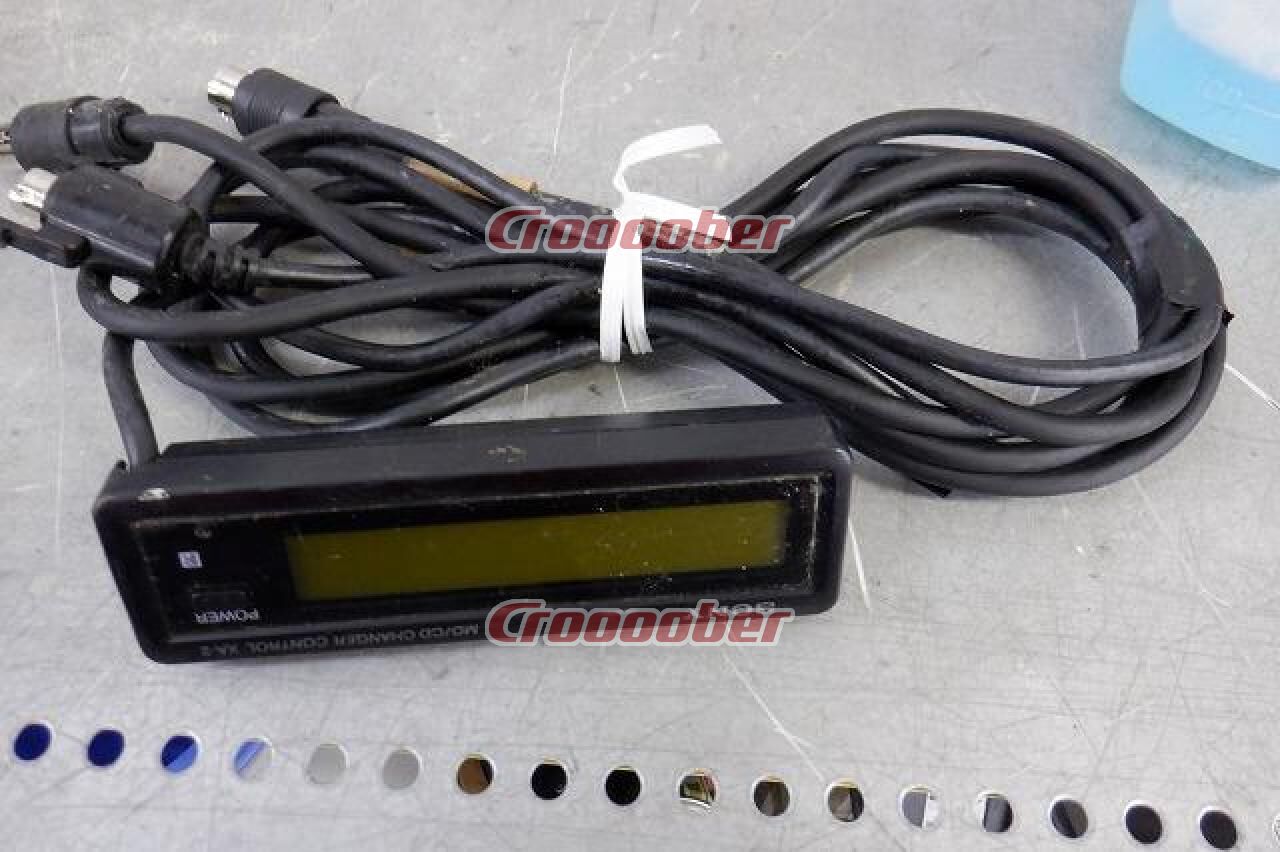

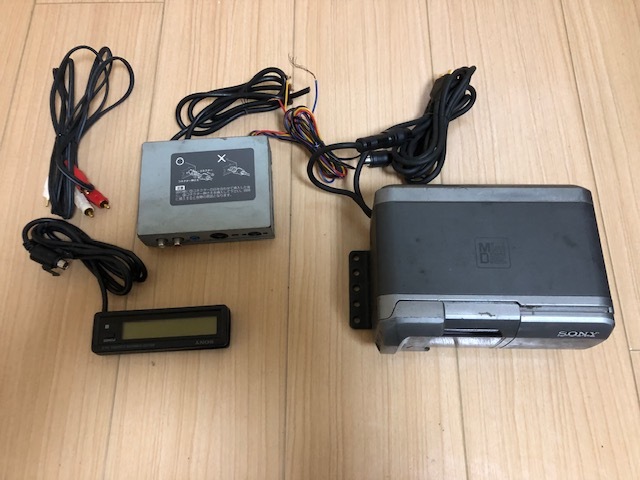

The Sony MDX-62RF is the same unit, but came with the RM-X69RF central box, the XA-2 MD/CD Changer Display and the RM-X46 Remote Control.
For connecting two or more changers, the XA-C30 source selector is needed.
The Toyota MDX-6T61C seems to be functional identical to the MDX-62 with minor cosmetic differences.
Toyota Part Numbers: 86270-51011, 86270-50150, 86270-50160
Content adapted from: Sony Press Release Minidisc.org & Service manual Sony ServiceArea
Manuals
Sony MDX-62 Manual (Scan) - Sony MDX-62 Installation Instructions JP
Sony MDX-62RF User Manual JP - Sony MDX-62RF Installation Instructions JP
Repair
Photos

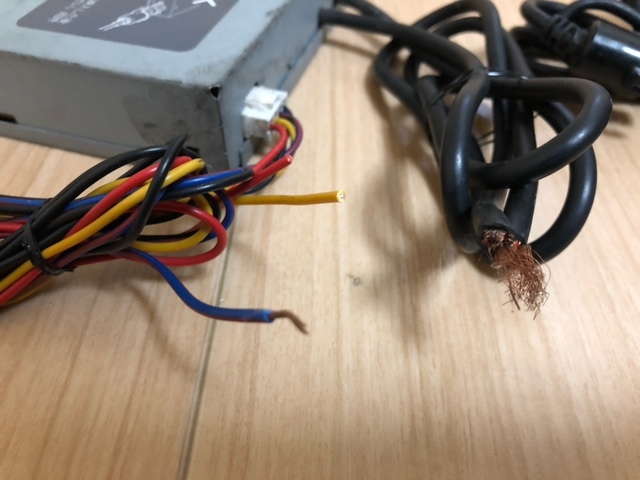

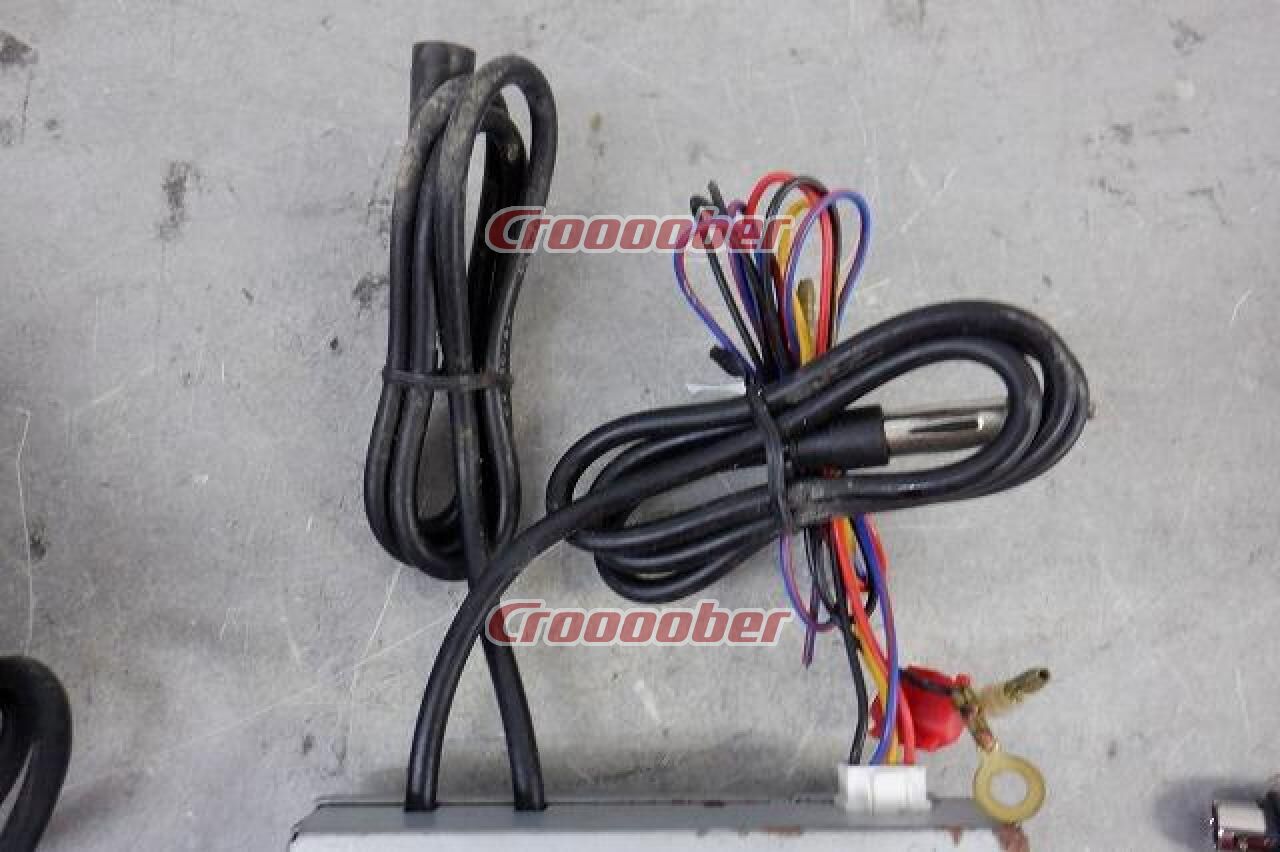

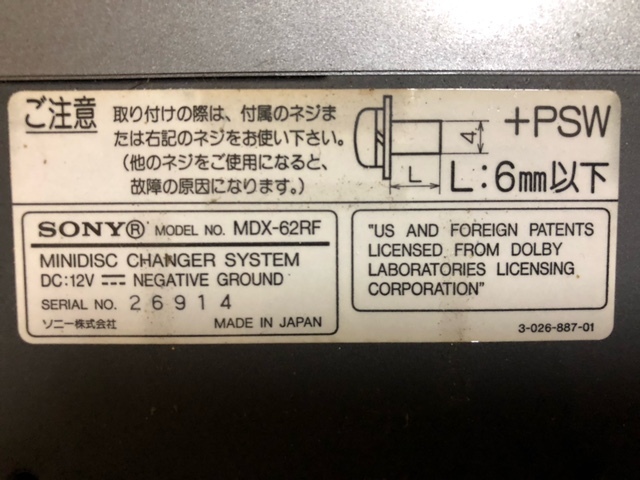

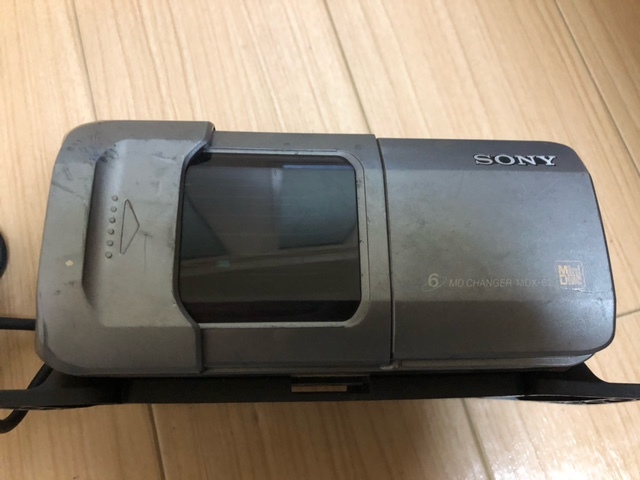

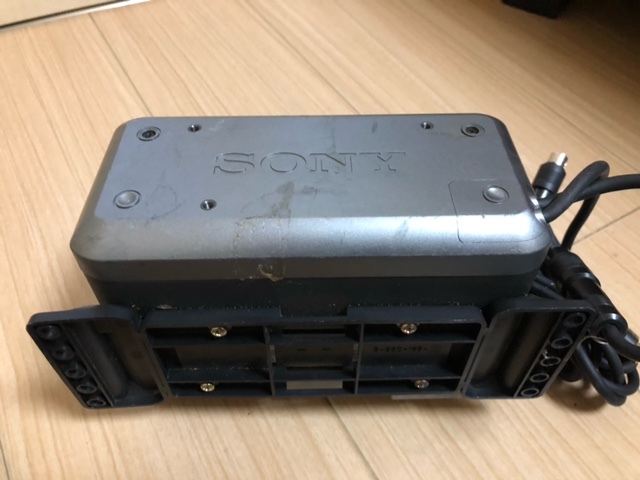

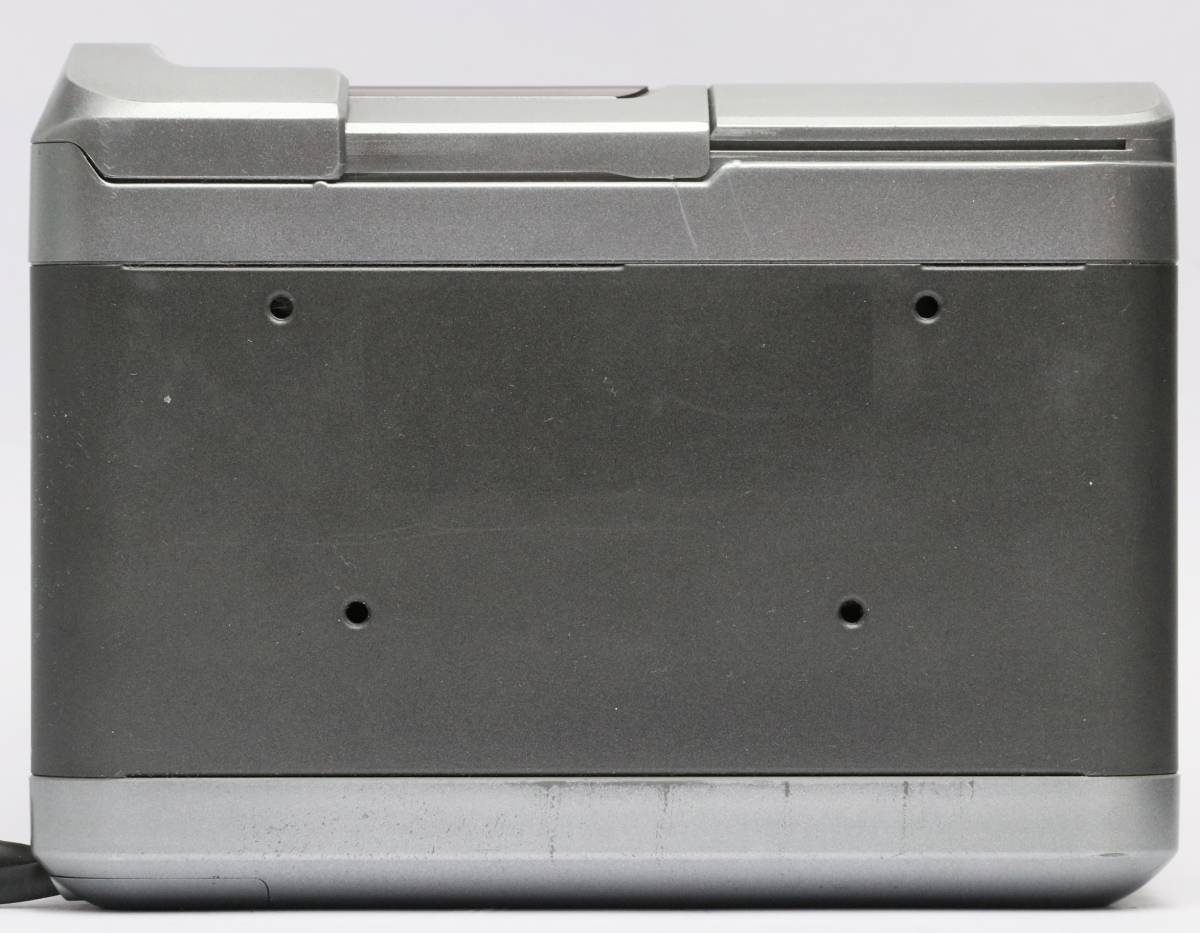

MDX-62RF:
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Scms | Yes |
|---|---|
| Web Md | No (not NetMD) |
| Export | No |
| Remote Page | |
| Atrac Ic | CXD2650R / CXD2652/R/AR |
| Manual | User manual, Service manual |
| Region | Japan, US/Canada, Europe |
