Device

Sony MDX-66XLPRF

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-08-18

Manufacturer
Sony
Model / source grouping
MDX-66XLPRF
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony MDX-66XLPRF”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MDX-66XLPRF
Manufacturer Sony
Released 2002/03
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio No
Dimensions 176 x Height approx. 83.5 x Depth approx. 142 mm
Weight 1100
ATRAC ver Type-R
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥70 400
-
Inputs Not recorded
Outputs RCA out
Control Not recorded

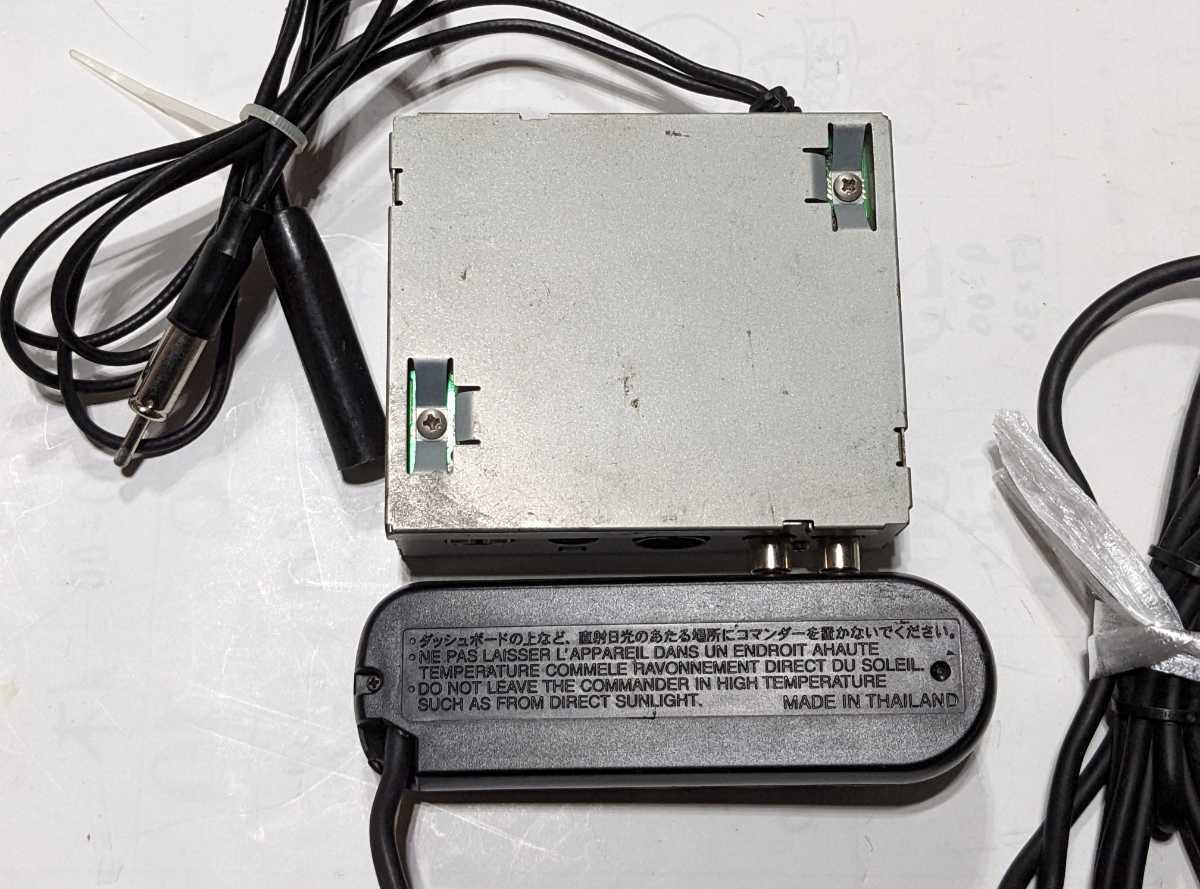

Controlled via Sony Unilink. Has a SIRCS pin (may be controllable with M-Crew software). The MDX-66XLP lacks the wired remote and FM converter box.

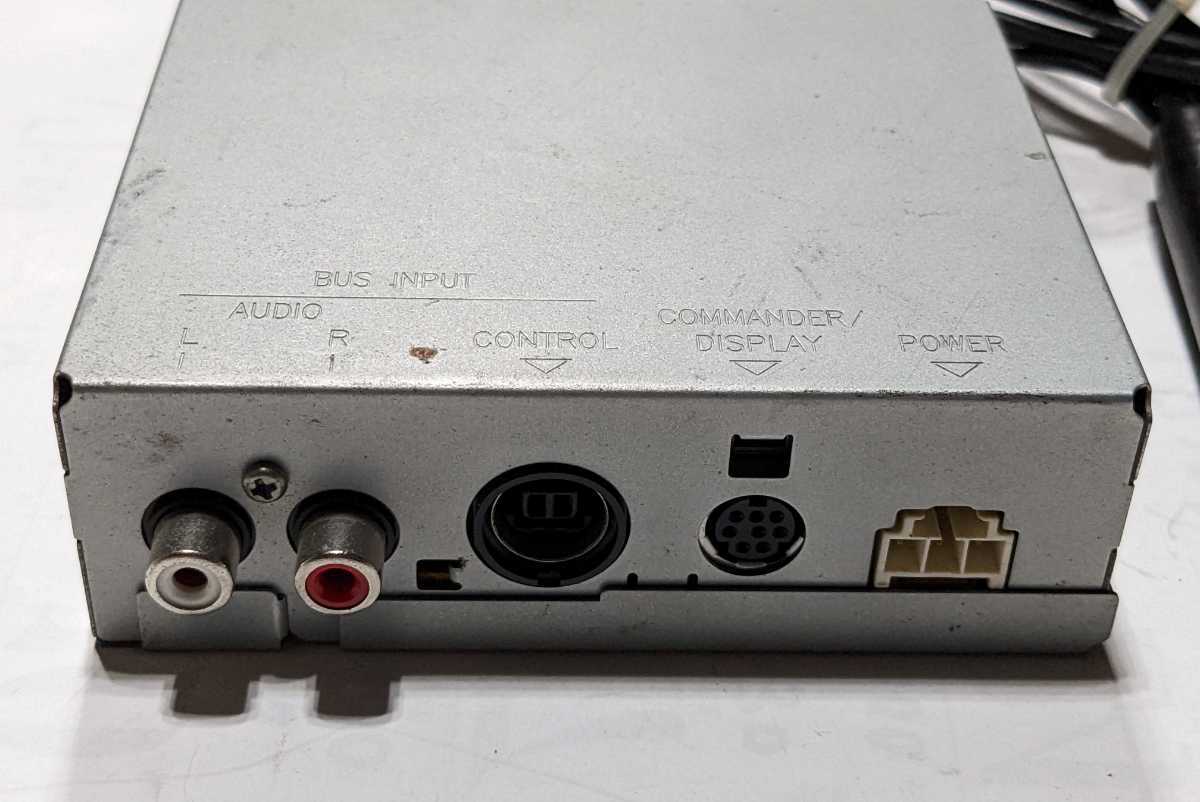

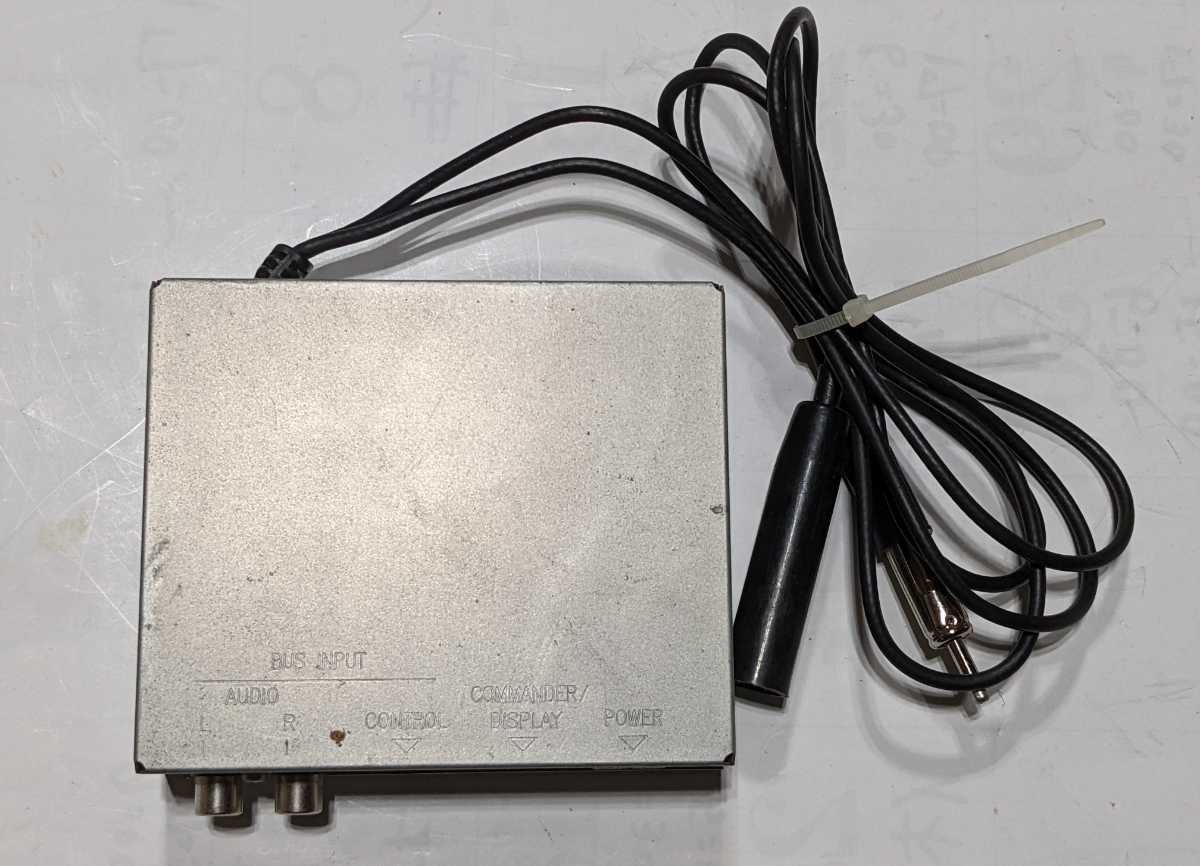

  • RF tuner allows you to output sound to any FM Stereo

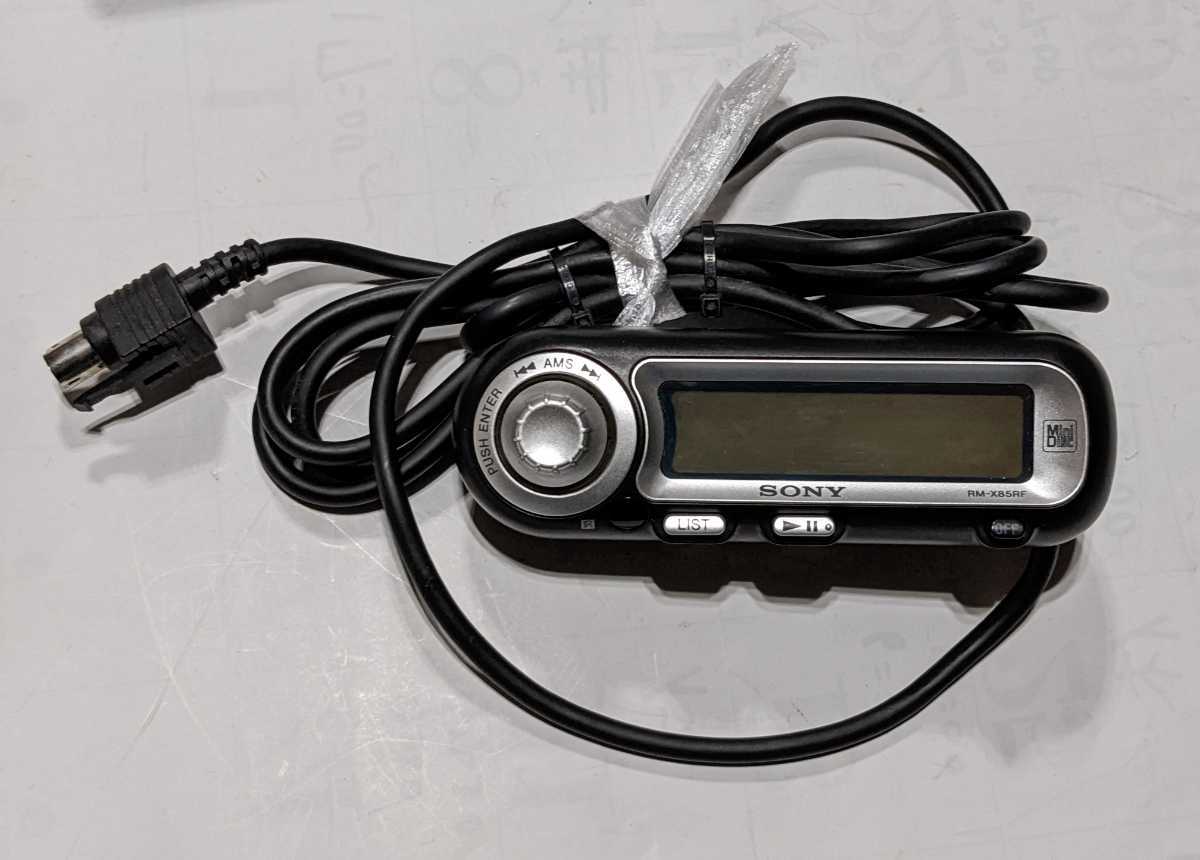

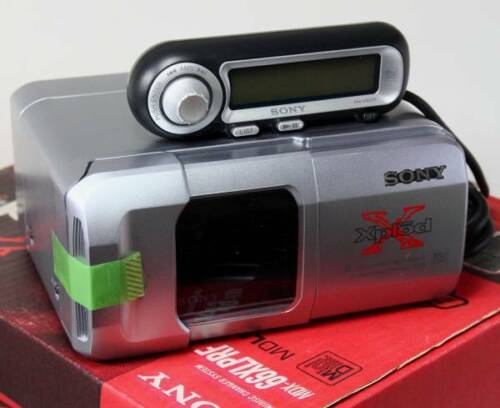

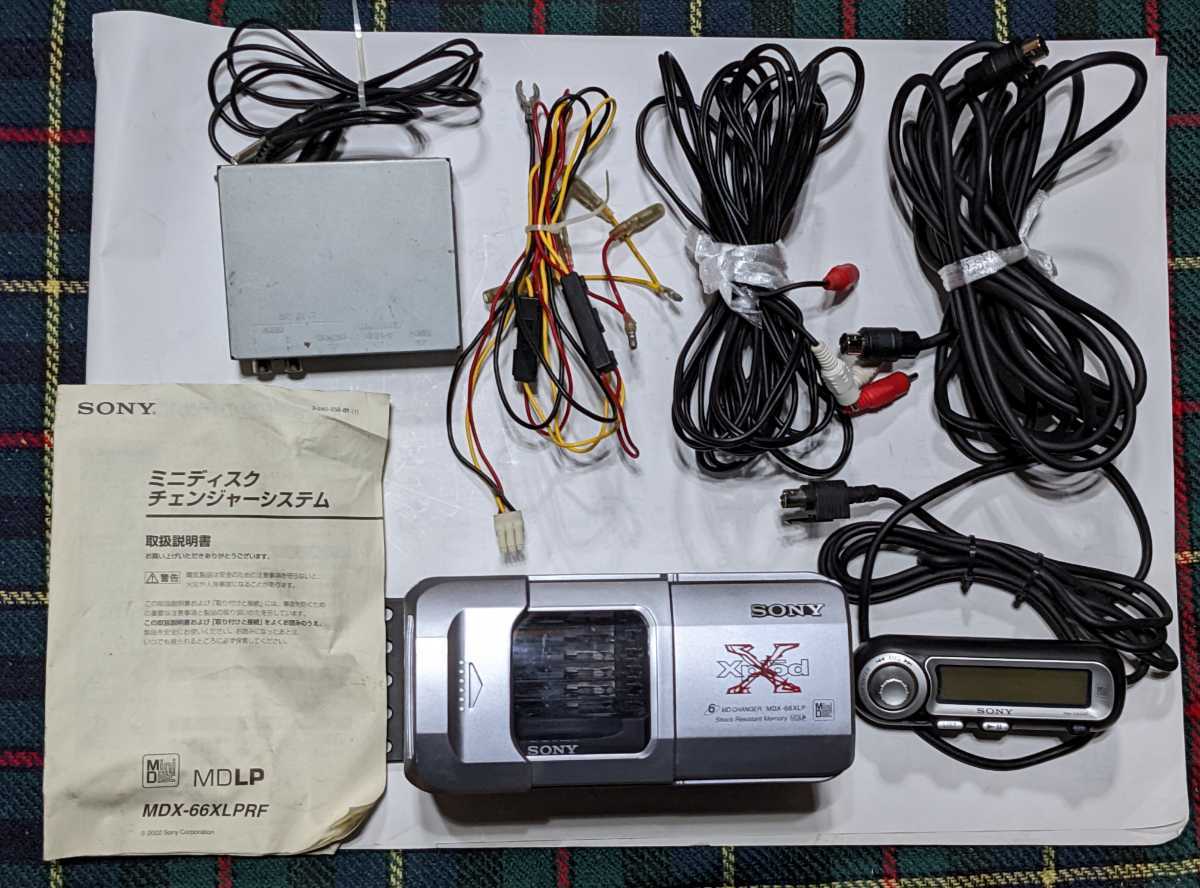

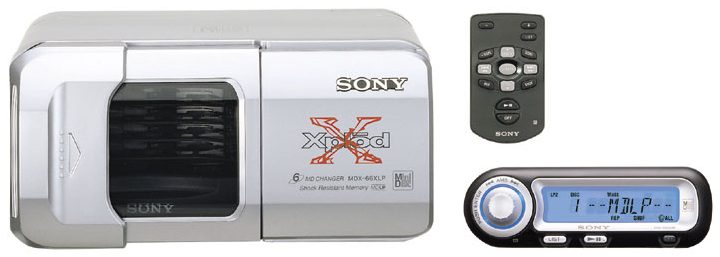

  • Includes a card-type wireless remote controller that allows you to control discs at hand, and a wired commander with a liquid crystal display that allows you to check discs and tracks.
  • WBS (Wide Bitstream)
  • 10 second sound skip guard
  • Direct disk slot in
  • EX-CHANGE function that allows you to replace other discs even during playback

ATRAC chip: CXD2662R
Mini Disc Mechanism Type: MG-798LP-133
Optical Pick-up: KMS-241C/J1N
Connects with HOSIDEN TCS9388 connector

Content adapted from: Minidisc.org Sony Product Page Sony Mobile Audio page Sony Mobile Audio page (MiniDisc Wiki mirror) Sony.jp/ServiceArea

Manuals

Sony MDX-66XLPRF User Manual JP

Sony MDX-66XLP Service Manual ENG

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
Remote Page
Atrac IcCXD2656R / CXD2662R
ManualUser manual, Service manual
RegionJapan, US/Canada, Europe
