| Name | MDX-C5970R |
|---|---|
| Manufacturer | Sony |
| Released | 1999/03 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 88-108MHz |
| Dimensions | 178 x 50 x 184 |
| Weight | 1800 |
| ATRAC ver | 4 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | $400 |
| Not recorded | |
| - | |

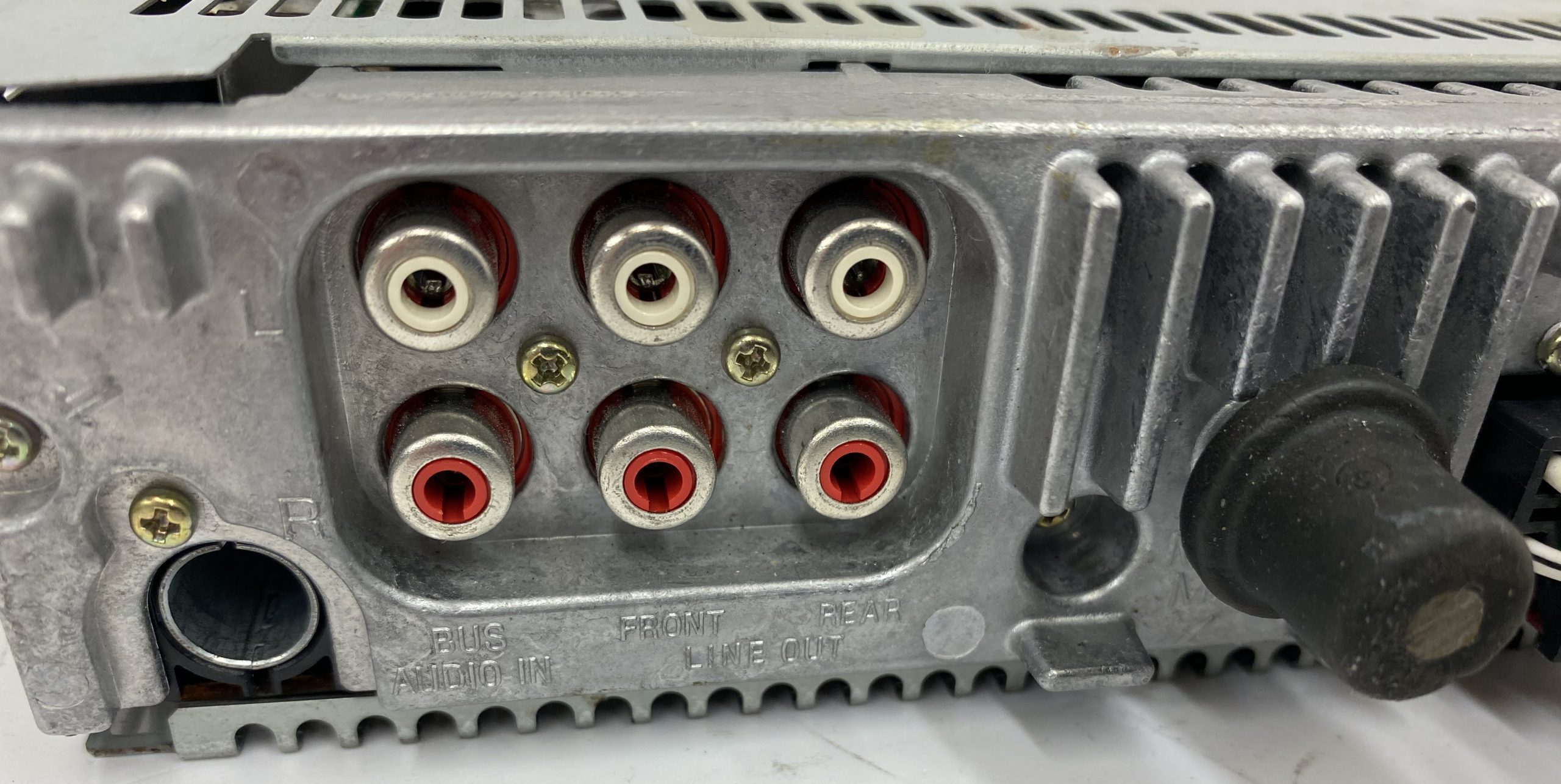

| Inputs | RCA in |
| Outputs | RCA out, Speaker amplifier |
| Control | Not recorded |
Nearly identical to older MDX-C7900 model.

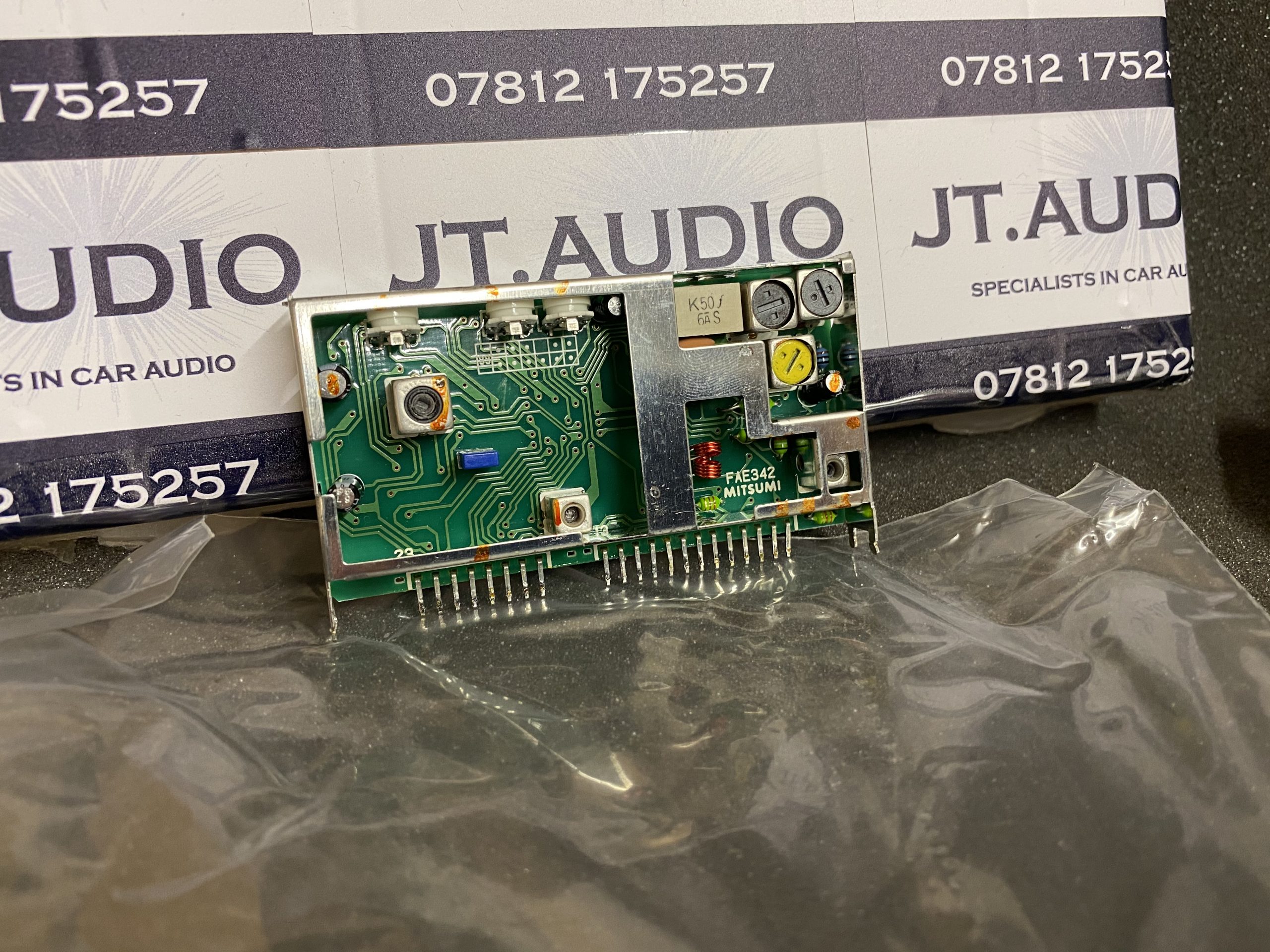

- SSIR-EX Tuner
- Station Memo
- 20FM+10AM Presets (BTM)
- 8X Oversampling
- 1-Bit D/A
- Wide Bit-stream Processing
- 10 Second Shock Resist Memory
- CD/MD Control
- CD Text
- 3-Step D-Bass w/Auto Level Adjust
- Full Detachable Face w/Case
- Rotary Encoder Control.
OPTICAL PICK-UP (KMS-241B/J1NP)
ATRAC Encoder/Decoder: CXD2652AR
Base Mechanism Type: MG-164N-138
Model Name Using Similar Mechanism: MDX-C7900/C7900R
Content adapted from: minidisc.org
Manuals
Video
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Remote Page | rm-x4s |
| Mechanism | mg-164n-138 |
| Pickup | kms-241b |
| Atrac Ic | CXD2650R / CXD2652/R/AR |
| Manual | User manual, Service manual |
| Region | US/Canada, Europe |
