Device

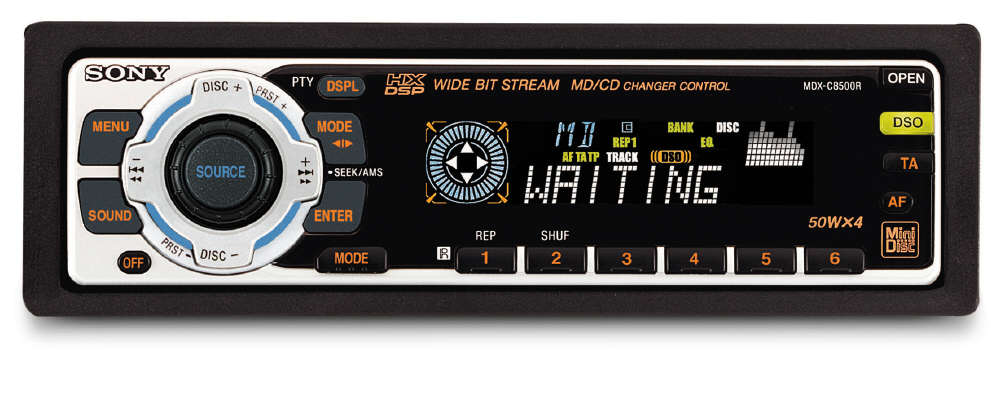

Sony MDX-C8500

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2025-02-10

Manufacturer
Sony
Model / source grouping
MDX-C8500
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony MDX-C8500”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MDX-C8500
Manufacturer Sony
Released 2000/04
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes - 88-108MHz
Dimensions 1-DIN 178 × 50 × 183 mm
Weight 1.2kg
ATRAC ver 4
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-
Inputs RCA in
Outputs RCA out, Speaker amplifier
Control Not recorded

Features: 10-second anti-shock memory, HX DSP - digital EQ with presets and 7-band equaliser, wireless remote control, flip-down detachable face with multicolor display, CD/MD changer/TV controls, Custom File Memory, MD titles and CD Text, multi-language display (English/Spanish/French).

European model (C8500R) is visually different, has DAB (Digital Audio Broadcasting) Control, RDS/EON tuner, a 4x40W max amplifier and does not have the wireless remote control.

Specs: Maximum output 50W x 4 (19W x 4 RMS), FM sensitivity 8 dBf, FM 18/MW 6/LW 10 station presets

Base Mechanism Type MG-164NV-138
Optical Pick-up Name KMS-241C/J1NP
ATRAC IC: CXD2652AR

Content adapted from: Minidisc.org page, Sony product page (Archived) Sony product page (Archived) (MiniDisc Wiki mirror)

Manuals

MDX-C8500R User Manual (EU)

MDX-C8500X User Manual US/FR/ES

MDX-C8500X Service Manual Supplement-1

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
ScmsNo
Web MdNo (not NetMD)
Remote Page
Atrac IcCXD2650R / CXD2652/R/AR
ManualUser manual, Service manual
RegionJapan, US/Canada, Europe, Latin America
