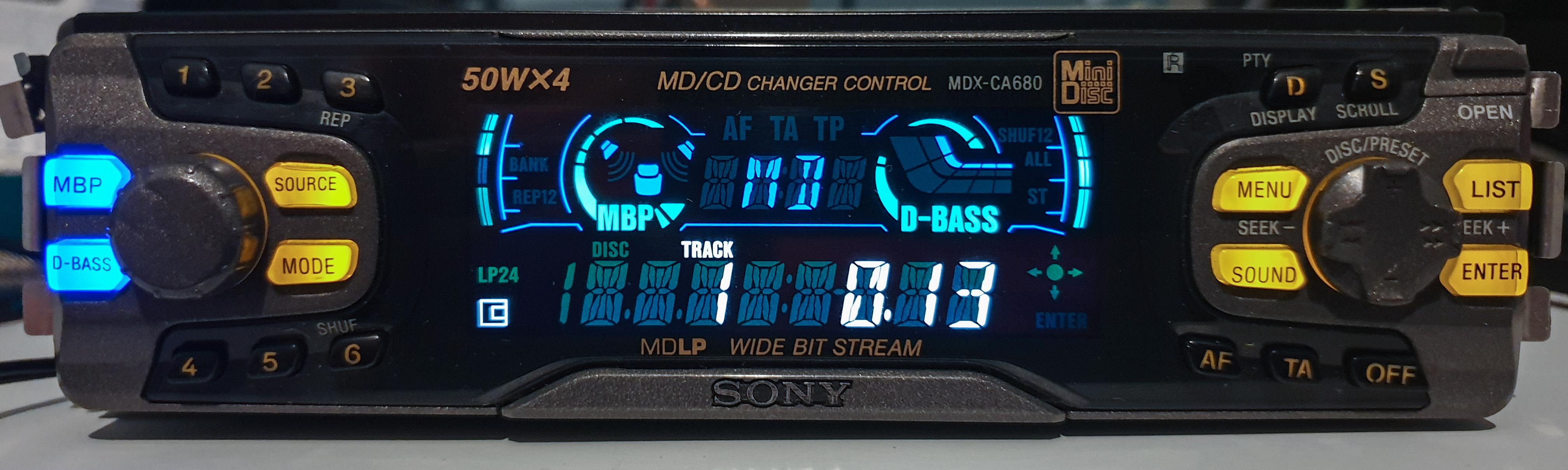

Sony MDX-CA680X

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony MDX-CA680X”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name	MDX-CA680X
Manufacturer	Sony
Released	2001/04
Device type	auto
Recorder	Player
MDLP	Yes
NetMD	No
Hi-MD	No
Radio	Not recorded
Dimensions	1-DIN 182 × 53 × 161 mm
Weight	1.2kg
ATRAC ver	Type-R
Battery	Not recorded Not recorded
Battery notes	Not recorded
Sidecar (depr)	No
Voltage	12
Power cable	Not recorded
Price (launch)	Not recorded
Price (launch)	¥400
-
Inputs	Not recorded
Outputs	RCA out, Speaker amplifier
Control	Not recorded

MDLP compatible. New Sony Xplod series design. 30 radio station presets, 10 second anti-shock protection, volume syncing with telephone system, multi-color display, bass/tweeter adjustment,CD-TEXT support, detachable faceplate. Also offered as MDX-CA680.

18 FM, 12 AM Preset Stations
10 Second Shock Resistant Memory
1-Bit Converter
3-Color Negative LC Display
Telephone Attenuate
Wireless & Rotary Remotes Optional
Flip-Down Detachable Faceplate
SSIR-EXA Tuner – Sony's proprietary SSIR-EX tuner technology which can actually adjust the tuner's bandwidth, depending on current environmental conditions. Improved sound quality and adjacent station interference result.
MBP (My Best Position) – Optimizes system for listener's position; one push; easy operation.
D-Bass – (Dynamic Bass) Sony's unique low frequency enhancement system which provides up to 18dB of gain to frequencies below 75Hz, without midrange coloration or interference.
Preamp Output – Typically found on headunits, a preamp output provides low level, high quality audio signal for use with external amplifiers. Provides an ideal expansion point for high quality audio systems.
MD/CD/TV Control w/Custom File – The ability of a component to operate a CD or MD disc changer and a TV tuner.
Custom File – A feature package that provides intuitive and safe source management for an audio and A/V system. Examples include Disc Memo , Station Memo and Memo List.
CD Text – A compact disc and player feature utilizing disc, track and artist information encoded directly on the CD media. Both playback and media components must have CD Text compatibility.
Station Memo – A Custom File feature that allows the user to assign an eight character name to a tuner frequency.
Shock Resistant Memory – An electronic circuit that stores the audio data stream from a CD or MD in a memory buffer. If the laser pick-up mistracks, audio still flows from the buffer preventing an interruption.
Wide Bit Stream Processing – This technology maintains 20-bit precision through the recording process for clearer reproduction of delicate, low-level music.
8x Oversampling – A digital filter which calculates 7 additional samples between those taken from the disc which provides a closer representation of the original analog signal and therefore better sound quality.
Negative LC Display – A liquid crystal display employing a dark backfield with its elements. This results in a primarily dark display, which improves cosmetic integration with a dark colored headunit.
Flip-Down Detachable Faceplate – A DIN headunit who's faceplate hinges at the bottom to reveal a media loading slot. Provides a larger area on the face for the display and controls.
50W x 4 speaker output.
