Sony MDX-F5800

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-08-19

Manufacturer
Sony
Model / source grouping
MDX-F5800
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony MDX-F5800”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MDX-F5800
Manufacturer Sony
Released 2004/04
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No

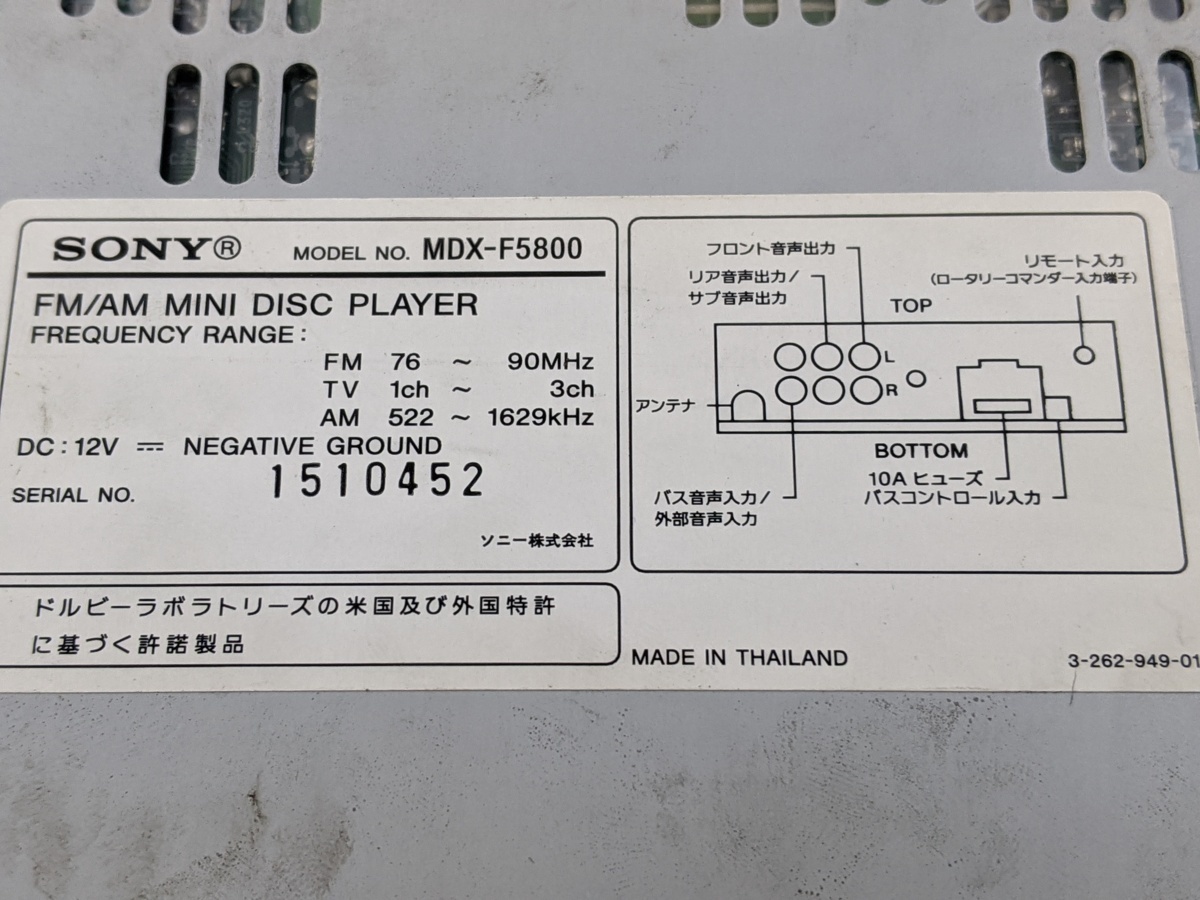

Radio Yes - 76-90Mhz
Dimensions 1-Din 178 x 50 x 181mm
Weight 1200
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥44 100
-
Inputs Not recorded

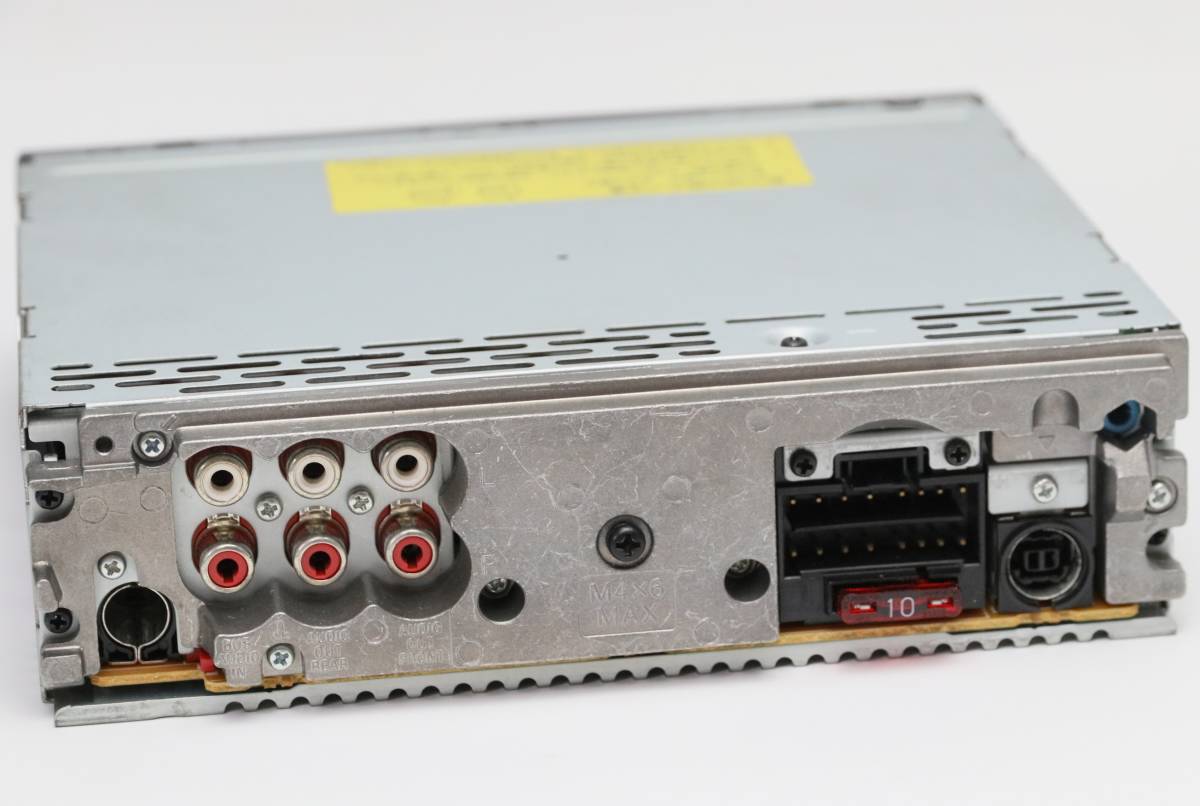

Outputs RCA out, Speaker amplifier
Control 3.5mm control
  • Supports MDLP
  • European band radio (AM/FM/UKW/MW/LW)
  • Wide bit stream
  • Repeat, shuffle functions
  • Changer control for external CD/MD changer with ID3 tag and CD-Text display.
  • Tuner Type: SSIR-EXA. Tuner features Automatic Bandwidth Control (?), Best Tuning Memory and RDS EON.
  • Amp: Dynamic Soundstage Organizer (DSOII), 3-Band equalizer, separate bass/treble controls.
  • Subwoofer switch, switches between rear and sub outputs.

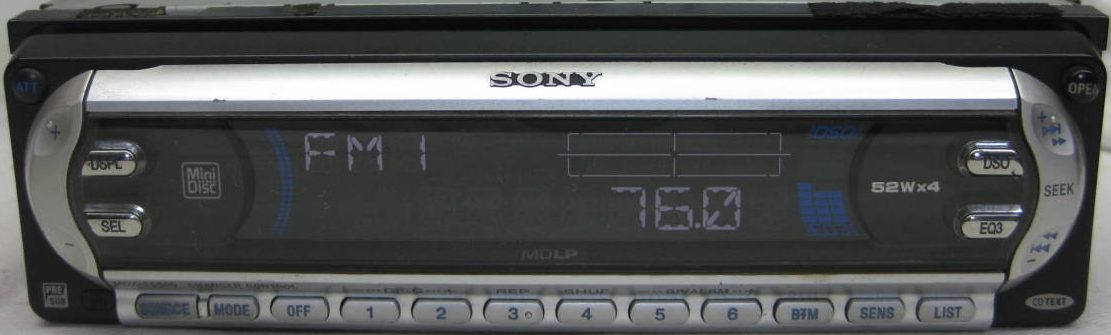

  • 2 color display
  • IR sensor for remote control
  • Integrated 24hour clock

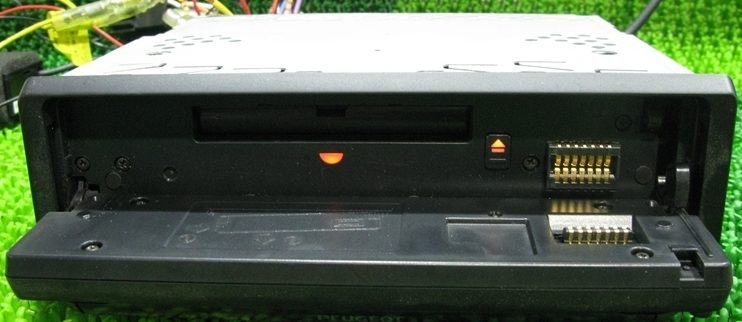

  • Removable front panel
  • Mute on incoming phone call

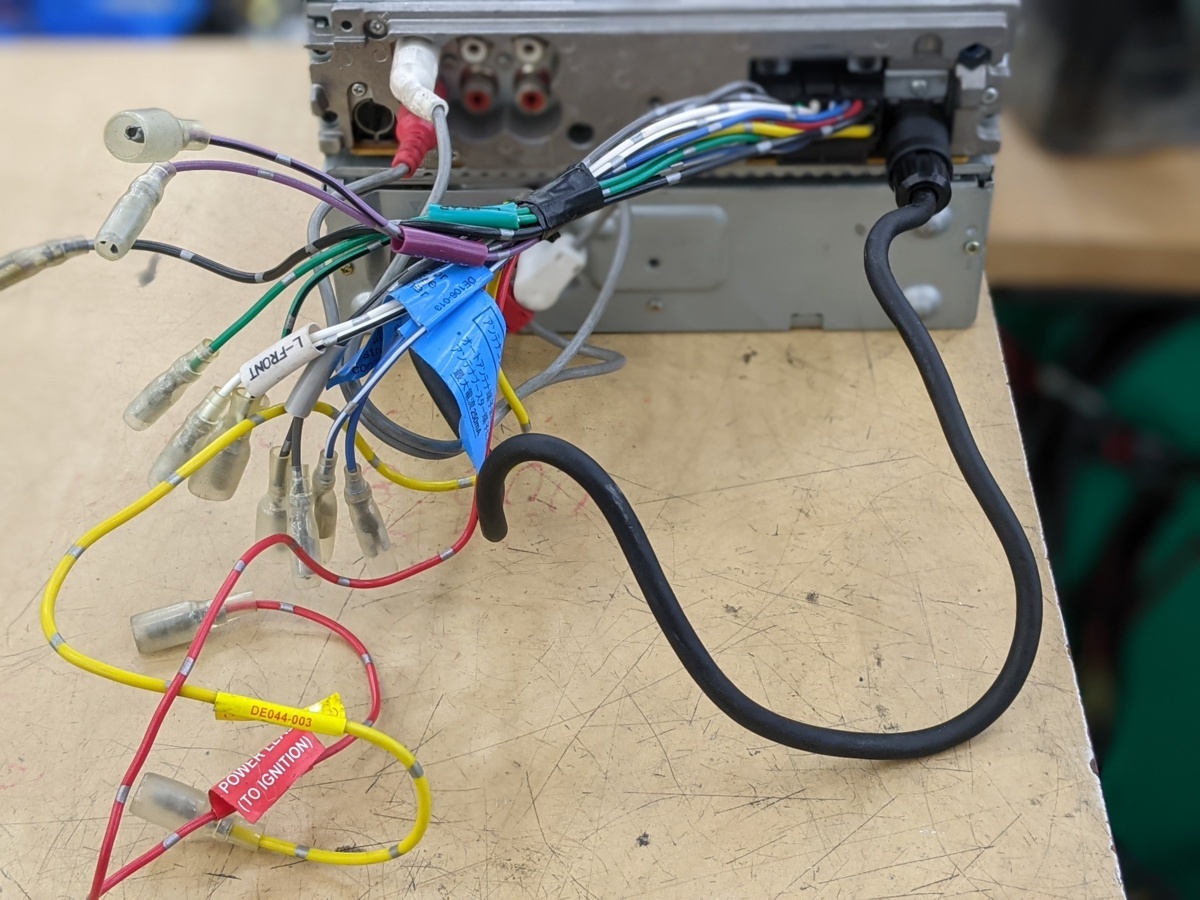

  • ISO connection
  • Operating angles 0-45 degrees
  • Optional Remotes: Infrared: RM-X114, Safety Commander (wired remote): RM-X45
  • Freq resp: 10-20kHz, SNR: 90dB. Amp: 4x27w DIN into 4 ohms.

Was also offered bundled with a 10 CD changer XDC-80M

MD Mechanism Type: MG-165A-138
Optical Pick-up: KMS-242E
ATRAC IC: CXD2667R

Content adapted from: Minidisc.org page Sony Product Page Sony Product Page (MiniDisc Wiki mirror) msrp sony.jp/ServiceArea

Manuals

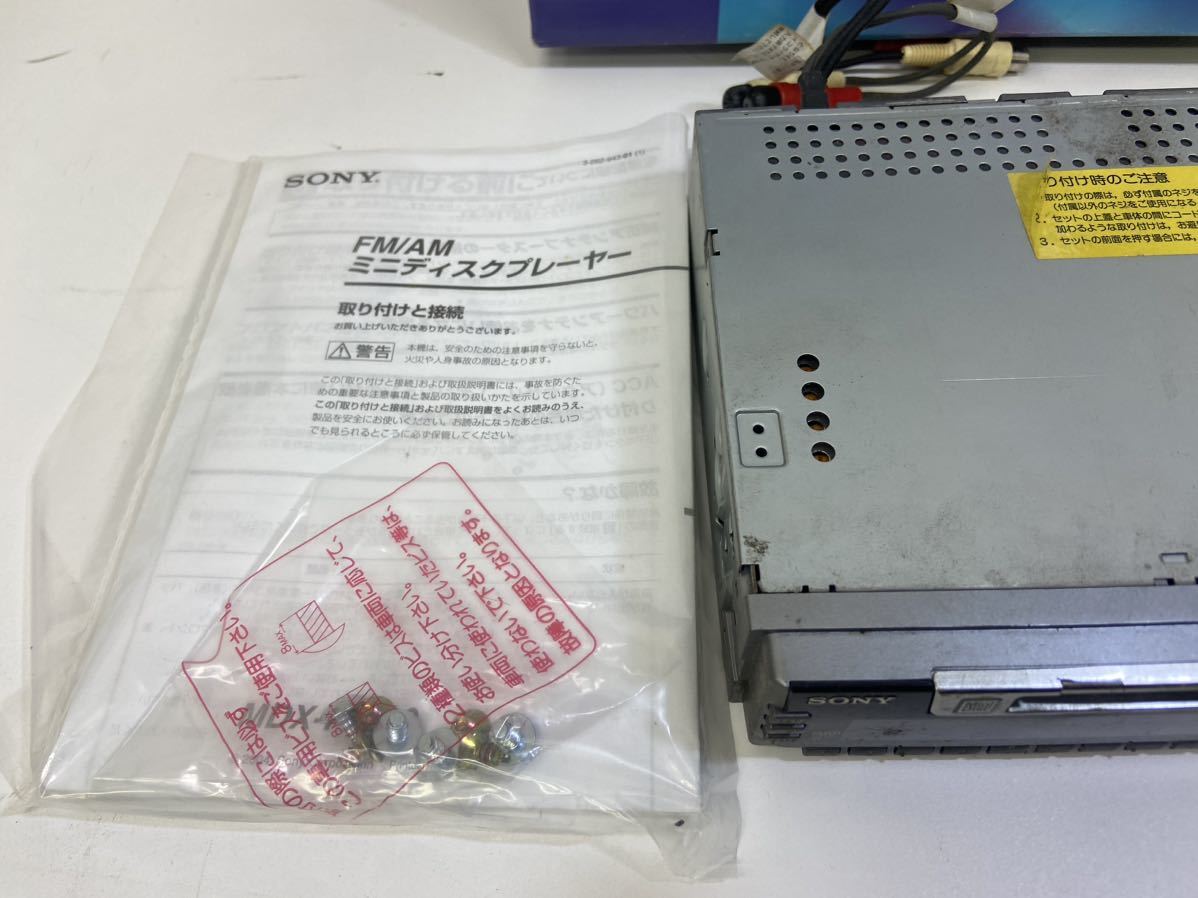

Sony MDX-F5800 User Manual ENG Installation Guide

Sony MDX-F5800 Service Manual Supplement

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Remote Page
Atrac IcCXD2667R
ManualUser manual, Service manual, other
RegionJapan, Europe
