| Name | MDX-G77REC |
|---|---|
| Manufacturer | Sony |
| Released | 1999/11 |
| Device type | auto |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 1-DIN W 178 × H 50 × D 179mm |
| Weight | 1.9kg |
| ATRAC ver | 4.5 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥99 800 | |
| - | |

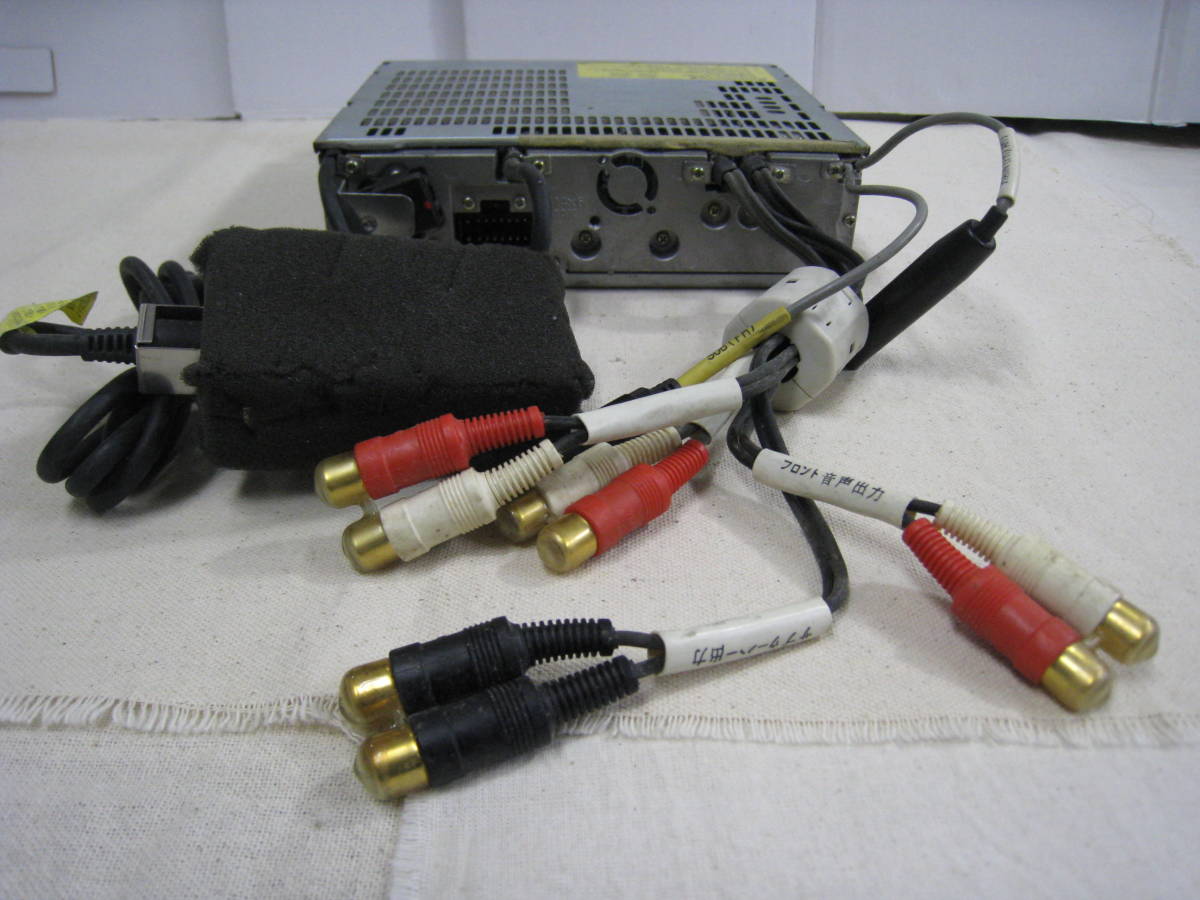

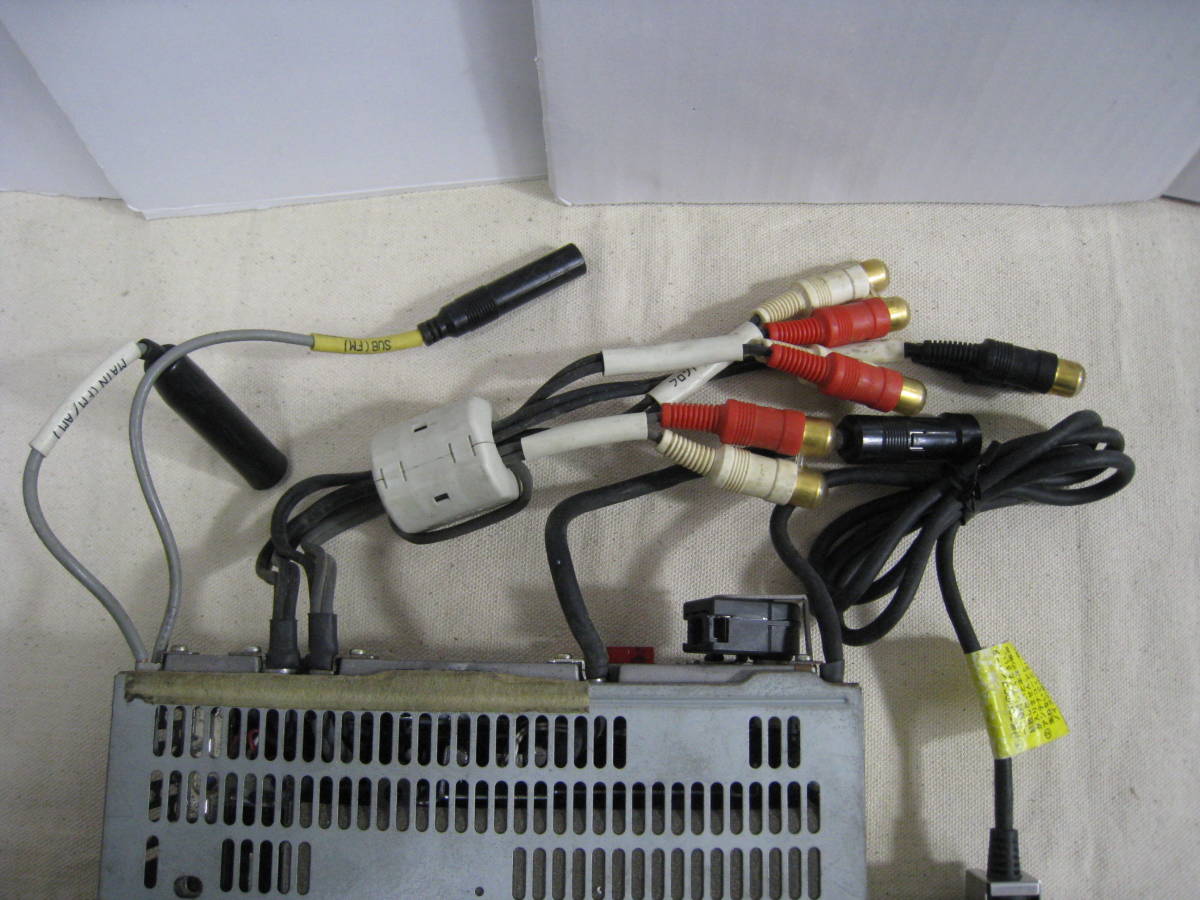

| Inputs | RCA in, Digital optical (TOSLINK), Radio recording |
| Outputs | RCA out, Speaker amplifier |
| Control | Not recorded |

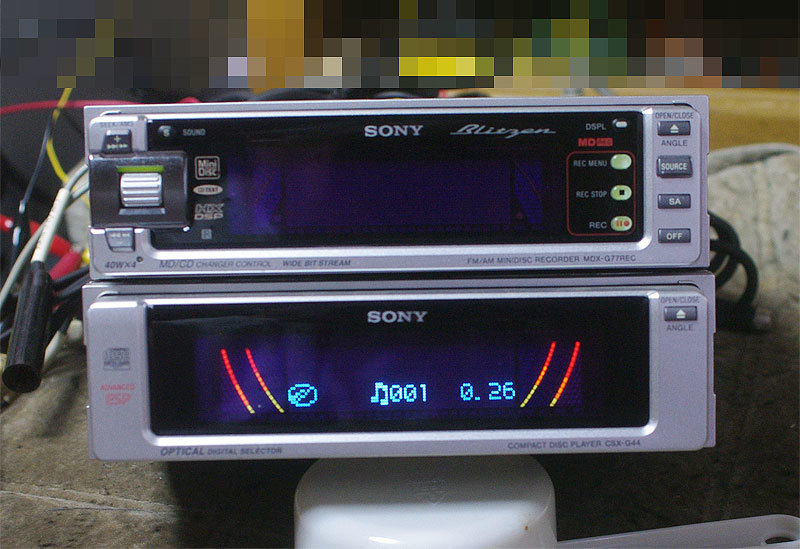

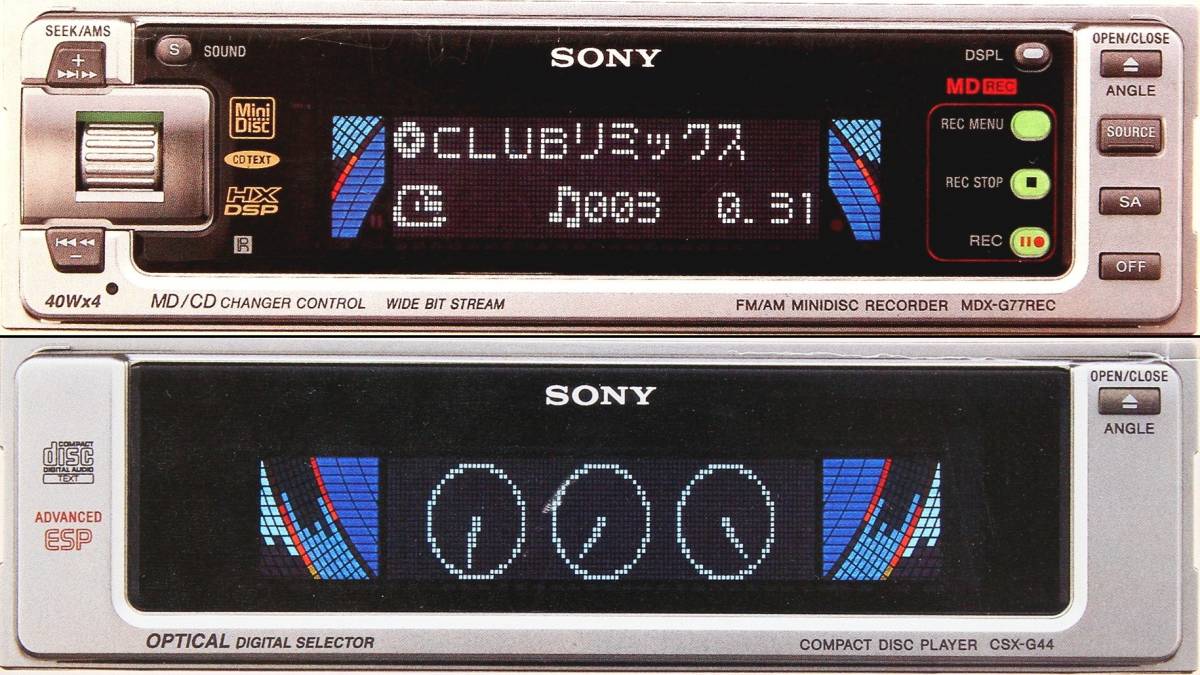

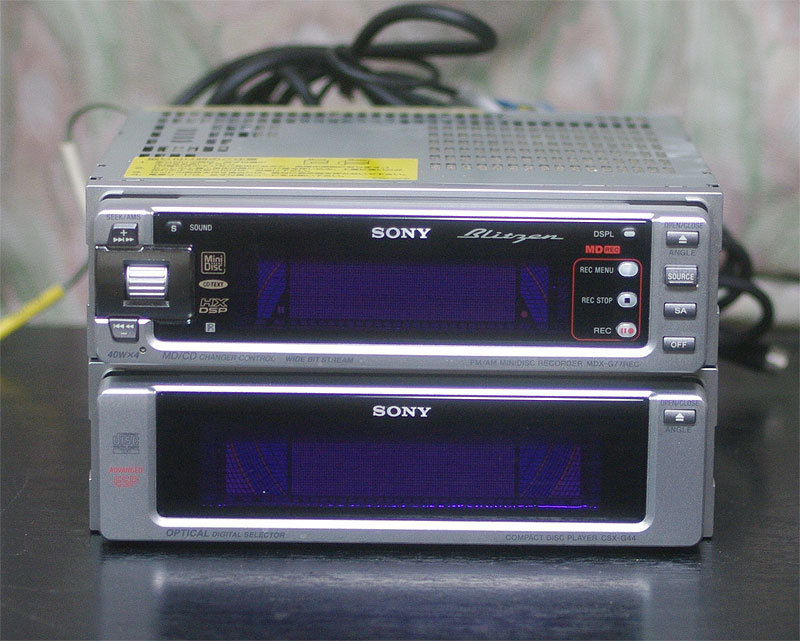

Compatible with CSX-G44 CSX-G44 (MiniDisc Wiki mirror) supporting optical CD audio in. Requires use of the XA-D110 adapter and one of Sony's optical cables: RC-97 (2m), RC-98 (5m), RC-103 (60cm).
Features:
- Single DIN size in-dash AM/FM/MD receiver with recording capability.
- Recording source can be AM, FM or attached MD/CD changer(s) (digital recording from CDs is possible).
- 10 second time-machine recording. ``Jog-roller'' control for volume, editing, track selection, etc.
- Full editing capabilities (titling/erase/move/divide/combine) available only when car is stopped with parking brake set.
- Features "Dynamic Sound Stage Organizer" (DSO) DSP function to adjust sound stage so that driver feels to be at apparent center of listening field.
- Flip out (down?) type front panel has 6 electrically settable display angles, with built-in setting memory.
Included remote commander: RM-X4S
Supports wireless remote commander: RM-X99 (not included)
Specs: SNR: 94dB, Freq. resp: 5-20kHz, FM band: 76-90MHz, AM band: 522-1629kHz, Amplifier: 40w X 4, Power consumption: 10 amps

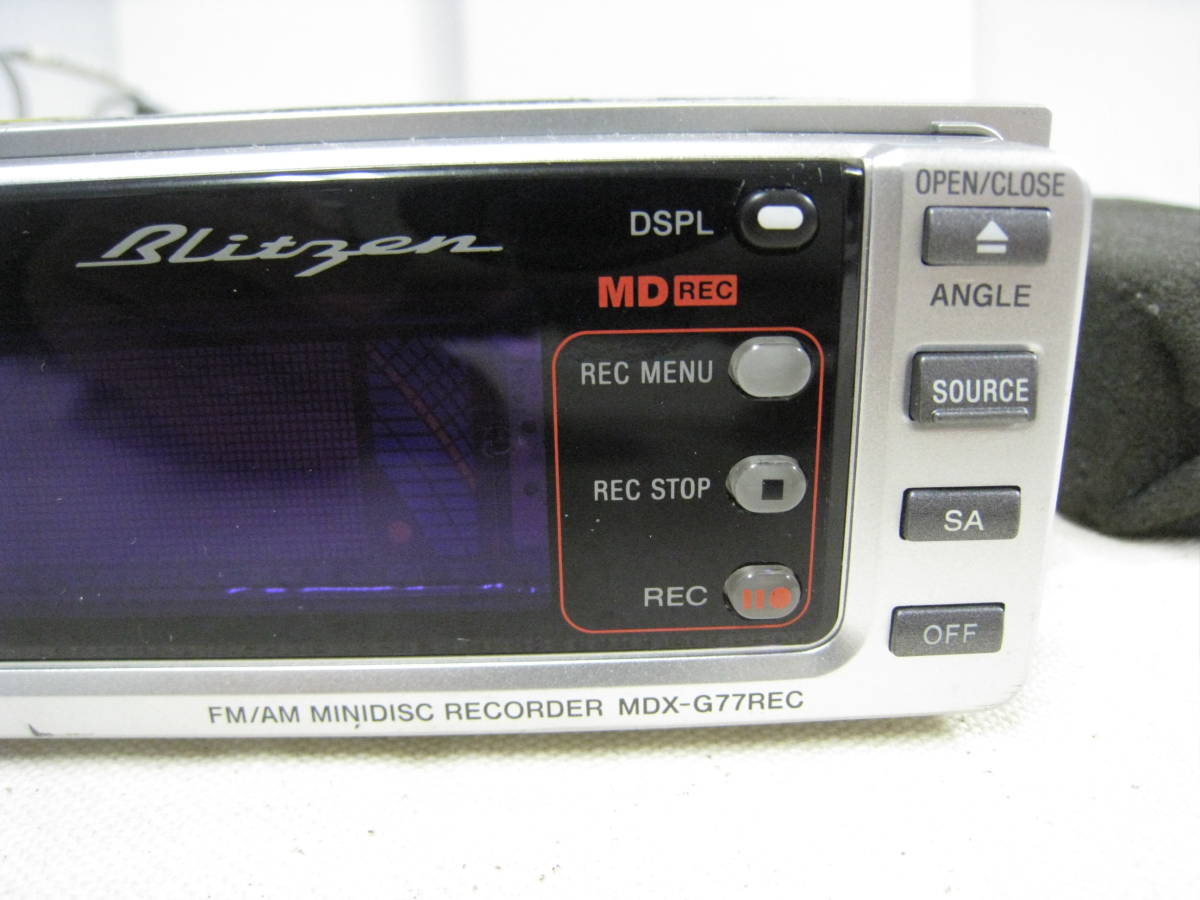

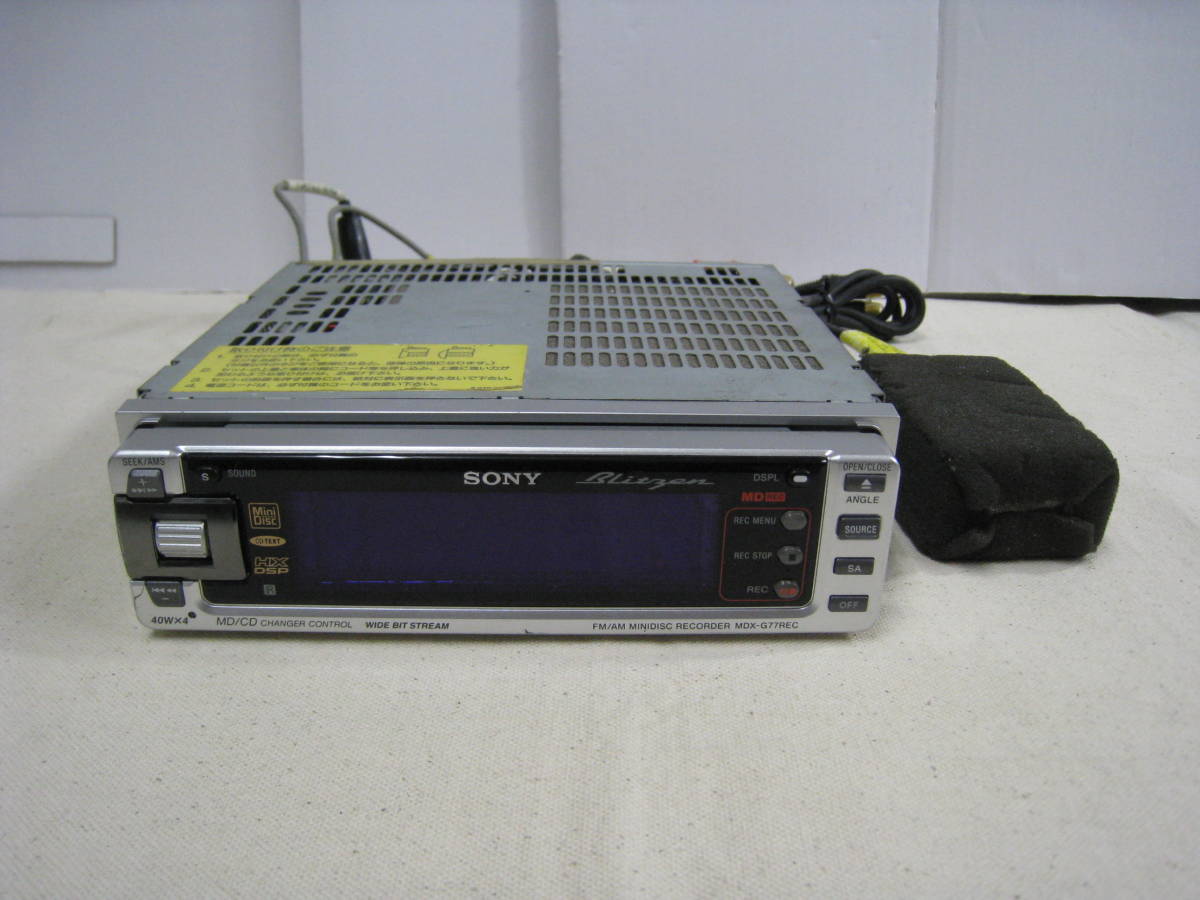

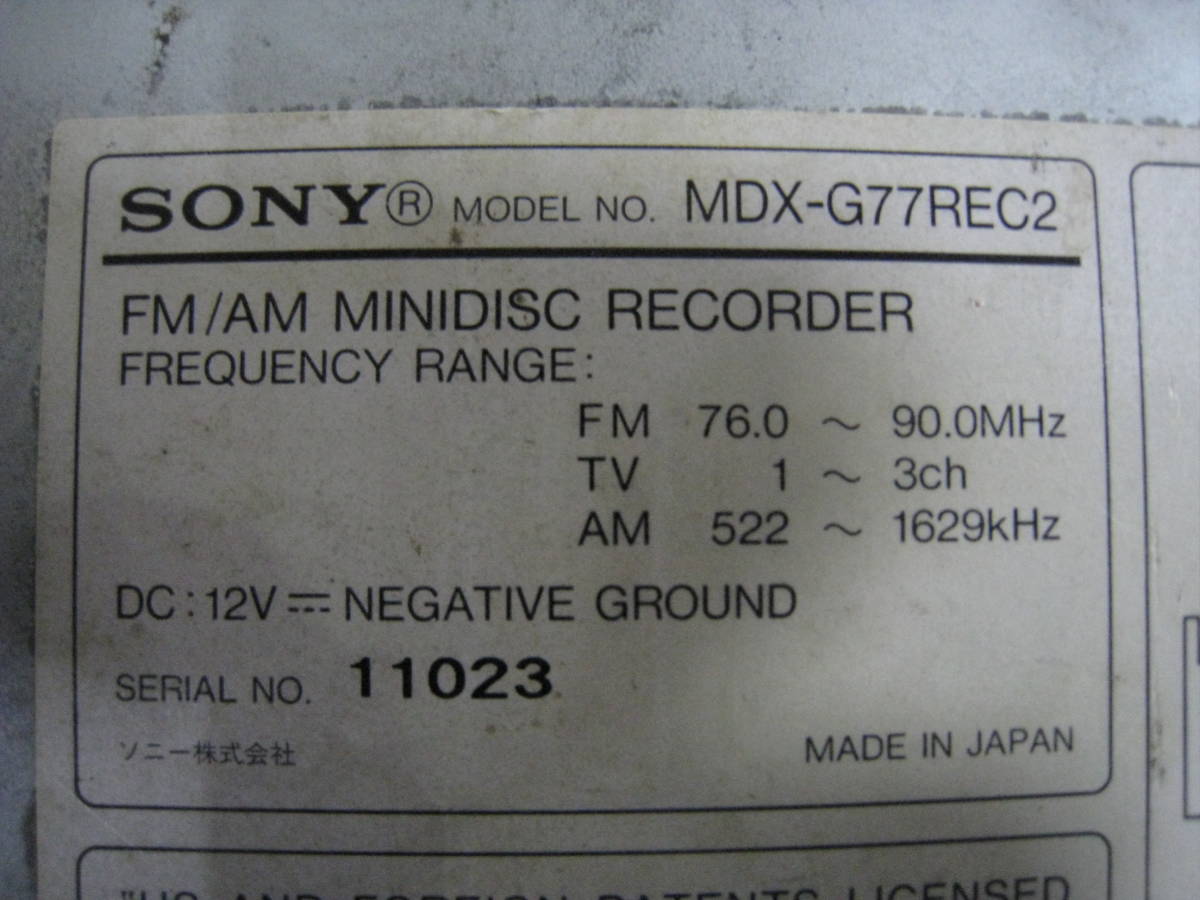

- A MDX-G77REC2 updated version had been a manufactory installed in Subaru BH Legacy Blitzen. Front panel still has original record "MDX-G77REC" and label "Blitzen" in the top right.
Content adapted from: Sony Press Release Minidisc.org Sony MDX-G77REC Sony MDX-G77REC (MiniDisc Wiki mirror) sony.jp/ServiceArea
