| Name | MDX-M870X |
|---|---|
| Manufacturer | Sony |
| Released | 2001/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |

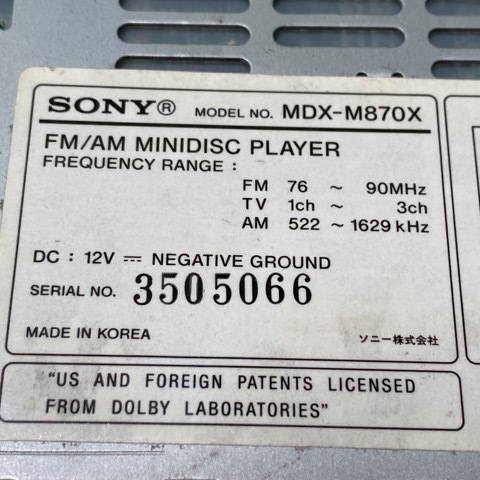

| Radio | Yes - 76-90Mhz |
| Dimensions | 178x50x182 mm |
| Weight | 1500 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥69 000 | |
| - | |

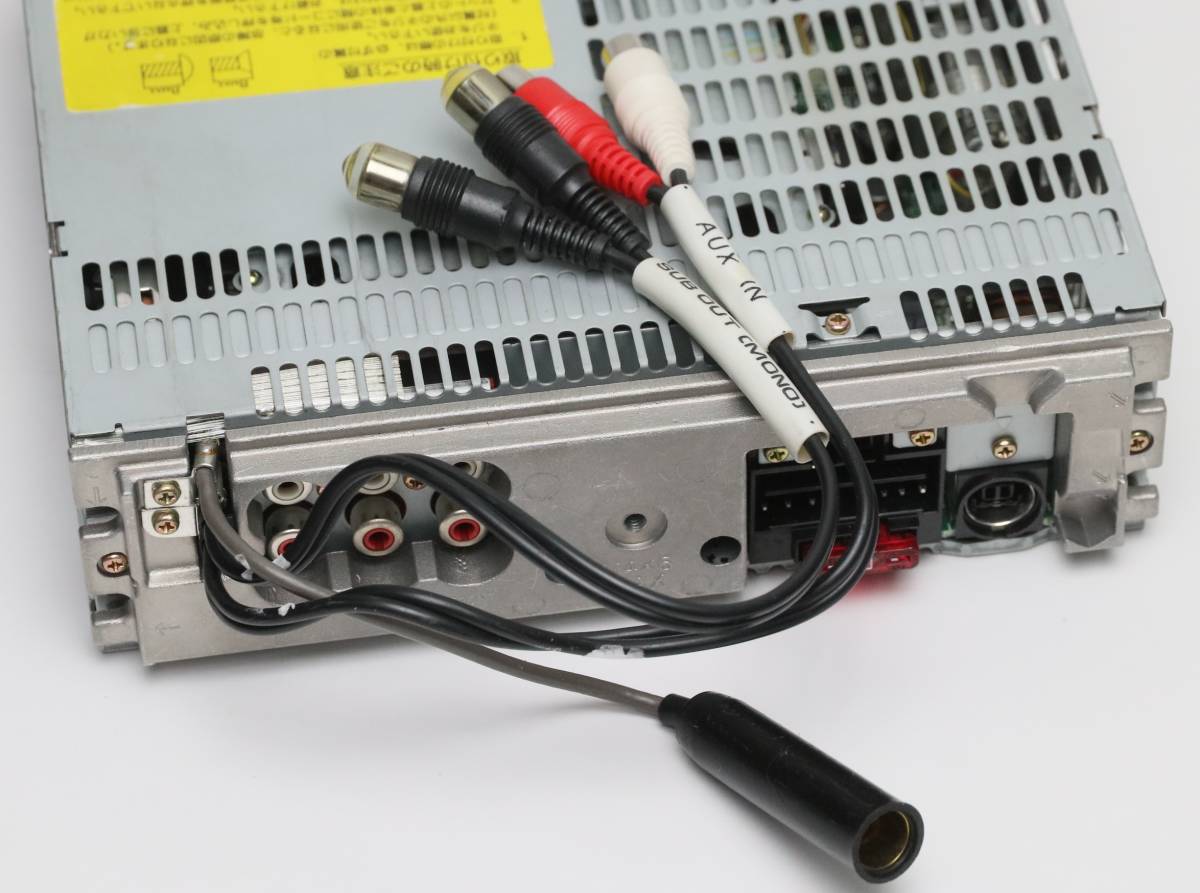

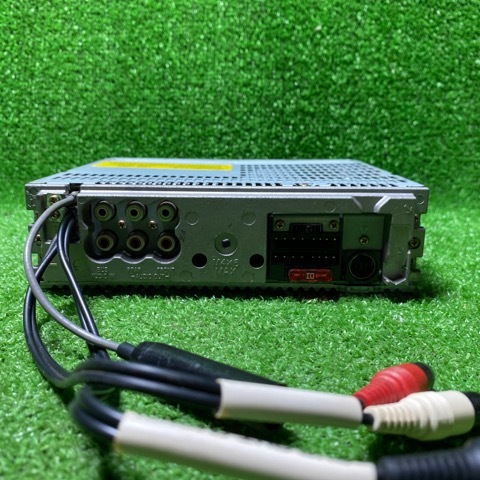

| Inputs | RCA in |
| Outputs | RCA out, Speaker amplifier |
| Control | Not recorded |

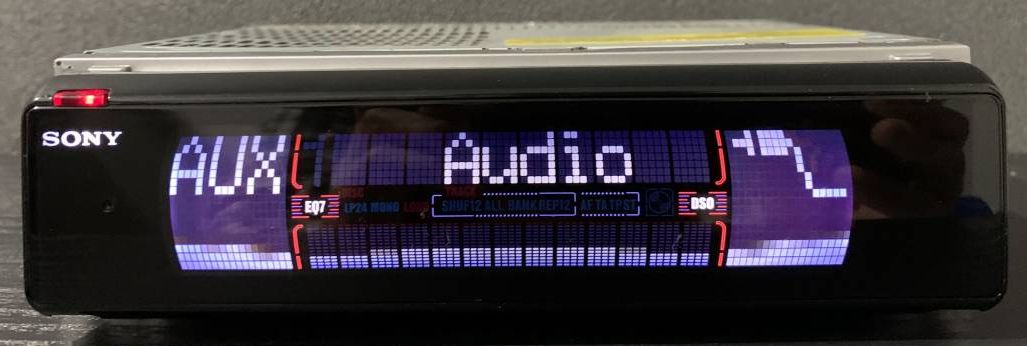

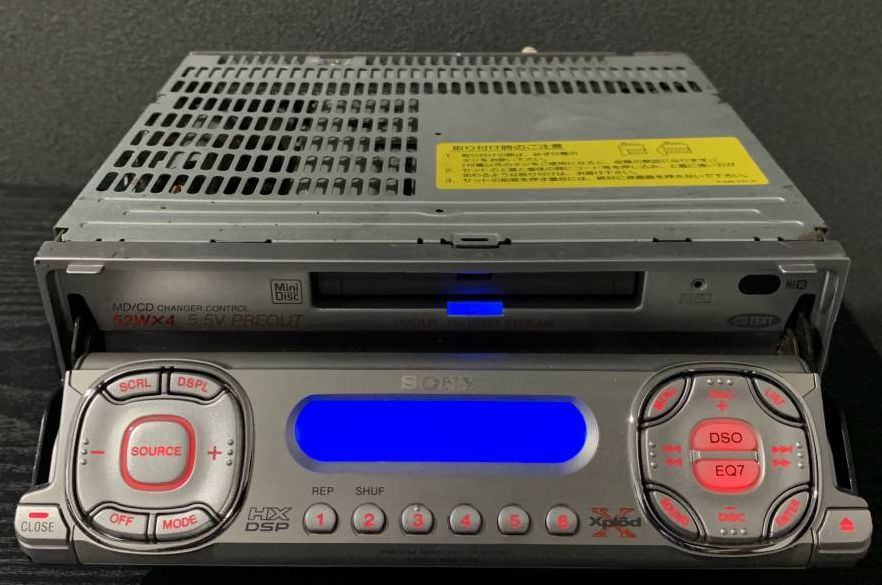

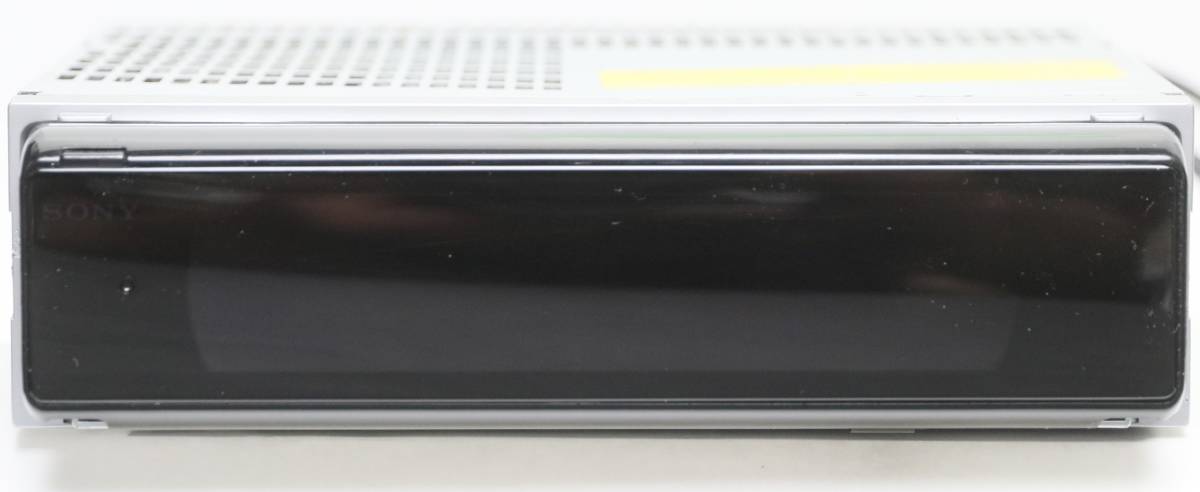

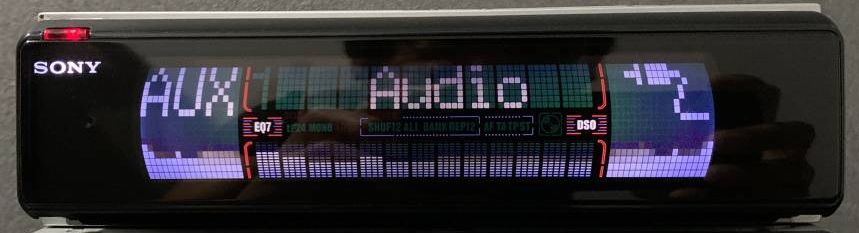

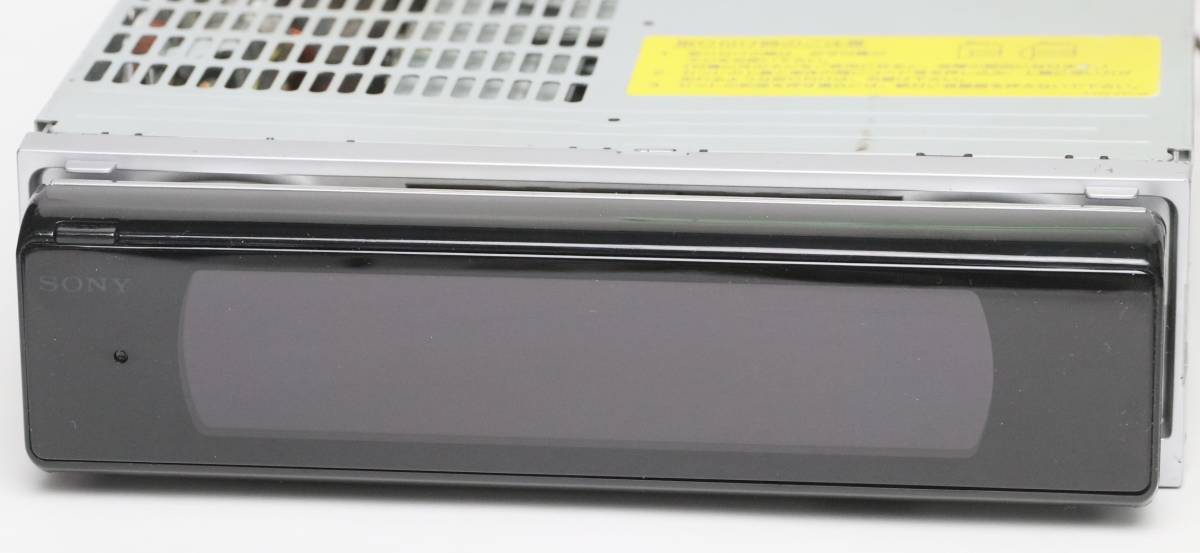

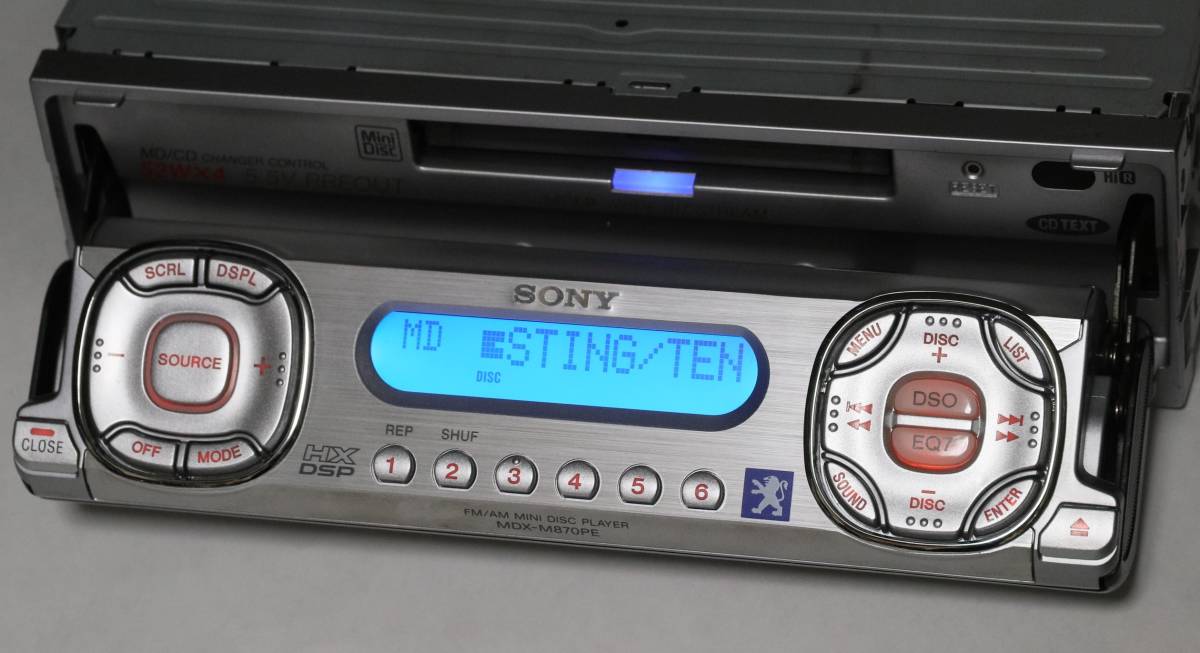

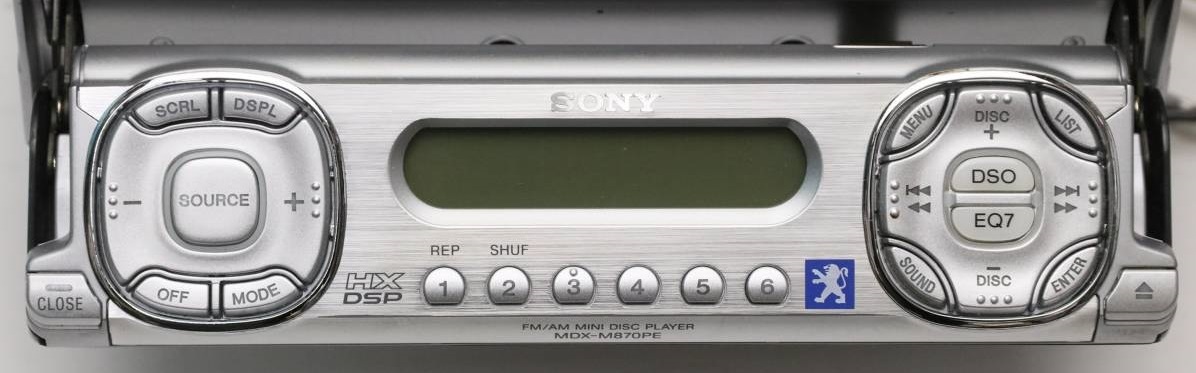

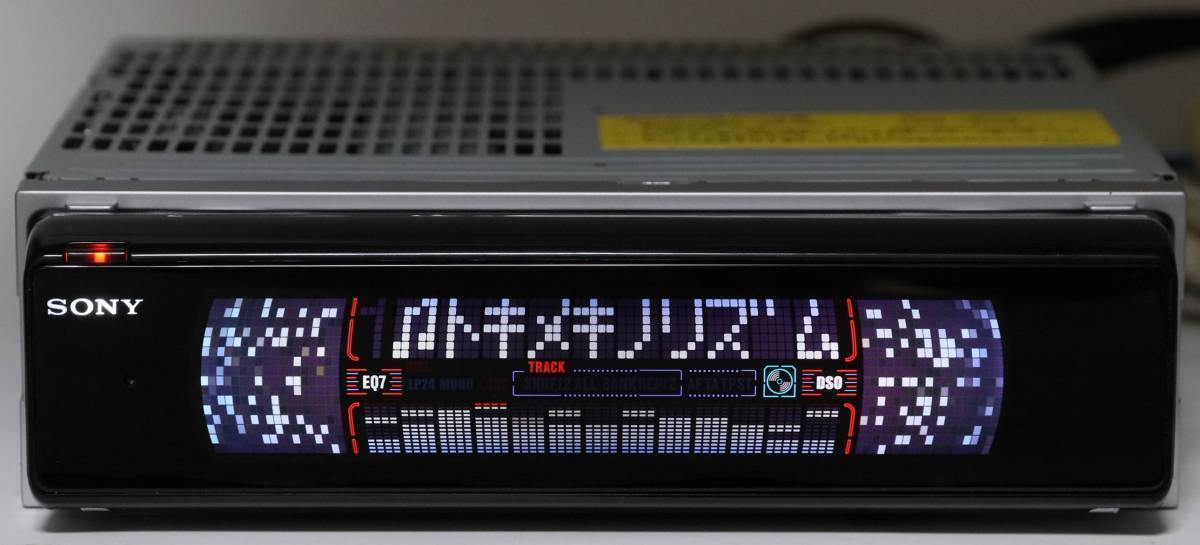

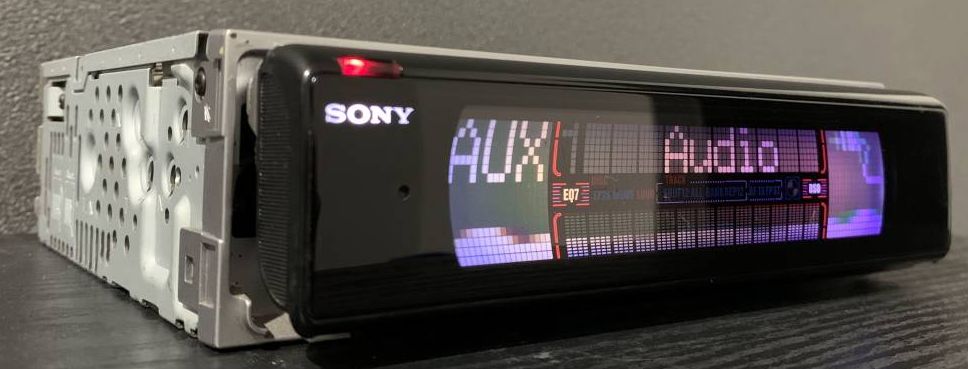

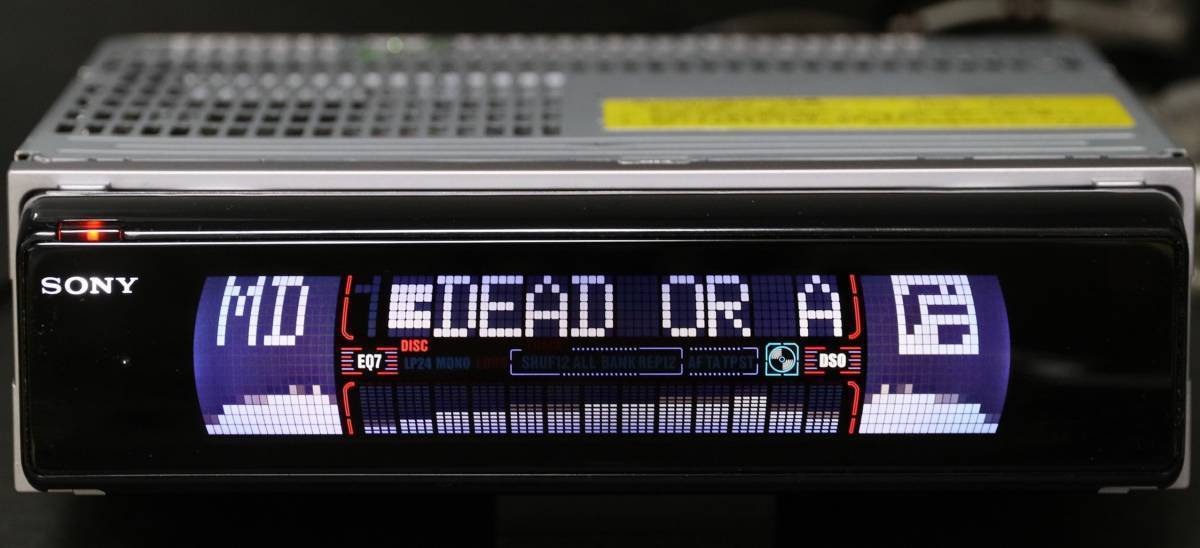

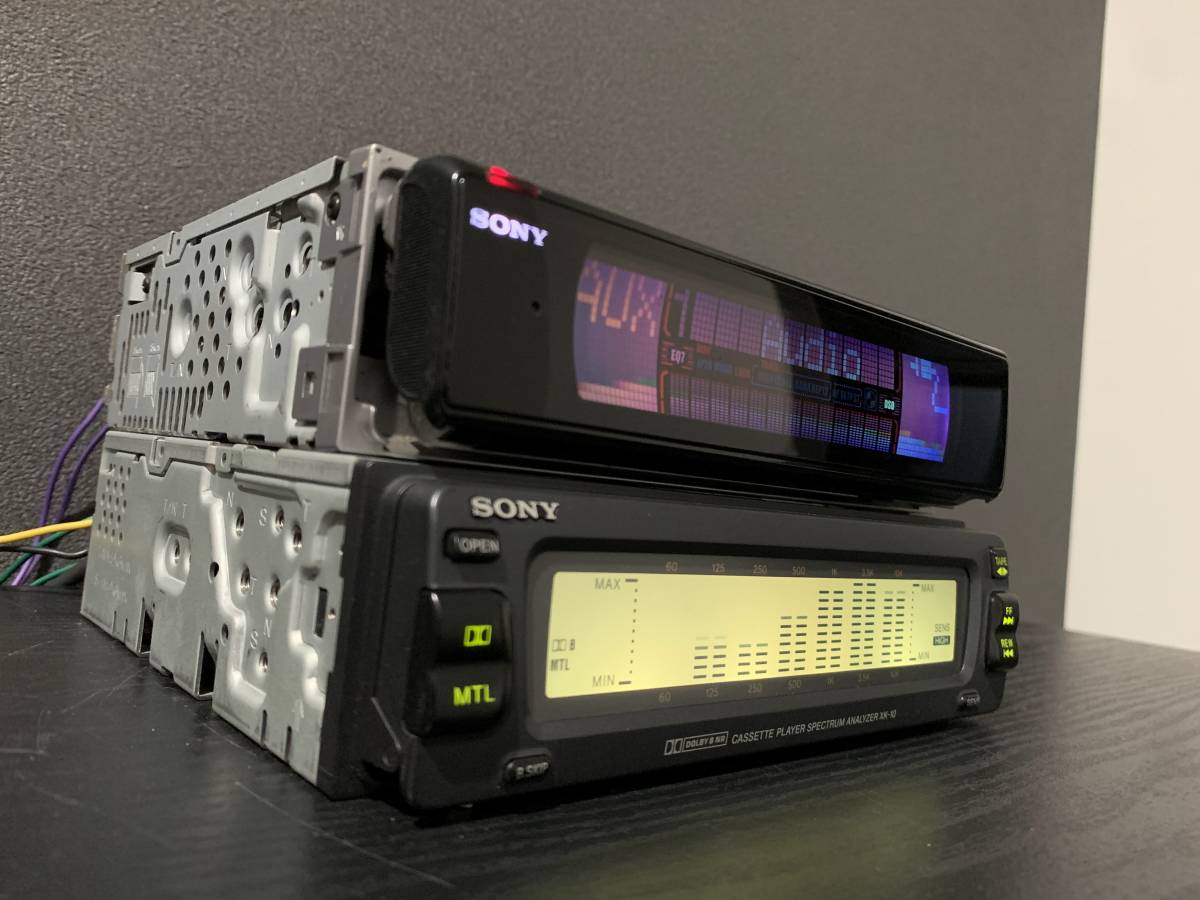

Part of Sony's "ABP" (Active Black Panel) lineup, the MDX-M870X has a screen on both sides of the faceplate. On the default side is a black screen that lights up with various information, on the flip side are various controls and a smaller screen.
- 52W x 4ch.
- MD part: 90dB
Uses KMS-241C as optical pickup
Content adapted from: Sony Press Release av.watch response.jp
