Sony WX-7000MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-02-26

Manufacturer
Sony
Model / source grouping
WX-7000MD
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Sony WX-7000MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name WX-7000MD
Manufacturer Sony
Released 2000/04
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes - 76-90Mhz
Dimensions 2-DIN 178×100×194mm
Weight 3000
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
¥84 000
-
Inputs RCA in, CD
Outputs Speaker amplifier
Control Not recorded

Features:

  • 3 MD capacity - Equipped with seamless disc change function.
  • DSO (Dynamic Sound Stage Organizer) function creates a sound field as if there were speakers on the dashboard.
  • Listening position selector
  • Equipped with independent front/rear high-pass filters and low-pass filters
  • pre-programmed equalizer
  • 10-second sound skipping guard memory is used to prevent MD sound skipping due to vibration
  • Wide bit stream

Technical:

  • MD Frequency characteristic：5Hz～20kHz
  • SN ratio：94dB
  • CD Frequency characteristic：10Hz～20kHz
  • SN ratio：94dB
  • 76.0MHz - 90.0MHz (FM)
  • 45W × 4ch - Maximum current consumption：10A

Content adapted from: Sony Press Release Sony Product Park Sony Product Park (MiniDisc Wiki mirror) Minidisc.org page Sony Mobile Product Page Sony Mobile Product Page (MiniDisc Wiki mirror)

Manuals

WX-7000MD User manual (Japanese)

WX-7000MD Mounting guide (Japanese)

Repair

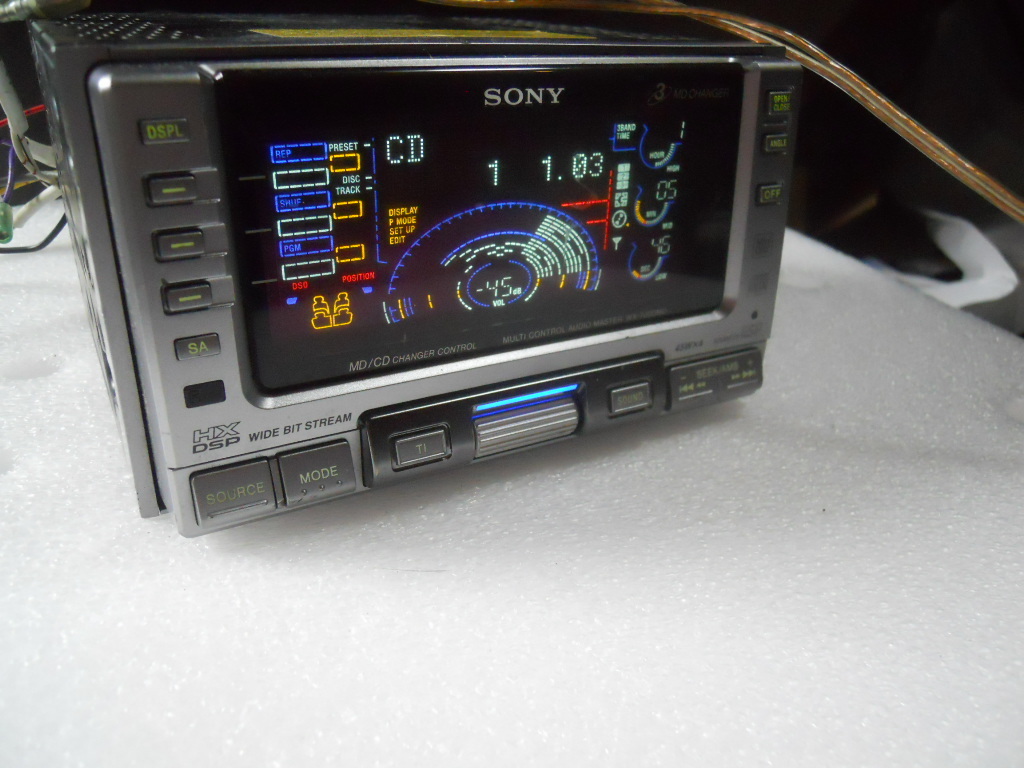

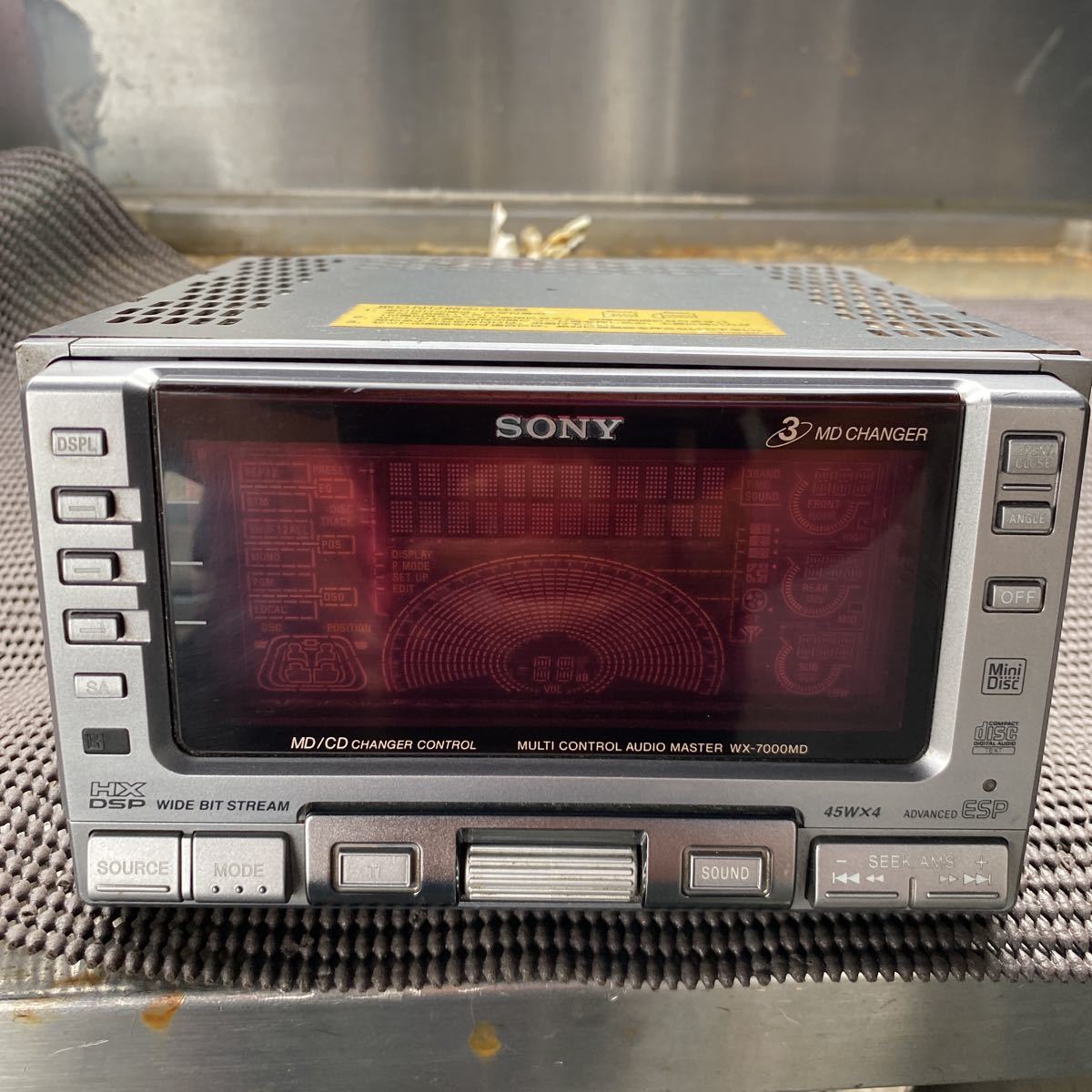

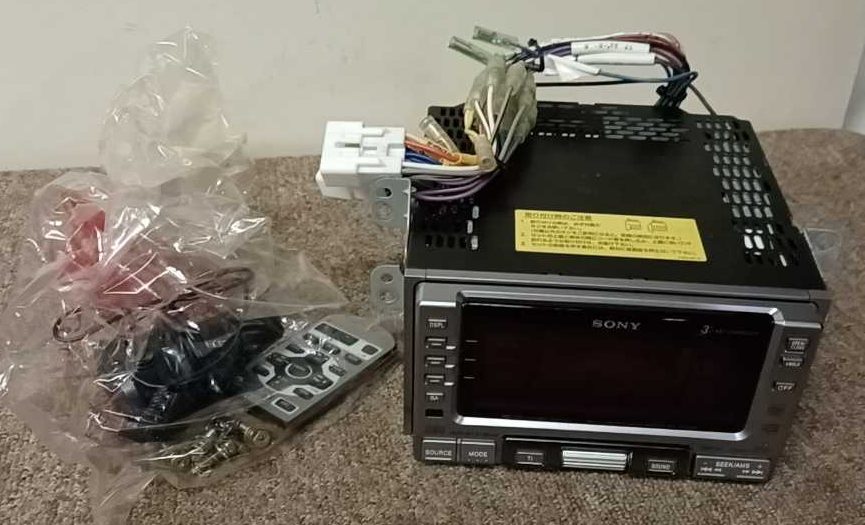

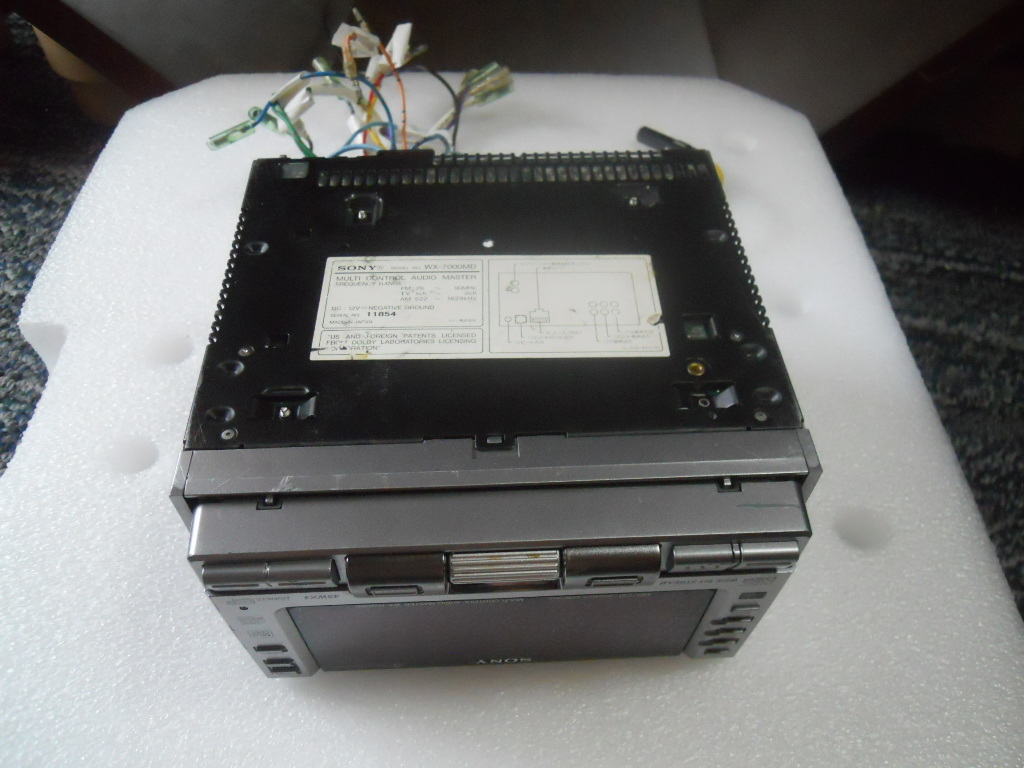

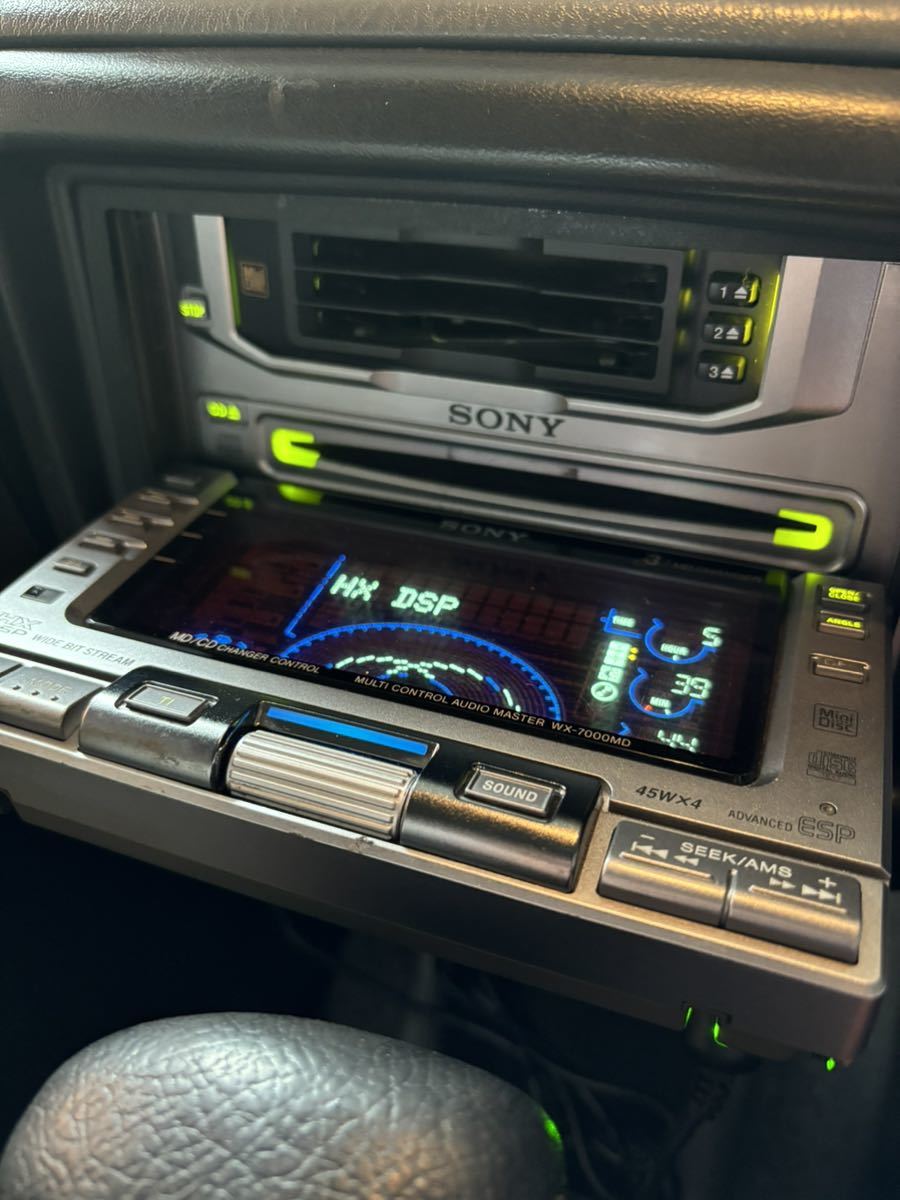

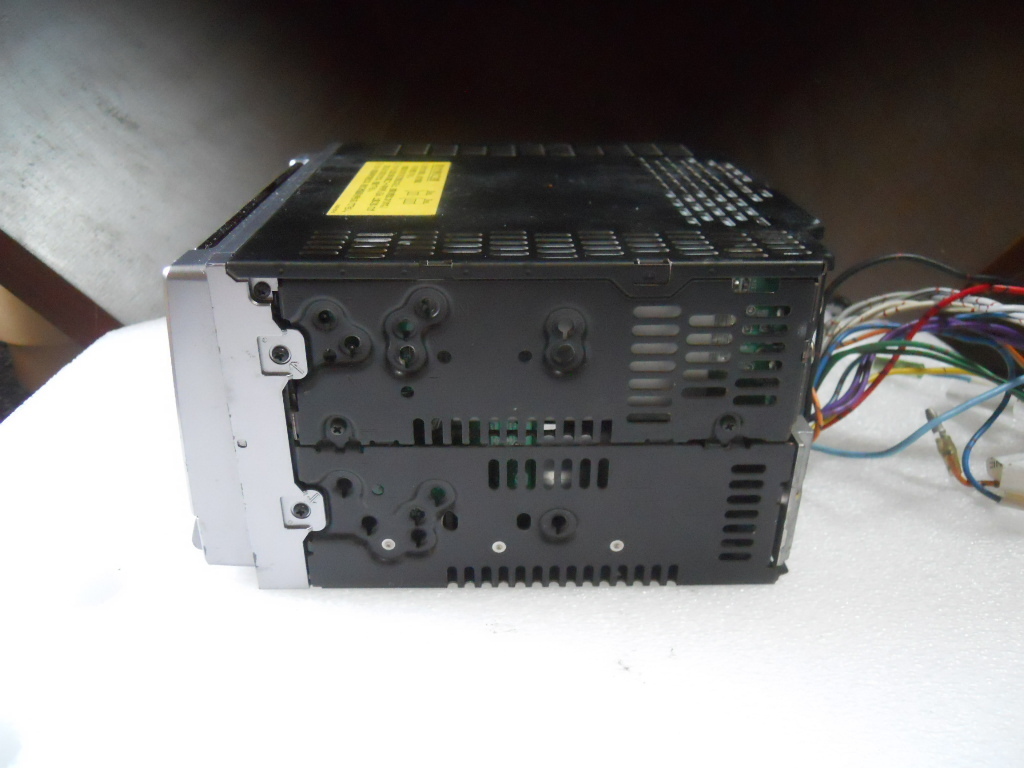

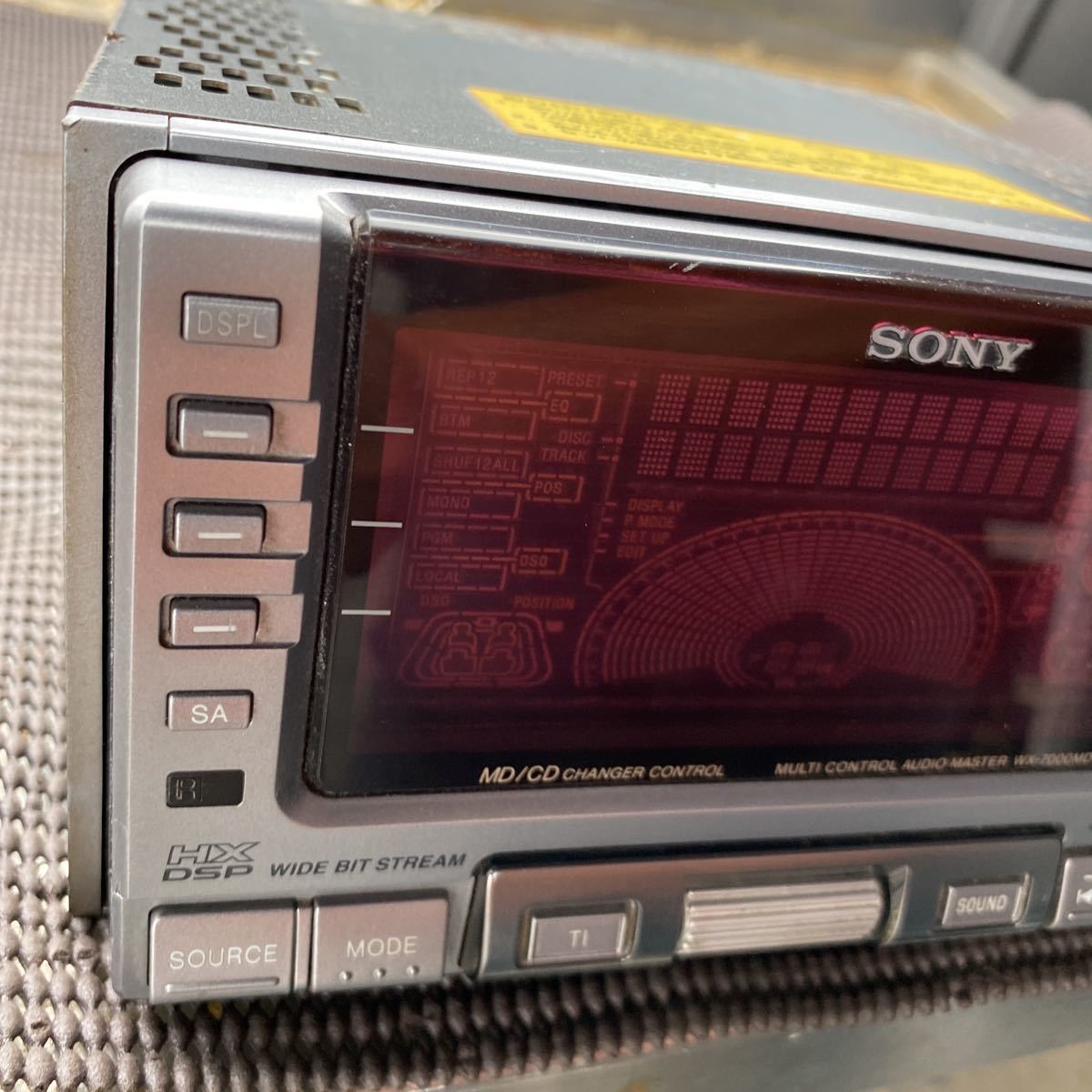

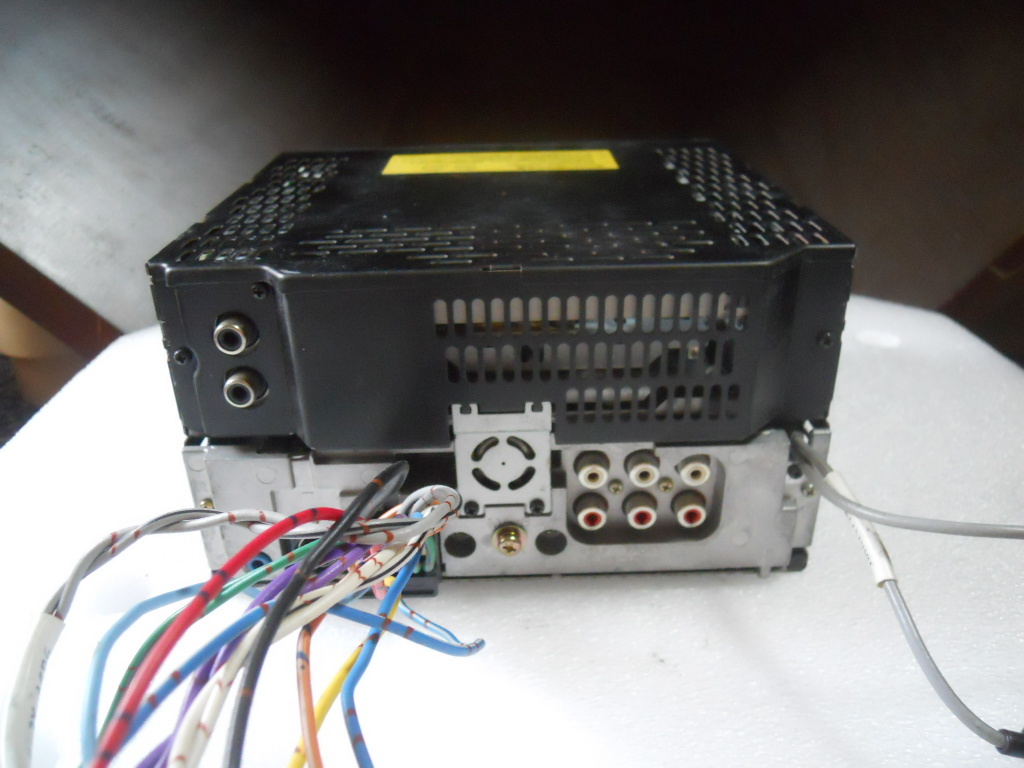

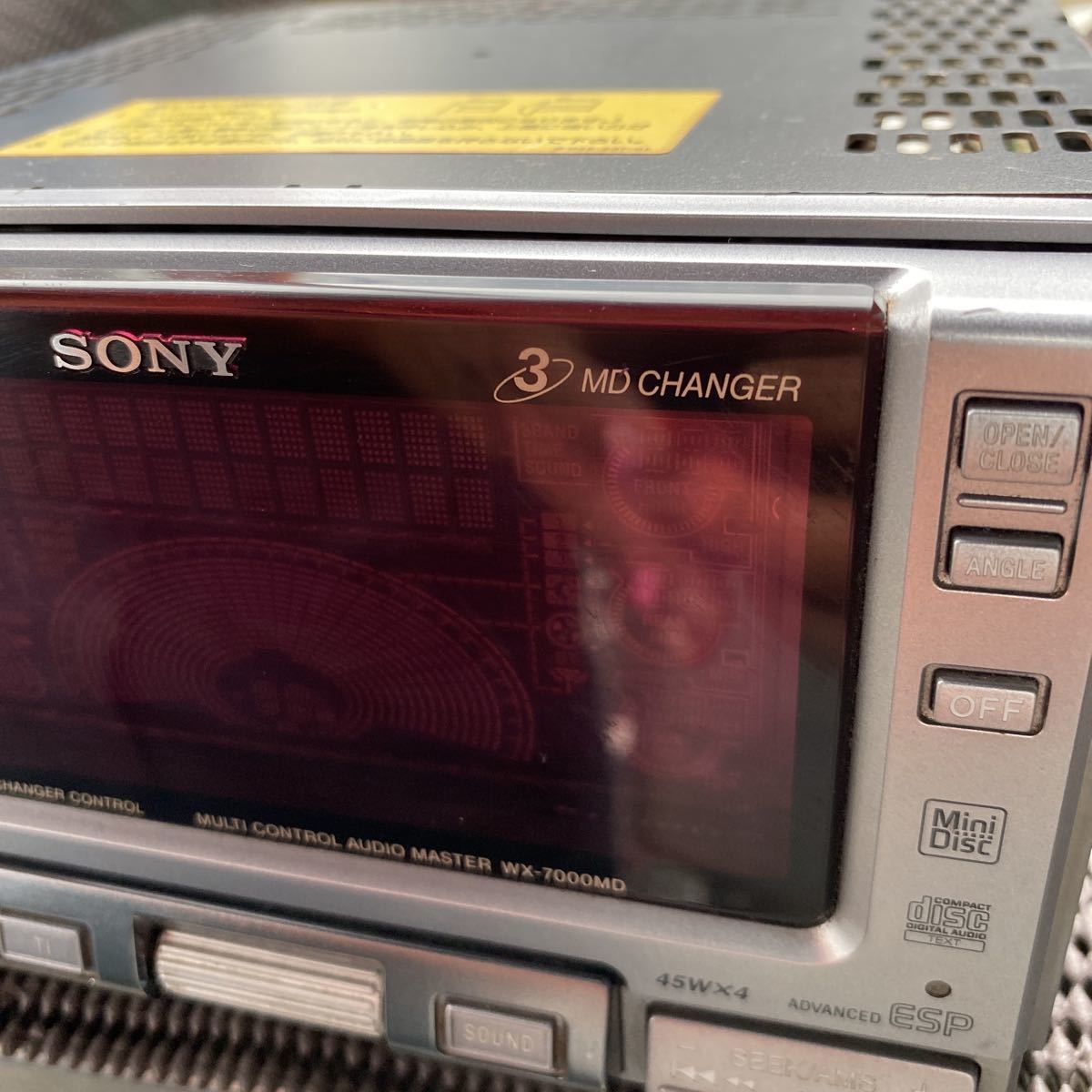

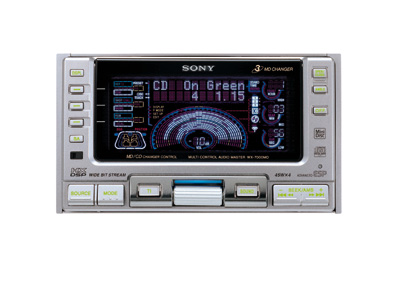

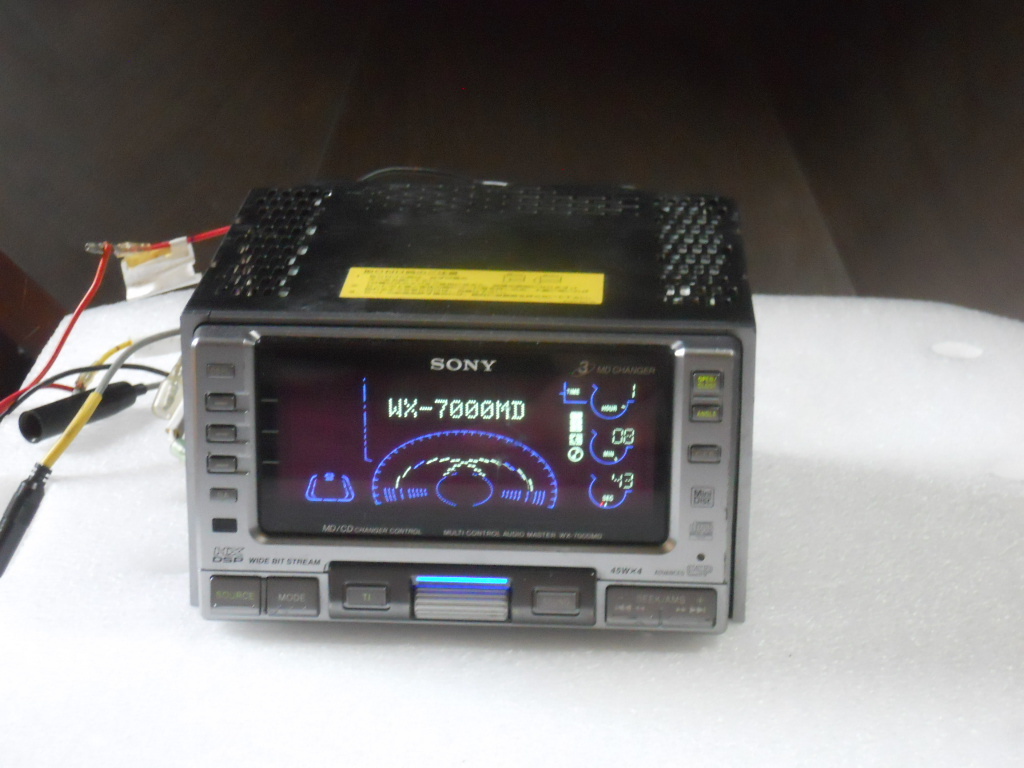

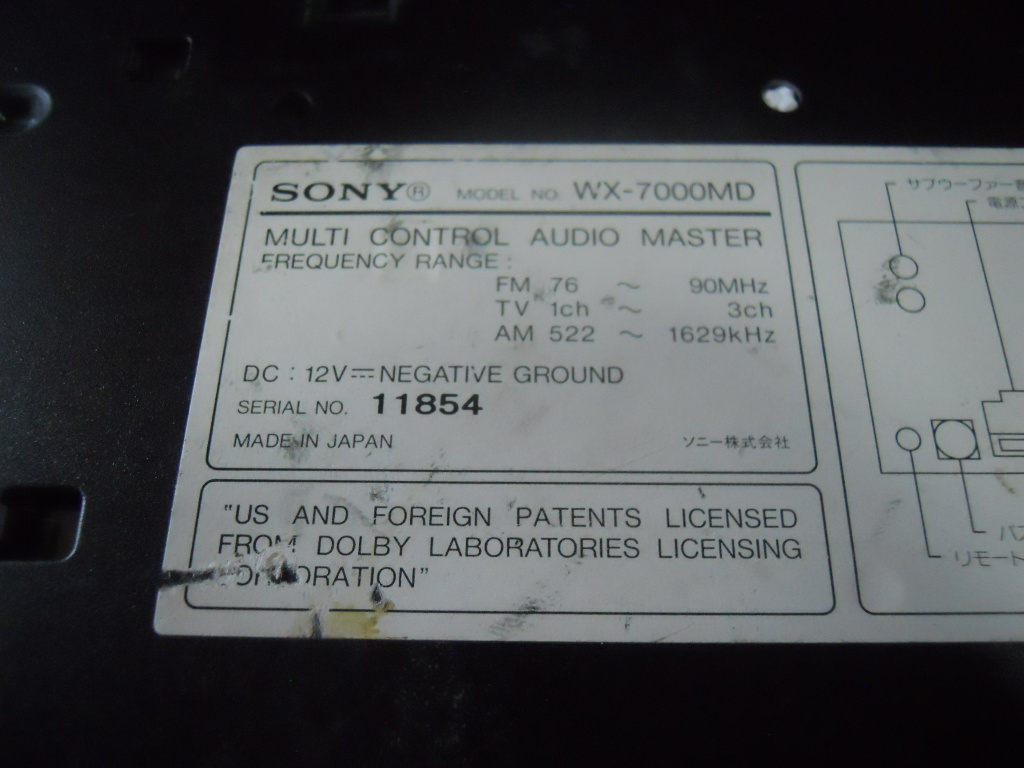

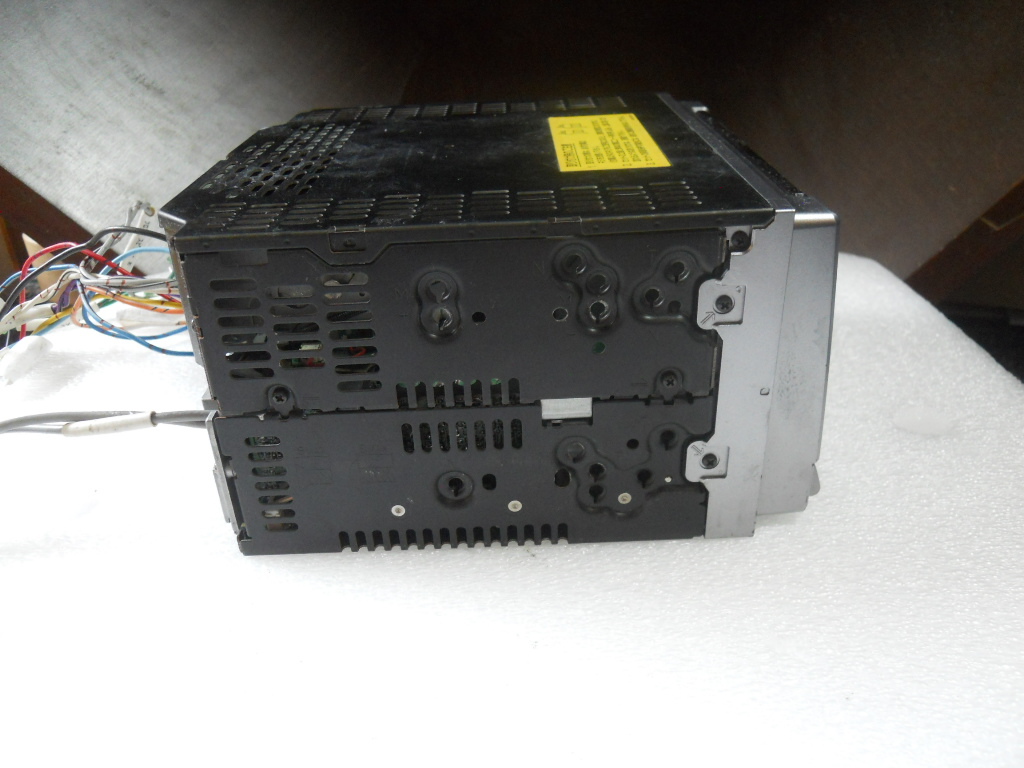

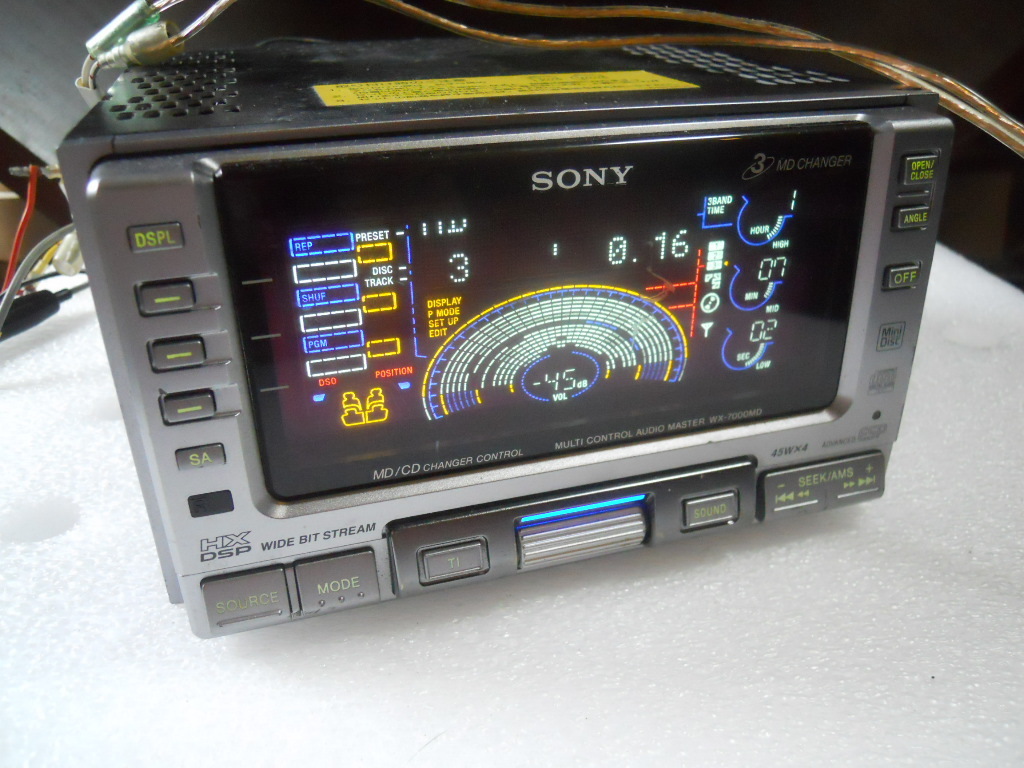

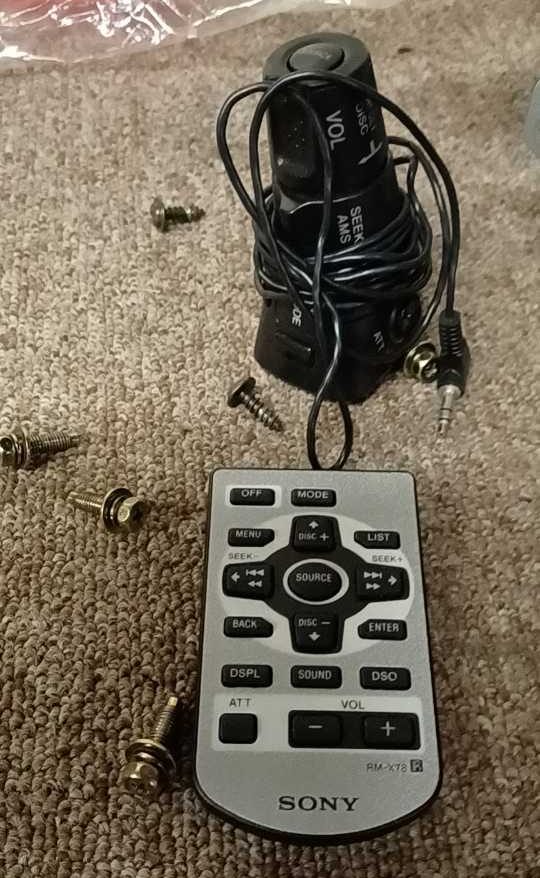

Photos

Referenced image — image unavailable in this snapshot

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual, other
RegionJapan
