| Name | WX-7700MDX |
|---|---|
| Manufacturer | Sony |
| Released | 2001/10 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 2-DIN 178 × 100 × 194 |
| Weight | 3000 |
| ATRAC ver | Type-R |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥85 000 | |
| - | |

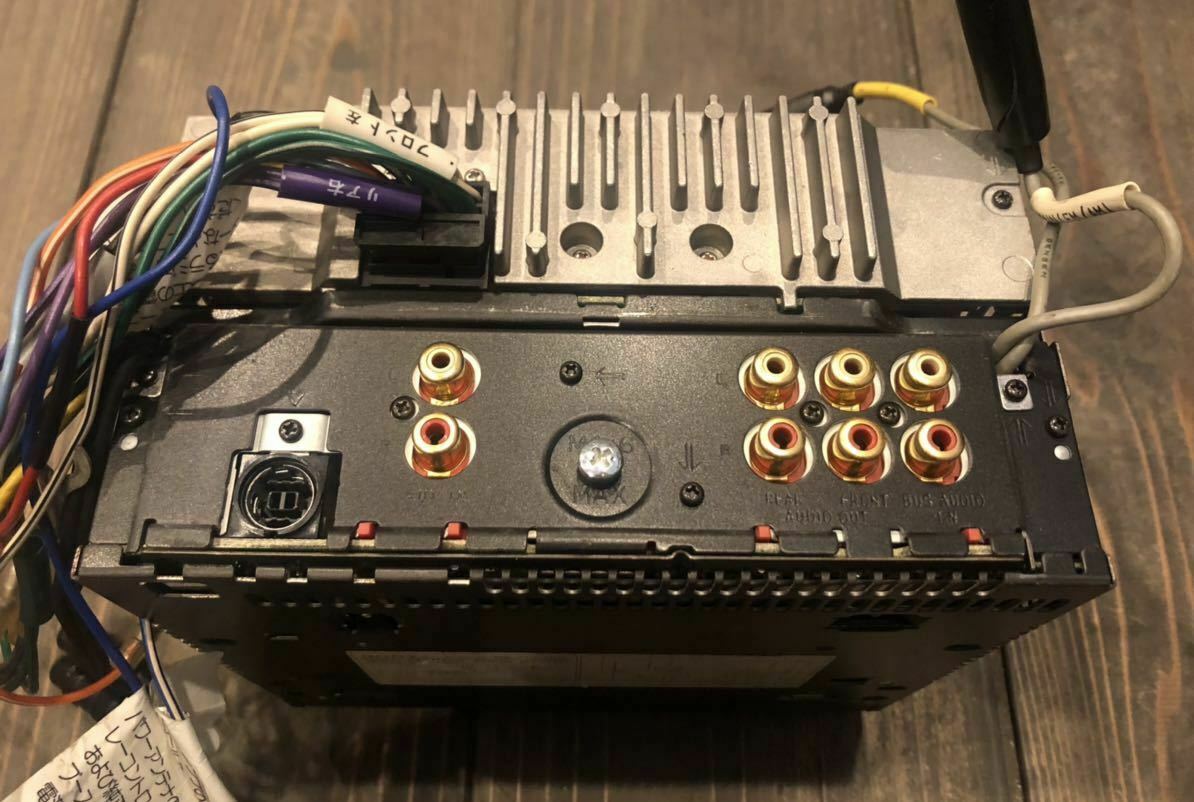

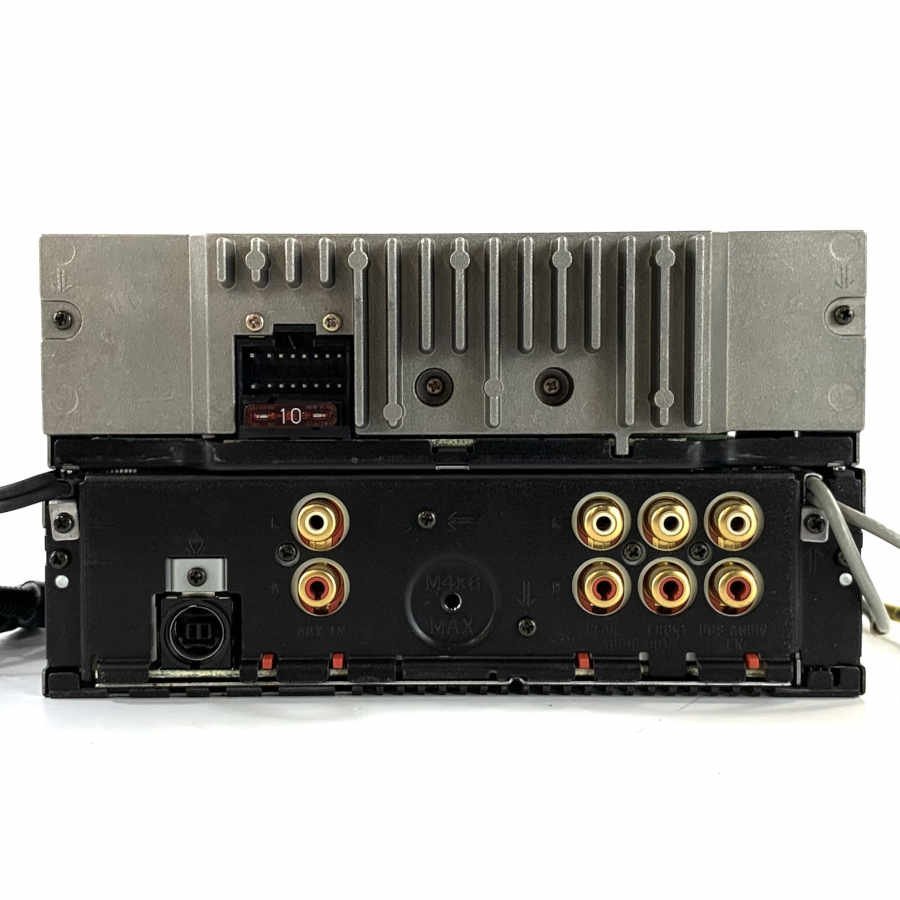

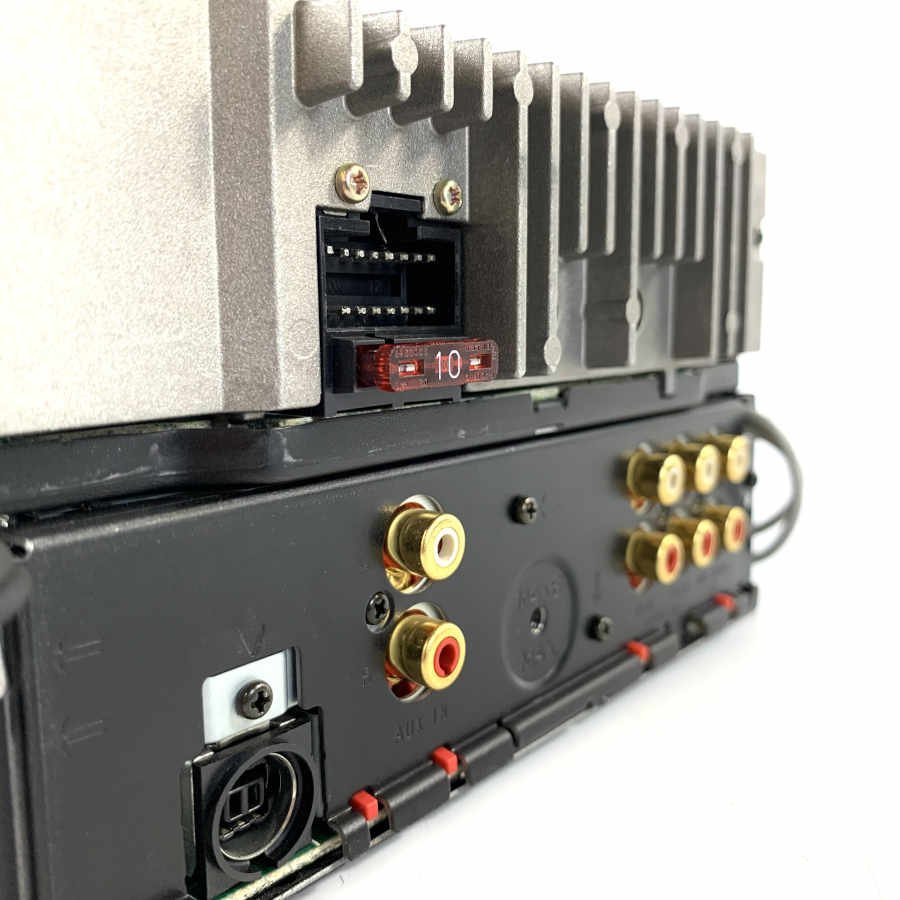

| Inputs | RCA in, CD |
| Outputs | RCA out, Speaker amplifier |
| Control | Not recorded |
Features:

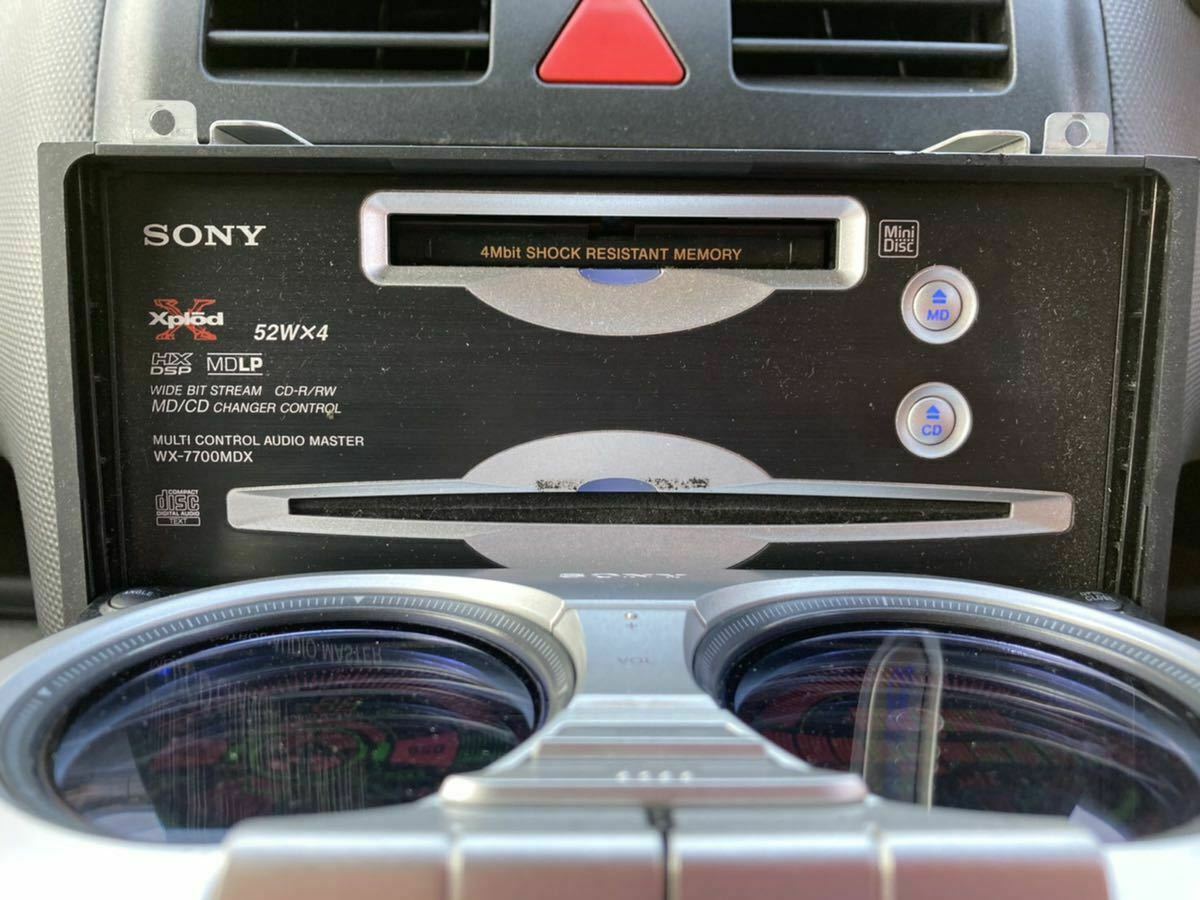

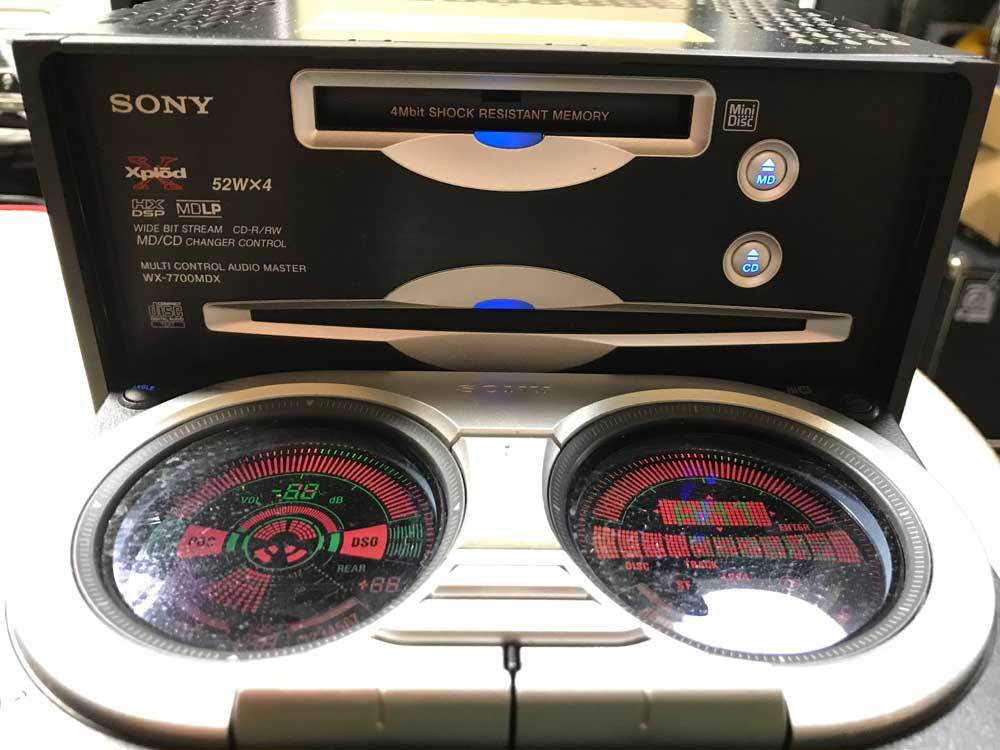

- CD/MDLP double-DIN player w/CD-R & CD-RW compatibility.

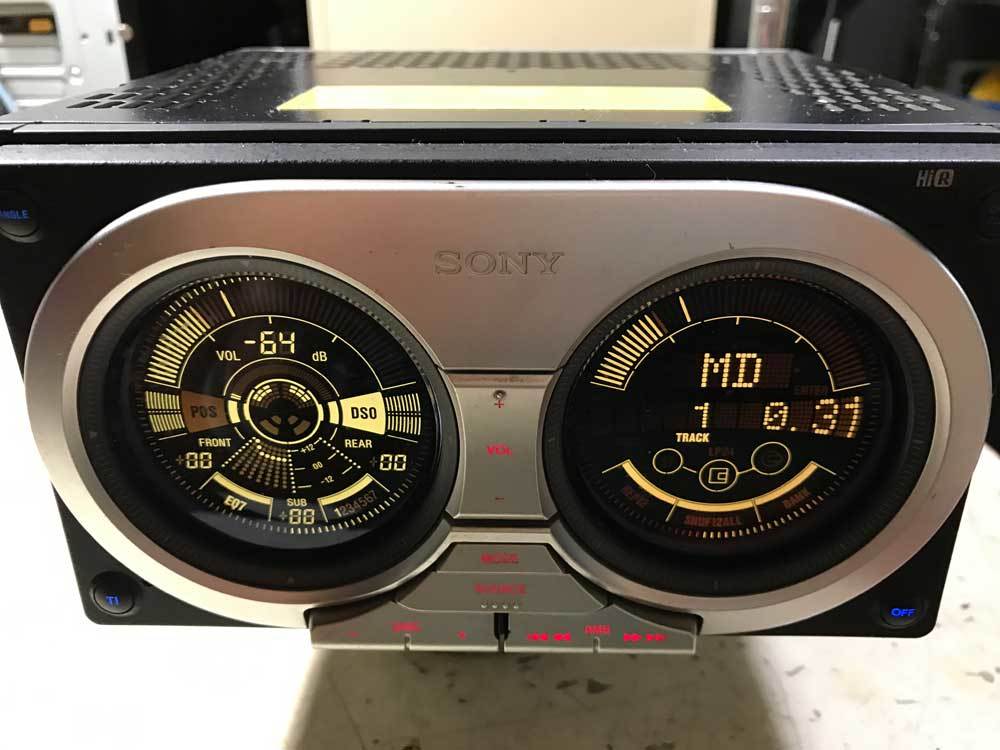

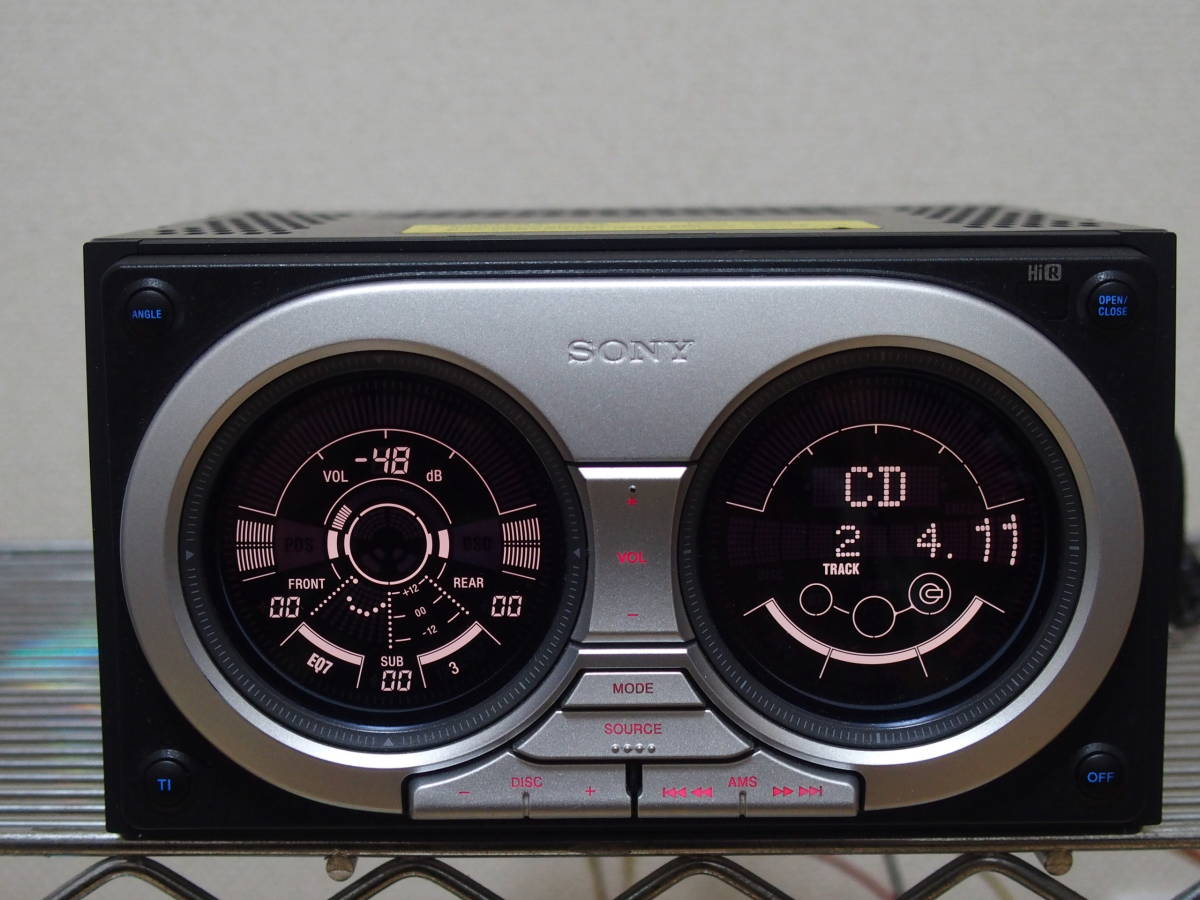

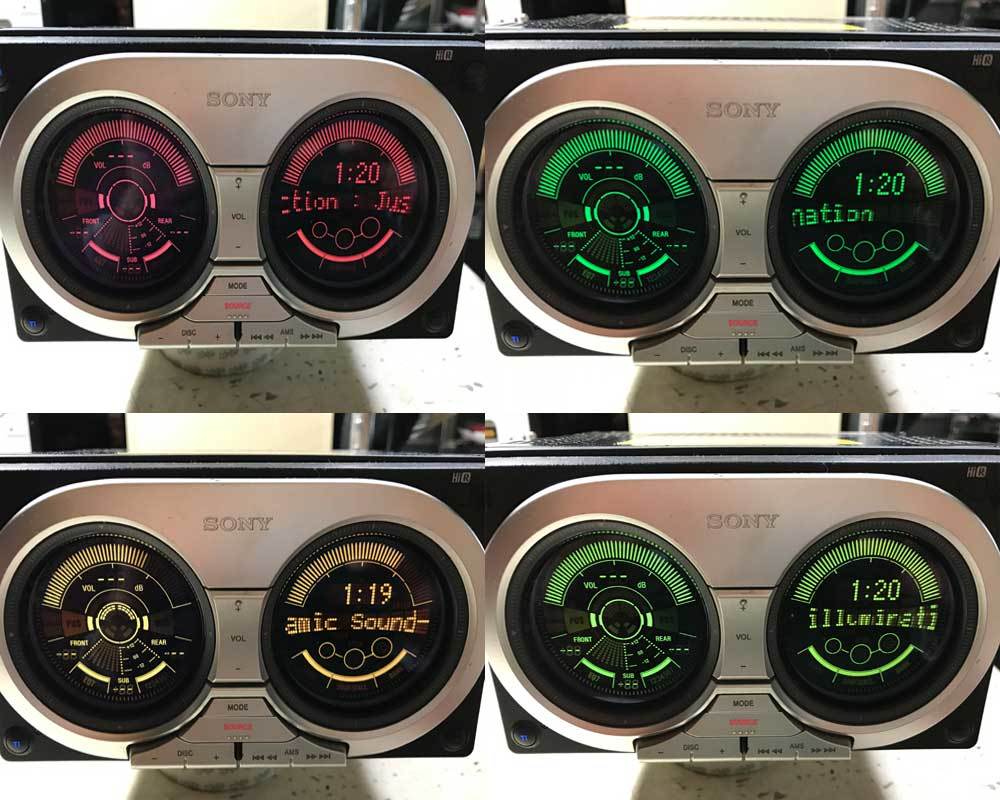

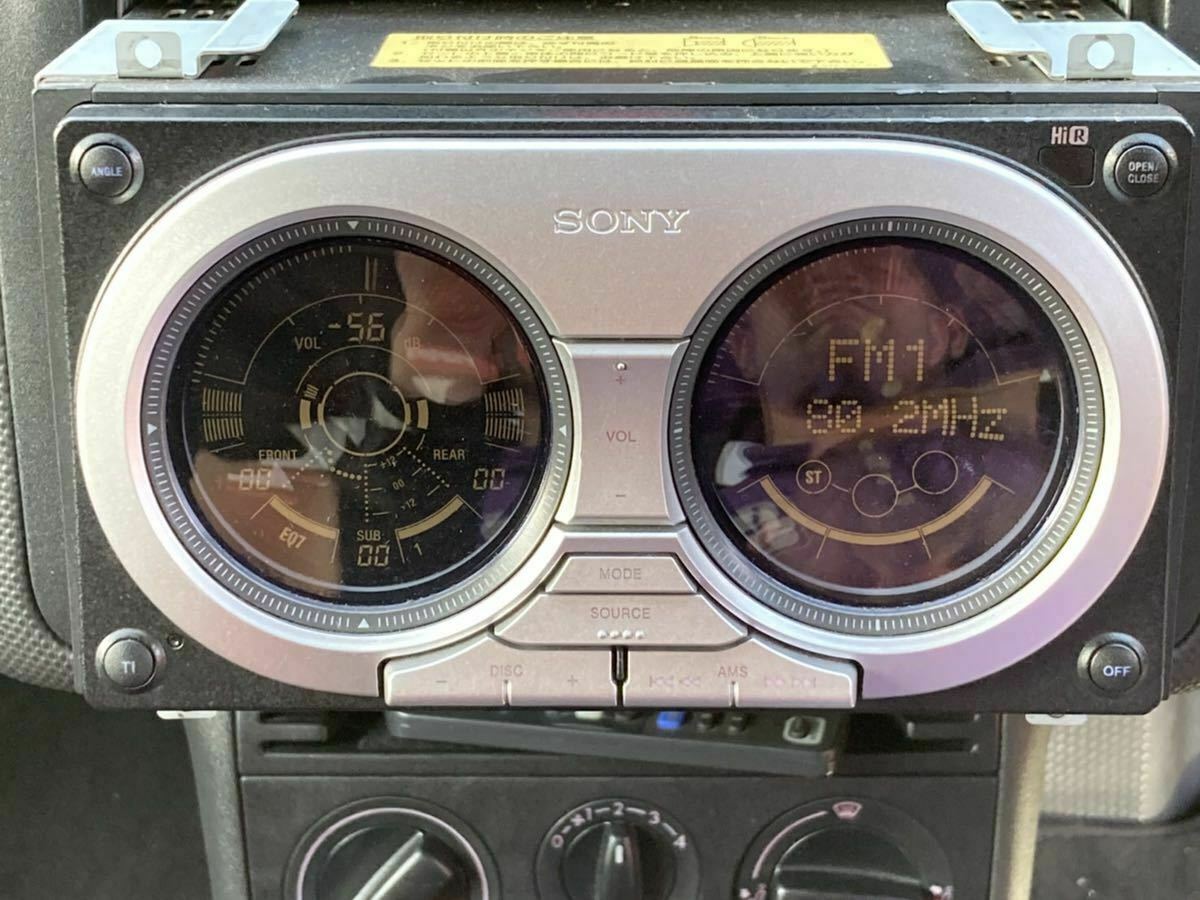

- Front panel illumination color is user selectable with separate RGB controls.

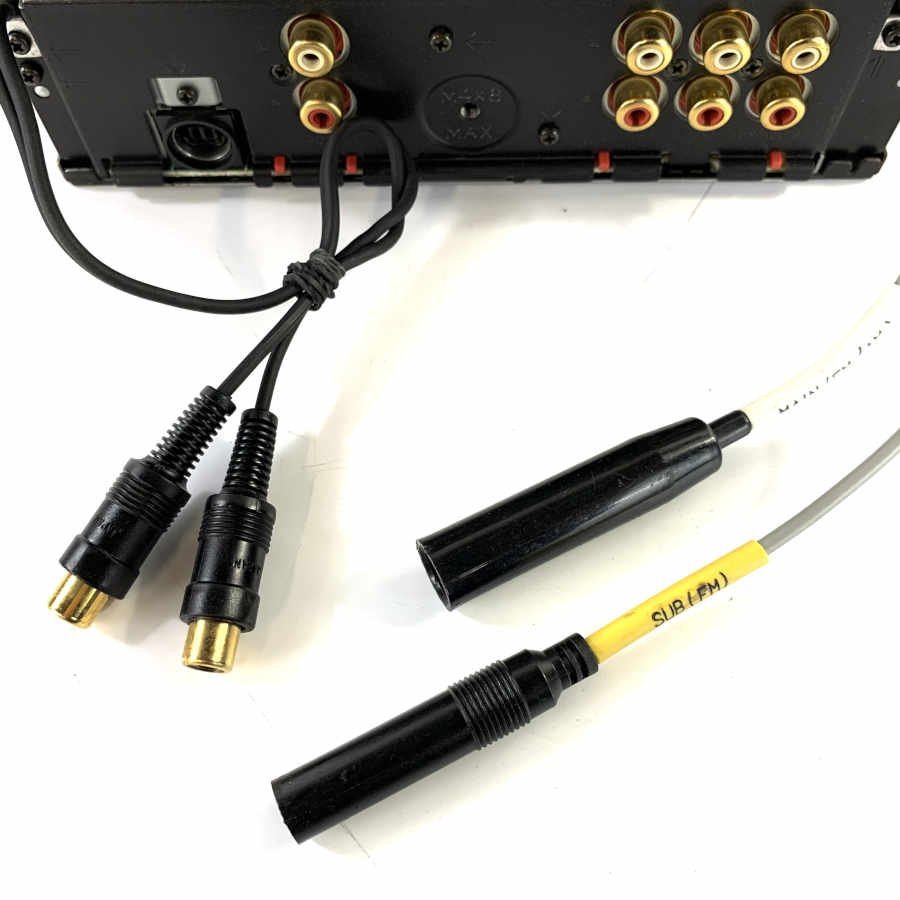

Included Accessories: Connecting cord, "Hi-band" wireless remote
Specs:
- Amp: 52W x 4
- Tuner: FM: 76.0-90.0MHz, SNR: > 74dB
- CD: SNR: > 95dB

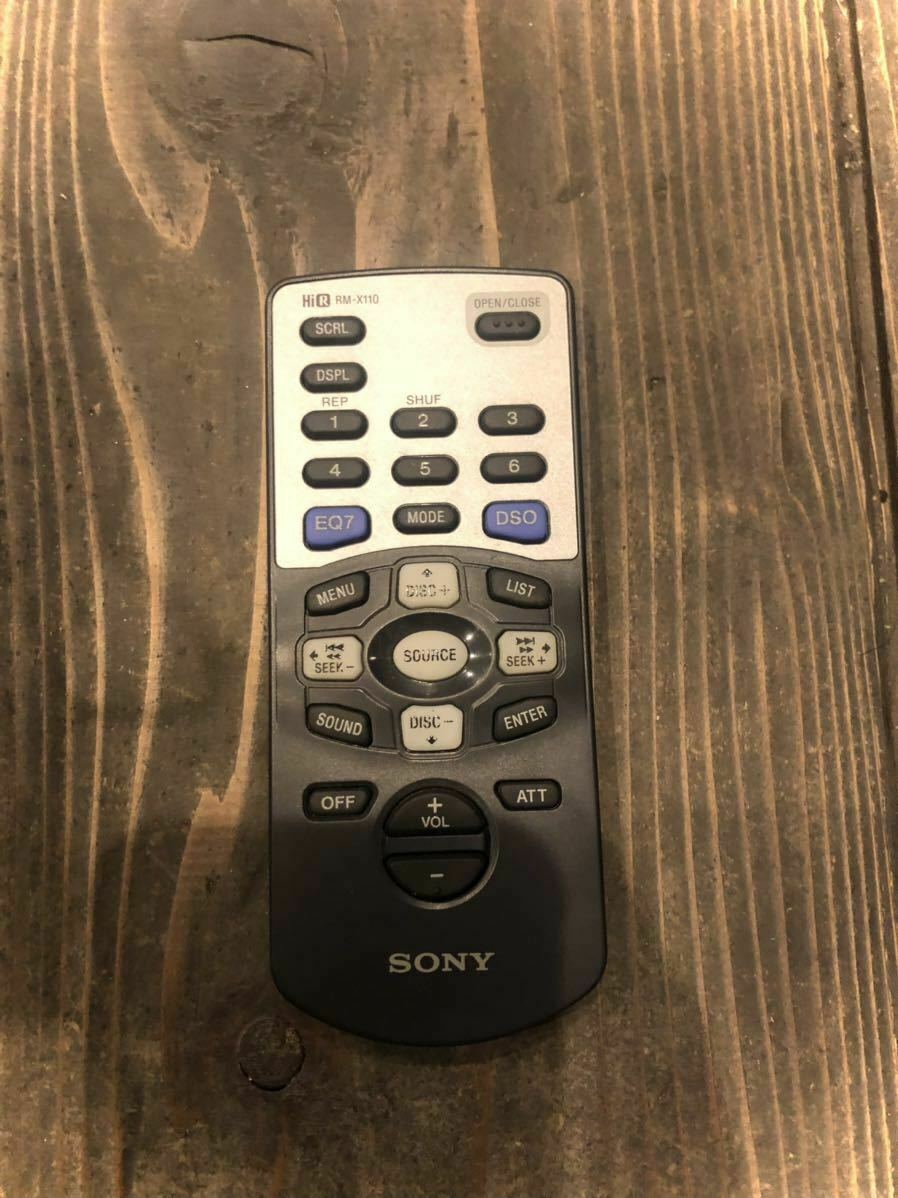

remote: rm-x110
Optical Pick-up Name KMS-241C
MD Mechanism Type MG-164MF-138
ATRAC Chip: CXD2662R
Content adapted from: Minidisc.org Sony Product Page Sony Product Page (MiniDisc Wiki mirror) sony.jp/ServiceArea av.watch tokyo motorshow
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Scms | No |
|---|---|
| Web Md | No (not NetMD) |
| Remote Page | |
| Atrac Ic | CXD2656R / CXD2662R |
| Manual | User manual, Service manual, other |
| Region | Japan |
