| Name | WX-C800MD |
|---|---|
| Manufacturer | Sony |
| Released | 1997/04 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 2-DIN 178 × 100 × 180mm |
| Weight | 2700 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥94 000 | |
| - | |

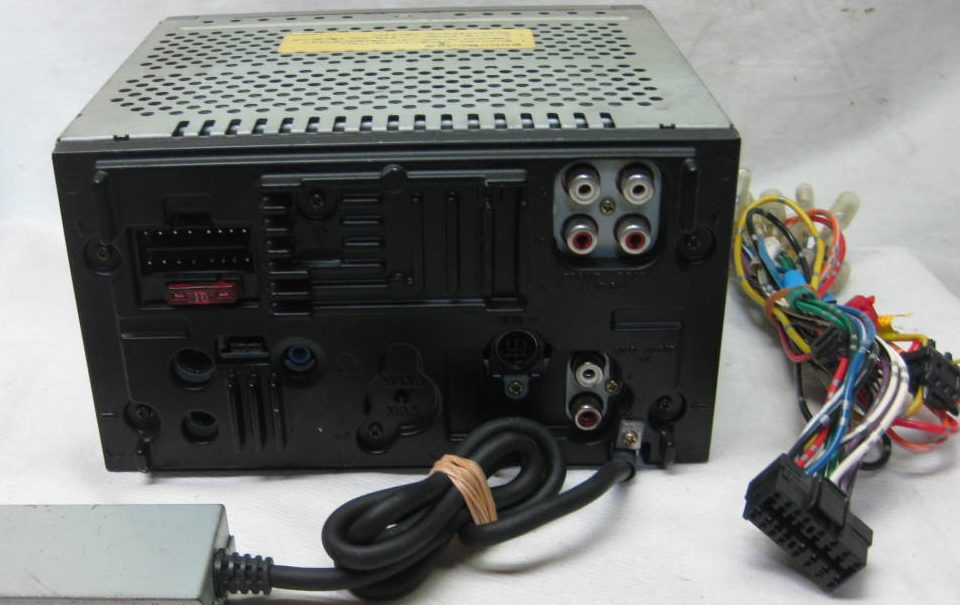

| Inputs | RCA in, CD |
| Outputs | RCA out, Speaker amplifier |
| Control | Not recorded |
Sony WX-C800MD CD + MD 2-Din unit.
Seems to share a Integrated DSP with the WX-C900MD
CD S/N: 94dB, MD S/N: 90dB
Maximum output 35W x 4 (4Ω load 1kHz)
Compatible impedance 4-8Ω
Remote: RM-X2S (wired), optional accessory: RM-X41 (wireless)
Content adapted from: Sony.jp/ServiceArea minkara.carview.co.jp
